7-20 — MIRROR AND MIRROR STAY (#68558) — 90 parça

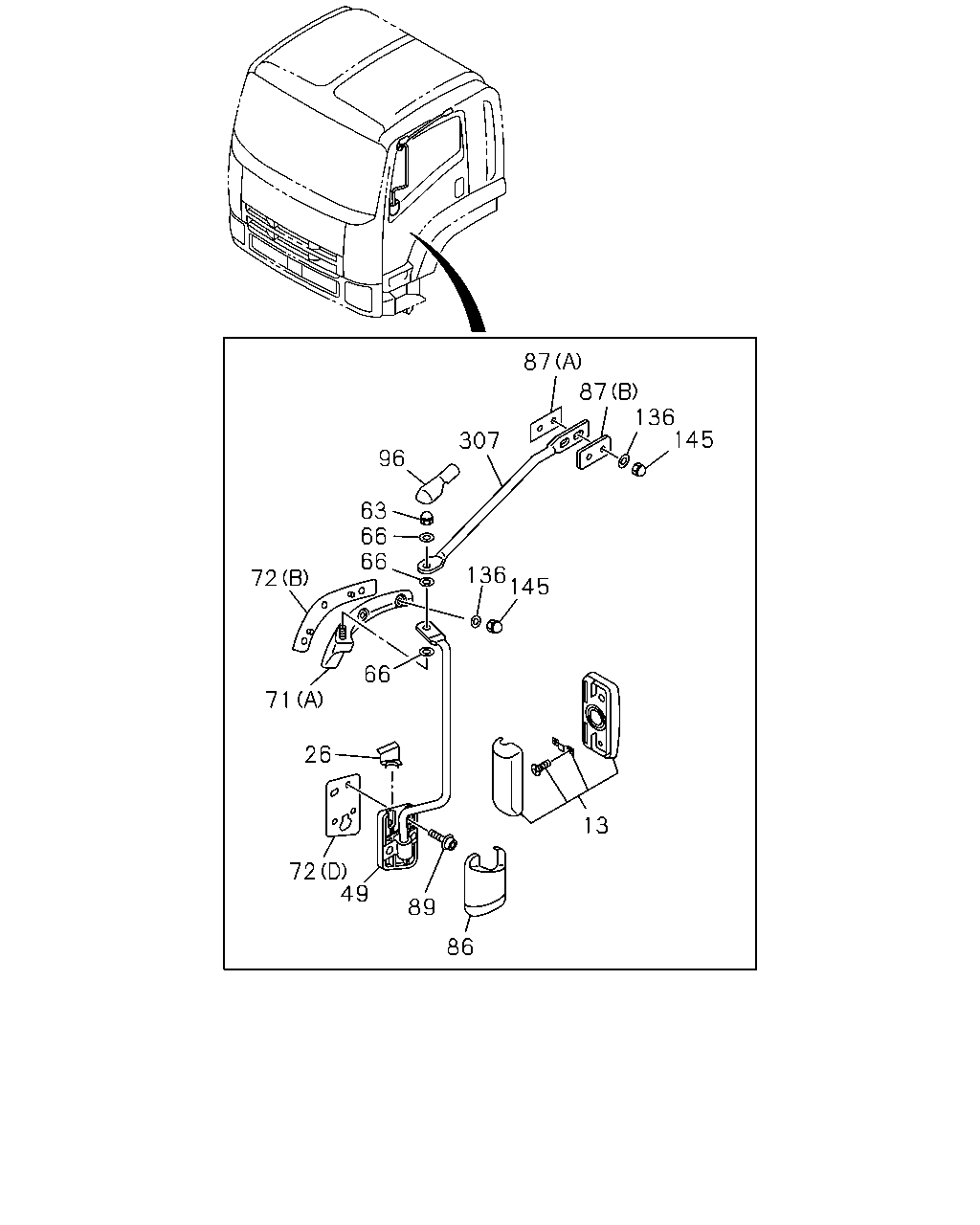

çizim 132874
87 87 136 145 307 96 63 66 66 136 145 72 66 71 26 13 72 49 89 86
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-992-1 01 1 0809-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-991-1 01 1 0809-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0809-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0809-
49 STAY; MIRROR SIDE
VIETNAM COUNTRY(CL0) 		8-98166-196-0 01 1 1401-
49 STAY; MIRROR SIDE 8-98060-216-1 01 1 0809-1202
49 STAY; MIRROR SIDE 8-98166-195-0 01 1 1203-
49 STAY; MIRROR SIDE 8-98060-215-1 01 1 0809-1202
49 STAY; MIRROR SIDE 8-98166-194-0 01 1 1203-1312
49 STAY; MIRROR SIDE
EXC. VIETNAM COUNTRY(CL0) 		8-98166-194-0 01 1 1401-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 0809-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0809-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0809-1202
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0809-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0809-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (D) 		8-98064-775-0 01 1 0809-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) 		8-98092-491-3 01 1 0809-
72 SHEET
(D) 		8-98101-864-0 01 1 0809-1202
72 SHEET
(D) 		8-98116-604-0 01 1 1203-
72 SHEET
(D) 		8-98101-865-0 01 1 0809-1202
72 SHEET
(D) 		8-98116-605-0 01 1 1203-
72 SHEET
(B) 		8-98031-797-0 01 1 0809-
72 SHEET
(C) 		8-98031-796-0 01 1 0809-
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (E) 		8-98060-225-1 01 1 0809-
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (A) 		8-98064-773-0 01 1 0809-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0809-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0809-
87 SPACER
(A) 		8-98063-786-0 02 1 0809-
87 SPACER
(B) 		8-98063-789-0 02 1 0809-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0809-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0809-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0809-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0809-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0809-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0809-

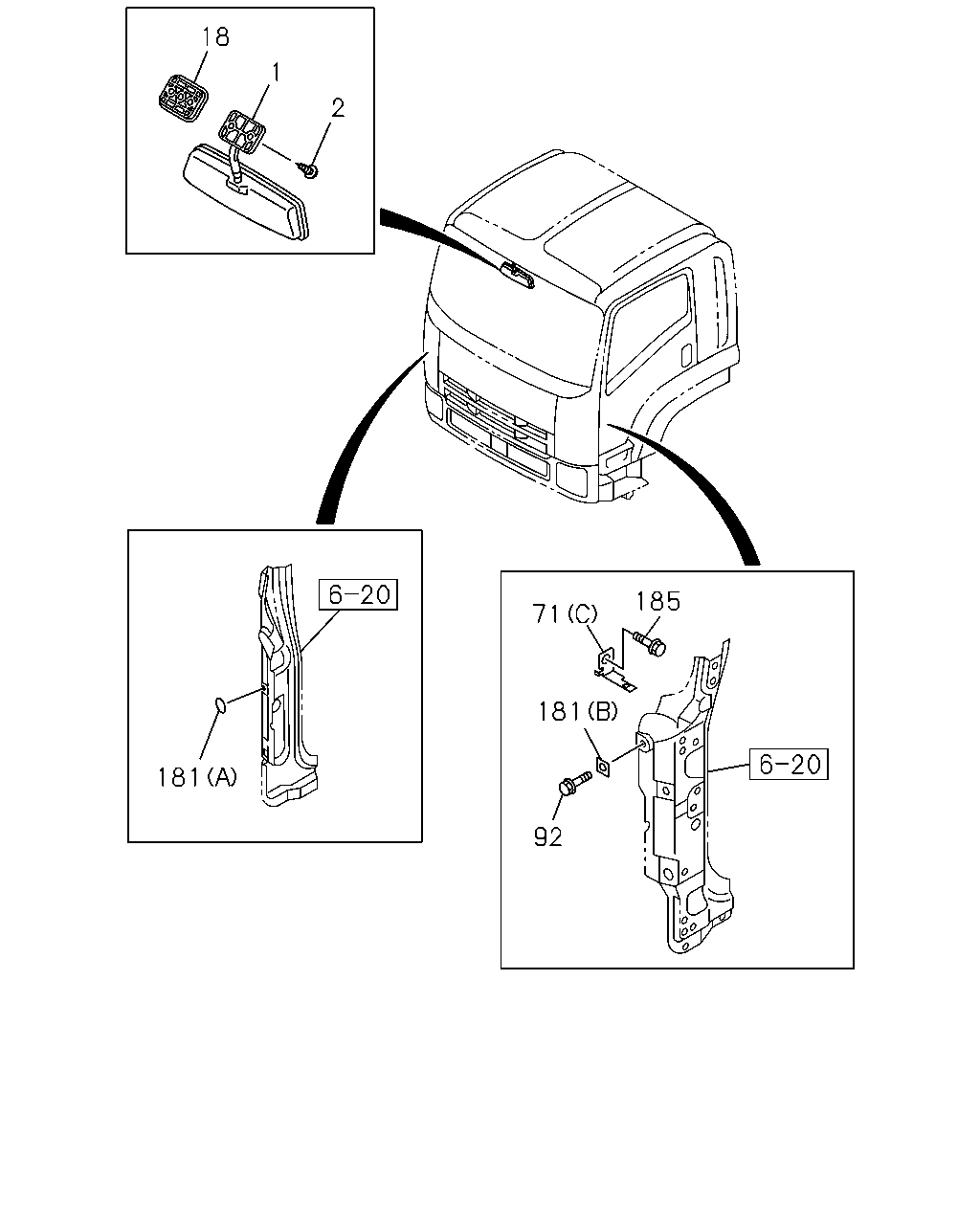

çizim 132878
18 1 2 185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0809-
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0809-
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0809-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0809-1202
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0809-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0809-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (D) 		8-98064-775-0 01 1 0809-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) 		8-98092-491-3 01 1 0809-
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 0809-
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 0809-
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0809-
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0809-1202

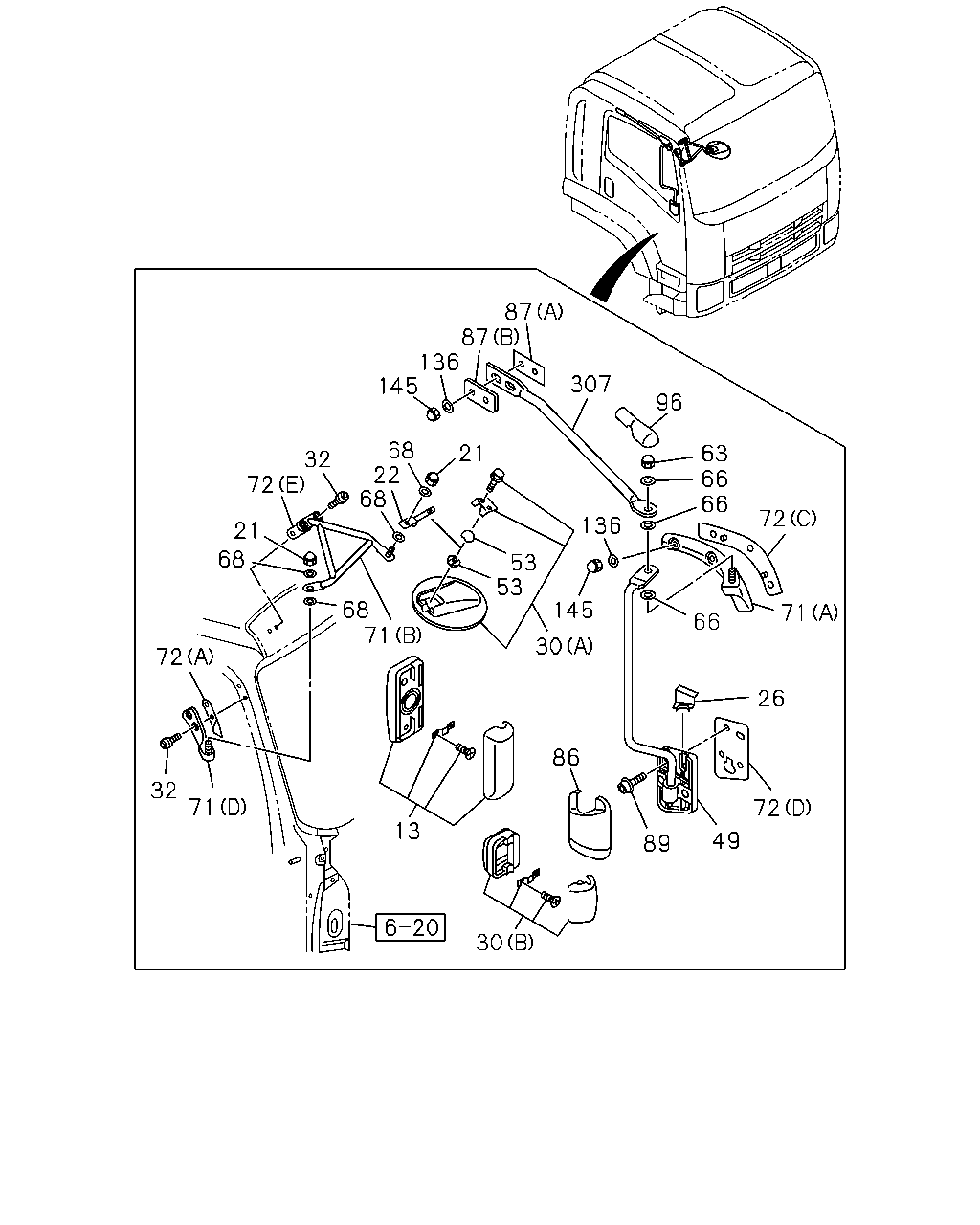

çizim 188116
71 32 72 68 21 72 32 68 22 68 145 136 87 87 307 96 63 66 66 72 71 66 26 72 49 89 86 30 145 136 53 53 71 68 13 30 21
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-992-1 01 1 0809-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-991-1 01 1 0809-
21 NUT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> M10 CAP NUT 		1-09984-134-0 02 1 0809-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-493-0 01 1 0809-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0809-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0809-
30 MIRROR; UNDER
O/SIDE MIRROR UNDER VIEW<RR9> (A) 		8-98055-994-0 01 1 0809-1504
30 MIRROR; UNDER
O/SIDE MIRROR UNDER VIEW<RR9> (A) 		8-98309-725-0 01 1 1505-
30 MIRROR; UNDER
VIETNAM COUNTRY(CL0) (B) 		8-98043-061-0 01 1 1401-
32 SCREW; UNDER MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> M8X26 W/PL WASHER 		8-98067-249-2 04 1 0809-
49 STAY; MIRROR SIDE
VIETNAM COUNTRY(CL0) 		8-98166-196-0 01 1 1401-
49 STAY; MIRROR SIDE 8-98060-216-1 01 1 0809-1202
49 STAY; MIRROR SIDE 8-98166-195-0 01 1 1203-
49 STAY; MIRROR SIDE 8-98060-215-1 01 1 0809-1202
49 STAY; MIRROR SIDE 8-98166-194-0 01 1 1203-1312
49 STAY; MIRROR SIDE
EXC. VIETNAM COUNTRY(CL0) 		8-98166-194-0 01 1 1401-
53 PIVOT; SIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> ID=19.1 		1-71737-633-2 02 1 0809-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 0809-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0809-
68 WASHER; STAY
O/SIDE MIRROR UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0809-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0809-1202
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0809-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0809-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (D) 		8-98064-775-0 01 1 0809-
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) 		8-98092-491-3 01 1 0809-
72 SHEET
(D) 		8-98101-864-0 01 1 0809-1202
72 SHEET
(D) 		8-98116-604-0 01 1 1203-
72 SHEET
(D) 		8-98101-865-0 01 1 0809-1202
72 SHEET
(D) 		8-98116-605-0 01 1 1203-
72 SHEET
(B) 		8-98031-797-0 01 1 0809-
72 SHEET
(C) 		8-98031-796-0 01 1 0809-
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (E) 		8-98060-225-1 01 1 0809-
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (A) 		8-98064-773-0 01 1 0809-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0809-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0809-
87 SPACER
(A) 		8-98063-786-0 02 1 0809-
87 SPACER
(B) 		8-98063-789-0 02 1 0809-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0809-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0809-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0809-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0809-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0809-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0809-
