Sayfa 6-04 - Isuzu EPC

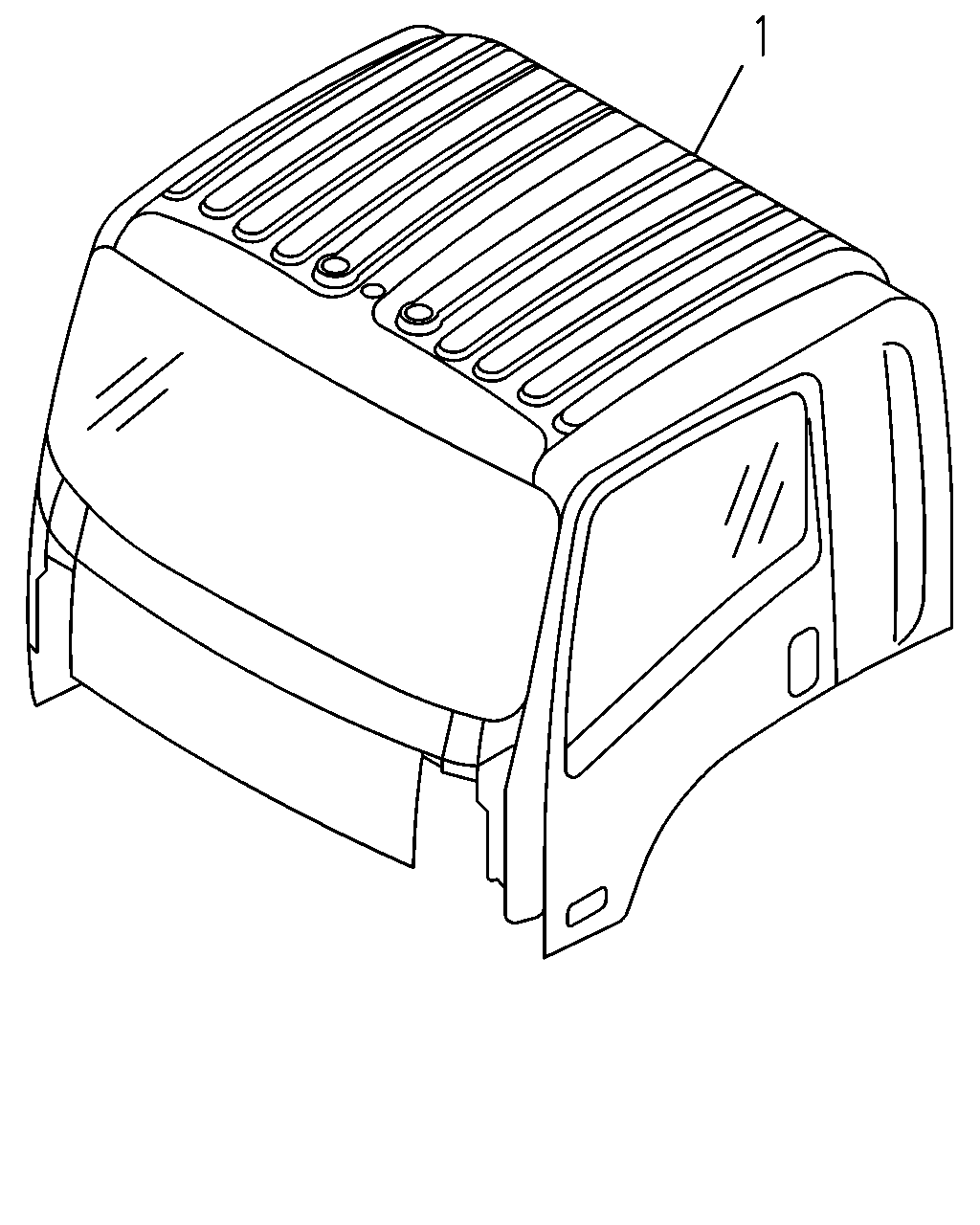

6-04 — CAB ASM (#68536) — 3 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL TANK 200L FRAME SIDE<N20> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,ROUND CURTAIN RAIL<EDH>,FUEL TANK CAP KEY LOCK<N05>,O/SIDE MIRROR UNDER VIEW<RR9>,2-SPEAKER SYSTEM BASE<U95>,INTERIOR FULL TRIM<WM3>,ASH TRAY PASSENGERDOOR<8LX>	1-61087-585-0	01	1	1109-
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) FULLER ES11109 DD M/T(Y5N) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL TANK 200L FRAME SIDE<N20> AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> INTERIOR FULL TRIM<WM3> EXC. ROUND CURTAIN RAIL<EDH>,FUEL TANK CAP KEY LOCK<N05>,O/SIDE MIRROR UNDER VIEW<RR9>,2-SPEAKER SYSTEM BASE<U95>,ASH TRAY PASSENGER DOOR<8LX>	1-61088-115-0	01	1	1109-
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL TANK 200L FRAME SIDE<N20> AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> INTERIOR FULL TRIM<WM3> EXC. ROUND CURTAIN RAIL<EDH>,FUEL TANK CAP KEY LOCK<N05>,O/SIDE MIRROR UNDER VIEW<RR9>,2-SPEAKER SYSTEM BASE<U95>,ASH TRAY PASSENGER DOOR<8LX>	1-61087-588-0	01	1	1109-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
