3-22 — AIR CONTROL PARTS (#6853) — 177 parça

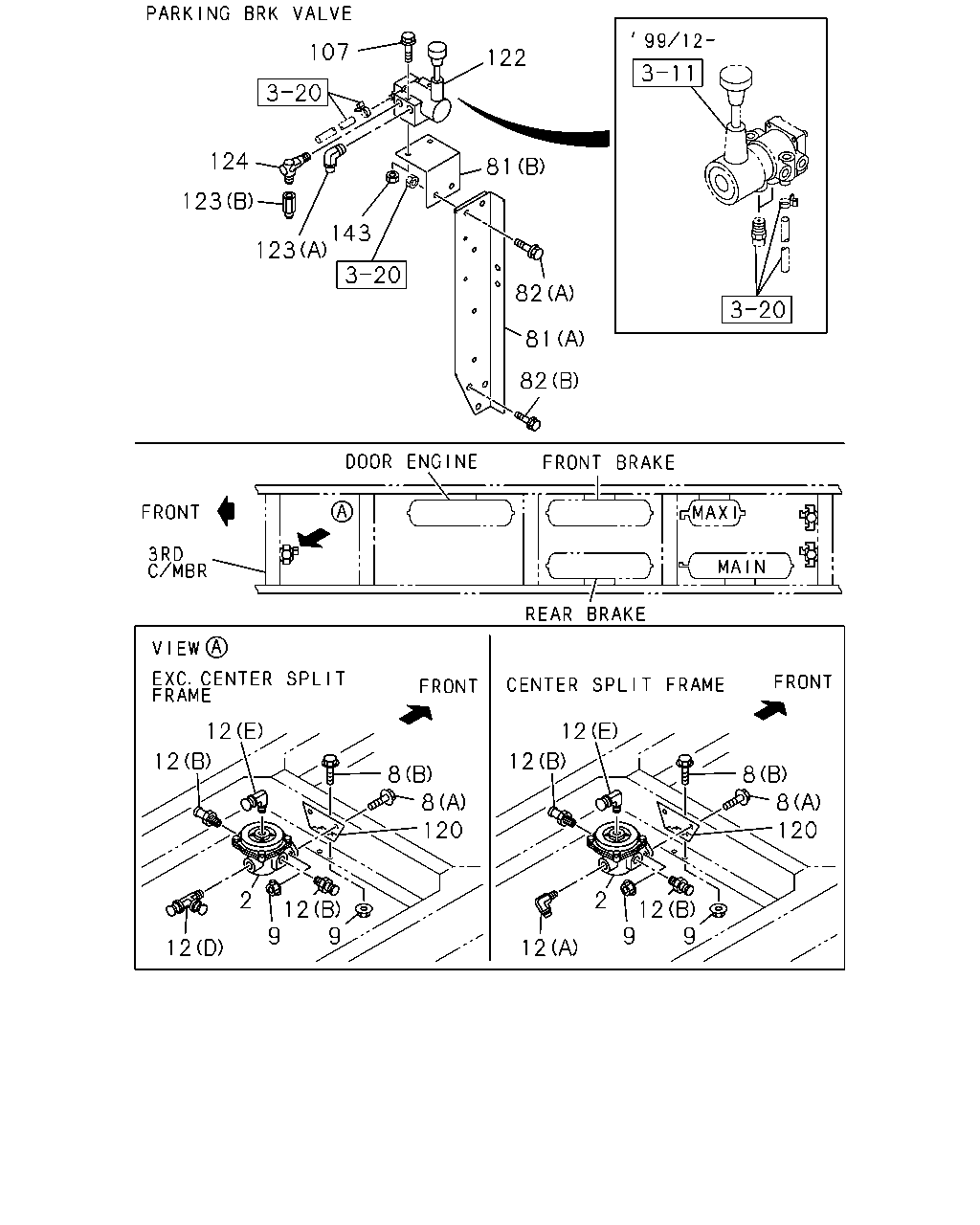

107 122 124 81 123 143 123 82 81 82 12 12 12 12 8 8 120 8 8 120 2 12 9 9 12 9 9 12 12 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY REAR	1-48210-755-0	01	1	0209-
2	VALVE; RELAY BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48210-278-0	01	1	9806-9911
2	VALVE; RELAY BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48210-278-0	01	1	9806-9911
2	VALVE; RELAY	1-48210-278-0	02	1	9912-0208
2	VALVE; RELAY FRONT	1-48210-278-0	01	1	0209-
8	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M10X25 FLANGE	0-28681-025-0	02	1	9806-9911
8	BOLT; BRKT (A) M10X25 FLANGE	0-28681-025-0	02	1	9912-0512
8	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	02	1	0601-
8	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M10X35 FLANGE	0-28681-035-0	02	1	9806-9911
8	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	9912-0106
8	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	0107-0512
8	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
9	NUT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE	0-91150-210-0	04	1	9806-9911
9	NUT M10 FLANGE	0-91150-210-0	04	1	9912-0602
9	NUT M10 FLANGE	0-91180-210-0	04	1	0603-
12	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (E) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9806-9911
12	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (E) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9806-9911
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9912-0306
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0307-
12	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	9806-9911
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	9912-0306
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0307-
12	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK REGULATION HONG KONG<TCZ> (A) DIN12 & R1/2 ELBOW	1-09660-654-1	02	1	9806-9911
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-654-1	03	1	9912-0306
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0307-
12	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK REGULATION HONG KONG<TCZ> (C) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	9806-9911
12	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK REGULATION HONG KONG<TCZ> (A) DIN12 & R1/2 ELBOW	1-09660-654-1	03	1	9806-9911
12	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) CTR SPLIT FRAME<TLW> (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9806-9911
12	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CTR SPLIT FRAME<TLW> (D)	1-09660-719-1	01	1	9806-9911
12	CONNECTOR; RELAY VLV (D)	1-09660-719-1	01	1	9912-
81	BRACKET; RELAY VLV,PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-46147-238-2	01	1	9806-9911
81	BRACKET; RELAY VLV,PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	1-48219-074-0	01	1	9806-9911
81	BRACKET; RELAY VLV,PARKING BRK (C)	8-97530-808-0	01	1	9912-
81	BRACKET; RELAY VLV,PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-48495-155-0	01	1	9806-9911
82	BOLT; BRKT,RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M10X30 FLANGE	0-28681-030-0	02	1	9806-9911
82	BOLT; BRKT,RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M10X35 FLANGE	0-28681-035-0	02	1	9806-9911
82	BOLT; BRKT,RELAY VLV (C) M10X35 FLANGE	0-28681-035-0	02	1	9912-0106
82	BOLT; BRKT,RELAY VLV (C) M10X25 FLANGE	0-28681-025-0	02	1	0107-0512
82	BOLT; BRKT,RELAY VLV (C) M10X25 FLANGE	0-28651-025-0	02	1	0601-
82	BOLT; BRKT,RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12X35 FLANGE	0-28681-235-0	03	1	9806-9911
107	BOLT; VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X70 FLANGE	0-28080-870-0	02	1	9806-9911
107	BOLT; VLV M8X70 FLANGE	0-28080-870-0	02	1	9912-0512
107	BOLT; VLV M8X70 FLANGE	0-28050-870-0	02	1	0601-
120	BRACKET; VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48219-074-0	01	1	9806-9911
120	BRACKET; VLV	8-97530-808-0	01	1	9912-
122	VALVE ASM; CONT,WHEEL PARKING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48460-151-0	01	1	9806-9911
123	CONNECTOR; PARKING VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9806-9911
123	CONNECTOR; PARKING VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9806-9911
124	CONNECTOR; PARKING VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-09650-240-1	01	1	9806-9911
143	NUT; VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91150-108-0	02	1	9806-9911
143	NUT; VLV M8 FLANGE	0-91150-108-0	02	1	9912-0602
143	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	0603-

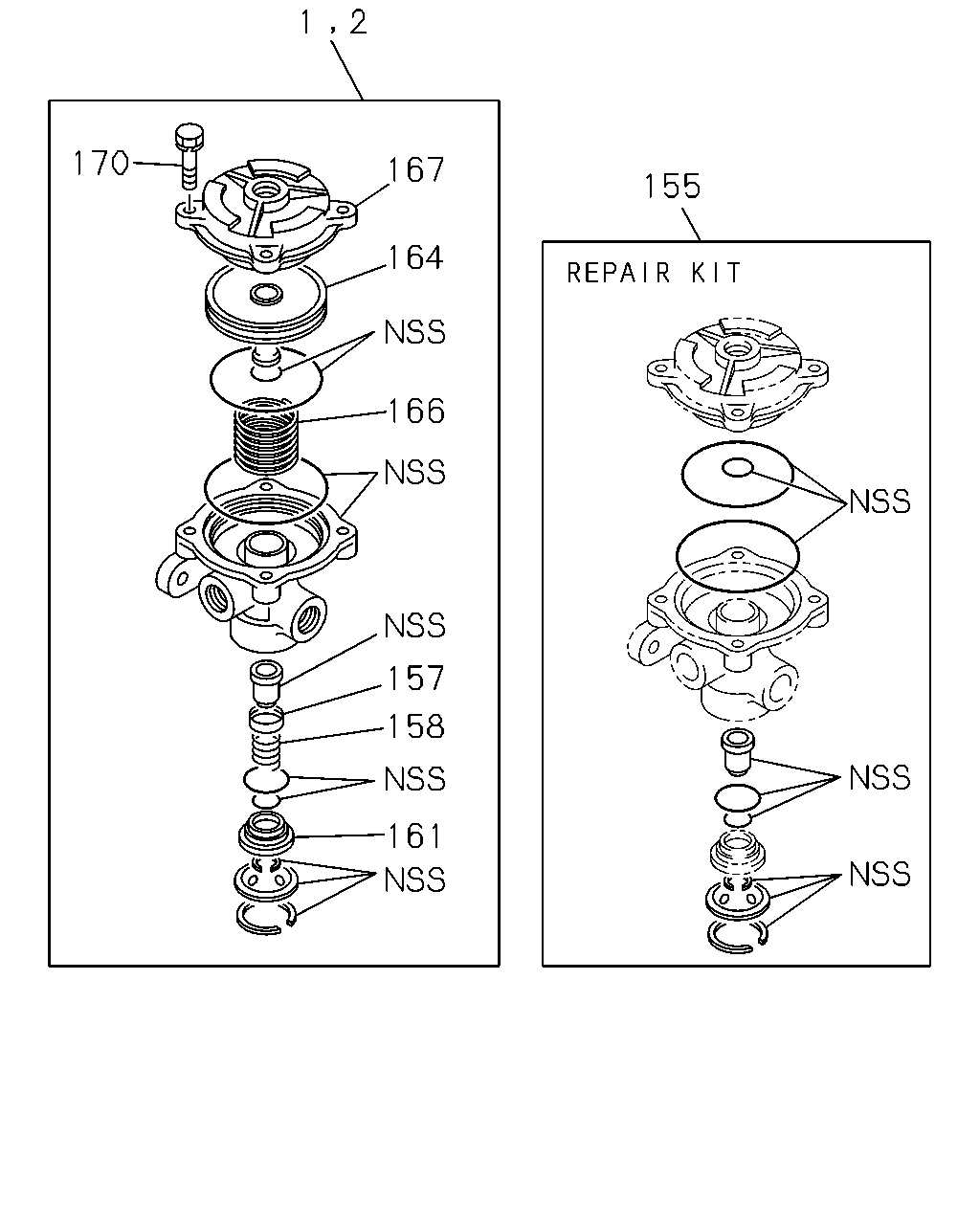

2 1 170 167 155 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48210-278-0	01	1	9806-9911
1	VALVE; RELAY RWD RR	1-48210-278-0	01	1	9912-
2	VALVE; RELAY REAR	1-48210-755-0	01	1	0209-
2	VALVE; RELAY BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48210-278-0	01	1	9806-9911
2	VALVE; RELAY BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48210-278-0	01	1	9806-9911
2	VALVE; RELAY	1-48210-278-0	02	1	9912-0208
2	VALVE; RELAY FRONT	1-48210-278-0	01	1	0209-
155	REPAIR KIT; RELAY VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-033-0	01	1	9806-9911
155	REPAIR KIT; RELAY VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-033-0	01	1	9806-9911
155	REPAIR KIT; RELAY VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-033-0	01	1	9806-9911
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	03	1	9912-
157	RETAINER; VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48213-002-0	01	1	9806-9911
157	RETAINER; VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48213-002-0	01	1	9806-9911
157	RETAINER; VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48213-002-0	01	1	9806-9911
157	RETAINER; VALVE	1-48213-002-0	03	1	9912-
158	SPRING; VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47819-089-0	01	1	9806-9911
158	SPRING; VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47819-089-0	01	1	9806-9911
158	SPRING; VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47819-089-0	01	1	9806-9911
158	SPRING; VALVE	1-47819-089-0	03	1	9912-
161	GUIDE; VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48129-014-0	01	1	9806-9911
161	GUIDE; VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48129-014-0	01	1	9806-9911
161	GUIDE; VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48129-014-0	01	1	9806-9911
161	GUIDE; VALVE	1-48129-014-0	03	1	9912-
164	PISTON; RELAY VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48219-071-0	01	1	9806-9911
164	PISTON; RELAY VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48219-071-0	01	1	9806-9911
164	PISTON; RELAY VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48219-071-0	01	1	9806-9911
164	PISTON; RELAY VALVE	1-48219-071-0	03	1	9912-
166	SPRING; PISTON BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47819-090-0	01	1	9806-9911
166	SPRING; PISTON BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47819-090-0	01	1	9806-9911
166	SPRING; PISTON BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47819-090-0	01	1	9806-9911
166	SPRING; PISTON	1-47819-090-0	03	1	9912-
167	COVER; VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48219-070-0	01	1	9806-9911
167	COVER; VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48219-070-0	01	1	9806-9911
167	COVER; VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48219-070-0	01	1	9806-9911
167	COVER; VALVE	1-48219-070-0	03	1	9912-
170	SCREW; COVER TO BODY BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48219-039-0	04	1	9806-9911
170	SCREW; COVER TO BODY BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48219-039-0	04	1	9806-9911
170	SCREW; COVER TO BODY BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48219-039-0	04	1	9806-9911
170	SCREW; COVER TO BODY	1-48219-039-0	12	1	9912-

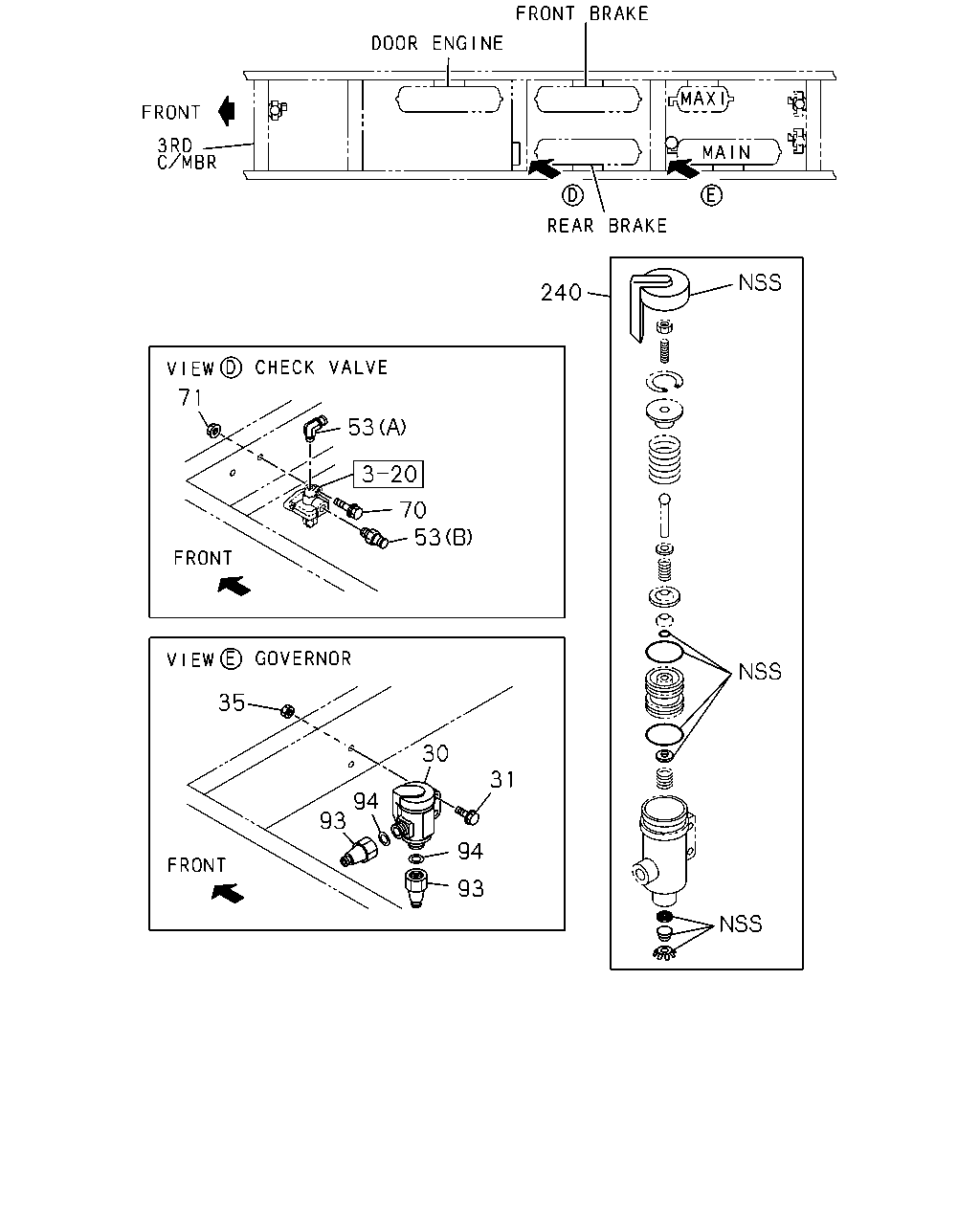

240 71 53 70 53 35 30 31 94 93 94 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9806-0107
30	GOVERNOR; AIR CONT	1-48350-058-0	01	1	0108-
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	9806-0512
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0601-
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9806-0602
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-
53	CONNECTOR; AIR VLV DOOR CONT AIR W/SUB AIR TANK<SGW> (A) DIN12 & R1/4 ELBOW	1-09660-655-1	01	1	9806-9911
53	CONNECTOR; AIR VLV DOOR CONT AIR W/SUB AIR TANK<SGW> (B) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	9806-9911
70	BOLT; AIR VLV DOOR CONT AIR W/SUB AIR TANK<SGW> M8X30 FLANGE	0-28680-830-0	02	1	9806-9911
71	NUT; AIR VLV DOOR CONT AIR W/SUB AIR TANK<SGW> M8 FLANGE	0-91150-108-0	02	1	9806-9911
93	CONNECTOR; GOV DIN8 & M20 STRAIGHT	1-09660-675-1	02	1	9806-
94	GASKET; GOV ID=11 OD=18	9-09572-510-0	02	1	9806-
240	REPAIR KIT; AIR CONT GOV	1-85576-466-0	01	1	9806-

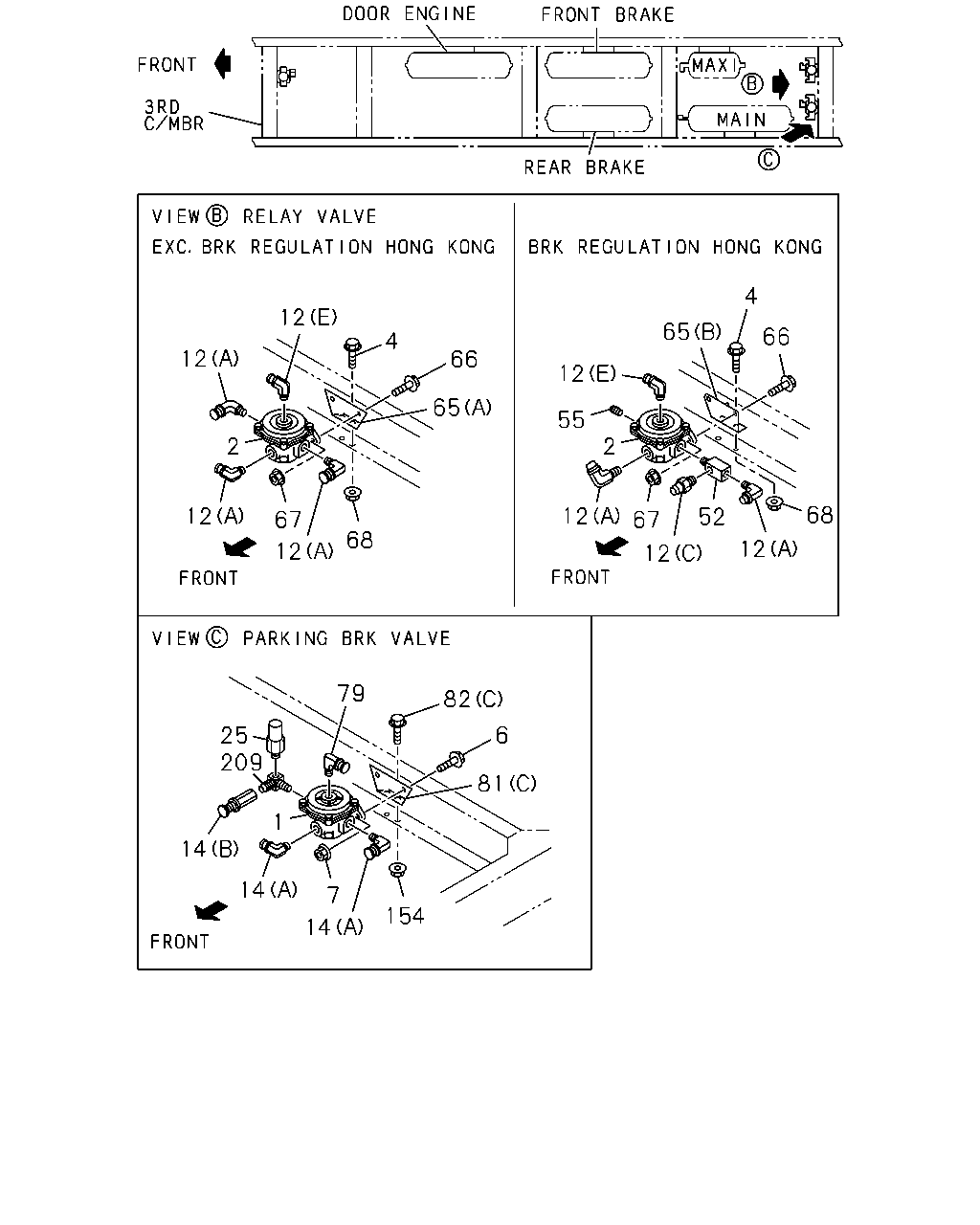

4 12 65 66 4 12 66 12 65 55 2 2 68 12 12 52 67 67 68 12 12 12 79 82 6 25 209 81 1 14 14 7 154 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48210-278-0	01	1	9806-9911
1	VALVE; RELAY RWD RR	1-48210-278-0	01	1	9912-
2	VALVE; RELAY REAR	1-48210-755-0	01	1	0209-
2	VALVE; RELAY BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48210-278-0	01	1	9806-9911
2	VALVE; RELAY BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48210-278-0	01	1	9806-9911
2	VALVE; RELAY	1-48210-278-0	02	1	9912-0208
2	VALVE; RELAY FRONT	1-48210-278-0	01	1	0209-
4	BOLT; RELAY VLV TO BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X35 FLANGE	0-28681-035-0	02	1	9806-9911
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	02	1	9912-0106
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	0107-0512
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-
6	BOLT; VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X40 FLANGE	0-28681-040-0	02	1	9806-9911
6	BOLT; VLV M10X40 FLANGE	0-28681-040-0	02	1	9912-0106
6	BOLT; VLV M10X30 FLANGE	0-28681-030-0	02	1	0107-0512
6	BOLT; VLV M10X30 FLANGE	0-28651-030-0	02	1	0601-
7	NUT; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE	0-91150-210-0	02	1	9806-9911
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	9912-0602
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-
12	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (E) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9806-9911
12	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (E) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9806-9911
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9912-0306
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0307-
12	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	9806-9911
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	9912-0306
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0307-
12	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK REGULATION HONG KONG<TCZ> (A) DIN12 & R1/2 ELBOW	1-09660-654-1	02	1	9806-9911
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-654-1	03	1	9912-0306
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0307-
12	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK REGULATION HONG KONG<TCZ> (C) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	9806-9911
12	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK REGULATION HONG KONG<TCZ> (A) DIN12 & R1/2 ELBOW	1-09660-654-1	03	1	9806-9911
12	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) CTR SPLIT FRAME<TLW> (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9806-9911
12	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CTR SPLIT FRAME<TLW> (D)	1-09660-719-1	01	1	9806-9911
12	CONNECTOR; RELAY VLV (D)	1-09660-719-1	01	1	9912-
14	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN12 & R1/2 ELBOW	1-09660-654-1	02	1	9806-9911
14	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-654-1	02	1	9912-0306
14	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0307-
14	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9806-9911
14	CONNECTOR; RELAY VLV (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9912-
25	SWITCH; PRESSURE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-82410-163-0	01	1	9806-9911
25	SWITCH; PRESSURE	1-82410-163-1	01	1	9912-
52	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK REGULATION HONG KONG<TCZ> PT1/2	1-09664-041-1	01	1	9806-9911
55	PLUG; SUPPLY BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK REGULATION HONG KONG<TCZ> PT1/2	9-09204-521-0	01	1	9806-9911
65	BRACKET; RELAY VLV RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) CTR SPLIT FRAME<TLW> (B)	1-48219-130-0	01	1	9806-9911
65	BRACKET; RELAY VLV RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CTR SPLIT FRAME<TLW> (A)	1-48219-074-0	01	1	9806-9911
65	BRACKET; RELAY VLV RR (A)	8-97530-808-0	01	1	9912-
66	BOLT; BRKT,RELAY VLV RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X35 FLANGE	0-28681-035-0	02	1	9806-9911
66	BOLT; BRKT,RELAY VLV RR M10X35 FLANGE	0-28681-035-0	02	1	9912-0106
66	BOLT; BRKT,RELAY VLV RR M10X25 FLANGE	0-28681-025-0	02	1	0107-0512
66	BOLT; BRKT,RELAY VLV RR M10X25 FLANGE	0-28651-025-0	02	1	0601-
67	NUT; BRKT,RELAY VLV RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE	0-91150-210-0	02	1	9806-9911
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91150-210-0	02	1	9912-0602
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91180-210-0	02	1	0603-
68	NUT; RELAY VLV TO BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE	0-91150-210-0	02	1	9806-9911
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	9912-0602
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
79	CONNECTOR; RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9806-9911
79	CONNECTOR; RELAY VLV DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9912-0306
79	CONNECTOR; RELAY VLV DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0307-
81	BRACKET; RELAY VLV,PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-46147-238-2	01	1	9806-9911
81	BRACKET; RELAY VLV,PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	1-48219-074-0	01	1	9806-9911
81	BRACKET; RELAY VLV,PARKING BRK (C)	8-97530-808-0	01	1	9912-
81	BRACKET; RELAY VLV,PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-48495-155-0	01	1	9806-9911
82	BOLT; BRKT,RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M10X30 FLANGE	0-28681-030-0	02	1	9806-9911
82	BOLT; BRKT,RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M10X35 FLANGE	0-28681-035-0	02	1	9806-9911
82	BOLT; BRKT,RELAY VLV (C) M10X35 FLANGE	0-28681-035-0	02	1	9912-0106
82	BOLT; BRKT,RELAY VLV (C) M10X25 FLANGE	0-28681-025-0	02	1	0107-0512
82	BOLT; BRKT,RELAY VLV (C) M10X25 FLANGE	0-28651-025-0	02	1	0601-
82	BOLT; BRKT,RELAY VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12X35 FLANGE	0-28681-235-0	03	1	9806-9911
154	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE	0-91150-210-0	02	1	9806-9911
154	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9912-0602
154	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
209	CONNECTOR; 3WAY,DEL BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-09656-672-0	01	1	9806-9911
209	CONNECTOR; 3WAY,DEL	1-09656-672-0	01	1	9912-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
