◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11153 - FVZ(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#68521) — 24 parça

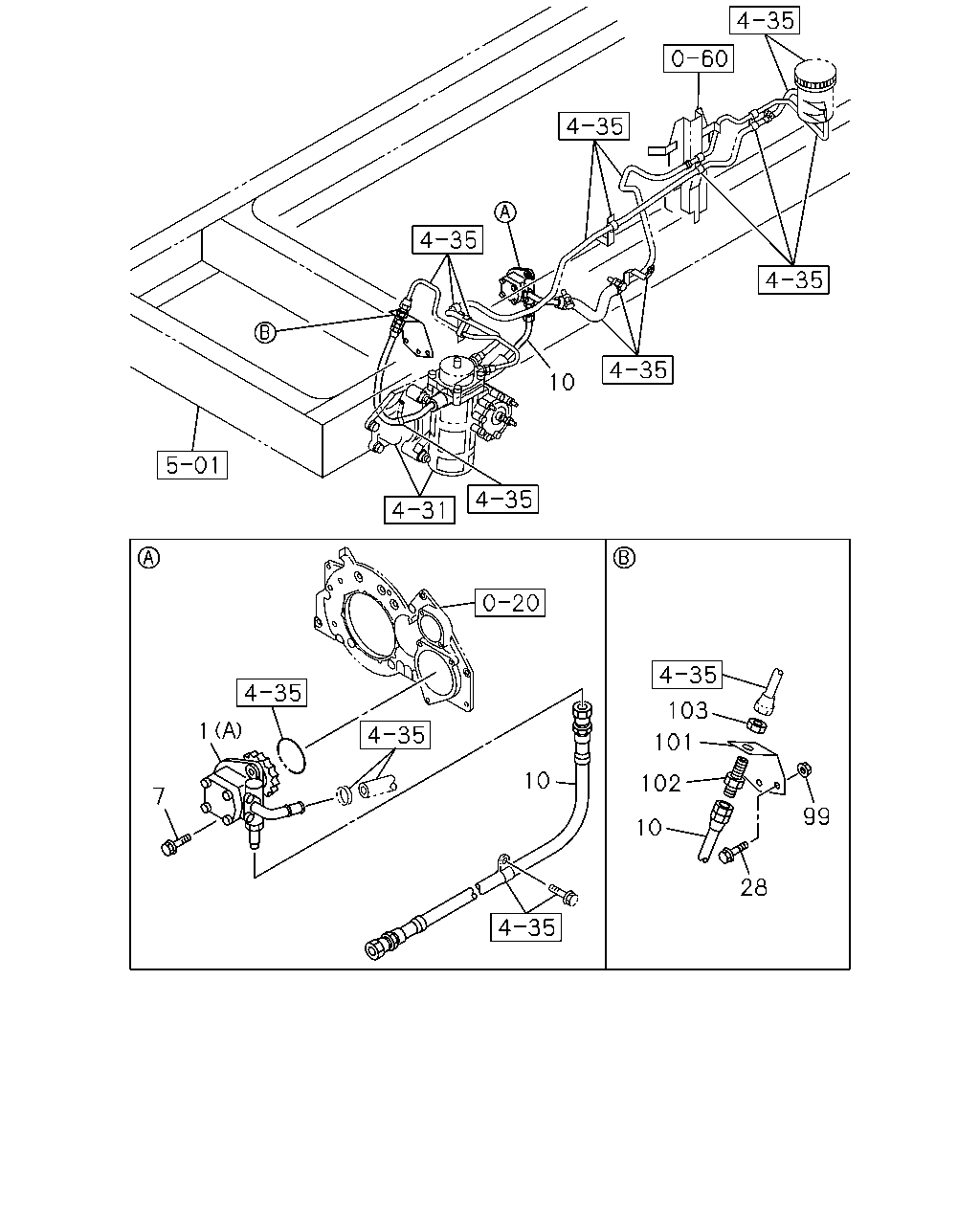

çizim 123836
10 103 1 101 10 102 7 99 10 28
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) (B) 		1-19500-627-1 01 1 0909-0910
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		1-19500-629-1 01 1 0809-0908
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) (A) 		1-19500-629-1 01 1 0909-0910
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		1-19500-629-1 01 1 0911-
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 02 1 0809-
10 HOSE; FLEX,P/S OIL PUMP,INL 8-98128-170-1 01 1 0809-
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE 		0-28650-820-0 02 1 0809-
99 NUT; BRKT,FLEX HOSE,P/S
M8 FLANGE 		0-91180-108-0 02 1 0809-
101 BRACKET; UNION 8-98052-888-1 01 1 0809-
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0809-
103 NUT; UNION
M22 		0-91111-522-0 01 1 0809-

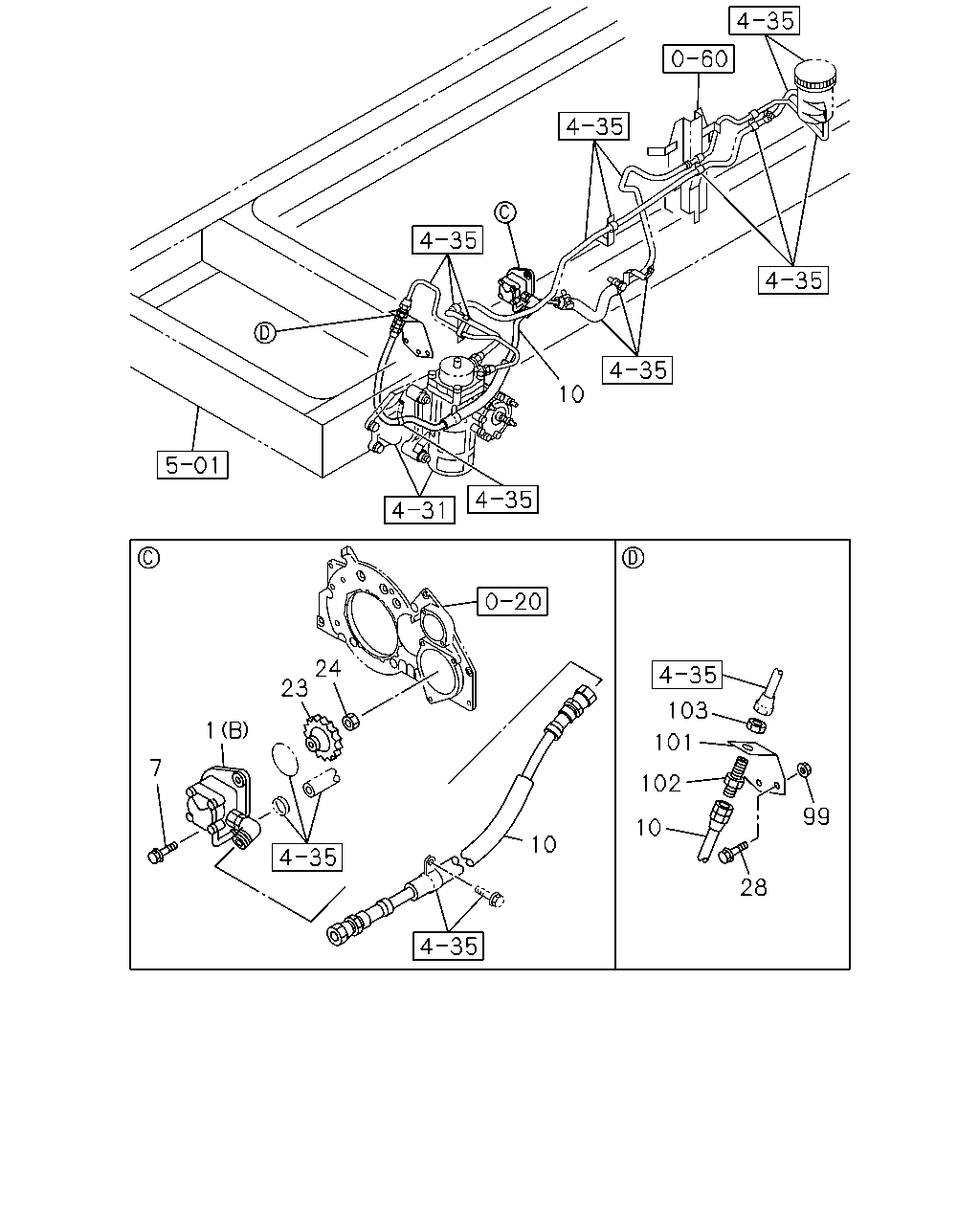

çizim 124156
10 24 23 103 1 101 7 102 99 10 10 28
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) (B) 		1-19500-627-1 01 1 0909-0910
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		1-19500-629-1 01 1 0809-0908
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) (A) 		1-19500-629-1 01 1 0909-0910
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		1-19500-629-1 01 1 0911-
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 02 1 0809-
10 HOSE; FLEX,P/S OIL PUMP,INL 8-98128-170-1 01 1 0809-
23 GEAR; OIL PUMP
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) Z=30 		8-94396-957-3 01 1 0909-0910
24 NUT; GEAR,P/S PUMP
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) M14 FLANGE 		0-91180-114-0 01 1 0909-0910
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE 		0-28650-820-0 02 1 0809-
99 NUT; BRKT,FLEX HOSE,P/S
M8 FLANGE 		0-91180-108-0 02 1 0809-
101 BRACKET; UNION 8-98052-888-1 01 1 0809-
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0809-
103 NUT; UNION
M22 		0-91111-522-0 01 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
