4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#68520) — 45 parça

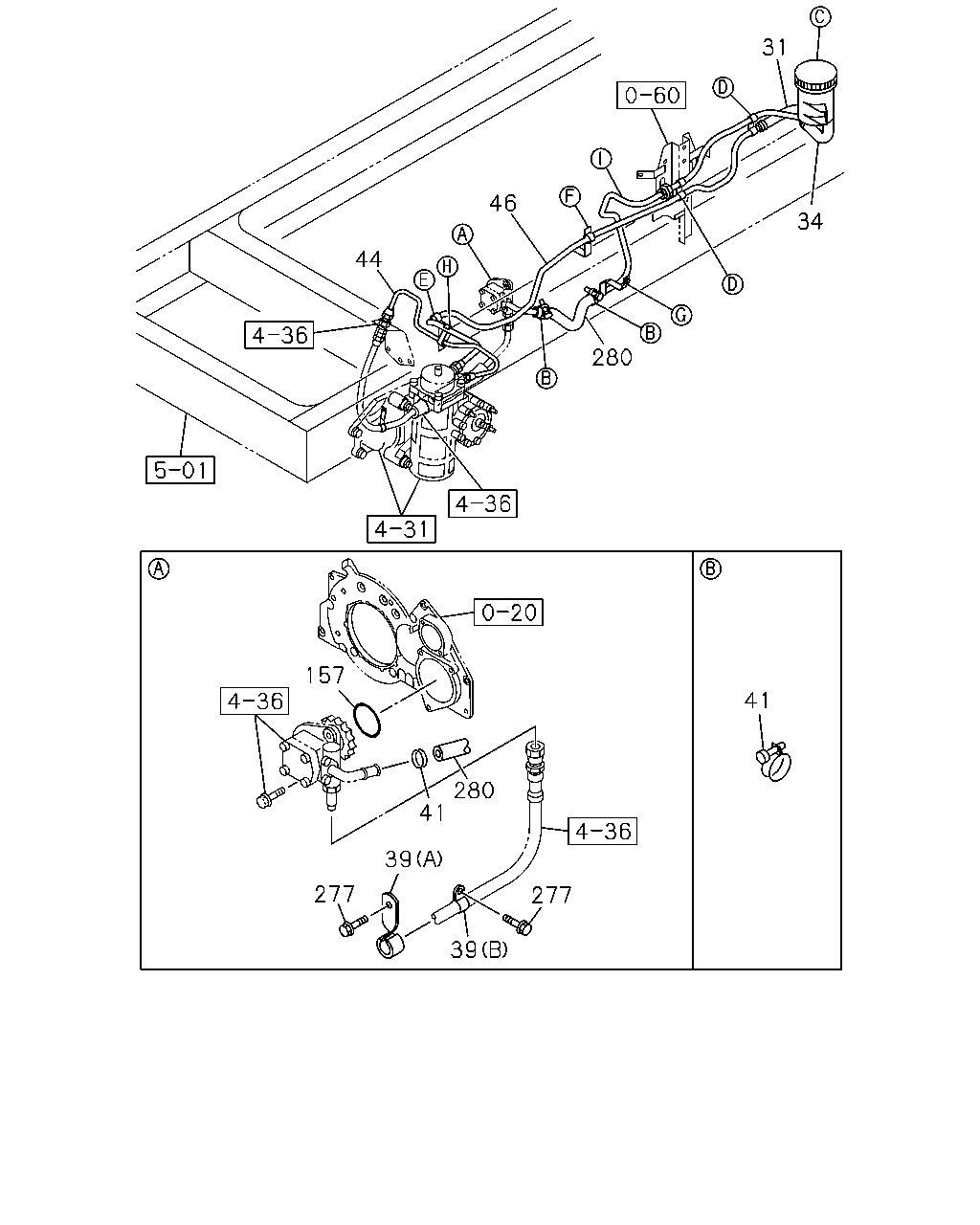

31 46 34 44 280 157 41 280 41 39 277 277 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	0809-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0809-
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	0809-
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	0809-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0809-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98079-653-1	01	1	0809-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1874	8-98126-456-0	01	1	0809-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0809-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0809-
280	HOSE; P/S OIL PUMP,INL	8-98090-818-0	01	1	0809-

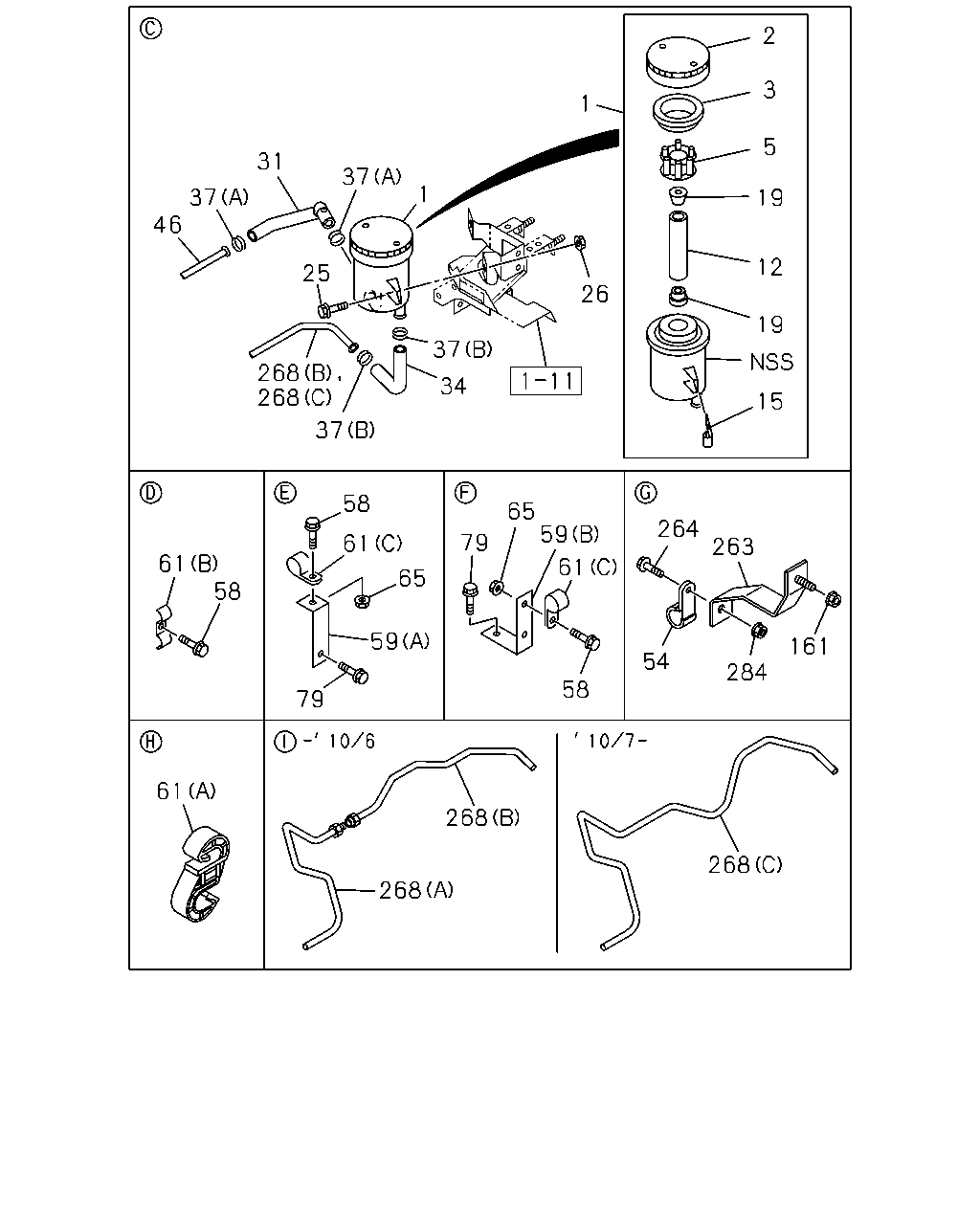

2 3 1 5 31 37 1 37 46 19 12 25 26 19 37 268 268 34 15 37 58 65 59 264 79 61 263 61 58 61 65 59 161 54 284 58 79 61 268 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0809-1006
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0809-1006
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0809-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0809-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0809-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0809-
19	SEAT; OIL TANK	1-21249-004-0	02	1	0809-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0809-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0809-
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	0809-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0809-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0809-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0809-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1874	8-98126-456-0	01	1	0809-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0809-
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0809-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0809-
59	BRACKET; CLIP,OIL PIPE (B)	8-98083-607-0	01	1	0809-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0809-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0809-
61	CLIP; OIL PIPE (A) ID=12 & 15	1-09709-281-1	01	1	0809-0905
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0809-
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1108-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0809-1107
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1108-
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	0809-
263	BRACKET; P/S PIPE	8-98096-820-1	01	1	0809-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0809-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	0809-1006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98154-047-0	01	1	1007-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98097-499-0	01	1	0809-1006
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0809-
