4-30 — STEERING WHEEL AND COWL (#68517) — 36 parça

1 20 5 6 81 26 106 33 30 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	WHEEL; STRG AIR BAG DRIVER(AJ3) (B) DARK GRAY	8-97407-720-0	01	1	1207-1210
1	WHEEL; STRG AIR BAG DRIVER(AJ3) (C) DARK GRAY	8-97423-998-0	01	1	1211-
1	WHEEL; STRG (A) DARK GRAY	8-97412-555-1	01	1	0809-1206
1	WHEEL; STRG EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY	8-97412-555-1	01	1	1207-
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0809-
6	SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	0809-1206
6	SCREW; HORN SPR CONTACT EXC. AIR BAG DRIVER(AJ3) M4X12	8-97167-588-0	04	1	1207-
20	SHROUD; PAD,STRG WHEEL DARK GRAY	8-97405-985-1	01	1	0809-1206
20	SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3) DARK GRAY	8-97405-985-1	01	1	1207-
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3) (B) DARK GRAY	8-97405-841-0	01	1	1207-1210
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3) (B) DARK GRAY	8-97421-978-0	01	1	1211-
26	COVER; STRG WHEEL,LWR (A) DARK GRAY	8-97409-275-2	01	1	0809-1206
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY	8-97409-275-2	01	1	1207-
30	COWL; STEERING DARK GRAY	8-97405-356-5	01	1	0809-
33	COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	0809-
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0809-
81	EMBLEM; STRG WHEEL CHEVROLET BRAND<RWE> DARK GRAY	8-97405-987-0	01	1	0809-1206
81	EMBLEM; STRG WHEEL CHEVROLET BRAND<RWE> EXC. AIR BAG DRIVER(AJ3) DARK GRAY	8-97405-987-0	01	1	1207-
81	EMBLEM; STRG WHEEL EXC. CHEVROLET BRAND<RWE> DARK GRAY	8-97405-986-0	01	1	0809-1206
81	EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND<RWE> DARK GRAY	8-97405-986-0	01	1	1207-
106	BOLT; TORX	8-98231-397-0	02	1	0809-

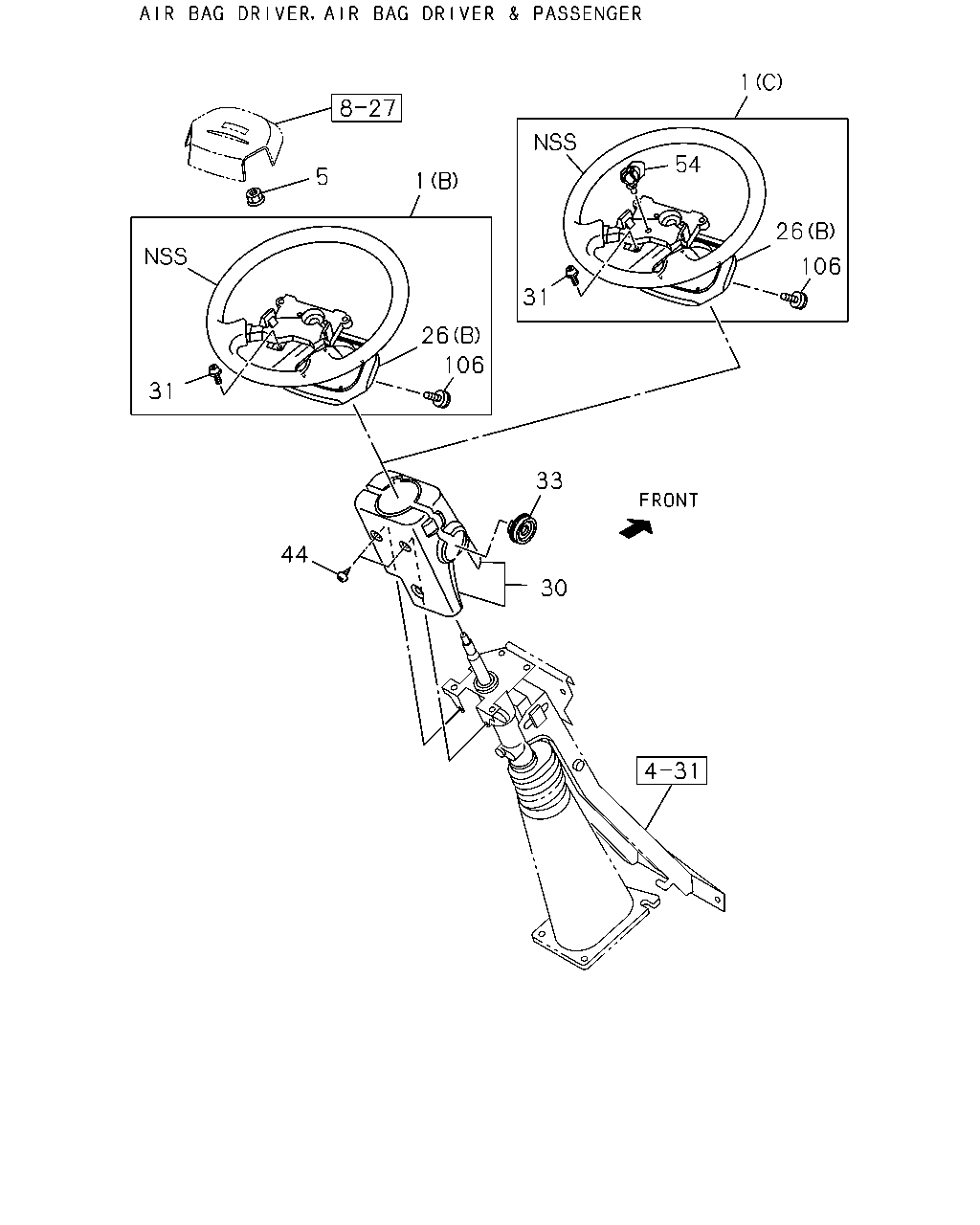

26 106 54 1 31 106 26 1 5 31 44 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	WHEEL; STRG AIR BAG DRIVER(AJ3) (B) DARK GRAY	8-97407-720-0	01	1	1207-1210
1	WHEEL; STRG AIR BAG DRIVER(AJ3) (C) DARK GRAY	8-97423-998-0	01	1	1211-
1	WHEEL; STRG (A) DARK GRAY	8-97412-555-1	01	1	0809-1206
1	WHEEL; STRG EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY	8-97412-555-1	01	1	1207-
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0809-
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3) (B) DARK GRAY	8-97405-841-0	01	1	1207-1210
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3) (B) DARK GRAY	8-97421-978-0	01	1	1211-
26	COVER; STRG WHEEL,LWR (A) DARK GRAY	8-97409-275-2	01	1	0809-1206
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY	8-97409-275-2	01	1	1207-
30	COWL; STEERING DARK GRAY	8-97405-356-5	01	1	0809-
31	SCREW; BOSS TO COVER AIR BAG DRIVER(AJ3) M4X12	8-97167-588-0	04	1	1207-
33	COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	0809-
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0809-
54	CLIP; HARNESS AIR BAG DRIVER(AJ3)	8-98165-703-0	01	1	1211-
106	BOLT; TORX	8-98231-397-0	02	1	0809-
