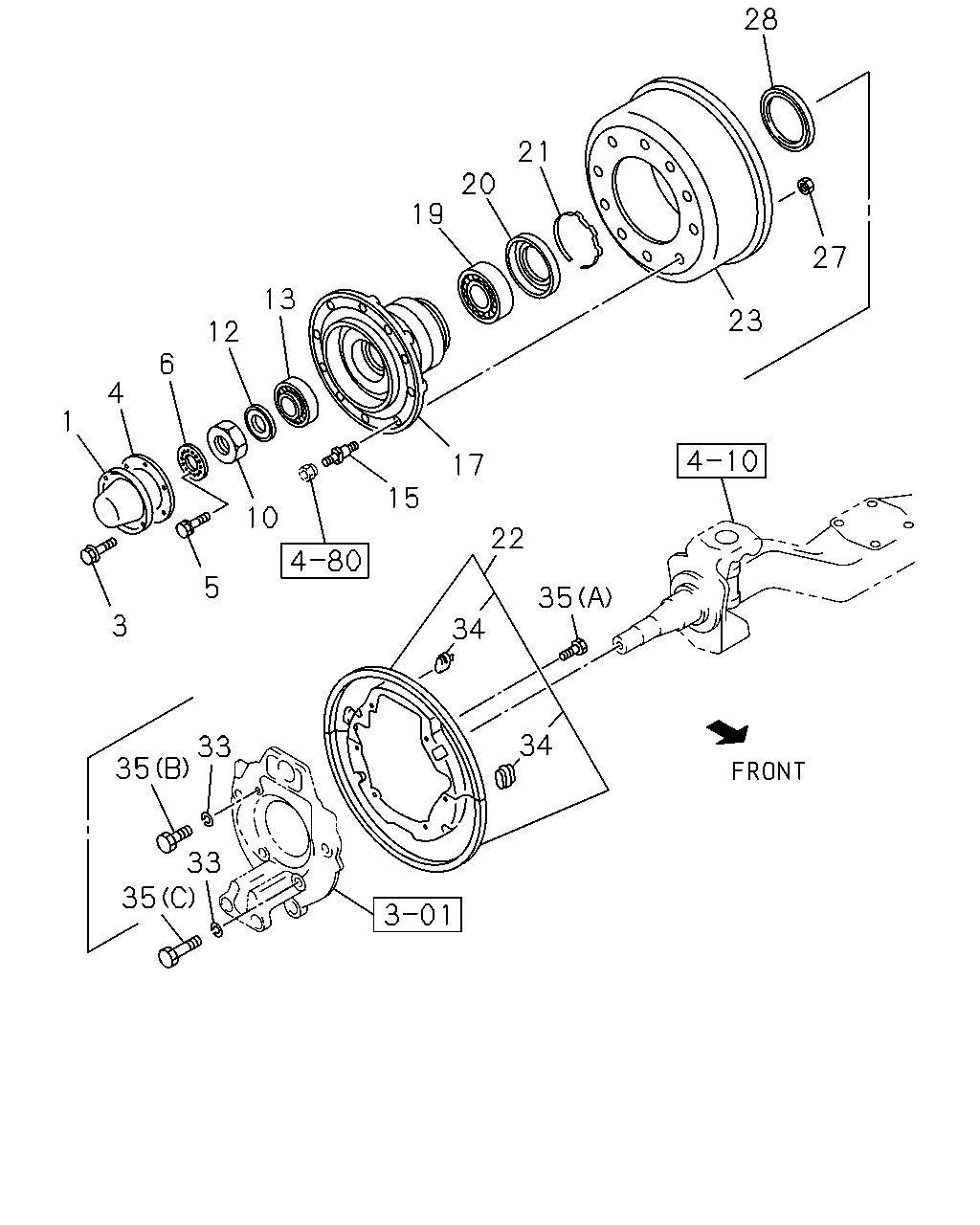

4-11 — FRONT HUB AND DRUM OR ROTOR
(#68514) — 24 parça
28
21
20
19
27
13
23
12
6
4
1
17
15
10
22
5
35
3
34
34
33
35
33
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
OD=156
9-42313-123-2
02
1
0809-
3
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
0-28050-812-0
12
1
0809-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-185-2
02
1
0809-
5
BOLT; LK WASHER
M6X16 HEX SOCKET
8-98084-271-0
04
1
0809-1201
5
BOLT; LK WASHER
M6X16 HEX SOCKET
8-98200-943-0
04
1
1202-
6
WASHER; LK,FRT HUB
ID=48
8-98084-561-0
02
1
0809-
10
NUT; FRT HUB BRG
M48
1-09840-012-5
02
1
0809-
12
WASHER; LK,FRT HUB BRG
ID=48
1-09533-016-0
02
1
0809-0911
12
WASHER; LK,FRT HUB BRG
ID=48
8-98156-755-0
02
1
0912-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-234-0
02
1
0809-
15
PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD
1-42337-067-1
20
1
0809-
17
HUB; FRT AXLE
1-42312-160-0
02
1
0809-
19
BEARING; HUB INNER,FRT AXLE
JTEKT
1-09812-231-0
02
1
0809-
20
COVER; HUB BRG INNER
1-42319-039-0
02
1
0809-
21
RING; SNAP,HUB
1-09587-017-0
02
1
0809-
22
COVER SET; FRT BRK DRUM
1-87831-225-0
02
1
0809-
23
DRUM; BRK,FRT
1-42315-365-0
02
1
0809-
27
NUT; WHEEL PIN,FRT AXLE
M22
1-09400-071-0
20
1
0809-
28
SEAL; OIL,FRT HUB
OD=140
1-09625-041-0
02
1
0809-
33
WASHER; LK,DRUM COVER
ID=18.2
0-91510-818-0
12
1
0809-
34
COVER; CHECK HOLE,DRUM COVER
1-09333-151-0
04
1
0809-
35
BOLT; DRUM COVER
(C) M18X65
1-09000-789-0
04
1
0809-
35
BOLT; DRUM COVER
(B) M18X45
1-09000-790-0
08
1
0809-
35
BOLT; DRUM COVER
(A) M10X12
1-47159-187-0
12
1
0809-
