◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11153 - FVZ(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#68512) — 534 parça
çizim 122578
9 96 12 57 106 58 104 11 4 9 15 10 57 169 170 14 17 96 15
BalonParca AdiParca NoAdetTipApplied Date A B
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1109- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1109- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0809-1108 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) END 		1-37300-110-0 02 1 1109-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 0809-1108 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1109-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0809-1108 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 1ST 		1-37300-110-0 01 1 1109-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 08 1 1109- ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1109- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 24 1 1109- ●
10 BOLT; UJT
(A) M12X45 		8-98036-382-0 04 1 0809- ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 0809- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1109- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1109- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 08 1 1109- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0809- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0809- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0809- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 0809- ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 0809- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0809-1108 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-1108 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1109-1505 ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 0809- ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0809- ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 0809- ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 0809- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 0809- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0809- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0809- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 0809- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 0809- ● ●

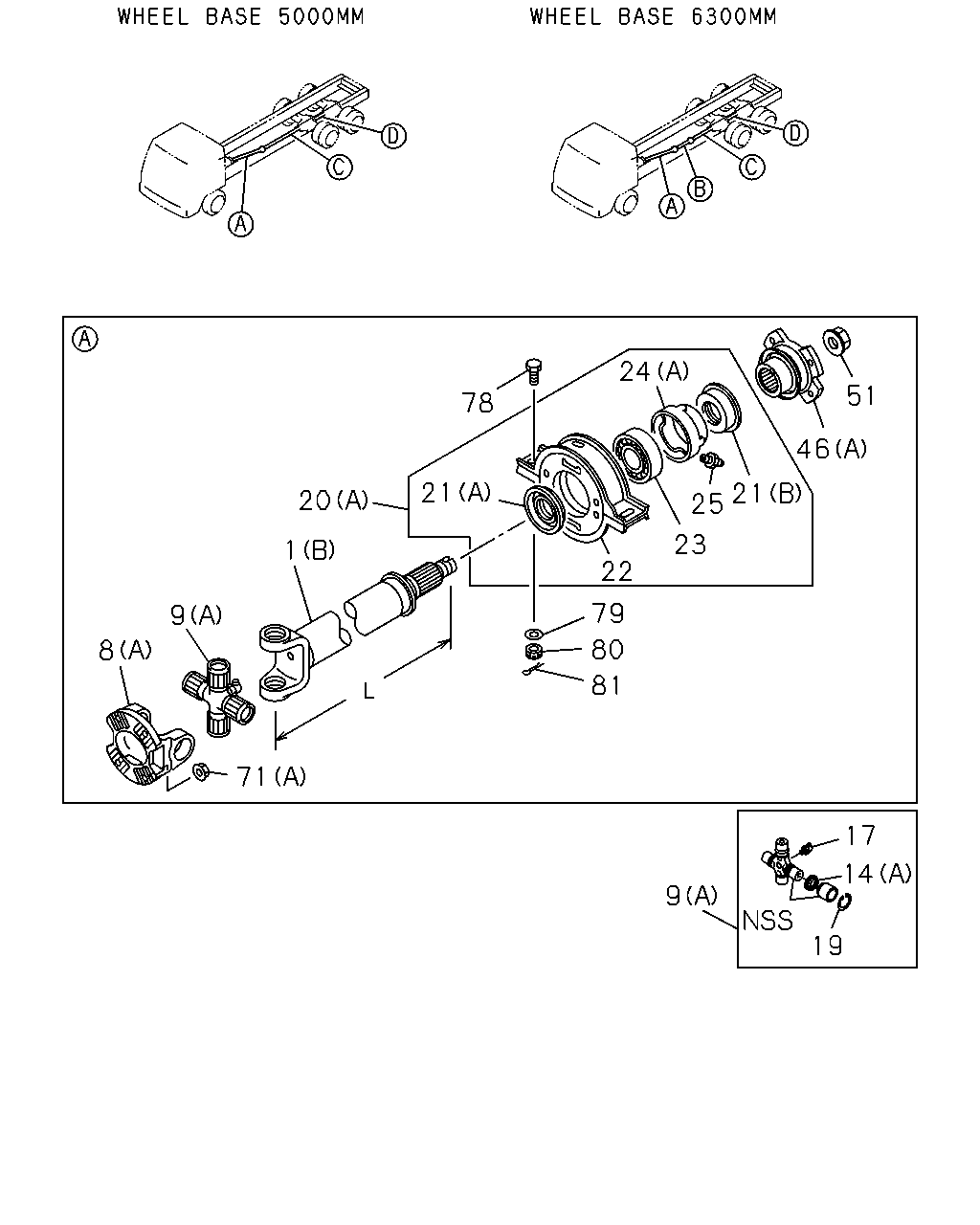

çizim 122659
24 51 78 46 21 21 25 20 23 1 22 79 9 80 8 81 71 17 14 9 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (D) L=607 		1-37124-224-0 01 1 1109- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (E) L=632 		8-98193-466-0 01 1 1109- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (D) L=762 		1-37123-902-0 01 1 1109- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (E) L=772 		8-98193-467-0 01 1 1109- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (F) L=922 		8-98193-468-0 01 1 1109- ●
1 SHAFT; PROP
(A) L=614 		1-37124-960-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=614 		1-37124-960-1 01 1 1109- ●
1 SHAFT; PROP
(B) L=585 		8-98091-463-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=585 		8-98091-463-1 01 1 1109- ●
1 SHAFT; PROP
(A) L=764 		1-37125-412-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=764 		1-37125-412-1 01 1 1109- ●
1 SHAFT; PROP
(C) L=915 		8-98091-469-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=915 		8-98091-469-1 01 1 1109- ●
1 SHAFT; PROP
(B) L=725 		8-98091-479-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=725 		8-98091-479-1 01 1 1109- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1109- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 01 1 1109- ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 03 1 1109- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 02 1 0809-1108 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 02 1 1109- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 01 1 0809-1108 ● ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 01 1 1109- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 03 1 0809-1108 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 03 1 1109- ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1109- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1109- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0809-1108 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) END 		1-37300-110-0 02 1 1109-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 0809-1108 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1109-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0809-1108 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 1ST 		1-37300-110-0 01 1 1109-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0809- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0809- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0809- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0809-1108 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-1108 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1109-1505 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 0809-1108 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 08 1 1109- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 0809-1108 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 04 1 1109- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 12 1 0809-1108 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 12 1 1109- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1109- ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1109- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0809-1108 ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0809-1108 ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1109- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1109- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (C) D=120 		1-09625-127-0 02 1 1109- ● ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (C) D=120 		1-09625-127-0 02 1 1109- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0809-1108 ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0809-1108 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1109- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1109- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0809-1108 ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0809-1108 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1109- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1109- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0809- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0809- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1109- ● ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1109- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0809-1108 ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0809-1108 ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1109- ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1109- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1109- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1109- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0809-1108 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0809-1108 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1109- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1109- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0809- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0809- ●
71 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) (B) M16 FLANGE 		1-09449-065-0 04 1 1109- ● ●
71 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0809-1108 ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 04 1 1109- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0809- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0809- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0809-1204 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0809- ● ●

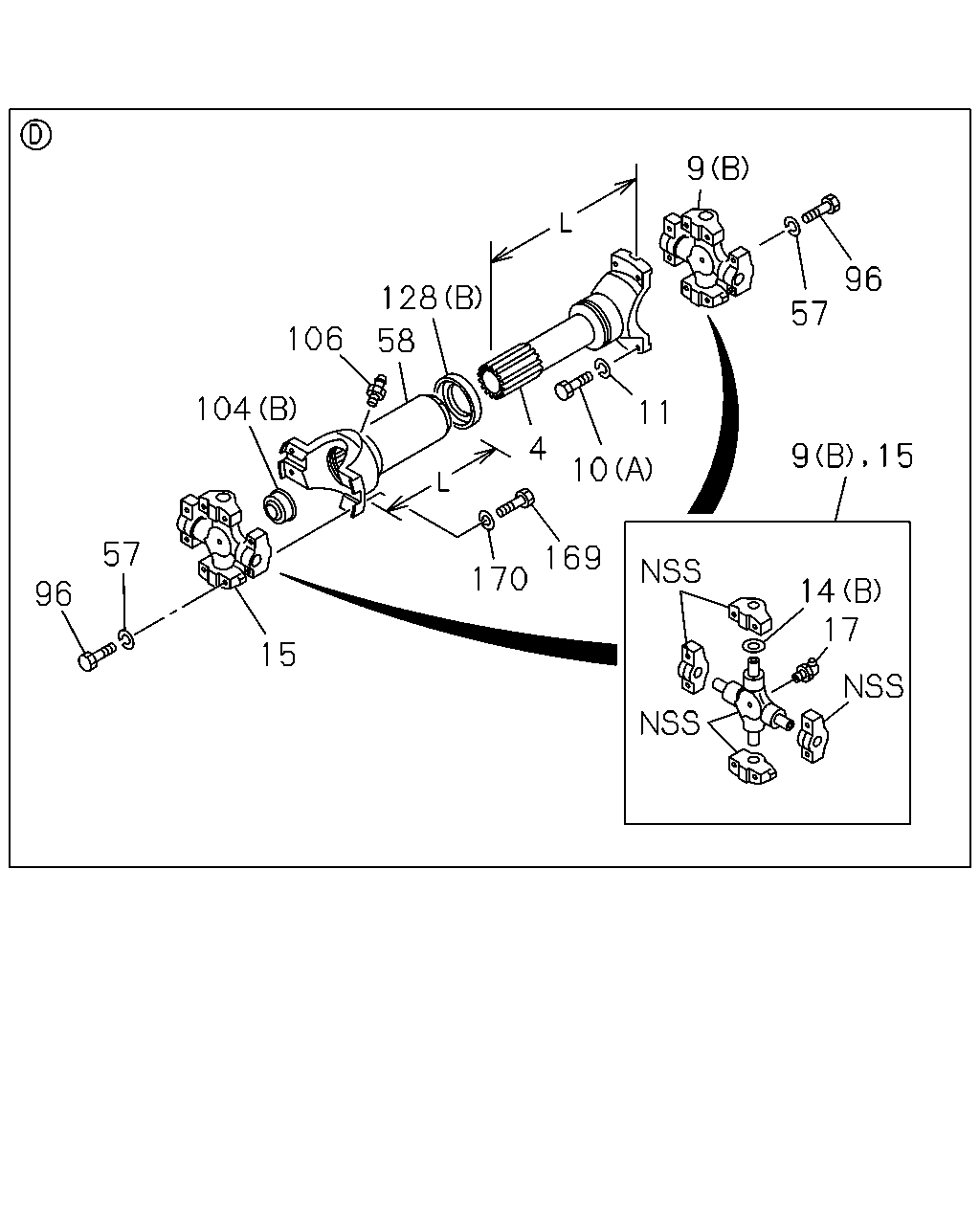

çizim 122770
9 96 12 57 106 58 104 11 4 9 15 10 57 169 170 14 17 96 15
BalonParca AdiParca NoAdetTipApplied Date A B
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1109- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1109- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0809-1108 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) END 		1-37300-110-0 02 1 1109-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 0809-1108 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1109-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0809-1108 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 1ST 		1-37300-110-0 01 1 1109-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 08 1 1109- ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1109- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 24 1 1109- ●
10 BOLT; UJT
(A) M12X45 		8-98036-382-0 04 1 0809- ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 0809- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1109- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1109- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 08 1 1109- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0809- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0809- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0809- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 0809- ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 0809- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0809-1108 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-1108 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1109-1505 ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 0809- ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0809- ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 0809- ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 0809- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 0809- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0809- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0809- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 0809- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 0809- ● ●

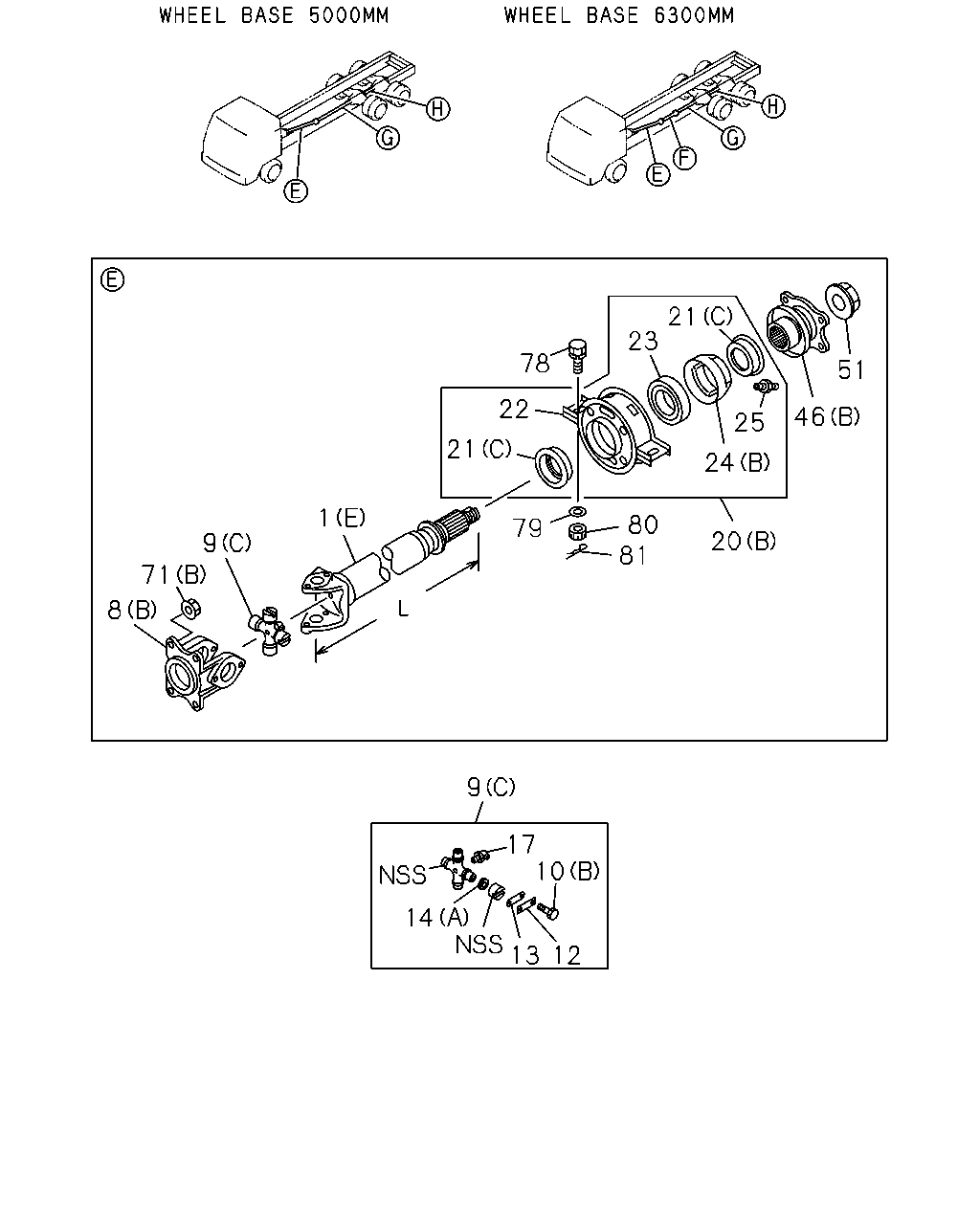

çizim 122836
21 23 78 51 22 46 25 21 24 1 80 81 79 20 9 71 8 9 17 10 14 13 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (D) L=607 		1-37124-224-0 01 1 1109- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (E) L=632 		8-98193-466-0 01 1 1109- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (D) L=762 		1-37123-902-0 01 1 1109- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (E) L=772 		8-98193-467-0 01 1 1109- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (F) L=922 		8-98193-468-0 01 1 1109- ●
1 SHAFT; PROP
(A) L=614 		1-37124-960-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=614 		1-37124-960-1 01 1 1109- ●
1 SHAFT; PROP
(B) L=585 		8-98091-463-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=585 		8-98091-463-1 01 1 1109- ●
1 SHAFT; PROP
(A) L=764 		1-37125-412-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=764 		1-37125-412-1 01 1 1109- ●
1 SHAFT; PROP
(C) L=915 		8-98091-469-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=915 		8-98091-469-1 01 1 1109- ●
1 SHAFT; PROP
(B) L=725 		8-98091-479-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=725 		8-98091-479-1 01 1 1109- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1109- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 01 1 1109- ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 03 1 1109- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 02 1 0809-1108 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 02 1 1109- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 01 1 0809-1108 ● ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 01 1 1109- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 03 1 0809-1108 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 03 1 1109- ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1109- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1109- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0809-1108 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) END 		1-37300-110-0 02 1 1109-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 0809-1108 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1109-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0809-1108 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 1ST 		1-37300-110-0 01 1 1109-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 08 1 1109- ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1109- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 24 1 1109- ●
10 BOLT; UJT
(A) M12X45 		8-98036-382-0 04 1 0809- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1109- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1109- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 08 1 1109- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1109- ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1109- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 08 1 1109- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0809- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0809- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0809- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0809-1108 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-1108 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1109-1505 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1109- ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1109- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0809-1108 ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0809-1108 ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1109- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1109- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (C) D=120 		1-09625-127-0 02 1 1109- ● ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (C) D=120 		1-09625-127-0 02 1 1109- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0809-1108 ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0809-1108 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1109- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1109- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0809-1108 ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0809-1108 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1109- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1109- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0809- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0809- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1109- ● ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1109- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0809-1108 ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0809-1108 ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1109- ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1109- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1109- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1109- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0809-1108 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0809-1108 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1109- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1109- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0809- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0809- ●
71 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) (B) M16 FLANGE 		1-09449-065-0 04 1 1109- ● ●
71 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0809-1108 ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 04 1 1109- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0809- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0809- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0809-1204 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0809- ● ●

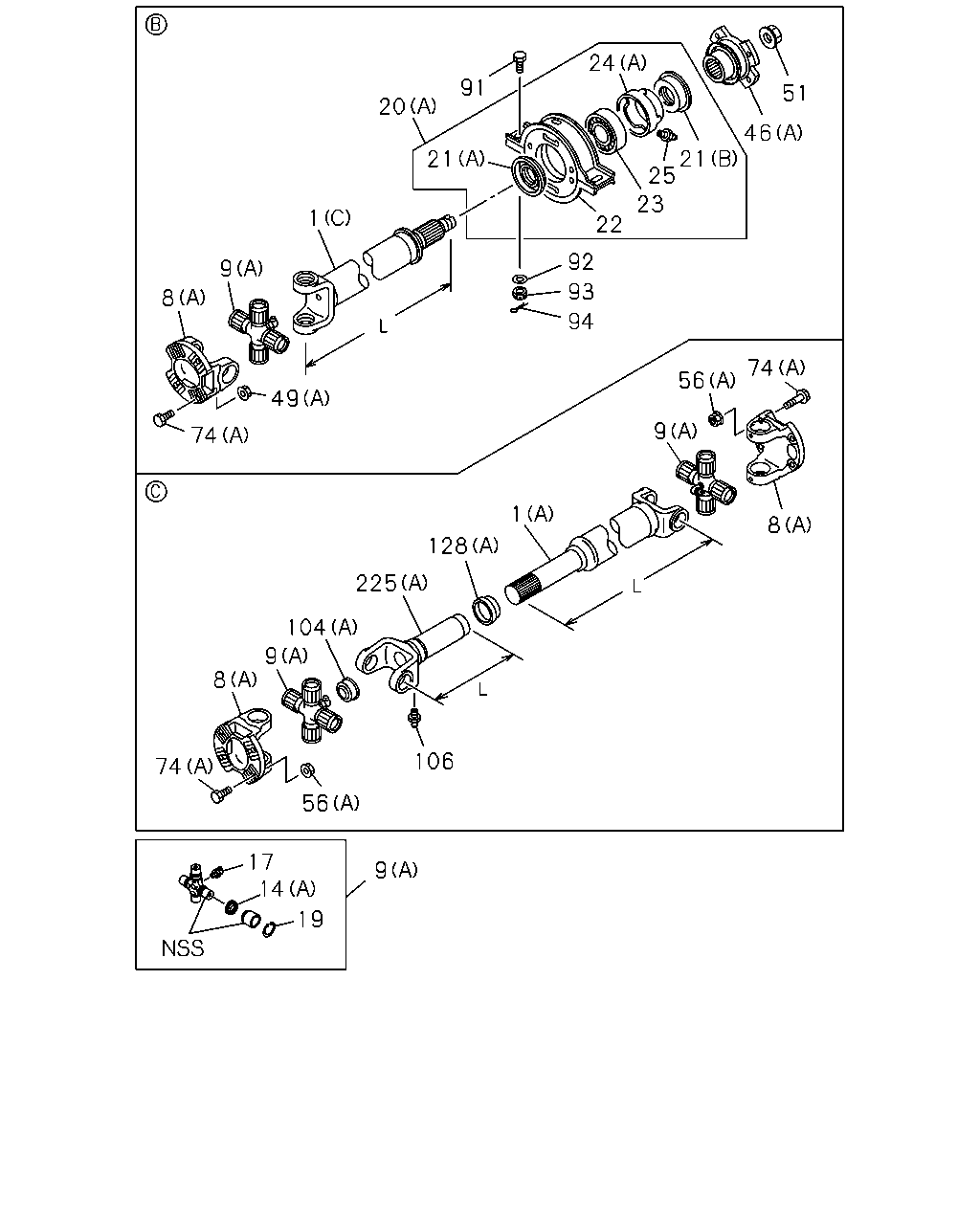

çizim 188055
24 91 51 20 46 21 25 21 23 1 22 92 9 93 8 94 74 56 49 9 74 1 8 128 225 104 9 8 106 74 56 17 14 9 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (D) L=607 		1-37124-224-0 01 1 1109- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (E) L=632 		8-98193-466-0 01 1 1109- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (D) L=762 		1-37123-902-0 01 1 1109- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (E) L=772 		8-98193-467-0 01 1 1109- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (F) L=922 		8-98193-468-0 01 1 1109- ●
1 SHAFT; PROP
(A) L=614 		1-37124-960-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=614 		1-37124-960-1 01 1 1109- ●
1 SHAFT; PROP
(B) L=585 		8-98091-463-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=585 		8-98091-463-1 01 1 1109- ●
1 SHAFT; PROP
(A) L=764 		1-37125-412-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=764 		1-37125-412-1 01 1 1109- ●
1 SHAFT; PROP
(C) L=915 		8-98091-469-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=915 		8-98091-469-1 01 1 1109- ●
1 SHAFT; PROP
(B) L=725 		8-98091-479-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=725 		8-98091-479-1 01 1 1109- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1109- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 01 1 1109- ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 03 1 1109- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 02 1 0809-1108 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 02 1 1109- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 01 1 0809-1108 ● ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 01 1 1109- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 03 1 0809-1108 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 03 1 1109- ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1109- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1109- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0809-1108 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) END 		1-37300-110-0 02 1 1109-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 0809-1108 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1109-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0809-1108 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 1ST 		1-37300-110-0 01 1 1109-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0809- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0809- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0809- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0809-1108 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-1108 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1109-1505 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 0809-1108 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 08 1 1109- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 0809-1108 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 04 1 1109- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 12 1 0809-1108 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 12 1 1109- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1109- ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1109- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0809-1108 ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0809-1108 ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1109- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1109- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (C) D=120 		1-09625-127-0 02 1 1109- ● ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (C) D=120 		1-09625-127-0 02 1 1109- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0809-1108 ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0809-1108 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1109- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1109- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0809-1108 ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0809-1108 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1109- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1109- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0809- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0809- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1109- ● ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1109- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0809-1108 ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0809-1108 ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1109- ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1109- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1109- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1109- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0809-1108 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0809-1108 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1109- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1109- ●
49 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) (B) M16 FLANGE 		1-09449-065-0 04 1 1109- ●
49 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0809-1108 ●
49 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 04 1 1109- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0809- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0809- ●
56 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) (B) M16 FLANGE 		1-09449-065-0 08 1 1109- ● ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 0809-1108 ● ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 08 1 1109- ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 08 1 1109- ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 04 1 1109-1203 ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 04 1 1204- ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 04 1 1204- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 08 1 0809-1108 ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 08 1 1109- ● ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0809-1108 ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1109- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0809- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 0809- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0809-1204 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0809- ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 0809- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 0809- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0809- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0809- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0809- ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0809- ● ●
225 YOKE; SLEEVE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) L=332 		1-37241-103-1 01 1 1109- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=330 		1-37241-124-0 01 1 0809-1108 ● ●
225 YOKE; SLEEVE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) L=330 		1-37241-124-0 01 1 1109- ● ●

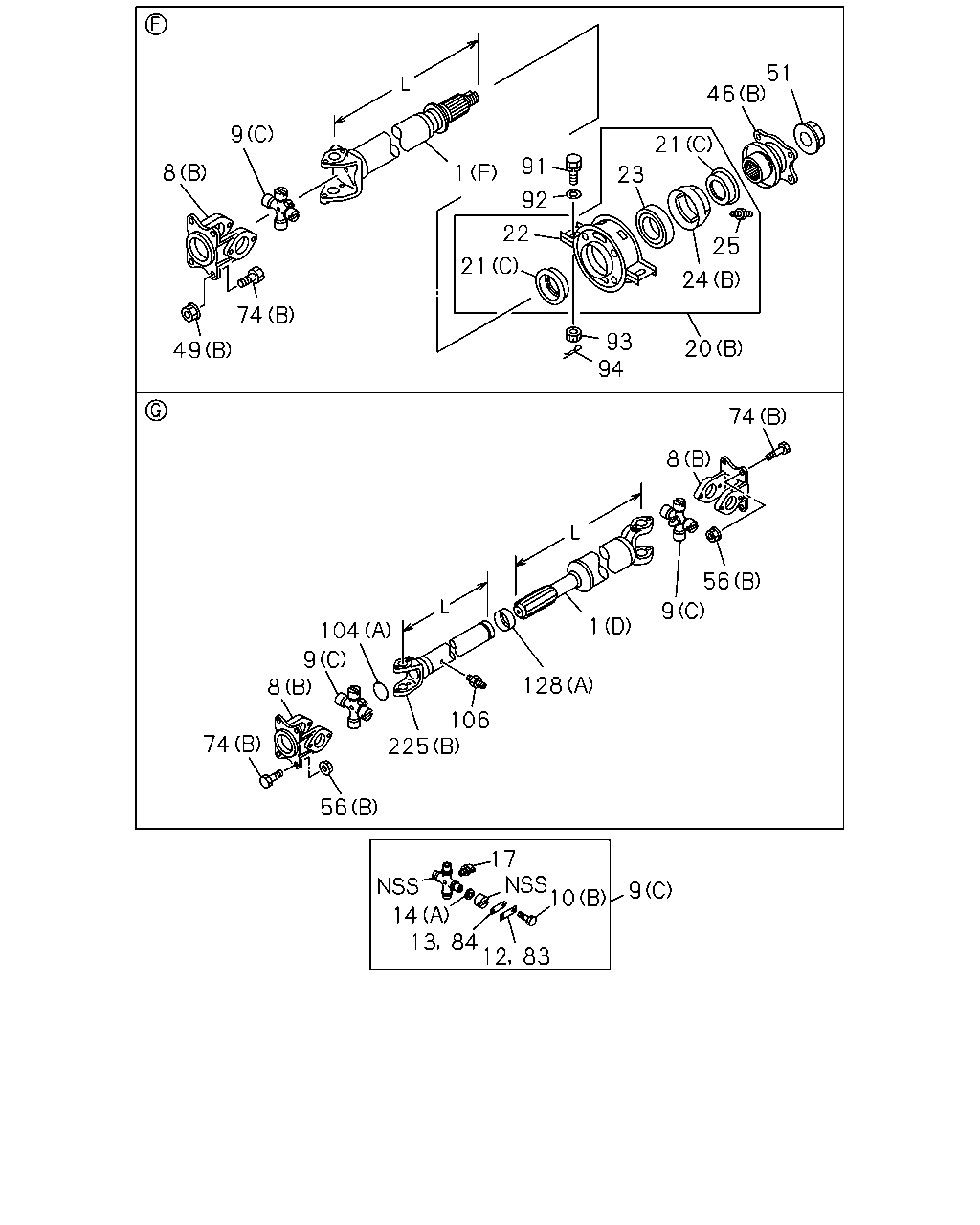

çizim 188090
51 46 9 21 91 8 1 23 92 22 25 21 24 74 93 94 20 49 74 8 56 9 1 104 9 8 128 106 225 74 56 17 10 9 14 12 83 13 84
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (D) L=607 		1-37124-224-0 01 1 1109- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (E) L=632 		8-98193-466-0 01 1 1109- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (D) L=762 		1-37123-902-0 01 1 1109- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (E) L=772 		8-98193-467-0 01 1 1109- ●
1 SHAFT; PROP
FULLER ES11109 DD M/T(Y5N) (F) L=922 		8-98193-468-0 01 1 1109- ●
1 SHAFT; PROP
(A) L=614 		1-37124-960-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=614 		1-37124-960-1 01 1 1109- ●
1 SHAFT; PROP
(B) L=585 		8-98091-463-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=585 		8-98091-463-1 01 1 1109- ●
1 SHAFT; PROP
(A) L=764 		1-37125-412-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=764 		1-37125-412-1 01 1 1109- ●
1 SHAFT; PROP
(C) L=915 		8-98091-469-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=915 		8-98091-469-1 01 1 1109- ●
1 SHAFT; PROP
(B) L=725 		8-98091-479-1 01 1 0809-1108 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=725 		8-98091-479-1 01 1 1109- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 02 1 1109- ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 01 1 1109- ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37211-066-1 03 1 1109- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 02 1 0809-1108 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 02 1 1109- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 01 1 0809-1108 ● ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 01 1 1109- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 03 1 0809-1108 ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		1-37211-079-1 03 1 1109- ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1109- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (C) 		1-37300-091-1 AR 1 1109- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0809-1108 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) END 		1-37300-110-0 02 1 1109-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 0809-1108 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 5000MM 1ST,6300MM 2ND 		1-37300-111-0 01 1 1109-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0809-1108 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 1ST 		1-37300-110-0 01 1 1109-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 08 1 1109- ● ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 16 1 1109- ●
10 BOLT; UJT
FULLER ES11109 DD M/T(Y5N) (B) M10X20 		0-20951-020-0 24 1 1109- ●
10 BOLT; UJT
(A) M12X45 		8-98036-382-0 04 1 0809- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1109- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1109- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 08 1 1109- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1109- ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1109- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 08 1 1109- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0809- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0809- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0809- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0809-1108 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1109-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0809- ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-1108 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1109-1505 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1109- ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) 		1-37510-094-3 01 1 1109- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0809-1108 ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0809-1108 ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1109- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 01 1 1109- ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (C) D=120 		1-09625-127-0 02 1 1109- ● ●
21 SEAL; OIL,CENTER BRG
FULLER ES11109 DD M/T(Y5N) (C) D=120 		1-09625-127-0 02 1 1109- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0809-1108 ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0809-1108 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1109- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 01 1 1109- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0809-1108 ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0809-1108 ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1109- ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 01 1 1109- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0809- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0809- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1109- ● ●
24 RETAINER; CENTER BRG,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37529-041-0 01 1 1109- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0809-1108 ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0809-1108 ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1109- ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 01 1 1109- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1109- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER ES11109 DD M/T(Y5N) (B) 		1-37245-271-1 01 1 1109- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0809-1108 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0809-1108 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1109- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 01 1 1109- ●
49 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) (B) M16 FLANGE 		1-09449-065-0 04 1 1109- ●
49 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0809-1108 ●
49 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 04 1 1109- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0809- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0809- ●
56 NUT; YOKE
FULLER ES11109 DD M/T(Y5N) (B) M16 FLANGE 		1-09449-065-0 08 1 1109- ● ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 0809-1108 ● ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 08 1 1109- ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 08 1 1109- ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 04 1 1109-1203 ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 04 1 1204- ● ●
74 BOLT; YOKE,TRANS
FULLER ES11109 DD M/T(Y5N) (B) M16X48 		1-09000-383-0 04 1 1204- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 08 1 0809-1108 ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 08 1 1109- ● ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0809-1108 ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1109- ●
83 PLATE; LK,UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37356-008-0 04 1 1109- ● ●
84 COVER; UJT,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) 		1-37355-020-0 04 1 1109- ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0809- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 0809- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0809-1204 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0809- ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 0809- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 0809- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0809- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0809- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0809- ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0809- ● ●
225 YOKE; SLEEVE,PROP SHAFT
FULLER ES11109 DD M/T(Y5N) (B) L=332 		1-37241-103-1 01 1 1109- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=330 		1-37241-124-0 01 1 0809-1108 ● ●
225 YOKE; SLEEVE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) L=330 		1-37241-124-0 01 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
