3-11 — PARKING BRAKE CONTROL (#6851) — 77 parça

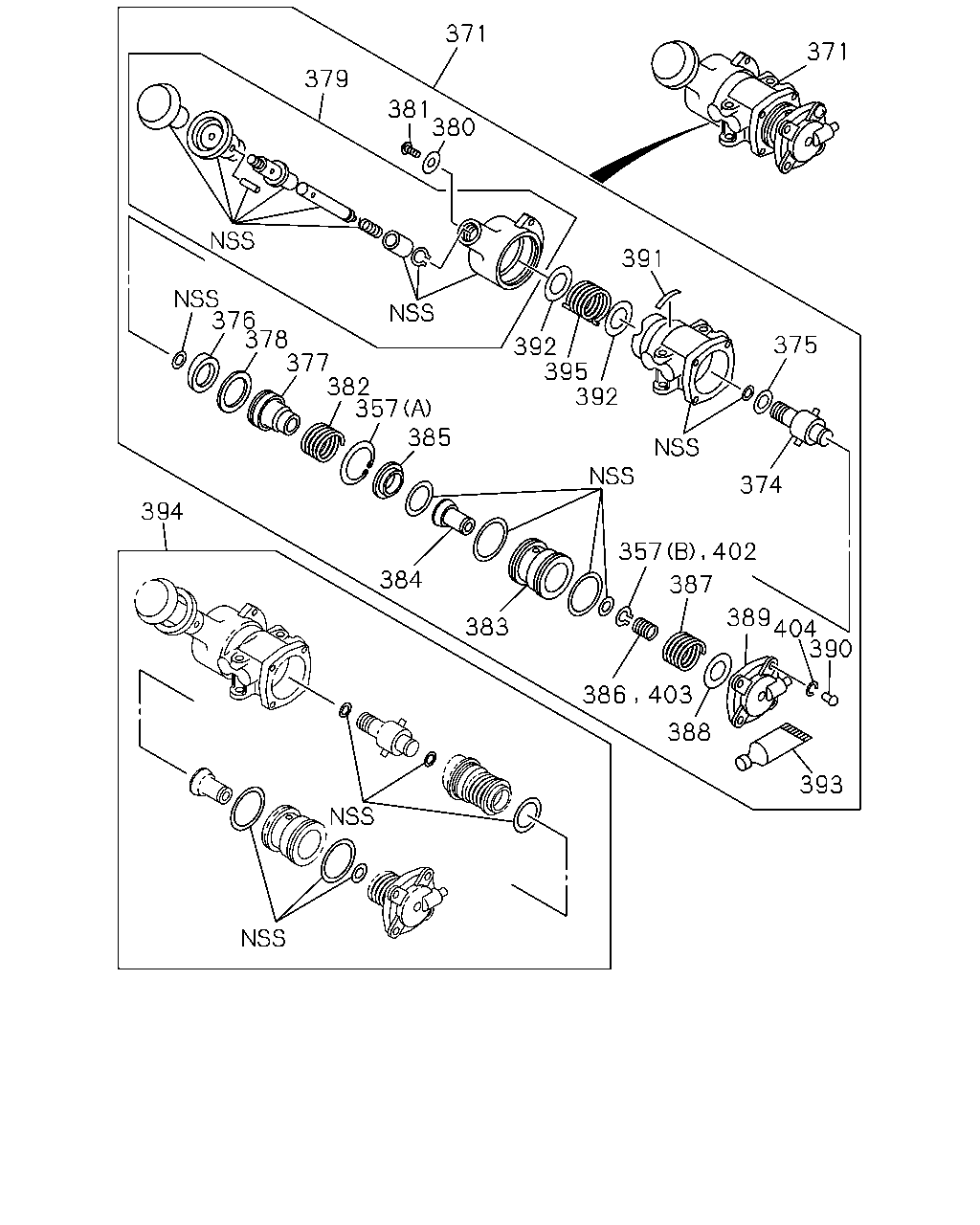

çizim 26484
371 371 379 381 380 391 376 378 377 382 357 385 375 392 395 392 374 394 384 387 389 404 390 383 388 393 357 402 386 403
BalonParca AdiParca NoAdetTipApplied Date
357 RING; SNAP
(A) 		1-48469-067-0 01 1 9912-
357 RING; SNAP
(B) 		1-48469-068-0 01 1 0108-
371 VALVE; BRK,HAND CONT 1-48460-306-0 01 1 9912-0107
371 VALVE; BRK,HAND CONT 1-48460-319-0 01 1 0108-
374 HOLDER; CAM 1-48469-054-0 01 1 9912-
375 SHIM; CAM HOLDER 1-48469-055-0 AR 1 9912-
376 RING; CAM 1-48469-056-0 01 1 9912-
377 SEAT; EXH VLV 1-48469-057-0 01 1 9912-
378 GUIDE 1-48469-058-0 01 1 9912-
379 HANDLE ASM; HAND BRK VLV 1-48469-122-0 01 1 9912-0107
379 HANDLE ASM; HAND BRK VLV 1-48469-126-0 01 1 0108-
380 WASHER; HANDLE 1-48469-061-0 01 1 9912-
381 SCREW; HANDLE 1-48469-062-0 01 1 9912-
382 SPRING; RETURN,CAM RING 1-48469-063-0 01 1 9912-
383 PISTON; HAND BRK VLV 1-48469-064-0 01 1 9912-
384 VALVE; FEED 1-48469-065-0 01 1 9912-
385 SEAT; FEED VLV 1-48469-066-0 01 1 9912-
386 SPRING; VLV 1-48469-070-0 01 1 0108-
387 SPRING; MAIN 1-48469-089-0 01 1 9912-
388 SHIM; MAIN SPRING 1-48469-072-0 AR 1 9912-
389 COVER; HAND BRK VLV 1-48469-090-0 01 1 9912-
390 SCREW; COVER 1-48469-092-0 04 1 9912-0107
390 SCREW; COVER 1-48469-118-0 04 1 0108-
391 PLATE; CAUTION 1-48469-093-0 01 1 0108-
392 SEAT; SPRING 1-48469-082-0 02 1 9912-
393 GREASE; HAND BRK VLV 1-48469-084-0 01 1 9912-
394 REPAIR KIT; HAND BRK VLV 1-48469-096-0 01 1 9912-
395 SPRING; RETURN,HANDLE 1-48469-059-0 01 1 9912-
402 RING; SNAP,FEED VLV 1-48469-068-0 02 1 9912-0107
403 SPRING; FEED VLV 1-48469-070-0 01 1 9912-0107
404 WASHER; COVER 1-48469-091-0 04 1 9912-0107

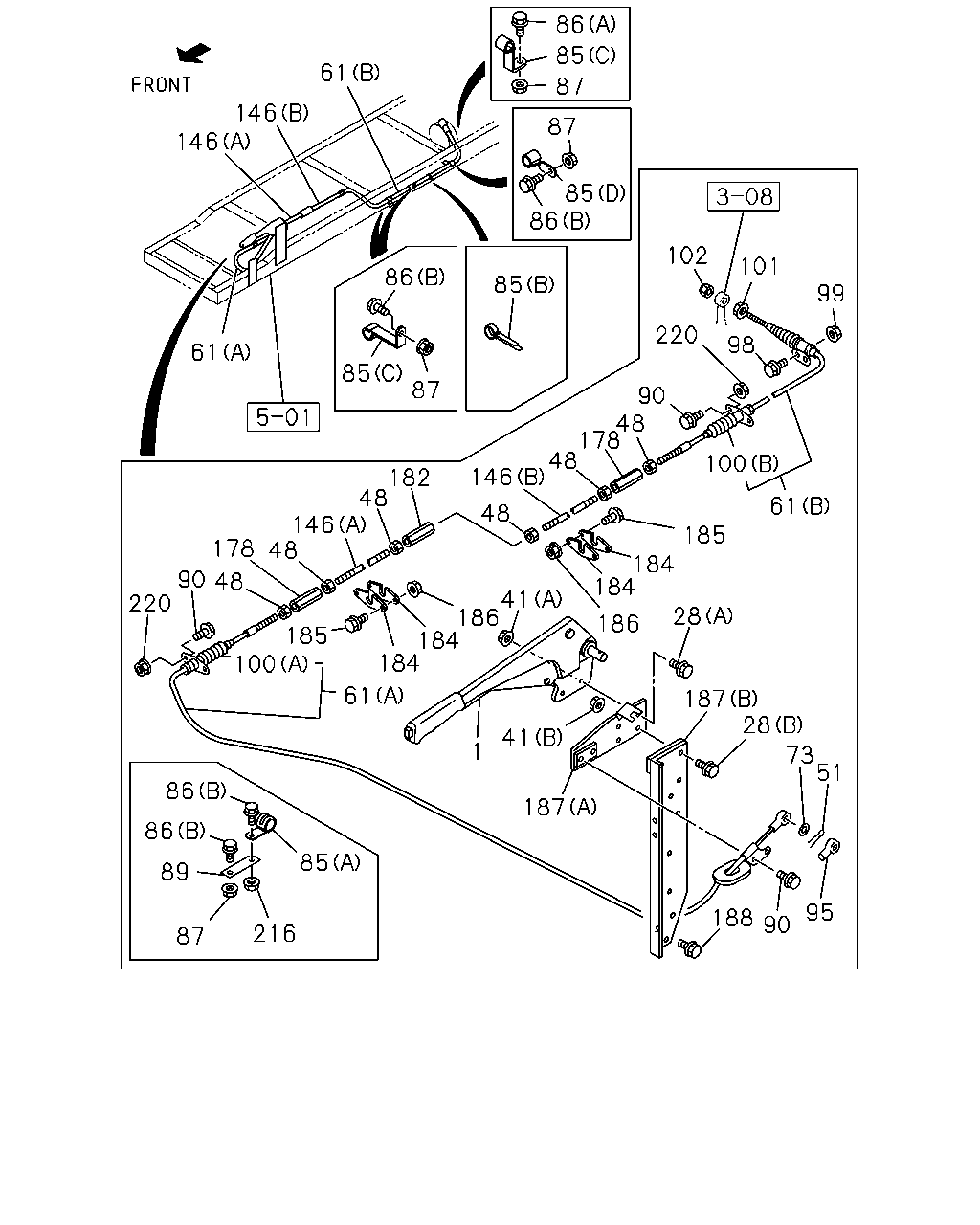

çizim 99058
86 85 61 87 146 146 87 85 86 102 101 86 85 99 220 98 61 85 87 90 48 178 48 146 100 182 48 61 48 146 48 185 178 184 184 220 41 186 184 184 185 28 186 61 187 28 41 1 73 51 86 187 86 85 89 95 188 90 216 87 90 48 100
BalonParca AdiParca NoAdetTipApplied Date
1 STEM ASM; PARKING BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-46120-080-2 01 1 9806-9911
28 BOLT; HAND BRK LEVER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M8X35 FLANGE 		0-28680-835-0 02 1 9806-9911
28 BOLT; HAND BRK LEVER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M10X35 FLANGE 		0-28681-035-0 02 1 9806-9911
41 NUT; HAND BRK STEM
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M10 FLANGE 		0-91150-210-0 02 1 9806-9911
41 NUT; HAND BRK STEM
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M8 FLANGE 		1-09440-049-0 02 1 9806-9911
48 NUT; LK,TURN BUCKLE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE 		0-91150-108-0 04 1 9806-9911
48 NUT; LK,TURN BUCKLE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LH THREAD 		1-09409-002-0 02 1 9806-9911
51 PIN; JOINT,RELAY LEVER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) OD=3.7 L=28 		9-08114-028-0 01 1 9806-9911
61 CABLE; PARKING BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=2415 		1-46151-104-0 01 1 9806-9911
61 CABLE; PARKING BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=1960 		1-46151-373-2 01 1 9806-9911
73 WASHER; PL,CABLE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=17 		9-09160-516-0 01 1 9806-9911
85 CLIP; BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) ID=14 H=50 L=20 		1-09700-843-0 03 1 9806-9911
85 CLIP; BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=14.5 L=20 		1-09701-012-0 01 1 9806-9911
85 CLIP; BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) ID=16 H=30 L=30 		1-09701-080-0 01 1 9806-9911
85 CLIP; BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) ID=15 L=42 		9-09716-203-1 01 1 9806-9911
85 CLIP; BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=16 L=46 		9-09917-428-0 01 1 9806-9911
86 BOLT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M8X25 FLANGE 		0-28680-825-0 04 1 9806-9911
86 BOLT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M8X30 FLANGE 		0-28680-830-0 03 1 9806-9911
87 NUT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE 		0-91150-108-0 01 1 9806-9911
87 NUT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE 		0-91150-108-0 05 1 9806-9911
89 BRACKET; CLIP
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47475-704-0 01 1 9806-9911
90 BOLT; CABLE TO BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X25 FLANGE 		0-28680-825-0 02 1 9806-9911
90 BOLT; CABLE TO BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X35 FLANGE 		0-28680-835-0 04 1 9806-9911
95 CAP; CABLE,PARKING BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-79997-140-2 01 1 9806-9911
98 BOLT; RR COVER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X30 FLANGE 		0-28681-030-0 02 1 9806-9911
99 NUT; CONT CABLE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10 FLANGE 		0-91250-210-0 02 1 9806-9911
100 BELLOWS; CONT WIRE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		9-46151-048-0 01 1 9806-9911
100 BELLOWS; CONT WIRE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) 		9-46159-048-0 01 1 9806-9911
101 NUT; CABLE TO LEVER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE 		9-46259-016-0 01 1 9806-9911
102 NUT; LK,CABLE TO LEVER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE 		0-91150-108-0 01 1 9806-9911
146 ROD; LINK,PARKING BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) LINK NO.1 L=2935 		1-09765-236-0 01 1 9806-9911
146 ROD; LINK,PARKING BRK
WB 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) LINK NO.2 L=2150 		1-09765-151-0 01 1 9806-9911
146 ROD; LINK,PARKING BRK
WB 5700MM(57W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) LINK NO.2 L=2850 		1-09765-157-0 01 1 9806-9911
178 BUCKLE; TURN,WIRE TO ROD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-09768-004-0 02 1 9806-9911
182 BUCKLE; TURN,ROD TO ROD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		9-14149-158-0 01 1 9806-9911
184 SUPPORT; CONT LINK,PARK BRK
WB 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-23319-021-0 08 1 9806-9911
184 SUPPORT; CONT LINK,PARK BRK
WB 5700MM(57W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-23319-021-0 10 1 9806-9911
185 BOLT; SUPPORT,CONT LINK
WB 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M6X30 FLANGE 		0-28680-630-0 08 1 9806-9911
185 BOLT; SUPPORT,CONT LINK
WB 5700MM(57W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M6X30 FLANGE 		0-28680-630-0 10 1 9806-9911
186 NUT; SUPPORT,CONT LINK
WB 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M6 FLANGE 		0-91150-106-0 08 1 9806-9911
186 NUT; SUPPORT,CONT LINK
WB 5700MM(57W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M6 FLANGE 		0-91150-106-0 10 1 9806-9911
187 BRACKET; HAND BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) 		1-46147-226-1 01 1 9806-9911
187 BRACKET; HAND BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		1-46147-238-2 01 1 9806-9911
188 BOLT; BRKT SET
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X35 FLANGE 		0-28681-235-0 03 1 9806-9911
216 NUT; CLIP,1ST C/MBR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE 		0-91150-108-0 01 1 9806-9911
220 NUT; CLIP,PARKING CONT CABLE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE 		0-91150-108-0 04 1 9806-9911
