Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#68508) — 215 parça

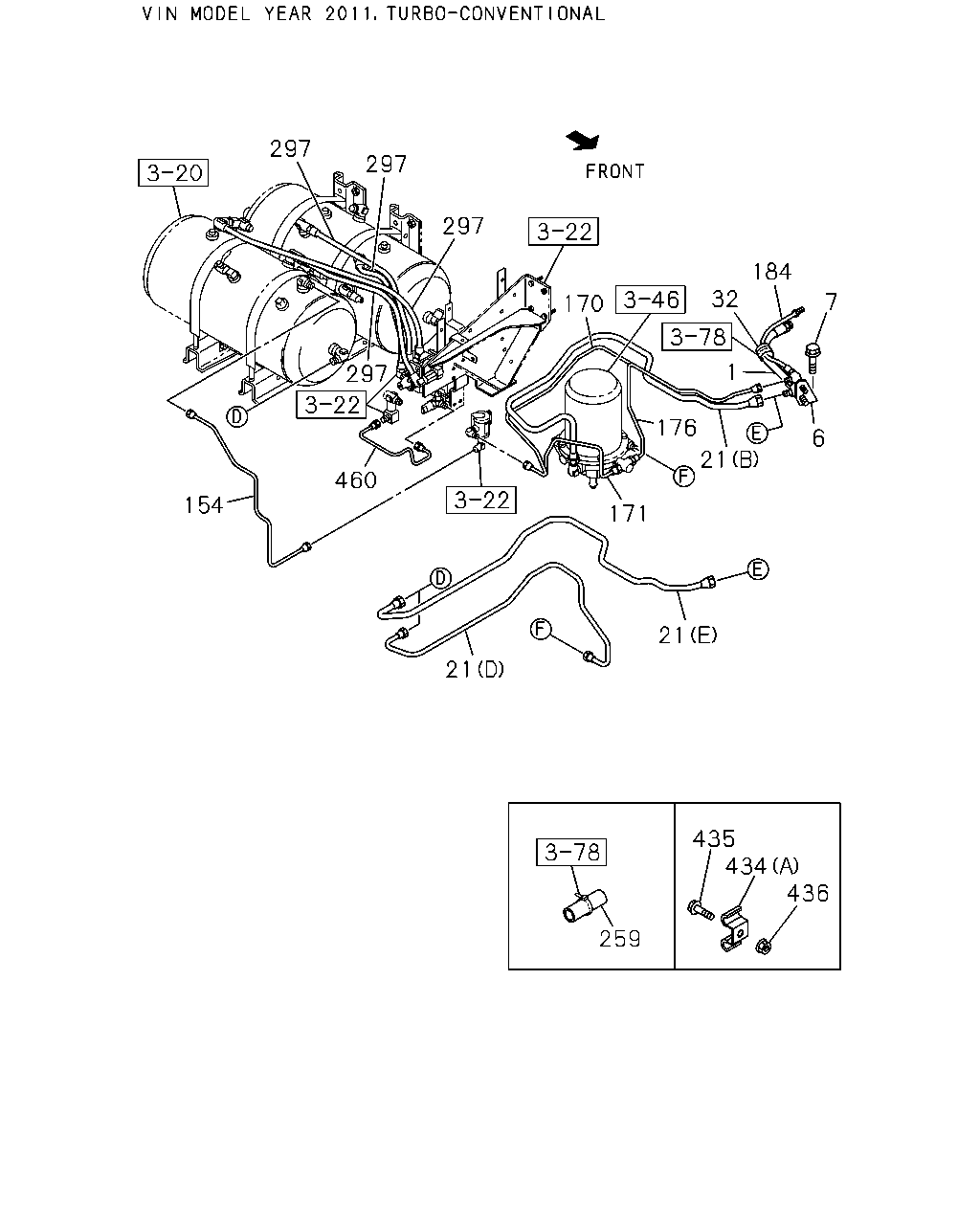

297 297 297 184 32 7 170 1 297 176 21 6 460 154 171 21 21 435 434 436 259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1202-
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	0809-1201
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1202-
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T>	8-98076-344-0	01	1	1202-
6	BRACKET; FLEX HOSE,AIR TANK	8-98117-117-0	01	1	0809-1201
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T>	8-98117-117-0	01	1	1202-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (C) L=1630	8-98120-164-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (F) L=1715	8-98095-083-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D)	8-98173-546-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D)	8-98184-503-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (D)	8-98184-503-0	01	1	1103-1201
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D)	8-98184-503-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1523	8-98173-570-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1103-1201
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-1009
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=1548	8-98174-993-0	01	1	1010-1201
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A)	8-98117-819-0	01	1	0809-0904
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A)	8-98147-087-0	01	1	0905-1011
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (C) L=1630	8-98120-164-0	01	1	0809-1011
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (C) L=1630	8-98120-164-0	01	1	1012-1102
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-1201
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1202-
154	PIPE; AIR,AIR TANK TO AIR GOV VIN MODEL YEAR 2011<VZB>	8-98173-547-0	01	1	1012-1012
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0809-0907
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	0908-1201
170	PIPE; AIR,AIR GOV TO FLEX HOSE TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	1202-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0809-1201
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1202-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0809-1201
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1202-
184	HOSE; FLEX,AIR GOV L=350	1-09363-624-0	01	1	0809-1201
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=350	1-09363-624-0	01	1	1202-
259	SLEEVE; RUBBER,NYLON TUBE VIN MODEL YEAR 2011<VZB> ID=29 OD=39 L=40	1-09337-013-0	01	1	1012-1102
259	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	01	1	1103-1201
259	SLEEVE; RUBBER,NYLON TUBE VIN MODEL YEAR 2011<VZB> ID=29 OD=39 L=40	1-09337-013-0	01	1	1202-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (C) ID=16 L=20	0-95235-536-0	02	1	1202-
434	CLIP AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1201
434	CLIP AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1202-
434	CLIP EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1201
434	CLIP TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1202-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0809-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-
460	PIPE; AIR,PROTECTION VALVE VIN MODEL YEAR 2011<VZB>	8-98173-460-0	01	1	1012-1012
460	PIPE; AIR,PROTECTION VALVE VIN MODEL YEAR 2011<VZB>	8-98184-394-0	01	1	1012-1102
460	PIPE; AIR,PROTECTION VALVE	8-98184-394-0	01	1	1103-1201
460	PIPE; AIR,PROTECTION VALVE VIN MODEL YEAR 2011<VZB>	8-98184-394-0	01	1	1202-

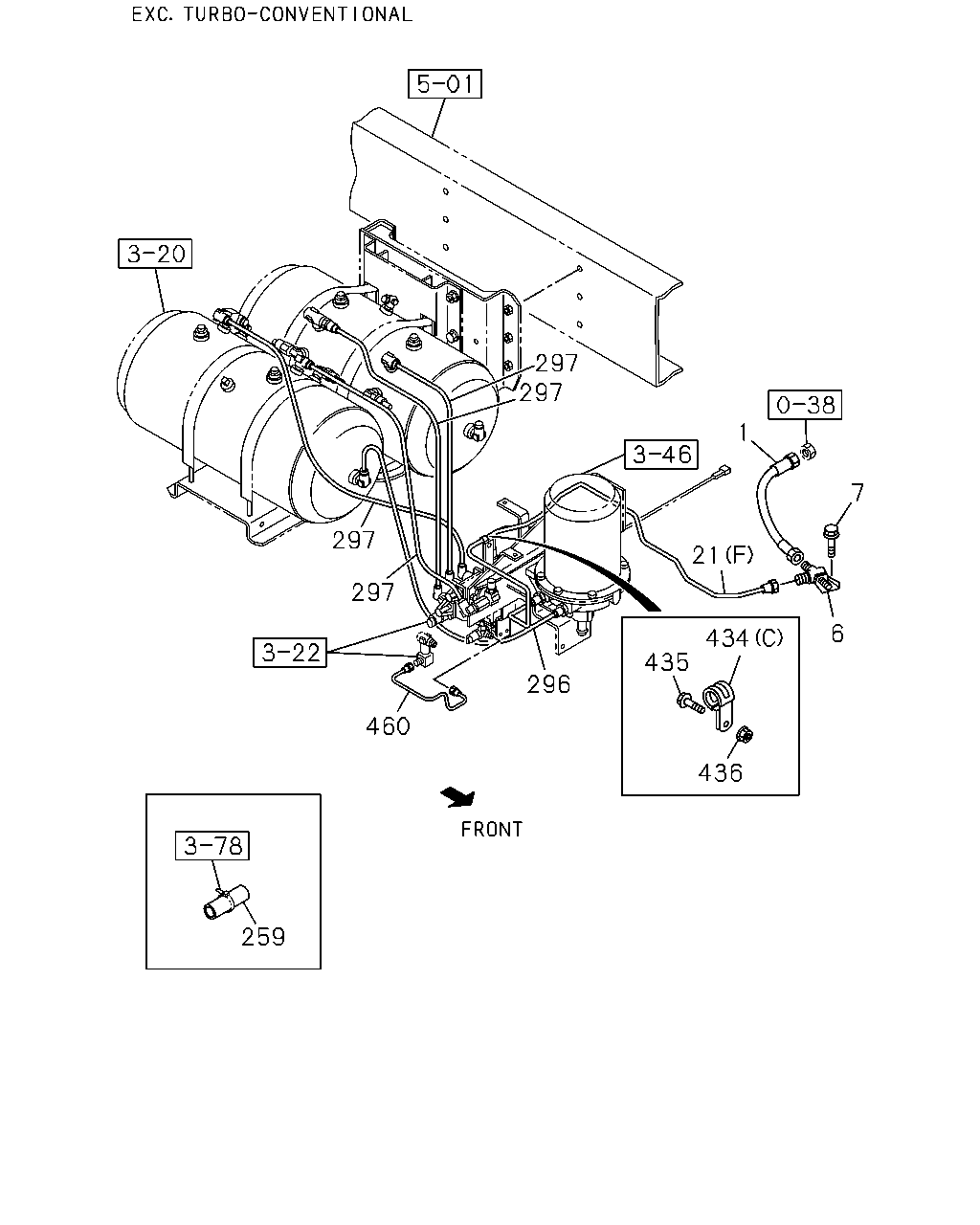

297 297 1 7 297 21 297 6 434 435 296 460 436 259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1202-
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	0809-1201
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1202-
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T>	8-98076-344-0	01	1	1202-
6	BRACKET; FLEX HOSE,AIR TANK	8-98117-117-0	01	1	0809-1201
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T>	8-98117-117-0	01	1	1202-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (C) L=1630	8-98120-164-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (F) L=1715	8-98095-083-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D)	8-98173-546-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D)	8-98184-503-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (D)	8-98184-503-0	01	1	1103-1201
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D)	8-98184-503-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1523	8-98173-570-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1103-1201
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-1009
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=1548	8-98174-993-0	01	1	1010-1201
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A)	8-98117-819-0	01	1	0809-0904
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A)	8-98147-087-0	01	1	0905-1011
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (C) L=1630	8-98120-164-0	01	1	0809-1011
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (C) L=1630	8-98120-164-0	01	1	1012-1102
259	SLEEVE; RUBBER,NYLON TUBE VIN MODEL YEAR 2011<VZB> ID=29 OD=39 L=40	1-09337-013-0	01	1	1012-1102
259	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	01	1	1103-1201
259	SLEEVE; RUBBER,NYLON TUBE VIN MODEL YEAR 2011<VZB> ID=29 OD=39 L=40	1-09337-013-0	01	1	1202-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (C) ID=16 L=20	0-95235-536-0	02	1	1202-
434	CLIP AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1201
434	CLIP AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1202-
434	CLIP EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1201
434	CLIP TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1202-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0809-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-
460	PIPE; AIR,PROTECTION VALVE VIN MODEL YEAR 2011<VZB>	8-98173-460-0	01	1	1012-1012
460	PIPE; AIR,PROTECTION VALVE VIN MODEL YEAR 2011<VZB>	8-98184-394-0	01	1	1012-1102
460	PIPE; AIR,PROTECTION VALVE	8-98184-394-0	01	1	1103-1201
460	PIPE; AIR,PROTECTION VALVE VIN MODEL YEAR 2011<VZB>	8-98184-394-0	01	1	1202-

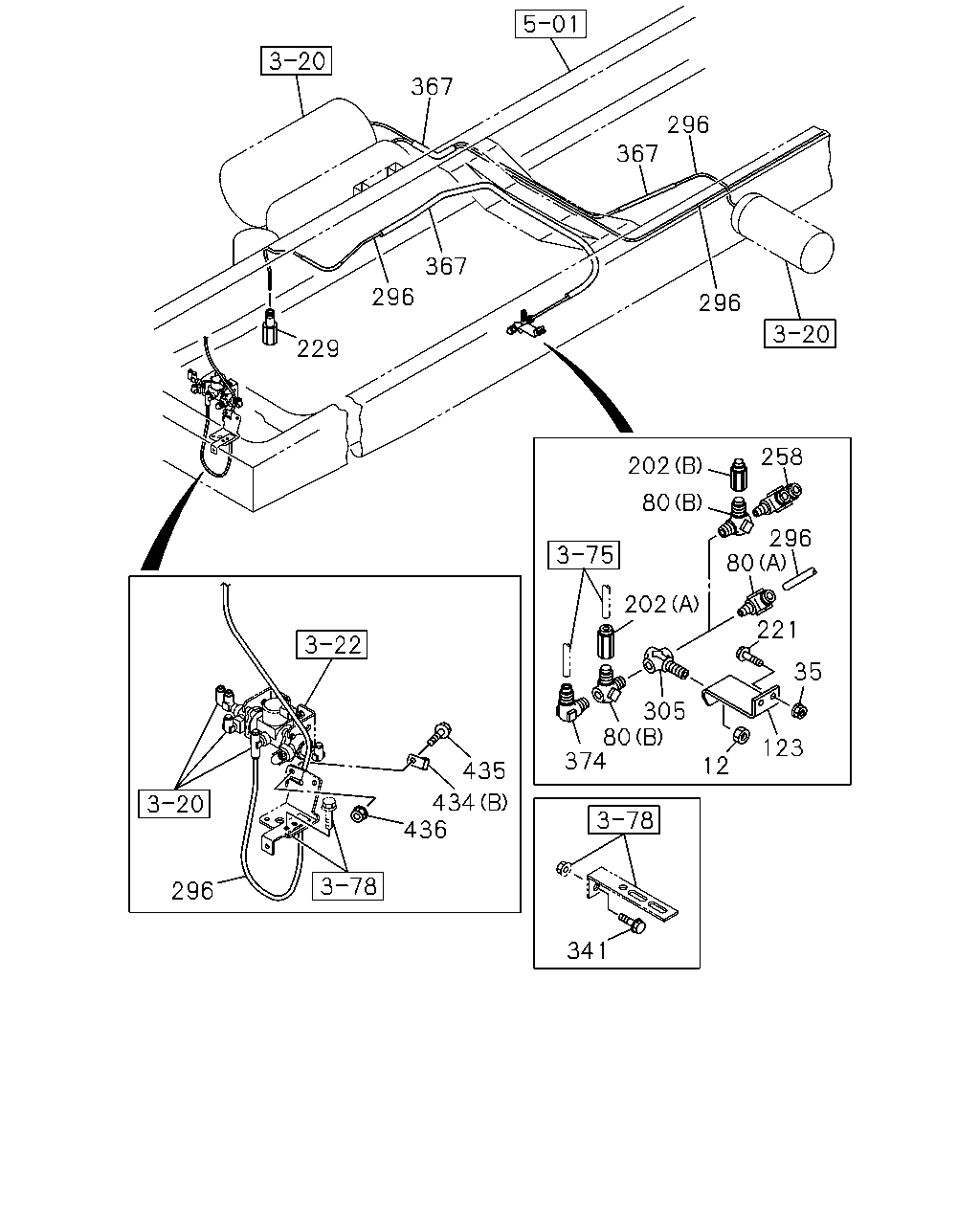

367 296 367 367 296 296 229 258 202 80 296 80 221 202 35 305 80 374 123 12 435 434 436 296 341

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	0809-1108
12	NUT; UNION ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	1109-
12	NUT; UNION FULLER ES11109 DD M/T(Y5N) M12	0-91111-512-0	01	1	1109-
35	NUT; BRKT EXC. PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0809-
80	UNION; 3 WAY FULLER ES11109 DD M/T(Y5N) H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY	1-09656-586-1	02	1	1109-
80	UNION; 3 WAY FULLER ES11109 DD M/T(Y5N) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY	1-09656-586-1	02	1	1109-
80	UNION; 3 WAY H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-1108
80	UNION; 3 WAY EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-1108
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1109-
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1109-
80	UNION; 3 WAY FULLER ES11109 DD M/T(Y5N) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1109-
80	UNION; 3 WAY EXC. PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0809-1108
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1109-
123	BRACKET; UNION EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	0809-1108
123	BRACKET; UNION ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	1109-
123	BRACKET; UNION FULLER ES11109 DD M/T(Y5N)	8-98118-545-0	01	1	1109-
202	ADAPTER FULLER ES11109 DD M/T(Y5N) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1109-
202	ADAPTER H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (A) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-1108
202	ADAPTER EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-1108
202	ADAPTER ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (A) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1109-
202	ADAPTER ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1109-
202	ADAPTER FULLER ES11109 DD M/T(Y5N) H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1109-
202	ADAPTER FULLER ES11109 DD M/T(Y5N) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1109-
221	BOLT; BRKT EXC. PTO CONTROL<SV6> M8X30 FLANGE	0-28650-830-0	02	1	0809-0809
221	BOLT; BRKT EXC. PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	0810-
229	ADAPTER; NYLON TUBE FULLER ES11109 DD M/T(Y5N) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1109-
258	CONNECTOR; NYLON TUBE FULLER ES11109 DD M/T(Y5N) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1109-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0809-
305	UNION ASM; NYLON TUBE EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	0809-1108
305	UNION ASM; NYLON TUBE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1109-
305	UNION ASM; NYLON TUBE FULLER ES11109 DD M/T(Y5N) M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1109-
341	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X25 FLANGE	0-28650-825-0	01	1	0908-1201
341	BOLT; BRKT WHEEL BASE 6300MM(63W) EXC. PERU EQUIPMENT(E07) M8X25 FLANGE	0-28650-825-0	01	1	1202-
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0809-0903
341	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28650-830-0	01	1	0904-0908
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0809-
374	CONNECTOR FULLER ES11109 DD M/T(Y5N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1109-
374	CONNECTOR EXC. PTO CONTROL<SV6> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-1108
374	CONNECTOR ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1109-
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (C) ID=16 L=20	0-95235-536-0	02	1	1202-
434	CLIP AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1201
434	CLIP AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1202-
434	CLIP EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1201
434	CLIP TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1202-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0809-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-

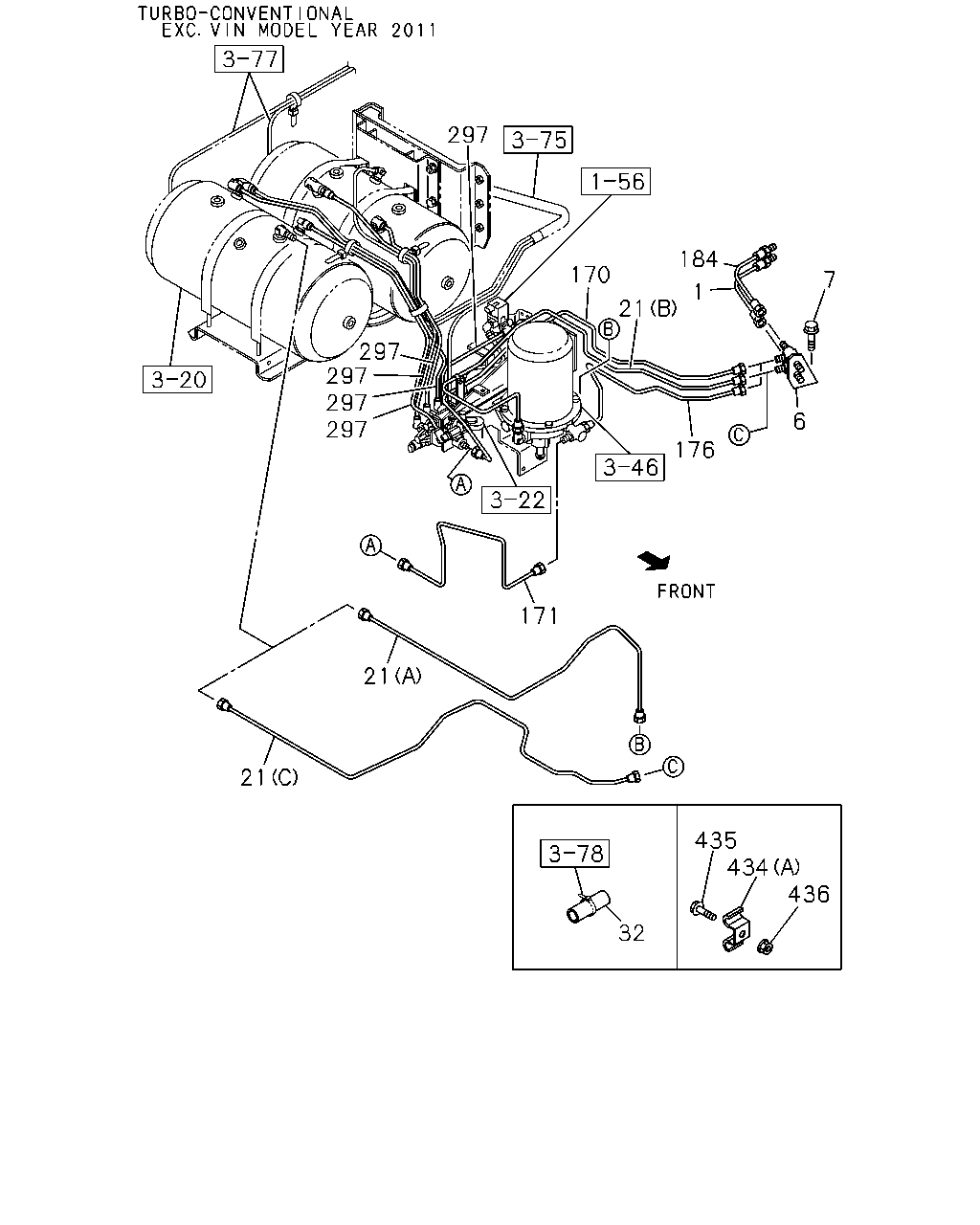

297 184 170 7 1 21 297 297 297 297 6 176 171 21 21 435 434 436 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1202-
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	0809-1201
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1202-
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T>	8-98076-344-0	01	1	1202-
6	BRACKET; FLEX HOSE,AIR TANK	8-98117-117-0	01	1	0809-1201
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T>	8-98117-117-0	01	1	1202-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (C) L=1630	8-98120-164-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (F) L=1715	8-98095-083-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D)	8-98173-546-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D)	8-98184-503-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (D)	8-98184-503-0	01	1	1103-1201
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D)	8-98184-503-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1523	8-98173-570-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1103-1201
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-1009
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=1548	8-98174-993-0	01	1	1010-1201
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A)	8-98117-819-0	01	1	0809-0904
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A)	8-98147-087-0	01	1	0905-1011
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (C) L=1630	8-98120-164-0	01	1	0809-1011
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (C) L=1630	8-98120-164-0	01	1	1012-1102
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-1201
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1202-
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0809-0907
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	0908-1201
170	PIPE; AIR,AIR GOV TO FLEX HOSE TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	1202-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0809-1201
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1202-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0809-1201
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1202-
184	HOSE; FLEX,AIR GOV L=350	1-09363-624-0	01	1	0809-1201
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=350	1-09363-624-0	01	1	1202-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (C) ID=16 L=20	0-95235-536-0	02	1	1202-
434	CLIP AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1201
434	CLIP AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1202-
434	CLIP EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1201
434	CLIP TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1202-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0809-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
