Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#68501) — 284 parça

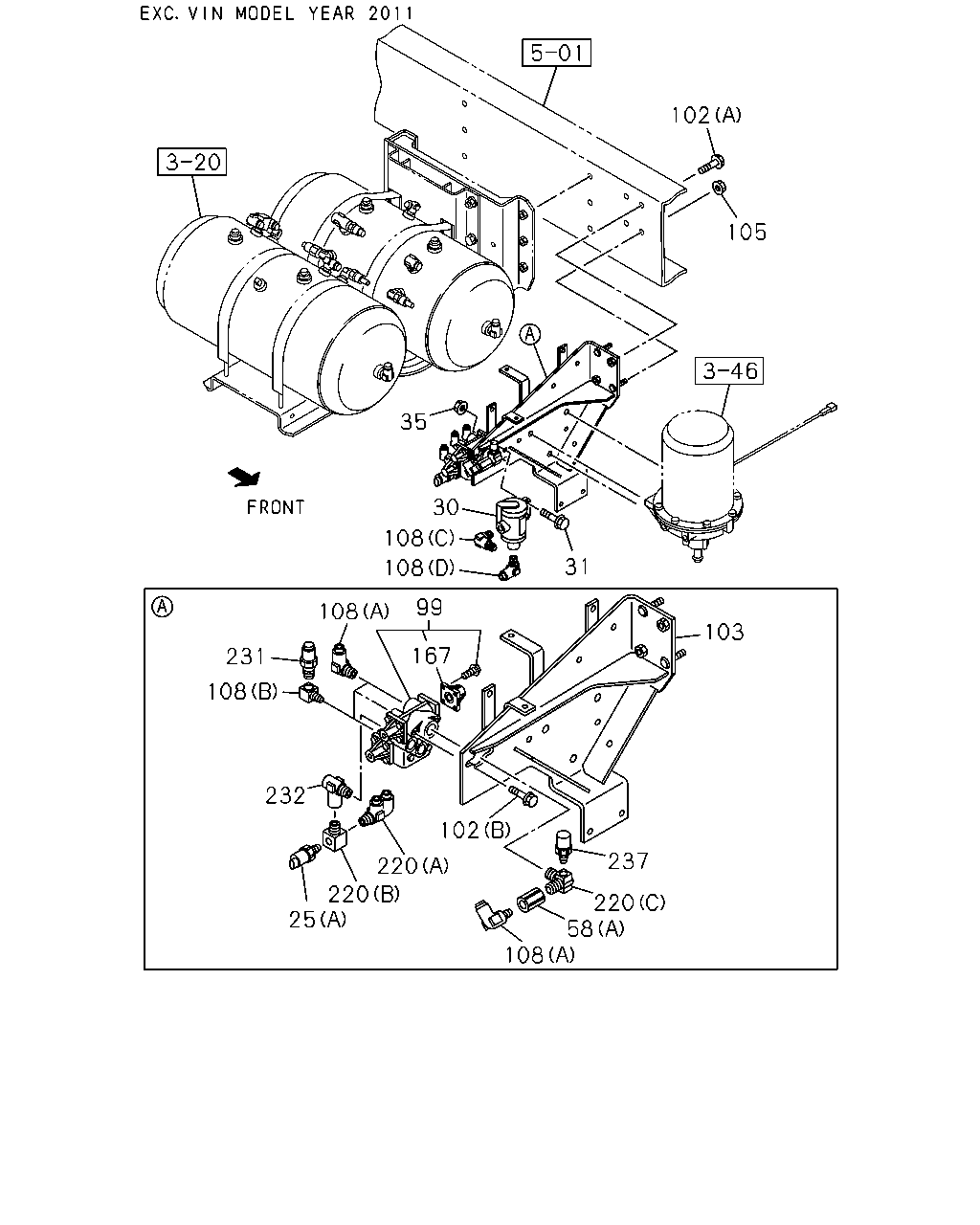

102 105 31 108 30 108 35 103 237 220 58 108 25 102 220 220 232 108 108 99 167 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	0809-
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	0809-
30	GOVERNOR; AIR CONT	1-48350-093-2	01	1	0809-1201
30	GOVERNOR; AIR CONT TURBO - CONVENTIONAL<Q5T>	1-48350-093-2	01	1	1202-
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0809-1201
31	BOLT; GOV TO FRAME TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE	0-28650-830-0	02	1	1202-
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0809-1201
35	NUT; GOV TO FRAME TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1202-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (C) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1102
58	ADAPTER (C) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1103-1108
58	ADAPTER ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1109-1201
58	ADAPTER ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (C) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1202-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (D) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1012-1102
58	ADAPTER (D) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1103-1108
58	ADAPTER ZF9S1110 M/T(Y5E) (D) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1109-1201
58	ADAPTER ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (D) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1202-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1012-1102
58	ADAPTER (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1103-1201
58	ADAPTER VIN MODEL YEAR 2011<VZB> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1202-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (F) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1012-1102
58	ADAPTER (F) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1103-1201
58	ADAPTER VIN MODEL YEAR 2011<VZB> (F) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1202-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (G)	8-98148-475-0	01	1	1012-1102
58	ADAPTER (G)	8-98148-475-0	01	1	1103-1201
58	ADAPTER VIN MODEL YEAR 2011<VZB> (G)	8-98148-475-0	01	1	1202-
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0809-
58	ADAPTER (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0809-
99	VALVE; PROTECTION	1-48110-288-3	01	1	0809-
102	BOLT; PROTECTION VALVE VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE	0-28650-820-0	02	1	1012-1102
102	BOLT; PROTECTION VALVE (C) M8X20 FLANGE	0-28650-820-0	02	1	1103-1201
102	BOLT; PROTECTION VALVE VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE	0-28650-820-0	02	1	1202-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	0809-
102	BOLT; PROTECTION VALVE (A) M10X35 FLANGE	0-28651-035-0	02	1	0809-
103	BRACKET; PROTECTION VALVE ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	8-98177-510-0	01	1	1202-
103	BRACKET; PROTECTION VALVE EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB>	8-98116-826-0	01	1	1202-
103	BRACKET; PROTECTION VALVE EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB>	8-98119-704-0	01	1	1202-
103	BRACKET; PROTECTION VALVE VIN MODEL YEAR 2011<VZB>	8-98173-454-0	01	1	1012-1102
103	BRACKET; PROTECTION VALVE	8-98173-454-0	01	1	1103-1201
103	BRACKET; PROTECTION VALVE FULLER ES11109 DD M/T(Y5N) VIN MODEL YEAR 2011<VZB>	8-98173-454-0	01	1	1202-
103	BRACKET; PROTECTION VALVE ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> TURBO - CONVENTIONAL<Q5T>	8-98173-454-0	01	1	1202-
103	BRACKET; PROTECTION VALVE	8-98116-826-0	01	1	0809-1011
103	BRACKET; PROTECTION VALVE EXC. VIN MODEL YEAR 2011<VZB>	8-98116-826-0	01	1	1012-1102
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	0809-
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1012-1102
108	CONNECTOR; ELBOW (E) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1103-1201
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1202-1503
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
108	CONNECTOR; ELBOW EXC. VIN MODEL YEAR 2011<VZB> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1012
108	CONNECTOR; ELBOW (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-1011
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-1102
108	CONNECTOR; ELBOW (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-1102
108	CONNECTOR; ELBOW (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1103-1201
108	CONNECTOR; ELBOW (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1103-1201
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1202-
108	CONNECTOR; ELBOW (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-1011
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1012-1012
108	CONNECTOR; ELBOW (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1201
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1202-
108	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	01	1	0809-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0809-
167	COVER; VALVE	1-48119-625-0	04	1	0809-
167	COVER; VALVE	1-48219-070-0	01	1	0809-
167	COVER; VALVE	1-48219-070-0	02	1	0809-
220	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1202-
220	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (C) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1202-
220	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (B) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1202-
220	CONNECTOR; 3WAY (B)	1-09656-708-0	01	1	0809-1011
220	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (B)	1-09656-708-0	01	1	1012-1101
220	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (B) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1102-1102
220	CONNECTOR; 3WAY (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0809-1011
220	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1012-1102
220	CONNECTOR; 3WAY (C) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	0809-1011
220	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (C) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1012-1102
231	CONNECTOR; NYLON TUBE EXC. VIN MODEL YEAR 2011<VZB> DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1202-
231	CONNECTOR; NYLON TUBE DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0809-1011
231	CONNECTOR; NYLON TUBE EXC. VIN MODEL YEAR 2011<VZB> DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1012-1102
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0809-
237	VALVE; SAFETY	1-48320-012-2	01	1	0809-

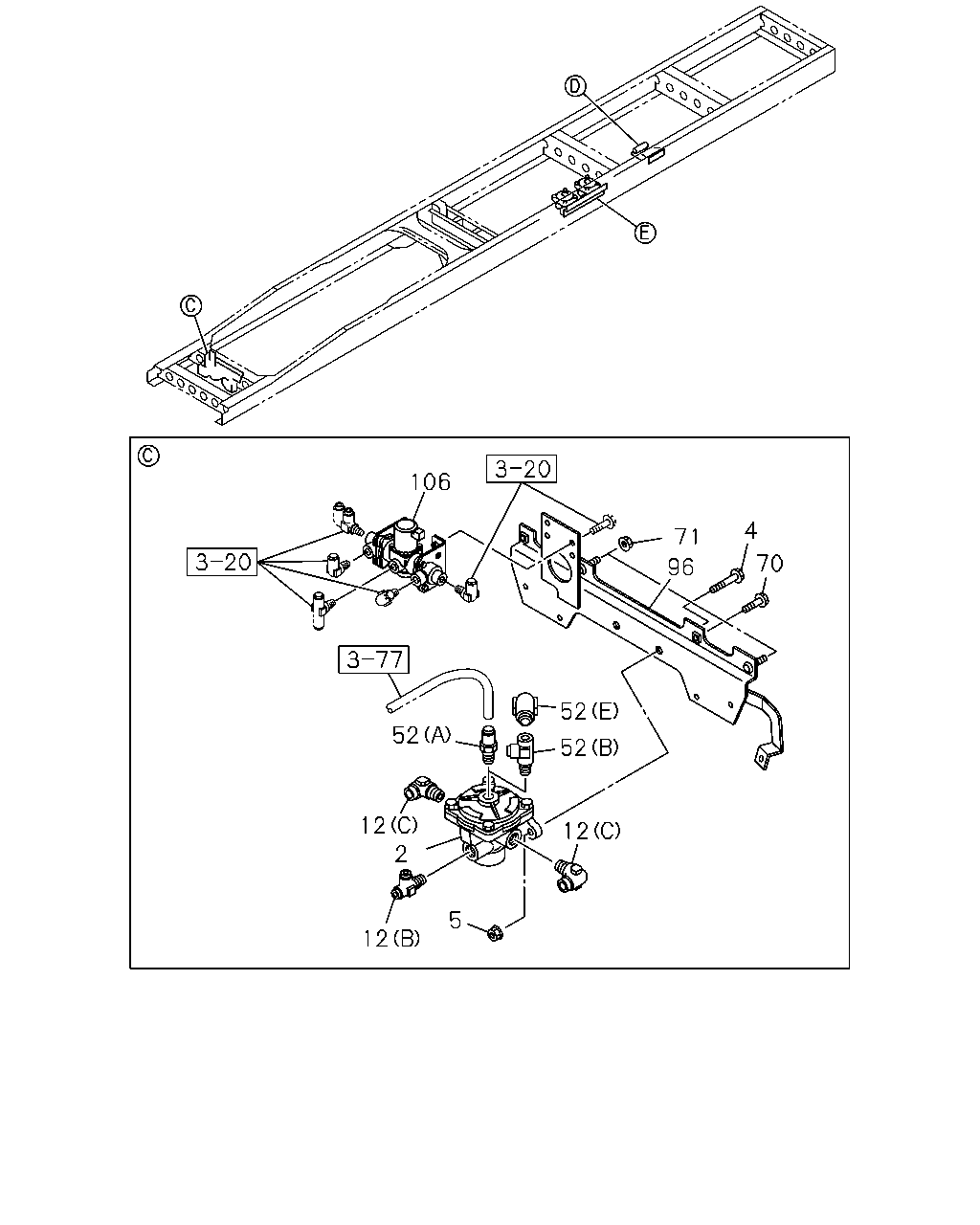

106 4 71 70 96 52 52 52 12 2 12 5 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-875-0	01	1	0809-
2	VALVE; RELAY	1-48210-875-0	02	1	0809-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	04	1	0809-
5	NUT M10 FLANGE	0-91180-210-0	02	1	0809-
5	NUT M10 FLANGE	0-91180-210-0	04	1	0809-
12	CONNECTOR; RELAY VLV (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0809-
12	CONNECTOR; RELAY VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0809-
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0809-
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0809-
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0809-
12	CONNECTOR; RELAY VLV (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	0809-
52	CONNECTOR; RELAY VLV (D) PT3/8 3WAY	1-09661-300-0	01	1	0809-1111
52	CONNECTOR; RELAY VLV (D) DIN9 & RC3/8 ELBOW	8-98203-578-0	01	1	1112-
52	CONNECTOR; RELAY VLV (C)	1-09661-537-0	01	1	0809-0811
52	CONNECTOR; RELAY VLV (C) DIN8 & RC1/4 & R3/8 3WAY	8-97620-116-0	01	1	0812-
52	CONNECTOR; RELAY VLV H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0809-
52	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0809-
52	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	0809-
70	BOLT; AIR VLV M8X25 FLANGE	0-28650-825-0	02	1	0809-
71	NUT; AIR VLV M8 FLANGE	0-91180-108-0	02	1	0809-
96	BRACKET	8-98094-851-2	01	1	0809-
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	0809-

195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	0809-
189	VALVE ASM; SOLENOID,HSA VLV H.S.A SYSTEM<6EP>	1-46366-247-0	01	1	0809-
190	BODY; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-234-0	01	1	0809-
192	SPRING; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	0809-
195	SCREW; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	0809-
196	PISTON; HSA VLV H.S.A SYSTEM<6EP>	1-46366-232-0	02	1	0809-
197	SPRING; INNER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	0809-
198	PIN; STRAIGHT,HSA VLV H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	0809-
199	RETAINER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	0809-
200	SPRING; OUTER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	0809-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	0809-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	0809-
202	FILTER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	0809-
203	SCREW; HSA VLV H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	0809-
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	0809-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	0809-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	0809-

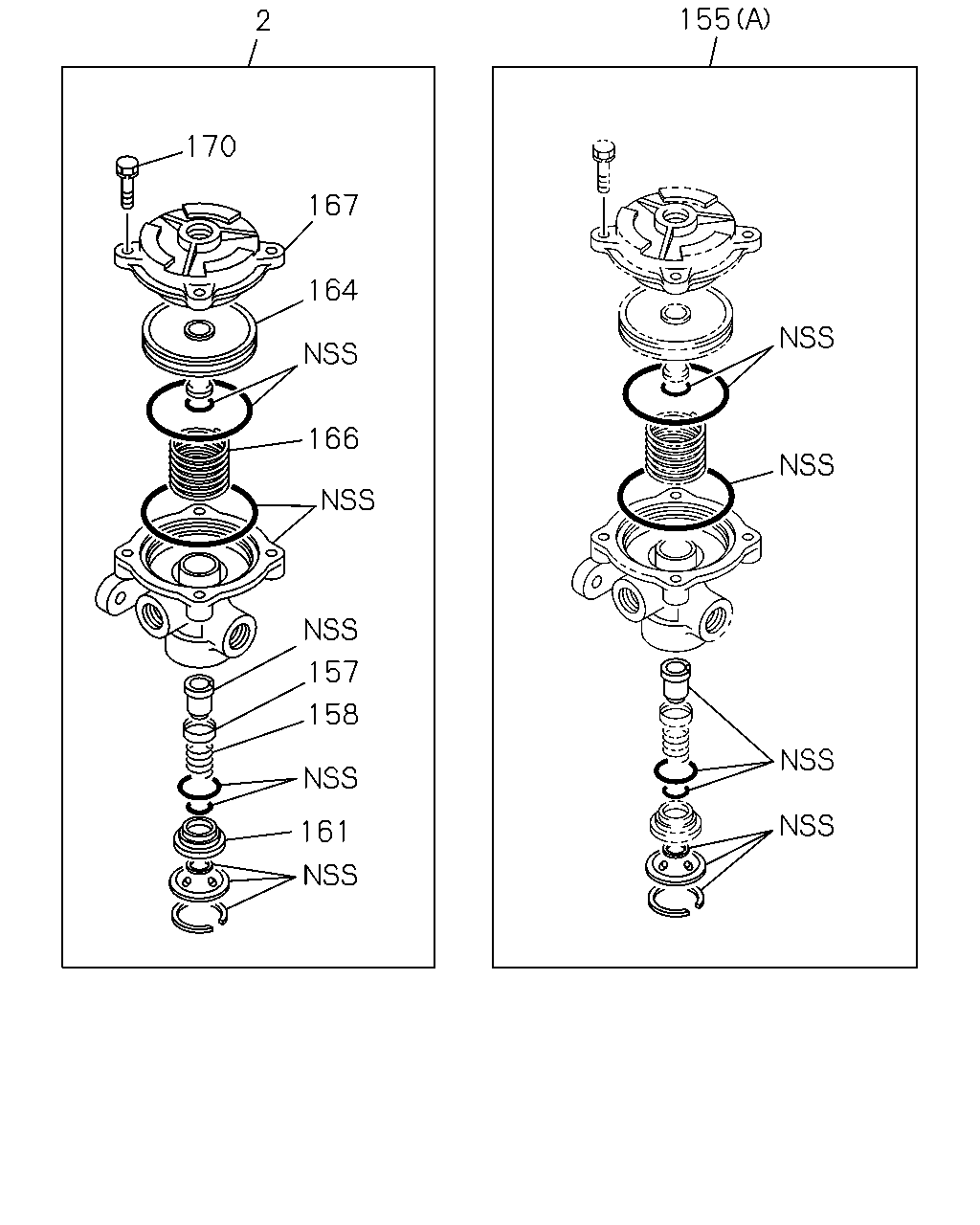

155 2 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-875-0	01	1	0809-
2	VALVE; RELAY	1-48210-875-0	02	1	0809-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	0809-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	02	1	0809-

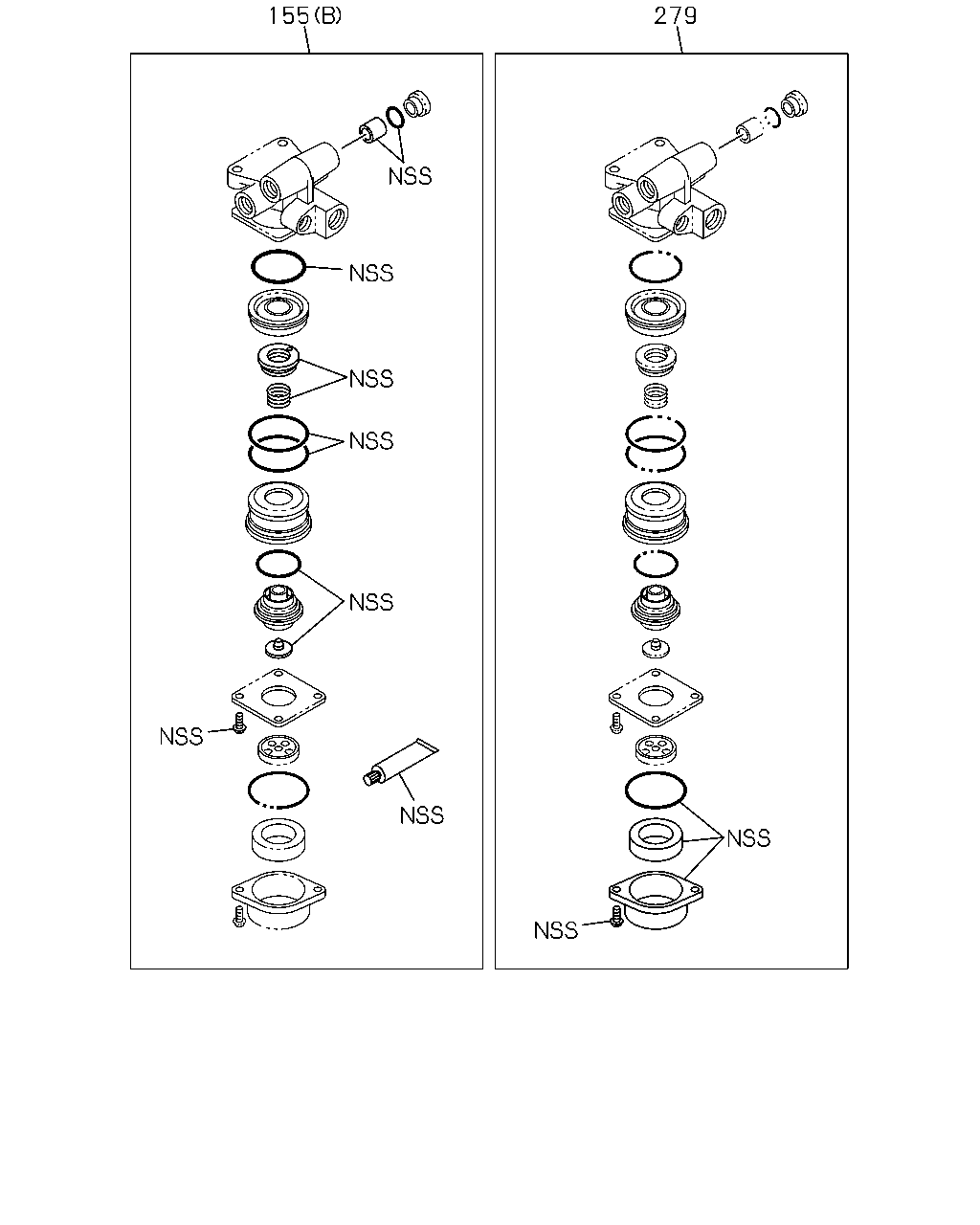

155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0809-
157	RETAINER; VALVE	1-48213-002-0	01	1	0809-
157	RETAINER; VALVE	1-48213-002-0	02	1	0809-
158	SPRING; VALVE	1-47819-089-0	01	1	0809-
158	SPRING; VALVE	1-47819-089-0	02	1	0809-
161	GUIDE; VALVE	1-48129-014-0	01	1	0809-
161	GUIDE; VALVE	1-48129-014-0	02	1	0809-
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0809-
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	0809-
166	SPRING; PISTON	1-47819-090-0	01	1	0809-
166	SPRING; PISTON	1-47819-090-0	02	1	0809-
167	COVER; VALVE	1-48119-625-0	04	1	0809-
167	COVER; VALVE	1-48219-070-0	01	1	0809-
167	COVER; VALVE	1-48219-070-0	02	1	0809-
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0809-
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	0809-

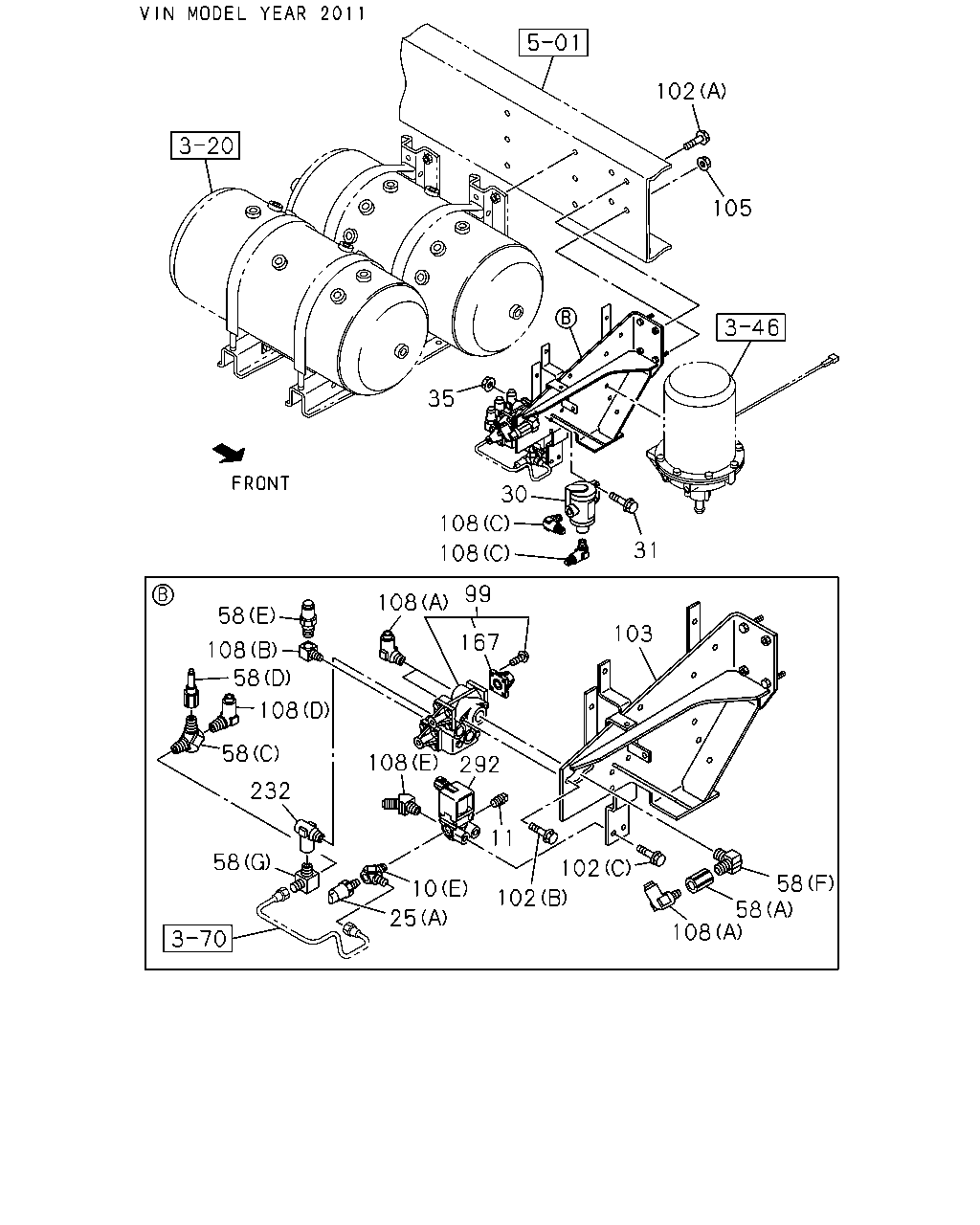

102 105 31 30 35 108 108 99 108 58 108 58 108 58 232 58 108 292 10 25 11 102 102 103 167 108 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1102
10	CONNECTOR (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1103-1201
10	CONNECTOR VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1202-
10	CONNECTOR (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0809-
10	CONNECTOR (D) PT1/4 2WAY	1-09660-693-0	01	1	0809-
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0809-
10	CONNECTOR (C) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0809-
11	PLUG VIN MODEL YEAR 2011<VZB> PT1/4	9-99204-513-0	01	1	1012-1102
11	PLUG PT1/4	9-99204-513-0	01	1	1103-1201
11	PLUG VIN MODEL YEAR 2011<VZB> PT1/4	9-99204-513-0	01	1	1202-
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	0809-
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	0809-
30	GOVERNOR; AIR CONT	1-48350-093-2	01	1	0809-1201
30	GOVERNOR; AIR CONT TURBO - CONVENTIONAL<Q5T>	1-48350-093-2	01	1	1202-
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0809-1201
31	BOLT; GOV TO FRAME TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE	0-28650-830-0	02	1	1202-
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0809-1201
35	NUT; GOV TO FRAME TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1202-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (C) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1102
58	ADAPTER (C) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1103-1108
58	ADAPTER ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1109-1201
58	ADAPTER ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (C) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1202-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (D) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1012-1102
58	ADAPTER (D) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1103-1108
58	ADAPTER ZF9S1110 M/T(Y5E) (D) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1109-1201
58	ADAPTER ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (D) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1202-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1012-1102
58	ADAPTER (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1103-1201
58	ADAPTER VIN MODEL YEAR 2011<VZB> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1202-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (F) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1012-1102
58	ADAPTER (F) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1103-1201
58	ADAPTER VIN MODEL YEAR 2011<VZB> (F) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1202-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (G)	8-98148-475-0	01	1	1012-1102
58	ADAPTER (G)	8-98148-475-0	01	1	1103-1201
58	ADAPTER VIN MODEL YEAR 2011<VZB> (G)	8-98148-475-0	01	1	1202-
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0809-
58	ADAPTER (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0809-
99	VALVE; PROTECTION	1-48110-288-3	01	1	0809-
102	BOLT; PROTECTION VALVE VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE	0-28650-820-0	02	1	1012-1102
102	BOLT; PROTECTION VALVE (C) M8X20 FLANGE	0-28650-820-0	02	1	1103-1201
102	BOLT; PROTECTION VALVE VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE	0-28650-820-0	02	1	1202-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	0809-
102	BOLT; PROTECTION VALVE (A) M10X35 FLANGE	0-28651-035-0	02	1	0809-
103	BRACKET; PROTECTION VALVE ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	8-98177-510-0	01	1	1202-
103	BRACKET; PROTECTION VALVE EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB>	8-98116-826-0	01	1	1202-
103	BRACKET; PROTECTION VALVE EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB>	8-98119-704-0	01	1	1202-
103	BRACKET; PROTECTION VALVE VIN MODEL YEAR 2011<VZB>	8-98173-454-0	01	1	1012-1102
103	BRACKET; PROTECTION VALVE	8-98173-454-0	01	1	1103-1201
103	BRACKET; PROTECTION VALVE FULLER ES11109 DD M/T(Y5N) VIN MODEL YEAR 2011<VZB>	8-98173-454-0	01	1	1202-
103	BRACKET; PROTECTION VALVE ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> TURBO - CONVENTIONAL<Q5T>	8-98173-454-0	01	1	1202-
103	BRACKET; PROTECTION VALVE	8-98116-826-0	01	1	0809-1011
103	BRACKET; PROTECTION VALVE EXC. VIN MODEL YEAR 2011<VZB>	8-98116-826-0	01	1	1012-1102
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	0809-
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1012-1102
108	CONNECTOR; ELBOW (E) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1103-1201
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1202-1503
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
108	CONNECTOR; ELBOW EXC. VIN MODEL YEAR 2011<VZB> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1012
108	CONNECTOR; ELBOW (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-1011
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-1102
108	CONNECTOR; ELBOW (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-1102
108	CONNECTOR; ELBOW (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1103-1201
108	CONNECTOR; ELBOW (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1103-1201
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1202-
108	CONNECTOR; ELBOW (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-1011
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1012-1012
108	CONNECTOR; ELBOW (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1201
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1202-
108	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	01	1	0809-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0809-
167	COVER; VALVE	1-48119-625-0	04	1	0809-
167	COVER; VALVE	1-48219-070-0	01	1	0809-
167	COVER; VALVE	1-48219-070-0	02	1	0809-
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0809-
292	VALVE ASM; MAGNETIC VIN MODEL YEAR 2011<VZB>	1-82563-871-2	01	1	1012-1102
292	VALVE ASM; MAGNETIC	1-82563-871-2	01	1	1103-1201
292	VALVE ASM; MAGNETIC VIN MODEL YEAR 2011<VZB>	1-82563-871-2	01	1	1202-

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	REPAIR KIT; HSA VLV H.S.A SYSTEM<6EP>	1-85576-304-1	01	1	0809-
	204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	0809-

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	0809-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	02	1	0809-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0809-
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	0809-

62 10 58 213 65 6 1 10 63 213 58 58 213 10 74 10 10 213 58 25 12 56 8 52 12 73 12 4 182 182 2 52 12 12 2 5 12 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	0809-
2	VALVE; RELAY	1-48210-875-0	01	1	0809-
2	VALVE; RELAY	1-48210-875-0	02	1	0809-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	04	1	0809-
5	NUT M10 FLANGE	0-91180-210-0	02	1	0809-
5	NUT M10 FLANGE	0-91180-210-0	04	1	0809-
6	BOLT; VLV M8X35 FLANGE	0-28650-835-0	02	1	0809-
8	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	03	1	0809-
10	CONNECTOR VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1102
10	CONNECTOR (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1103-1201
10	CONNECTOR VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1202-
10	CONNECTOR (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0809-
10	CONNECTOR (D) PT1/4 2WAY	1-09660-693-0	01	1	0809-
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0809-
10	CONNECTOR (C) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0809-
12	CONNECTOR; RELAY VLV (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0809-
12	CONNECTOR; RELAY VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0809-
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0809-
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0809-
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0809-
12	CONNECTOR; RELAY VLV (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	0809-
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	0809-
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	0809-
52	CONNECTOR; RELAY VLV (D) PT3/8 3WAY	1-09661-300-0	01	1	0809-1111
52	CONNECTOR; RELAY VLV (D) DIN9 & RC3/8 ELBOW	8-98203-578-0	01	1	1112-
52	CONNECTOR; RELAY VLV (C)	1-09661-537-0	01	1	0809-0811
52	CONNECTOR; RELAY VLV (C) DIN8 & RC1/4 & R3/8 3WAY	8-97620-116-0	01	1	0812-
52	CONNECTOR; RELAY VLV H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0809-
52	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0809-
52	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	0809-
56	BRACKET; RELAY VLV	1-47479-937-0	01	1	0809-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (C) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1102
58	ADAPTER (C) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1103-1108
58	ADAPTER ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1109-1201
58	ADAPTER ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (C) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1202-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (D) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1012-1102
58	ADAPTER (D) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1103-1108
58	ADAPTER ZF9S1110 M/T(Y5E) (D) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1109-1201
58	ADAPTER ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (D) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1202-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1012-1102
58	ADAPTER (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1103-1201
58	ADAPTER VIN MODEL YEAR 2011<VZB> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1202-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (F) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1012-1102
58	ADAPTER (F) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1103-1201
58	ADAPTER VIN MODEL YEAR 2011<VZB> (F) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1202-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (G)	8-98148-475-0	01	1	1012-1102
58	ADAPTER (G)	8-98148-475-0	01	1	1103-1201
58	ADAPTER VIN MODEL YEAR 2011<VZB> (G)	8-98148-475-0	01	1	1202-
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0809-
58	ADAPTER (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0809-
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	0809-
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0809-
65	BRACKET; RELAY VLV RR	1-47471-032-0	01	1	0809-
73	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0809-
74	CONNECTOR; 3WAY DIN8 & RC1/4 & R3/8 3WAY	1-09661-536-0	01	1	0809-
182	PLUG; RELAY VLV PT3/8	9-09204-517-0	02	1	0809-
213	GASKET ID=22.5	9-09571-422-0	04	1	0809-

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0809-1201
	240	REPAIR KIT; AIR CONT GOV TURBO - CONVENTIONAL<Q5T>	1-85576-467-0	01	1	1202-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	REPAIR KIT; PROTECTION VALVE	1-85576-451-2	01	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
