3-10 — BRAKE PEDAL AND CONTROL (#6850) — 40 parça

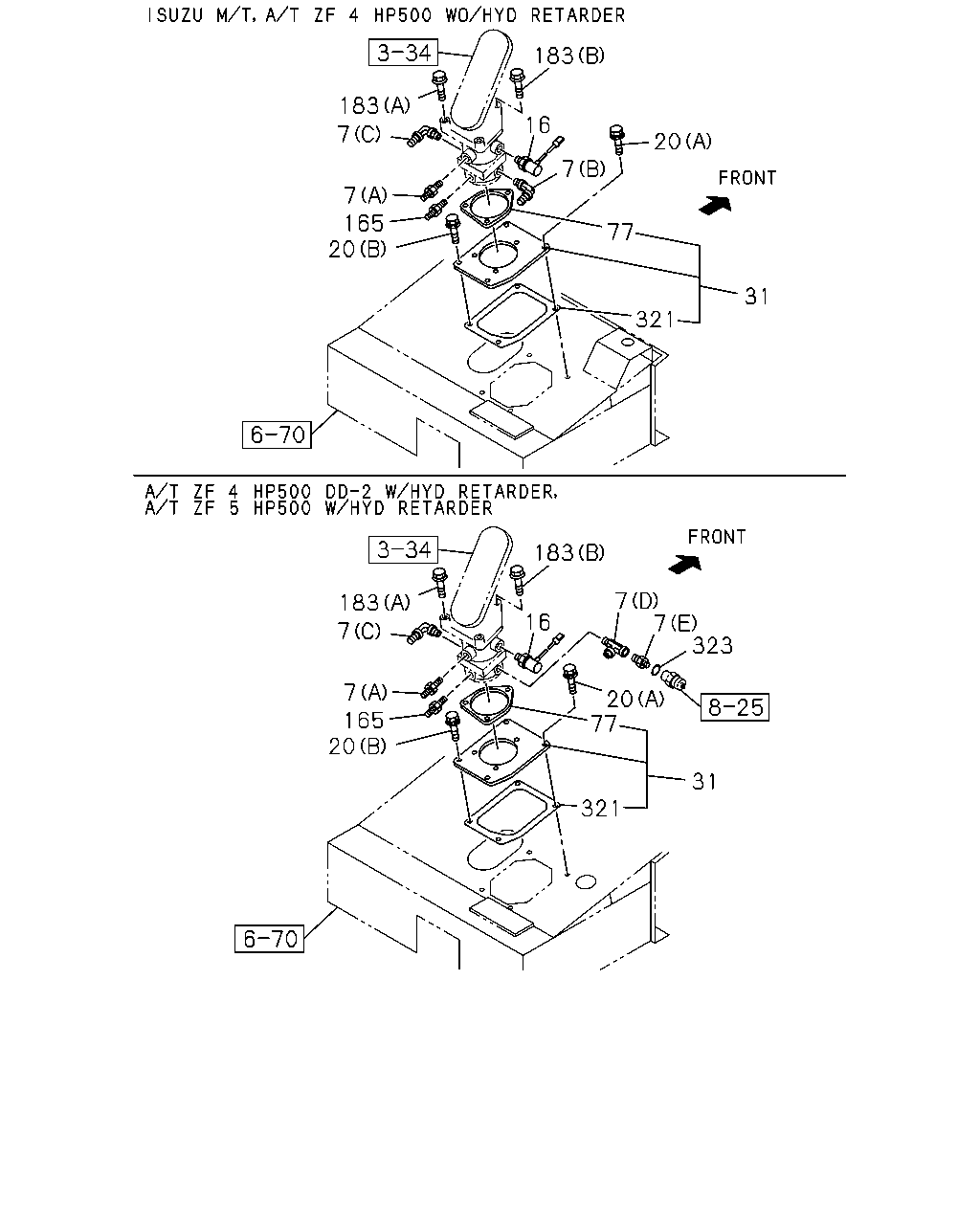

çizim 26809
183 183 16 7 20 7 7 165 20 77 31 321 183 7 7 323 183 16 7 7 165 20 20 77 31 321
BalonParca AdiParca NoAdetTipApplied Date
7 CONNECTOR; BRK VALVE
(C) 		1-09660-910-0 01 1 9806-0103
7 CONNECTOR; BRK VALVE
(A) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 9806-9912
7 CONNECTOR; BRK VALVE
(A) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 0001-0003
7 CONNECTOR; BRK VALVE
A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) (A) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 0001-0003
7 CONNECTOR; BRK VALVE
(A) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 0004-0306
7 CONNECTOR; BRK VALVE
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0307-
7 CONNECTOR; BRK VALVE
A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E) (D) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 9912-9912
7 CONNECTOR; BRK VALVE
A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) (D) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 0001-
7 CONNECTOR; BRK VALVE
A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E) (E) M12 & PT1/4 STRAIGHT 		1-09660-916-0 01 1 9912-9912
7 CONNECTOR; BRK VALVE
A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) (E) M12 & PT1/4 STRAIGHT 		1-09660-916-0 01 1 0001-
7 CONNECTOR; BRK VALVE
MLD6Q M/T(X5J),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9912-9912
7 CONNECTOR; BRK VALVE
MLD6Q M/T(X5J),A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0001-0003
7 CONNECTOR; BRK VALVE
MLD6Q M/T(X5J),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0004-0103
7 CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0104-0306
7 CONNECTOR; BRK VALVE
MLD6Q M/T(X5J),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0104-0306
7 CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0307-
7 CONNECTOR; BRK VALVE
MLD6Q M/T(X5J),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0307-
7 CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9806-9911
16 SWITCH; STOP LAMP
GREEN 		1-82410-176-1 02 1 9806-
20 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 02 1 9806-0512
20 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0601-
20 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9806-
31 PLATE; MTG,BRKT VLV 1-73996-329-0 01 1 9806-9911
31 PLATE; MTG,BRKT VLV 1-73990-030-0 01 1 9912-
77 RUBBER; SEAL,BRK 1-73996-207-0 01 1 9806-
165 CONNECTOR; SECONDARY DELIVERY
DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 9806-0306
165 CONNECTOR; SECONDARY DELIVERY
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0307-
183 BOLT; BRK VLV
(B) M10X30 FLANGE 		0-28681-030-0 01 1 9806-0512
183 BOLT; BRK VLV
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0601-
183 BOLT; BRK VLV
(A) M10X40 FLANGE 		0-28681-040-0 02 1 9806-0512
183 BOLT; BRK VLV
(A) M10X40 FLANGE 		0-28651-040-0 02 1 0601-
321 SEAL; VALVE 1-73996-143-0 01 1 9806-9911
321 SEAL; VALVE 1-73990-033-0 01 1 9912-
323 GASKET
A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E) ID=12.2 		9-09571-412-0 01 1 9912-9912
323 GASKET
A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) ID=12.2 		9-09571-412-0 01 1 0001-

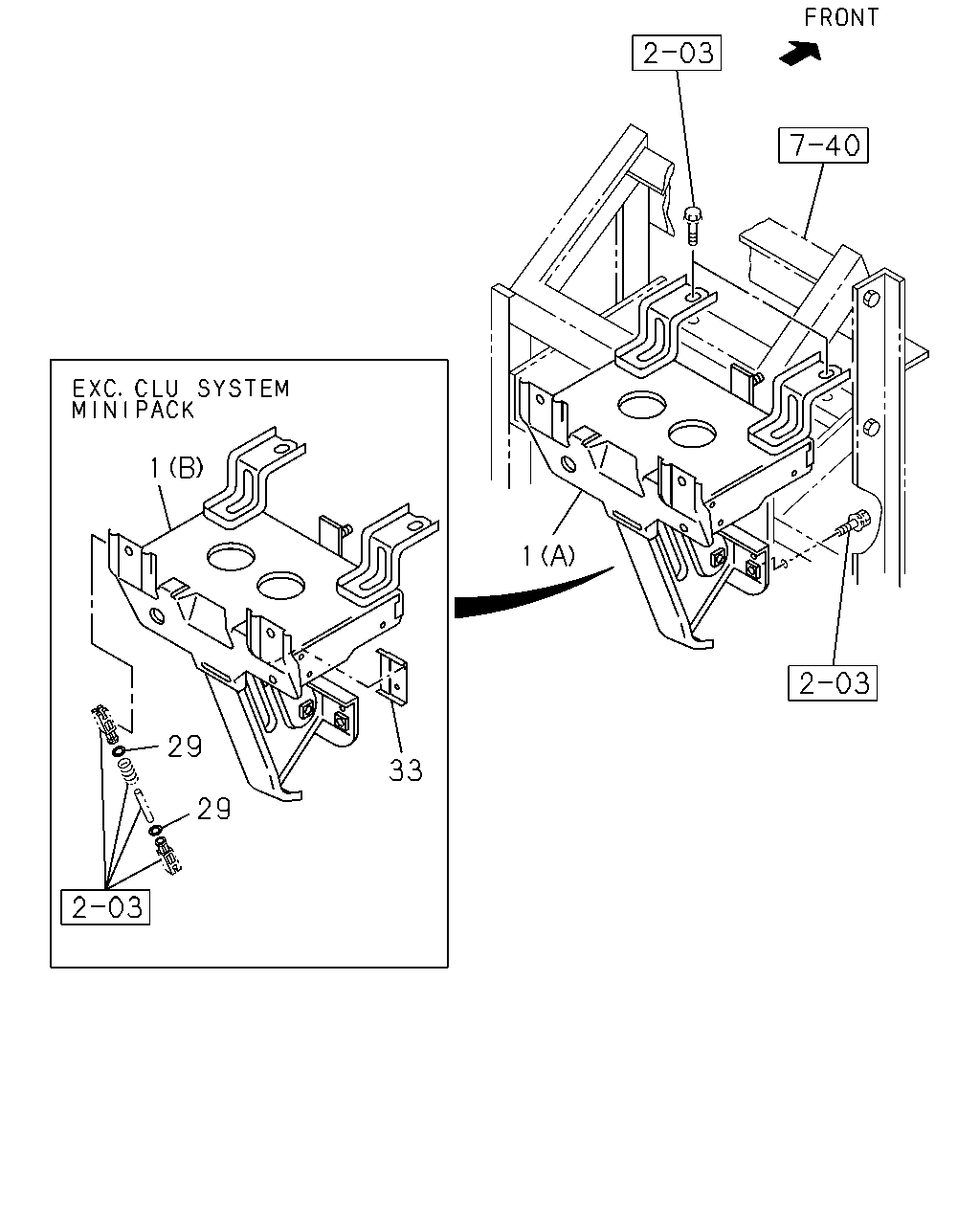

çizim 99064
1 1 29 33 29
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET ASM; PEDAL
CLU SYSTEM MINIPACK(B1Z) (A) 		1-73908-280-1 01 1 9806-9911
1 BRACKET ASM; PEDAL
(A) 		1-73908-280-1 01 1 9912-
1 BRACKET ASM; PEDAL
EXC. CLU SYSTEM MINIPACK(B1Z) (B) 		1-73908-050-8 01 1 9806-9911
29 WASHER; PL,BRK PEDAL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-09503-114-0 02 1 9806-9911
33 STOPPER; BRK PEDAL
EXC. CLU SYSTEM MINIPACK(B1Z) 		1-73908-088-1 01 1 9806-9911
