0-22 — ENGINE MOUNTING (#685) — 69 parça

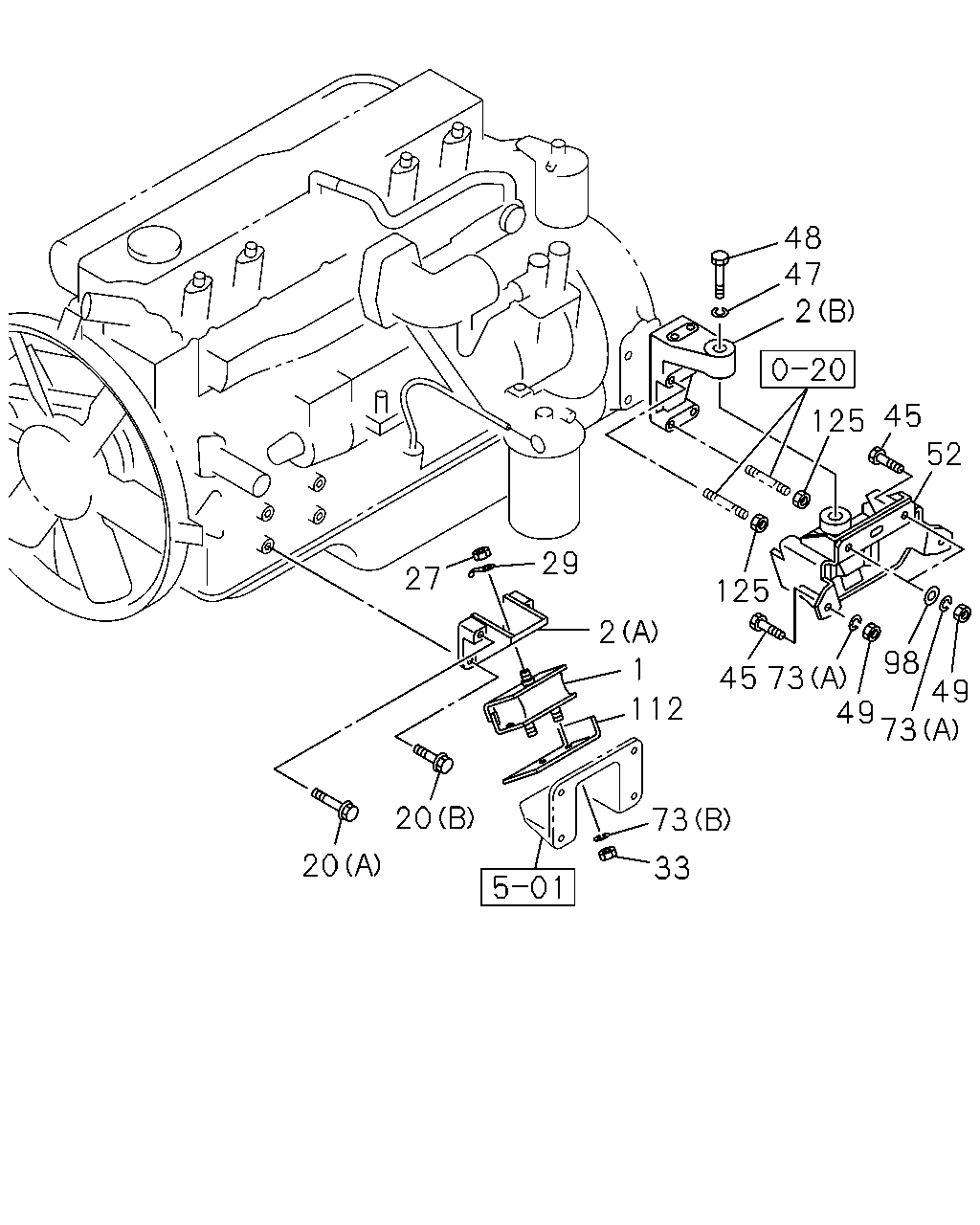

çizim 94769
48 47 2 45 52 125 29 27 125 2 1 98 49 45 49 73 112 73 20 20 33 73
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RUBBER; ENG FOOT,FRT 1-53215-179-2 02 1 9204- ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-183-0 02 1 9505- ●
2 FOOT; ENG
(A) 		1-11771-169-1 02 1 9204- ● ●
2 FOOT; ENG
(B) 		1-11773-049-1 01 1 9204- ●
2 FOOT; ENG
(B) 		1-11773-048-3 01 1 9204- ●
2 FOOT; ENG
(B) 		8-94396-953-3 02 1 9505- ●
2 FOOT; ENG
(A) 		8-94397-493-0 01 1 9505- ●
2 FOOT; ENG
(A) 		8-94397-492-0 01 1 9505- ●
20 BOLT; ENG FOOT
(C) M10X29 		1-09020-092-0 04 1 9204- ● ●
20 BOLT; ENG FOOT
(A) M10X24.5 		1-09020-093-0 04 1 9204- ● ●
20 BOLT; ENG FOOT
(B) L=50 		1-09070-118-0 06 1 9204- ●
20 BOLT; ENG FOOT
(B) L=40 		1-09070-119-0 02 1 9204- ●
20 BOLT; ENG FOOT
(A) M10X70 		8-94370-054-0 04 1 9505- ●
20 BOLT; ENG FOOT
(B) M10X25 		8-94397-026-0 04 1 9505- ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M14 		9-99110-514-0 02 1 9204- ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 		9-99110-412-0 02 1 9505- ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-037-3 02 1 9204- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 9505- ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-414-0 04 1 9204- ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X50 		9-92061-450-0 08 1 9204- ● ● ●
47 WASHER; LK,CUSHION RUBBER
ID=22.5 		9-09150-622-0 02 1 9204- ● ● ●
48 BOLT; CUSHION RUBBER TO ENG 1-09020-087-2 02 1 9204- ● ●
48 BOLT; CUSHION RUBBER TO ENG
M22X60 		1-09020-143-0 02 1 9204- ●
49 NUT; CUSHION RUBBER TO FRAME
M14 		9-99110-514-0 08 1 9204- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-192-1 02 1 9204- ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-253-3 02 1 9204- ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-276-1 02 1 9505- ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(B) ID=14.2 		9-09150-514-0 04 1 9204- ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(A) ID=14.2 		9-09150-614-0 08 1 9204- ● ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 		9-09651-069-0 16 1 9204- ● ● ●
112 PROTECTOR; HEAT 1-53219-255-1 01 1 9204-9302 ● ●
112 PROTECTOR; HEAT 1-53219-322-0 01 1 9303- ● ●
112 PROTECTOR; HEAT 1-53219-395-1 01 1 9505- ●
125 NUT; ENG FOOT
M12 FLANGE 		8-94394-704-0 08 1 9505- ●

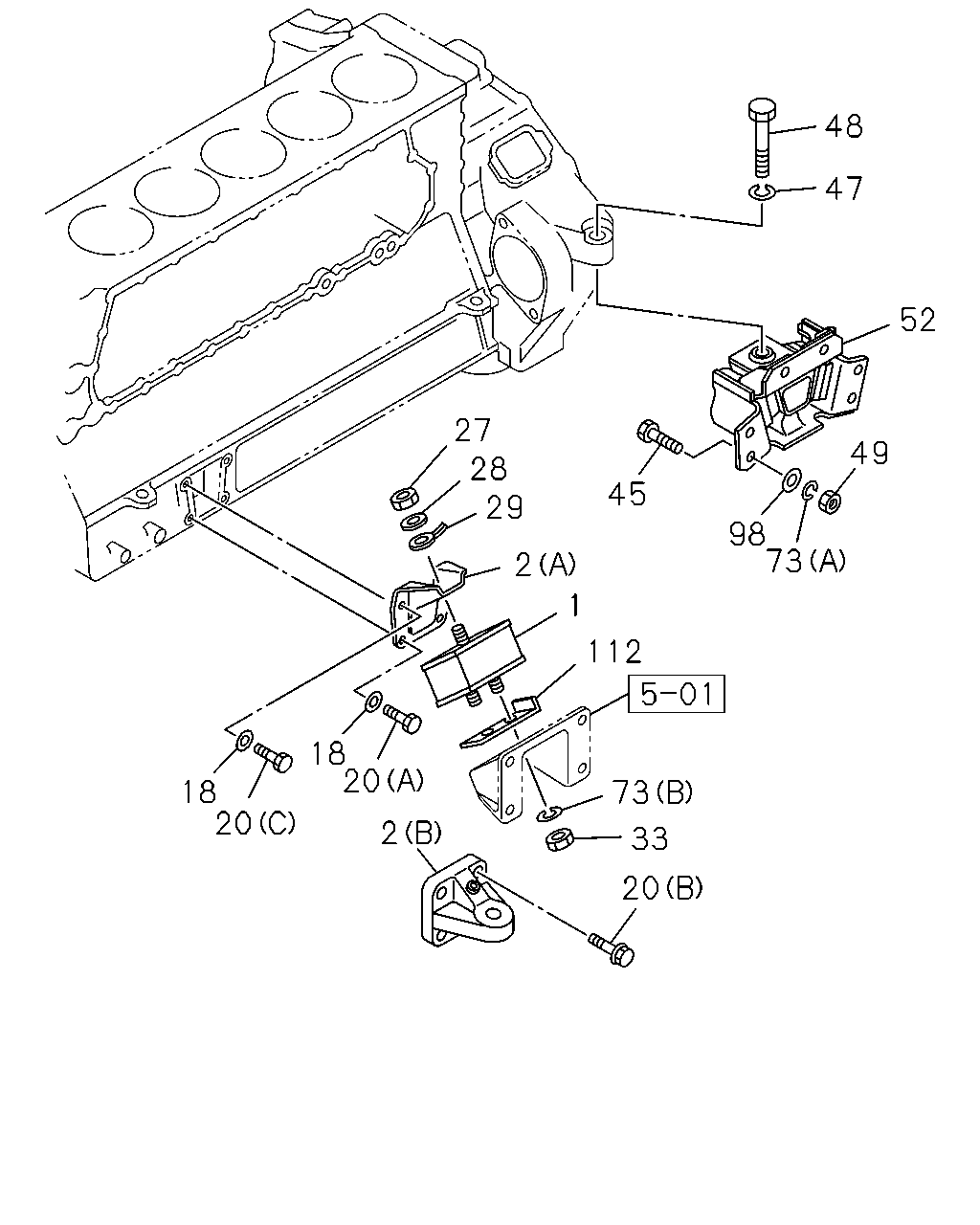

çizim 95361
48 47 52 27 28 29 49 45 98 73 2 1 112 18 20 18 20 73 2 33 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RUBBER; ENG FOOT,FRT 1-53215-179-2 02 1 9204- ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-183-0 02 1 9505- ●
2 FOOT; ENG
(A) 		1-11771-169-1 02 1 9204- ● ●
2 FOOT; ENG
(B) 		1-11773-049-1 01 1 9204- ●
2 FOOT; ENG
(B) 		1-11773-048-3 01 1 9204- ●
2 FOOT; ENG
(B) 		8-94396-953-3 02 1 9505- ●
2 FOOT; ENG
(A) 		8-94397-493-0 01 1 9505- ●
2 FOOT; ENG
(A) 		8-94397-492-0 01 1 9505- ●
18 WASHER; PL,ENG FOOT
ID=10.5 		9-09851-866-0 08 1 9204- ● ●
20 BOLT; ENG FOOT
(C) M10X29 		1-09020-092-0 04 1 9204- ● ●
20 BOLT; ENG FOOT
(A) M10X24.5 		1-09020-093-0 04 1 9204- ● ●
20 BOLT; ENG FOOT
(B) L=50 		1-09070-118-0 06 1 9204- ●
20 BOLT; ENG FOOT
(B) L=40 		1-09070-119-0 02 1 9204- ●
20 BOLT; ENG FOOT
(A) M10X70 		8-94370-054-0 04 1 9505- ●
20 BOLT; ENG FOOT
(B) M10X25 		8-94397-026-0 04 1 9505- ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M14 		9-99110-514-0 02 1 9204- ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 		9-99110-412-0 02 1 9505- ●
28 WASHER; LK,SUPPORT BRKT
ID=14.2 		9-09150-814-0 02 1 9204- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-037-3 02 1 9204- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 9505- ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-414-0 04 1 9204- ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X50 		9-92061-450-0 08 1 9204- ● ● ●
47 WASHER; LK,CUSHION RUBBER
ID=22.5 		9-09150-622-0 02 1 9204- ● ● ●
48 BOLT; CUSHION RUBBER TO ENG 1-09020-087-2 02 1 9204- ● ●
48 BOLT; CUSHION RUBBER TO ENG
M22X60 		1-09020-143-0 02 1 9204- ●
49 NUT; CUSHION RUBBER TO FRAME
M14 		9-99110-514-0 08 1 9204- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-192-1 02 1 9204- ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-253-3 02 1 9204- ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-276-1 02 1 9505- ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(B) ID=14.2 		9-09150-514-0 04 1 9204- ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(A) ID=14.2 		9-09150-614-0 08 1 9204- ● ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 		9-09651-069-0 16 1 9204- ● ● ●
112 PROTECTOR; HEAT 1-53219-255-1 01 1 9204-9302 ● ●
112 PROTECTOR; HEAT 1-53219-322-0 01 1 9303- ● ●
112 PROTECTOR; HEAT 1-53219-395-1 01 1 9505- ●
