Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11153 - FVZ(LHD)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶

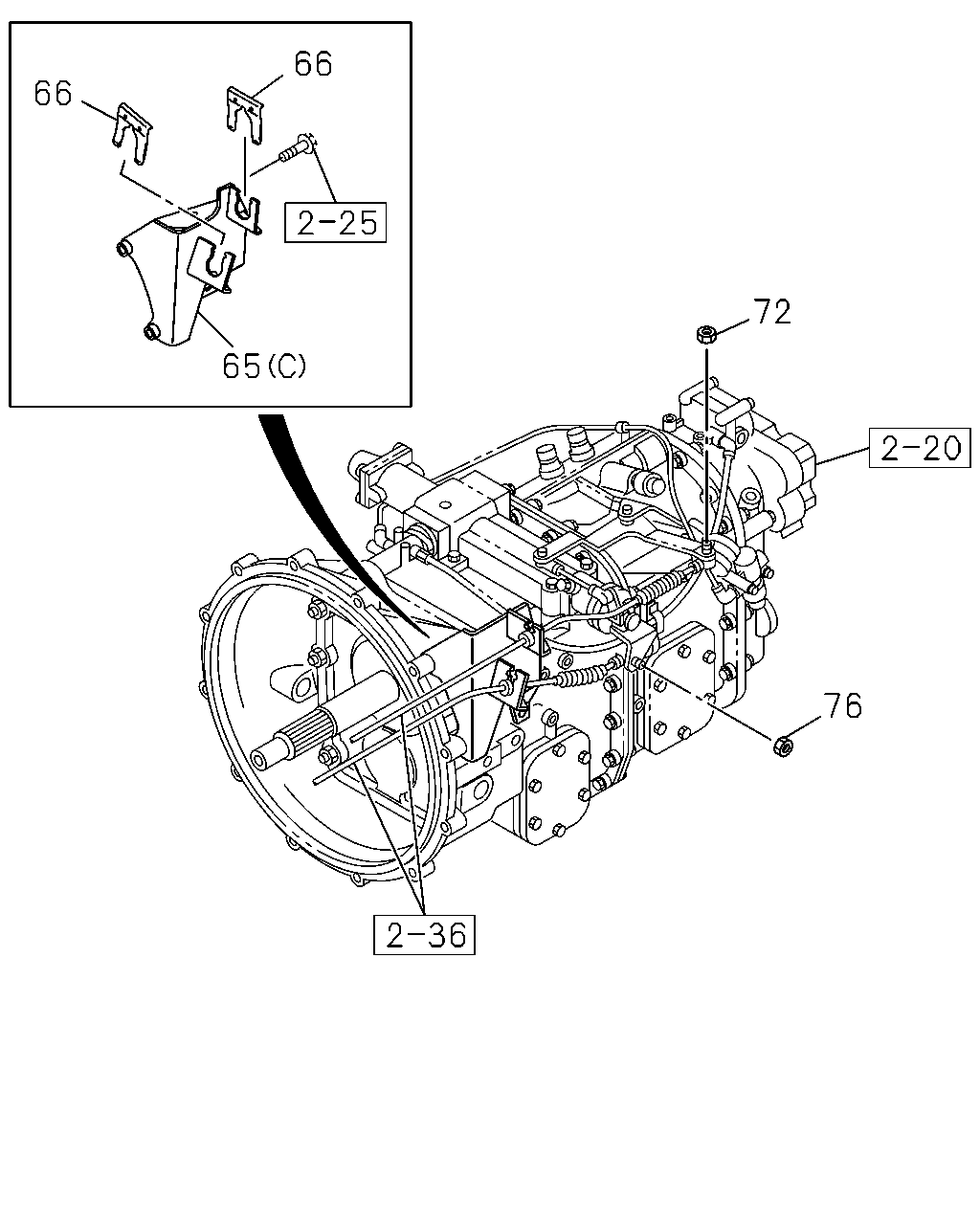

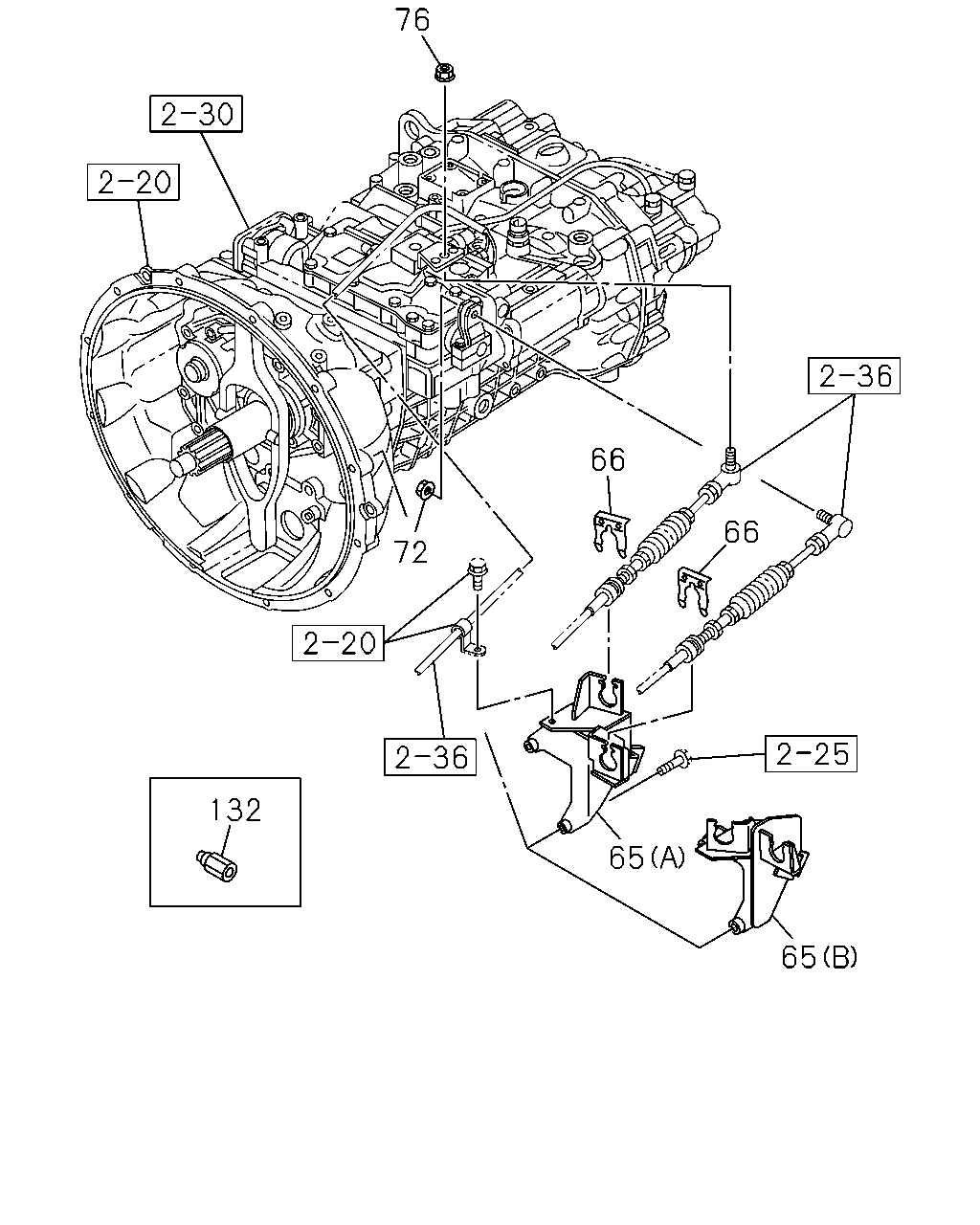

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#68492) — 19 parça
◀
[237A] FULLER M/T (9 parça)
[237A] ZF M/T (10 parça)
▶
66
66
72
65
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
65
BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) (C)
8-98131-609-0
01
1
1109-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)
8-98049-613-1
01
1
0809-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)
8-98060-386-0
01
1
0809-
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
0809-
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-049-0
01
1
0809-
76
NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE
1-09440-049-0
01
1
0809-1108
76
NUT; BALL JOINT,SELECT WIRE
FULLER ES11109 DD M/T(Y5N) M8 FLANGE
1-09440-049-0
01
1
1109-
76
NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE
1-09440-049-0
01
1
1109-
76
NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE
1-09440-056-0
01
1
0809-
76
66
66
72
132
65
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
65
BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) (C)
8-98131-609-0
01
1
1109-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)
8-98049-613-1
01
1
0809-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)
8-98060-386-0
01
1
0809-
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
0809-
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-049-0
01
1
0809-
76
NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE
1-09440-049-0
01
1
0809-1108
76
NUT; BALL JOINT,SELECT WIRE
FULLER ES11109 DD M/T(Y5N) M8 FLANGE
1-09440-049-0
01
1
1109-
76
NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE
1-09440-049-0
01
1
1109-
76
NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE
1-09440-056-0
01
1
0809-
132
CONNECTOR; FLEX HOSE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
0809-
