2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#68491) — 114 parça

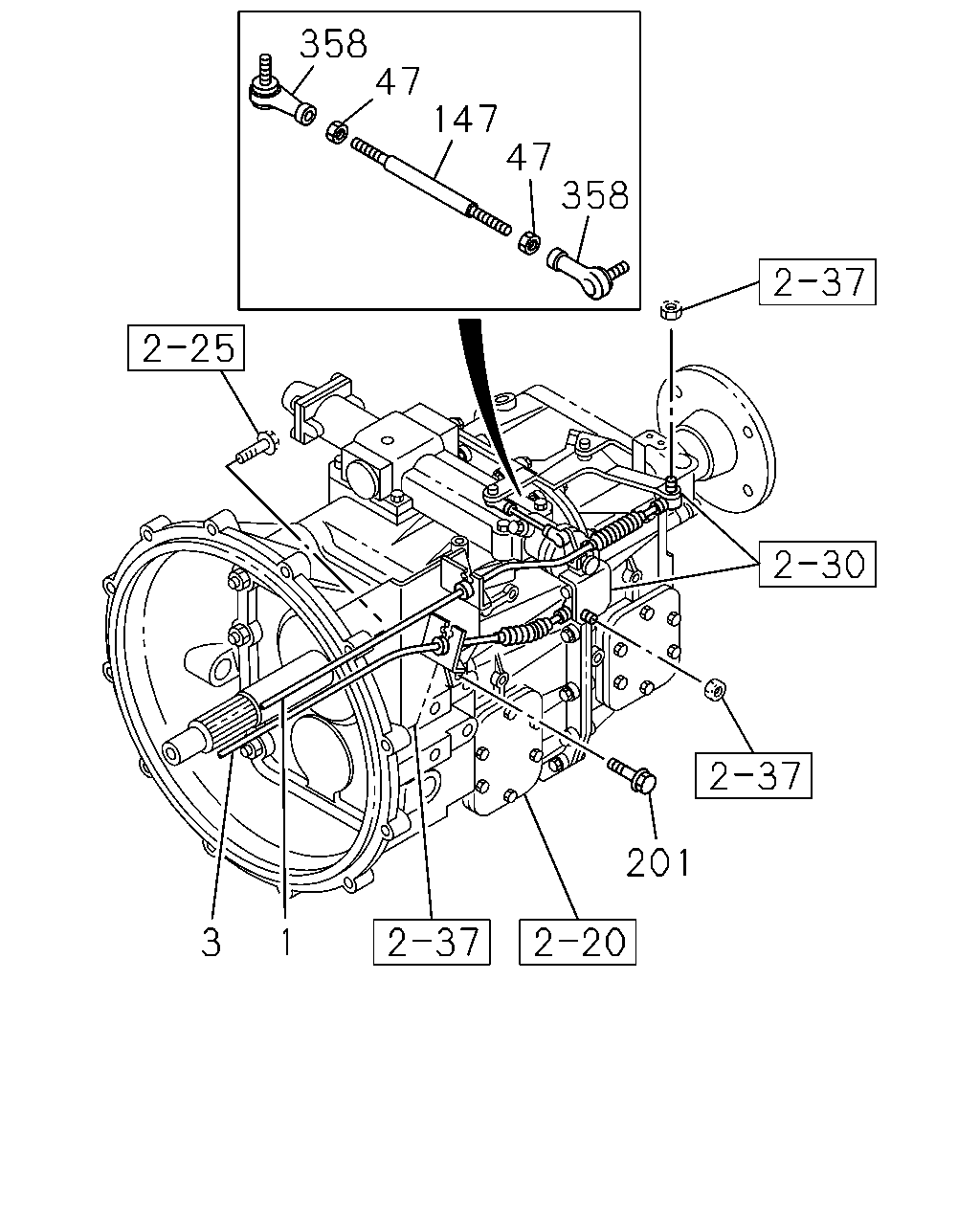

çizim 113793
358 47 147 47 358 201 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3455 		8-98150-336-2 01 1 1109-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-473-6 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-476-6 01 1 0809-
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3630 		8-98150-337-1 01 1 1109-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-497-5 01 1 0809-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3495 		8-98017-494-5 01 1 0809-
47 NUT; LK,LINK ROD
FULLER ES11109 DD M/T(Y5N) M8 		0-91111-508-0 02 1 1109-
147 ROD; LINK
FULLER ES11109 DD M/T(Y5N) 		0-84000-808-0 01 1 1109-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 0809-1108
201 BOLT; BRKT
M12X35 FLANGE 		0-28151-235-0 01 1 1109-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0809-1108
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 0809-1108
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1109-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1109-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0809-1108
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1109-
358 ROD END; SCREW
FULLER ES11109 DD M/T(Y5N) L=45.5 		1-09760-118-1 02 1 1109-

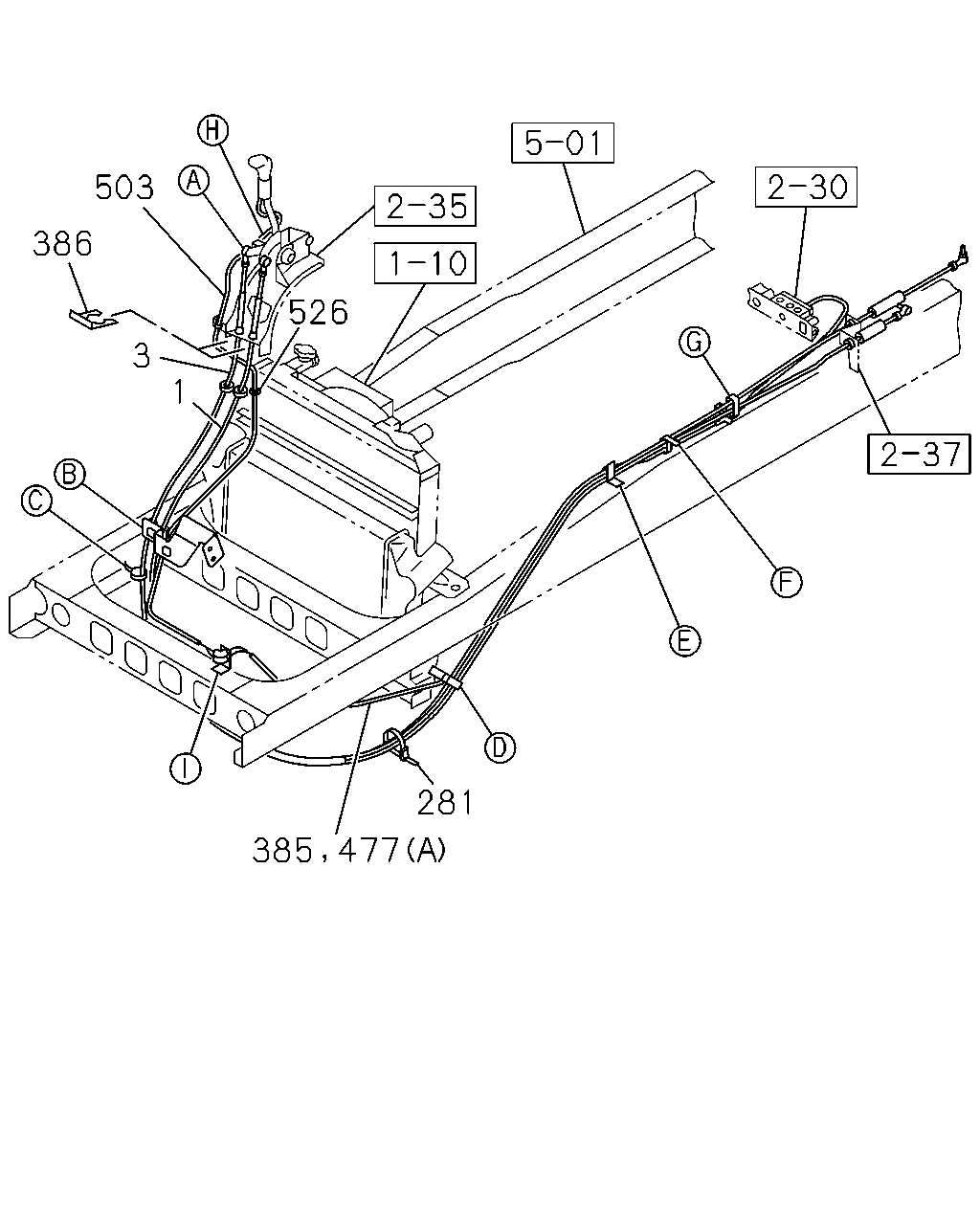

çizim 114009
503 386 526 3 1 281 385 477
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3455 		8-98150-336-2 01 1 1109-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-473-6 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-476-6 01 1 0809-
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3630 		8-98150-337-1 01 1 1109-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-497-5 01 1 0809-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3495 		8-98017-494-5 01 1 0809-
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 0809-
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 01 1 0809-0809
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0809-1108
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1109-
385 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1109-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0809-
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 1109-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0809-1108
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1109-
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1109-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0809-0910
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 0911-1108
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1109-
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1109-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0809-1108
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1109-
503 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1109-
526 GROMMET
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 0809-1108
526 GROMMET
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 1109-
526 GROMMET
FULLER ES11109 DD M/T(Y5N) 		5-09333-062-0 01 1 1109-

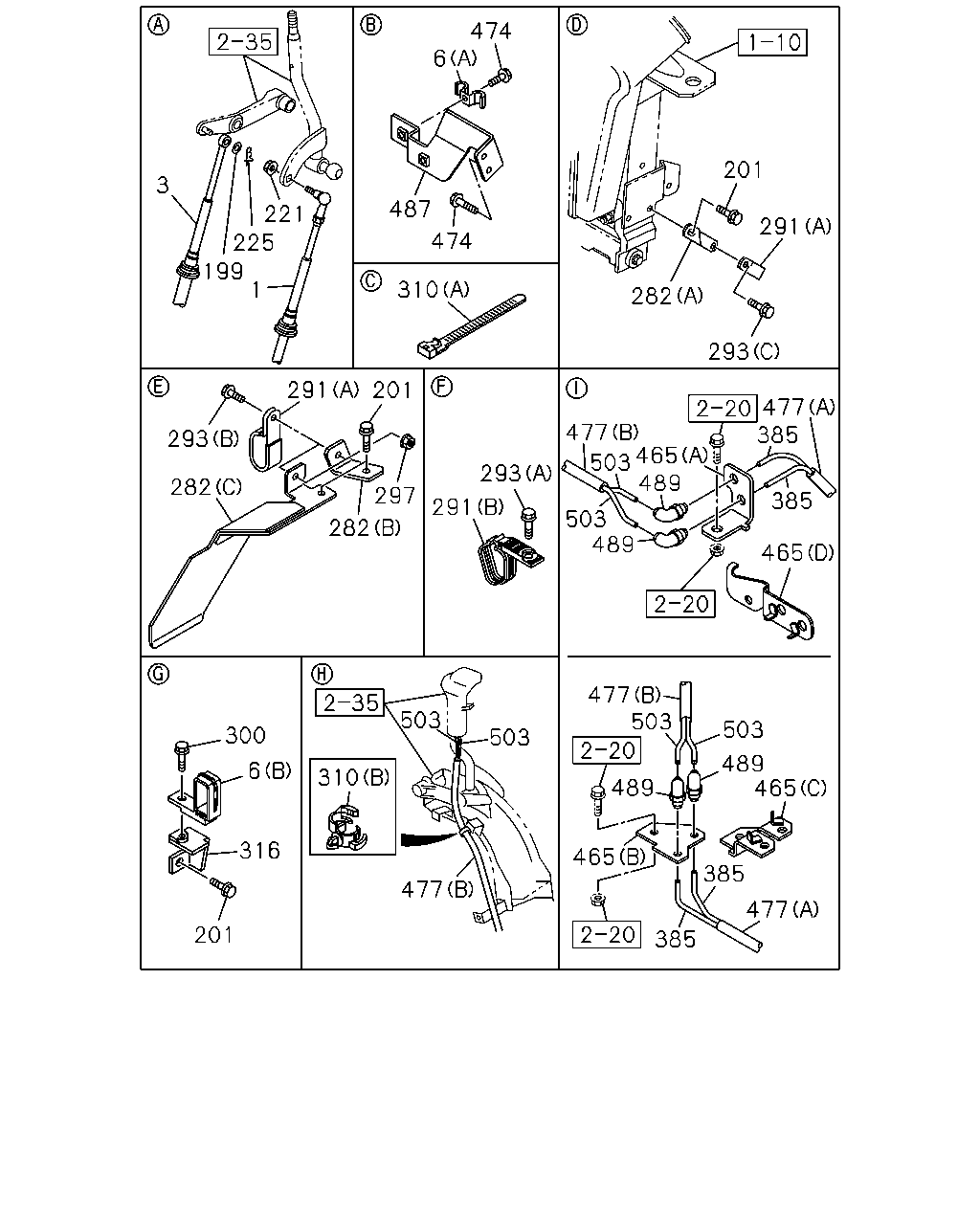

çizim 188092
474 6 201 3 487 221 291 474 225 199 310 1 282 293 291 201 385 477 465 503 489 293 293 282 297 385 291 503 489 282 465 477 503 503 503 300 503 489 465 6 310 489 316 465 385 477 477 201 385 477
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3455 		8-98150-336-2 01 1 1109-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-473-6 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98017-476-6 01 1 0809-
3 CABLE; SELECT,TRANS CONT
FULLER ES11109 DD M/T(Y5N) L=3630 		8-98150-337-1 01 1 1109-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-497-5 01 1 0809-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3495 		8-98017-494-5 01 1 0809-
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0809-
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0809-
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 0809-1108
201 BOLT; BRKT
M12X35 FLANGE 		0-28151-235-0 01 1 1109-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0809-1108
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 0809-1108
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1109-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1109-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0809-1108
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1109-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0809-1011
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0809-
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 0809-1103
282 BRACKET; TRANS SIDE
(C) 		8-98171-762-0 01 1 1104-1108
282 BRACKET; TRANS SIDE
(C) 		8-98171-762-0 01 1 1109-
282 BRACKET; TRANS SIDE
(A) 		8-98098-265-2 01 1 0809-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 0809-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE 		0-28050-816-0 01 1 0809-1105
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1106-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0809-1108
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1109-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0809-1108
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1109-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809-
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) L=100 		5-09707-036-1 01 1 0809-1108
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) (A) L=100 		5-09707-036-1 01 1 1109-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) L=100 		5-09707-036-1 01 1 1109-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) ID=6 & 10-13 		8-97069-515-0 01 1 0809-1108
310 CLIP; TUBE
FULLER ES11109 DD M/T(Y5N) (B) ID=6 & 10-13 		8-97069-515-0 01 1 1109-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) ID=6 & 10-13 		8-97069-515-0 01 1 1109-
316 BRACKET; CLIP 8-98086-439-0 01 1 0809-
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 01 1 0809-0809
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0809-1108
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1109-
385 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1109-
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98150-069-0 01 1 0908-0910
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98158-134-0 01 1 0911-1108
465 BRACKET; CONNECTOR
FULLER ES11109 DD M/T(Y5N) (C) 		8-98158-134-0 01 1 1109-1112
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98158-134-0 01 1 1109-1112
465 BRACKET; CONNECTOR
FULLER ES11109 DD M/T(Y5N) (D) 		8-98208-198-0 01 1 1201-
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98208-198-0 01 1 1201-
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98141-474-0 01 1 0908-
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98085-414-0 01 1 0809-0907
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 01 1 0809-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 02 1 0809-
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 1109-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0809-1108
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1109-
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1109-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0809-0910
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 0911-1108
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1109-
477 TUBE; CORRUGATE
FULLER ES11109 DD M/T(Y5N) (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1109-
487 BRACKET; CONT CABLE 8-98021-921-2 01 1 0809-0901
487 BRACKET; CONT CABLE 8-98137-772-0 01 1 0902-
489 CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-747-0 02 1 0809-1108
489 CONNECTOR
FULLER ES11109 DD M/T(Y5N) 		8-98085-747-0 02 1 1109-
489 CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-747-0 02 1 1109-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0809-1108
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1109-
503 TUBE; NYLON
FULLER ES11109 DD M/T(Y5N) SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1109-
