◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11153 - FVZ(LHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26B - MANUAL TRANSMISSION GEAR ▶
2-26B — MANUAL TRANSMISSION GEAR (#68487) — 127 parça

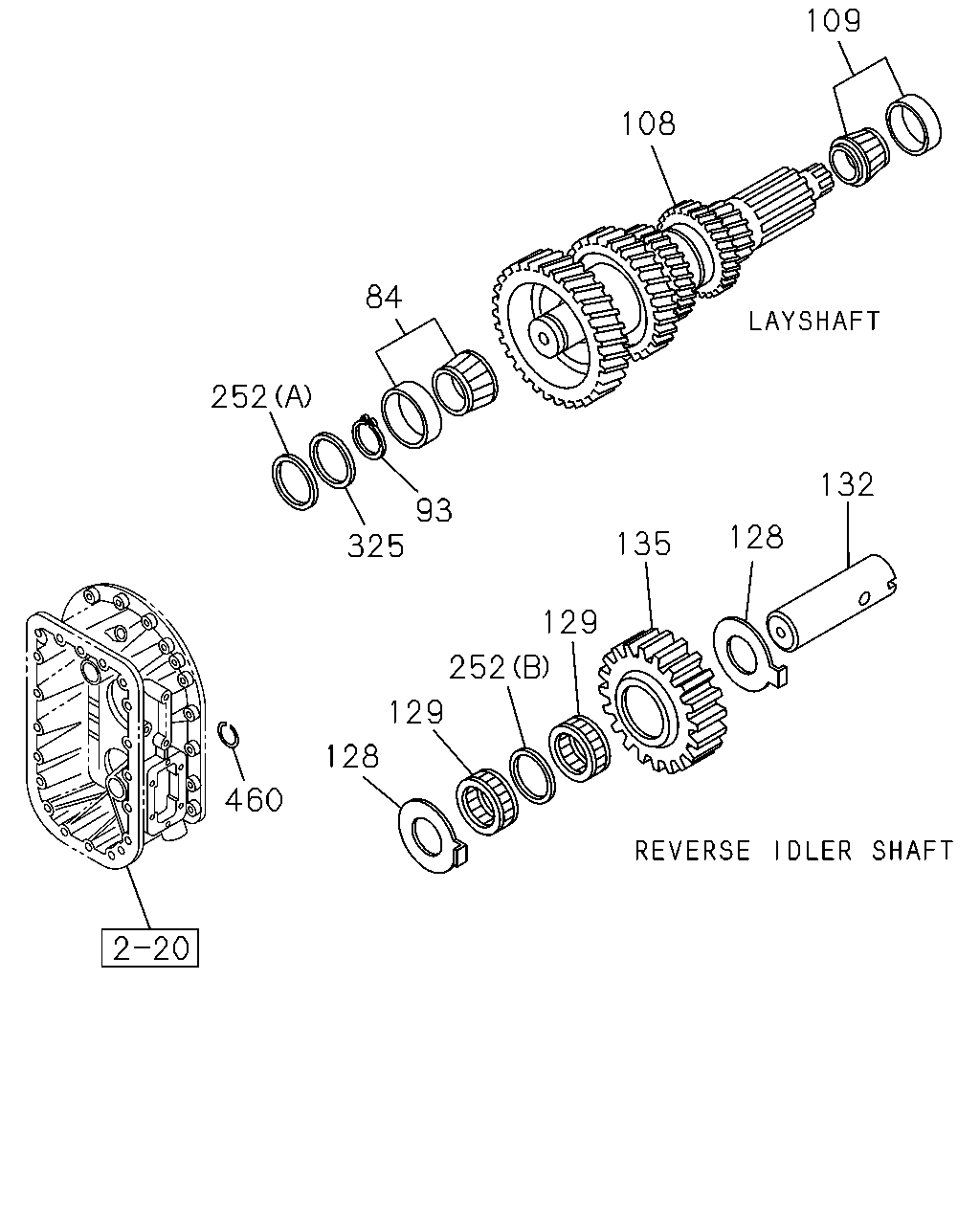

çizim 109837
109 108 84 252 132 93 325 128 135 129 252 129 128 460
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT 1-33319-262-0 01 1 1109-
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 1109-
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 1109-
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 1109-
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 1109-
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 1109-
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 1109-
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 1109-
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 1109-
108 SHAFT; COUNTER 1-33311-354-0 01 1 1109-
109 BEARING; COUNTER SHAFT,RR 1-33319-262-0 01 1 1109-
128 WASHER; THRUST,REV SHAFT 1-33359-004-0 02 1 1109-
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 1109-
132 SHAFT; REV 1-33351-044-0 01 1 1109-
135 GEAR; REV IDLER 1-33361-097-0 01 1 1109-
252 SPACER
(A) 		1-33319-151-0 01 1 1109-
252 SPACER
(B) 		1-33359-006-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 1109-
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 1109-
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 1109-

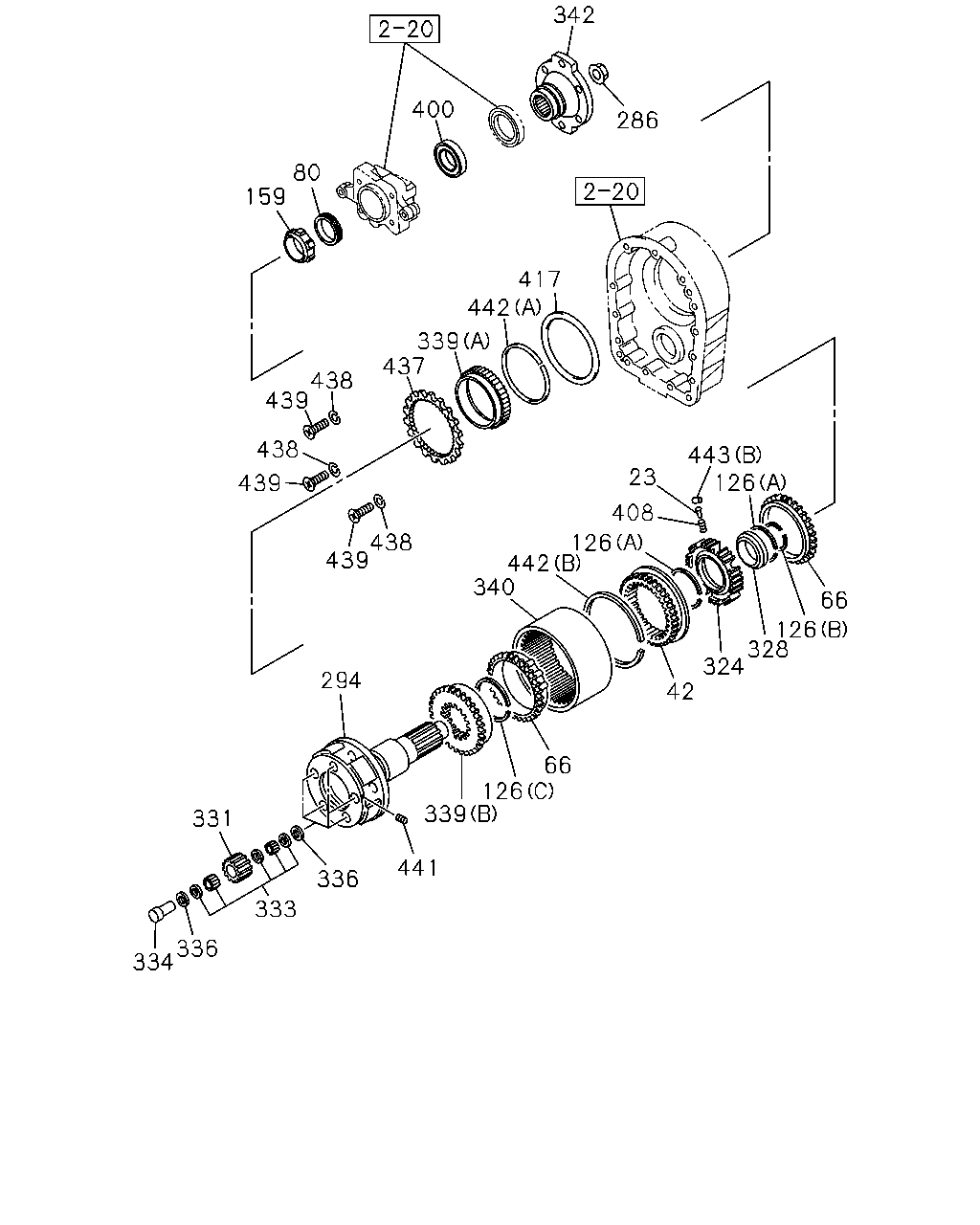

çizim 188085
342 400 286 80 159 417 442 339 437 438 439 438 443 126 23 439 408 438 439 126 442 340 66 126 328 324 42 294 66 126 339 331 441 336 333 336 334
BalonParca AdiParca NoAdetTipApplied Date
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 1109-
42 SLEEVE 1-33262-246-0 01 1 1109-
66 RING; BLOCK,SYN 1-33265-557-0 02 1 1109-
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 1109-
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 1109-
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 1109-
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 1109-
126 RING; SNAP,CLU HUB
(D) 		1-33269-065-0 02 1 1109-
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 1109-
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 1109-
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 1109-
159 SPACER; SPD DRIVE GEAR 1-33159-068-0 01 1 1109-
286 NUT; LK,MAINSHAFT 1-33239-356-0 01 1 1109-
294 SHAFT; OUTPUT 1-33231-348-0 01 1 1109-
324 HUB; CLU 1-33261-234-0 01 1 1109-
328 BEARING; CARRIER 1-33269-060-0 01 1 1109-
331 GEAR SET; PLANETARY 1-33239-379-0 05 1 1109-
333 ROLLER; PLANETARY GEAR 1-33239-250-0 05 1 1109-
334 SHAFT; PLANETARY GEAR 1-33239-378-0 01 1 1109-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-276-0 10 1 1109-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 1109-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 1109-
340 GEAR; RING 1-33339-052-0 01 1 1109-
342 FLANGE; OUTPUT 1-37243-430-0 01 1 1109-
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 1109-
408 SPRING 1-33264-039-0 18 1 1109-
417 SPACER; OUTPUT SHAFT 1-33269-053-0 01 1 1109-
437 PLATE; LOCK 1-33269-054-0 01 1 1109-
438 WASHER; LOCK PLATE 1-33269-056-0 03 1 1109-
439 SCREW; LOCK PLATE 1-33269-057-0 03 1 1109-
441 SCREW; STOPPER,PIN 1-33239-251-0 05 1 1109-
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 1109-
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 1109-
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-059-0 09 1 1109-
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 09 1 1109-

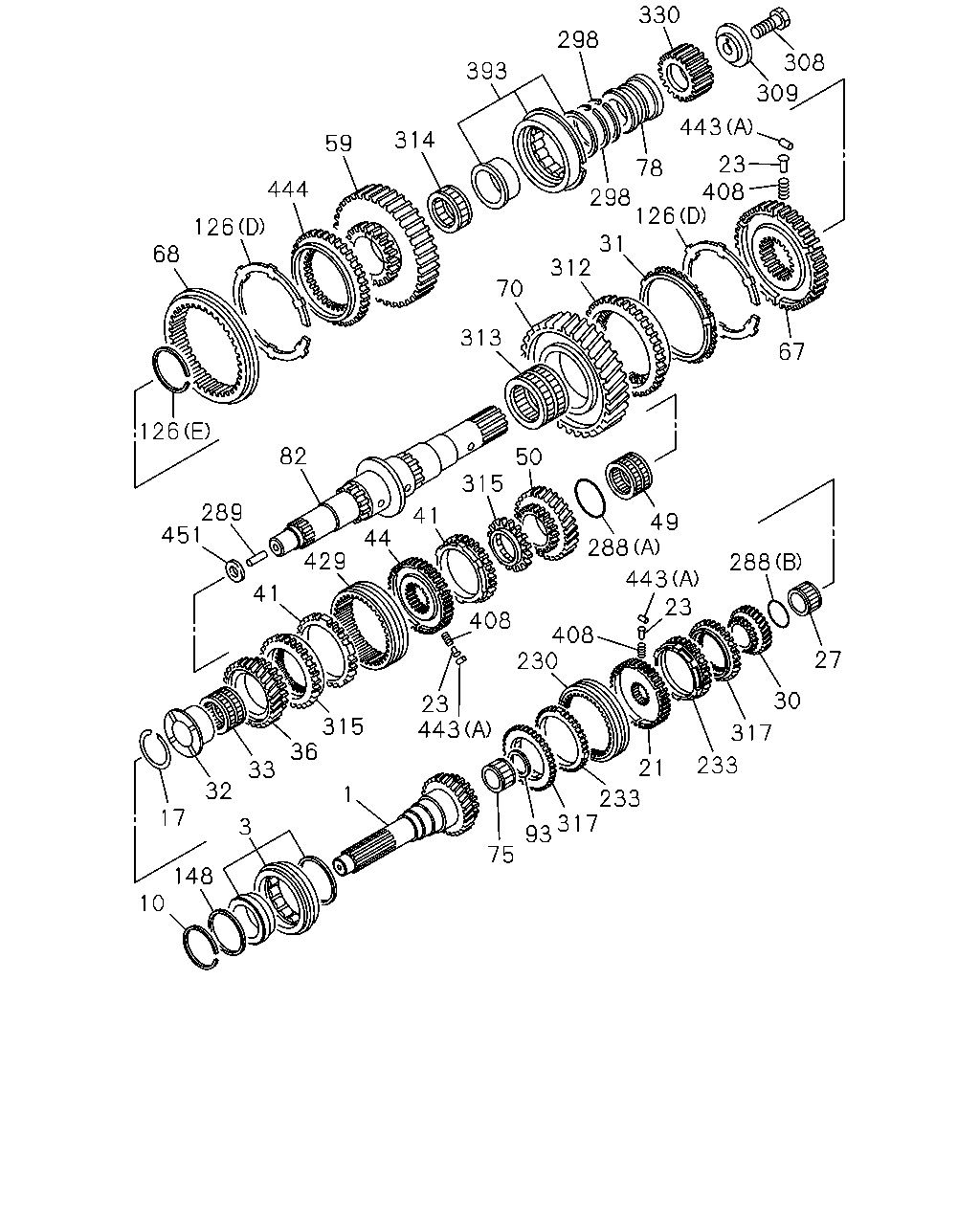

çizim 188094
330 298 308 393 309 443 314 59 23 408 298 126 78 444 126 31 312 68 70 313 67 126 82 50 315 289 451 41 49 288 44 429 288 443 23 41 408 408 230 27 30 23 443 315 36 317 233 21 33 32 1 233 317 93 17 3 75 148 10
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33215-039-0 01 1 1109-
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 1109-
10 RING; SNAP,PILOT BRG 1-33219-268-0 01 1 1109-
17 RING; SNAP,4TH GEAR
T=2.00 		1-33269-064-0 01 1 1109-
17 RING; SNAP,4TH GEAR
T=2.10 		1-33269-100-0 01 1 1109-
17 RING; SNAP,4TH GEAR
T=2.05 		1-33269-101-0 01 1 1109-
21 HUB; CLU,4TH & 5TH 1-33261-236-0 01 1 1109-
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 1109-
27 BEARING; 4TH GEAR 1-33259-079-0 01 1 1109-
30 GEAR; 4TH,MAINSHAFT 1-33252-472-0 01 1 1109-
31 RING; BLOCK,3RD & 4TH 1-33265-599-0 01 1 1109-
32 COLLAR; 3RD GEAR 1-33259-123-0 01 1 1109-
33 BEARING; NEEDLE,3RD GEAR 1-33259-078-0 01 1 1109-
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 1109-
41 RING; BLOCK,2ND & 3RD 1-33265-647-0 02 1 1109-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 1109-
49 BEARING; NEEDLE,2ND GEAR 1-33259-078-0 01 1 1109-
50 GEAR; 2ND,MAINSHAFT 1-33251-382-0 01 1 1109-
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 1109-
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 1109-
68 SLEEVE; 1ST TO REV 1-33265-645-0 01 1 1109-
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 1109-
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 1109-
78 COLLAR; DIST,MAINSHAFT BRG 1-33239-377-0 01 1 1109-
82 SHAFT; MAIN,TRANS 1-33231-347-0 01 1 1109-
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 1109-
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 1109-
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 1109-
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 1109-
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 1109-
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 1109-
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 1109-
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 1109-
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 1109-
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 1109-
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 1109-
126 RING; SNAP,CLU HUB
(D) 		1-33269-065-0 02 1 1109-
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 1109-
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 1109-
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 1109-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.10 		1-33219-259-0 01 1 1109-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.15 		1-33219-260-0 01 1 1109-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.20 		1-33219-261-0 01 1 1109-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.25 		1-33219-262-0 01 1 1109-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.30 		1-33219-263-0 01 1 1109-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.35 		1-33219-264-0 01 1 1109-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.40 		1-33219-265-0 01 1 1109-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.45 		1-33219-266-0 01 1 1109-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.50 		1-33219-267-0 01 1 1109-
230 SLEEVE; 4TH TO 5TH 1-33262-245-0 01 1 1109-
233 RING; BLOCK 4TH TO 5TH 1-33265-647-0 02 1 1109-
288 SPACER; BRG,MAINSHAFT
(A) 		1-33259-068-0 01 1 1109-
288 SPACER; BRG,MAINSHAFT
(B) 		1-33259-072-0 01 1 1109-
289 PIN; MAINSHAFT 1-33239-242-0 01 1 1109-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33239-245-0 02 1 1109-
308 BOLT; MAINSHAFT 1-33239-366-0 01 1 1109-
309 PLATE; MAINSHAFT 1-33239-317-0 01 1 1109-
312 CLUTCH; DOG,1ST GEAR 1-33265-596-0 01 1 1109-
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 1109-
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 1109-
315 CLUTCH; DOG,2ND GEAR 1-33265-646-0 02 1 1109-
317 CLUTCH; DOG,4TH GEAR 1-33265-646-0 02 1 1109-
330 GEAR; SUN 1-34311-012-0 01 1 1109-
393 BEARING; MAINSHAFT END 1-33239-316-0 01 1 1109-
408 SPRING 1-33264-039-0 18 1 1109-
429 SLEEVE; 2ND & 3RD 1-33262-245-0 01 1 1109-
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-059-0 09 1 1109-
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 09 1 1109-
444 CLUTCH; DOG,REV GEAR 1-33265-462-0 01 1 1109-
451 RESTRICTOR; MAIN SHAFT 1-33239-275-0 01 1 1109-
