Sayfa 3-08A - Isuzu EPC

3-08A — PARKING BRAKE (#6848) — 199 parça

2 83 110 124 142 168 141 170 47 144 85 124 54 81 163 140 155 117 166 125 140 173 134 144 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	DRUM; PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> (A)	1-46211-020-0	01	1	9806-9911	●	●	●
2	DRUM; PARKING BRK BRK SYSTEM RETARDER<RE2> (B)	1-46210-194-5	01	1	9806-9911	●	●	●
2	DRUM; PARKING BRK BRK SYSTEM RETARDER<RE2> (C)	1-46210-260-0	01	1	9806-9911				●
47	BOLT; SUPPORT PLATE BRK SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	02	1	9806-9911				●
54	BOLT; COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> M8X16	9-05820-816-0	01	1	9806-9911	●	●	●	●
81	COVER; CHECK HOLE,PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2>	1-48629-124-0	01	1	9806-9911	●	●	●	●
83	RETARDER ASM; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2>	1-48610-246-3	01	1	9806-9911	●	●	●
83	RETARDER ASM; PARKING BRK BRK SYSTEM RETARDER<RE2>	1-48610-330-1	01	1	9806-9911				●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (A) M20 & PT1/4 ELBOW	1-09660-681-0	02	1	9806-9911	●	●	●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (B)	1-48629-029-0	02	1	9806-9911	●	●	●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (C)	1-48629-150-0	02	1	9806-9911	●	●	●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (D) M12 & PT1/8	9-09221-806-1	04	1	9806-9911	●	●	●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (E) M12 & PT1/8	9-09224-306-2	02	1	9806-9911	●	●	●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (F)	1-48629-224-0	02	1	9806-9911				●
110	BRAKE ASM; PARKING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK SYSTEM RETARDER<RE2>	1-46200-213-2	01	1	9806-9911	●	●	●
110	BRAKE ASM; PARKING BRK SYSTEM RETARDER<RE2>	1-48610-331-1	01	1	9806-9911				●
117	CYLINDER ASM; AIR BRK SYSTEM RETARDER<RE2>	1-48629-033-1	03	1	9806-9911	●	●	●
117	CYLINDER ASM; AIR BRK SYSTEM RETARDER<RE2>	1-48629-220-0	01	1	9806-9911				●
124	CONNECTOR; FLEX HOSE BRK SYSTEM RETARDER<RE2> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9806-9911				●
124	CONNECTOR; FLEX HOSE BRK SYSTEM RETARDER<RE2> (B)	1-48629-243-0	01	1	9806-9911				●
125	WASHER; LK BRK SYSTEM RETARDER<RE2> ID=6.1	9-09150-506-0	01	1	9806-9911				●
134	REPAIR KIT; AIR CYL BRK SYSTEM RETARDER<RE2>	1-48629-044-0	03	1	9806-9911	●	●	●
134	REPAIR KIT; AIR CYL BRK SYSTEM RETARDER<RE2>	1-48629-230-0	01	1	9806-9911				●
140	BOLT BRK SYSTEM RETARDER<RE2> (A) M10X30 FLANGE	0-28791-030-0	03	1	9806-9911	●	●	●
140	BOLT BRK SYSTEM RETARDER<RE2> (B)	1-48629-041-0	06	1	9806-9911	●	●	●
140	BOLT BRK SYSTEM RETARDER<RE2> (B)	1-48629-170-0	02	1	9806-9911				●
140	BOLT BRK SYSTEM RETARDER<RE2> (A)	1-48629-182-0	04	1	9806-9911				●
141	BRACKET BRK SYSTEM RETARDER<RE2>	1-47476-804-0	01	1	9806-9911	●	●	●
141	BRACKET BRK SYSTEM RETARDER<RE2>	1-48629-227-0	01	1	9806-9901				●
142	SCREW BRK SYSTEM RETARDER<RE2>	9-06043-810-0	03	1	9806-9911	●	●	●
142	SCREW BRK SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	06	1	9806-9911				●
144	NUT BRK SYSTEM RETARDER<RE2> (B) T=7.3	1-48269-025-0	04	1	9806-9911	●	●	●
144	NUT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> (A) M14 FLANGE	1-09440-048-0	04	1	9806-9911	●	●	●	●
144	NUT 6HE1-TC ENG(57L) BRK SYSTEM RETARDER<RE2> EXC. CTR SPLIT FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●
144	NUT 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●
144	NUT 6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> CTR SPLIT FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●
144	NUT 6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. CTR SPLIT FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●
144	NUT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> (C)	1-48629-244-0	01	1	9806-9911				●
155	TUBE BRK SYSTEM RETARDER<RE2> (B) L=1300 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9806-9911	●	●	●
155	TUBE BRK SYSTEM RETARDER<RE2> (A)	1-48629-225-0	01	1	9806-9911				●
155	TUBE BRK SYSTEM RETARDER<RE2> (B) L=1000 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9806-9911				●
163	BAR; FLAT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2>	1-48629-125-0	01	1	9806-9911	●	●	●	●
166	ATTACHMENT; YOKE BRK SYSTEM RETARDER<RE2>	1-48629-181-0	01	1	9806-9911				●
168	PROTECTOR; HEAT BRK SYSTEM RETARDER<RE2>	1-48629-222-0	01	1	9806-9911				●
170	COVER; CASE BRK SYSTEM RETARDER<RE2>	1-48629-219-0	01	1	9806-9911				●
173	FOLLOWER BRK SYSTEM RETARDER<RE2>	1-48629-159-0	01	1	9806-9911				●

40 42 39 46 41 32 33 17 13 20 4 15 37 111 17 20 16 21 3 23 8 2 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	DRUM; PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> (A)	1-46211-020-0	01	1	9806-9911	●	●	●
2	DRUM; PARKING BRK BRK SYSTEM RETARDER<RE2> (B)	1-46210-194-5	01	1	9806-9911	●	●	●
2	DRUM; PARKING BRK BRK SYSTEM RETARDER<RE2> (C)	1-46210-260-0	01	1	9806-9911				●
3	NUT; LK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M36 FLANGE	1-09449-063-0	01	1	9806-9911	●	●	●
4	COVER; ADJ HOLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2>	1-46219-018-0	02	1	9806-9911	●	●	●
8	FLANGE; PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2>	1-37243-236-0	01	1	9806-9911	●	●	●
13	BRACE; PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-46239-003-0	01	1	9806-9911	●	●	●
15	BOLT; FLANGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> M14X43 KNURL	1-09046-003-0	04	1	9806-9911	●	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=47 T=5	1-09623-380-0	01	1	9806-9911	●	●	●
17	SHOE; PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) W/LINING	1-46220-024-0	02	1	9806-9911	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-09942-567-1	02	1	9806-9911	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09583-268-0	01	1	9806-9911	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-46240-008-0	01	1	9806-9911	●	●	●
32	PLATE; SUPPORT,PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-46213-023-0	01	1	9806-9911	●	●	●
33	SHAFT; CAM,PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-46251-002-0	01	1	9806-9911	●	●	●
37	NUT; SUPPORT PLATE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M14 FLANGE	1-09440-048-0	04	1	9806-9911	●	●	●
39	COVER; DUST,PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> (A)	1-46213-019-0	01	1	9806-9911	●	●	●
39	COVER; DUST,PARKING BRK BRK SYSTEM RETARDER<RE2> (B)	1-46213-092-1	01	1	9806-9911	●	●	●
40	LEVER; CM/SHF,PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK SYSTEM RETARDER<RE2> (B)	1-46252-038-0	01	1	9806-9911	●	●	●
40	LEVER; CM/SHF,PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> (A)	1-46252-003-0	01	1	9806-9911	●	●	●
41	PIN; KNOCK,LEVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-09878-594-0	01	1	9806-9911	●	●	●
42	SPRING; RETURN,LEVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK SYSTEM RETARDER<RE2> (B)	9-09942-516-0	01	1	9806-9911	●	●	●
42	SPRING; RETURN,LEVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> (A)	9-09942-592-0	01	1	9806-9911	●	●	●
46	WASHER; LEVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-09855-367-0	01	1	9806-9911	●	●	●
111	BOLT; COVER,CHECK HOLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> M8X20 W/LK WASHER	0-50040-820-0	02	1	9806-9911	●	●	●

101 98 131 91 91 92 91 91 92 155 101 113 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
91	GASKET BRK SYSTEM RETARDER<RE2> ID=11 OD=18	9-09572-510-0	04	1	9806-9911	●	●	●
92	HOSE; FLEX,RETARDER BRK SYSTEM RETARDER<RE2> SERVICED BY L=600	0-07150-600-0	02	1	9806-9911	●	●	●
92	HOSE; FLEX,RETARDER BRK SYSTEM RETARDER<RE2> ON SIDE L=300	1-09363-611-0	01	1	9806-9911				●
92	HOSE; FLEX,RETARDER BRK SYSTEM RETARDER<RE2> OFF SIDE L=210	1-09363-614-0	01	1	9806-9911				●
98	CLIP; AIR PIPE BRK SYSTEM RETARDER<RE2> (C) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9806-9911	●	●	●
98	CLIP; AIR PIPE BRK SYSTEM RETARDER<RE2> (A)	1-48629-038-0	01	1	9806-9911	●	●	●
98	CLIP; AIR PIPE BRK SYSTEM RETARDER<RE2> (B)	1-48629-055-0	01	1	9806-9911	●	●	●
101	BOLT; CLIP BRK SYSTEM RETARDER<RE2> (A) M8X30 FLANGE	0-28680-830-0	01	1	9806-9911	●	●	●
101	BOLT; CLIP 6HE1-TC ENG(57L) BRK SYSTEM RETARDER<RE2> EXC. CTR SPLIT FRAME<TLW> (B) M8X20 FLANGE	0-28680-820-0	01	1	9806-9911	●	●	●	●
101	BOLT; CLIP 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (B) M8X20 FLANGE	0-28680-820-0	01	1	9806-9911	●	●	●	●
101	BOLT; CLIP 6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> CTR SPLIT FRAME<TLW> (B) M8X20 FLANGE	0-28680-820-0	01	1	9806-9911	●	●	●	●
101	BOLT; CLIP 6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. CTR SPLIT FRAME<TLW> (B) M8X20 FLANGE	0-28680-820-0	01	1	9806-9911	●	●	●	●
113	CLIP; HOSE 6HE1-TC ENG(57L) BRK SYSTEM RETARDER<RE2> EXC. CTR SPLIT FRAME<TLW> ID=16 L=50	9-09525-586-0	01	1	9806-9911	●	●	●	●
113	CLIP; HOSE 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> EXC. BRK SYSTEM RETARDER<RE2> ID=16 L=50	9-09525-586-0	01	1	9806-9911	●	●	●	●
113	CLIP; HOSE 6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> CTR SPLIT FRAME<TLW> ID=16 L=50	9-09525-586-0	01	1	9806-9911	●	●	●	●
113	CLIP; HOSE 6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. CTR SPLIT FRAME<TLW> ID=16 L=50	9-09525-586-0	01	1	9806-9911	●	●	●	●
113	CLIP; HOSE 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> ID=19 L=50	9-09525-886-0	01	1	9806-9911	●	●	●	●
131	NUT; BRKT BRK SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●
144	NUT BRK SYSTEM RETARDER<RE2> (B) T=7.3	1-48269-025-0	04	1	9806-9911	●	●	●
144	NUT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> (A) M14 FLANGE	1-09440-048-0	04	1	9806-9911	●	●	●	●
144	NUT 6HE1-TC ENG(57L) BRK SYSTEM RETARDER<RE2> EXC. CTR SPLIT FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●
144	NUT 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●
144	NUT 6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> CTR SPLIT FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●
144	NUT 6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. CTR SPLIT FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●
144	NUT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> (C)	1-48629-244-0	01	1	9806-9911				●
155	TUBE BRK SYSTEM RETARDER<RE2> (B) L=1300 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9806-9911	●	●	●
155	TUBE BRK SYSTEM RETARDER<RE2> (A)	1-48629-225-0	01	1	9806-9911				●
155	TUBE BRK SYSTEM RETARDER<RE2> (B) L=1000 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9806-9911				●

89 2 110 16 134 3 40 42 32 41 17 46 13 33 98 20 118 118 85 17 21 23 85 144 85 20 85 142 141 39 117 85 85 142 85 144 140 117 140 85 140 117 85 85 140 52 85 85 142 118 118 37 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	DRUM; PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> (A)	1-46211-020-0	01	1	9806-9911	●	●	●
2	DRUM; PARKING BRK BRK SYSTEM RETARDER<RE2> (B)	1-46210-194-5	01	1	9806-9911	●	●	●
2	DRUM; PARKING BRK BRK SYSTEM RETARDER<RE2> (C)	1-46210-260-0	01	1	9806-9911				●
3	NUT; LK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M36 FLANGE	1-09449-063-0	01	1	9806-9911	●	●	●
13	BRACE; PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-46239-003-0	01	1	9806-9911	●	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=47 T=5	1-09623-380-0	01	1	9806-9911	●	●	●
17	SHOE; PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) W/LINING	1-46220-024-0	02	1	9806-9911	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-09942-567-1	02	1	9806-9911	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09583-268-0	01	1	9806-9911	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-46240-008-0	01	1	9806-9911	●	●	●
32	PLATE; SUPPORT,PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-46213-023-0	01	1	9806-9911	●	●	●
33	SHAFT; CAM,PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-46251-002-0	01	1	9806-9911	●	●	●
37	NUT; SUPPORT PLATE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M14 FLANGE	1-09440-048-0	04	1	9806-9911	●	●	●
39	COVER; DUST,PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> (A)	1-46213-019-0	01	1	9806-9911	●	●	●
39	COVER; DUST,PARKING BRK BRK SYSTEM RETARDER<RE2> (B)	1-46213-092-1	01	1	9806-9911	●	●	●
40	LEVER; CM/SHF,PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK SYSTEM RETARDER<RE2> (B)	1-46252-038-0	01	1	9806-9911	●	●	●
40	LEVER; CM/SHF,PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> (A)	1-46252-003-0	01	1	9806-9911	●	●	●
41	PIN; KNOCK,LEVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-09878-594-0	01	1	9806-9911	●	●	●
42	SPRING; RETURN,LEVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK SYSTEM RETARDER<RE2> (B)	9-09942-516-0	01	1	9806-9911	●	●	●
42	SPRING; RETURN,LEVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> (A)	9-09942-592-0	01	1	9806-9911	●	●	●
46	WASHER; LEVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-09855-367-0	01	1	9806-9911	●	●	●
52	WASHER; PL BRK SYSTEM RETARDER<RE2> ID=10.5 OD=18	9-09160-510-0	03	1	9806-9911	●	●	●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (A) M20 & PT1/4 ELBOW	1-09660-681-0	02	1	9806-9911	●	●	●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (B)	1-48629-029-0	02	1	9806-9911	●	●	●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (C)	1-48629-150-0	02	1	9806-9911	●	●	●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (D) M12 & PT1/8	9-09221-806-1	04	1	9806-9911	●	●	●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (E) M12 & PT1/8	9-09224-306-2	02	1	9806-9911	●	●	●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (F)	1-48629-224-0	02	1	9806-9911				●
89	BRACKET; PARKING BRK CONT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK SYSTEM RETARDER<RE2>	1-46147-224-0	01	1	9806-9911	●	●	●
98	CLIP; AIR PIPE BRK SYSTEM RETARDER<RE2> (C) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9806-9911	●	●	●
98	CLIP; AIR PIPE BRK SYSTEM RETARDER<RE2> (A)	1-48629-038-0	01	1	9806-9911	●	●	●
98	CLIP; AIR PIPE BRK SYSTEM RETARDER<RE2> (B)	1-48629-055-0	01	1	9806-9911	●	●	●
110	BRAKE ASM; PARKING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK SYSTEM RETARDER<RE2>	1-46200-213-2	01	1	9806-9911	●	●	●
110	BRAKE ASM; PARKING BRK SYSTEM RETARDER<RE2>	1-48610-331-1	01	1	9806-9911				●
117	CYLINDER ASM; AIR BRK SYSTEM RETARDER<RE2>	1-48629-033-1	03	1	9806-9911	●	●	●
117	CYLINDER ASM; AIR BRK SYSTEM RETARDER<RE2>	1-48629-220-0	01	1	9806-9911				●
118	PIPE ASM; AIR CYL BRK SYSTEM RETARDER<RE2> (A)	1-47493-115-0	01	1	9806-9911	●	●	●
118	PIPE ASM; AIR CYL BRK SYSTEM RETARDER<RE2> (B)	1-47493-116-0	01	1	9806-9911	●	●	●
118	PIPE ASM; AIR CYL BRK SYSTEM RETARDER<RE2> (C)	1-49115-743-0	01	1	9806-9911	●	●	●
118	PIPE ASM; AIR CYL BRK SYSTEM RETARDER<RE2> (D)	1-49115-744-0	01	1	9806-9911	●	●	●
134	REPAIR KIT; AIR CYL BRK SYSTEM RETARDER<RE2>	1-48629-044-0	03	1	9806-9911	●	●	●
134	REPAIR KIT; AIR CYL BRK SYSTEM RETARDER<RE2>	1-48629-230-0	01	1	9806-9911				●
140	BOLT BRK SYSTEM RETARDER<RE2> (A) M10X30 FLANGE	0-28791-030-0	03	1	9806-9911	●	●	●
140	BOLT BRK SYSTEM RETARDER<RE2> (B)	1-48629-041-0	06	1	9806-9911	●	●	●
140	BOLT BRK SYSTEM RETARDER<RE2> (B)	1-48629-170-0	02	1	9806-9911				●
140	BOLT BRK SYSTEM RETARDER<RE2> (A)	1-48629-182-0	04	1	9806-9911				●
141	BRACKET BRK SYSTEM RETARDER<RE2>	1-47476-804-0	01	1	9806-9911	●	●	●
141	BRACKET BRK SYSTEM RETARDER<RE2>	1-48629-227-0	01	1	9806-9901				●
142	SCREW BRK SYSTEM RETARDER<RE2>	9-06043-810-0	03	1	9806-9911	●	●	●
142	SCREW BRK SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	06	1	9806-9911				●
144	NUT BRK SYSTEM RETARDER<RE2> (B) T=7.3	1-48269-025-0	04	1	9806-9911	●	●	●
144	NUT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> (A) M14 FLANGE	1-09440-048-0	04	1	9806-9911	●	●	●	●
144	NUT 6HE1-TC ENG(57L) BRK SYSTEM RETARDER<RE2> EXC. CTR SPLIT FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●
144	NUT 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●
144	NUT 6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> CTR SPLIT FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●
144	NUT 6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. CTR SPLIT FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●
144	NUT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> (C)	1-48629-244-0	01	1	9806-9911				●

2 83 134 98 118 118 85 54 39 81 163 85 144 85 85 142 141 117 85 85 85 144 140 117 140 85 142 140 117 85 85 140 52 85 85 142 118 118 98 144

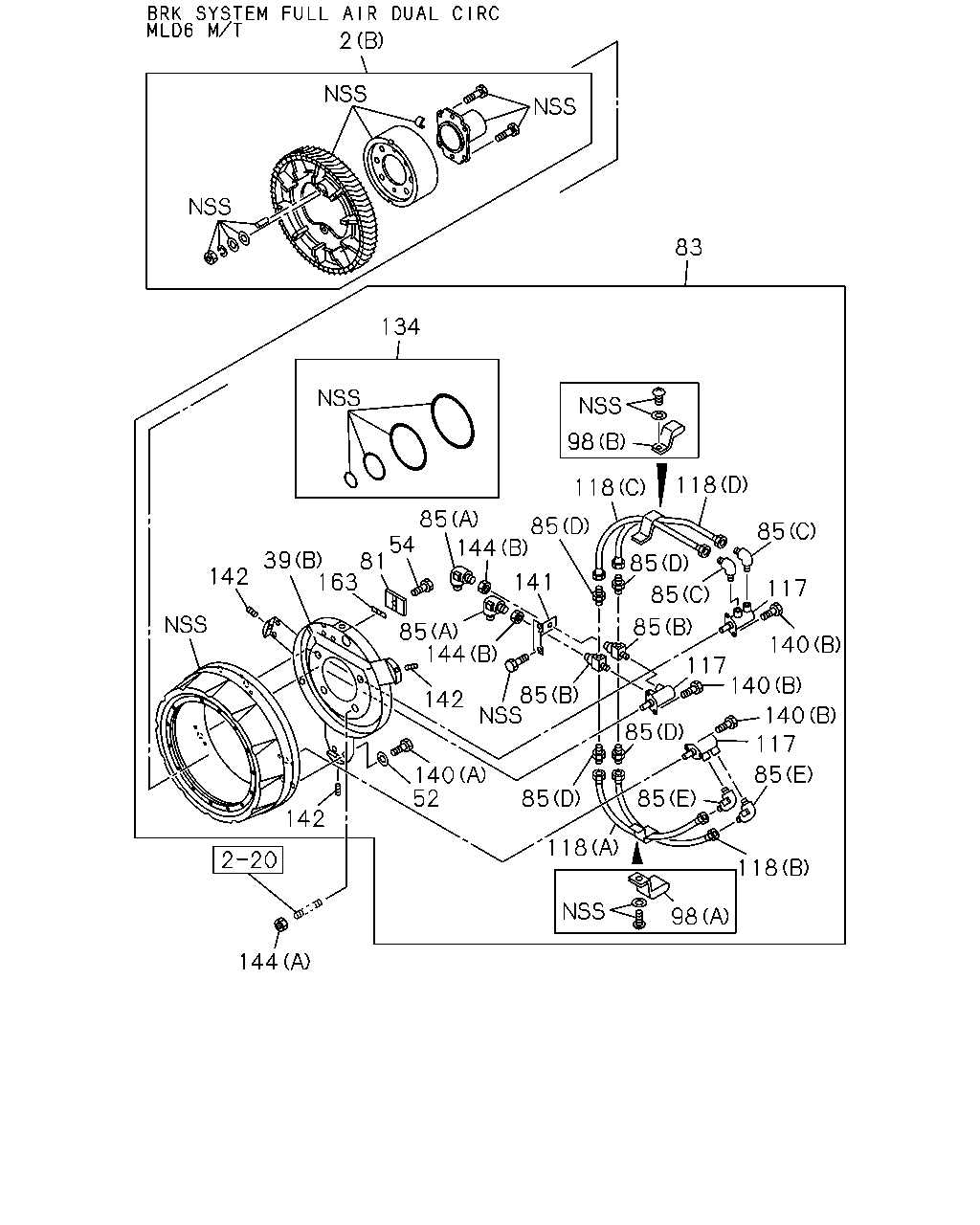

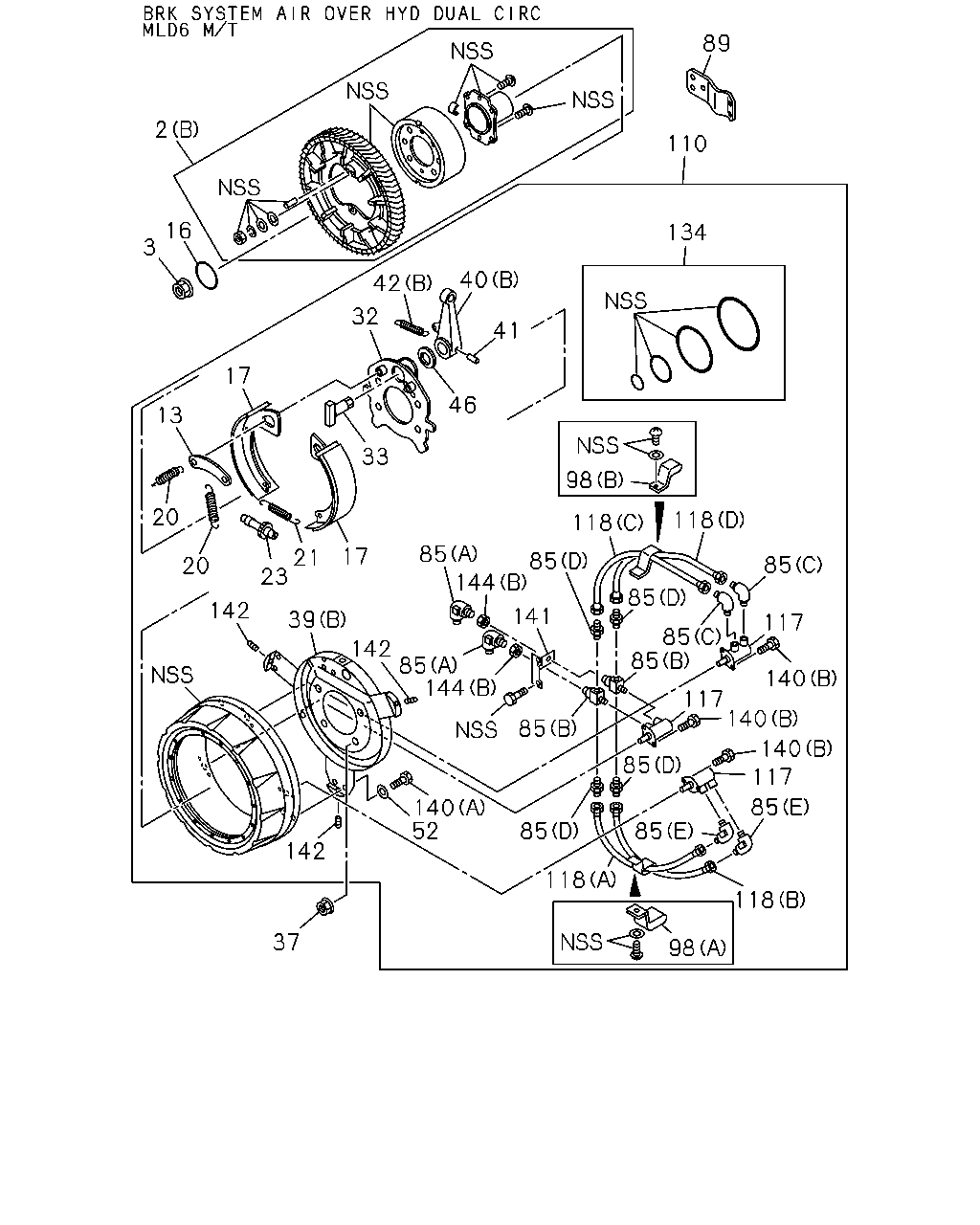

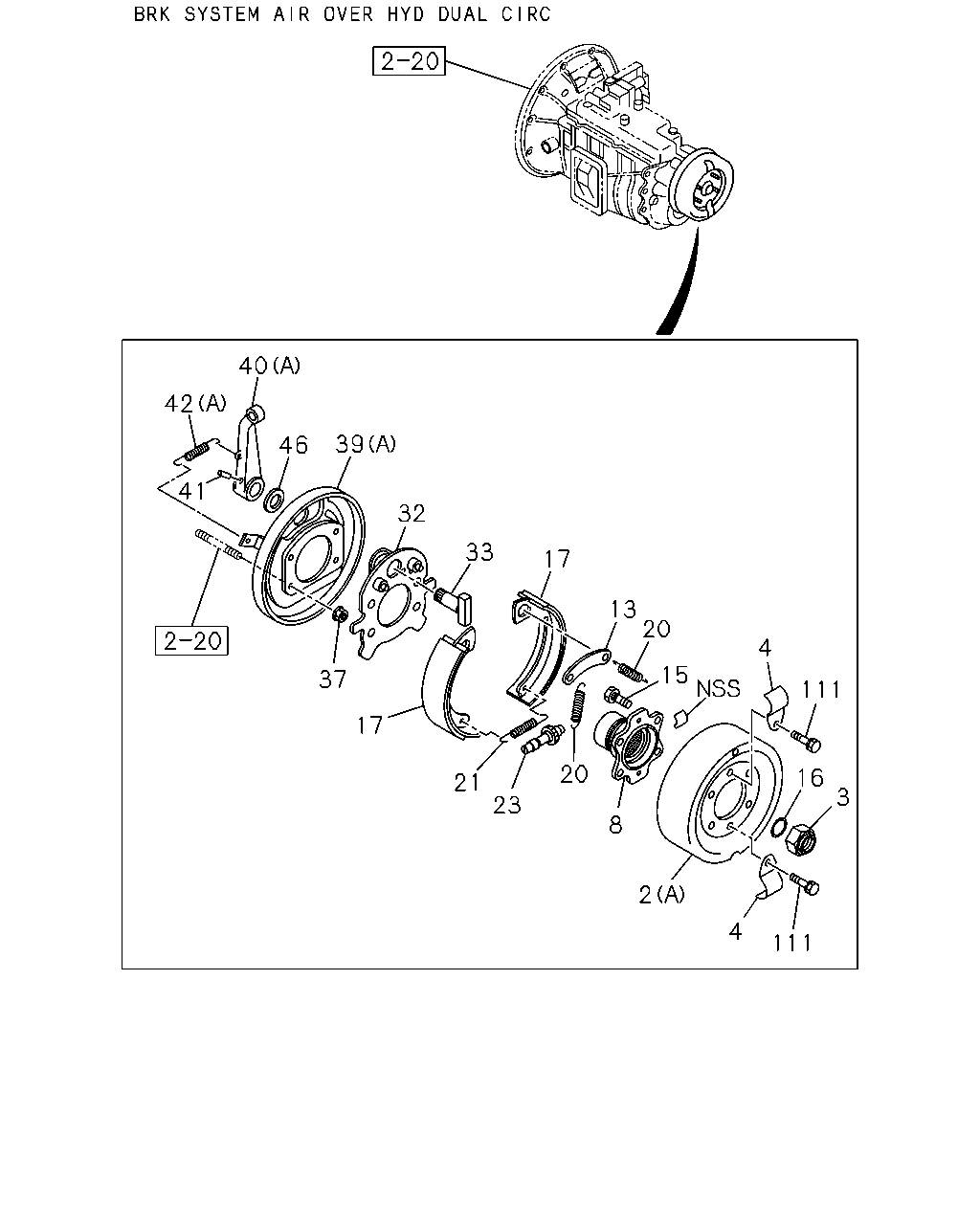

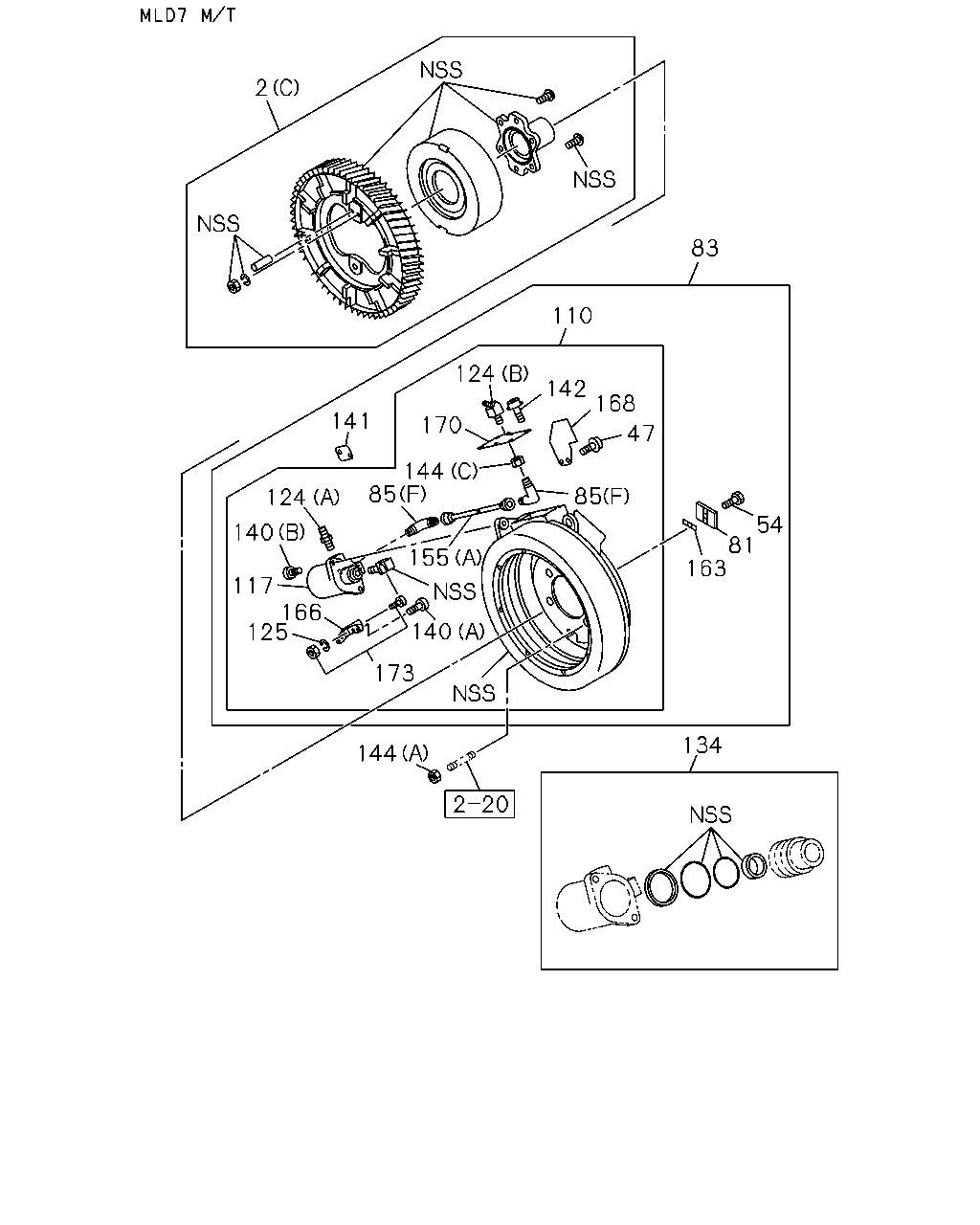

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	DRUM; PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> (A)	1-46211-020-0	01	1	9806-9911	●	●	●
2	DRUM; PARKING BRK BRK SYSTEM RETARDER<RE2> (B)	1-46210-194-5	01	1	9806-9911	●	●	●
2	DRUM; PARKING BRK BRK SYSTEM RETARDER<RE2> (C)	1-46210-260-0	01	1	9806-9911				●
39	COVER; DUST,PARKING BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK SYSTEM RETARDER<RE2> (A)	1-46213-019-0	01	1	9806-9911	●	●	●
39	COVER; DUST,PARKING BRK BRK SYSTEM RETARDER<RE2> (B)	1-46213-092-1	01	1	9806-9911	●	●	●
52	WASHER; PL BRK SYSTEM RETARDER<RE2> ID=10.5 OD=18	9-09160-510-0	03	1	9806-9911	●	●	●
54	BOLT; COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> M8X16	9-05820-816-0	01	1	9806-9911	●	●	●	●
81	COVER; CHECK HOLE,PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2>	1-48629-124-0	01	1	9806-9911	●	●	●	●
83	RETARDER ASM; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2>	1-48610-246-3	01	1	9806-9911	●	●	●
83	RETARDER ASM; PARKING BRK BRK SYSTEM RETARDER<RE2>	1-48610-330-1	01	1	9806-9911				●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (A) M20 & PT1/4 ELBOW	1-09660-681-0	02	1	9806-9911	●	●	●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (B)	1-48629-029-0	02	1	9806-9911	●	●	●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (C)	1-48629-150-0	02	1	9806-9911	●	●	●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (D) M12 & PT1/8	9-09221-806-1	04	1	9806-9911	●	●	●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (E) M12 & PT1/8	9-09224-306-2	02	1	9806-9911	●	●	●
85	CONNECTOR; RETARDER BRK SYSTEM RETARDER<RE2> (F)	1-48629-224-0	02	1	9806-9911				●
98	CLIP; AIR PIPE BRK SYSTEM RETARDER<RE2> (C) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9806-9911	●	●	●
98	CLIP; AIR PIPE BRK SYSTEM RETARDER<RE2> (A)	1-48629-038-0	01	1	9806-9911	●	●	●
98	CLIP; AIR PIPE BRK SYSTEM RETARDER<RE2> (B)	1-48629-055-0	01	1	9806-9911	●	●	●
117	CYLINDER ASM; AIR BRK SYSTEM RETARDER<RE2>	1-48629-033-1	03	1	9806-9911	●	●	●
117	CYLINDER ASM; AIR BRK SYSTEM RETARDER<RE2>	1-48629-220-0	01	1	9806-9911				●
118	PIPE ASM; AIR CYL BRK SYSTEM RETARDER<RE2> (A)	1-47493-115-0	01	1	9806-9911	●	●	●
118	PIPE ASM; AIR CYL BRK SYSTEM RETARDER<RE2> (B)	1-47493-116-0	01	1	9806-9911	●	●	●
118	PIPE ASM; AIR CYL BRK SYSTEM RETARDER<RE2> (C)	1-49115-743-0	01	1	9806-9911	●	●	●
118	PIPE ASM; AIR CYL BRK SYSTEM RETARDER<RE2> (D)	1-49115-744-0	01	1	9806-9911	●	●	●
134	REPAIR KIT; AIR CYL BRK SYSTEM RETARDER<RE2>	1-48629-044-0	03	1	9806-9911	●	●	●
134	REPAIR KIT; AIR CYL BRK SYSTEM RETARDER<RE2>	1-48629-230-0	01	1	9806-9911				●
140	BOLT BRK SYSTEM RETARDER<RE2> (A) M10X30 FLANGE	0-28791-030-0	03	1	9806-9911	●	●	●
140	BOLT BRK SYSTEM RETARDER<RE2> (B)	1-48629-041-0	06	1	9806-9911	●	●	●
140	BOLT BRK SYSTEM RETARDER<RE2> (B)	1-48629-170-0	02	1	9806-9911				●
140	BOLT BRK SYSTEM RETARDER<RE2> (A)	1-48629-182-0	04	1	9806-9911				●
141	BRACKET BRK SYSTEM RETARDER<RE2>	1-47476-804-0	01	1	9806-9911	●	●	●
141	BRACKET BRK SYSTEM RETARDER<RE2>	1-48629-227-0	01	1	9806-9901				●
142	SCREW BRK SYSTEM RETARDER<RE2>	9-06043-810-0	03	1	9806-9911	●	●	●
142	SCREW BRK SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	06	1	9806-9911				●
144	NUT BRK SYSTEM RETARDER<RE2> (B) T=7.3	1-48269-025-0	04	1	9806-9911	●	●	●
144	NUT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> (A) M14 FLANGE	1-09440-048-0	04	1	9806-9911	●	●	●	●
144	NUT 6HE1-TC ENG(57L) BRK SYSTEM RETARDER<RE2> EXC. CTR SPLIT FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●
144	NUT 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●
144	NUT 6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> CTR SPLIT FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●
144	NUT 6HH1-S ENG(65L) BRK SYSTEM RETARDER<RE2> OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. CTR SPLIT FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●	●	●
144	NUT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2> (C)	1-48629-244-0	01	1	9806-9911				●
163	BAR; FLAT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK SYSTEM RETARDER<RE2>	1-48629-125-0	01	1	9806-9911	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
