2-07A — CLUTCH BOOSTER; MINIPACK (#68479) — 105 parça

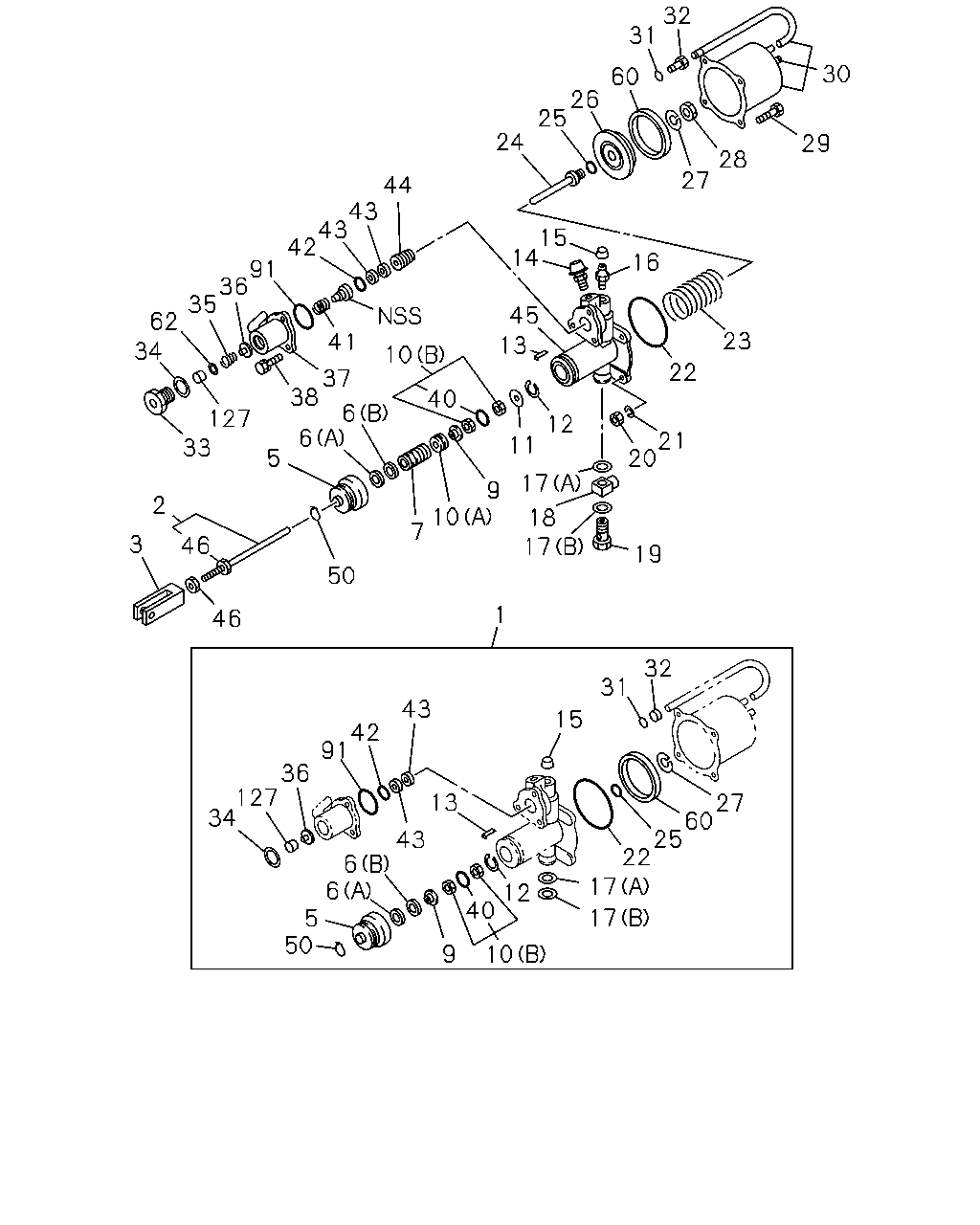

çizim 188027
32 31 30 60 26 25 24 29 28 27 44 43 43 42 15 14 16 91 36 35 62 45 23 41 13 34 10 22 37 38 40 6 127 33 12 6 21 20 11 5 17 9 2 10 18 17 7 3 46 19 50 1 46 32 31 43 15 42 91 36 127 34 13 27 60 25 22 17 43 6 6 5 50 12 40 17 9 10
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-611-0 01 1 0809-1108
1 REPAIR KIT; CLU BOOSTER 1-31829-611-0 01 1 1109-1412
1 REPAIR KIT; CLU BOOSTER 1-31829-606-0 01 1 1501-
2 ROD; PUSH,CLU BOOSTER 1-31824-248-0 01 1 0809-1108
2 ROD; PUSH,CLU BOOSTER 1-31824-248-0 01 1 1109-1412
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 1501-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0809-1108
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 1109-
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0809-1108
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1109-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-032-0 01 1 0809-1108
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-032-0 01 1 1109-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-033-0 01 1 0809-1108
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-033-0 01 1 1109-
7 PISTON; CLU BOOSTER 1-31821-064-0 01 1 0809-1108
7 PISTON; CLU BOOSTER 1-31821-064-0 01 1 1109-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0809-1108
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1109-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 0809-1108
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1109-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 0809-1108
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1109-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0809-1108
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1109-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0809-1108
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 1109-
13 PIN; SPR 1-31829-109-0 01 1 0809-1108
13 PIN; SPR 1-31829-109-0 01 1 1109-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0809-1108
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1109-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0809-1108
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1109-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0809-1108
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1109-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0809-1108
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1109-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0809-1108
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1109-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0809-1108
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1109-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0809-1108
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1109-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0809-1108
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1109-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0809-1108
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1109-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 0809-1108
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 1109-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0809-1108
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1109-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 0809-1108
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1109-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0809-1108
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1109-
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 0809-1108
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 1109-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0809-1108
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1109-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0809-1108
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1109-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0809-1108
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1109-
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 0809-1108
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 1109-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0809-1108
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1109-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0809-1108
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1109-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0809-1108
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1109-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0809-1108
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1109-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0809-1108
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1109-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0809-1108
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1109-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0809-1108
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1109-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0809-1108
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1109-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0809-1108
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1109-1412
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0809-1108
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 1109-
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0809-1108
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1109-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0809-1108
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1109-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 0809-1108
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1109-
45 PLATE; END,CLU BOOSTER 1-31811-150-0 01 1 0809-1108
45 PLATE; END,CLU BOOSTER 1-31811-150-0 01 1 1109-1412
45 PLATE; END,CLU BOOSTER 1-31811-149-0 01 1 1501-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0809-1108
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1109-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0809-1108
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1109-
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 0809-1108
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 1109-
62 RETAINER; POPPET 1-31829-489-0 01 1 0809-1108
62 RETAINER; POPPET 1-31829-489-0 01 1 1109-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0809-1108
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1109-
127 FILTER; POPPET 1-31829-495-0 01 1 0809-1108
127 FILTER; POPPET 1-31829-495-0 01 1 1109-
