2-05 — CLUTCH PIPING (#68478) — 132 parça

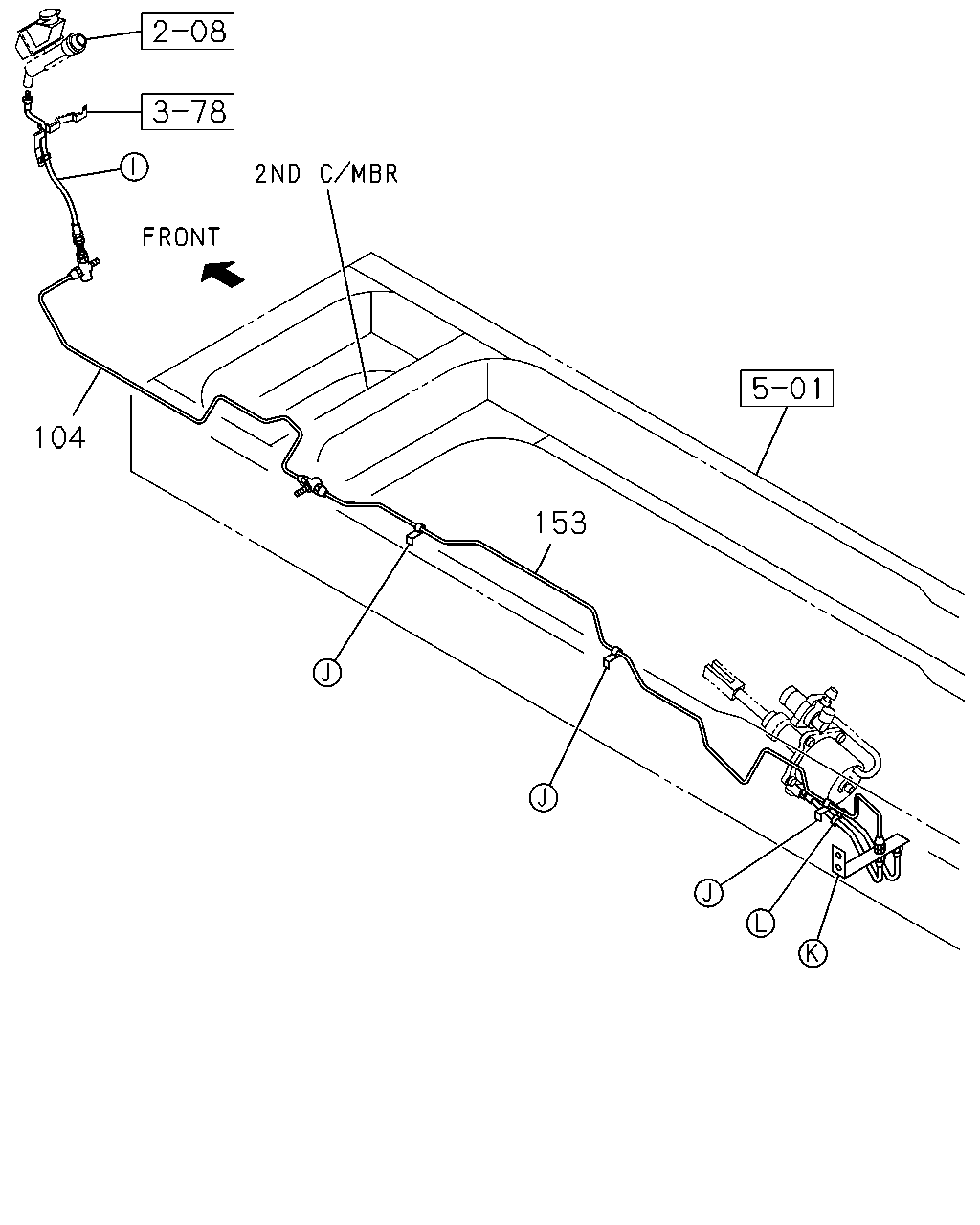

104 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER ES11109 DD M/T(Y5N) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=379	8-98094-857-0	01	1	0809-0810
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=510 SERVICED BY L=550	1-47428-753-0	01	1	0811-0907
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	0908-
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1109-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0809-

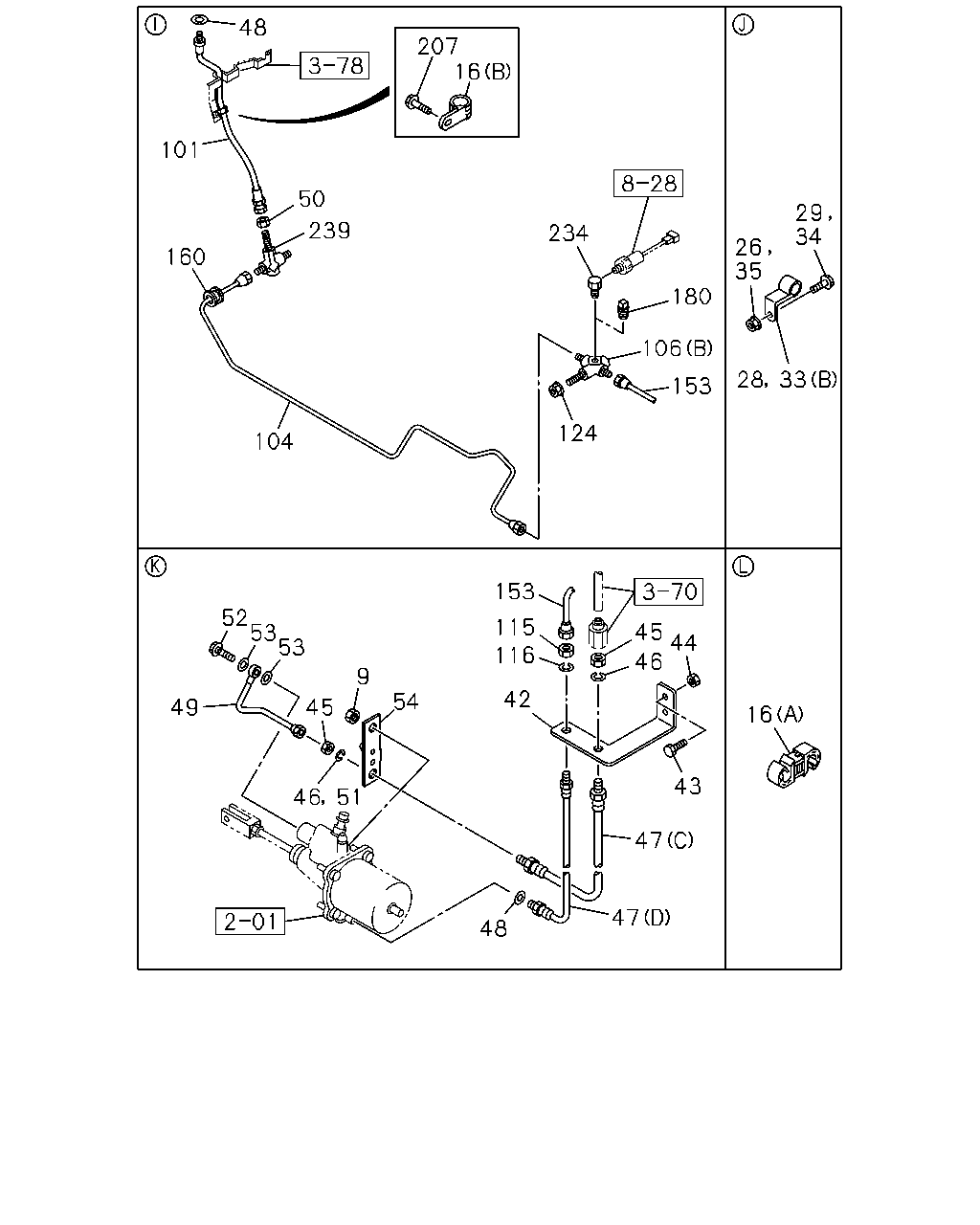

48 207 16 101 50 29 34 239 234 26 35 160 180 106 28 33 153 124 104 153 52 53 53 115 116 45 44 46 9 42 54 49 45 16 51 43 46 47 47 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE FULLER ES11109 DD M/T(Y5N) M10 FLANGE	0-91180-210-0	02	1	1109-
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	0809-
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	0809-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0809-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0809-
29	BOLT; CLIP,OIL PIPE FULLER ES11109 DD M/T(Y5N) M8X25 FLANGE	0-28650-825-0	01	1	1109-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0809-0811
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0812-
33	CLIP; OIL PIPE FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1109-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0809-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	0809-
34	BOLT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8X30 FLANGE	0-28650-830-0	05	1	1109-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	0809-
35	NUT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8 FLANGE	0-91180-108-0	05	1	1109-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0809-
42	BRACKET; FLEX HOSE,CLU CONT FULLER ES11109 DD M/T(Y5N)	8-98100-603-0	01	1	1109-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0809-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0809-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0809-
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0809-1108
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1109-
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0809-1009
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	02	1	1010-1011
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (C) L=390	1-09363-629-0	01	1	1109-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1109-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	0809-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	0809-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0809-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER ES11109 DD M/T(Y5N)	1-49124-974-0	01	1	1109-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=232	1-49124-795-0	01	1	0809-1108
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	1109-
50	NUT; UNION M12	0-91111-512-0	01	1	0809-
51	WASHER; LK ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1012-1108
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1109-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0809-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
54	BRACKET; AIR,FLEX HOSE FULLER ES11109 DD M/T(Y5N)	8-98081-247-0	01	1	1109-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	0809-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER ES11109 DD M/T(Y5N) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=379	8-98094-857-0	01	1	0809-0810
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=510 SERVICED BY L=550	1-47428-753-0	01	1	0811-0907
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	0908-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	0809-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0809-1108
106	UNION; OIL PIPE (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1109-
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0809-1108
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1109-
116	WASHER; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	0809-1011
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0809-
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1109-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0809-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0809-
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0809-
234	CONNECTOR; ELBOW H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	0809-
239	UNION; CLU HOSE M12 & M14 2WAY	1-09654-141-2	01	1	0809-

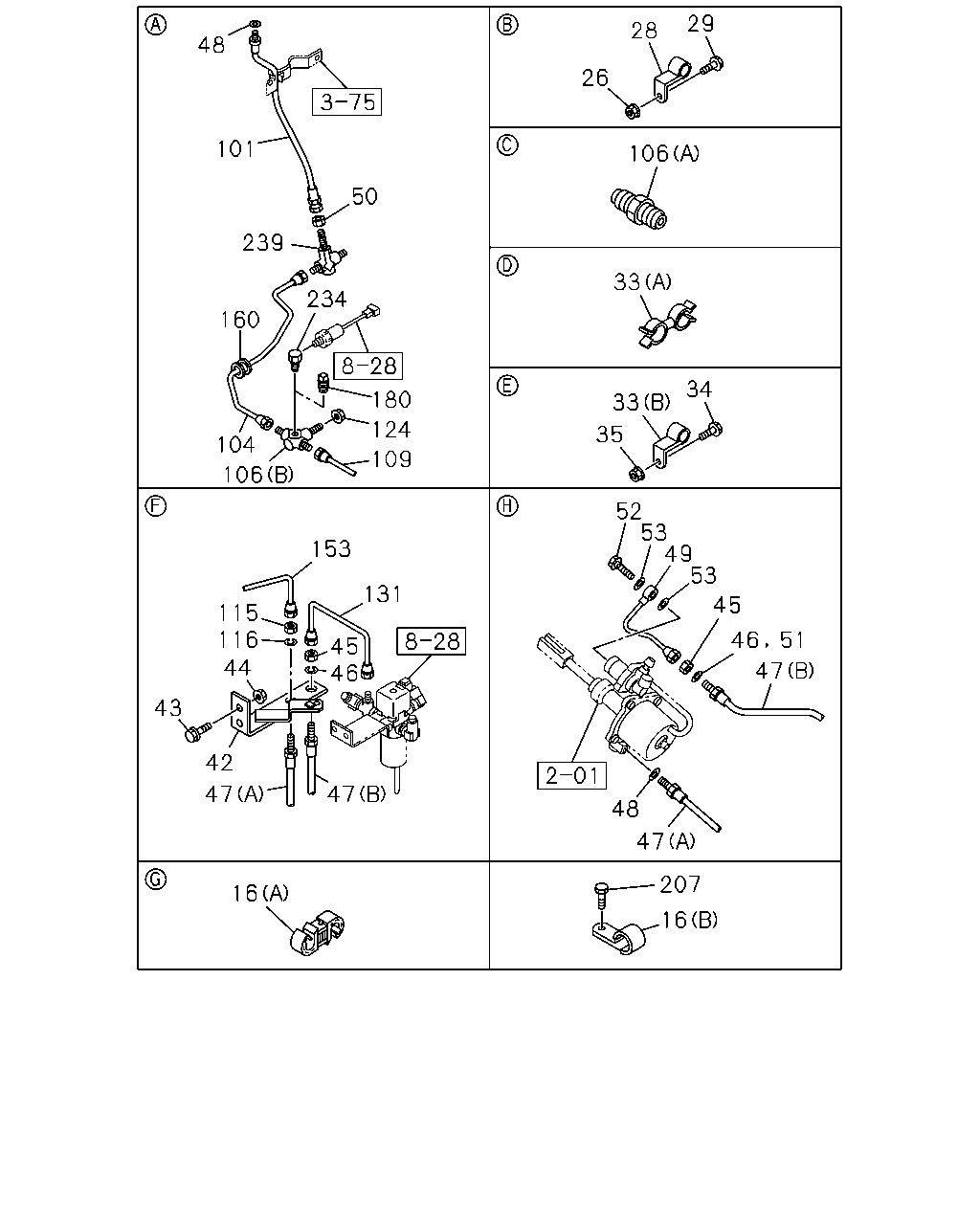

29 28 48 26 101 106 50 239 33 234 160 34 180 33 124 104 35 109 106 52 53 49 53 153 131 45 115 116 44 46 51 45 46 47 43 42 47 47 48 47 207 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	0809-
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	0809-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0809-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0809-
29	BOLT; CLIP,OIL PIPE FULLER ES11109 DD M/T(Y5N) M8X25 FLANGE	0-28650-825-0	01	1	1109-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0809-0811
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0812-
33	CLIP; OIL PIPE FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1109-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0809-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	0809-
34	BOLT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8X30 FLANGE	0-28650-830-0	05	1	1109-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	0809-
35	NUT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8 FLANGE	0-91180-108-0	05	1	1109-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0809-
42	BRACKET; FLEX HOSE,CLU CONT FULLER ES11109 DD M/T(Y5N)	8-98100-603-0	01	1	1109-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0809-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0809-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0809-
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0809-1108
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1109-
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0809-1009
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	02	1	1010-1011
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (C) L=390	1-09363-629-0	01	1	1109-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1109-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	0809-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	0809-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0809-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER ES11109 DD M/T(Y5N)	1-49124-974-0	01	1	1109-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=232	1-49124-795-0	01	1	0809-1108
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	1109-
50	NUT; UNION M12	0-91111-512-0	01	1	0809-
51	WASHER; LK ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1012-1108
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1109-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0809-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	0809-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER ES11109 DD M/T(Y5N) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=379	8-98094-857-0	01	1	0809-0810
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=510 SERVICED BY L=550	1-47428-753-0	01	1	0811-0907
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	0908-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	0809-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0809-1108
106	UNION; OIL PIPE (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1109-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	0809-
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0809-1108
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1109-
116	WASHER; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	0809-1011
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0809-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0809-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0809-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0809-
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1109-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0809-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0809-
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0809-
234	CONNECTOR; ELBOW H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	0809-
239	UNION; CLU HOSE M12 & M14 2WAY	1-09654-141-2	01	1	0809-

109 47 153 131 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (C) L=390	1-09363-629-0	01	1	1109-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1109-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	0809-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	0809-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	0809-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0809-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0809-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0809-
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1109-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0809-
