Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#68472) — 287 parça

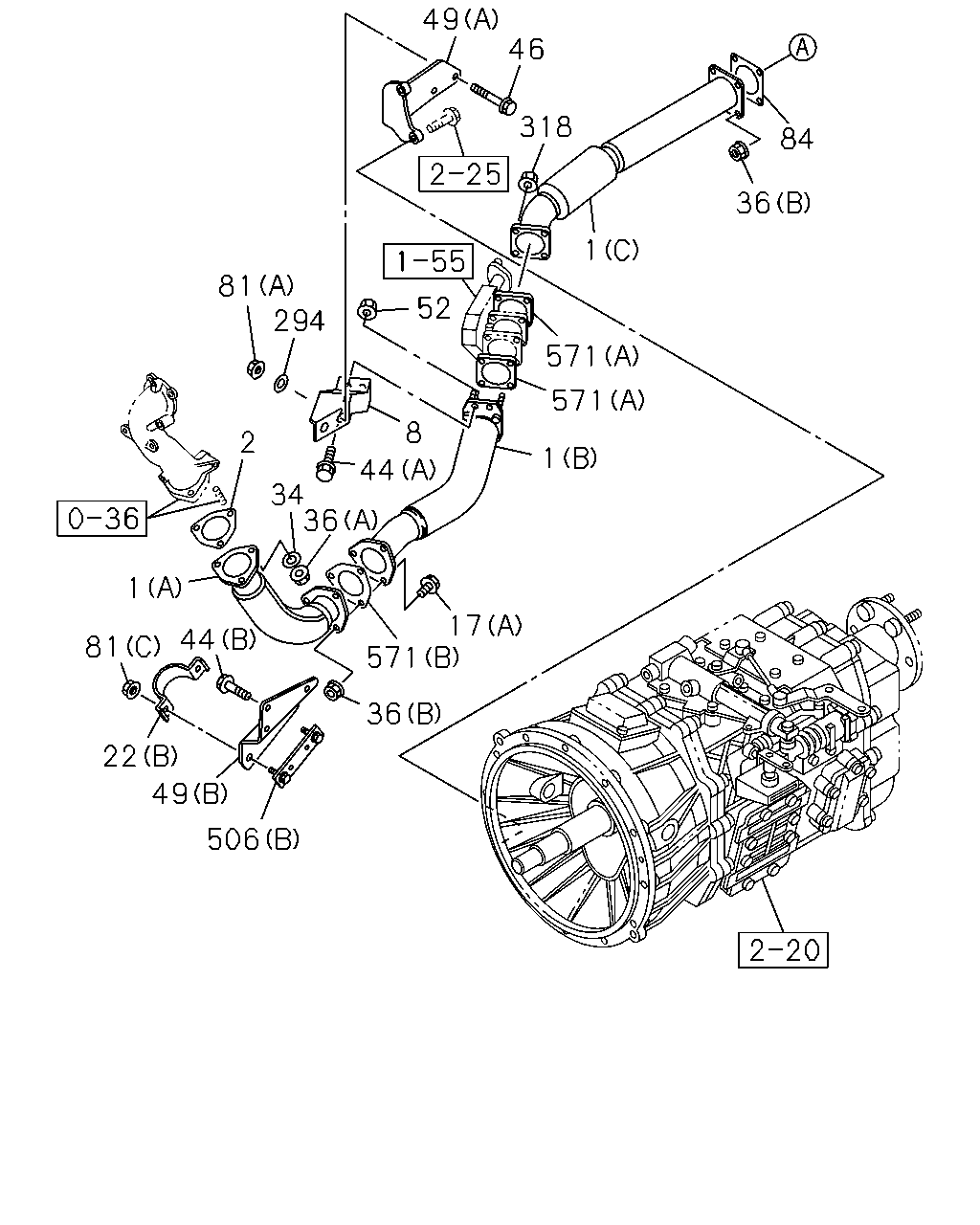

49 46 318 1 84 36 571 571 1 17 571 36 506 49 22 81 44 1 34 36 44 2 8 294 81 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98090-385-0	01	1	1202-
1	PIPE; EXH (B)	8-98060-615-0	01	1	0809-1309
1	PIPE; EXH (B)	8-98245-500-0	01	1	1310-
1	PIPE; EXH (A)	8-98073-006-3	01	1	0809-1201
1	PIPE; EXH TURBO - CONVENTIONAL<Q5T> (A)	8-98073-006-3	01	1	1202-
1	PIPE; EXH (C)	8-98090-386-0	01	1	0809-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	0809-
8	BRACKET; EXH PIPE FULLER ES11109 DD M/T(Y5N)	8-98069-914-0	01	1	1109-
8	BRACKET; EXH PIPE ZF9S1110 M/T(Y5E)	8-98070-600-0	01	1	0809-0809
8	BRACKET; EXH PIPE ZF9S1110 M/T(Y5E)	8-98120-522-0	01	1	0809-
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE	0-28051-235-0	04	1	1204-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	0809-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	0809-
22	CLAMP; EXH PIPE TURBO - CONVENTIONAL<Q5T> (B)	8-97615-334-0	01	1	1305-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0809-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0809-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0809-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	0809-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0809-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0809-
44	BOLT; BRKT TURBO - CONVENTIONAL<Q5T> (B) M10X20 FLANGE	0-28751-020-0	03	1	1305-
44	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0809-0907
44	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0908-
46	BOLT; BRKT,EXH PIPE M10X25 L=40	0-44011-025-0	02	1	0809-
49	BRACKET; EXH PIPE TO TRANS TURBO - CONVENTIONAL<Q5T> (B)	8-97629-970-0	01	1	1305-
49	BRACKET; EXH PIPE TO TRANS FULLER ES11109 DD M/T(Y5N) (A)	8-98123-995-0	01	1	1109-
49	BRACKET; EXH PIPE TO TRANS (A)	8-98069-944-1	01	1	0809-0809
49	BRACKET; EXH PIPE TO TRANS (A)	8-98120-497-0	01	1	0809-1108
49	BRACKET; EXH PIPE TO TRANS ZF9S1110 M/T(Y5E) (A)	8-98120-497-0	01	1	1109-1209
49	BRACKET; EXH PIPE TO TRANS (A)	8-98120-497-0	01	1	1210-
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-110-0	02	1	1305-
81	NUT; BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (B) M10 LOCK NUT	0-91370-010-0	01	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1202-
81	NUT; BRKT EURO2 SPECIFICATION<NT2> (A) M10 FLANGE	0-91180-210-0	01	1	1202-
81	NUT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (A) M10 FLANGE	0-91180-210-0	01	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1202-
84	GASKET; EXH PIPE	8-98096-305-0	01	1	0809-
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	0809-
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	0809-
506	BRACKET; STUD TURBO - CONVENTIONAL<Q5T> (B)	8-97615-333-1	01	1	1305-
506	BRACKET; STUD (A) M12X35	1-22131-963-0	02	1	0809-1203
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> (A) M12X35	1-22131-963-0	02	1	1204-
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	0809-
571	GASKET (B) ID=81	8-98043-481-0	01	1	0809-

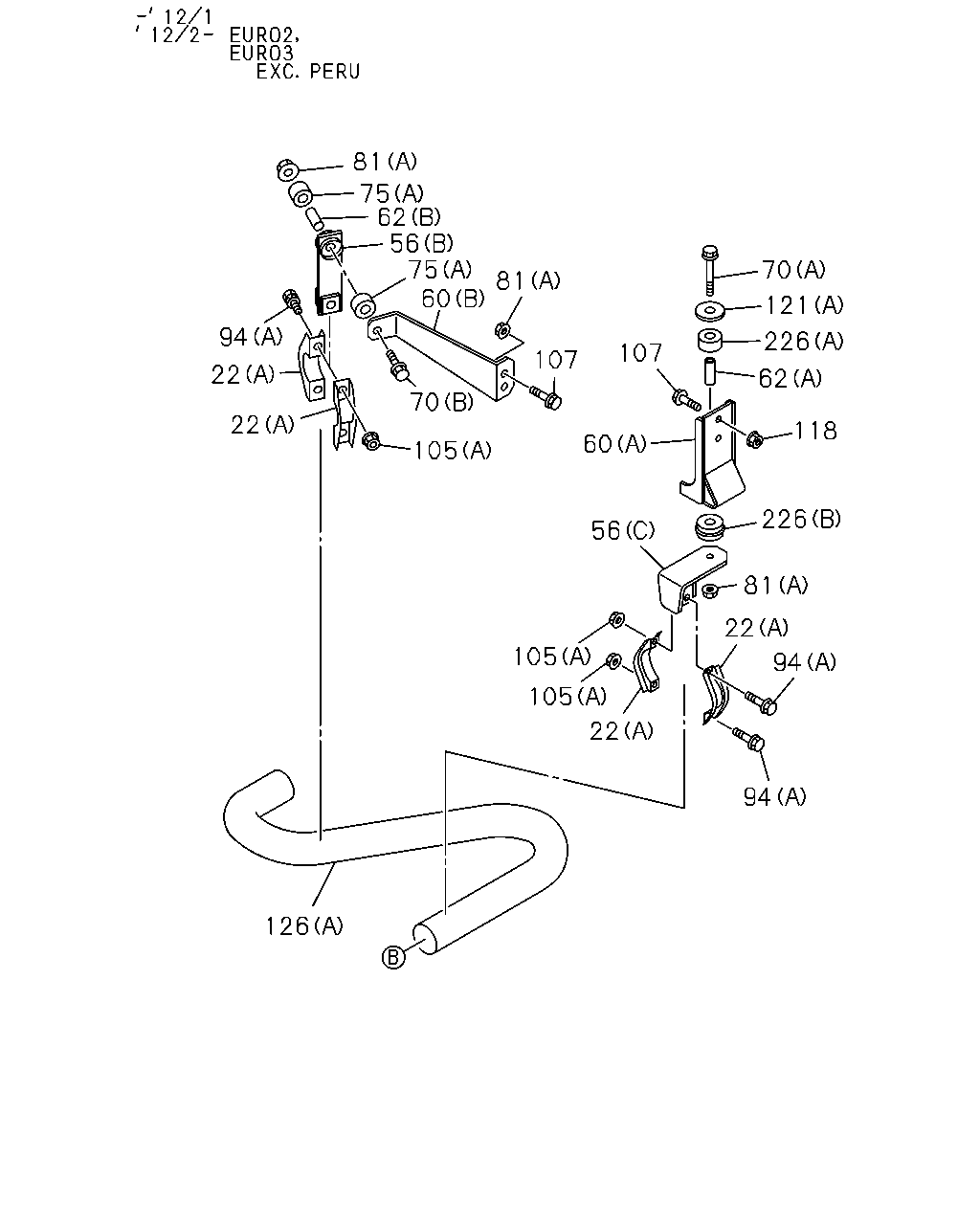

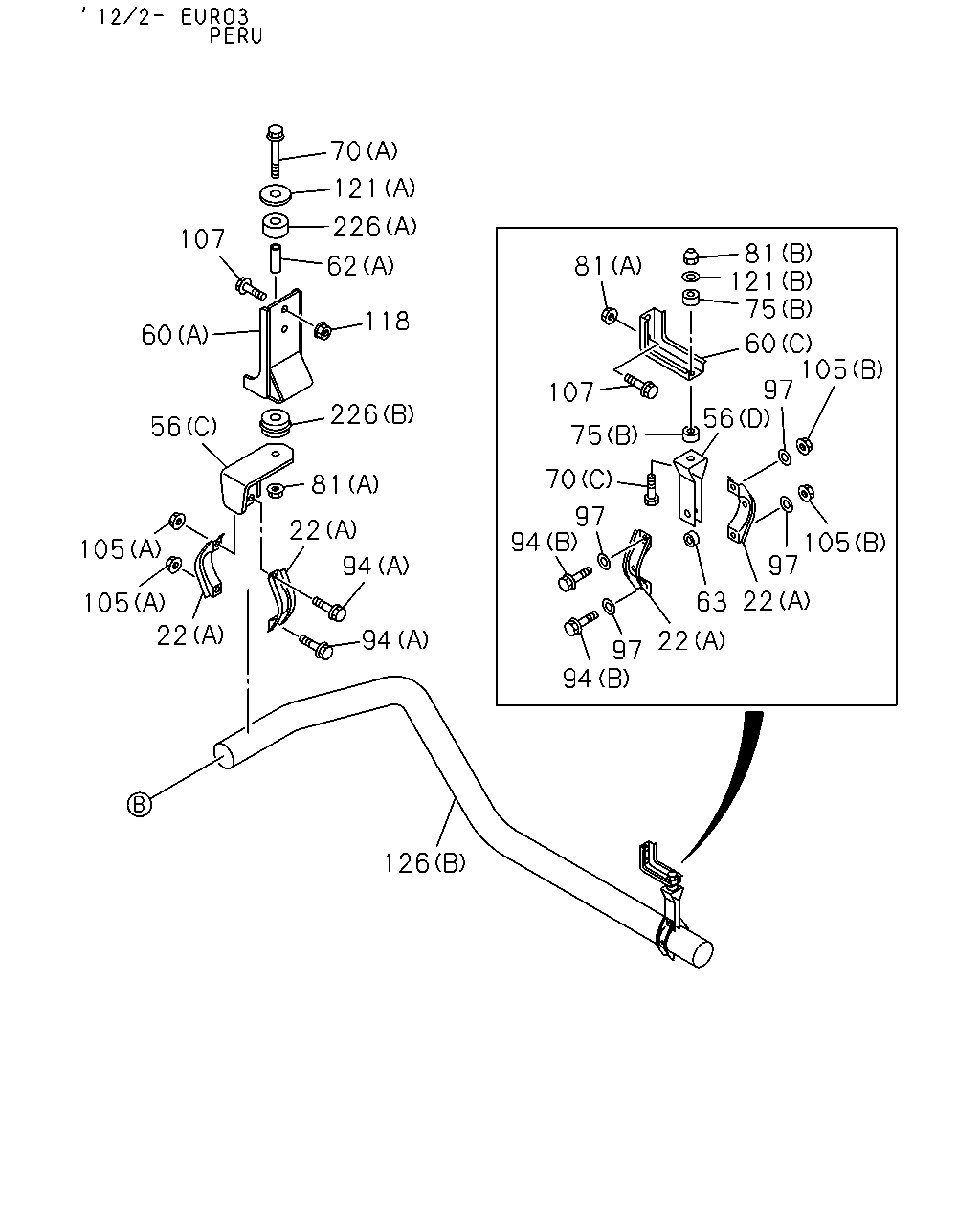

81 75 62 56 75 60 81 107 107 70 121 226 62 118 60 56 226 81 22 94 94 22 105 105 105 70 22 22 94 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE TURBO - CONVENTIONAL<Q5T> (B)	8-97615-334-0	01	1	1305-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0809-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0809-
56	BRACKET; CLAMP,EXH PIPE PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (D)	1-22139-124-0	01	1	1202-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	0809-1201
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (B)	1-22131-528-1	01	1	1202-
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (B)	1-22131-528-1	01	1	1202-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	0809-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98070-639-0	01	1	0809-1309
56	BRACKET; CLAMP,EXH PIPE (C)	8-98245-536-0	01	1	1310-
60	BRACKET; FRAME TO BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (C)	1-22151-782-1	01	1	1202-1509
60	BRACKET; FRAME TO BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (C)	8-98334-990-0	01	1	1510-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1309
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1309
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (B)	8-98108-507-0	01	1	0809-1201
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2> (B)	8-98108-507-0	01	1	1202-
60	BRACKET; FRAME TO BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (B)	8-98108-507-0	01	1	1202-
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0809-0906
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-1201
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2> (B) L=22	9-22159-024-0	01	1	1202-
62	TUBE; DIST,BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (B) L=22	9-22159-024-0	01	1	1202-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0809-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0809-
70	BOLT; BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (C) M10X50	0-10856-050-0	01	1	1202-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-1201
70	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X50 FLANGE	0-28051-050-0	01	1	1202-
70	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (B) M10X50 FLANGE	0-28051-050-0	01	1	1202-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-
75	RUBBER; SUPPORT,BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (B) OD=30	1-22159-106-1	02	1	1202-
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-193-0	02	1	0809-1201
75	RUBBER; SUPPORT,BRKT EURO2 SPECIFICATION<NT2> (A) OD=40	1-22159-193-0	02	1	1202-
75	RUBBER; SUPPORT,BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (A) OD=40	1-22159-193-0	02	1	1202-
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-110-0	02	1	1305-
81	NUT; BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (B) M10 LOCK NUT	0-91370-010-0	01	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1202-
81	NUT; BRKT EURO2 SPECIFICATION<NT2> (A) M10 FLANGE	0-91180-210-0	01	1	1202-
81	NUT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (A) M10 FLANGE	0-91180-210-0	01	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1202-
94	BOLT; CLAMP PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1202-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	0809-1201
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	0809-1201
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1202-
94	BOLT; CLAMP EURO2 SPECIFICATION<NT2> (A) M10X40 FLANGE	0-28651-040-0	02	1	1202-
94	BOLT; CLAMP EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (A) M10X40 FLANGE	0-28651-040-0	02	1	1202-
105	NUT; CLAMP PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (B) M10	0-91110-510-0	02	1	1202-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	0809-1201
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	0809-1201
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1202-
105	NUT; CLAMP EURO2 SPECIFICATION<NT2> (A) M10 FLANGE	0-91180-210-0	02	1	1202-
105	NUT; CLAMP EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (A) M10 FLANGE	0-91180-210-0	02	1	1202-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0809-
121	WASHER; PL,BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1202-
121	WASHER; PL,BRKT (A) ID=11 OD=54	1-09503-154-2	01	1	0809-
121	WASHER; PL,BRKT (A) ID=11 OD=54	1-09503-154-2	01	1	0809-
126	PIPE; EXH,RR PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (B)	8-98205-663-0	01	1	1202-
126	PIPE; EXH,RR (A)	8-98069-920-0	01	1	0809-1201
126	PIPE; EXH,RR EURO2 SPECIFICATION<NT2> (A)	8-98069-920-0	01	1	1202-
126	PIPE; EXH,RR EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (A)	8-98069-920-0	01	1	1202-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-

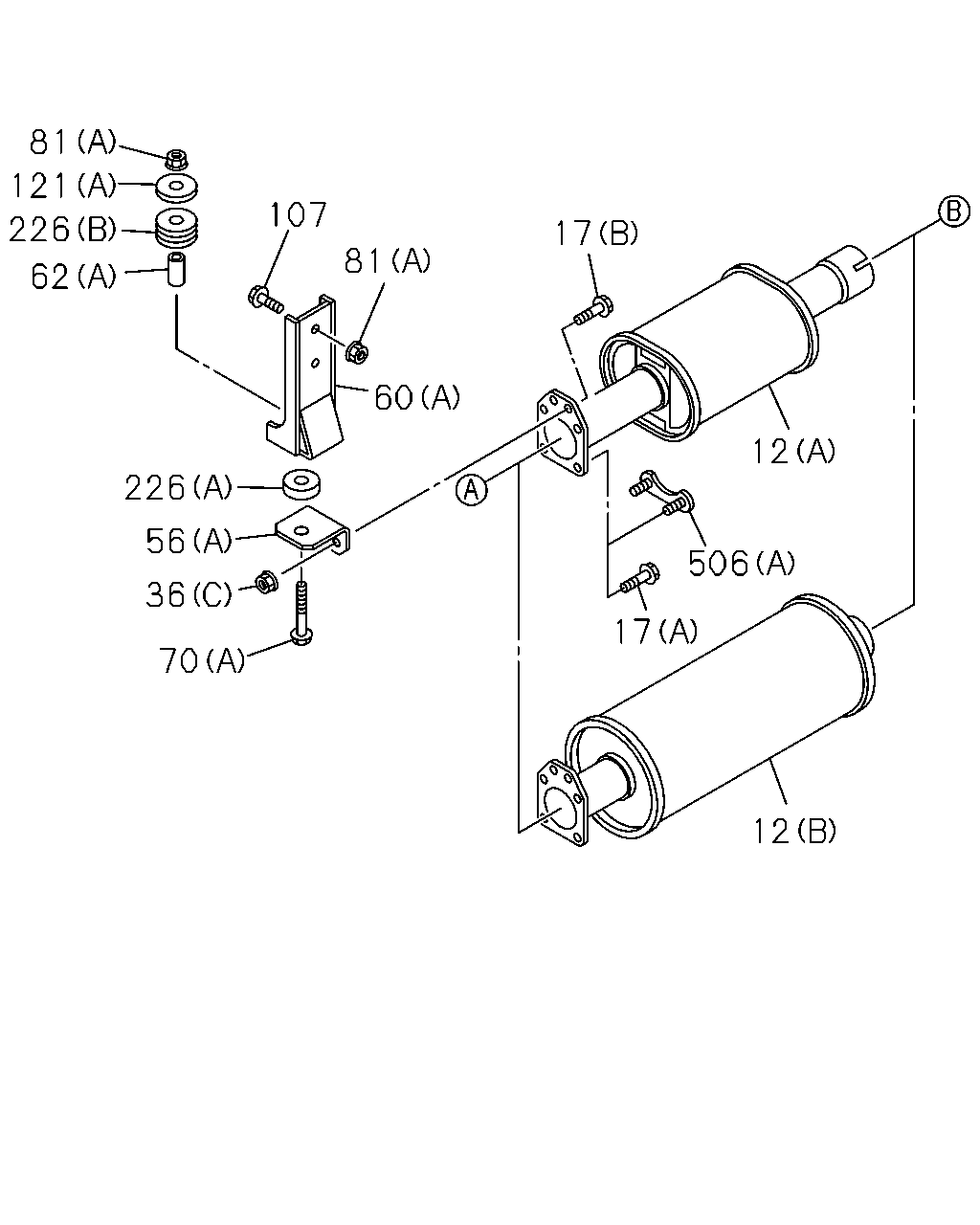

12 506 17 12 36 70 56 226 62 226 121 81 107 81 60 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH EURO3 SPECIFICATION<NT3> (B)	8-98090-389-2	01	1	1202-
12	SILENCER ASM; EXH (A)	8-98101-274-1	01	1	0809-1201
12	SILENCER ASM; EXH EURO2 SPECIFICATION<NT2> (A)	8-98101-274-1	01	1	1202-
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE	0-28051-235-0	04	1	1204-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	0809-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	0809-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	0809-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	0809-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	0809-
56	BRACKET; CLAMP,EXH PIPE PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (D)	1-22139-124-0	01	1	1202-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	0809-1201
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (B)	1-22131-528-1	01	1	1202-
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (B)	1-22131-528-1	01	1	1202-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	0809-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98070-639-0	01	1	0809-1309
56	BRACKET; CLAMP,EXH PIPE (C)	8-98245-536-0	01	1	1310-
60	BRACKET; FRAME TO BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (C)	1-22151-782-1	01	1	1202-1509
60	BRACKET; FRAME TO BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (C)	8-98334-990-0	01	1	1510-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1309
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1309
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (B)	8-98108-507-0	01	1	0809-1201
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2> (B)	8-98108-507-0	01	1	1202-
60	BRACKET; FRAME TO BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (B)	8-98108-507-0	01	1	1202-
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0809-0906
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-1201
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2> (B) L=22	9-22159-024-0	01	1	1202-
62	TUBE; DIST,BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (B) L=22	9-22159-024-0	01	1	1202-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0809-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0809-
70	BOLT; BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (C) M10X50	0-10856-050-0	01	1	1202-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-1201
70	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X50 FLANGE	0-28051-050-0	01	1	1202-
70	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (B) M10X50 FLANGE	0-28051-050-0	01	1	1202-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-110-0	02	1	1305-
81	NUT; BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (B) M10 LOCK NUT	0-91370-010-0	01	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1202-
81	NUT; BRKT EURO2 SPECIFICATION<NT2> (A) M10 FLANGE	0-91180-210-0	01	1	1202-
81	NUT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (A) M10 FLANGE	0-91180-210-0	01	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1202-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
121	WASHER; PL,BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1202-
121	WASHER; PL,BRKT (A) ID=11 OD=54	1-09503-154-2	01	1	0809-
121	WASHER; PL,BRKT (A) ID=11 OD=54	1-09503-154-2	01	1	0809-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-
506	BRACKET; STUD TURBO - CONVENTIONAL<Q5T> (B)	8-97615-333-1	01	1	1305-
506	BRACKET; STUD (A) M12X35	1-22131-963-0	02	1	0809-1203
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> (A) M12X35	1-22131-963-0	02	1	1204-

105 105 22 94 94 22 81 56 60 107 70 121 226 62 118 226 126 94 97 22 63 22 97 105 56 97 105 60 75 121 81 81 107 75 70 97 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE TURBO - CONVENTIONAL<Q5T> (B)	8-97615-334-0	01	1	1305-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0809-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0809-
56	BRACKET; CLAMP,EXH PIPE PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (D)	1-22139-124-0	01	1	1202-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	0809-1201
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (B)	1-22131-528-1	01	1	1202-
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (B)	1-22131-528-1	01	1	1202-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	0809-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98070-639-0	01	1	0809-1309
56	BRACKET; CLAMP,EXH PIPE (C)	8-98245-536-0	01	1	1310-
60	BRACKET; FRAME TO BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (C)	1-22151-782-1	01	1	1202-1509
60	BRACKET; FRAME TO BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (C)	8-98334-990-0	01	1	1510-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1309
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	0809-1309
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (B)	8-98108-507-0	01	1	0809-1201
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2> (B)	8-98108-507-0	01	1	1202-
60	BRACKET; FRAME TO BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (B)	8-98108-507-0	01	1	1202-
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0809-0906
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	0907-1201
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2> (B) L=22	9-22159-024-0	01	1	1202-
62	TUBE; DIST,BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (B) L=22	9-22159-024-0	01	1	1202-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0809-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	0809-
63	TUBE; DIST,BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> L=11	1-22139-026-0	01	1	1202-
70	BOLT; BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (C) M10X50	0-10856-050-0	01	1	1202-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-1201
70	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X50 FLANGE	0-28051-050-0	01	1	1202-
70	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (B) M10X50 FLANGE	0-28051-050-0	01	1	1202-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	0809-
75	RUBBER; SUPPORT,BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (B) OD=30	1-22159-106-1	02	1	1202-
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-193-0	02	1	0809-1201
75	RUBBER; SUPPORT,BRKT EURO2 SPECIFICATION<NT2> (A) OD=40	1-22159-193-0	02	1	1202-
75	RUBBER; SUPPORT,BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (A) OD=40	1-22159-193-0	02	1	1202-
81	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-110-0	02	1	1305-
81	NUT; BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (B) M10 LOCK NUT	0-91370-010-0	01	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0811-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1202-
81	NUT; BRKT EURO2 SPECIFICATION<NT2> (A) M10 FLANGE	0-91180-210-0	01	1	1202-
81	NUT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (A) M10 FLANGE	0-91180-210-0	01	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0809-0810
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	0809-1201
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1202-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1202-
94	BOLT; CLAMP PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1202-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	0809-1201
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	0809-1201
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1202-
94	BOLT; CLAMP EURO2 SPECIFICATION<NT2> (A) M10X40 FLANGE	0-28651-040-0	02	1	1202-
94	BOLT; CLAMP EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (A) M10X40 FLANGE	0-28651-040-0	02	1	1202-
97	WASHER; PL,CLAMP PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> ID=10.5	0-91614-510-0	02	1	1202-
105	NUT; CLAMP PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (B) M10	0-91110-510-0	02	1	1202-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	0809-1201
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	0809-1201
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1202-
105	NUT; CLAMP EURO2 SPECIFICATION<NT2> (A) M10 FLANGE	0-91180-210-0	02	1	1202-
105	NUT; CLAMP EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (A) M10 FLANGE	0-91180-210-0	02	1	1202-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0809-
121	WASHER; PL,BRKT PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1202-
121	WASHER; PL,BRKT (A) ID=11 OD=54	1-09503-154-2	01	1	0809-
121	WASHER; PL,BRKT (A) ID=11 OD=54	1-09503-154-2	01	1	0809-
126	PIPE; EXH,RR PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (B)	8-98205-663-0	01	1	1202-
126	PIPE; EXH,RR (A)	8-98069-920-0	01	1	0809-1201
126	PIPE; EXH,RR EURO2 SPECIFICATION<NT2> (A)	8-98069-920-0	01	1	1202-
126	PIPE; EXH,RR EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07) (A)	8-98069-920-0	01	1	1202-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0809-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
