◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11153 - FVZ(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#68467) — 70 parça

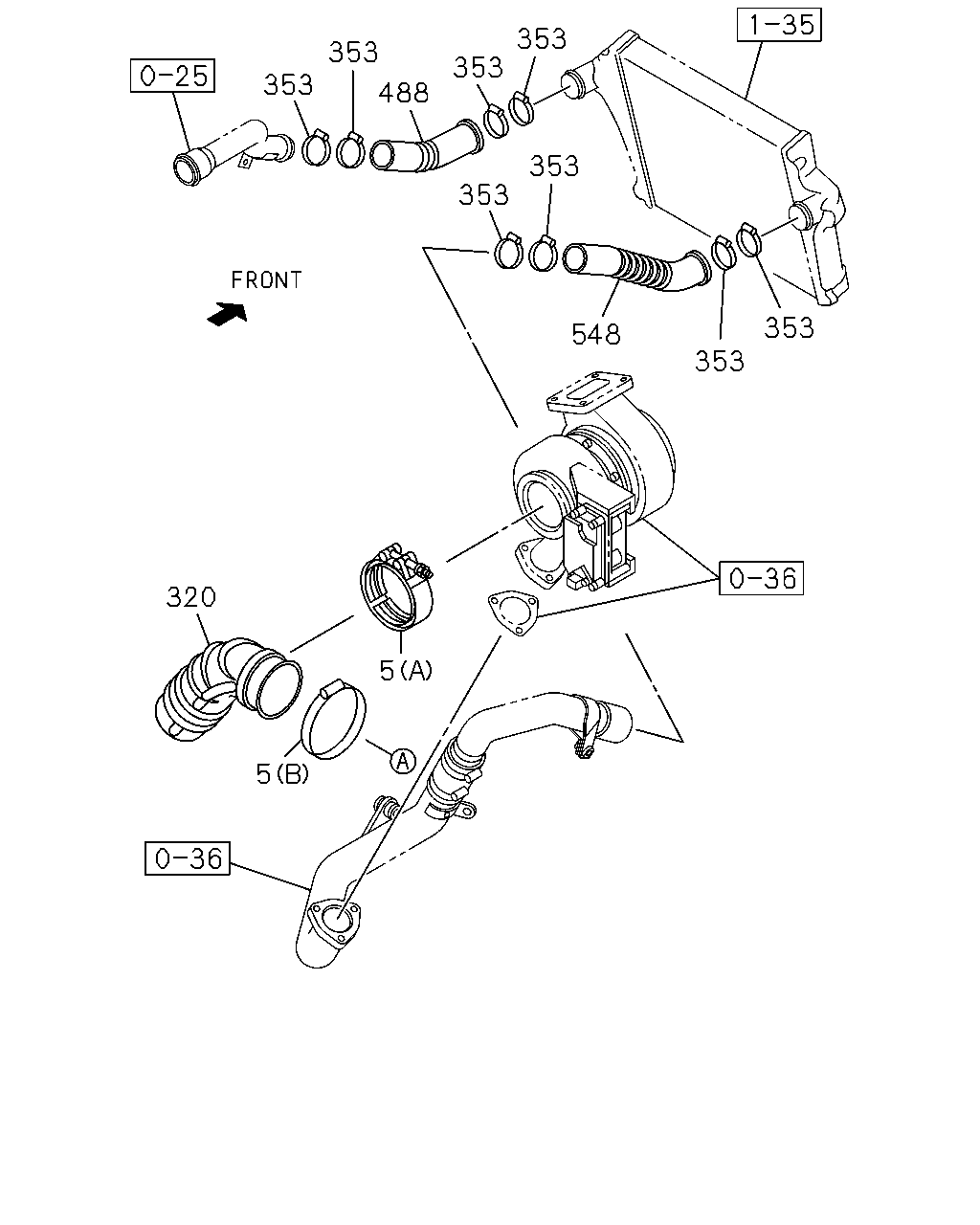

çizim 91962
353 353 353 353 488 353 353 353 548 353 320 5 5
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=100-120 		8-98133-366-0 01 1 1202-
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>,KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1202-
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116 		1-09707-138-0 01 1 1002-1201
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116 		1-09707-138-0 01 1 1202-
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=130-169 		8-98155-950-0 01 1 1002-
5 CLIP; AIR DUCT
(A) ID=87-113 		1-09707-199-0 01 1 0809-0811
5 CLIP; AIR DUCT
(A) ID=90-110 		8-98133-365-0 01 1 0812-1001
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=90-110 		8-98133-365-0 01 1 1002-1201
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> (A) ID=90-110 		8-98133-365-0 01 1 1202-
5 CLIP; AIR DUCT
(B) ID=130-165 		1-09707-201-0 01 1 0809-0810
5 CLIP; AIR DUCT
(B) ID=130-150 		8-98133-360-0 01 1 0811-1001
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=130-150 		8-98133-360-0 01 1 1002-
320 HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98165-424-0 01 1 1202-
320 HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98021-990-2 01 1 1202-
320 HOSE; CONN,ACL 8-98073-259-0 01 1 0809-1201
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> 		8-98073-259-0 01 1 1202-
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1002-
353 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 08 1 0809-0811
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 0812-1001
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1002-
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 0809-
548 HOSE; RUBBER,TURBO TO INL PIPE
EXC. EURO2 SPECIFICATION<NT2> 		8-98065-044-0 01 1 1202-
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98065-044-0 01 1 0809-1101
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98181-974-1 01 1 1102-1201
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> 		8-98181-974-1 01 1 1202-

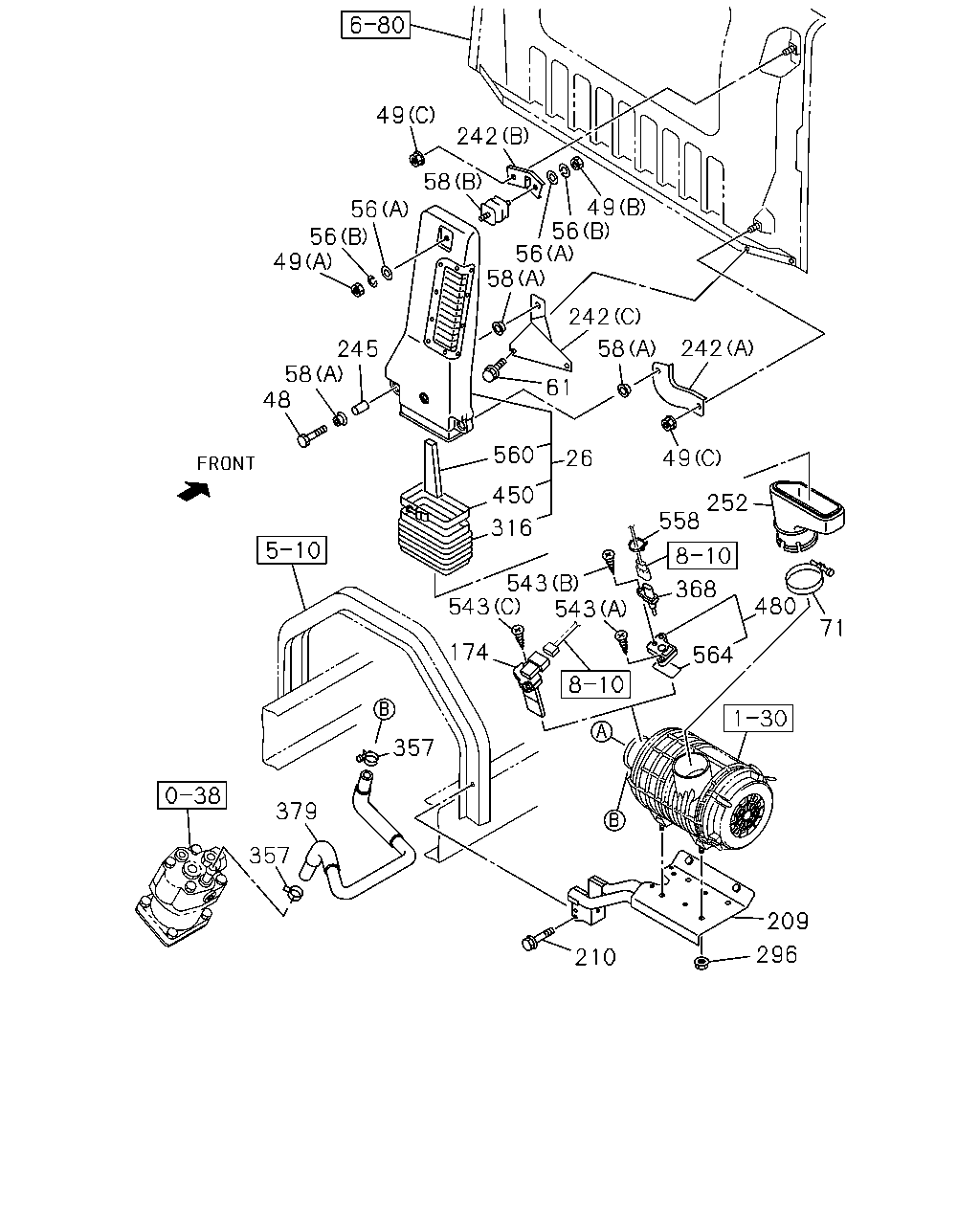

çizim 188144
49 242 58 49 56 56 58 56 56 49 242 242 58 245 61 58 48 560 49 26 450 252 558 316 543 543 543 368 480 71 174 564 357 379 357 209 296 210
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 0809-
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 0809-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0809-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0809-
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 0809-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0809-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0809-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0809-
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0809-0810
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 0811-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0809-
71 CLIP; AIR DUCT
ID=130-165 		1-09707-201-0 01 1 0809-0810
71 CLIP; AIR DUCT
ID=140-160 		8-98133-368-0 01 1 0811-
174 SENSOR; AIR FLOW CONT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97601-967-0 01 1 1202-
209 BRACKET; ACL 8-98021-995-1 01 1 0809-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0809-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0809-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 0809-
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 0809-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0809-
252 DUCT; AIR INT 8-98021-989-1 01 1 0809-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0809-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 0908-
357 CLIP; RUBBER HOSE
ID=26 		1-09707-091-0 02 1 0809-
368 SENSOR; TEMP 8-98065-377-0 01 1 0809-1201
368 SENSOR; TEMP
EURO2 SPECIFICATION<NT2> 		8-98065-377-0 01 1 1202-
368 SENSOR; TEMP
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98065-377-0 01 1 1202-
379 HOSE; RUBBER 8-98077-470-0 01 1 0809-
450 CLAMP; HOSE 9-09915-504-1 01 1 0809-
480 ADAPTER 8-98086-417-0 01 1 0809-1201
480 ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98086-417-0 01 1 1202-
480 ADAPTER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98086-417-0 01 1 1202-
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1202-
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 0809-1201
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1202-
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1202-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0809-1201
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1202-
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1202-
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 0809-
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 0809-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0809-
564 GASKET; ADAPTER 8-98071-416-0 01 1 0809-1201
564 GASKET; ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98071-416-0 01 1 1202-
564 GASKET; ADAPTER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98071-416-0 01 1 1202-
