Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11153 - FVZ(LHD)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#68464) — 66 parça
◀
[110A] NO.2 (26 parça)
[110A] NO.3 (8 parça)
[110A] NO.1 (32 parça)
▶

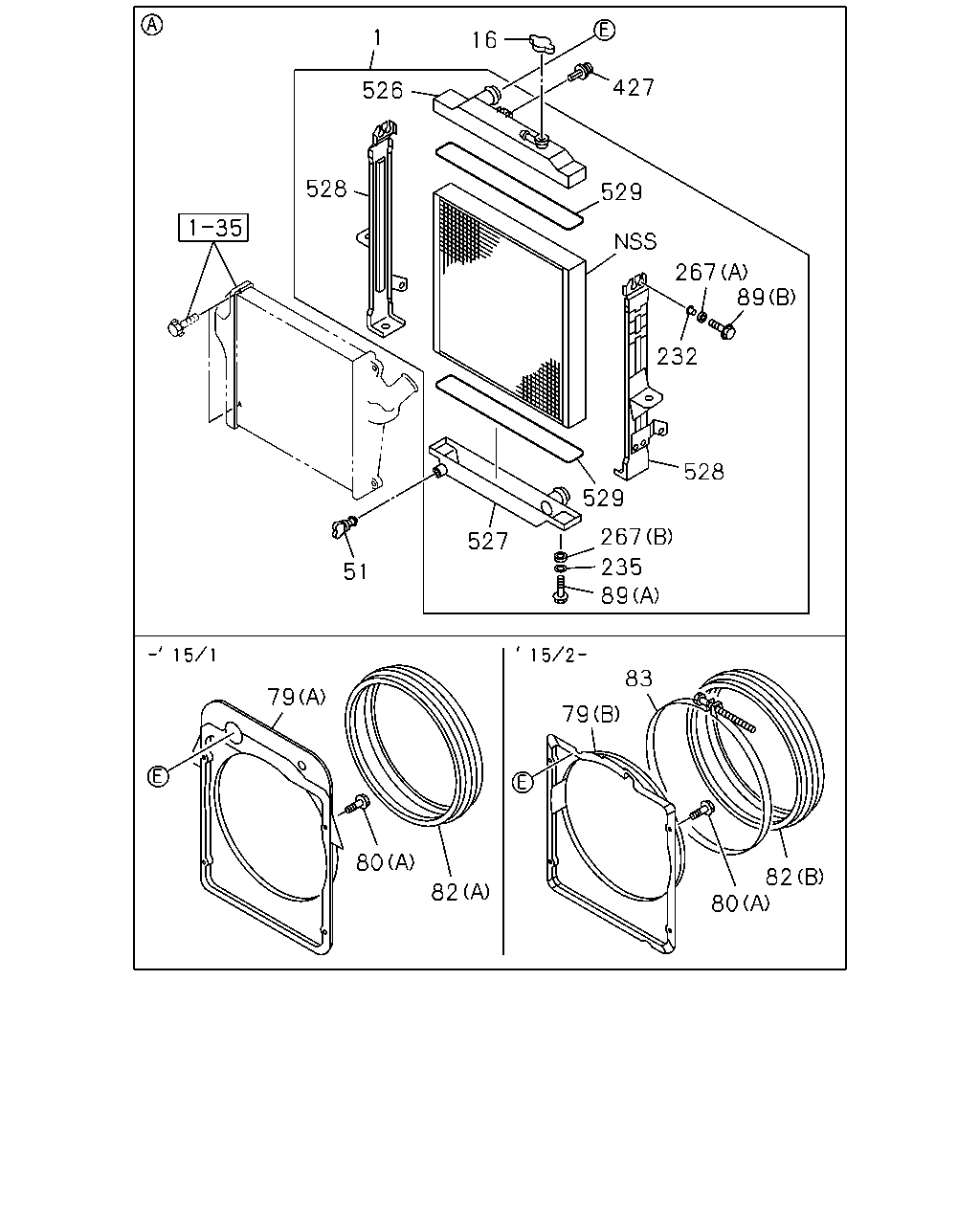

1
16
427
529
267
232
528
529
267
235
89
527
51
526
528
79
83
80
82
82
80
79
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>
8-98299-734-0
01
1
1502-
1
RADIATOR ASM
8-98010-360-4
01
1
0809-1501
1
RADIATOR ASM
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>
8-98299-735-0
01
1
1502-
16
CAP; RAD
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>
8-98096-226-0
01
1
0809-
16
CAP; RAD
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>
8-97239-187-0
01
1
0809-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
0809-
79
GUIDE; FAN,RAD
(A)
8-98010-384-0
01
1
0809-1501
79
GUIDE; FAN,RAD
(B)
8-98273-634-0
01
1
1502-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
0809-
80
BOLT; FAN GUIDE
(A) M8X14
8-98046-222-0
04
1
0809-1501
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1502-
82
COVER; FAN,RAD
(A)
8-98004-211-0
01
1
0809-1501
82
COVER; FAN,RAD
(B)
8-98293-253-0
01
1
1502-
83
CLIP; FAN COVER
1-09707-177-2
01
1
1502-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
0809-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
0809-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
0809-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
0809-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
0809-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
0809-
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
0809-1501
526
TANK; UPR,RADIATOR CORE
8-98004-202-2
01
1
0809-
527
TANK; LWR,RADIATOR CORE
8-98004-203-0
01
1
0809-
528
PLATE; SIDE,RADIATOR CORE
8-98010-371-3
01
1
0809-
528
PLATE; SIDE,RADIATOR CORE
8-98010-372-4
01
1
0809-
529
GASKET; CORE,RADIATOR
8-98004-206-0
02
1
0809-
87
96
96
486
87
87
96
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
STAY; FAN GUIDE
(B)
8-94393-776-1
01
1
0809-
87
STAY; FAN GUIDE
(C)
8-94393-778-2
01
1
0809-
87
STAY; FAN GUIDE
(A)
8-97602-988-0
01
1
0809-
96
BOLT; STAY FIX
(B) M8X16 FLANGE
0-28050-816-0
02
1
0809-
96
BOLT; STAY FIX
(A) M10X16 FLANGE
0-28151-016-0
02
1
0809-
100
RUBBER; MTG
8-94394-268-1
01
1
0809-0910
100
RUBBER; MTG
8-98148-109-0
01
1
0911-
486
NUT; MTG RUBBER
M8 FLANGE
0-91180-108-0
01
1
0809-

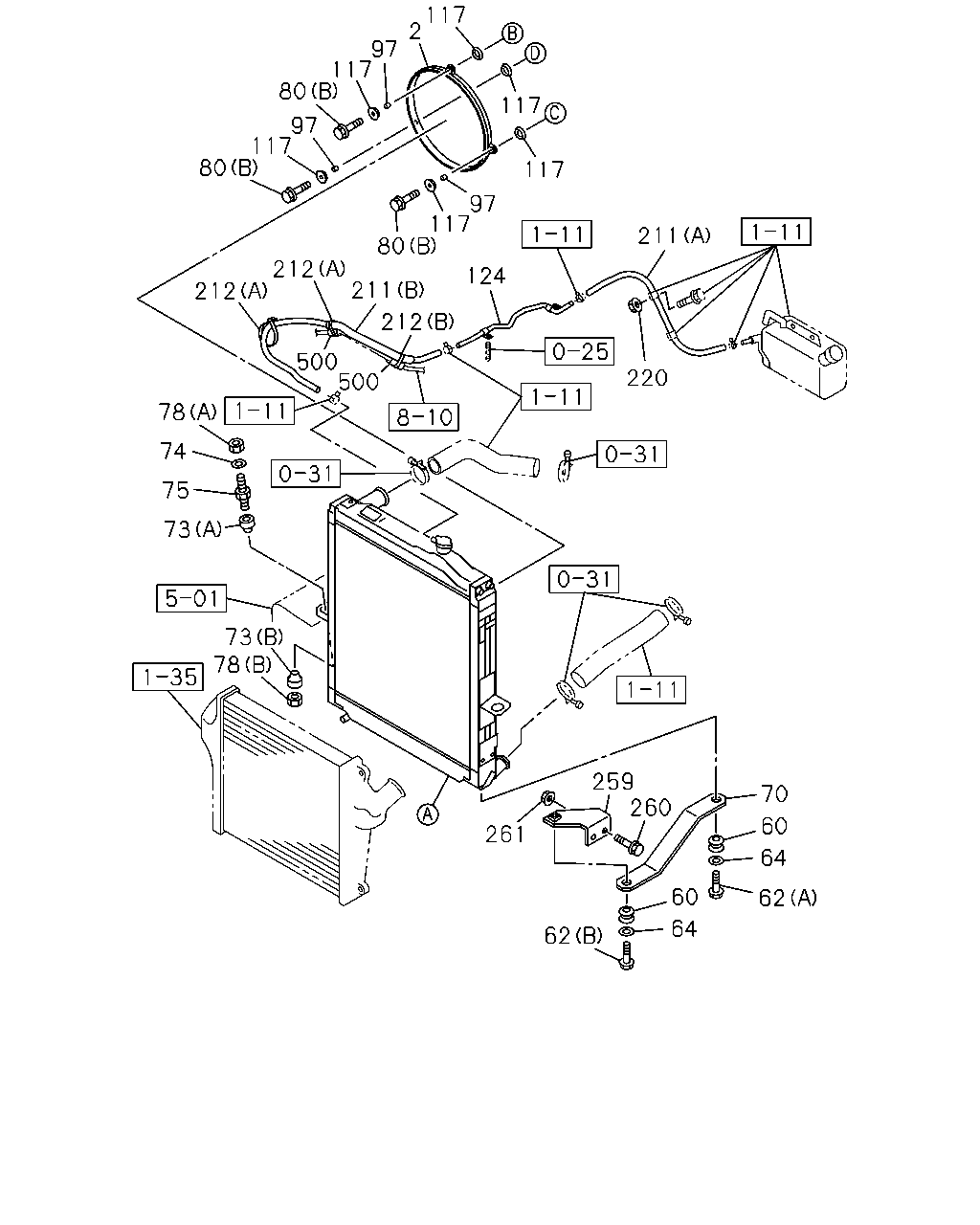

117
2
97
117
80
117
97
117
80
117
97
117
80
211
212
211
124
212
212
500
500
220
78
74
75
73
73
78
259
260
70
60
261
64
60
62
64
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-94393-779-1
01
1
0809-
60
GROMMET
1-09332-117-0
04
1
0809-
62
BOLT; STAY
(A) M8X30
1-09009-020-1
02
1
0809-
62
BOLT; STAY
(B) M8X26
1-09009-175-0
02
1
0809-
64
WASHER; STAY TO RAD
ID=12.5 OD=26
0-91610-612-0
04
1
0809-
70
STAY; RAD
8-98004-132-2
02
1
0809-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
0809-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
0809-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
0809-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
0809-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-210-0
02
1
0809-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
0809-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
0809-
80
BOLT; FAN GUIDE
(A) M8X14
8-98046-222-0
04
1
0809-1501
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1502-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
0809-
117
RUBBER; MTG,FAN GUIDE
OD=32
8-94395-766-0
06
1
0809-
124
PIPE; WATER,TANK TO RAD
8-97611-022-1
01
1
0809-
211
HOSE; RAD TO PIPE
(B) L=970
8-98073-545-0
01
1
0809-
211
HOSE; RAD TO PIPE
(A) L=560
8-98119-375-0
01
1
0809-
212
CLIP; HOSE
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=250
5-09707-030-1
01
1
1202-
212
CLIP; HOSE
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) L=140
5-09707-031-1
02
1
1202-
212
CLIP; HOSE
(A) L=250
5-09707-030-1
02
1
0809-1201
212
CLIP; HOSE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) L=250
5-09707-030-1
02
1
1202-
212
CLIP; HOSE
(B) L=140
5-09707-031-1
01
1
0809-1201
212
CLIP; HOSE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) L=140
5-09707-031-1
01
1
1202-
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0809-
259
BRACKET; RAD STAY
8-98071-821-0
01
1
0809-
259
BRACKET; RAD STAY
8-98071-822-0
01
1
0809-
260
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
04
1
0809-
261
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0809-
500
SLEEVE; RUBBER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=17 OD=21 L=40
1-09337-012-0
02
1
1202-
