Sayfa 3-01 - Isuzu EPC

3-01 — FRONT WHEEL BRAKE (#6846) — 399 parça

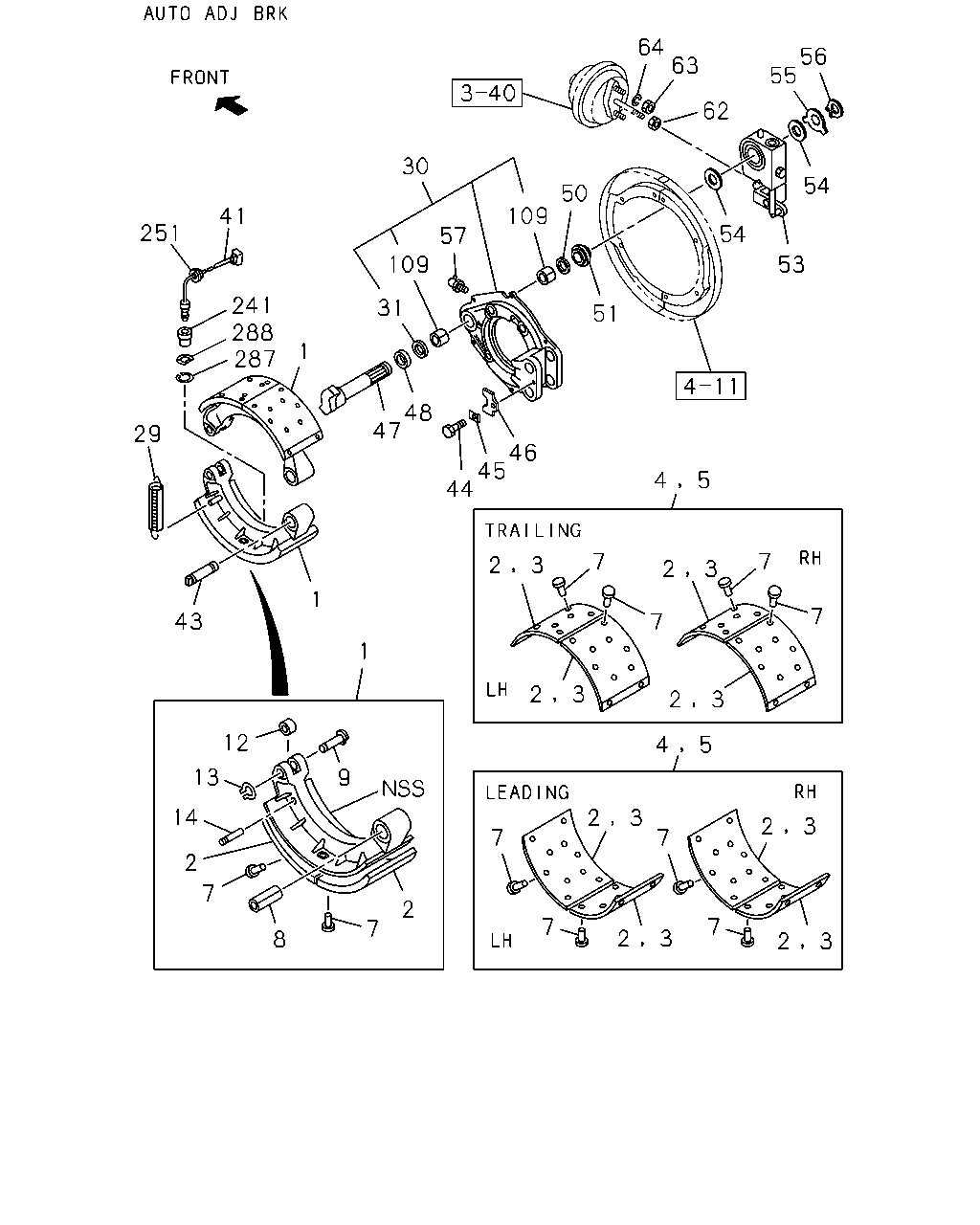

64 63 62 12 13 1 59 58 2 7 61 60 9 53 49 52 30 14 109 56 55 54 7 2 49 57 31 8 109 48 51 50 47 1 46 45 44 29 1 43 5 4 5 4 7 7 2 3 2 3 2 3 2 3 7 7 7 7 7 7 2 3 2 3 2 3 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK LINING D2129 NON ASBESTOS<BCL>	1-47120-227-0	04	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> W=180 (RED 2) D1019	1-47110-857-0	04	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> W=220 (RED 2) D1019	1-47110-927-0	04	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-47120-344-0	01	1	9806-9911
1	SHOE; BRK,FRT LEADING	1-47120-344-0	01	1	9912-0308
1	SHOE; BRK,FRT LEADING	1-47170-273-0	01	1	0309-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-47120-346-0	01	1	9806-9911
1	SHOE; BRK,FRT TRAILING	1-47120-346-0	01	1	9912-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-47120-345-0	01	1	9806-9911
1	SHOE; BRK,FRT TRAILING	1-47120-345-0	01	1	9912-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-47120-347-0	01	1	9806-9911
1	SHOE; BRK,FRT LEADING	1-47120-347-0	01	1	9912-0308
1	SHOE; BRK,FRT LEADING	1-47170-274-0	01	1	0309-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING	1-47120-227-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING	1-47120-227-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING	1-47120-227-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING	1-47120-227-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING	1-47110-975-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-47110-976-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING	1-47110-973-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-47110-974-0	01	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK LINING D2129 NON ASBESTOS<BCL> T=16	1-47125-182-0	08	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> W=140 (RED 2) D1019 T=16	1-47115-678-0	08	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47126-056-0	04	1	0309-
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> W=180 (RED 2) D1019 T=16	1-47115-688-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> W=180 (RED 2) D1019 T=17	1-47115-689-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-47125-432-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47125-432-0	04	1	9912-
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-47125-443-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47125-443-0	04	1	9912-0308
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING T=16	1-47125-182-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING T=16	1-47125-331-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING T=16	1-47115-678-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-47115-744-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK LINING D2129 NON ASBESTOS<BCL> T=17	1-47125-183-0	08	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> T=17	1-47115-679-0	08	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47126-057-0	04	1	0309-
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-47125-434-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47125-434-0	04	1	9912-
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-47125-444-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47125-444-0	04	1	9912-0308
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING T=17	1-47125-183-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING T=17	1-47125-332-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING T=17	1-47115-679-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-47115-745-0	04	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK LINING D2129 NON ASBESTOS<BCL>	1-88310-091-0	02	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL>	1-88302-855-0	02	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-88310-311-0	01	1	9806-9911
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88310-311-0	01	1	9912-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-88310-321-0	01	1	9806-9911
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-321-0	01	1	9912-0308
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-741-0	01	1	0309-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING	1-88310-091-0	01	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING	1-88310-218-0	01	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING	1-88302-855-0	01	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-88302-982-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK LINING D2129 NON ASBESTOS<BCL>	1-88310-092-0	02	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL>	1-88302-856-0	02	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-88310-312-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-312-0	01	1	9912-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-88310-322-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-322-0	01	1	9912-0308
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-742-0	01	1	0309-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING	1-88310-092-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING	1-88310-219-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING	1-88302-856-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-88302-983-0	01	1	9806-9911
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	9806-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	9806-
9	PIN; SHOE HOLDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-09744-060-0	04	1	9806-9911
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	9912-
12	ROLLER; CAM,BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47113-007-0	04	1	9806-9911
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	9912-
13	CLIP; ROLLER PIN,BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	9-47119-022-0	04	1	9806-9911
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9912-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	9806-
29	SPRING; RETURN,FRT BRK SHOE W/HOLDER	1-09583-185-2	02	1	9806-
30	BRACKET; ANCHOR,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47137-149-0	02	1	9806-9901
30	BRACKET; ANCHOR,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47137-435-0	02	1	9902-9911
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47137-119-2	01	1	9806-9906
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU>	1-47137-119-3	01	1	9907-9911
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47137-118-2	01	1	9806-9906
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU>	1-47137-118-3	01	1	9907-9911
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-47137-441-0	01	1	9907-9911
30	BRACKET; ANCHOR,FRT	1-47137-441-0	01	1	9912-
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-47137-440-0	01	1	9907-9911
30	BRACKET; ANCHOR,FRT	1-47137-440-0	01	1	9912-
31	SEAL; OIL,CM/SHF BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-09625-228-0	02	1	9806-9911
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	9912-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	9806-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	9806-0512
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0601-
45	WASHER; LK	1-47133-011-0	02	1	9806-
46	PLATE; LOCK	1-47133-005-0	02	1	9806-
47	CAMSHAFT; FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47141-052-0	01	1	9806-9911
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	9912-
47	CAMSHAFT; FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47141-051-0	01	1	9806-9911
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	9912-
48	RING; SPACER,CM/SHF BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47143-005-0	02	1	9806-9911
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	9912-
49	NIPPLE; GREASE,SLACK ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> PT1/8 STRAIGHT	9-09031-010-0	02	1	9806-9911
49	NIPPLE; GREASE,SLACK ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL> PT1/8 STRAIGHT	9-09031-010-0	01	1	9806-9911
49	NIPPLE; GREASE,SLACK ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL> PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9806-9911
50	RING; FELT,CM/SHF BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-09620-009-0	02	1	9806-9911
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	9912-
51	COLLAR; RING,CM/SHF BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47143-016-0	02	1	9806-9911
51	COLLAR; RING,CM/SHF	1-47143-016-0	02	1	9912-
52	BUSHING; SLACK ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU>	1-09330-041-0	02	1	9806-9911
53	ADJUSTER ASM; SLACK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-48270-071-0	01	1	9806-9911
53	ADJUSTER ASM; SLACK	1-48270-071-0	01	1	9912-
53	ADJUSTER ASM; SLACK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-48270-072-0	01	1	9806-9911
53	ADJUSTER ASM; SLACK	1-48270-072-0	01	1	9912-
53	ADJUSTER ASM; SLACK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU>	1-48270-044-0	01	1	9806-9911
53	ADJUSTER ASM; SLACK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU>	1-48270-043-0	01	1	9806-9911
54	SPACER; CM/SHF BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-47143-004-0	04	1	9806-9911
54	SPACER; CM/SHF	1-47143-004-0	04	1	9912-
54	SPACER; CM/SHF BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU>	1-47143-004-0	02	1	9806-9911
55	PLATE; STOPPER,CM/SHF BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-47149-053-0	02	1	9806-9911
55	PLATE; STOPPER,CM/SHF	1-47149-053-0	02	1	9912-
55	PLATE; STOPPER,CM/SHF BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU>	1-47149-021-0	02	1	9806-9911
56	CLIP; ANCHOR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06)	9-09180-038-0	02	1	9806-9911
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	9912-
57	NIPPLE; GREASE,ANCHOR BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> PT1/8 STRAIGHT	9-09031-010-0	01	1	9806-9911
57	NIPPLE; GREASE,ANCHOR BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> INTERNATIONAL STD ISO<B3V> EXC. AUTO ADJ BRK<BCU> PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9806-9911
57	NIPPLE; GREASE,ANCHOR BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. INTERNATIONAL STD ISO<B3V> PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9806-9911
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9912-0512
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 ELBOW 67.5?	0-90301-510-0	02	1	0601-
57	NIPPLE; GREASE,ANCHOR BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> PT1/8 STRAIGHT	9-09031-010-0	02	1	9806-9911
58	PIN; SPLIT,JAW JOINT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU> OD=3.7 L=28	9-08114-028-0	02	1	9806-9911
59	WASHER; PL,JAW JOINT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU> ID=17 OD=32	9-09160-616-0	02	1	9806-9911
60	JOINT; JAW,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU>	1-09768-060-0	02	1	9806-9911
61	PIN; JAW JOINT,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU>	1-09744-088-0	02	1	9806-9911
62	NUT; LK,JAW JOINT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	9-99111-416-0	02	1	9806-9911
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9912-0512
62	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0601-
63	NUT; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	9-99110-416-0	04	1	9806-9911
63	NUT; POWER CHAMBER M16	9-99110-416-0	04	1	9912-0512
63	NUT; POWER CHAMBER M16	0-91110-516-0	04	1	0601-
64	WASHER; LK,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	9-09150-516-0	04	1	9806-9911
64	WASHER; LK,POWER CHAMBER ID=16.2	9-09150-516-0	04	1	9912-0603
64	WASHER; LK,POWER CHAMBER ID=16.2	0-91510-516-0	04	1	0604-
109	BUSHING; CM/SHF,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47146-003-1	04	1	9806-9911
109	BUSHING; CM/SHF,FRT BRK	1-47146-003-1	04	1	9912-

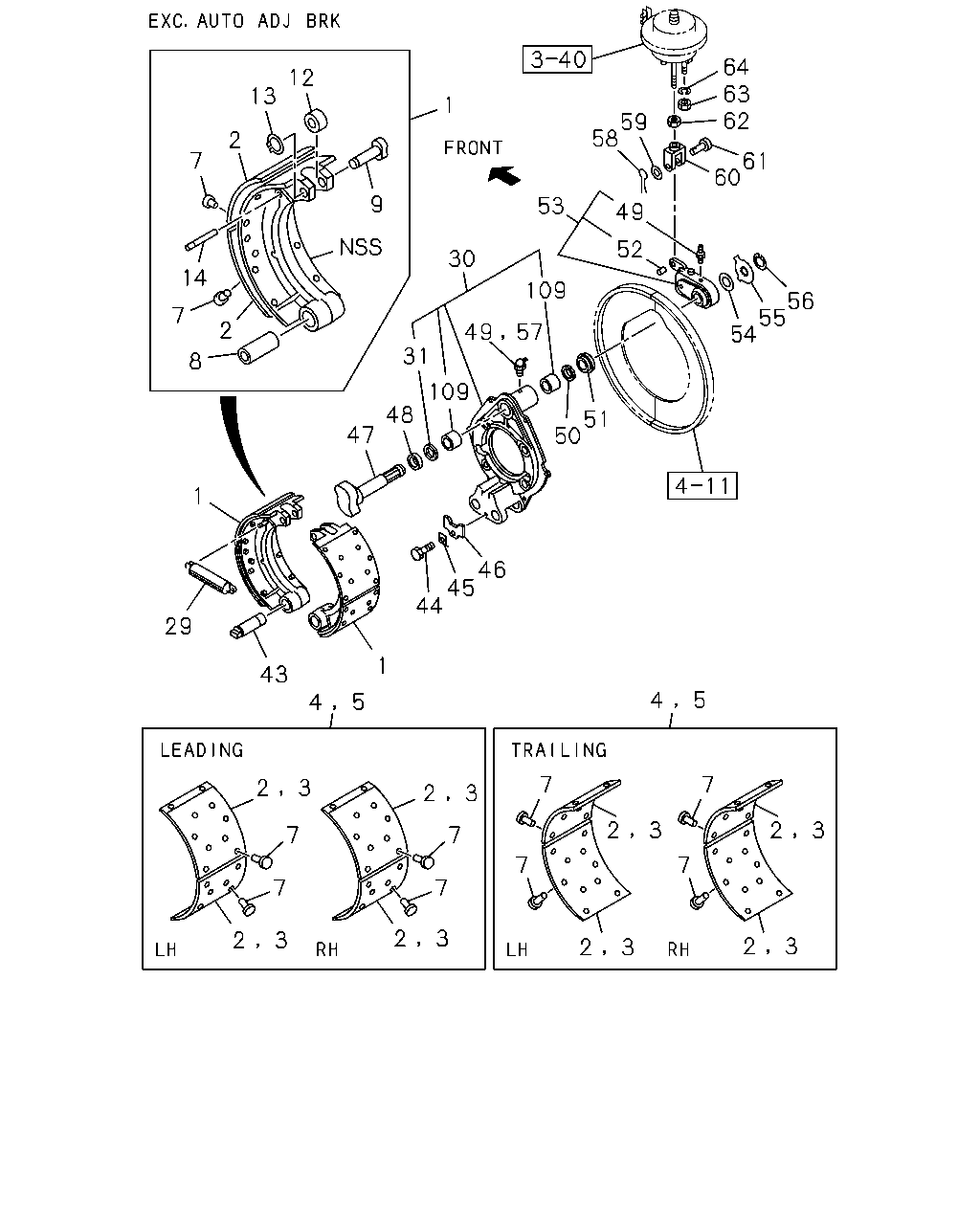

64 63 56 55 62 30 54 50 109 41 54 251 57 53 109 241 288 287 31 51 1 48 47 29 46 45 44 5 4 7 7 2 3 2 3 1 7 43 7 1 2 3 2 3 12 5 4 13 9 2 3 14 2 3 7 7 2 7 2 7 7 7 2 3 8 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK LINING D2129 NON ASBESTOS<BCL>	1-47120-227-0	04	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> W=180 (RED 2) D1019	1-47110-857-0	04	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> W=220 (RED 2) D1019	1-47110-927-0	04	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-47120-344-0	01	1	9806-9911
1	SHOE; BRK,FRT LEADING	1-47120-344-0	01	1	9912-0308
1	SHOE; BRK,FRT LEADING	1-47170-273-0	01	1	0309-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-47120-346-0	01	1	9806-9911
1	SHOE; BRK,FRT TRAILING	1-47120-346-0	01	1	9912-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-47120-345-0	01	1	9806-9911
1	SHOE; BRK,FRT TRAILING	1-47120-345-0	01	1	9912-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-47120-347-0	01	1	9806-9911
1	SHOE; BRK,FRT LEADING	1-47120-347-0	01	1	9912-0308
1	SHOE; BRK,FRT LEADING	1-47170-274-0	01	1	0309-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING	1-47120-227-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING	1-47120-227-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING	1-47120-227-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING	1-47120-227-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING	1-47110-975-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-47110-976-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING	1-47110-973-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-47110-974-0	01	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK LINING D2129 NON ASBESTOS<BCL> T=16	1-47125-182-0	08	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> W=140 (RED 2) D1019 T=16	1-47115-678-0	08	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47126-056-0	04	1	0309-
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> W=180 (RED 2) D1019 T=16	1-47115-688-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> W=180 (RED 2) D1019 T=17	1-47115-689-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-47125-432-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47125-432-0	04	1	9912-
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-47125-443-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47125-443-0	04	1	9912-0308
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING T=16	1-47125-182-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING T=16	1-47125-331-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING T=16	1-47115-678-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-47115-744-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK LINING D2129 NON ASBESTOS<BCL> T=17	1-47125-183-0	08	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> T=17	1-47115-679-0	08	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47126-057-0	04	1	0309-
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-47125-434-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47125-434-0	04	1	9912-
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-47125-444-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47125-444-0	04	1	9912-0308
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING T=17	1-47125-183-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING T=17	1-47125-332-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING T=17	1-47115-679-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-47115-745-0	04	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK LINING D2129 NON ASBESTOS<BCL>	1-88310-091-0	02	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL>	1-88302-855-0	02	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-88310-311-0	01	1	9806-9911
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88310-311-0	01	1	9912-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-88310-321-0	01	1	9806-9911
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-321-0	01	1	9912-0308
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-741-0	01	1	0309-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING	1-88310-091-0	01	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING	1-88310-218-0	01	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING	1-88302-855-0	01	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-88302-982-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK LINING D2129 NON ASBESTOS<BCL>	1-88310-092-0	02	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL>	1-88302-856-0	02	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-88310-312-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-312-0	01	1	9912-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-88310-322-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-322-0	01	1	9912-0308
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-742-0	01	1	0309-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING	1-88310-092-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING	1-88310-219-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING	1-88302-856-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-88302-983-0	01	1	9806-9911
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	9806-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	9806-
9	PIN; SHOE HOLDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-09744-060-0	04	1	9806-9911
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	9912-
12	ROLLER; CAM,BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47113-007-0	04	1	9806-9911
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	9912-
13	CLIP; ROLLER PIN,BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	9-47119-022-0	04	1	9806-9911
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9912-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	9806-
29	SPRING; RETURN,FRT BRK SHOE W/HOLDER	1-09583-185-2	02	1	9806-
30	BRACKET; ANCHOR,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47137-149-0	02	1	9806-9901
30	BRACKET; ANCHOR,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47137-435-0	02	1	9902-9911
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47137-119-2	01	1	9806-9906
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU>	1-47137-119-3	01	1	9907-9911
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47137-118-2	01	1	9806-9906
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU>	1-47137-118-3	01	1	9907-9911
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-47137-441-0	01	1	9907-9911
30	BRACKET; ANCHOR,FRT	1-47137-441-0	01	1	9912-
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-47137-440-0	01	1	9907-9911
30	BRACKET; ANCHOR,FRT	1-47137-440-0	01	1	9912-
31	SEAL; OIL,CM/SHF BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-09625-228-0	02	1	9806-9911
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	9912-
41	INDICATOR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47169-032-1	04	1	9806-9911
41	INDICATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-82480-059-0	02	1	9806-9911
41	INDICATOR	1-82480-059-0	02	1	9912-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	9806-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	9806-0512
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0601-
45	WASHER; LK	1-47133-011-0	02	1	9806-
46	PLATE; LOCK	1-47133-005-0	02	1	9806-
47	CAMSHAFT; FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47141-052-0	01	1	9806-9911
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	9912-
47	CAMSHAFT; FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47141-051-0	01	1	9806-9911
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	9912-
48	RING; SPACER,CM/SHF BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47143-005-0	02	1	9806-9911
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	9912-
50	RING; FELT,CM/SHF BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-09620-009-0	02	1	9806-9911
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	9912-
51	COLLAR; RING,CM/SHF BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47143-016-0	02	1	9806-9911
51	COLLAR; RING,CM/SHF	1-47143-016-0	02	1	9912-
53	ADJUSTER ASM; SLACK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-48270-071-0	01	1	9806-9911
53	ADJUSTER ASM; SLACK	1-48270-071-0	01	1	9912-
53	ADJUSTER ASM; SLACK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-48270-072-0	01	1	9806-9911
53	ADJUSTER ASM; SLACK	1-48270-072-0	01	1	9912-
53	ADJUSTER ASM; SLACK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU>	1-48270-044-0	01	1	9806-9911
53	ADJUSTER ASM; SLACK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU>	1-48270-043-0	01	1	9806-9911
54	SPACER; CM/SHF BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-47143-004-0	04	1	9806-9911
54	SPACER; CM/SHF	1-47143-004-0	04	1	9912-
54	SPACER; CM/SHF BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU>	1-47143-004-0	02	1	9806-9911
55	PLATE; STOPPER,CM/SHF BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-47149-053-0	02	1	9806-9911
55	PLATE; STOPPER,CM/SHF	1-47149-053-0	02	1	9912-
55	PLATE; STOPPER,CM/SHF BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU>	1-47149-021-0	02	1	9806-9911
56	CLIP; ANCHOR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06)	9-09180-038-0	02	1	9806-9911
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	9912-
57	NIPPLE; GREASE,ANCHOR BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> PT1/8 STRAIGHT	9-09031-010-0	01	1	9806-9911
57	NIPPLE; GREASE,ANCHOR BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> INTERNATIONAL STD ISO<B3V> EXC. AUTO ADJ BRK<BCU> PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9806-9911
57	NIPPLE; GREASE,ANCHOR BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. INTERNATIONAL STD ISO<B3V> PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9806-9911
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9912-0512
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 ELBOW 67.5?	0-90301-510-0	02	1	0601-
57	NIPPLE; GREASE,ANCHOR BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> PT1/8 STRAIGHT	9-09031-010-0	02	1	9806-9911
62	NUT; LK,JAW JOINT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	9-99111-416-0	02	1	9806-9911
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9912-0512
62	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0601-
63	NUT; POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	9-99110-416-0	04	1	9806-9911
63	NUT; POWER CHAMBER M16	9-99110-416-0	04	1	9912-0512
63	NUT; POWER CHAMBER M16	0-91110-516-0	04	1	0601-
64	WASHER; LK,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	9-09150-516-0	04	1	9806-9911
64	WASHER; LK,POWER CHAMBER ID=16.2	9-09150-516-0	04	1	9912-0603
64	WASHER; LK,POWER CHAMBER ID=16.2	0-91510-516-0	04	1	0604-
109	BUSHING; CM/SHF,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47146-003-1	04	1	9806-9911
109	BUSHING; CM/SHF,FRT BRK	1-47146-003-1	04	1	9912-
241	HOLDER	1-47119-096-0	02	1	9912-
251	COVER; INDICATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-09333-147-0	02	1	9806-9911
251	COVER; INDICATOR	1-09333-147-0	02	1	9912-
287	RING; SNAP ID=7	9-09185-407-0	02	1	9912-
288	WASHER; WAVE	1-47119-050-0	02	1	9912-

20 22 17 16 21 21 27 15 24 27 26 23 24 35 34 30 41 40 42 36 33 1 39 38 15 37 14 36 43 46 45 28 29 44 1 1 5 4 36 36 2 3 2 2 3 7 7 7 7 7 2 7 2 3 8 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK LINING D2129 NON ASBESTOS<BCL>	1-47120-227-0	04	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> W=180 (RED 2) D1019	1-47110-857-0	04	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> W=220 (RED 2) D1019	1-47110-927-0	04	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-47120-344-0	01	1	9806-9911
1	SHOE; BRK,FRT LEADING	1-47120-344-0	01	1	9912-0308
1	SHOE; BRK,FRT LEADING	1-47170-273-0	01	1	0309-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-47120-346-0	01	1	9806-9911
1	SHOE; BRK,FRT TRAILING	1-47120-346-0	01	1	9912-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-47120-345-0	01	1	9806-9911
1	SHOE; BRK,FRT TRAILING	1-47120-345-0	01	1	9912-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-47120-347-0	01	1	9806-9911
1	SHOE; BRK,FRT LEADING	1-47120-347-0	01	1	9912-0308
1	SHOE; BRK,FRT LEADING	1-47170-274-0	01	1	0309-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING	1-47120-227-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING	1-47120-227-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING	1-47120-227-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING	1-47120-227-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING	1-47110-975-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-47110-976-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING	1-47110-973-0	01	1	9806-9911
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-47110-974-0	01	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK LINING D2129 NON ASBESTOS<BCL> T=16	1-47125-182-0	08	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> W=140 (RED 2) D1019 T=16	1-47115-678-0	08	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47126-056-0	04	1	0309-
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> W=180 (RED 2) D1019 T=16	1-47115-688-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> W=180 (RED 2) D1019 T=17	1-47115-689-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-47125-432-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47125-432-0	04	1	9912-
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-47125-443-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47125-443-0	04	1	9912-0308
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING T=16	1-47125-182-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING T=16	1-47125-331-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING T=16	1-47115-678-0	04	1	9806-9911
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-47115-744-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK LINING D2129 NON ASBESTOS<BCL> T=17	1-47125-183-0	08	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL> T=17	1-47115-679-0	08	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47126-057-0	04	1	0309-
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-47125-434-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47125-434-0	04	1	9912-
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-47125-444-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47125-444-0	04	1	9912-0308
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING T=17	1-47125-183-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING T=17	1-47125-332-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING T=17	1-47115-679-0	04	1	9806-9911
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-47115-745-0	04	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK LINING D2129 NON ASBESTOS<BCL>	1-88310-091-0	02	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL>	1-88302-855-0	02	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-88310-311-0	01	1	9806-9911
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88310-311-0	01	1	9912-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-88310-321-0	01	1	9806-9911
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-321-0	01	1	9912-0308
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-741-0	01	1	0309-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING	1-88310-091-0	01	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING	1-88310-218-0	01	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING	1-88302-855-0	01	1	9806-9911
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-88302-982-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK LINING D2129 NON ASBESTOS<BCL>	1-88310-092-0	02	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL>	1-88302-856-0	02	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> TRAILING	1-88310-312-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-312-0	01	1	9912-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> LEADING	1-88310-322-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-322-0	01	1	9912-0308
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-742-0	01	1	0309-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> LEADING	1-88310-092-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. AUTO ADJ BRK<BCU> TRAILING	1-88310-219-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> LEADING	1-88302-856-0	01	1	9806-9911
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRK LINING D2129 NON ASBESTOS<BCL>,AUTO ADJ BRK<BCU> TRAILING	1-88302-983-0	01	1	9806-9911
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	9806-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	9806-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	9806-
15	CYLINDER; WHEEL,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47600-688-0	01	1	9806-9911
15	CYLINDER; WHEEL,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47600-687-0	01	1	9806-9911
16	SCREW; BLEEDER,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=66.5	1-47615-005-0	02	1	9806-9911
17	CAP; BLEEDER,FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) OD=12	1-47619-011-0	02	1	9806-9911
20	BOLT; JOINT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47634-006-0	02	1	9806-9911
21	GASKET; UNION BOLT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=15.2	1-09630-019-0	02	1	9806-9911
21	GASKET; UNION BOLT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=12.2	1-09630-020-0	02	1	9806-9911
22	JOINT; PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47631-057-1	02	1	9806-9911
23	SPRING; COIL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09580-019-0	02	1	9806-9911
24	PISTON; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47624-302-0	04	1	9806-9911
26	CUP SET; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-87830-527-0	02	1	9806-9911
27	ROD; PUSH BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47621-009-0	04	1	9806-9911
28	PIN; SHOE ADJ CAM GUIDE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47116-002-0	04	1	9806-9911
29	SPRING; RETURN,FRT BRK SHOE W/HOLDER	1-09583-185-2	02	1	9806-
30	BRACKET; ANCHOR,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47137-149-0	02	1	9806-9901
30	BRACKET; ANCHOR,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47137-435-0	02	1	9902-9911
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47137-119-2	01	1	9806-9906
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU>	1-47137-119-3	01	1	9907-9911
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47137-118-2	01	1	9806-9906
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AUTO ADJ BRK<BCU>	1-47137-118-3	01	1	9907-9911
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-47137-441-0	01	1	9907-9911
30	BRACKET; ANCHOR,FRT	1-47137-441-0	01	1	9912-
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-47137-440-0	01	1	9907-9911
30	BRACKET; ANCHOR,FRT	1-47137-440-0	01	1	9912-
33	COVER; WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47159-080-0	02	1	9806-9911
34	PLATE; DIRECTION,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47159-094-0	02	1	9806-9911
35	BOLT; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X35 W/LK WASHER	0-50051-235-0	04	1	9806-9911
36	CAM ASM; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-47165-058-1	02	1	9806-9911
36	CAM ASM; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47165-059-1	02	1	9806-9911
37	WASHER; ADJ CAM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47169-033-0	04	1	9806-9911
38	SPRING; ADJ CAM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRK LINING D2129 NON ASBESTOS<BCL>	9-09941-293-0	04	1	9806-9911
38	SPRING; ADJ CAM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRK LINING D2129 NON ASBESTOS<BCL>	1-47169-046-0	04	1	9806-9911
39	BOOT; ADJ CAM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47169-034-0	04	1	9806-9911
40	COVER; BOOT,ADJ CAM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47169-031-0	04	1	9806-9911
41	INDICATOR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47169-032-1	04	1	9806-9911
41	INDICATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	1-82480-059-0	02	1	9806-9911
41	INDICATOR	1-82480-059-0	02	1	9912-
42	PIN; SPINDLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47169-030-0	04	1	9806-9911
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	9806-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	9806-0512
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0601-
45	WASHER; LK	1-47133-011-0	02	1	9806-
46	PLATE; LOCK	1-47133-005-0	02	1	9806-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
