0-60 — ENGINE ELECTRICAL CONTROL PARTS (#68459) — 92 parça

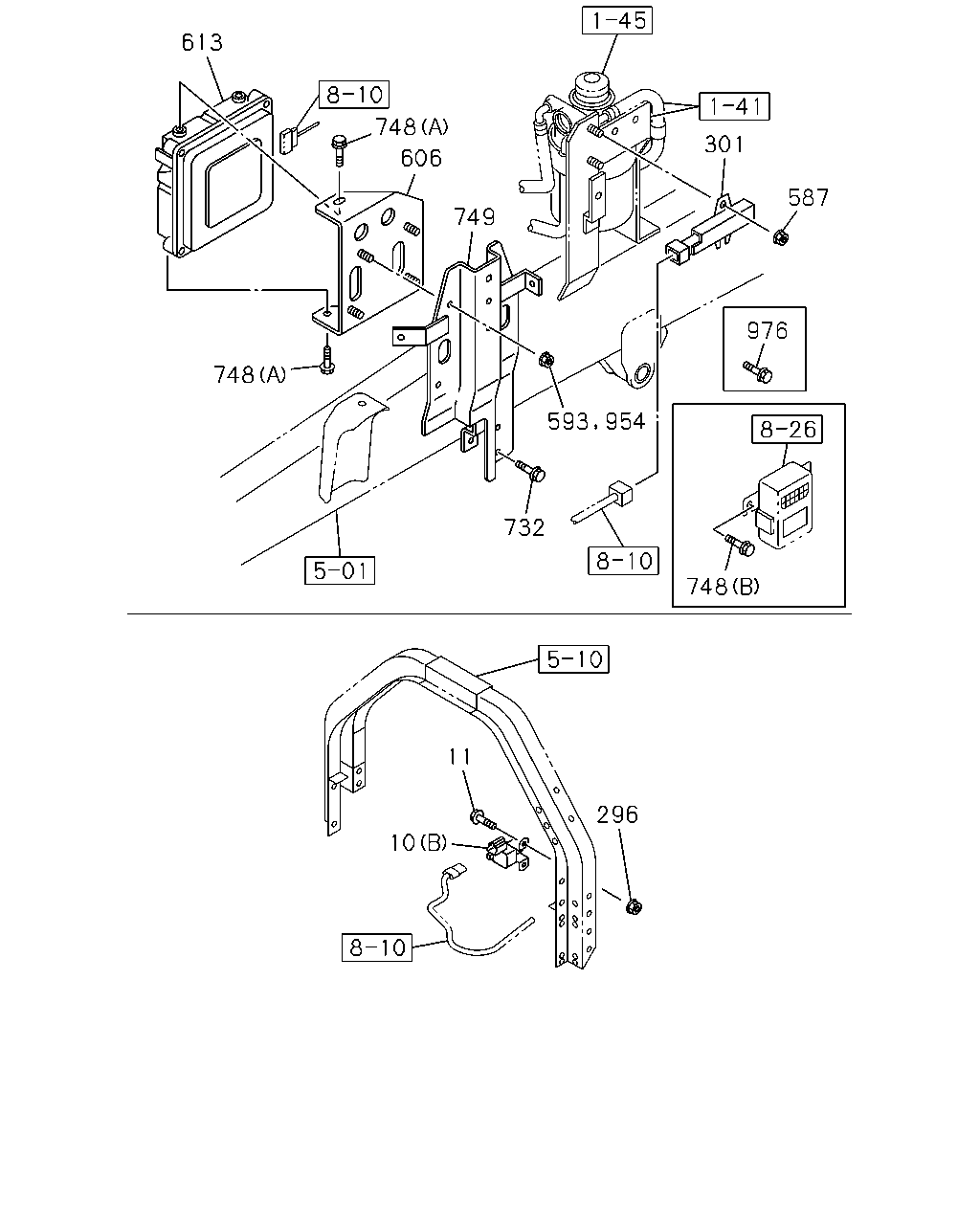

çizim 72520
613 748 606 749 748 593 954 732 11 10 296 748 587 301 976
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0809-1005
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1006-
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0809-
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 0809-
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0809-
301 RESISTOR; DROPPING
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97357-613-0 01 1 1202-
587 NUT; RESISTOR & RELAY
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M6 FLANGE 		0-91180-106-0 02 1 1202-
593 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 0809-
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 0809-
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98257-212-0 01 1 1312-
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONEPACKAGE<W02> 		8-98257-213-0 01 1 1312-
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONEPACKAGE<W02>,GLOW SYSTEM DELETE<7RK> 		8-98216-173-0 01 1 1312-
613 CONTROL UNIT; ENG
EURO3 SPECIFICATION<NT3> HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98226-854-0 01 1 1208-1301
613 CONTROL UNIT; ENG
EURO3 SPECIFICATION<NT3> HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98238-781-0 01 1 1302-
613 CONTROL UNIT; ENG
EURO3 SPECIFICATION<NT3> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98211-060-0 01 1 1202-1207
613 CONTROL UNIT; ENG
EURO3 SPECIFICATION<NT3> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONEPACKAGE<W02> 		8-98211-060-0 01 1 1208-
613 CONTROL UNIT; ENG
EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98074-908-4 01 1 1202-1207
613 CONTROL UNIT; ENG
EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98074-908-4 01 1 1208-
613 CONTROL UNIT; ENG
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98154-244-0 01 1 0909-0910
613 CONTROL UNIT; ENG
HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98154-244-0 01 1 0911-1006
613 CONTROL UNIT; ENG
HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98170-975-1 01 1 1007-1201
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98170-975-1 01 1 1202-1311
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK> 		8-98170-975-1 01 1 1312-
613 CONTROL UNIT; ENG
INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98074-911-3 01 1 0809-0908
613 CONTROL UNIT; ENG
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) 		8-98074-911-3 01 1 0909-0910
613 CONTROL UNIT; ENG
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98074-911-4 01 1 0911-1201
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98074-911-4 01 1 1202-1311
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98257-211-0 01 1 1312-
613 CONTROL UNIT; ENG
EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98092-686-3 01 1 0809-0908
613 CONTROL UNIT; ENG
EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98092-686-3 01 1 0909-0910
613 CONTROL UNIT; ENG
EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONEPACKAGE<W02> 		8-98092-686-4 01 1 0911-1201
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONEPACKAGE<W02> 		8-98092-686-4 01 1 1202-1311
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. HIGHLAND ZONE PACKAGE<W02>,GLOW SYSTEM DELETE<7RK> 		8-98216-174-0 01 1 1312-
732 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 0809-
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 0809-
748 BOLT; CONT UNIT
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0809-
749 STAY; CONT UNIT 1-53194-595-3 01 1 0809-
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 0809-0906
976 BOLT; RESISTOR
M6X20 FLANGE 		0-28050-620-0 02 1 0809-0906

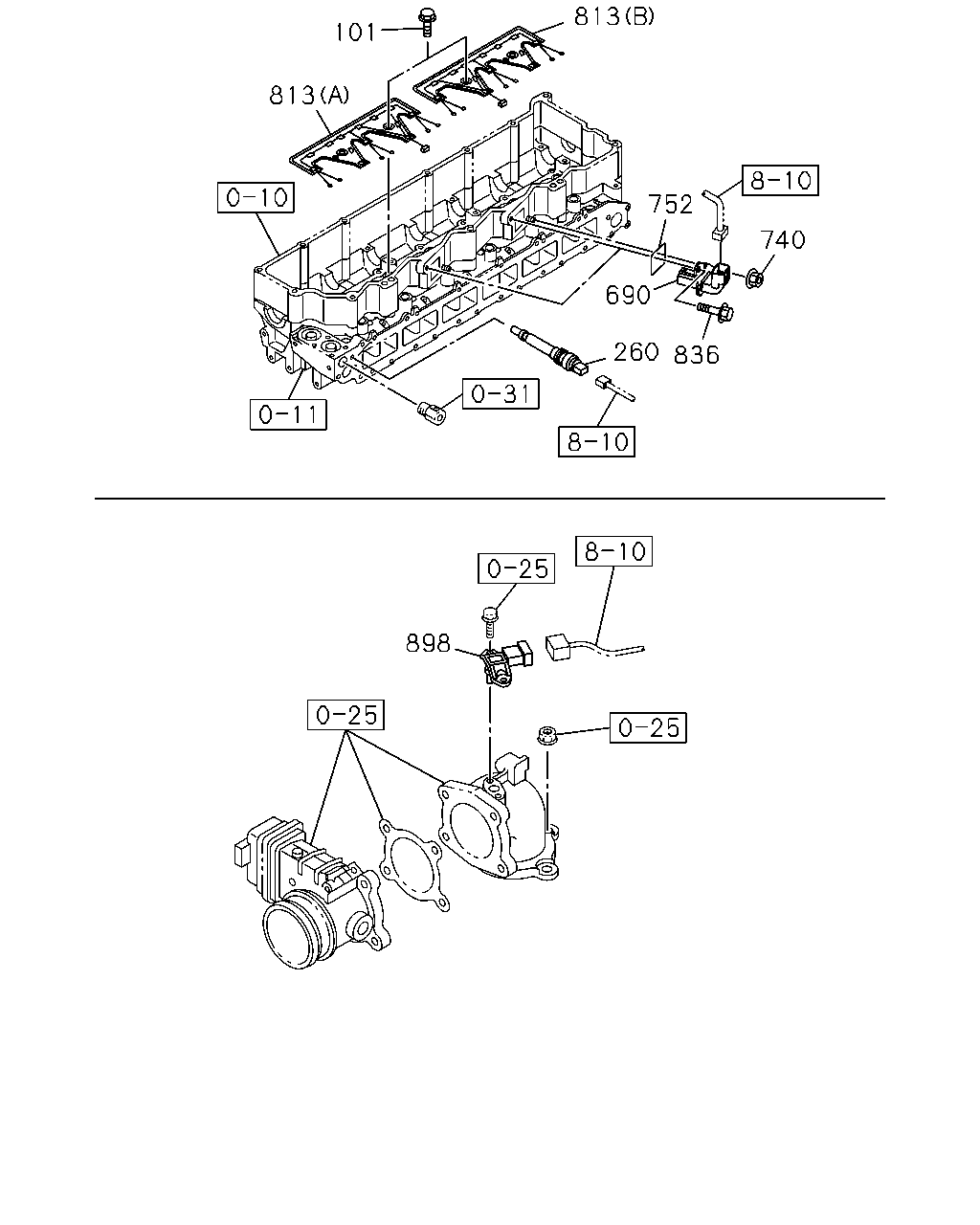

çizim 72761
813 101 813 752 740 690 836 260 898
BalonParca AdiParca NoAdetTipApplied Date
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 0809-
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 0809-1503
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1504-
690 CONNECTOR 8-94390-858-1 02 1 0809-
740 NUT
M8 FLANGE 		0-91180-108-0 04 1 0809-1011
740 NUT
M8 FLANGE 		0-91180-108-0 02 1 1012-
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0809-
813 HARNESS; INJECTOR
(A) FRONT 		8-97602-748-2 01 1 0809-1008
813 HARNESS; INJECTOR
(A) FRONT 		8-98177-447-0 01 1 1009-1112
813 HARNESS; INJECTOR
(A) FRONT 		8-98204-717-0 01 1 1201-
813 HARNESS; INJECTOR
(B) REAR 		8-97602-749-2 01 1 0809-1008
813 HARNESS; INJECTOR
(B) REAR 		8-98177-448-0 01 1 1009-1112
813 HARNESS; INJECTOR
(B) REAR 		8-98204-718-0 01 1 1201-
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1012-
898 SENSOR; BOOST 8-98009-418-0 01 1 0809-

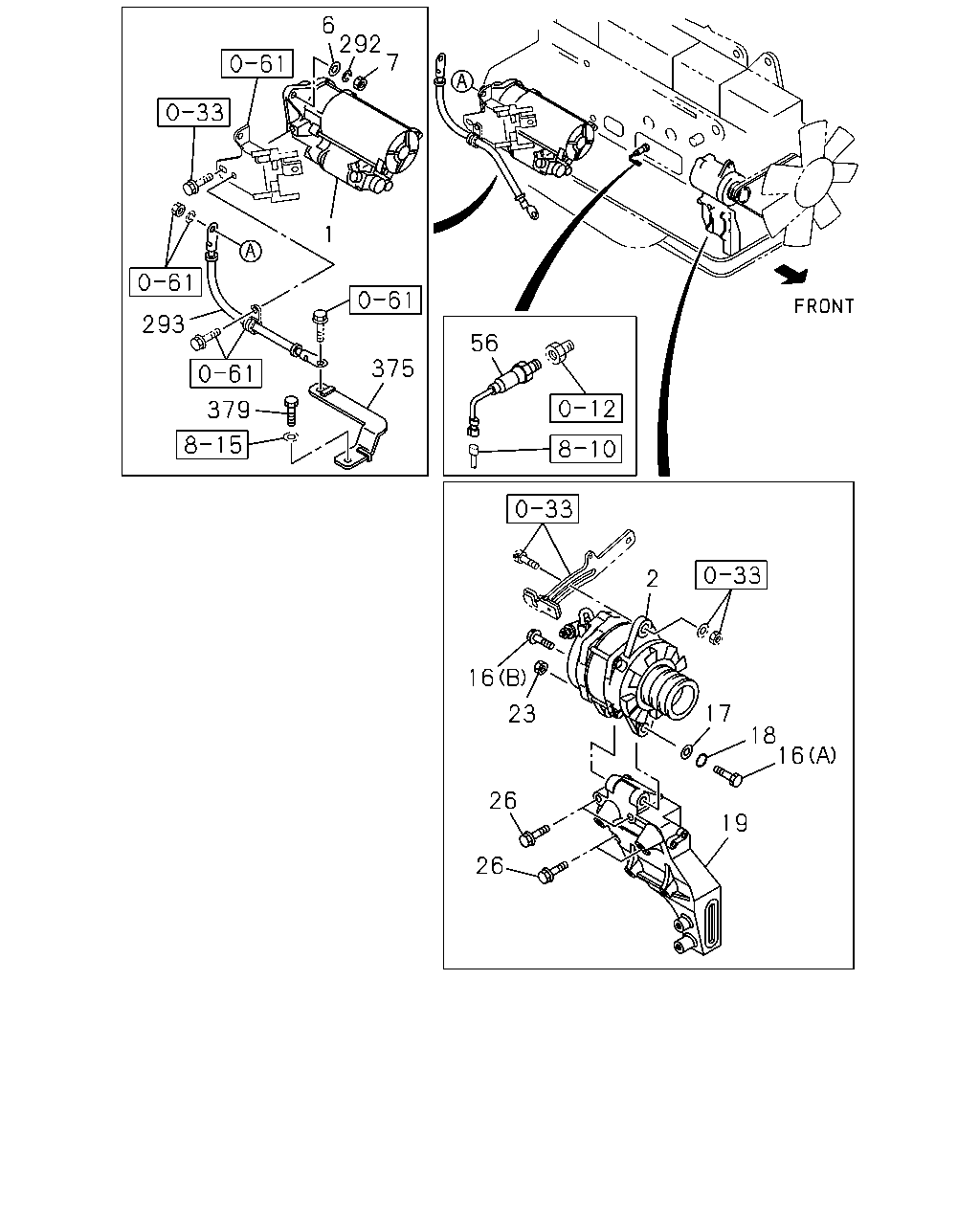

çizim 72961
6 1 7 292 375 293 379 56 2 17 18 16 19 16 23 26 26
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0809-0909
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 0910-1409
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98261-669-0 01 1 1410-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-5 01 1 0809-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-5 01 1 0809-
6 WASHER; PL,STARTER
ID=15 		0-91610-514-0 01 1 0809-
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0809-
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0910-1201
16 BOLT; GEN
EURO3 SPECIFICATION<NT3> AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 02 1 1202-
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 01 1 1202-
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 0809-
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0809-0909
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 03 1 0910-1201
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B) M6X10 FLANGE 		0-28050-610-0 03 1 1202-
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0809-
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0809-
19 BRACKET; GEN 8-98082-615-1 01 1 0809-
23 NUT; GEN
M14 		0-91110-514-0 01 1 0809-
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 02 1 0809-
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0809-
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0809-
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 01 1 0809-
293 CABLE; STARTER EARTH
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) L=530 		8-98097-226-0 01 1 0909-0910
293 CABLE; STARTER EARTH
L=430 		8-97621-357-0 01 1 0809-0809
293 CABLE; STARTER EARTH
L=420 		8-98131-856-0 01 1 0810-0908
293 CABLE; STARTER EARTH
EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) L=420 		8-98131-856-0 01 1 0909-0910
293 CABLE; STARTER EARTH
L=420 		8-98131-856-0 01 1 0911-
375 BRACKET 8-98131-726-0 01 1 0810-1201
375 BRACKET
EURO2 SPECIFICATION<NT2> 		8-98131-726-0 01 1 1202-
375 BRACKET
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98131-726-0 01 1 1202-
379 BOLT; BRKT
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0810-1201
379 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1202-
379 BOLT; BRKT
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1202-

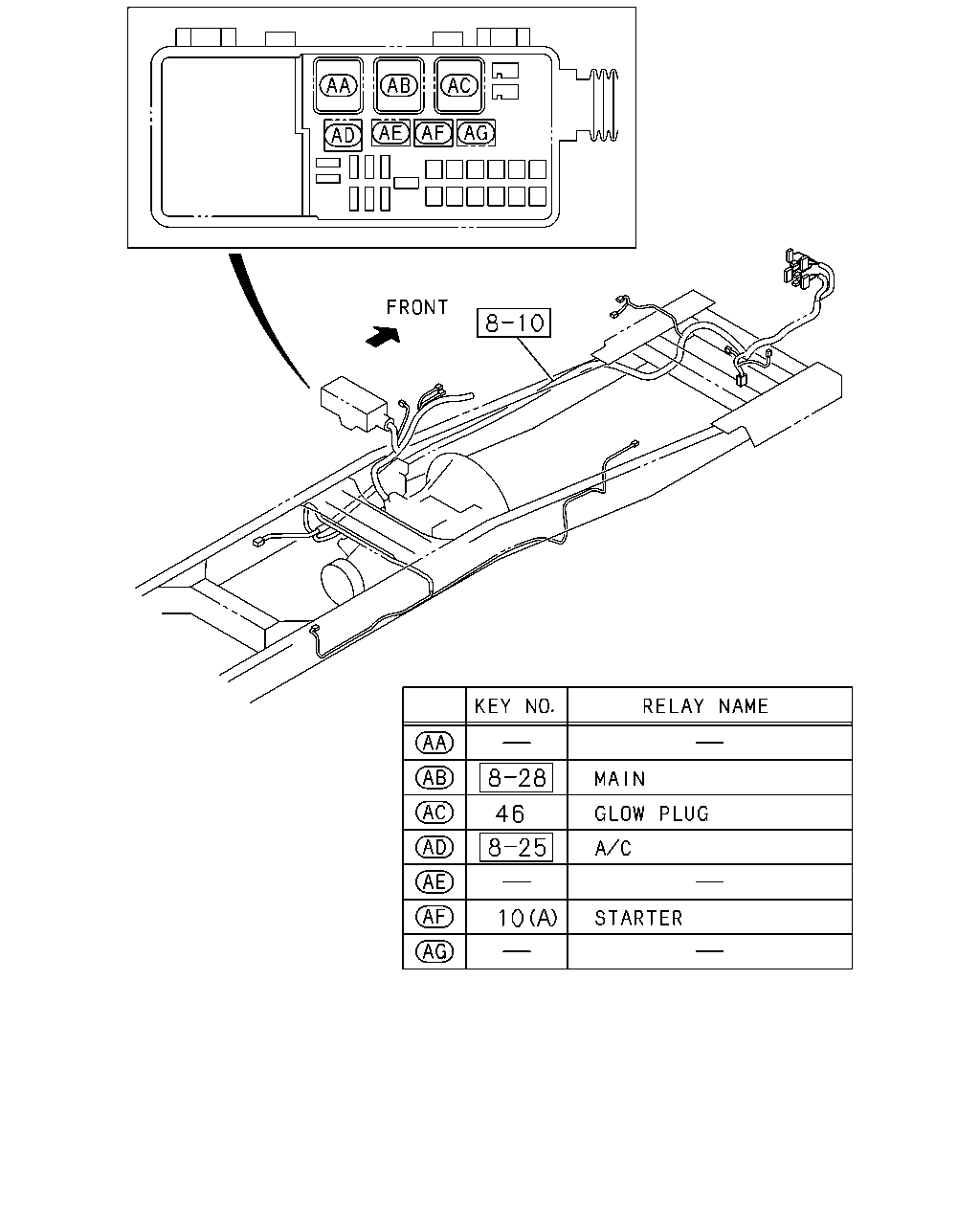

çizim 188140
46 10
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0809-1005
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1006-
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0809-
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0809-1311
46 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A 		8-97173-947-0 01 1 1312-
