2-53 — TRANSMISSION OIL COOLER SYSTEM (#6845) — 106 parça

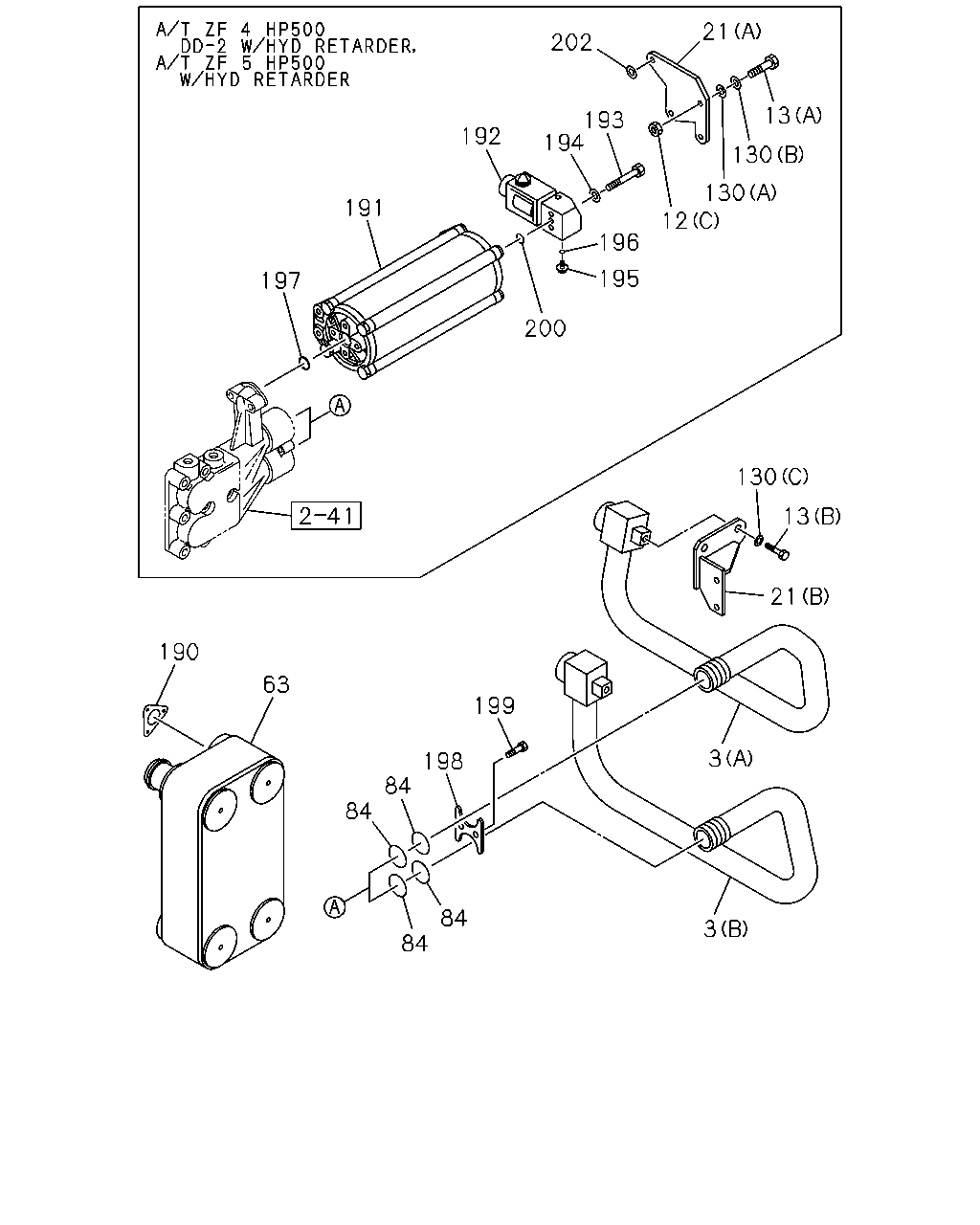

çizim 26054
21 202 13 193 194 192 130 130 12 191 196 195 197 200 130 13 21 190 63 199 3 198 84 84 84 3 84
BalonParca AdiParca NoAdetTipApplied Date A B C
3 PIPE; OIL,A/T TO OIL COOLER
(A) 		1-21719-050-0 01 1 9912-9912 ● ●
3 PIPE; OIL,A/T TO OIL COOLER
(A) 		1-21719-050-0 01 1 0001- ● ● ●
3 PIPE; OIL,A/T TO OIL COOLER
(B) 		1-21719-051-0 01 1 9912-9912 ● ●
3 PIPE; OIL,A/T TO OIL COOLER
(B) 		1-21719-051-0 01 1 0001- ● ● ●
12 NUT; BRKT
(C) M8 		1-21719-024-0 02 1 9912-9912 ●
12 NUT; BRKT
(C) M8 		1-21719-024-0 02 1 0001- ● ●
12 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 9912-0602 ● ●
12 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
12 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 04 1 9912-0602 ● ●
12 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
13 BOLT; BRKT
(A) 		1-33129-003-0 02 1 9912-9912 ●
13 BOLT; BRKT
(A) 		1-33129-003-0 02 1 0001- ● ●
13 BOLT; BRKT
(B) 		1-21719-053-0 02 1 9912-9912 ● ●
13 BOLT; BRKT
(B) 		1-21719-053-0 02 1 0001- ● ● ●
21 BRACKET; COOLER
(A) 		1-21719-037-0 01 1 9912-9912 ●
21 BRACKET; COOLER
(A) 		1-21719-037-0 01 1 0001- ● ●
21 BRACKET; COOLER
(B) 		1-21719-056-0 01 1 9912-9912 ● ●
21 BRACKET; COOLER
(B) 		1-21719-056-0 01 1 0001- ● ● ●
63 COOLER; OIL 1-21700-342-0 01 1 9912- ● ●
84 GASKET; OIL PIPE 1-09623-609-0 04 1 9912-9912 ● ●
84 GASKET; OIL PIPE 1-09623-609-0 04 1 0001- ● ● ●
130 WASHER; PL,BRKT
(A) T=1.20 		1-21719-018-0 01 1 9912-9912 ●
130 WASHER; PL,BRKT
(A) T=1.20 		1-21719-018-0 01 1 0001- ● ●
130 WASHER; PL,BRKT
(A) T=1.00 		1-21719-019-0 01 1 9912-9912 ●
130 WASHER; PL,BRKT
(A) T=1.00 		1-21719-019-0 01 1 0001- ● ●
130 WASHER; PL,BRKT
(A) T=0.80 		1-21719-020-0 01 1 9912-9912 ●
130 WASHER; PL,BRKT
(A) T=0.80 		1-21719-020-0 01 1 0001- ● ●
130 WASHER; PL,BRKT
(A) T=0.60 		1-21719-021-0 01 1 9912-9912 ●
130 WASHER; PL,BRKT
(A) T=0.60 		1-21719-021-0 01 1 0001- ● ●
130 WASHER; PL,BRKT
(A) T=0.40 		1-21719-022-0 01 1 9912-9912 ●
130 WASHER; PL,BRKT
(A) T=0.40 		1-21719-022-0 01 1 0001- ● ●
130 WASHER; PL,BRKT
(A) T=0.20 		1-21719-023-0 01 1 9912-9912 ●
130 WASHER; PL,BRKT
(A) T=0.20 		1-21719-023-0 01 1 0001- ● ●
130 WASHER; PL,BRKT
(B) 		1-33549-159-0 02 1 9912-9912 ●
130 WASHER; PL,BRKT
(B) 		1-33549-159-0 02 1 0001- ● ●
130 WASHER; PL,BRKT
(C) 		1-09469-010-0 02 1 9912-9912 ● ●
130 WASHER; PL,BRKT
(C) 		1-09469-010-0 02 1 0001- ● ● ●
190 GASKET; COVER 1-21719-041-0 02 1 9912-9912 ● ●
190 GASKET; COVER 1-21719-041-0 02 1 0001- ● ● ●
191 ACCUMULATOR; OIL 1-34129-117-0 01 1 9912-9912 ●
191 ACCUMULATOR; OIL 1-34129-117-0 01 1 0001- ● ●
192 VALVE; SOLENOID 1-34531-030-0 01 1 9912-9912 ●
192 VALVE; SOLENOID 1-34531-030-0 01 1 0001- ● ●
193 BOLT; VALVE
M8X55 		1-09089-013-0 02 1 9912-9912 ●
193 BOLT; VALVE
M8X55 		1-09089-013-0 02 1 0001- ● ●
194 WASHER; VALVE 1-33549-159-0 02 1 9912-9912 ●
194 WASHER; VALVE 1-33549-159-0 02 1 0001- ● ●
195 PLUG; VALVE 1-34129-104-0 01 1 9912-9912 ●
195 PLUG; VALVE 1-34129-104-0 01 1 0001- ● ●
196 GASKET; PLUG 1-33549-129-0 01 1 9912-9912 ●
196 GASKET; PLUG 1-33549-129-0 01 1 0001- ● ●
197 GASKET; ACCUMULATOR 1-09623-607-0 01 1 9912-9912 ●
197 GASKET; ACCUMULATOR 1-09623-607-0 01 1 0001- ● ●
198 PLATE; PIPE 1-21719-035-0 01 1 9912-9912 ● ●
198 PLATE; PIPE 1-21719-035-0 01 1 0001- ● ● ●
199 BOLT; PLATE 1-34129-105-0 02 1 9912-9912 ● ●
199 BOLT; PLATE 1-34129-105-0 02 1 0001- ● ● ●
200 GASKET; VALVE 1-09623-608-0 01 1 9912-9912 ●
200 GASKET; VALVE 1-09623-608-0 01 1 0001- ● ●
202 SHIM; BRKT
T=2.50 		1-21719-011-0 02 1 9912-9912 ●
202 SHIM; BRKT
T=2.50 		1-21719-011-0 02 1 0001- ● ●
202 SHIM; BRKT
T=2.00 		1-21719-012-0 02 1 9912-9912 ●
202 SHIM; BRKT
T=2.00 		1-21719-012-0 02 1 0001- ● ●
202 SHIM; BRKT
T=1.50 		1-21719-013-0 02 1 9912-9912 ●
202 SHIM; BRKT
T=1.50 		1-21719-013-0 02 1 0001- ● ●
202 SHIM; BRKT
T=0.50 		1-21719-014-0 02 1 9912-9912 ●
202 SHIM; BRKT
T=0.50 		1-21719-014-0 02 1 0001- ● ●
202 SHIM; BRKT
T=0.30 		1-21719-015-0 02 1 9912-9912 ●
202 SHIM; BRKT
T=0.30 		1-21719-015-0 02 1 0001- ● ●
202 SHIM; BRKT
T=0.20 		1-21719-016-0 02 1 9912-9912 ●
202 SHIM; BRKT
T=0.20 		1-21719-016-0 02 1 0001- ● ●

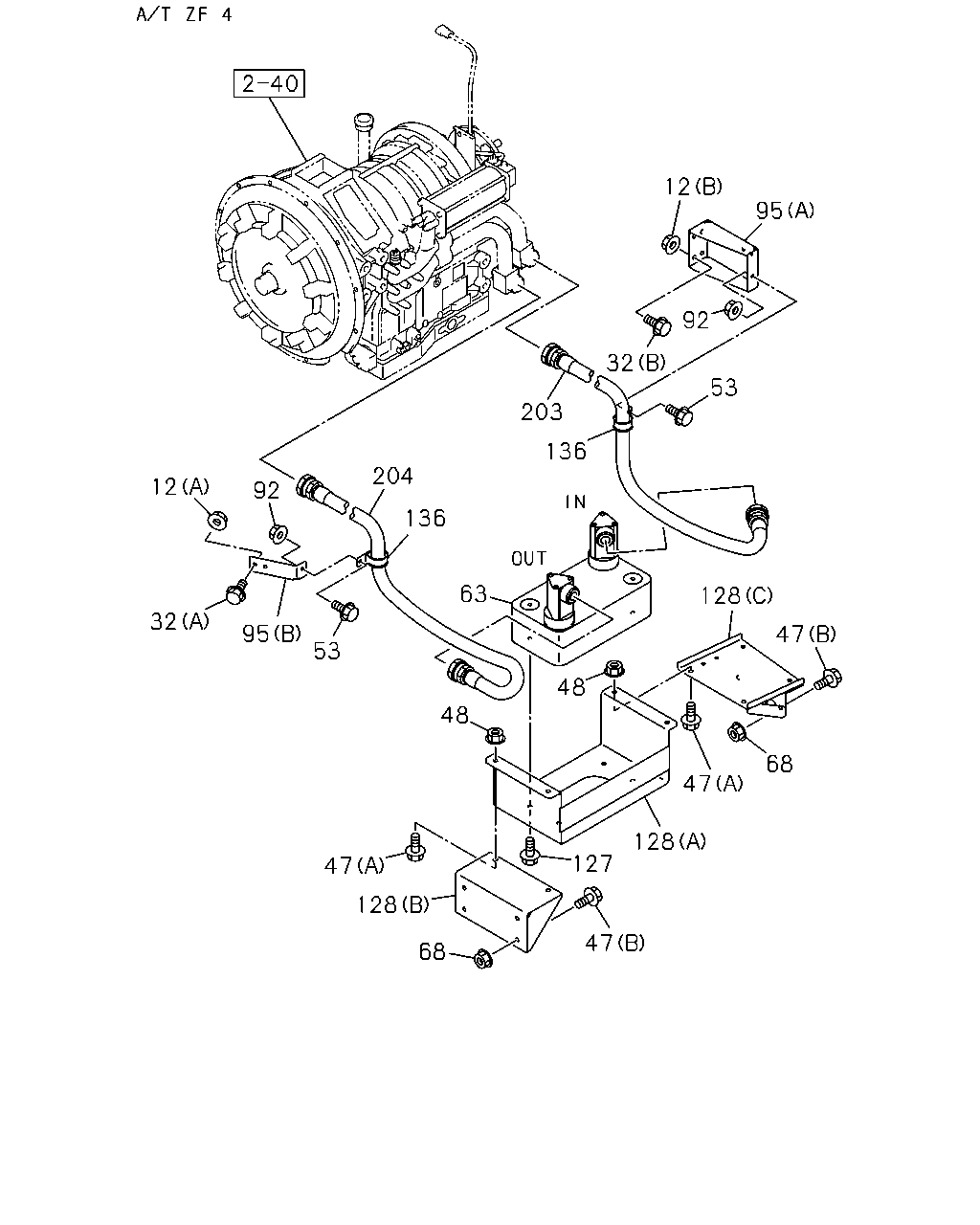

çizim 26141
12 95 92 32 53 203 136 204 12 92 136 63 128 32 95 47 53 48 48 68 47 128 127 47 128 47 68
BalonParca AdiParca NoAdetTipApplied Date A B C
12 NUT; BRKT
(C) M8 		1-21719-024-0 02 1 9912-9912 ●
12 NUT; BRKT
(C) M8 		1-21719-024-0 02 1 0001- ● ●
12 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 9912-0602 ● ●
12 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
12 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 04 1 9912-0602 ● ●
12 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
32 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9912-0512 ● ●
32 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
32 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 04 1 9912-0512 ● ●
32 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
47 BOLT; BRKT TO FRAME
(B) M10X25 FLANGE 		0-28681-025-0 06 1 9912-0512 ● ●
47 BOLT; BRKT TO FRAME
(B) M10X25 FLANGE 		0-28651-025-0 06 1 0601- ● ●
47 BOLT; BRKT TO FRAME
(B) M10X35 FLANGE 		0-28681-035-0 02 1 9912-0512 ● ●
47 BOLT; BRKT TO FRAME
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ●
47 BOLT; BRKT TO FRAME
(A) M10X35 FLANGE 		0-28691-035-0 04 1 9912-0512 ● ●
47 BOLT; BRKT TO FRAME
(A) M10X35 FLANGE 		0-28661-035-0 04 1 0601- ● ●
48 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9912-0602 ● ●
48 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
53 BOLT; CLIP,FLEX HOSE,A/T
M8X25 FLANGE 		0-28680-825-0 02 1 9912-0512 ● ●
53 BOLT; CLIP,FLEX HOSE,A/T
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
63 COOLER; OIL 1-21700-342-0 01 1 9912- ● ●
68 NUT; COOLER
M10 FLANGE 		0-91150-210-0 08 1 9912-0602 ● ●
68 NUT; COOLER
M10 FLANGE 		0-91180-210-0 08 1 0603- ● ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9912-0602 ● ●
92 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
95 BRACKET; CLIP
(A) 		1-47478-454-0 01 1 9912- ● ●
95 BRACKET; CLIP
(B) 		1-47478-455-0 01 1 9912- ● ●
127 BOLT; COOLER
M10X16 FLANGE 		0-28181-016-0 04 1 9912-0512 ● ●
127 BOLT; COOLER
M10X16 FLANGE 		0-28151-016-0 04 1 0601- ● ●
128 BRACKET; COOLER
(A) 		8-97530-829-0 01 1 9912- ● ●
128 BRACKET; COOLER
(C) 		8-97530-831-1 01 1 9912- ● ●
128 BRACKET; COOLER
(B) 		8-97530-830-0 01 1 9912- ● ●
136 CLIP; FLEX HOSE
ID=45.5 		8-94232-636-0 02 1 9912- ● ●
203 HOSE; COOLER INLET
L=1350 		1-09365-037-1 01 1 9912- ● ●
204 HOSE; COOLER OUTLET
L=1540 		1-09365-113-0 01 1 9912- ● ●
