◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11153 - FVZ(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶
0-36 — TURBOCHARGER SYSTEM (#68449) — 61 parça

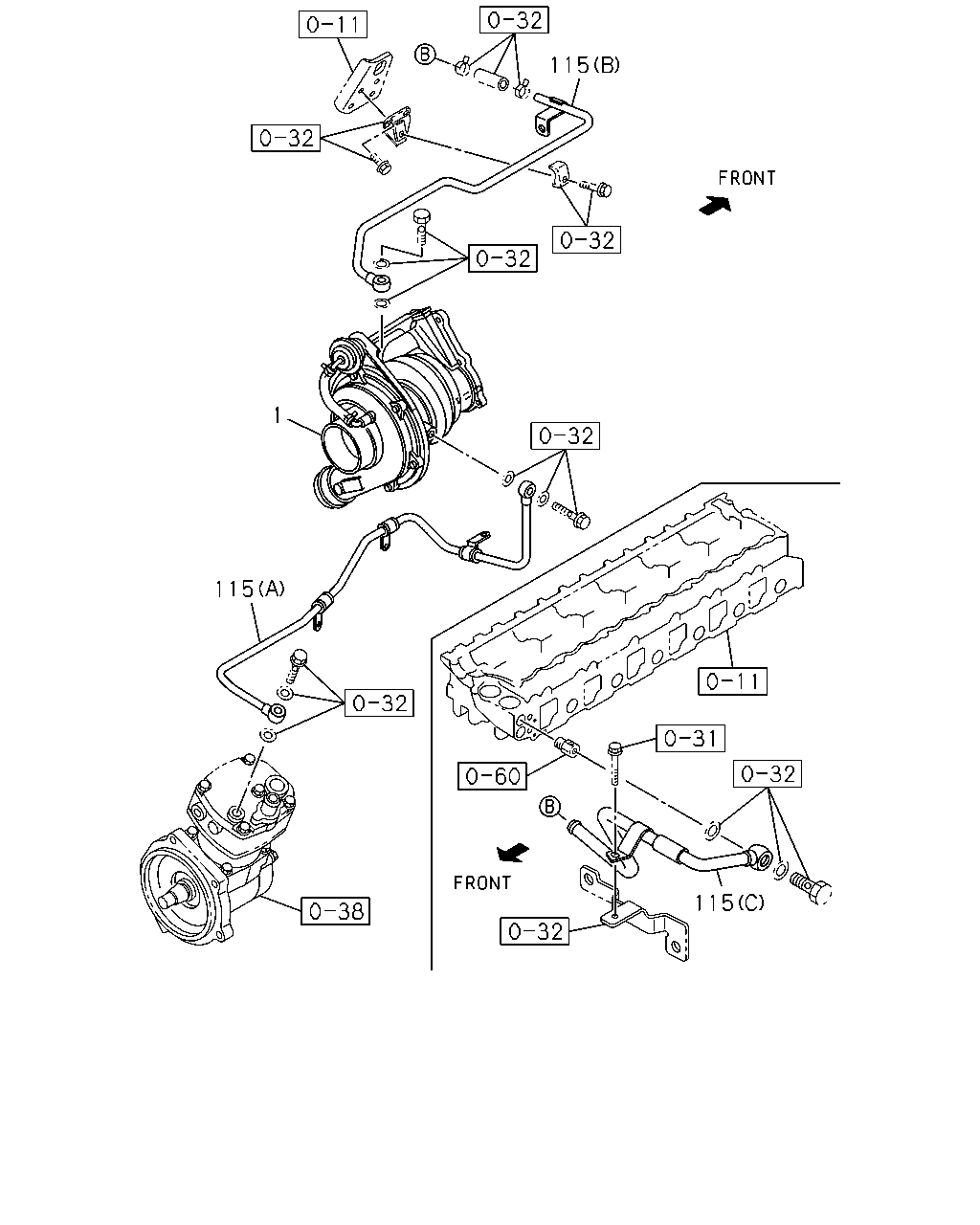

çizim 61006
115 1 115 115
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> HIGHLAND ZONE PACKAGE<W02> 		8-98217-401-0 01 1 1208-
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> 		8-97602-926-2 01 1 1202-1207
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> EXC. HIGHLAND ZONE PACKAGE<W02> 		8-97602-926-2 01 1 1208-
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) 		8-98153-480-0 01 1 0909-0910
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911-1201
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 1202-
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0908
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) 		8-98078-779-1 01 1 0909-0910
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98078-779-1 01 1 0911-1201
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98078-779-1 01 1 1202-
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94392-950-0 01 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94395-454-4 01 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97618-807-0 01 1 0809-
çizim 188136
2 12 217 275 265 162 17 212 10 16 388 11 212 11 217 275 162 17 12 122 17 66 94 1 20 20 79 398 79 398 398 398 488 92 28 398 398 92 20 143 98 143
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> HIGHLAND ZONE PACKAGE<W02> 		8-98217-401-0 01 1 1208-
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> 		8-97602-926-2 01 1 1202-1207
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> EXC. HIGHLAND ZONE PACKAGE<W02> 		8-97602-926-2 01 1 1208-
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) 		8-98153-480-0 01 1 0909-0910
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911-1201
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 1202-
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0908
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) 		8-98078-779-1 01 1 0909-0910
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98078-779-1 01 1 0911-1201
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98078-779-1 01 1 1202-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 0809-
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 0809-
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 0809-
12 STUD; TURBOCHARGER
(A) M8X25 		9-04130-825-0 01 1 0809-
12 STUD; TURBOCHARGER
(B) M10X80 		9-04731-080-0 02 1 0809-
16 ADAPTER; EXH PIPE 8-98069-083-0 01 1 0809-
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
(A) 		8-97606-675-1 01 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-97618-726-2 01 1 0809-1408
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-98251-577-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
(C) 		8-97618-734-0 01 1 0809-
28 PROTECTOR; HEAT,HOSE,AIR DUCT 8-94393-182-0 01 1 0809-
66 STUD; EXH PIPE
M12X30 L=48 		8-98059-951-0 03 1 0809-
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0809-0811
79 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 02 1 0812-0902
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903-
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0809-
92 BOLT; INL PIPE
(A) M8X40 FLANGE 		0-28650-840-0 01 1 0809-
94 GASKET; INL PIPE
EURO3 SPECIFICATION<NT3> ID=55 		8-98053-830-0 01 1 1202-
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		1-09360-797-1 01 1 0809-1408
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		8-98245-240-0 01 1 1409-
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 0809-
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-76 		1-09707-203-0 02 1 0809-0902
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 0903-
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 0809-
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0809-
217 BOLT; BRKT
M12X30 		8-94394-324-0 03 1 0809-
265 BRACKET; EXH PIPE 8-94395-764-2 01 1 0809-
275 WASHER; PL
ID=12.2 		1-09503-008-0 03 1 0809-
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-248-2 01 1 0809-
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0809-
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0809-
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0809-
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0809-
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0809-
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0809-
488 HOSE; RUBBER
ID=62 L=70 		1-09360-797-1 01 1 0809-1408
488 HOSE; RUBBER
ID=62 L=70 		8-98245-240-0 01 1 1409-
