◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11153 - FVZ(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#68436) — 78 parça

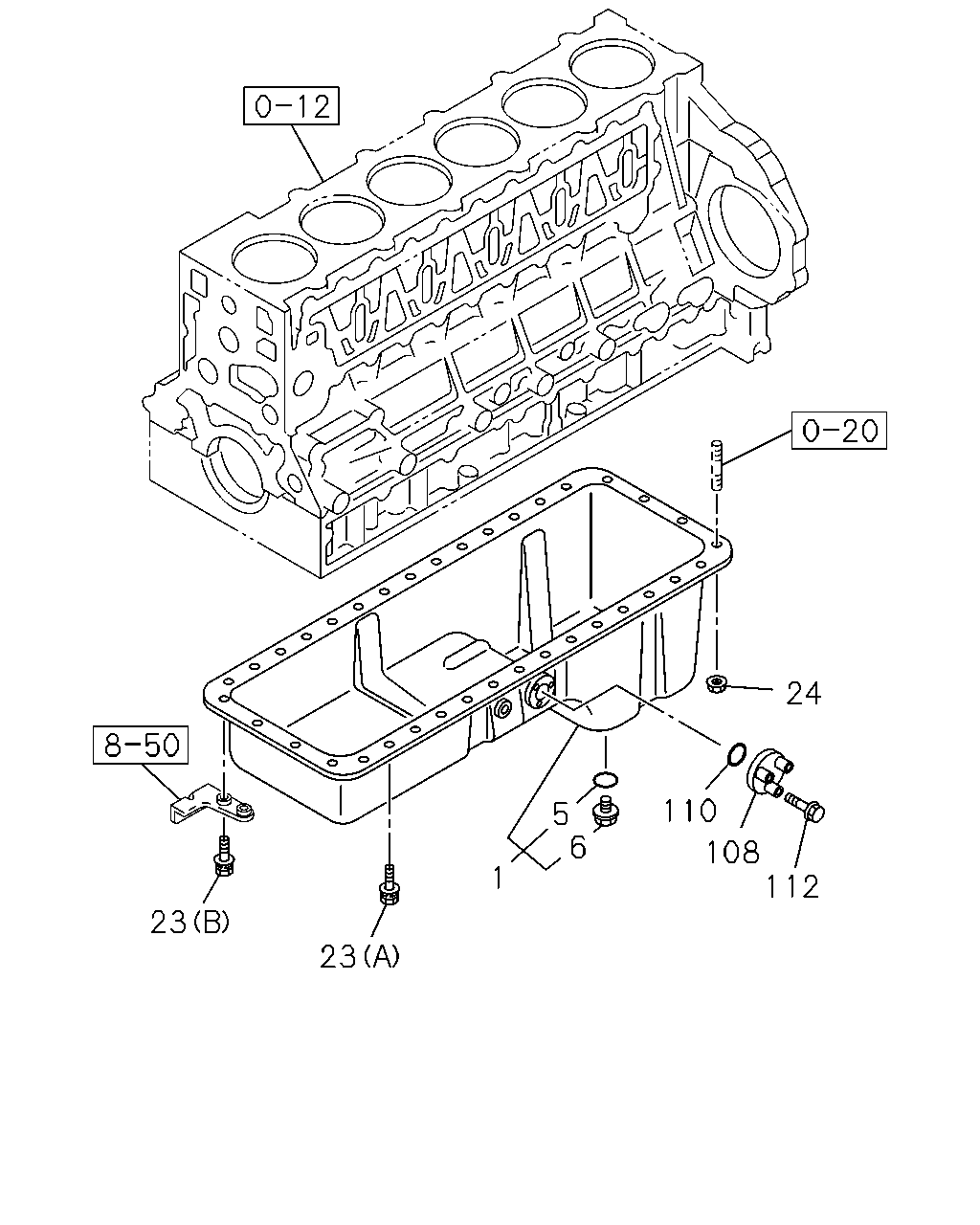

çizim 33437
24 110 5 6 108 112 1 23 23
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL
EURO3 SPECIFICATION<NT3> 		8-98061-544-0 01 1 1202-1402
1 PAN ASM; OIL
EURO3 SPECIFICATION<NT3> 		8-98252-601-0 01 1 1403-
1 PAN ASM; OIL
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) 		8-98061-363-0 01 1 0909-0910
1 PAN ASM; OIL 8-97602-326-2 01 1 0809-0908
1 PAN ASM; OIL
EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) 		8-97602-326-2 01 1 0909-0910
1 PAN ASM; OIL 8-97602-326-2 01 1 0911-1010
1 PAN ASM; OIL 8-98179-005-0 01 1 1011-1201
1 PAN ASM; OIL
EURO2 SPECIFICATION<NT2> 		8-98179-005-0 01 1 1202-
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> ID=24.5 		8-94399-398-0 01 1 1403-
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 1106-1402
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=24.4 		1-09623-057-0 01 1 1403-
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0809-
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 1106-
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0809-
23 BOLT; OIL PAN
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) (C) M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97087-634-0 22 1 0909-0910
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 0809-0908
23 BOLT; OIL PAN
EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) (A) M8X18 FLANGE 		0-28080-818-0 28 1 0909-0910
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 0911-
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		8-97329-626-0 02 1 0809-0908
23 BOLT; OIL PAN
EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) (B) M8X28 FLANGE 		8-97329-626-0 02 1 0909-0910
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		8-97329-626-0 02 1 0911-
24 NUT; OIL PAN
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) M8 FLANGE 		0-91180-108-0 12 1 0909-0910
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 0809-0908
24 NUT; OIL PAN
EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) M8 FLANGE 		0-91180-108-0 04 1 0909-0910
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 0911-
108 COVER; OIL PAN
EURO3 SPECIFICATION<NT3> 		8-97609-994-0 01 1 1202-1402
108 COVER; OIL PAN 8-97609-994-0 01 1 0809-0908
108 COVER; OIL PAN
EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) 		8-97609-994-0 01 1 0909-0910
108 COVER; OIL PAN 8-97609-994-0 01 1 0911-1010
110 GASKET; SW,OIL LEVEL
EURO3 SPECIFICATION<NT3> ID=27 		8-98056-488-0 01 1 1202-1402
110 GASKET; SW,OIL LEVEL
ID=27 		8-98056-488-0 01 1 0809-0908
110 GASKET; SW,OIL LEVEL
EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) ID=27 		8-98056-488-0 01 1 0909-0910
110 GASKET; SW,OIL LEVEL
ID=27 		8-98056-488-0 01 1 0911-1010
112 BOLT; SW,OIL LEVEL
EURO3 SPECIFICATION<NT3> M6X25 FLANGE 		0-28050-625-0 03 1 1202-1402
112 BOLT; SW,OIL LEVEL
M6X25 FLANGE 		0-28050-625-0 03 1 0809-0908
112 BOLT; SW,OIL LEVEL
EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) M6X25 FLANGE 		0-28050-625-0 03 1 0909-0910
112 BOLT; SW,OIL LEVEL
M6X25 FLANGE 		0-28050-625-0 03 1 0911-1010

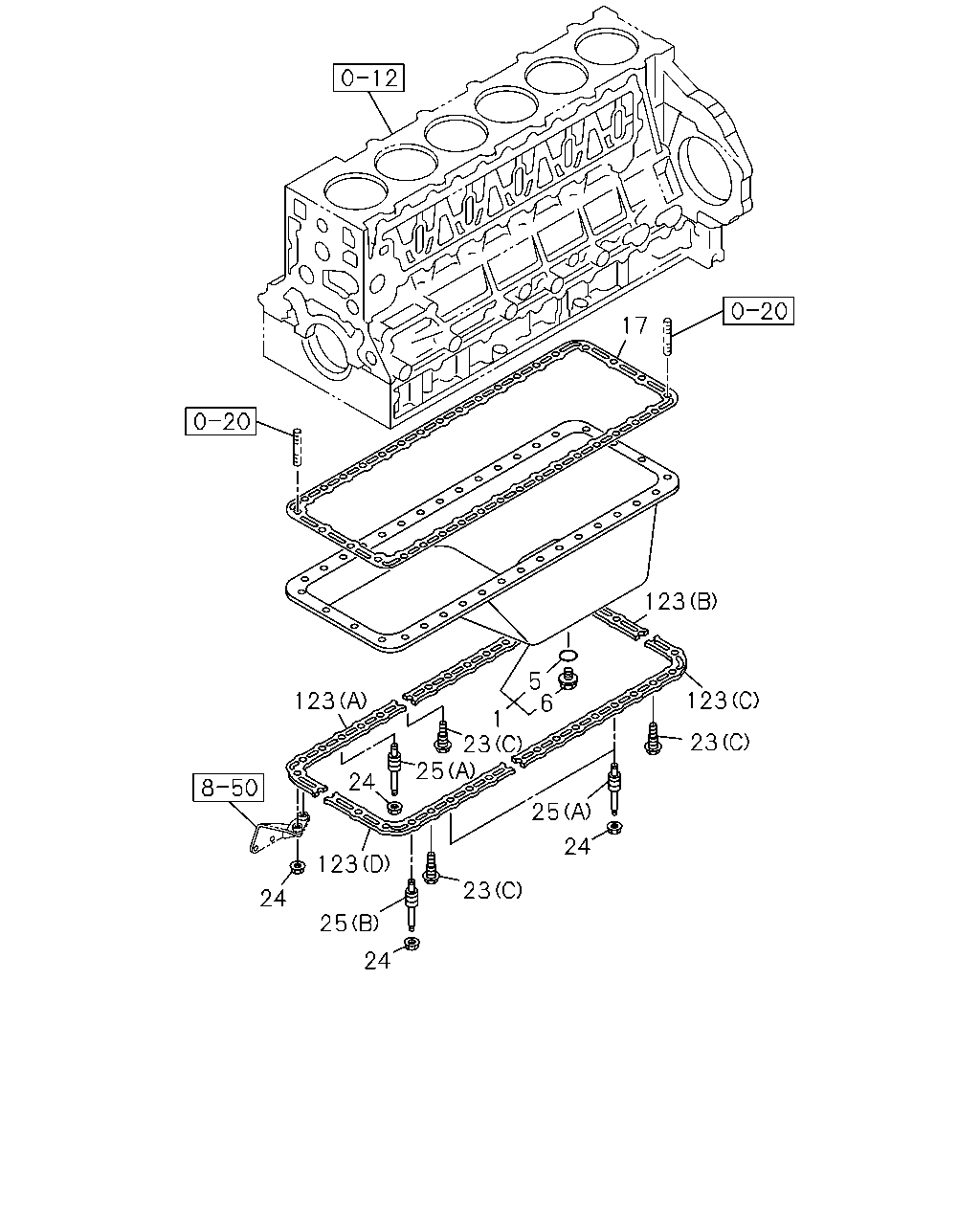

çizim 35007
17 123 1 23 25 5 6 123 123 23 24 25 24 123 23 24 25 24
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL
EURO3 SPECIFICATION<NT3> 		8-98061-544-0 01 1 1202-1402
1 PAN ASM; OIL
EURO3 SPECIFICATION<NT3> 		8-98252-601-0 01 1 1403-
1 PAN ASM; OIL
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) 		8-98061-363-0 01 1 0909-0910
1 PAN ASM; OIL 8-97602-326-2 01 1 0809-0908
1 PAN ASM; OIL
EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) 		8-97602-326-2 01 1 0909-0910
1 PAN ASM; OIL 8-97602-326-2 01 1 0911-1010
1 PAN ASM; OIL 8-98179-005-0 01 1 1011-1201
1 PAN ASM; OIL
EURO2 SPECIFICATION<NT2> 		8-98179-005-0 01 1 1202-
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> ID=24.5 		8-94399-398-0 01 1 1403-
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 1106-1402
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=24.4 		1-09623-057-0 01 1 1403-
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0809-
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 1106-
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0809-
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) 		8-94390-617-0 01 1 0909-0910
23 BOLT; OIL PAN
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) (C) M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97087-634-0 22 1 0909-0910
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 0809-0908
23 BOLT; OIL PAN
EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) (A) M8X18 FLANGE 		0-28080-818-0 28 1 0909-0910
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 0911-
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		8-97329-626-0 02 1 0809-0908
23 BOLT; OIL PAN
EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) (B) M8X28 FLANGE 		8-97329-626-0 02 1 0909-0910
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		8-97329-626-0 02 1 0911-
24 NUT; OIL PAN
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) M8 FLANGE 		0-91180-108-0 12 1 0909-0910
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 0809-0908
24 NUT; OIL PAN
EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) M8 FLANGE 		0-91180-108-0 04 1 0909-0910
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 0911-
25 STUD; OIL PAN
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 04 1 0909-0910
25 STUD; OIL PAN
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 01 1 0909-0910
123 RUBBER; SEAL OIL
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) (A) 		8-94391-755-0 01 1 0909-0910
123 RUBBER; SEAL OIL
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) (B) 		8-94391-757-0 01 1 0909-0910
123 RUBBER; SEAL OIL
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) (C) 		8-94391-758-0 01 1 0909-0910
123 RUBBER; SEAL OIL
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46) (D) 		8-94392-548-0 01 1 0909-0910
çizim 37448
10 8 49 2 193 192 193 9 9 10 8
BalonParca AdiParca NoAdetTipApplied Date
2 GAUGE; OIL LEVEL 8-98092-600-0 01 1 0809-
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-98063-554-0 01 1 0809-
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-98084-773-0 01 1 0809-
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0809-
10 BOLT; GUIDE TUBE
(A) M10X35 FLANGE 		0-28151-035-0 01 1 0809-
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 01 1 0809-
192 HOSE; GUIDE TUBE
L=463 		8-98054-844-1 01 1 0809-
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
