9-01 — TOOLS (#68430) — 58 parça

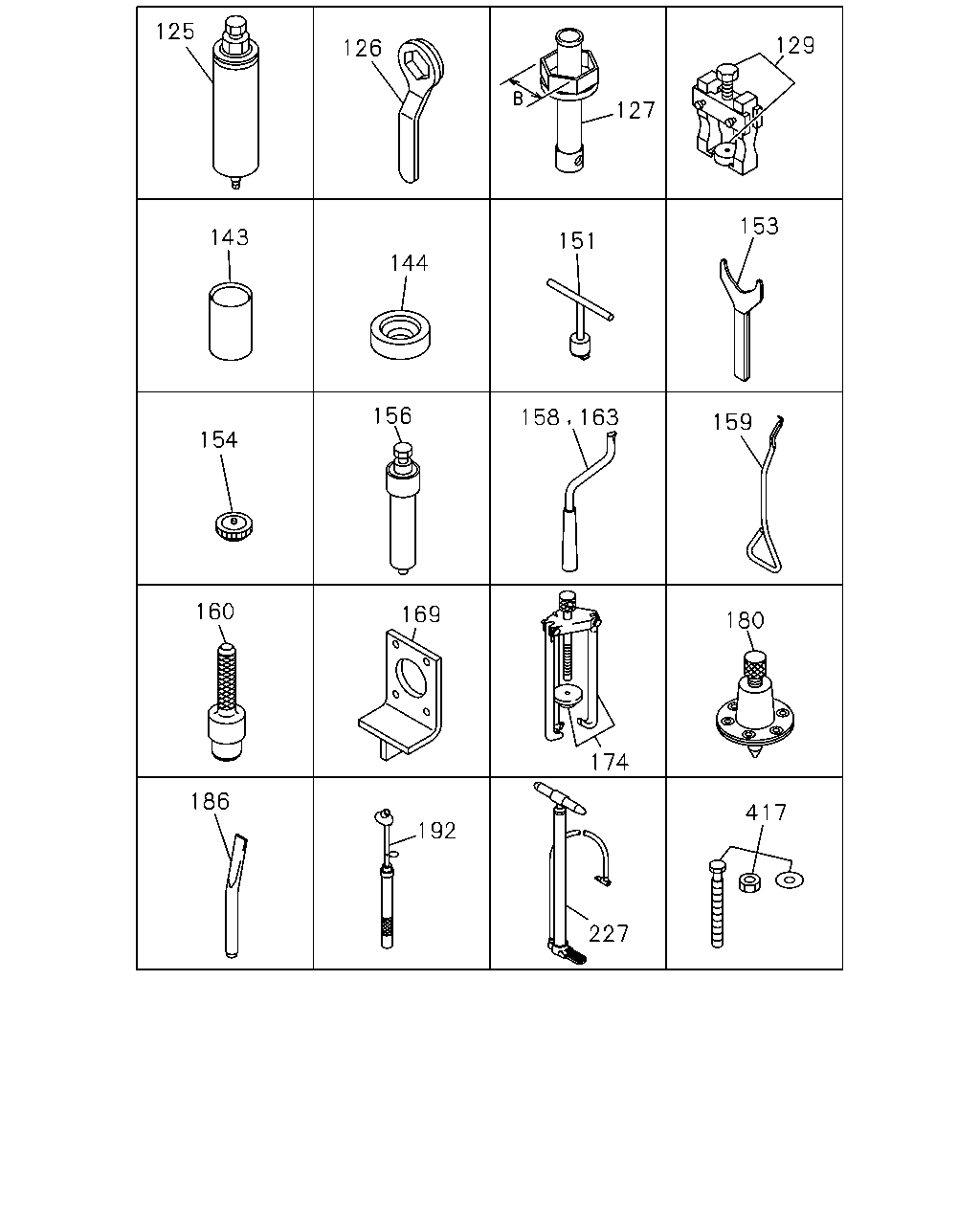

çizim 14345
125 129 126 127 153 143 151 144 156 159 154 160 169 180 174 186 417 192 227 158 163
BalonParca AdiParca NoAdetTipApplied Date
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0809-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 0809-
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		9-85113-524-0 01 1 0809-0809
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 0809-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0809-
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 0809-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 0809-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 0809-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0809-
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0809-
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 0809-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0809-1002
159 REMOVER; RETURN SPR 1-85237-023-0 01 1 0809-
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 0809-
163 TOOL; SETTING 9-85221-231-0 01 1 1003-
169 BRACKET; SPLINE YOKE
ZF9S1110 M/T(Y5E) 		1-85221-317-0 01 1 0809-
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0809-
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 0809-1008
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 0809-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0809-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0809-
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS 		1-85576-331-1 01 1 0809-
çizim 14529
274 271 268 209 311 285 281 283 282 284
BalonParca AdiParca NoAdetTipApplied Date
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 0809-
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0809-1108
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1109-1212
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 0809-
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0809-1108
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1109-1212
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
281 BRACKET; TOOL BOX
KEY LOCK TOOL<RC5> 		1-53459-665-2 02 1 0809-1505
282 NUT; BRKT
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 0809-1505
283 WASHER; LK,BRKT
KEY LOCK TOOL<RC5> ID=10.2 		0-91510-510-0 04 1 0809-1505
284 BOLT; TOOL BOX
KEY LOCK TOOL<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 0809-1505
285 NUT; TOOL BOX
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 0809-1505
311 BOX ASM; TOOL
KEY LOCK TOOL<RC5> 		1-85561-006-3 01 1 0809-1505
çizim 14568
9 17 13 12 1 23 22 21 20 29 29 29 193 115 208 230 237 232
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 0809-
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 0809-
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0809-1501
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1502-
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 0809-1407
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1408-
17 HAMMER 9-85121-406-0 01 1 0809-
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 0809-
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 0809-
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 0809-
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 0809-
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0809-
29 DRIVER; SCREW
(B) <-> L=275 		8-98061-105-0 01 1 0809-
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 0809-
115 PLIER 5-85171-002-0 01 1 0809-1410
115 PLIER 8-98282-845-0 01 1 1411-
193 JACK ASM
10TON 		8-97607-599-0 01 1 0809-
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0809-1107
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108-
230 PUMP; GREASE 1-85556-007-5 01 1 0809-
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 1007-
237 BAG; TOOL 8-97130-902-1 01 1 0809-
