8-15 — FIXING PARTS; WIRING HARNESS (#68414) — 277 parça

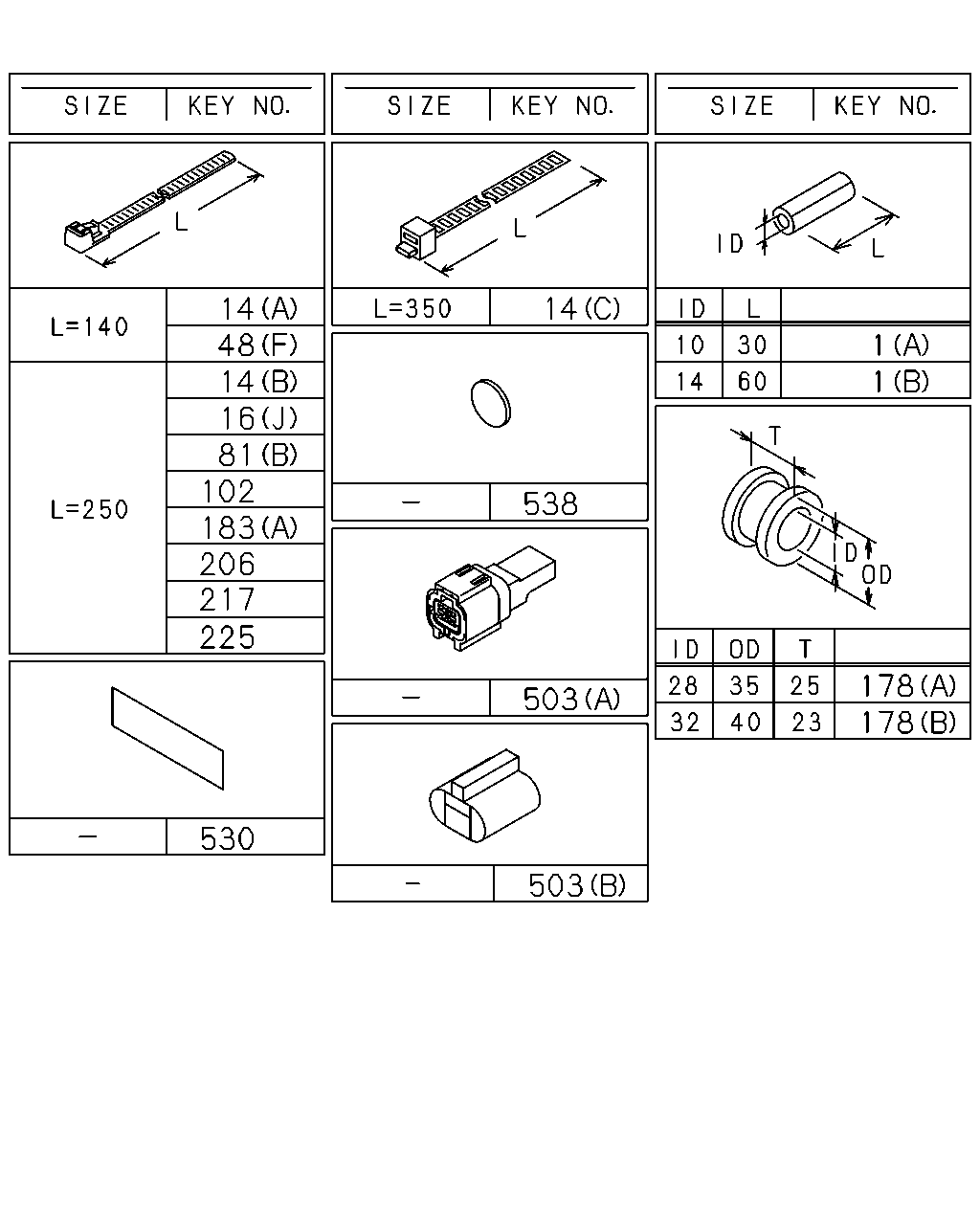

çizim 136743
14 14 48 14 16 81 102 183 206 217 225 1 1 538 178 178 503 530 503
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0809-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0809-
14 CLIP; BAND,HARNESS
GLOW SYSTEM DELETE<7RK> (B) L=250 		8-98216-430-0 01 1 1312-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 01 1 0809-
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 08 1 0809-1205
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 08 1 1206-
14 CLIP; BAND,HARNESS
(A) L=140 		5-09707-031-1 01 1 0809-1109
16 CLIP; HARNESS
(I) ID=11 L=61 		1-09700-484-0 01 1 0809-0810
16 CLIP; HARNESS
(G) ID=14 H=50 L=20 		1-09700-843-0 02 1 0809-
16 CLIP; HARNESS
(F) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0809-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0809-
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 05 1 0809-0810
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 04 1 0811-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0809-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0809-1202
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 0809-1202
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (E) L=40.6 		8-97229-357-0 02 1 1203-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (E) L=40.6 		8-97229-357-0 02 1 1203-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0809-1202
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (D) OD=9 H=6 		1-09709-178-0 01 1 0809-1405
48 CLIP; FRAME HARNESS
(H) ID=33 L=83 		1-09701-291-0 01 1 1306-
48 CLIP; FRAME HARNESS
EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70 		1-09700-485-0 04 1 1012-1102
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 02 1 1008-1201
48 CLIP; FRAME HARNESS
(M) ID=15 L=65 		1-09700-466-0 02 1 1202-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (C) ID=20 L=70 		1-09700-485-0 34 1 1004-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (M) ID=15 L=65 		1-09700-466-0 32 1 1008-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0809-0902
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0809-0902
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0903-
48 CLIP; FRAME HARNESS
(J) ID=15 L=65 		1-09700-466-0 01 1 0809-
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 04 1 0809-1011
48 CLIP; FRAME HARNESS
VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70 		1-09700-485-0 03 1 1012-1102
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 03 1 1103-
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 01 1 0809-0902
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 01 1 0809-0902
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 01 1 0903-
48 CLIP; FRAME HARNESS
(D) ID=28 L=78 		1-09700-858-0 02 1 0809-
48 CLIP; FRAME HARNESS
(G) ID=35 L=50 		1-09701-214-0 01 1 0809-
48 CLIP; FRAME HARNESS
(H) ID=33 L=83 		1-09701-291-0 03 1 0809-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0809-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (C) ID=20 L=70 		1-09700-485-0 26 1 0809-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (M) ID=15 L=65 		1-09700-466-0 24 1 1008-
48 CLIP; FRAME HARNESS
(I) OD=9 H=13.5 		1-09709-180-0 01 1 0809-
48 CLIP; FRAME HARNESS
ZF6S1000 M/T(Y5D) (A) ID=16 L=20 		0-95235-536-0 01 1 0809-
48 CLIP; FRAME HARNESS
ZF6S1000 M/T(Y5D) (E) ID=16 L=60 		0-95235-596-0 01 1 0809-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (L) ID=16X2 L=50 		0-95325-586-0 01 1 0809-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (K) ID=14.5 L=40 		1-09701-014-0 01 1 0809-
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (A) OD=9 H=13.5 		1-09709-180-0 01 1 0809-1010
81 CLIP; HARNESS
(A) OD=9 H=13.5 		1-09709-180-0 01 1 1011-
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 0809-
102 CLIP; BAND
H.S.A SYSTEM<6EP> L=250 		5-09707-030-1 01 1 0809-0901
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0809-
178 GROMMET; HARNESS
(B) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0809-
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (A) L=250 		5-09707-030-1 01 1 0809-
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6 		1-09709-178-0 01 1 0809-0810
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0809-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0809-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 04 1 0809-1011
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 04 1 1012-1102
225 CLIP; AIR TANK HARNESS
VIN MODEL YEAR 2011<VZB> L=250 		5-09707-030-1 04 1 1012-1102
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 04 1 1103-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 04 1 1103-
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 0809-
503 CONNECTOR
EXC. AIR DRYER<PS7> (B) 		1-82690-666-0 01 1 0809-1405
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 0809-0810
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0809-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306-
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0809-1305
530 SEAL; HARNESS
EXC. H.S.A SYSTEM<6EP> 180X40 		1-72498-019-1 01 1 1306-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0809-

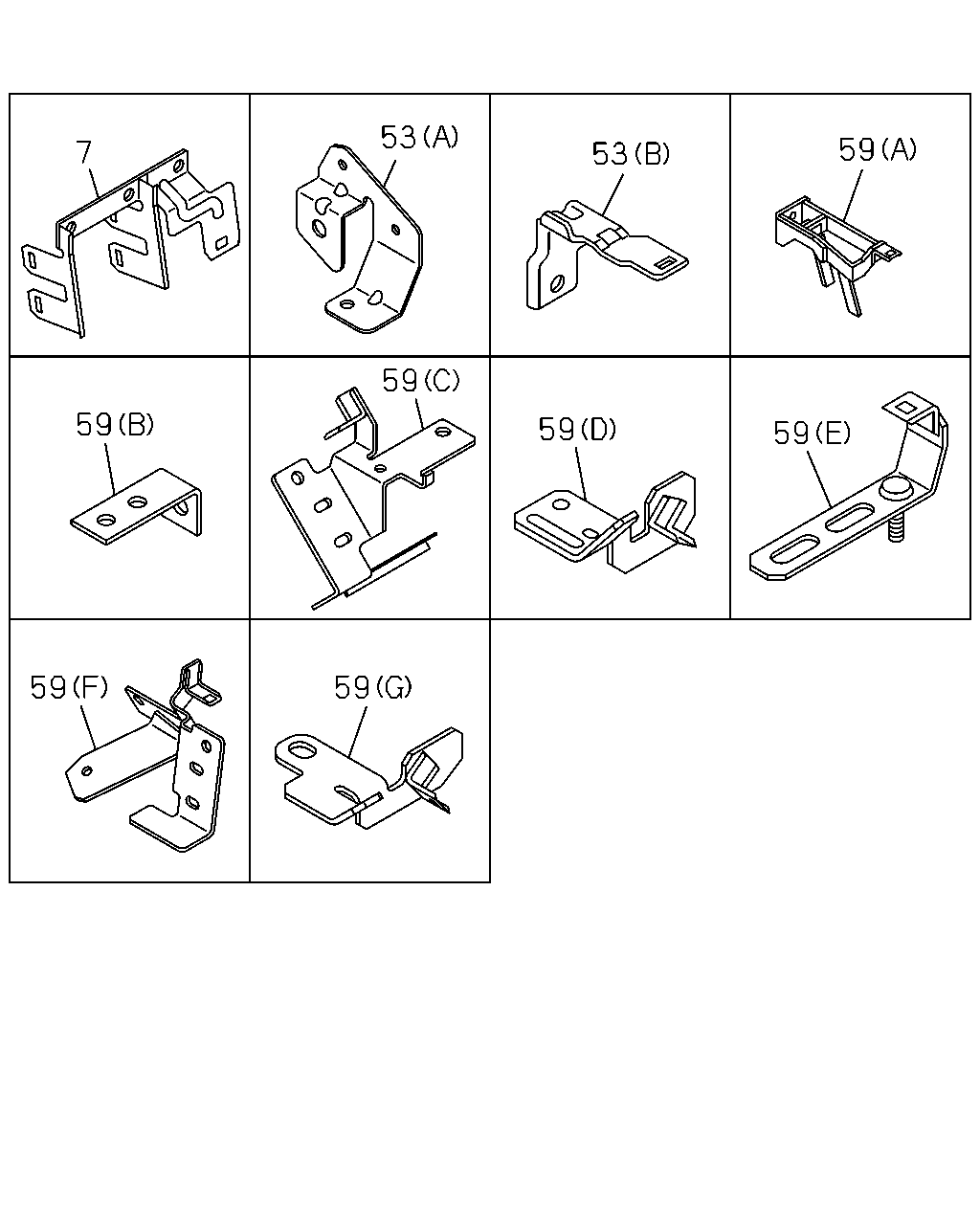

çizim 136845
7 53 53 59 59 59 59 59 59 59
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98090-846-0 01 1 0809-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 0809-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98084-699-0 01 1 0809-
59 BRACKET; FRAME HARNESS
(B) L=62 		1-21464-170-2 01 1 0809-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 0809-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0809-1502
59 BRACKET; FRAME HARNESS
(G) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(C) 		8-97620-482-1 01 1 0809-0905
59 BRACKET; FRAME HARNESS
(F) 		8-98107-611-0 01 1 0906-
59 BRACKET; FRAME HARNESS
(E) 		8-98047-730-0 02 1 0809-

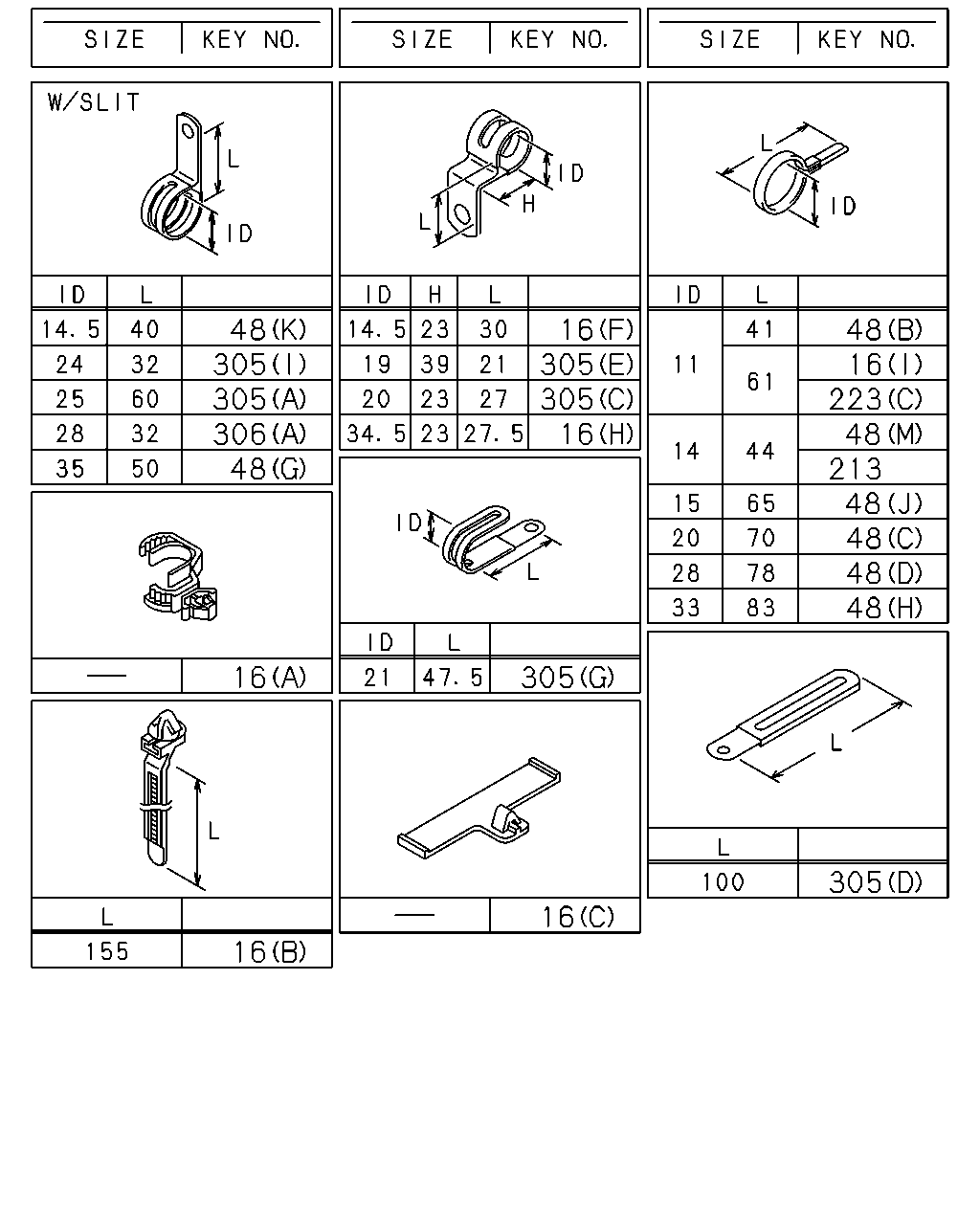

çizim 136969
48 305 305 306 48 16 305 305 16 48 16 223 48 213 48 48 48 48 16 305 305 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(I) ID=11 L=61 		1-09700-484-0 01 1 0809-0810
16 CLIP; HARNESS
(G) ID=14 H=50 L=20 		1-09700-843-0 02 1 0809-
16 CLIP; HARNESS
(F) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0809-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0809-
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 05 1 0809-0810
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 04 1 0811-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0809-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0809-1202
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 0809-1202
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (E) L=40.6 		8-97229-357-0 02 1 1203-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (E) L=40.6 		8-97229-357-0 02 1 1203-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0809-1202
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (D) OD=9 H=6 		1-09709-178-0 01 1 0809-1405
48 CLIP; FRAME HARNESS
(H) ID=33 L=83 		1-09701-291-0 01 1 1306-
48 CLIP; FRAME HARNESS
EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70 		1-09700-485-0 04 1 1012-1102
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 02 1 1008-1201
48 CLIP; FRAME HARNESS
(M) ID=15 L=65 		1-09700-466-0 02 1 1202-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (C) ID=20 L=70 		1-09700-485-0 34 1 1004-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (M) ID=15 L=65 		1-09700-466-0 32 1 1008-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0809-0902
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0809-0902
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0903-
48 CLIP; FRAME HARNESS
(J) ID=15 L=65 		1-09700-466-0 01 1 0809-
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 04 1 0809-1011
48 CLIP; FRAME HARNESS
VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70 		1-09700-485-0 03 1 1012-1102
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 03 1 1103-
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 01 1 0809-0902
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 01 1 0809-0902
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 01 1 0903-
48 CLIP; FRAME HARNESS
(D) ID=28 L=78 		1-09700-858-0 02 1 0809-
48 CLIP; FRAME HARNESS
(G) ID=35 L=50 		1-09701-214-0 01 1 0809-
48 CLIP; FRAME HARNESS
(H) ID=33 L=83 		1-09701-291-0 03 1 0809-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0809-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (C) ID=20 L=70 		1-09700-485-0 26 1 0809-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (M) ID=15 L=65 		1-09700-466-0 24 1 1008-
48 CLIP; FRAME HARNESS
(I) OD=9 H=13.5 		1-09709-180-0 01 1 0809-
48 CLIP; FRAME HARNESS
ZF6S1000 M/T(Y5D) (A) ID=16 L=20 		0-95235-536-0 01 1 0809-
48 CLIP; FRAME HARNESS
ZF6S1000 M/T(Y5D) (E) ID=16 L=60 		0-95235-596-0 01 1 0809-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (L) ID=16X2 L=50 		0-95325-586-0 01 1 0809-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (K) ID=14.5 L=40 		1-09701-014-0 01 1 0809-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 0809-
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0809-1011
223 CLIP; AIR TANK HARNESS
EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012-1102
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0902
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1005
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 0809-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0809-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 01 1 0809-
305 CLIP; ENG HARNESS
(I) ID=24 L=32 		1-09700-766-1 01 1 0809-
305 CLIP; ENG HARNESS
(B) ID=24 L=27 		1-09700-809-0 03 1 0809-
305 CLIP; ENG HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 0809-0908
305 CLIP; ENG HARNESS
EXC. PERU EQUIPMENT(E07) (C) ID=20 H=23 L=27 		1-09700-861-0 01 1 0909-0910
305 CLIP; ENG HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 0911-
305 CLIP; ENG HARNESS
(E) ID=19 L=39 H=21 		1-09700-972-1 01 1 0809-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0809-
305 CLIP; ENG HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 0809-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 0809-
305 CLIP; ENG HARNESS
(D) L=100 		8-94443-021-1 01 1 0809-1310
305 CLIP; ENG HARNESS
(D) L=100 		8-94443-021-1 02 1 1311-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0809-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0809-

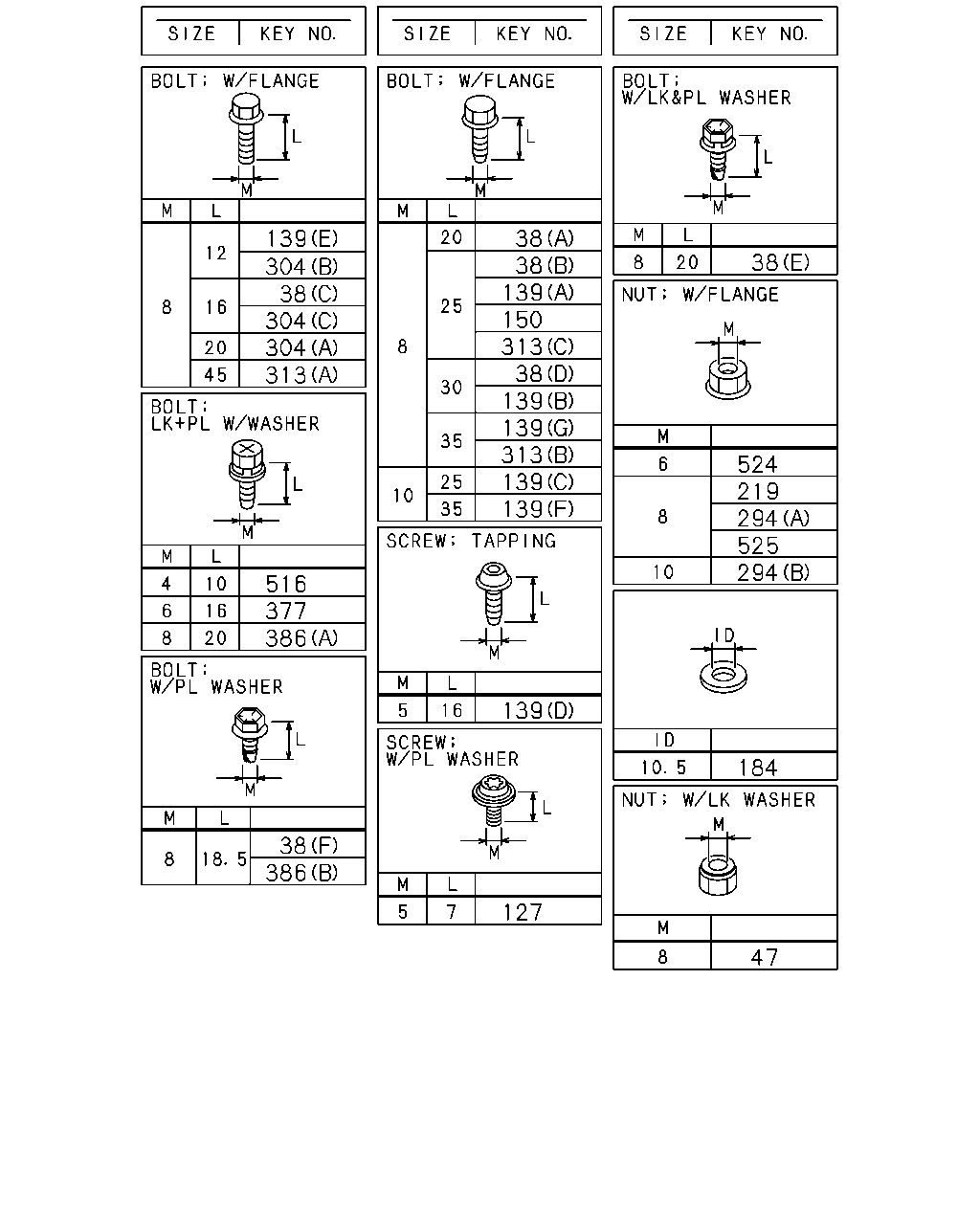

çizim 137022
139 304 38 304 304 313 516 377 386 38 386 38 150 139 38 313 139 38 139 139 313 139 139 127 38 524 294 219 525 294 184 47
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0809-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0809-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0809-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0809-
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0809-1201
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0809-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0809-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0810
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0811-
139 BOLT; BRKT
(G) M8X35 FLANGE 		0-28650-835-0 01 1 0809-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0809-
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0809-
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0809-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0809-
150 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0809-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0809-0809
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 0810-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0809-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0902-0905
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0906-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0809-0901
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0809-
304 BOLT; ENG HARNESS CLIP
PERU EQUIPMENT(E07) (C) M8X16 FLANGE 		0-28050-816-0 04 1 0909-0910
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 06 1 0809-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 05 1 0809-0908
304 BOLT; ENG HARNESS CLIP
EXC. PERU EQUIPMENT(E07) (C) M8X16 FLANGE 		0-28050-816-0 05 1 0909-0910
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 05 1 0911-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 04 1 0809-
313 BOLT; BRKT
(A) M8X45 FLANGE 		0-28050-845-0 01 1 0809-
313 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0809-
313 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0809-
313 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0809-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0809-
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0809-1202
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0809-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0809-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0809-
çizim 137149
48 305 305 48 16 81 183 223 305 470 48 116 223 48 16 305 16 306
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(I) ID=11 L=61 		1-09700-484-0 01 1 0809-0810
16 CLIP; HARNESS
(G) ID=14 H=50 L=20 		1-09700-843-0 02 1 0809-
16 CLIP; HARNESS
(F) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0809-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0809-
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 05 1 0809-0810
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 04 1 0811-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0809-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0809-1202
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 0809-1202
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (E) L=40.6 		8-97229-357-0 02 1 1203-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (E) L=40.6 		8-97229-357-0 02 1 1203-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0809-1202
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (D) OD=9 H=6 		1-09709-178-0 01 1 0809-1405
48 CLIP; FRAME HARNESS
(H) ID=33 L=83 		1-09701-291-0 01 1 1306-
48 CLIP; FRAME HARNESS
EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70 		1-09700-485-0 04 1 1012-1102
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 02 1 1008-1201
48 CLIP; FRAME HARNESS
(M) ID=15 L=65 		1-09700-466-0 02 1 1202-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (C) ID=20 L=70 		1-09700-485-0 34 1 1004-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) VIETNAM EQUIPMENT(SGX) (M) ID=15 L=65 		1-09700-466-0 32 1 1008-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0809-0902
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0809-0902
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0903-
48 CLIP; FRAME HARNESS
(J) ID=15 L=65 		1-09700-466-0 01 1 0809-
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 04 1 0809-1011
48 CLIP; FRAME HARNESS
VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70 		1-09700-485-0 03 1 1012-1102
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 03 1 1103-
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 01 1 0809-0902
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 01 1 0809-0902
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 01 1 0903-
48 CLIP; FRAME HARNESS
(D) ID=28 L=78 		1-09700-858-0 02 1 0809-
48 CLIP; FRAME HARNESS
(G) ID=35 L=50 		1-09701-214-0 01 1 0809-
48 CLIP; FRAME HARNESS
(H) ID=33 L=83 		1-09701-291-0 03 1 0809-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0809-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (C) ID=20 L=70 		1-09700-485-0 26 1 0809-1007
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (M) ID=15 L=65 		1-09700-466-0 24 1 1008-
48 CLIP; FRAME HARNESS
(I) OD=9 H=13.5 		1-09709-180-0 01 1 0809-
48 CLIP; FRAME HARNESS
ZF6S1000 M/T(Y5D) (A) ID=16 L=20 		0-95235-536-0 01 1 0809-
48 CLIP; FRAME HARNESS
ZF6S1000 M/T(Y5D) (E) ID=16 L=60 		0-95235-596-0 01 1 0809-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (L) ID=16X2 L=50 		0-95325-586-0 01 1 0809-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (K) ID=14.5 L=40 		1-09701-014-0 01 1 0809-
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (A) OD=9 H=13.5 		1-09709-180-0 01 1 0809-1010
81 CLIP; HARNESS
(A) OD=9 H=13.5 		1-09709-180-0 01 1 1011-
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 0809-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 0809-
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (A) L=250 		5-09707-030-1 01 1 0809-
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6 		1-09709-178-0 01 1 0809-0810
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0809-1011
223 CLIP; AIR TANK HARNESS
EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012-1102
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0902
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1005
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 0809-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0809-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 01 1 0809-
305 CLIP; ENG HARNESS
(I) ID=24 L=32 		1-09700-766-1 01 1 0809-
305 CLIP; ENG HARNESS
(B) ID=24 L=27 		1-09700-809-0 03 1 0809-
305 CLIP; ENG HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 0809-0908
305 CLIP; ENG HARNESS
EXC. PERU EQUIPMENT(E07) (C) ID=20 H=23 L=27 		1-09700-861-0 01 1 0909-0910
305 CLIP; ENG HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 0911-
305 CLIP; ENG HARNESS
(E) ID=19 L=39 H=21 		1-09700-972-1 01 1 0809-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0809-
305 CLIP; ENG HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 0809-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 0809-
305 CLIP; ENG HARNESS
(D) L=100 		8-94443-021-1 01 1 0809-1310
305 CLIP; ENG HARNESS
(D) L=100 		8-94443-021-1 02 1 1311-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0809-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0809-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0809-

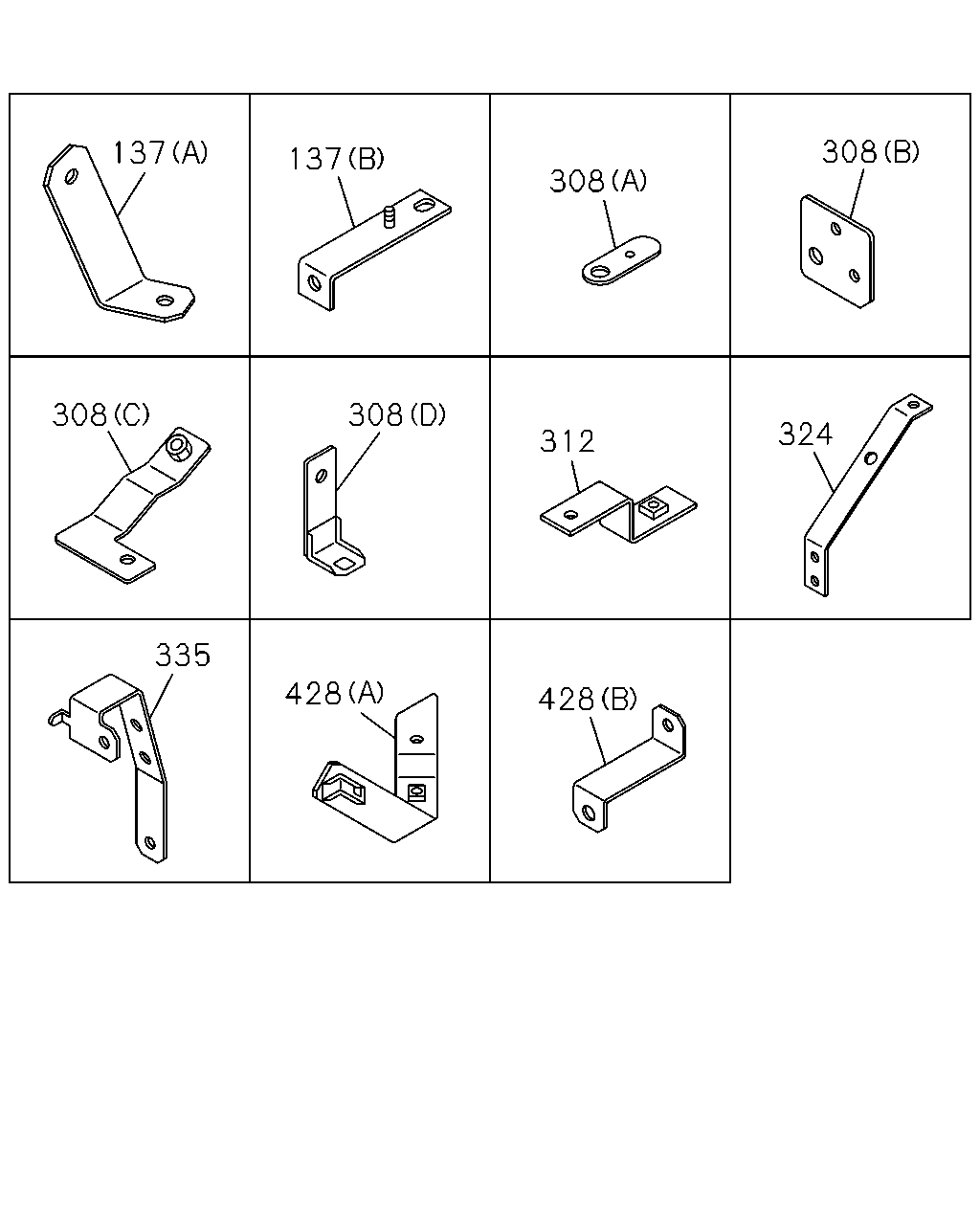

çizim 467389
137 137 308 308 308 308 312 324 335 428 428
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 0809-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 0809-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 0809-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-98021-692-1 01 1 0809-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98032-178-0 01 1 0809-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98075-824-0 01 1 0809-
312 BRACKET; CLIP HARNESS 8-97609-110-1 01 1 0809-
324 BRACKET; CLIP 1-47479-430-0 02 1 1212-1212
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0809-
428 BRACKET
(B) 		1-47476-658-0 01 1 0809-
428 BRACKET
(A) 		8-97620-514-0 01 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
