2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#6841) — 55 parça

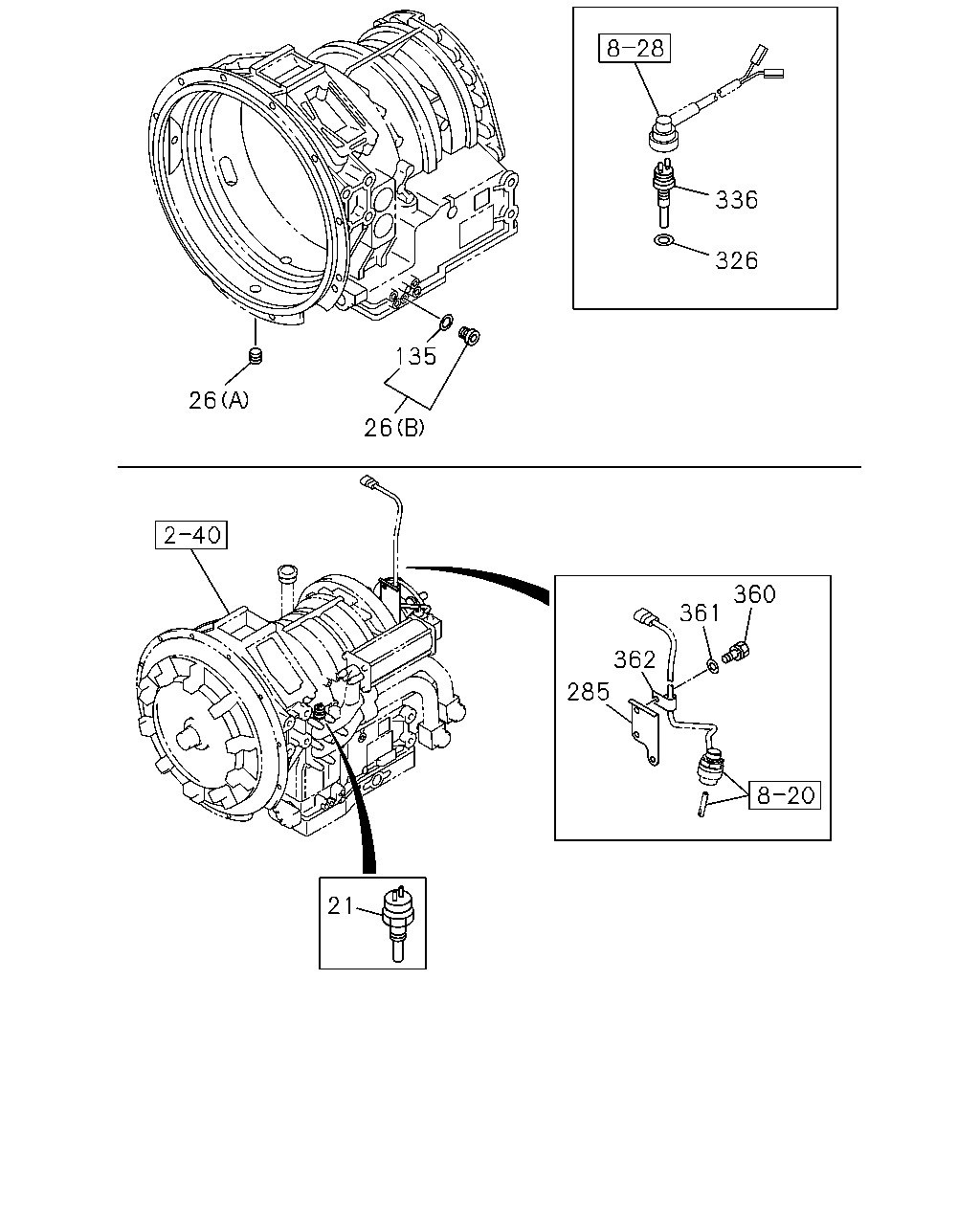

çizim 26540
336 326 135 26 26 360 361 362 285 21
BalonParca AdiParca NoAdetTipApplied Date A B C
21 PLUG; BREATHER,A/T 1-21719-055-0 01 1 9912-9912 ● ●
21 PLUG; BREATHER,A/T 1-21719-055-0 01 1 0001- ● ● ●
26 PLUG; TRANS CASE
(B) 		1-34119-008-0 05 1 9912-9912 ● ●
26 PLUG; TRANS CASE
(B) 		1-34119-008-0 05 1 0001- ● ● ●
26 PLUG; TRANS CASE
(A) 		1-34119-010-0 01 1 9912-9912 ● ●
26 PLUG; TRANS CASE
(A) 		1-34119-010-0 01 1 0001- ● ● ●
135 GASKET; PLUG,A/T CASE 1-33549-149-0 05 1 9912-9912 ● ●
135 GASKET; PLUG,A/T CASE 1-33549-149-0 05 1 0001- ● ● ●
285 BRACKET; HARNESS 1-46147-284-0 01 1 9912-9912 ● ●
285 BRACKET; HARNESS 1-46147-284-0 01 1 0001- ● ● ●
326 GASKET; TEMP SENSOR 1-33549-137-0 01 1 9912-9912 ● ●
326 GASKET; TEMP SENSOR 1-33549-137-0 01 1 0001- ● ● ●
336 SENSOR; THERMO 1-81535-045-0 01 1 9912-9912 ● ●
336 SENSOR; THERMO 1-81535-045-0 01 1 0001- ● ● ●
360 BOLT; CLIP 1-34119-081-0 01 1 9912-9912 ● ●
360 BOLT; CLIP 1-34119-081-0 01 1 0001- ● ● ●
361 WASHER; CLIP 1-34119-082-0 01 1 9912-9912 ● ●
361 WASHER; CLIP 1-34119-082-0 01 1 0001- ● ● ●
362 CLIP; HARNESS 1-34119-083-0 01 1 9912-9912 ● ●
362 CLIP; HARNESS 1-34119-083-0 01 1 0001- ● ● ●

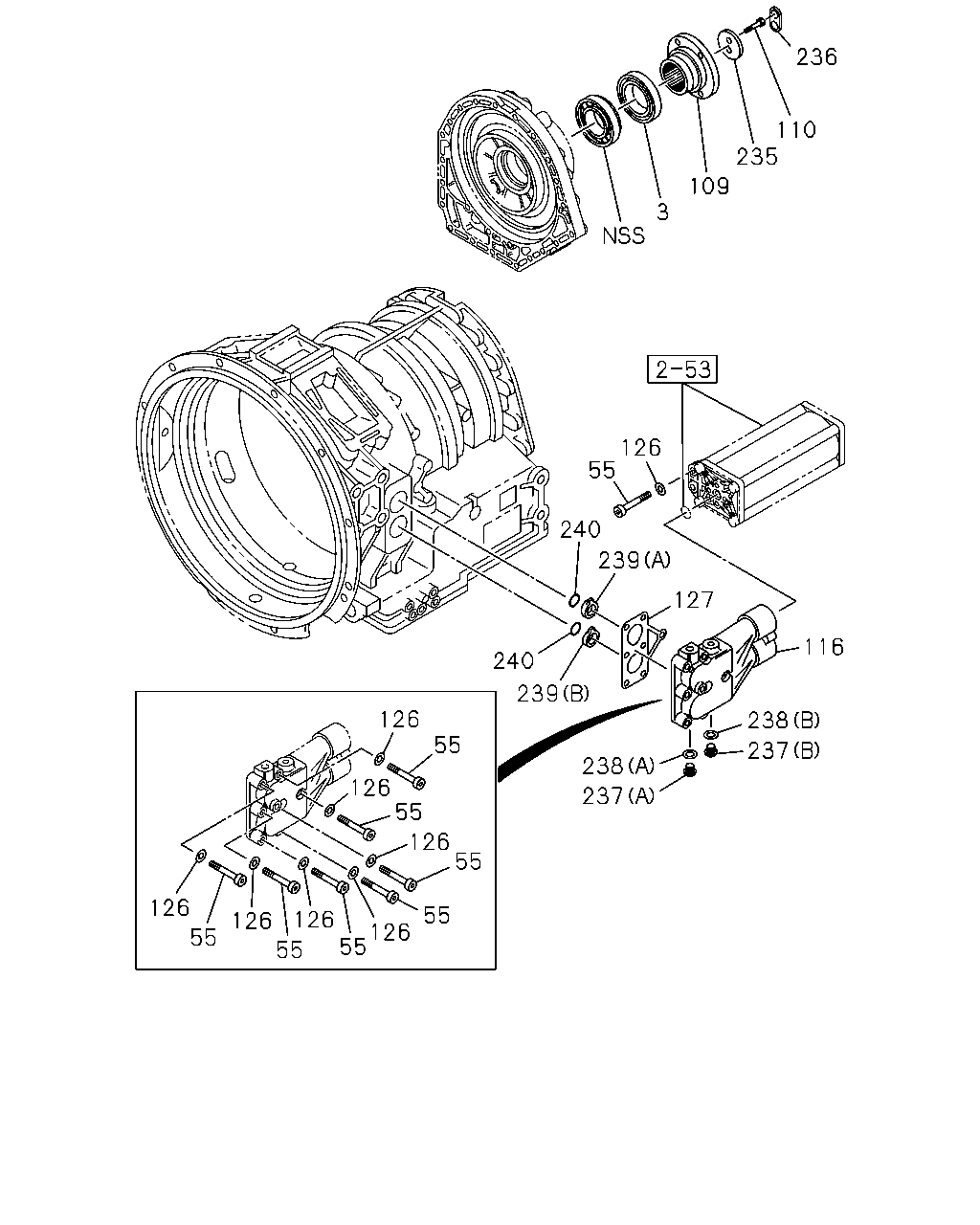

çizim 26852
236 110 235 109 3 126 55 240 239 127 116 240 239 126 238 55 237 238 126 55 237 126 55 126 55 126 126 55 126 55 55
BalonParca AdiParca NoAdetTipApplied Date A B C
3 SEAL; OIL,RR COVER,A/T 1-09625-594-0 01 1 9912-9912 ● ●
3 SEAL; OIL,RR COVER,A/T 1-09625-594-0 01 1 0001- ● ● ●
55 BOLT; COVER
M8X45 		1-09089-012-0 09 1 9912-9912 ●
55 BOLT; COVER
M8X45 		1-09089-012-0 09 1 0001- ● ●
55 BOLT; COVER
M8X45 		1-09089-012-0 07 1 9912- ●
109 DRIVER; COUPLING,A/T 1-37243-382-0 01 1 9912-9912 ● ●
109 DRIVER; COUPLING,A/T 1-37243-382-0 01 1 0001- ● ● ●
110 BOLT; COUPLING DRIVER,A/T 1-36139-003-0 01 1 9912-9912 ● ●
110 BOLT; COUPLING DRIVER,A/T 1-36139-003-0 01 1 0001- ● ● ●
116 COVER; TRANS CASE 1-34125-005-0 01 1 9912-9912 ●
116 COVER; TRANS CASE 1-34125-005-0 01 1 0001- ● ●
116 COVER; TRANS CASE 1-34125-010-0 01 1 9912- ●
126 WASHER; CASE COVER 1-33549-159-0 09 1 9912-9912 ●
126 WASHER; CASE COVER 1-33549-159-0 09 1 0001- ● ●
126 WASHER; CASE COVER 1-33549-159-0 07 1 9912- ●
127 GASKET; CASE TO COVER 1-34129-062-0 01 1 9912-9912 ● ●
127 GASKET; CASE TO COVER 1-34129-062-0 01 1 0001- ● ● ●
235 WASHER; PL,COUPLING 1-34149-020-0 01 1 9912-9912 ● ●
235 WASHER; PL,COUPLING 1-34149-020-0 01 1 0001- ● ● ●
236 WASHER; LK,COUPLING 1-37249-065-0 01 1 9912-9912 ● ●
236 WASHER; LK,COUPLING 1-37249-065-0 01 1 0001- ● ● ●
237 PLUG; COVER
(A) 		1-34119-008-0 01 1 9912-9912 ● ●
237 PLUG; COVER
(A) 		1-34119-008-0 01 1 0001- ● ● ●
237 PLUG; COVER
(B) 		1-34129-061-0 01 1 9912-9912 ● ●
237 PLUG; COVER
(B) 		1-34129-061-0 01 1 0001- ● ● ●
238 GASKET; PLUG
(B) 		1-33549-137-0 01 1 9912-9912 ● ●
238 GASKET; PLUG
(B) 		1-33549-137-0 01 1 0001- ● ● ●
238 GASKET; PLUG
(A) 		1-33549-149-0 01 1 9912-9912 ● ●
238 GASKET; PLUG
(A) 		1-33549-149-0 01 1 0001- ● ● ●
239 INSERT; COVER
(A) 		1-34129-064-0 01 1 9912-9912 ● ●
239 INSERT; COVER
(A) 		1-34129-064-0 01 1 0001- ● ● ●
239 INSERT; COVER
(B) 		1-34129-065-0 01 1 9912-9912 ● ●
239 INSERT; COVER
(B) 		1-34129-065-0 01 1 0001- ● ● ●
240 GASKET; INSERT 1-34129-063-0 02 1 9912-9912 ● ●
240 GASKET; INSERT 1-34129-063-0 02 1 0001- ● ● ●
