◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11152 - FVM(LHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#68403) — 153 parça

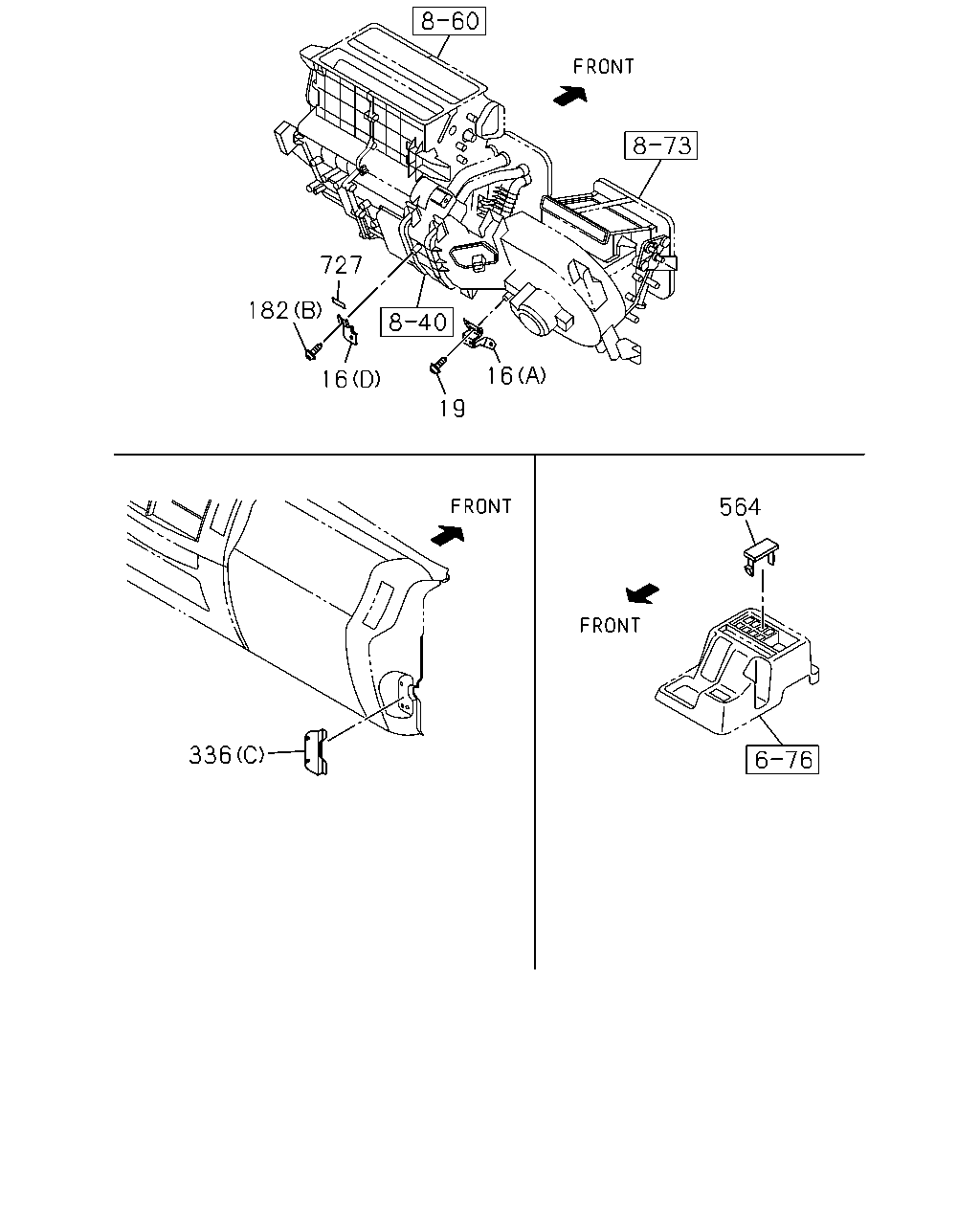

çizim 133038
727 182 16 19 16 336 564
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 0809-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0809-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0809-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 0809-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-529-1 01 1 0809-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0809-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0809-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0809-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0809-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0809-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 0809-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 0809-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 0809-1208
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 0809-
564 COVER; SW 8-97043-732-1 06 1 0809-
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98186-934-0 01 1 1209-

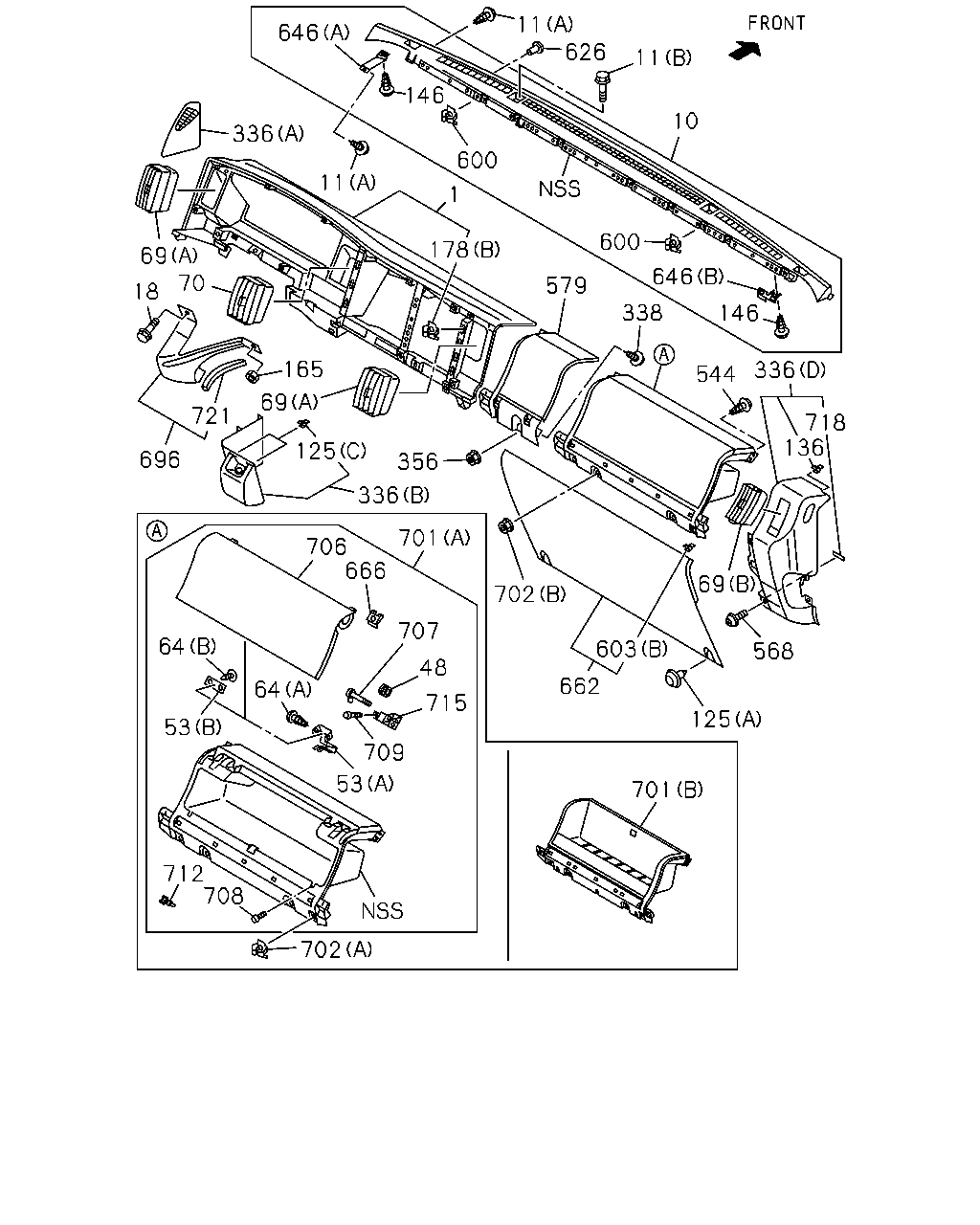

çizim 187996
11 10 626 11 646 146 600 600 646 338 146 336 544 718 136 69 568 125 701 662 603 702 356 336 125 69 165 70 18 68 11 336 1 178 579 721 696 64 706 666 707 48 715 701 53 709 64 53 712 708 702
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 0809-
10 PANEL ASM; GARNISH
GRAY 		8-97411-559-6 01 1 0809-1008
10 PANEL ASM; GARNISH
GRAY 		8-97422-098-1 01 1 1009-
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0809-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0809-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0809-
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 0809-1011
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1012-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 0809-1011
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1012-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 0809-1011
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1012-1405
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 0809-1011
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1012-1405
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0809-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 0809-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 0809-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0809-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0809-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 0809-
136 CLIP; INST COVER 8-98076-254-0 02 1 0809-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0809-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0809-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0809-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0809-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 0809-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 0809-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 0809-1208
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 0809-
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0809-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 0809-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0809-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0809-
579 COVER; INST PNL
GRAY 		8-97411-560-2 01 1 0809-
600 NUT; PANEL 8-98037-629-0 02 1 0809-1008
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0809-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 0809-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0809-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0809-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 0809-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 0809-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 0809-
666 INSERT; INST PANEL 8-98038-450-0 04 1 0809-1011
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98038-450-0 04 1 1012-1311
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98057-569-0 01 1 0809-1109
696 BRACKET; KNEE 8-98098-126-1 01 1 1110-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97421-976-1 01 1 1012-
701 TRAY; INST
(A) GRAY 		8-97415-540-6 01 1 0809-1011
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97415-540-6 01 1 1012-1405
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1406-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0809-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0809-
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 0809-1011
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1012-1405
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0809-1011
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1012-1311
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0809-1011
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1012-
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 0809-1011
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1012-
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 0809-1011
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1012-
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 0809-1011
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1012-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 0809-1011
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1012-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1312-
718 SEAL; COVER
4X35 		8-98185-153-0 01 1 1209-
721 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0809-1109

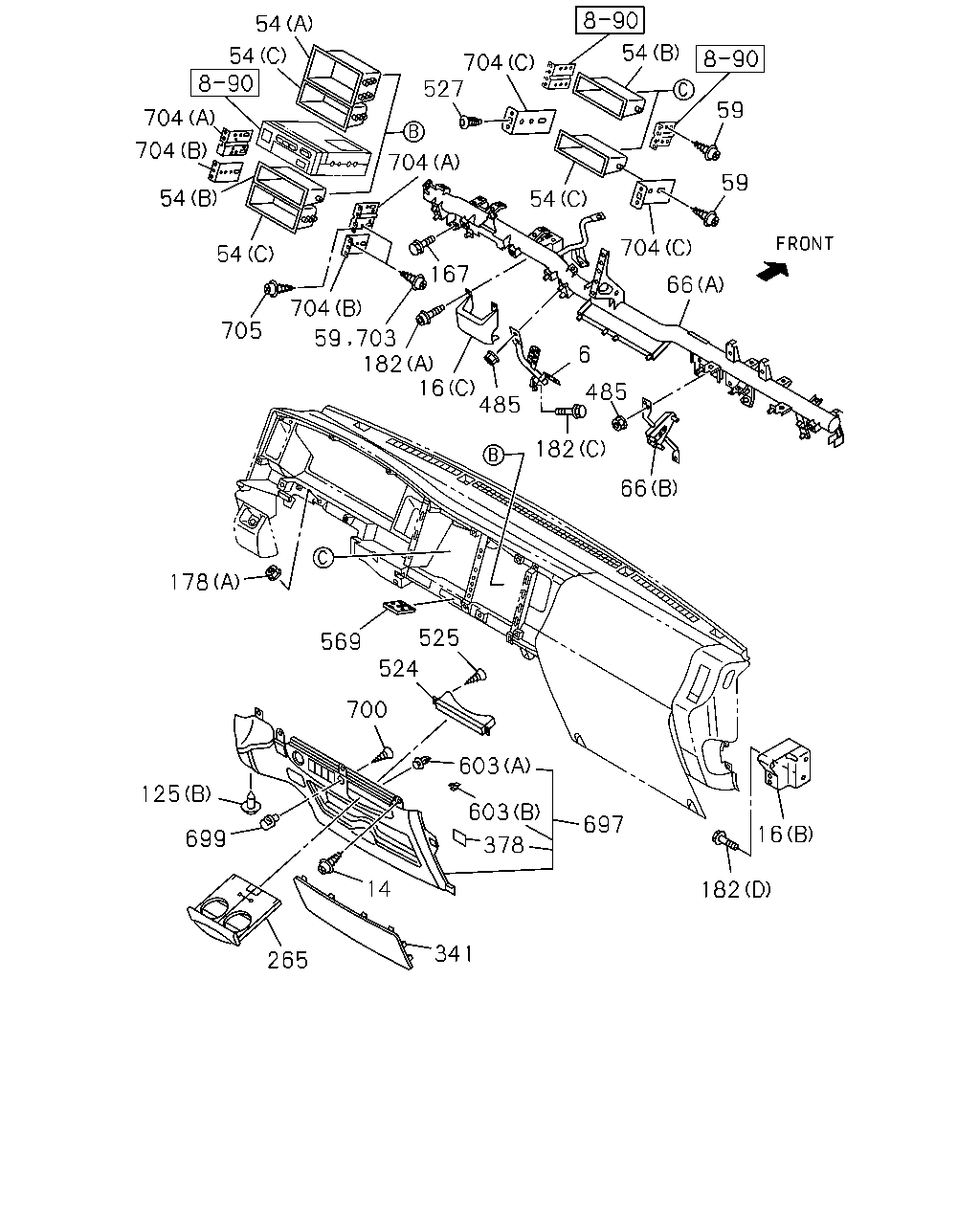

çizim 187999
54 54 704 704 54 54 705 704 59 703 182 485 16 167 704 527 704 54 59 59 704 66 6 182 66 485 178 569 524 525 700 603 603 378 697 341 125 699 265 14 182 16 54
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 0809-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0809-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 0809-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0809-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0809-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 0809-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-529-1 01 1 0809-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0809-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 0809-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 0809-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0809-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 0809-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0809-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0809-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0809-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0809-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-581-1 01 1 0809-
66 REINFORCEMENT; INST PANEL
(A) 		8-98069-419-7 01 1 0809-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-611-0 01 1 1407-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0809-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0809-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 0809-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0809-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0809-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0809-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0809-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0809-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0809-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0809-
265 HOLDER; CUP
GRAY 		8-97407-897-3 01 1 0809-0909
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910-
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0809-1010
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0809-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0809-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0809-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 0809-
569 HOLDER; CARD 8-97410-276-1 01 1 0809-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0809-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 0809-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0809-
697 PANEL; INST CENTER
GRAY 		8-97409-781-2 01 1 0809-1010
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1011-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0809-
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0809-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0809-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0809-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0809-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 0809-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0809-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
