◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11152 - FVM(LHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#68400) — 24 parça
çizim 133003
35 160 49 228 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> 		8-98082-441-0 01 1 0809-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98082-437-0 01 1 0809-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> 		8-98082-440-0 01 1 0809-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> 		8-98082-439-0 01 1 0809-
35 PLATE; CAUTION,CAB
CAUTIONS ARABIAN<WJ7> 		8-98070-107-0 01 1 0809-
35 PLATE; CAUTION,CAB
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98065-363-0 01 1 0809-
35 PLATE; CAUTION,CAB
CAUTIONS FRENCH<WJ8> 		8-98070-108-0 01 1 0809-
35 PLATE; CAUTION,CAB
CAUTIONS SPANISH<YN1> 		8-98070-109-0 01 1 0809-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		8-98127-559-0 01 1 0809-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		8-98127-560-0 01 1 0809-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		8-98069-841-0 01 1 0809-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98122-354-0 01 1 0809-
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) 		1-85888-737-1 01 1 0809-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS ARABIAN<WJ7> 		1-85877-948-0 01 1 0809-1001
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85887-935-0 01 1 0809-1001
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS FRENCH<WJ8> 		1-85887-936-0 01 1 0809-1001

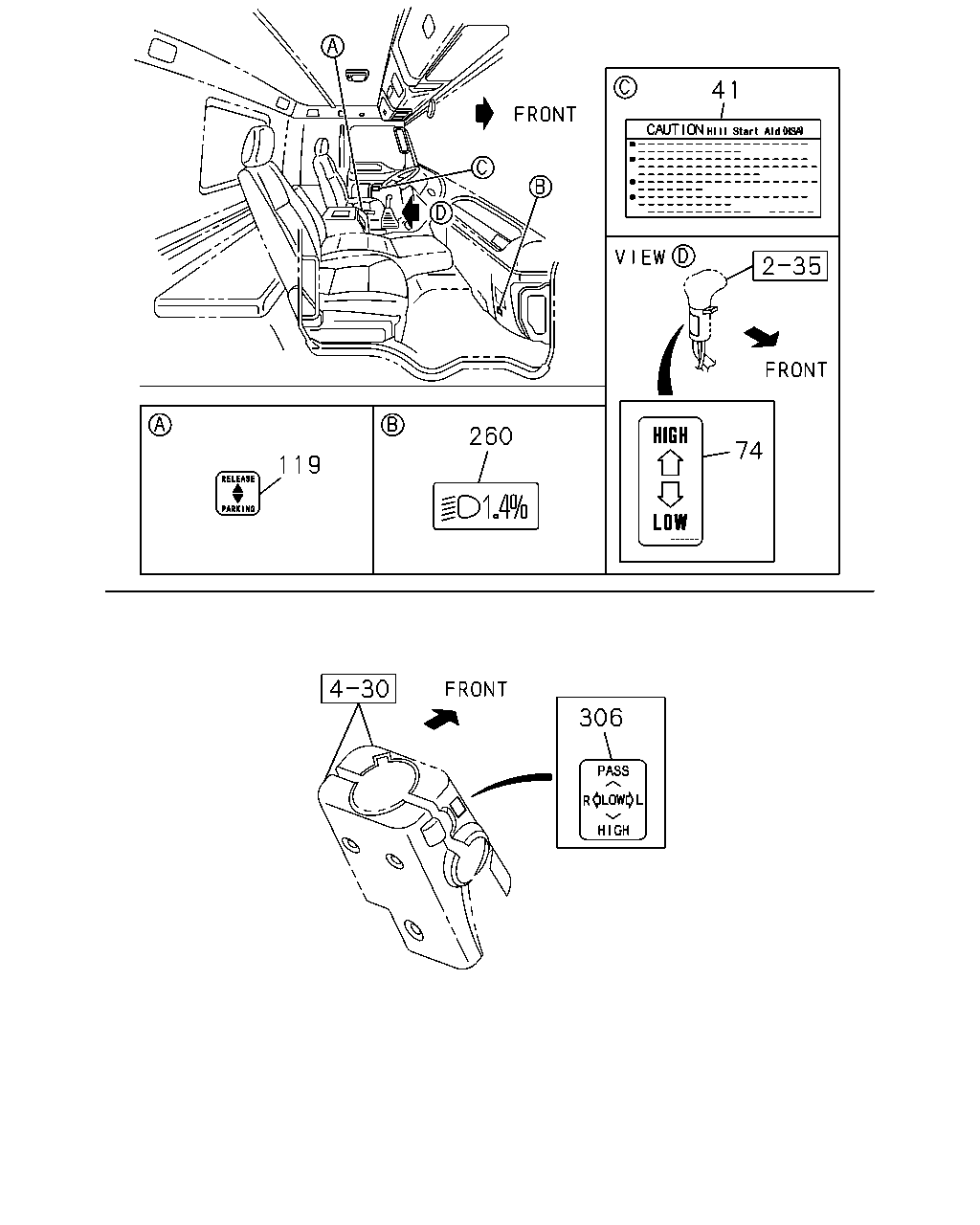

çizim 187989
41 260 74 119 306
BalonParca AdiParca NoAdetTipApplied Date
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> CAUTIONS ARABIAN<WJ7> 		8-98141-841-0 01 1 0907-
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> CAUTIONS FRENCH<WJ8> 		8-98141-839-0 01 1 0907-
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> CAUTIONS SPANISH<YN1> 		8-98141-840-0 01 1 0907-
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98141-836-0 01 1 0907-
74 PLATE; CAUTION,CHANGE LEV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98118-493-0 01 1 0809-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0809-
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 0809-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0809-
