0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#684) — 106 parça

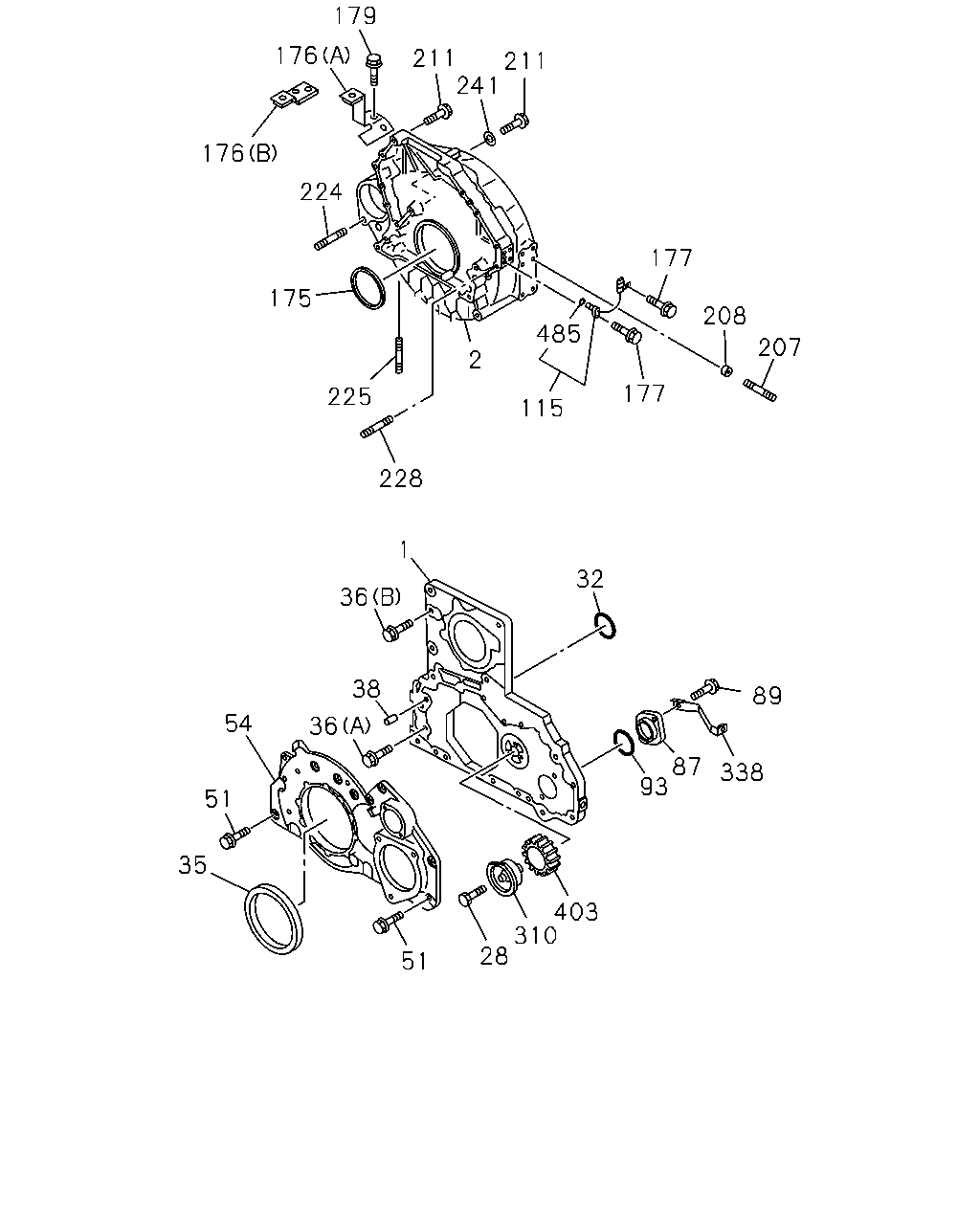

çizim 95302
179 176 211 211 241 176 224 177 175 208 485 207 2 177 225 115 228 1 32 36 38 89 54 36 87 93 338 51 35 403 310 28 51
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CASE; TIMING GEAR 8-94393-110-2 01 1 9505- ●
2 HOUSING; FLYWHEEL
TACHOMETER<UD7> 		1-11341-415-2 01 1 9204- ●
2 HOUSING; FLYWHEEL
EXC. CAB BACK OIL FILLER<E2J> 		1-11341-415-2 01 1 9204- ●
2 HOUSING; FLYWHEEL
EXC. TACHOMETER<UD7> 		1-11341-297-5 01 1 9204- ●
2 HOUSING; FLYWHEEL
CAB BACK OIL FILLER<E2J> 		1-11341-426-0 01 1 9204- ●
2 HOUSING; FLYWHEEL 8-94396-732-7 01 1 9505- ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 9505- ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		8-94397-364-0 01 1 9505- ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-451-0 01 1 9204- ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 9505- ●
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 9505- ●
36 BOLT; GEAR CASE
(B) M8X32 FLANGE 		0-28080-832-0 04 1 9505- ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 9505- ●
51 BOLT; GEAR CASE COVER
M8X45 W/LK&PL WASHER 		0-50140-845-0 08 1 9204- ● ●
51 BOLT; GEAR CASE COVER
M10X40 W/LK&PL WASHER 		0-50151-040-0 02 1 9204- ● ●
51 BOLT; GEAR CASE COVER
M8X40 FLANGE 		0-28080-840-0 10 1 9505- ●
51 BOLT; GEAR CASE COVER
M8X45 FLANGE 		0-28080-845-0 01 1 9505- ●
51 BOLT; GEAR CASE COVER
M8X20 FLANGE 		0-28680-820-0 06 1 9505- ●
54 COVER; GEAR CASE 8-94396-085-3 01 1 9505- ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 9505- ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 9505- ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7 		1-09623-180-0 01 1 9505- ●
115 SENSOR; REVOLUTION,ENG SPD
TACHOMETER<UD7> 		1-81510-343-2 01 1 9204- ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-343-2 01 1 9204- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=118 OD=150 T=15 		1-09625-443-0 01 1 9204- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9505- ●
176 BRACKET; HARNESS
(B) 		1-82699-402-3 01 1 9505- ●
176 BRACKET; HARNESS
(A) 		1-82699-412-1 01 1 9505- ●
177 BOLT; SENSOR
TACHOMETER<UD7> M6X18 W/LK WASHER 		0-50040-618-0 01 1 9204- ●
177 BOLT; SENSOR
M6X18 W/LK WASHER 		0-50040-618-0 01 1 9204- ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 03 1 9505- ●
179 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 9505- ●
207 STUD; ENG FOOT
M12X10 L=55 		9-94321-255-0 08 1 9505- ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9505- ●
211 BOLT; HSG
M12X60 		0-16806-260-0 08 1 9204- ● ●
211 BOLT; HSG
M12X173 		1-09020-057-1 01 1 9204- ● ●
211 BOLT; HSG
M12X75 		9-01666-275-0 06 1 9204- ● ●
211 BOLT; HSG
M12X153 		1-09020-054-1 01 1 9204- ● ● ●
211 BOLT; HSG
M10X50 FLANGE 		0-28181-050-0 02 1 9505- ●
211 BOLT; HSG
M12X130 FLANGE 		0-28196-213-0 01 1 9505- ●
211 BOLT; HSG
M14X70 FLANGE W/PL WASHER 		8-94396-095-0 01 1 9505- ●
211 BOLT; HSG
M12X128 		8-94399-252-0 01 1 9505- ●
211 BOLT; HSG
M12X65 		9-01666-265-0 01 1 9505- ●
211 BOLT; HSG
M12X70 		9-01666-270-0 09 1 9505- ●
224 STUD; STARTER
M14X40 L=61 		9-04411-440-0 02 1 9204- ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9505- ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9505- ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 9505- ●
241 WASHER; PL,HSG
ID=12.2 		9-09851-933-0 16 1 9204- ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 9505- ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 9505- ●
338 BRACKET; CLIP,HARNESS 1-82699-867-0 01 1 9505-9506 ●
338 BRACKET; CLIP,HARNESS 1-82699-889-0 01 1 9507- ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 9505- ●
485 GASKET; SENSOR
TACHOMETER<UD7> 		9-09565-212-0 01 1 9204- ●
485 GASKET; SENSOR 9-09565-212-0 01 1 9204- ● ●

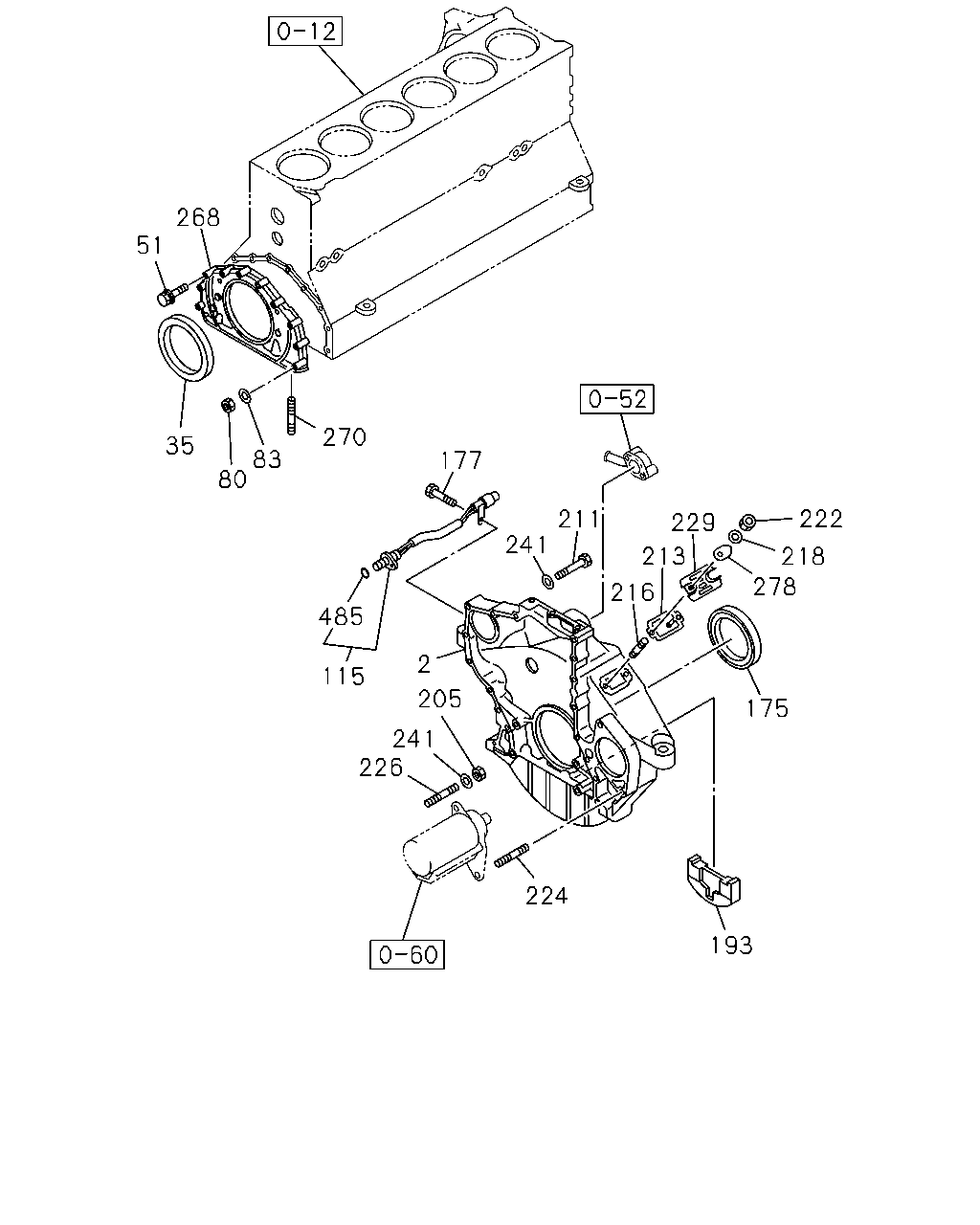

çizim 95752
268 51 270 35 83 80 177 222 211 229 241 213 218 278 216 485 2 115 205 175 241 226 224 193
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOUSING; FLYWHEEL
TACHOMETER<UD7> 		1-11341-415-2 01 1 9204- ●
2 HOUSING; FLYWHEEL
EXC. CAB BACK OIL FILLER<E2J> 		1-11341-415-2 01 1 9204- ●
2 HOUSING; FLYWHEEL
EXC. TACHOMETER<UD7> 		1-11341-297-5 01 1 9204- ●
2 HOUSING; FLYWHEEL
CAB BACK OIL FILLER<E2J> 		1-11341-426-0 01 1 9204- ●
2 HOUSING; FLYWHEEL 8-94396-732-7 01 1 9505- ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-451-0 01 1 9204- ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 9505- ●
51 BOLT; GEAR CASE COVER
M8X45 W/LK&PL WASHER 		0-50140-845-0 08 1 9204- ● ●
51 BOLT; GEAR CASE COVER
M10X40 W/LK&PL WASHER 		0-50151-040-0 02 1 9204- ● ●
51 BOLT; GEAR CASE COVER
M8X40 FLANGE 		0-28080-840-0 10 1 9505- ●
51 BOLT; GEAR CASE COVER
M8X45 FLANGE 		0-28080-845-0 01 1 9505- ●
51 BOLT; GEAR CASE COVER
M8X20 FLANGE 		0-28680-820-0 06 1 9505- ●
80 NUT; COVER
M10 		9-09110-410-0 04 1 9204- ●
80 NUT; COVER
M10 		9-09110-410-0 02 1 9204- ●
83 WASHER; PL,COVER
ID=10.5 OD=18 		9-09160-510-0 04 1 9204- ●
83 WASHER; PL,COVER
ID=10.5 OD=18 		9-09160-510-0 02 1 9204- ●
115 SENSOR; REVOLUTION,ENG SPD
TACHOMETER<UD7> 		1-81510-343-2 01 1 9204- ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-343-2 01 1 9204- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=118 OD=150 T=15 		1-09625-443-0 01 1 9204- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9505- ●
177 BOLT; SENSOR
TACHOMETER<UD7> M6X18 W/LK WASHER 		0-50040-618-0 01 1 9204- ●
177 BOLT; SENSOR
M6X18 W/LK WASHER 		0-50040-618-0 01 1 9204- ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 03 1 9505- ●
193 SPACER; STAY TO OIL,PAN
CAB BACK OIL FILLER<E2J> 		1-19380-104-0 01 1 9204- ●
205 NUT; HSG
M12 		9-99110-412-0 01 1 9204- ● ●
211 BOLT; HSG
M12X60 		0-16806-260-0 08 1 9204- ● ●
211 BOLT; HSG
M12X173 		1-09020-057-1 01 1 9204- ● ●
211 BOLT; HSG
M12X75 		9-01666-275-0 06 1 9204- ● ●
211 BOLT; HSG
M12X153 		1-09020-054-1 01 1 9204- ● ● ●
211 BOLT; HSG
M10X50 FLANGE 		0-28181-050-0 02 1 9505- ●
211 BOLT; HSG
M12X130 FLANGE 		0-28196-213-0 01 1 9505- ●
211 BOLT; HSG
M14X70 FLANGE W/PL WASHER 		8-94396-095-0 01 1 9505- ●
211 BOLT; HSG
M12X128 		8-94399-252-0 01 1 9505- ●
211 BOLT; HSG
M12X65 		9-01666-265-0 01 1 9505- ●
211 BOLT; HSG
M12X70 		9-01666-270-0 09 1 9505- ●
213 POINTER; FLYWHEEL HSG 1-11342-018-0 01 1 9204- ● ●
216 STUD; COVER,TIMING CHECK HOLE
M8X14,M8X14 L=33 		1-09300-058-1 02 1 9204- ● ●
218 WASHER; PL,COVER
ID=8.4 OD=18 		9-09160-608-0 01 1 9204- ● ●
222 NUT; COVER,TIMING CHECK HOLE
M8 		9-09110-408-0 02 1 9204- ● ●
224 STUD; STARTER
M14X40 L=61 		9-04411-440-0 02 1 9204- ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9505- ●
226 STUD; HSG
M12X60 L=78 		9-94411-260-0 01 1 9204- ● ●
229 COVER; TIMING CHECK HOLE 1-11349-126-0 01 1 9204- ● ●
241 WASHER; PL,HSG
ID=12.2 		9-09851-933-0 16 1 9204- ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 9505- ●
268 COVER; FRT 1-11321-080-1 01 1 9204- ● ●
270 STUD; FRT COVER
M8X16 L=32 		9-04010-816-0 06 1 9204- ● ●
278 WASHER; COVER FIX 1-11349-127-0 01 1 9204- ● ●
485 GASKET; SENSOR
TACHOMETER<UD7> 		9-09565-212-0 01 1 9204- ●
485 GASKET; SENSOR 9-09565-212-0 01 1 9204- ● ●
