◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11152 - FVM(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#68392) — 15 parça

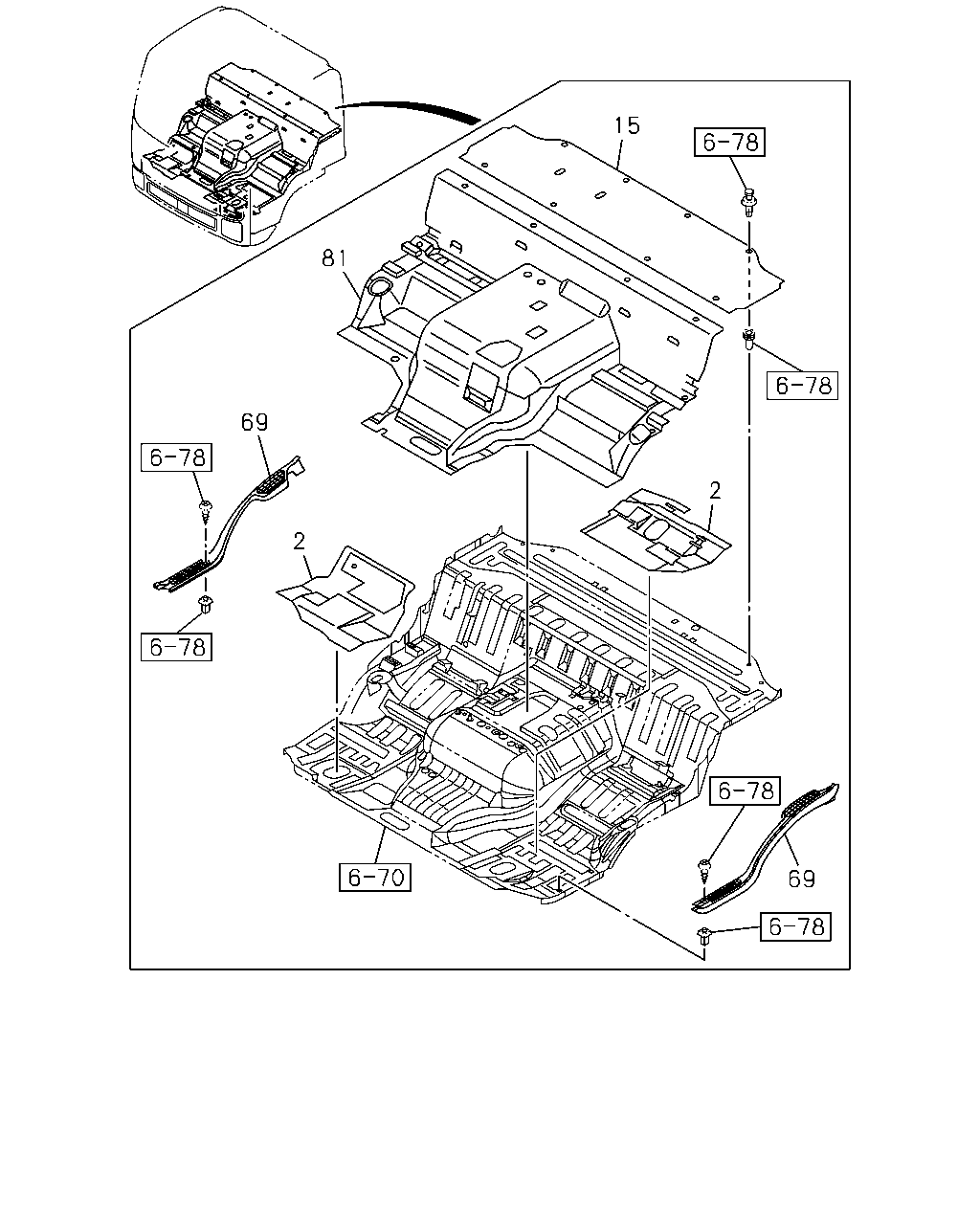

çizim 132555
15 81 69 2 69
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
GRAY 		8-97414-161-1 01 1 0907-1003
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97414-161-1 01 1 1004-
2 MAT; FLOOR
GRAY 		8-97414-162-2 01 1 0907-1003
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97414-162-3 01 1 1004-
2 MAT; FLOOR
GRAY 		8-97414-161-0 01 1 0809-0905
2 MAT; FLOOR
GRAY 		8-97414-162-1 01 1 0809-0905
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1004-
15 MAT; FLOOR REAR
EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> GRAY 		8-97407-397-0 01 1 1004-1005
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 0809-1003
15 MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 1004-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97407-412-1 01 1 0809-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> GRAY 		8-97409-776-2 01 1 0809-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> GRAY 		8-97407-413-1 01 1 0809-
81 MAT; FLOOR,CENTER
GRAY 		8-97411-558-2 01 1 0809-1003
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97411-558-2 01 1 1004-
