2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#6839) — 253 parça

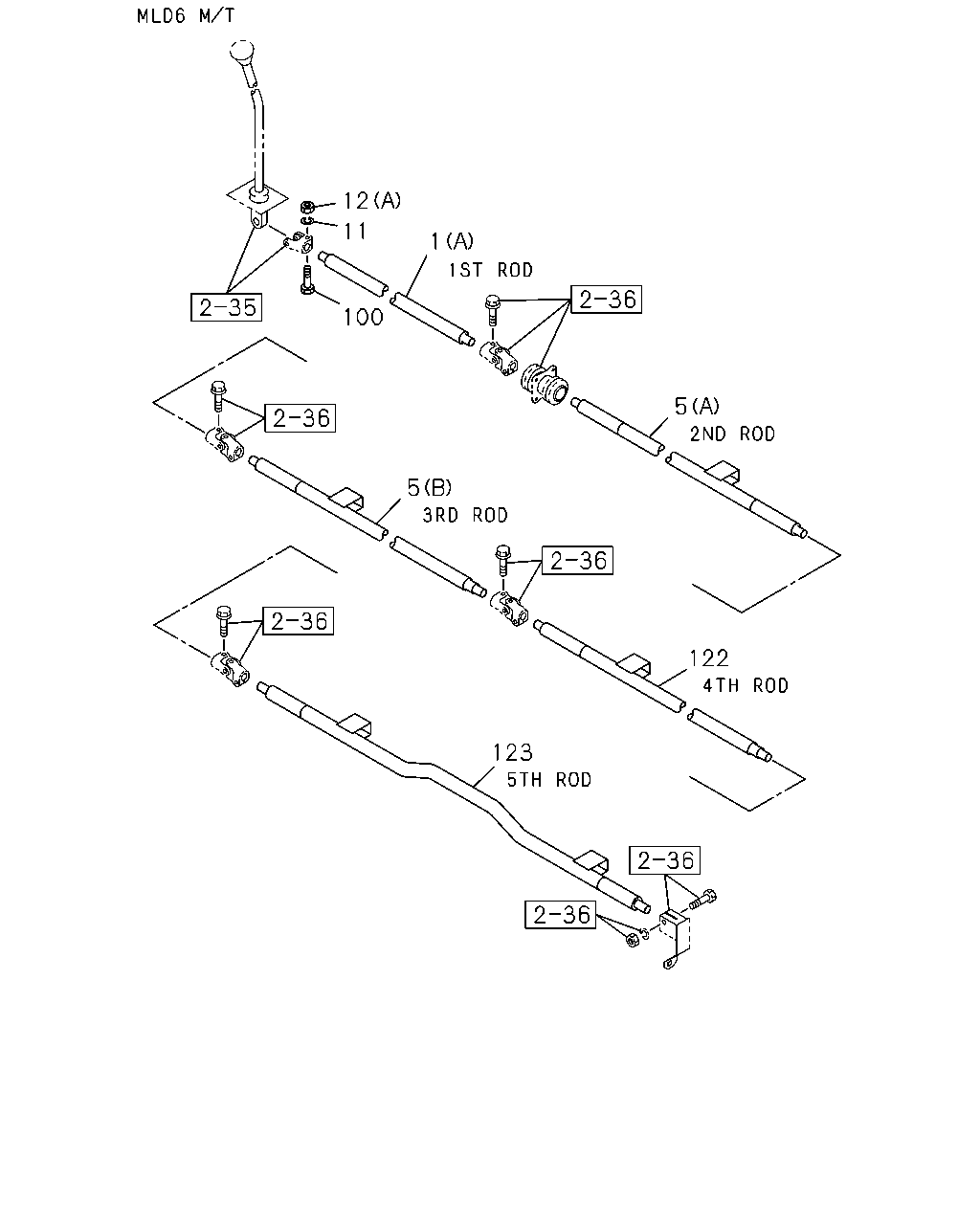

çizim 98914
12 11 1 100 5 5 122 123
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 ROD; LINK,1ST SHIFT
CTR SPLIT FRAME<TLW> (A) L=1465 		1-33652-786-0 01 1 9806-9911 ● ● ●
1 ROD; LINK,1ST SHIFT
(A) L=1846 		8-97530-055-0 01 1 9912- ●
1 ROD; LINK,1ST SHIFT
CTR SPLIT FRAME<TLW> (B) OR L=320 		1-33671-137-0 01 1 9806-9911 ● ● ●
1 ROD; LINK,1ST SHIFT
CTR SPLIT FRAME<TLW> (B) L=320 		1-33671-138-0 01 1 9806-9911 ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9806-9911 ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9912-0106 ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33671-821-1 01 1 0107- ●
1 ROD; LINK,1ST SHIFT
EXC. CTR SPLIT FRAME<TLW> (A) L=1846 		1-33652-747-1 01 1 9806-9911 ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
CTR SPLIT FRAME<TLW> (A) L=850 		1-33652-787-0 01 1 9806-9911 ● ● ●
5 ROD; LINK,3RD SHIFT
WB 5000MM(50W) (A) L=2629 		8-97530-056-0 01 1 9912- ●
5 ROD; LINK,3RD SHIFT
CTR SPLIT FRAME<TLW> (B) L=1695 		1-33652-788-0 01 1 9806-9911 ● ● ●
5 ROD; LINK,3RD SHIFT
WB 5000MM(50W) (A) L=2629 		1-33652-751-0 01 1 9806-9911 ● ● ● ●
5 ROD; LINK,3RD SHIFT
WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> (A) L=3329 		1-33652-752-0 01 1 9806-9911 ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
WB 5700MM(57W) (A) L=3329 		8-97530-051-0 01 1 9912- ●
5 ROD; LINK,3RD SHIFT
EXC. CTR SPLIT FRAME<TLW> (B) L=2386 		1-33652-750-0 01 1 9806-9911 ● ● ● ●
5 ROD; LINK,3RD SHIFT
(B) L=2386 		8-97530-052-0 01 1 9912- ●
5 ROD; LINK,3RD SHIFT
(B) L=2386 		1-33652-773-0 01 1 9806-9911 ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-510-0 01 1 9806-9911 ● ● ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-510-0 01 1 9912-0603 ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		0-91510-510-0 01 1 0604- ●
12 NUT; 1ST LINK ROD,SHIFT
CTR SPLIT FRAME<TLW> (B) M10 FLANGE 		1-09440-056-0 04 1 9806-9911 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) M10 FLANGE 		1-09440-056-0 02 1 9806-9911 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) M10 FLANGE 		1-09440-056-0 02 1 9912- ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		9-09110-510-0 01 1 9806-9911 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		9-09110-510-0 01 1 9912-0512 ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		0-91110-510-0 01 1 0601- ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9806-9911 ● ● ● ● ●
100 BOLT; CONT ROD
M10X50 		1-09000-489-0 01 1 9912- ●
122 ROD ASM; LINK,3RD & 4TH
CTR SPLIT FRAME<TLW> 		1-33652-789-0 01 1 9806-9911 ● ● ●
123 ROD ASM; LINK,5TH
CTR SPLIT FRAME<TLW> 		1-33652-791-0 01 1 9806-9911 ● ● ●

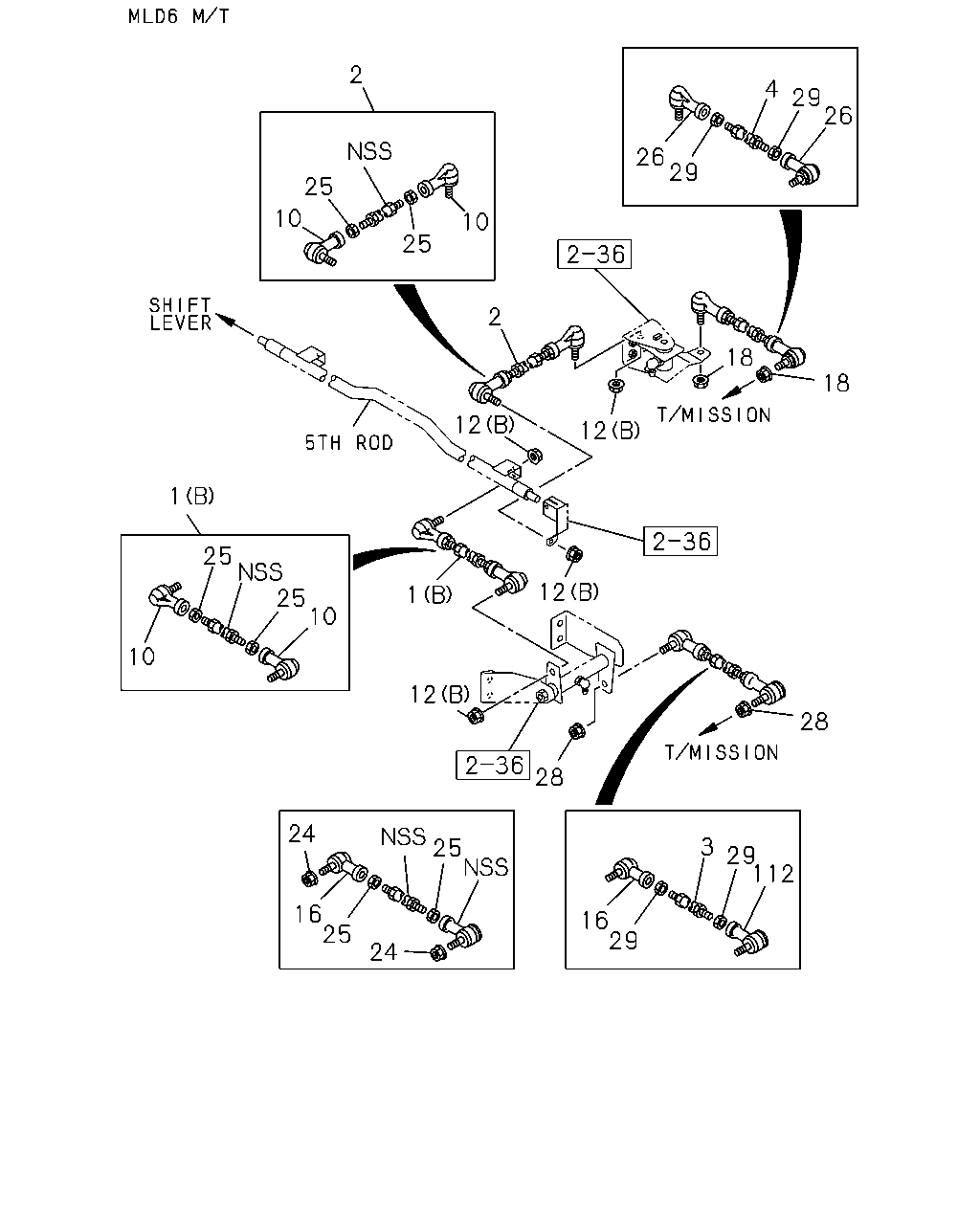

çizim 98918
2 4 29 26 26 29 25 10 10 25 2 18 18 12 12 1 25 25 10 12 1 10 12 28 28 24 25 3 29 112 16 25 16 29 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 ROD; LINK,1ST SHIFT
CTR SPLIT FRAME<TLW> (A) L=1465 		1-33652-786-0 01 1 9806-9911 ● ● ●
1 ROD; LINK,1ST SHIFT
(A) L=1846 		8-97530-055-0 01 1 9912- ●
1 ROD; LINK,1ST SHIFT
CTR SPLIT FRAME<TLW> (B) OR L=320 		1-33671-137-0 01 1 9806-9911 ● ● ●
1 ROD; LINK,1ST SHIFT
CTR SPLIT FRAME<TLW> (B) L=320 		1-33671-138-0 01 1 9806-9911 ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9806-9911 ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9912-0106 ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33671-821-1 01 1 0107- ●
1 ROD; LINK,1ST SHIFT
EXC. CTR SPLIT FRAME<TLW> (A) L=1846 		1-33652-747-1 01 1 9806-9911 ● ● ● ● ●
2 ROD; LINK,1ST SELECT
CTR SPLIT FRAME<TLW> 		1-33671-139-0 01 1 9806-9911 ● ● ●
2 ROD; LINK,1ST SELECT
EXC. CTR SPLIT FRAME<TLW> 		1-33670-554-1 01 1 9806-9911 ● ● ● ●
2 ROD; LINK,1ST SELECT 1-33670-554-1 01 1 9912-0106 ●
2 ROD; LINK,1ST SELECT 1-33671-822-1 01 1 0107- ●
2 ROD; LINK,1ST SELECT 1-33671-019-0 01 1 9806-9911 ●
3 ROD; LINK,2ND SHIFT
L=370 		8-94300-307-0 01 1 9806-9911 ● ● ● ● ●
3 ROD; LINK,2ND SHIFT
L=370 		8-94300-307-0 01 1 9912- ●
4 ROD; LINK,2ND SELECT
L=390 		1-33652-634-0 01 1 9806-9911 ● ● ● ●
4 ROD; LINK,2ND SELECT
L=390 		1-33652-634-0 01 1 9912- ●
4 ROD; LINK,2ND SELECT
L=567 		1-33652-256-0 01 1 9806-9911 ●
10 JOINT ASM; BALL,SELECT ROD
LH THREAD 		1-09760-115-0 01 1 0107- ●
10 JOINT ASM; BALL,SELECT ROD
CTR SPLIT FRAME<TLW> 		1-09760-124-0 04 1 9806-9911 ● ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-078-0 02 1 9806-9911 ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-078-0 02 1 9912-0106 ●
10 JOINT ASM; BALL,SELECT ROD
RH THREAD 		1-09760-116-0 01 1 0107- ●
12 NUT; 1ST LINK ROD,SHIFT
CTR SPLIT FRAME<TLW> (B) M10 FLANGE 		1-09440-056-0 04 1 9806-9911 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) M10 FLANGE 		1-09440-056-0 02 1 9806-9911 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) M10 FLANGE 		1-09440-056-0 02 1 9912- ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		9-09110-510-0 01 1 9806-9911 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		9-09110-510-0 01 1 9912-0512 ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		0-91110-510-0 01 1 0601- ●
16 JOINT ASM; BALL,CONT ROD
WHITE 		1-09760-115-0 01 1 0107- ●
16 JOINT ASM; BALL,CONT ROD
CTR SPLIT FRAME<TLW> 		1-09760-124-0 02 1 9806-9911 ● ● ●
16 JOINT ASM; BALL,CONT ROD
EXC. CTR SPLIT FRAME<TLW> 		1-09760-078-0 02 1 9806-9911 ● ● ● ●
16 JOINT ASM; BALL,CONT ROD 1-09760-078-0 02 1 9912-0106 ●
16 JOINT ASM; BALL,CONT ROD
YELLOW 		1-09760-116-0 01 1 0107- ●
16 JOINT ASM; BALL,CONT ROD 1-09760-110-0 02 1 9806-9911 ●
18 NUT; 1ST LINK ROD
CTR SPLIT FRAME<TLW> M10 FLANGE 		1-09440-056-0 04 1 9806-9911 ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9806-9911 ● ● ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9912- ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9806-9911 ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9912- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 LH THREAD 		9-09840-247-1 01 1 0107- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 01 1 0107-0512 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 01 1 0601- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CTR SPLIT FRAME<TLW> M10 		9-09111-410-0 08 1 9806-9911 ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9912-0106 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0107-0512 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9806-9911 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9806-9911 ● ● ● ● ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 9806-9911 ● ● ● ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 9912- ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-110-0 02 1 9806-9911 ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9806-9911 ● ● ● ● ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9912- ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 LH THREAD 		9-09840-247-1 01 1 0107- ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 01 1 0107-0512 ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 01 1 0601- ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9806-9911 ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9912-0106 ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0107-0512 ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601- ●
112 JOINT; RUBBER 1-33660-157-1 01 1 9806-9911 ● ● ● ● ●
112 JOINT; RUBBER 1-33660-157-2 01 1 9912- ●

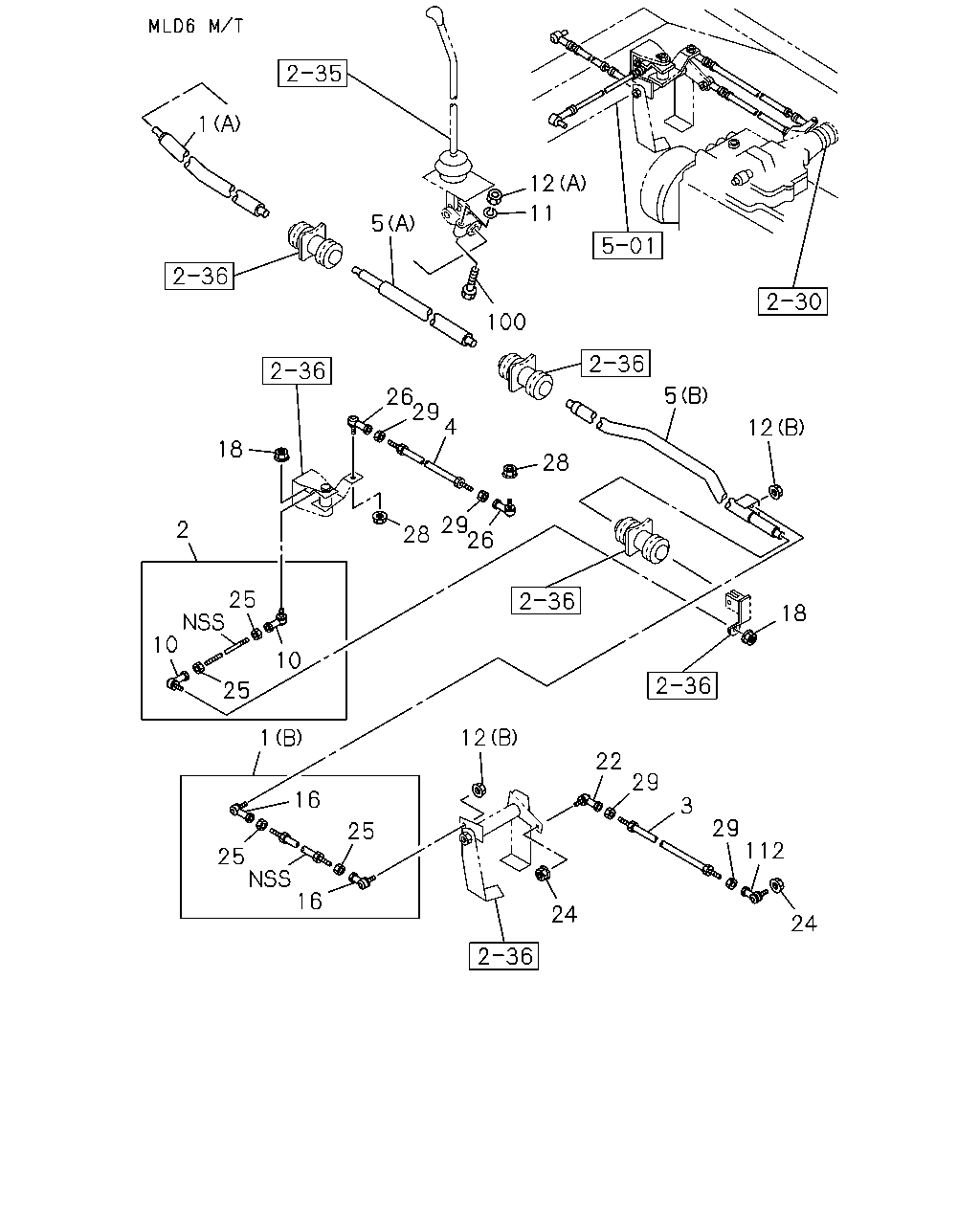

çizim 98919
1 12 11 5 100 5 26 29 4 12 18 28 29 26 2 28 25 10 18 10 25 12 1 22 29 16 3 29 112 25 25 16 24 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 ROD; LINK,1ST SHIFT
CTR SPLIT FRAME<TLW> (A) L=1465 		1-33652-786-0 01 1 9806-9911 ● ● ●
1 ROD; LINK,1ST SHIFT
(A) L=1846 		8-97530-055-0 01 1 9912- ●
1 ROD; LINK,1ST SHIFT
CTR SPLIT FRAME<TLW> (B) OR L=320 		1-33671-137-0 01 1 9806-9911 ● ● ●
1 ROD; LINK,1ST SHIFT
CTR SPLIT FRAME<TLW> (B) L=320 		1-33671-138-0 01 1 9806-9911 ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9806-9911 ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9912-0106 ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33671-821-1 01 1 0107- ●
1 ROD; LINK,1ST SHIFT
EXC. CTR SPLIT FRAME<TLW> (A) L=1846 		1-33652-747-1 01 1 9806-9911 ● ● ● ● ●
2 ROD; LINK,1ST SELECT
CTR SPLIT FRAME<TLW> 		1-33671-139-0 01 1 9806-9911 ● ● ●
2 ROD; LINK,1ST SELECT
EXC. CTR SPLIT FRAME<TLW> 		1-33670-554-1 01 1 9806-9911 ● ● ● ●
2 ROD; LINK,1ST SELECT 1-33670-554-1 01 1 9912-0106 ●
2 ROD; LINK,1ST SELECT 1-33671-822-1 01 1 0107- ●
2 ROD; LINK,1ST SELECT 1-33671-019-0 01 1 9806-9911 ●
3 ROD; LINK,2ND SHIFT
L=370 		8-94300-307-0 01 1 9806-9911 ● ● ● ● ●
3 ROD; LINK,2ND SHIFT
L=370 		8-94300-307-0 01 1 9912- ●
4 ROD; LINK,2ND SELECT
L=390 		1-33652-634-0 01 1 9806-9911 ● ● ● ●
4 ROD; LINK,2ND SELECT
L=390 		1-33652-634-0 01 1 9912- ●
4 ROD; LINK,2ND SELECT
L=567 		1-33652-256-0 01 1 9806-9911 ●
5 ROD; LINK,3RD SHIFT
CTR SPLIT FRAME<TLW> (A) L=850 		1-33652-787-0 01 1 9806-9911 ● ● ●
5 ROD; LINK,3RD SHIFT
WB 5000MM(50W) (A) L=2629 		8-97530-056-0 01 1 9912- ●
5 ROD; LINK,3RD SHIFT
CTR SPLIT FRAME<TLW> (B) L=1695 		1-33652-788-0 01 1 9806-9911 ● ● ●
5 ROD; LINK,3RD SHIFT
WB 5000MM(50W) (A) L=2629 		1-33652-751-0 01 1 9806-9911 ● ● ● ●
5 ROD; LINK,3RD SHIFT
WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> (A) L=3329 		1-33652-752-0 01 1 9806-9911 ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
WB 5700MM(57W) (A) L=3329 		8-97530-051-0 01 1 9912- ●
5 ROD; LINK,3RD SHIFT
EXC. CTR SPLIT FRAME<TLW> (B) L=2386 		1-33652-750-0 01 1 9806-9911 ● ● ● ●
5 ROD; LINK,3RD SHIFT
(B) L=2386 		8-97530-052-0 01 1 9912- ●
5 ROD; LINK,3RD SHIFT
(B) L=2386 		1-33652-773-0 01 1 9806-9911 ●
10 JOINT ASM; BALL,SELECT ROD
LH THREAD 		1-09760-115-0 01 1 0107- ●
10 JOINT ASM; BALL,SELECT ROD
CTR SPLIT FRAME<TLW> 		1-09760-124-0 04 1 9806-9911 ● ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-078-0 02 1 9806-9911 ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-078-0 02 1 9912-0106 ●
10 JOINT ASM; BALL,SELECT ROD
RH THREAD 		1-09760-116-0 01 1 0107- ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-510-0 01 1 9806-9911 ● ● ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-510-0 01 1 9912-0603 ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		0-91510-510-0 01 1 0604- ●
12 NUT; 1ST LINK ROD,SHIFT
CTR SPLIT FRAME<TLW> (B) M10 FLANGE 		1-09440-056-0 04 1 9806-9911 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) M10 FLANGE 		1-09440-056-0 02 1 9806-9911 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) M10 FLANGE 		1-09440-056-0 02 1 9912- ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		9-09110-510-0 01 1 9806-9911 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		9-09110-510-0 01 1 9912-0512 ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		0-91110-510-0 01 1 0601- ●
16 JOINT ASM; BALL,CONT ROD
WHITE 		1-09760-115-0 01 1 0107- ●
16 JOINT ASM; BALL,CONT ROD
CTR SPLIT FRAME<TLW> 		1-09760-124-0 02 1 9806-9911 ● ● ●
16 JOINT ASM; BALL,CONT ROD
EXC. CTR SPLIT FRAME<TLW> 		1-09760-078-0 02 1 9806-9911 ● ● ● ●
16 JOINT ASM; BALL,CONT ROD 1-09760-078-0 02 1 9912-0106 ●
16 JOINT ASM; BALL,CONT ROD
YELLOW 		1-09760-116-0 01 1 0107- ●
16 JOINT ASM; BALL,CONT ROD 1-09760-110-0 02 1 9806-9911 ●
18 NUT; 1ST LINK ROD
CTR SPLIT FRAME<TLW> M10 FLANGE 		1-09440-056-0 04 1 9806-9911 ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9806-9911 ● ● ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9912- ●
22 JOINT; BALL,SCREW,LINK ROD
EXC. CTR SPLIT FRAME<TLW> 		1-09760-078-0 01 1 9806-9911 ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD 1-09760-078-0 01 1 9912- ●
22 JOINT; BALL,SCREW,LINK ROD 1-09760-110-0 01 1 9806-9911 ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9806-9911 ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9912- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 LH THREAD 		9-09840-247-1 01 1 0107- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 01 1 0107-0512 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 01 1 0601- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CTR SPLIT FRAME<TLW> M10 		9-09111-410-0 08 1 9806-9911 ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9912-0106 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0107-0512 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9806-9911 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9806-9911 ● ● ● ● ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 9806-9911 ● ● ● ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 9912- ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-110-0 02 1 9806-9911 ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9806-9911 ● ● ● ● ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9912- ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 LH THREAD 		9-09840-247-1 01 1 0107- ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 01 1 0107-0512 ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 01 1 0601- ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9806-9911 ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9912-0106 ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0107-0512 ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601- ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9806-9911 ● ● ● ● ●
100 BOLT; CONT ROD
M10X50 		1-09000-489-0 01 1 9912- ●
112 JOINT; RUBBER 1-33660-157-1 01 1 9806-9911 ● ● ● ● ●
112 JOINT; RUBBER 1-33660-157-2 01 1 9912- ●

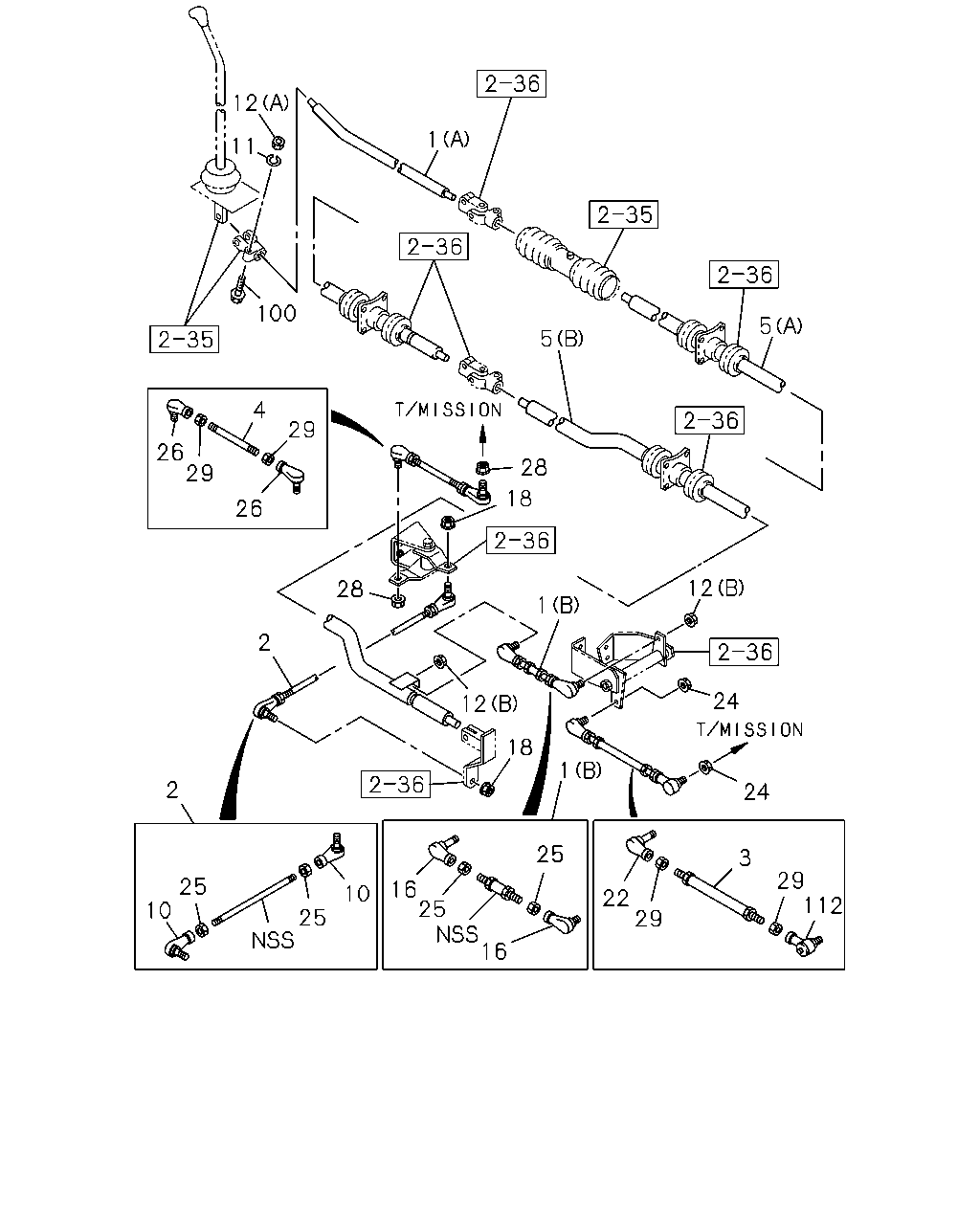

çizim 98920
12 1 11 100 5 5 4 29 26 29 28 18 26 12 28 1 2 24 12 18 1 2 24 25 3 29 112 25 10 16 25 16 10 22 29 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 ROD; LINK,1ST SHIFT
CTR SPLIT FRAME<TLW> (A) L=1465 		1-33652-786-0 01 1 9806-9911 ● ● ●
1 ROD; LINK,1ST SHIFT
(A) L=1846 		8-97530-055-0 01 1 9912- ●
1 ROD; LINK,1ST SHIFT
CTR SPLIT FRAME<TLW> (B) OR L=320 		1-33671-137-0 01 1 9806-9911 ● ● ●
1 ROD; LINK,1ST SHIFT
CTR SPLIT FRAME<TLW> (B) L=320 		1-33671-138-0 01 1 9806-9911 ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9806-9911 ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33670-552-2 01 1 9912-0106 ●
1 ROD; LINK,1ST SHIFT
(B) L=383 		1-33671-821-1 01 1 0107- ●
1 ROD; LINK,1ST SHIFT
EXC. CTR SPLIT FRAME<TLW> (A) L=1846 		1-33652-747-1 01 1 9806-9911 ● ● ● ● ●
2 ROD; LINK,1ST SELECT
CTR SPLIT FRAME<TLW> 		1-33671-139-0 01 1 9806-9911 ● ● ●
2 ROD; LINK,1ST SELECT
EXC. CTR SPLIT FRAME<TLW> 		1-33670-554-1 01 1 9806-9911 ● ● ● ●
2 ROD; LINK,1ST SELECT 1-33670-554-1 01 1 9912-0106 ●
2 ROD; LINK,1ST SELECT 1-33671-822-1 01 1 0107- ●
2 ROD; LINK,1ST SELECT 1-33671-019-0 01 1 9806-9911 ●
3 ROD; LINK,2ND SHIFT
L=370 		8-94300-307-0 01 1 9806-9911 ● ● ● ● ●
3 ROD; LINK,2ND SHIFT
L=370 		8-94300-307-0 01 1 9912- ●
4 ROD; LINK,2ND SELECT
L=390 		1-33652-634-0 01 1 9806-9911 ● ● ● ●
4 ROD; LINK,2ND SELECT
L=390 		1-33652-634-0 01 1 9912- ●
4 ROD; LINK,2ND SELECT
L=567 		1-33652-256-0 01 1 9806-9911 ●
5 ROD; LINK,3RD SHIFT
CTR SPLIT FRAME<TLW> (A) L=850 		1-33652-787-0 01 1 9806-9911 ● ● ●
5 ROD; LINK,3RD SHIFT
WB 5000MM(50W) (A) L=2629 		8-97530-056-0 01 1 9912- ●
5 ROD; LINK,3RD SHIFT
CTR SPLIT FRAME<TLW> (B) L=1695 		1-33652-788-0 01 1 9806-9911 ● ● ●
5 ROD; LINK,3RD SHIFT
WB 5000MM(50W) (A) L=2629 		1-33652-751-0 01 1 9806-9911 ● ● ● ●
5 ROD; LINK,3RD SHIFT
WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> (A) L=3329 		1-33652-752-0 01 1 9806-9911 ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
WB 5700MM(57W) (A) L=3329 		8-97530-051-0 01 1 9912- ●
5 ROD; LINK,3RD SHIFT
EXC. CTR SPLIT FRAME<TLW> (B) L=2386 		1-33652-750-0 01 1 9806-9911 ● ● ● ●
5 ROD; LINK,3RD SHIFT
(B) L=2386 		8-97530-052-0 01 1 9912- ●
5 ROD; LINK,3RD SHIFT
(B) L=2386 		1-33652-773-0 01 1 9806-9911 ●
10 JOINT ASM; BALL,SELECT ROD
LH THREAD 		1-09760-115-0 01 1 0107- ●
10 JOINT ASM; BALL,SELECT ROD
CTR SPLIT FRAME<TLW> 		1-09760-124-0 04 1 9806-9911 ● ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-078-0 02 1 9806-9911 ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-078-0 02 1 9912-0106 ●
10 JOINT ASM; BALL,SELECT ROD
RH THREAD 		1-09760-116-0 01 1 0107- ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-510-0 01 1 9806-9911 ● ● ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-510-0 01 1 9912-0603 ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		0-91510-510-0 01 1 0604- ●
12 NUT; 1ST LINK ROD,SHIFT
CTR SPLIT FRAME<TLW> (B) M10 FLANGE 		1-09440-056-0 04 1 9806-9911 ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) M10 FLANGE 		1-09440-056-0 02 1 9806-9911 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(B) M10 FLANGE 		1-09440-056-0 02 1 9912- ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		9-09110-510-0 01 1 9806-9911 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		9-09110-510-0 01 1 9912-0512 ●
12 NUT; 1ST LINK ROD,SHIFT
(A) M10 		0-91110-510-0 01 1 0601- ●
16 JOINT ASM; BALL,CONT ROD
WHITE 		1-09760-115-0 01 1 0107- ●
16 JOINT ASM; BALL,CONT ROD
CTR SPLIT FRAME<TLW> 		1-09760-124-0 02 1 9806-9911 ● ● ●
16 JOINT ASM; BALL,CONT ROD
EXC. CTR SPLIT FRAME<TLW> 		1-09760-078-0 02 1 9806-9911 ● ● ● ●
16 JOINT ASM; BALL,CONT ROD 1-09760-078-0 02 1 9912-0106 ●
16 JOINT ASM; BALL,CONT ROD
YELLOW 		1-09760-116-0 01 1 0107- ●
16 JOINT ASM; BALL,CONT ROD 1-09760-110-0 02 1 9806-9911 ●
18 NUT; 1ST LINK ROD
CTR SPLIT FRAME<TLW> M10 FLANGE 		1-09440-056-0 04 1 9806-9911 ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9806-9911 ● ● ● ● ●
18 NUT; 1ST LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9912- ●
22 JOINT; BALL,SCREW,LINK ROD
EXC. CTR SPLIT FRAME<TLW> 		1-09760-078-0 01 1 9806-9911 ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD 1-09760-078-0 01 1 9912- ●
22 JOINT; BALL,SCREW,LINK ROD 1-09760-110-0 01 1 9806-9911 ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9806-9911 ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9912- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 LH THREAD 		9-09840-247-1 01 1 0107- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 01 1 0107-0512 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 01 1 0601- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CTR SPLIT FRAME<TLW> M10 		9-09111-410-0 08 1 9806-9911 ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9912-0106 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0107-0512 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9806-9911 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9806-9911 ● ● ● ● ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 9806-9911 ● ● ● ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 9912- ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-110-0 02 1 9806-9911 ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9806-9911 ● ● ● ● ●
28 NUT; 2ND LINK ROD
M10 FLANGE 		1-09440-056-0 02 1 9912- ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 LH THREAD 		9-09840-247-1 01 1 0107- ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 01 1 0107-0512 ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 01 1 0601- ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9806-9911 ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 04 1 9912-0106 ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0107-0512 ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601- ●
100 BOLT; CONT ROD
M10X47 		1-09029-025-0 01 1 9806-9911 ● ● ● ● ●
100 BOLT; CONT ROD
M10X50 		1-09000-489-0 01 1 9912- ●
112 JOINT; RUBBER 1-33660-157-1 01 1 9806-9911 ● ● ● ● ●
112 JOINT; RUBBER 1-33660-157-2 01 1 9912- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
