8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#68386) — 57 parça

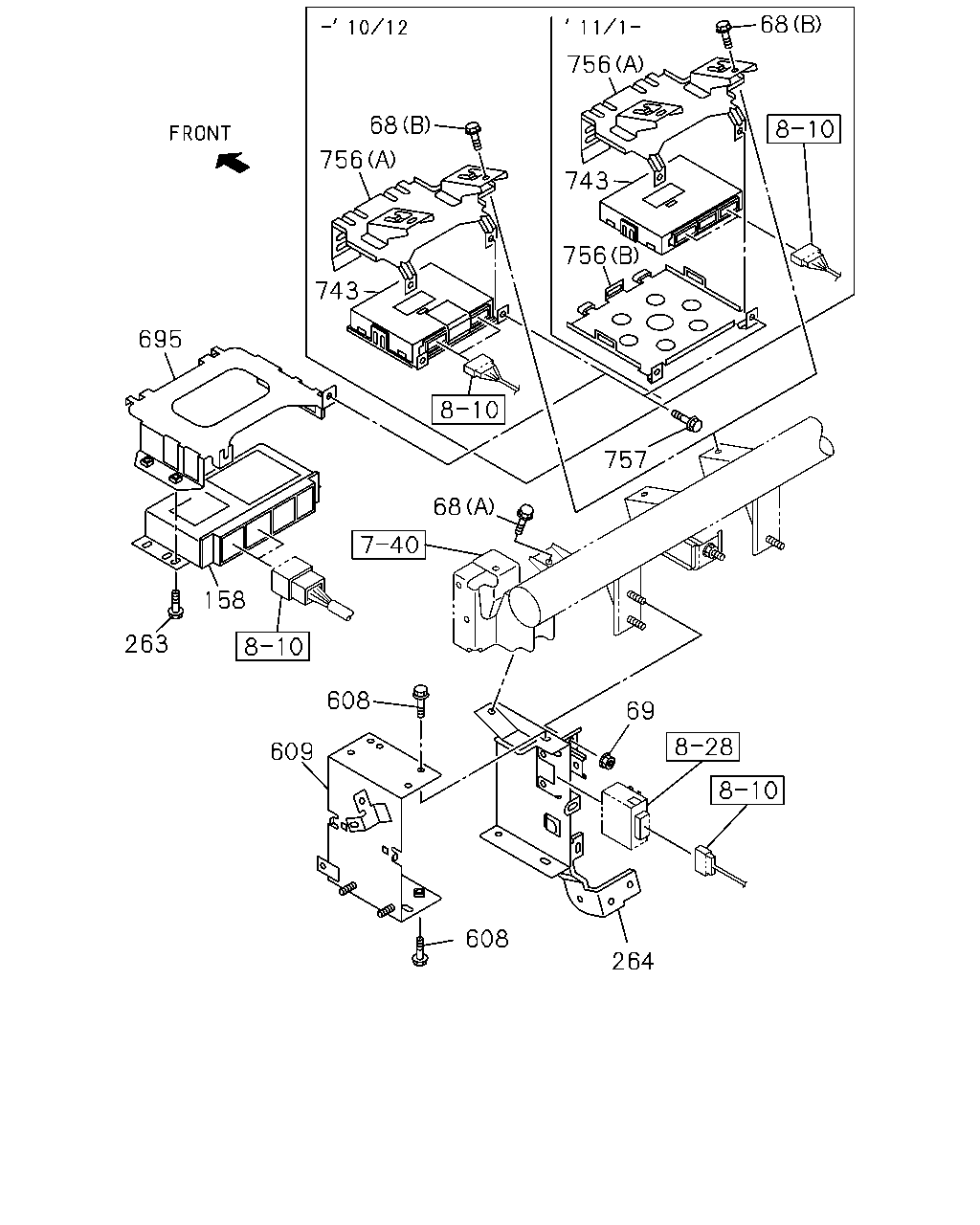

çizim 138171
68 756 68 756 743 756 743 695 757 68 158 263 608 69 609 608 264
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
MEMORY SYSTEM RUNNING CONDITION<NCR> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0902- ● ●
68 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0902- ●
68 BOLT; BRKT
(A) M6X16 FLANGE THA 		0-28650-616-0 01 1 0806- ● ●
69 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 0806- ● ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB CHINA<5E0>,TIRE 11.00R-22.5-16 RIB<55N> ANTILOCK BRAKE SYSTEM<BFA> 		1-80119-261-0 01 1 0902-1101 ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB CHINA<5E0>,TIRE 11.00R-22.5-16 RIB<55N> ANTILOCK BRAKE SYSTEM<BFA> 		8-98170-648-0 01 1 1102- ●
263 BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM<BFA> M6X16 FLANGE THA 		0-28650-616-0 04 1 0902- ●
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 0806- ● ●
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> M6X16 FLANGE THA 		0-28650-616-0 05 1 0806-1101 ● ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE THA 		0-28650-616-0 05 1 1102- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> 		8-98095-337-0 01 1 0806-1101 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 1102-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-1 01 1 1309- ●
695 BRACKET; CONT UNIT,ABS
ANTILOCK BRAKE SYSTEM<BFA> 		8-98045-016-1 01 1 0902- ●
743 CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98125-904-0 01 1 0902-0908 ● ●
743 CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98155-169-1 01 1 0909-1007 ● ●
743 CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98176-213-0 01 1 1008-1012 ● ●
743 CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98180-923-0 01 1 1101-1101 ● ●
743 CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98182-026-3 01 1 1101- ● ●
756 BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (A) 		8-98056-411-3 01 1 0902- ● ●
756 BRACKET; ECU,BCM
ANTILOCK BRAKE SYSTEM<BFA> EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> (A) 		8-98056-411-3 01 1 0902- ●
757 BOLT; BRKT,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> M6X16 FLANGE THA 		0-28650-616-0 02 1 1201- ● ●
757 BOLT; BRKT,BCM
ANTILOCK BRAKE SYSTEM<BFA> EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> M6X16 FLANGE THA 		0-28650-616-0 02 1 1201- ●
757 BOLT; BRKT,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> M6X16 FLANGE THA 		0-28650-616-0 02 1 0902-1112 ● ●
757 BOLT; BRKT,BCM
ANTILOCK BRAKE SYSTEM<BFA> EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> M6X16 FLANGE THA 		0-28650-616-0 02 1 0902-1112 ●

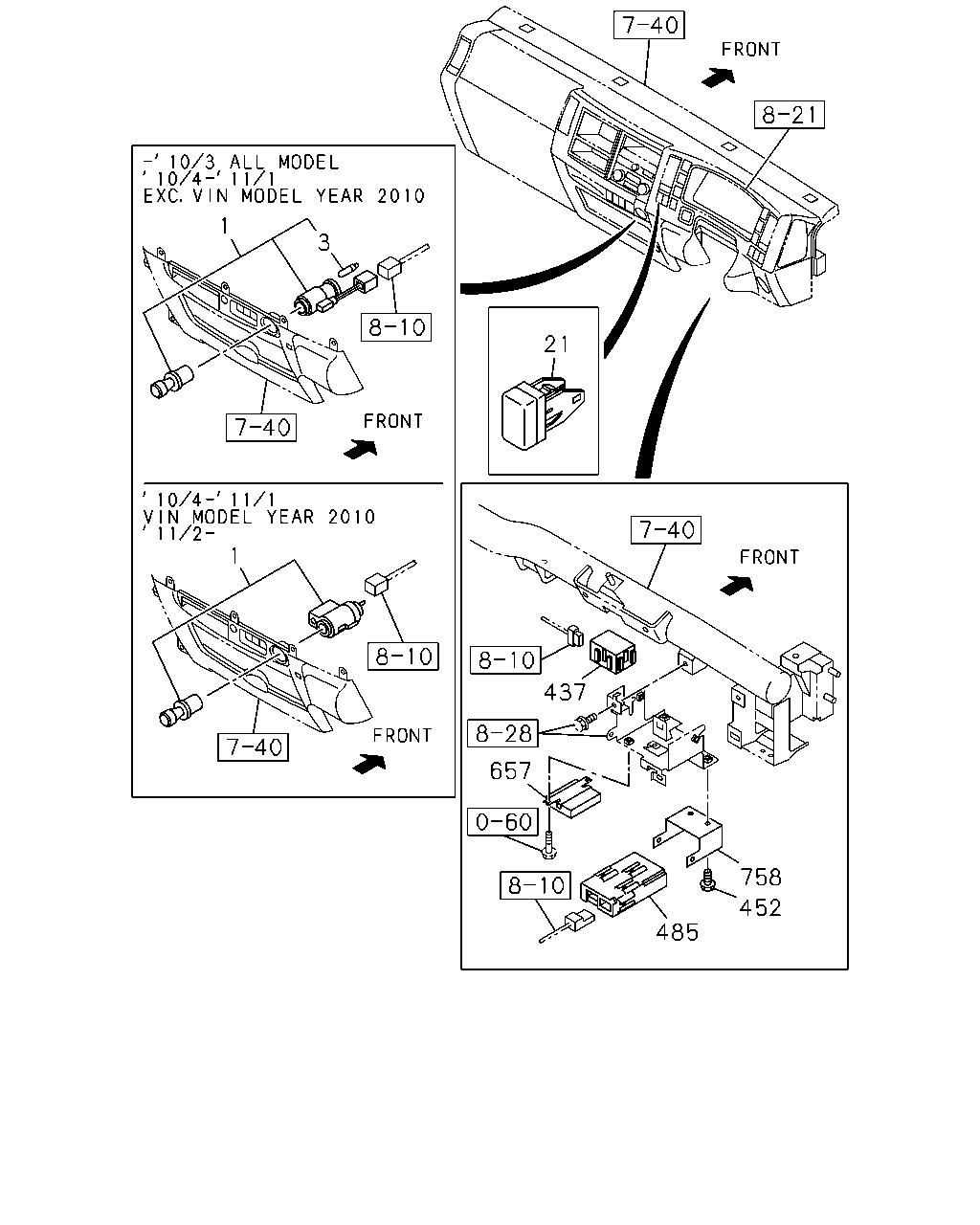

çizim 138411
1 3 1 437 657 485 758 452 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR
VIN MODEL YEAR 2010<VZA> 		8-98142-962-0 01 1 1004-1101 ● ●
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1102- ● ●
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0806-1003 ● ●
1 LIGHTER; CIGAR
EXC. VIN MODEL YEAR 2010<VZA> 		8-98076-255-0 01 1 1004-1101 ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0806-1003 ● ●
3 BULB; CIGAR LIGHTER
EXC. VIN MODEL YEAR 2010<VZA> 28V 1.8W 		8-97173-159-0 01 1 1004-1101 ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0806- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 0806- ● ●
452 BOLT; BRKT
ZF9S1310 M/T<Y5K> M6X16 FLANGE THA 		0-28650-616-0 02 1 0806- ●
452 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 02 1 0806- ●
485 CONTROL UNIT; SPEED SENSOR
ZF9S1310 M/T<Y5K> 		1-80190-063-0 01 1 0806- ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-063-0 01 1 0806- ●
657 CONTROL UNIT; MIMAMORI
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98013-144-8 01 1 0902-1401 ● ●
657 CONTROL UNIT; MIMAMORI
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98260-912-0 01 1 1402- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1310 M/T<Y5K> 		8-98048-743-1 01 1 0806- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 0806- ●

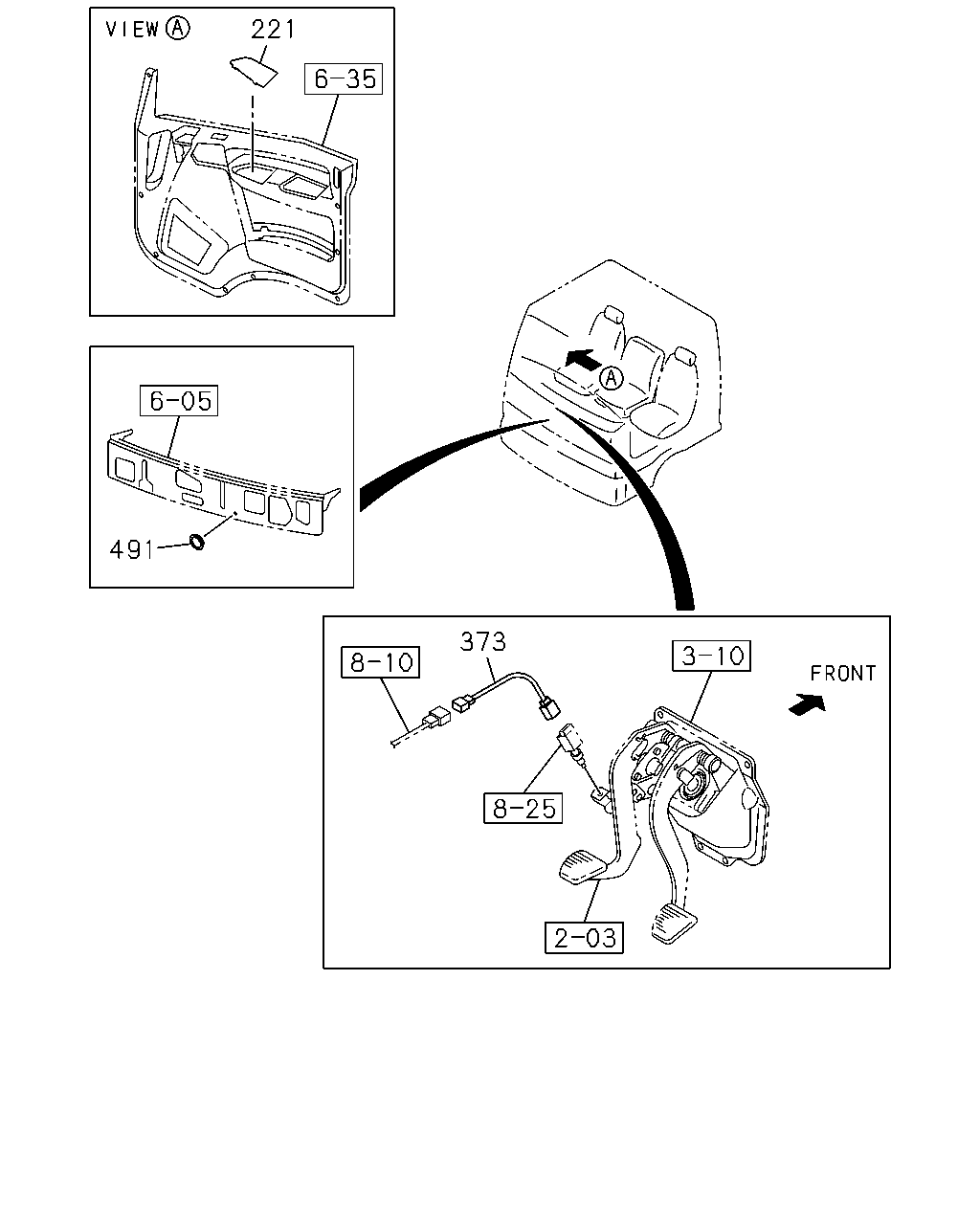

çizim 193969
221 491 373
BalonParca AdiParca NoAdetTipApplied Date A B
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 0806- ●
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 0806- ●
373 HARNESS; CLU SWITCH 8-98059-419-1 01 1 0806-1003 ● ●
373 HARNESS; CLU SWITCH
EXC. VIN MODEL YEAR 2010<VZA> 		8-98059-419-1 01 1 1004-1101 ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 0806- ● ●

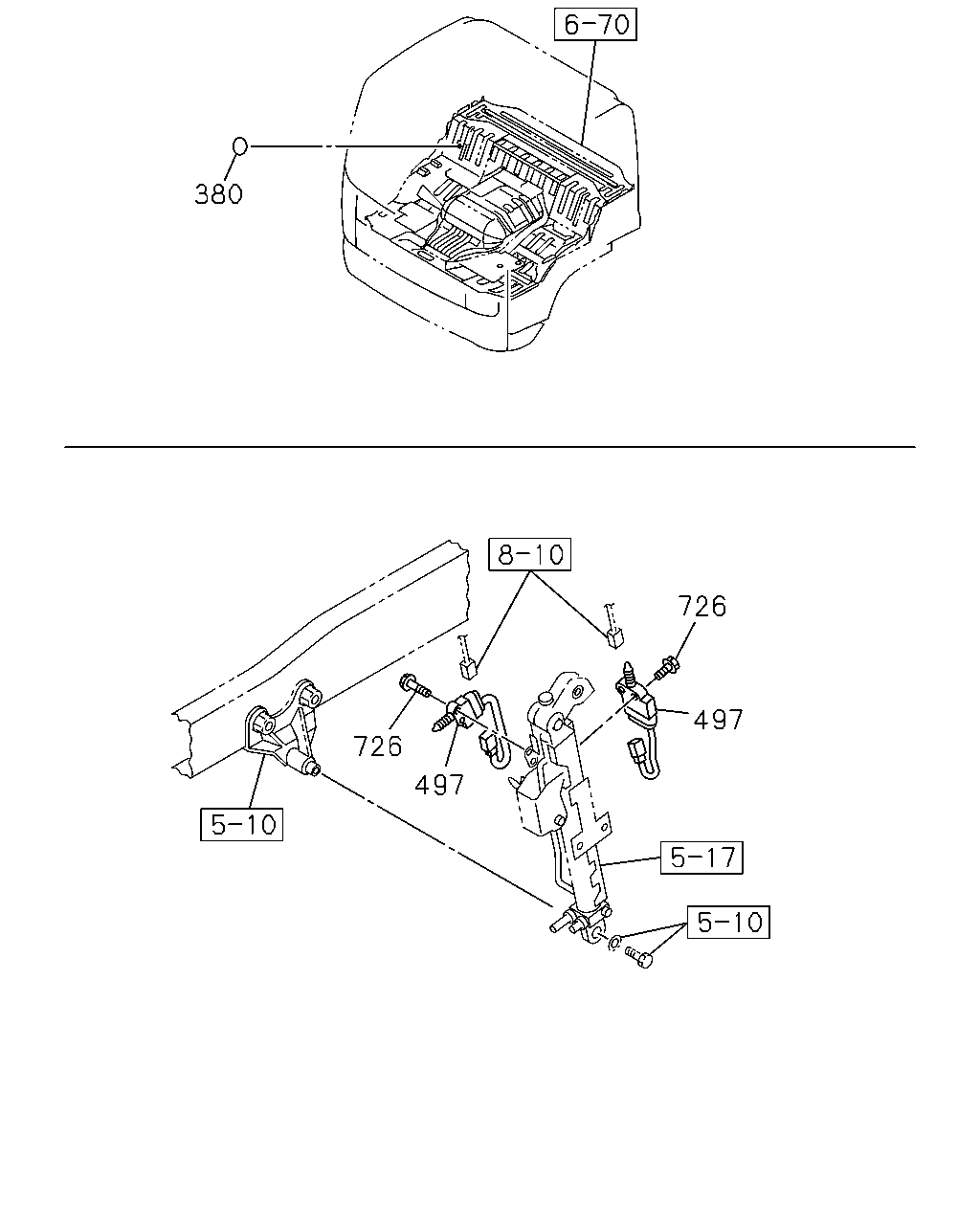

çizim 193985
380 726 497 726 497
BalonParca AdiParca NoAdetTipApplied Date A B
380 SEAL
OD=25 BLACK THA 		1-76798-019-0 01 1 0806- ● ●
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 0806-1101 ● ●
497 SWITCH; CAB TILT
AUTO CAB TILT<WV2>,MANUAL CAB TILT<WV3> STAMP NO 		1-82380-172-1 02 1 1102- ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE THA 		0-28050-625-0 04 1 0806-1101 ● ●
726 BOLT; SW,CAB TILT
AUTO CAB TILT<WV2>,MANUAL CAB TILT<WV3> M6X25 FLANGE THA 		0-28050-625-0 04 1 1102- ● ●

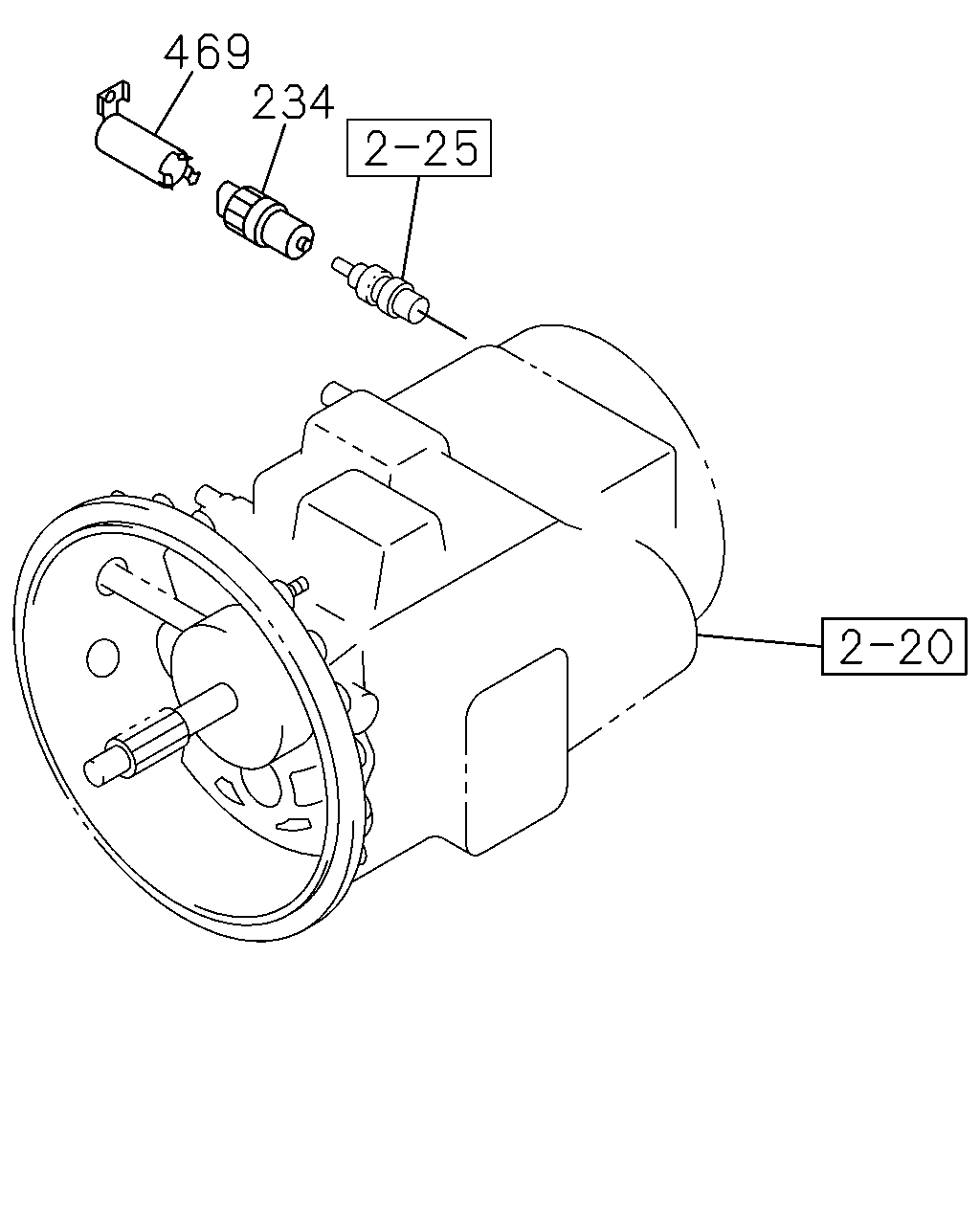

çizim 194052
469 234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
MAL6R M/T<Y2J> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0806-1112 ●
234 SENSOR; VEHICLE SPD
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1201- ●
469 PROTECTOR; SPEED SENSOR
MAL6R M/T<Y2J> 		8-97168-308-0 01 1 0806-0808 ●
469 PROTECTOR; SPEED SENSOR
MAL6R M/T<Y2J> 		8-98119-901-0 01 1 0809-1112 ●
469 PROTECTOR; SPEED SENSOR
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> 		8-98119-901-0 01 1 1201- ●
