8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#68385) — 92 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀
[825A] SWITCH NO.2 (25 parça)
[825A] SWITCH NO.4 (7 parça)
[825A] SWITCH NO.1 (20 parça)
[825A] REAR AXLE SIDE (5 parça)
[825A] SWITCH NO.3 (16 parça)
[825A] RELAY;CAB HARNESS (13 parça)
[825A] RELAY;FRAME HARNESS (4 parça)
[825A] OTHER PARTS (2 parça)
▶

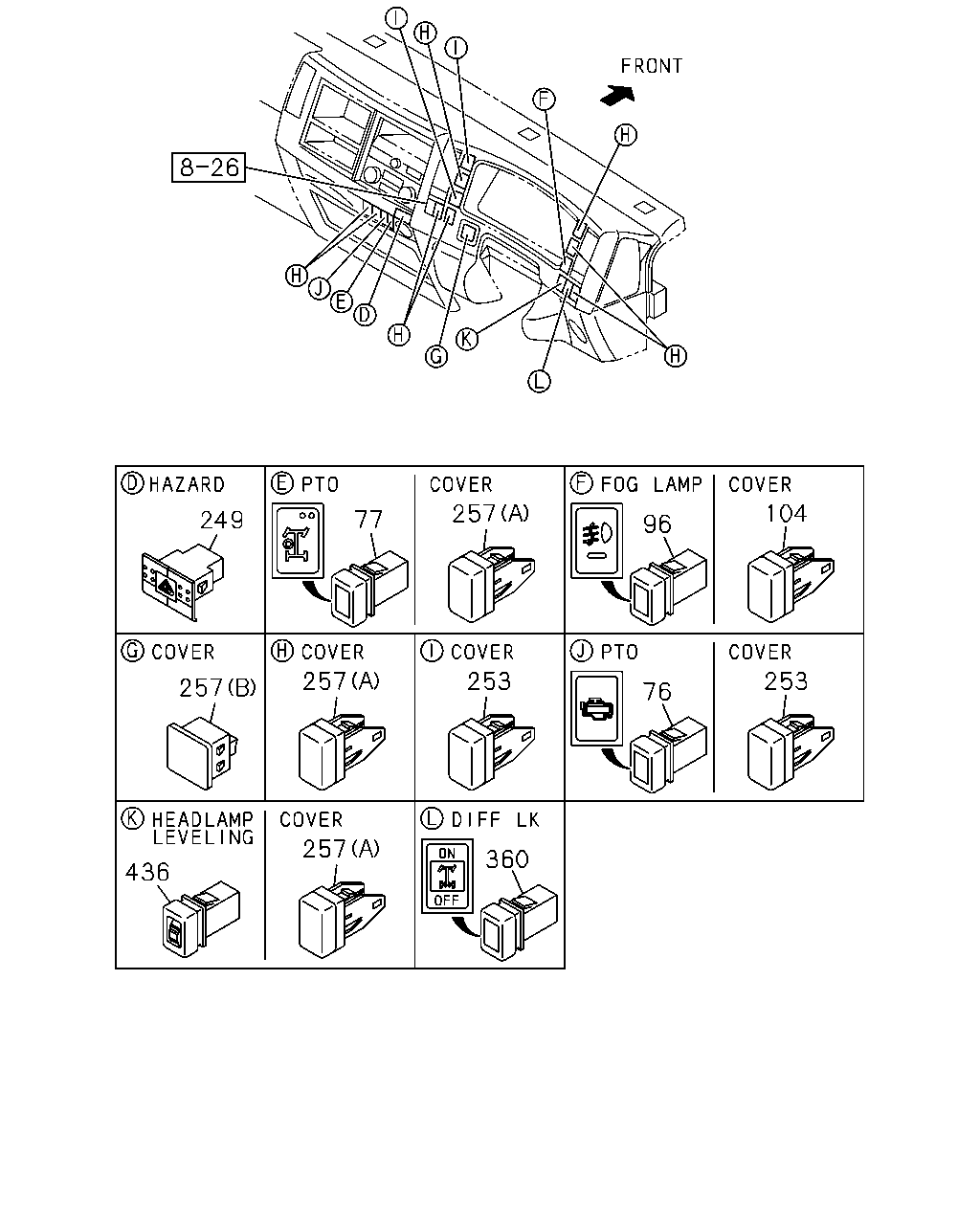

257
104
77
249
96
253
257
253
257
76
257
360
436
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
76
SWITCH ASM; PTO
ENGINE REAR PTO<SV1>
8-98114-764-1
01
1
0806-
●
77
SWITCH; PTO
PTO ZF TRANS RR<BDM>
8-97615-488-1
01
1
0806-0905
●
77
SWITCH; PTO
PTO ZF TRANS RR<BDM>
8-97615-488-2
01
1
0906-1112
●
●
77
SWITCH; PTO
PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5>
8-97615-488-2
01
1
1201-
●
77
SWITCH; PTO
PTO ZF TRANS RR<BDM>
8-97615-488-2
01
1
1201-
●
96
SWITCH; FOG LAMP
FOG LAMP<T96> THA
8-97387-031-3
01
1
0806-
●
●
104
COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>
8-98025-954-1
01
1
0806-
●
●
249
SWITCH; HAZARD
8-97386-922-1
01
1
0806-
●
●
253
COVER; SW HOLE
8-98025-954-1
02
1
0806-
●
●
253
COVER; SW HOLE
EXC. ENGINE REAR PTO<SV1>
8-98025-954-1
01
1
0806-
●
253
COVER; SW HOLE
8-98025-954-1
01
1
0806-
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
08
1
0806-0807
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
07
1
0808-
●
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
0806-
●
●
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
0806-
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)
8-98025-954-1
01
1
0806-0905
●
●
257
COVER; HOLE,SW
EXC. PTO ZF TRANS RR<BDM> (A)
8-98025-954-1
01
1
0806-0905
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0806-0905
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)
8-98025-954-1
01
1
0906-1112
●
●
257
COVER; HOLE,SW
EXC. PTO ZF TRANS RR<BDM> (A)
8-98025-954-1
01
1
0906-1112
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)
8-98025-954-1
01
1
1201-
●
●
257
COVER; HOLE,SW
EXC. PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)
8-98025-954-1
01
1
1201-
●
257
COVER; HOLE,SW
EXC. PTO ZF TRANS RR<BDM> (A)
8-98025-954-1
01
1
1201-
●
360
SWITCH ASM; DIFF LK
8-97613-964-0
01
1
0806-
●
●
436
SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-97386-981-2
01
1
0806-
●
●

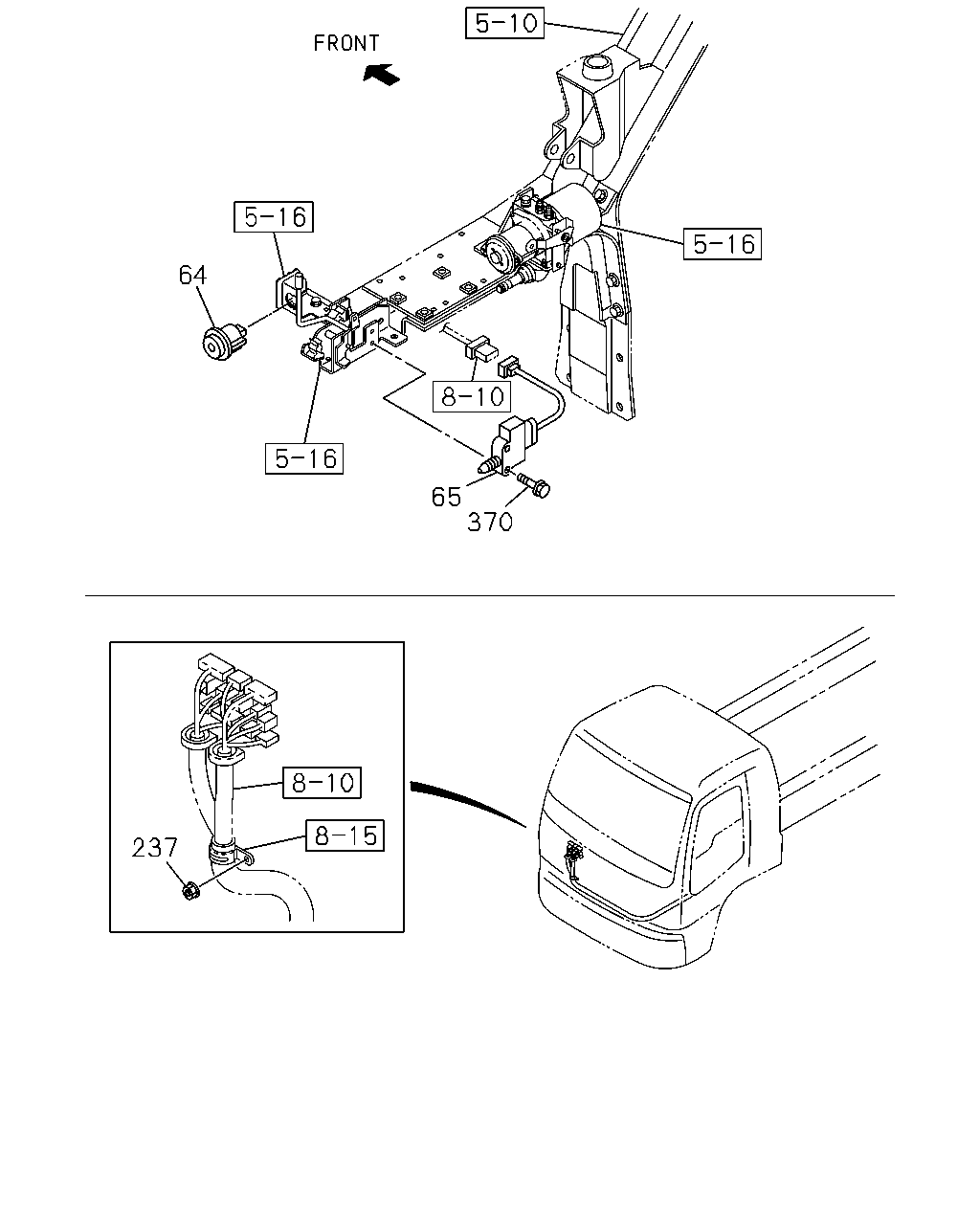

64
65
370
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
64
SWITCH; CAB TILT MAIN
1-82380-173-2
01
1
0806-1101
●
●
64
SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2>
1-82380-173-2
01
1
1102-
●
●
65
SWITCH; CAB TILT LK
STAMP NO
1-82380-172-1
01
1
0806-1101
●
●
65
SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> STAMP NO
1-82380-172-1
01
1
1102-
●
●
237
NUT
M8 FLANGE THA
0-91180-108-0
04
1
0806-
●
●
370
BOLT; SW
M6X30 FLANGE THA
0-28650-630-0
02
1
0806-1101
●
●
370
BOLT; SW
AUTO CAB TILT<WV2> M6X30 FLANGE THA
0-28650-630-0
02
1
1102-
●
●

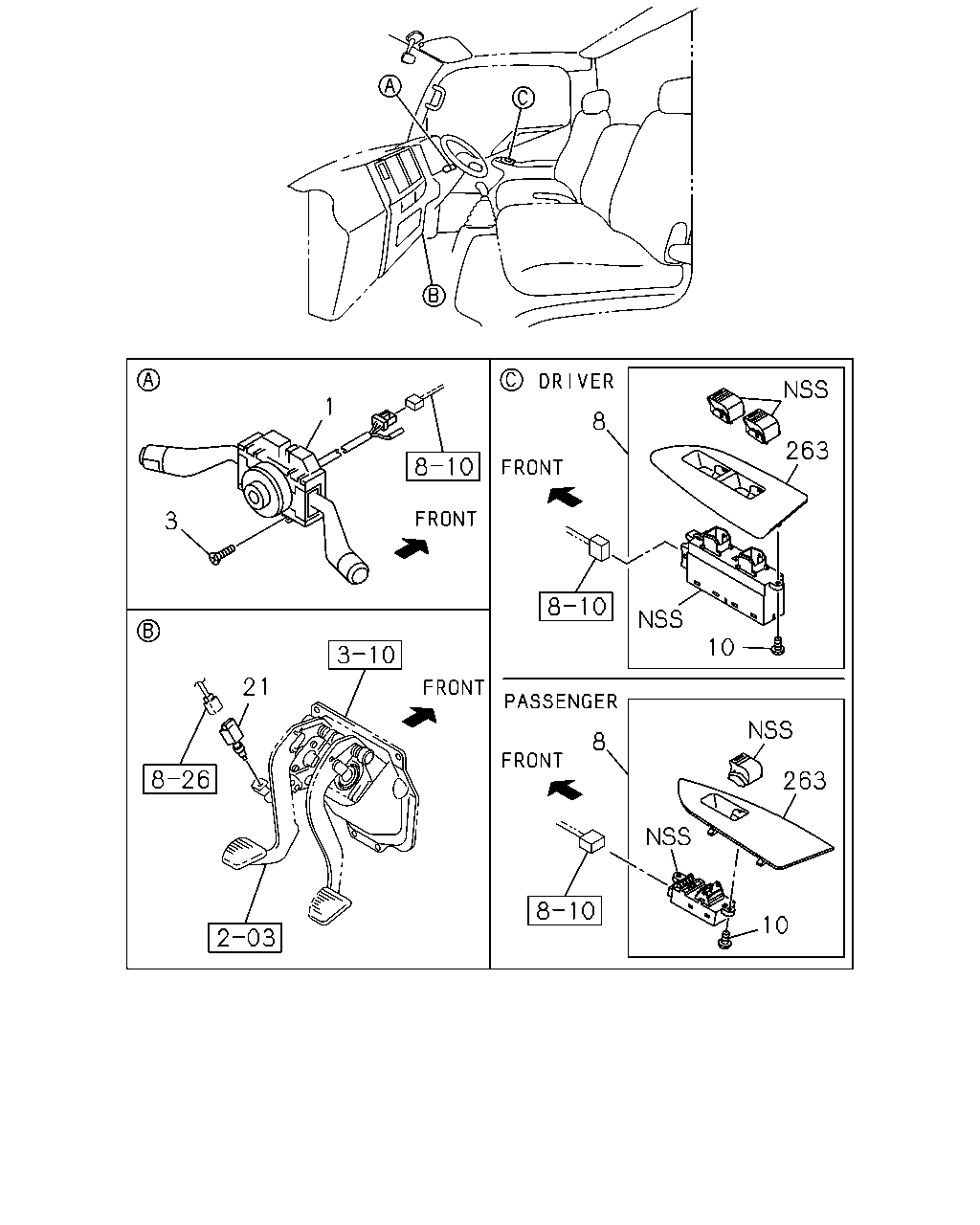

1
8
263
3
10
21
8
263
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SWITCH; COMB
8-98060-302-1
01
1
0806-1310
●
●
1
SWITCH; COMB
8-98243-704-0
01
1
1311-
●
●
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
0806-
●
●
8
SWITCH; POWER WINDOW
PASSENGER THA
8-97387-034-2
01
1
0806-
●
8
SWITCH; POWER WINDOW
DRIVER
8-98003-785-1
01
1
0806-0809
●
8
SWITCH; POWER WINDOW
DRIVER
8-98129-844-0
01
1
0810-1001
●
8
SWITCH; POWER WINDOW
DRIVER
8-98159-543-0
01
1
1002-
●
10
SCREW; POWER WINDOW SW
THA
8-98153-865-0
02
1
1109-
●
10
SCREW; POWER WINDOW SW
THA
8-98153-865-0
03
1
0806-
●
21
SWITCH; CLU
PTO ZF TRANS RR<BDM>
8-94337-761-0
01
1
0806-0905
●
21
SWITCH; CLU
PTO ZF TRANS RR<BDM>
8-94337-761-0
01
1
0906-1112
●
●
21
SWITCH; CLU
PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5>
8-94337-761-0
01
1
1201-
●
21
SWITCH; CLU
PTO ZF TRANS RR<BDM>
8-94337-761-0
01
1
1201-
●
21
SWITCH; CLU
EXC. PTO ZF TRANS RR<BDM>
8-97358-248-0
01
1
0806-0905
●
21
SWITCH; CLU
8-97358-248-0
01
1
0806-0905
●
21
SWITCH; CLU
EXC. PTO ZF TRANS RR<BDM>
8-97358-248-0
01
1
0906-1112
●
●
21
SWITCH; CLU
EXC. PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5>
8-97358-248-0
01
1
1201-
●
21
SWITCH; CLU
EXC. PTO ZF TRANS RR<BDM>
8-97358-248-0
01
1
1201-
●
263
COVER; SW
PASSENGER THA
8-98153-841-0
01
1
0806-
●
263
COVER; SW
DRIVER
8-98153-836-0
01
1
0806-
●
667
666
482
236
397
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
236
BRACKET; AXLE HARNESS,RR
ANTILOCK BRAKE SYSTEM<BFA>
1-47476-200-0
02
1
0902-
●
397
NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA
0-91180-108-0
02
1
0902-
●
482
BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8X30 FLANGE THA
0-28650-830-0
02
1
0902-
●
666
CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM<BFA> ID=11X2 L=20
1-09700-871-0
04
1
0902-
●
667
BOLT; CLIP
ANTILOCK BRAKE SYSTEM<BFA> M8X20 FLANGE THA
0-28650-820-0
04
1
0902-
●

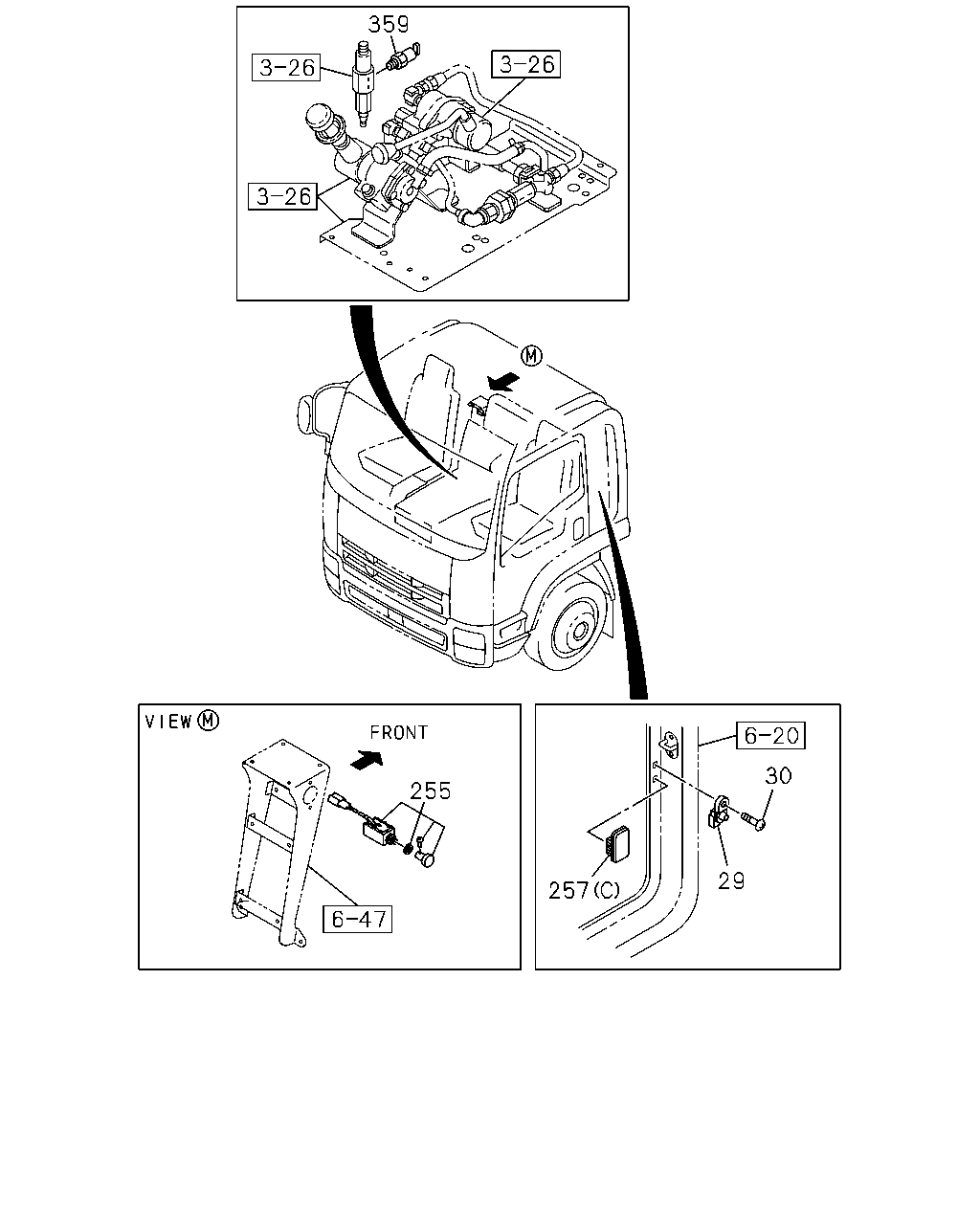

359
30
255
29
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
29
SWITCH; DOOR
BLACK
8-98022-211-0
01
1
0806-
●
●
30
SCREW; DOOR SW
M5X18
8-98047-201-0
01
1
0806-
●
●
255
SWITCH; SEARCH LIGHT
8-98106-483-0
01
1
0806-
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
08
1
0806-0807
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
07
1
0808-
●
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
0806-
●
●
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
0806-
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)
8-98025-954-1
01
1
0806-0905
●
●
257
COVER; HOLE,SW
EXC. PTO ZF TRANS RR<BDM> (A)
8-98025-954-1
01
1
0806-0905
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0806-0905
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)
8-98025-954-1
01
1
0906-1112
●
●
257
COVER; HOLE,SW
EXC. PTO ZF TRANS RR<BDM> (A)
8-98025-954-1
01
1
0906-1112
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)
8-98025-954-1
01
1
1201-
●
●
257
COVER; HOLE,SW
EXC. PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)
8-98025-954-1
01
1
1201-
●
257
COVER; HOLE,SW
EXC. PTO ZF TRANS RR<BDM> (A)
8-98025-954-1
01
1
1201-
●
359
SWITCH; TRAILER BRAKE
STAMP 0.3
8-98010-857-0
01
1
0806-
●

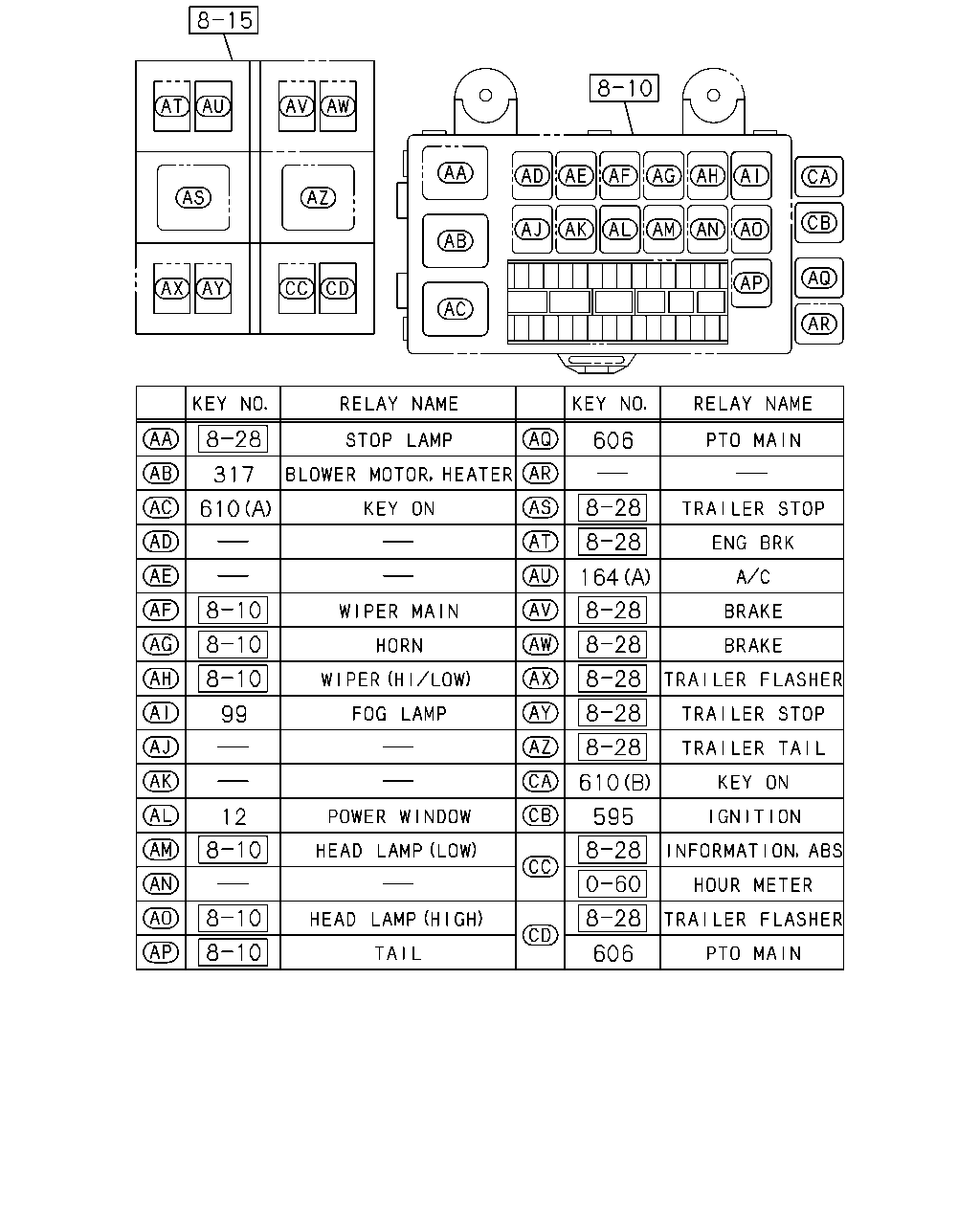

606
317
610
99
610
12
595
606
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
RELAY; POWER WINDOW
24V 10A PANASONIC THA
8-97173-035-1
01
1
0806-
●
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC THA
8-97173-035-1
01
1
0806-
●
●
317
RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 12.5A PANASONIC
8-97262-933-0
01
1
0806-
●
●
595
RELAY; IGNITION
24V 10A PANASONIC THA
8-97173-035-1
01
1
1204-1208
●
●
606
RELAY; PTO MAIN
PTO ZF TRANS RR<BDM> 24V 10A PANASONIC THA
8-97173-035-1
02
1
0806-0905
●
606
RELAY; PTO MAIN
PTO CONTROL<SV6> 24V 10A PANASONIC THA
8-97173-035-1
02
1
0806-0905
●
606
RELAY; PTO MAIN
PTO ZF TRANS RR<BDM> 24V 10A PANASONIC THA
8-97173-035-1
02
1
0906-1112
●
●
606
RELAY; PTO MAIN
PTO CONTROL<SV6> 24V 10A PANASONIC THA
8-97173-035-1
02
1
0906-1112
●
●
606
RELAY; PTO MAIN
PTO ZF TRANS RR<BDM> 24V 10A PANASONIC THA
8-97173-035-1
02
1
1201-1201
●
●
606
RELAY; PTO MAIN
PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> 24V 10A PANASONIC THA
8-97173-035-1
02
1
1201-
●
606
RELAY; PTO MAIN
PTO ZF TRANS RR<BDM> 24V 10A PANASONIC THA
8-97173-035-1
02
1
1201-
●
610
RELAY; KEY ON
(B) 24V 10A PANASONIC THA
8-97173-035-1
01
1
1204-1208
●
●
610
RELAY; KEY ON
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0806-
●
●
524
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 24V 10A PANASONIC THA
8-97173-035-1
01
1
0806-
●
●
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0806-
●
●
524
RELAY; LAMP
WORKING LAMP 24V 30A MITSUBA
8-97238-540-0
01
1
0807-1402
●
524
RELAY; LAMP
WORKING LAMP 24V 30A MITSUBA
8-98259-779-0
01
1
1403-
●

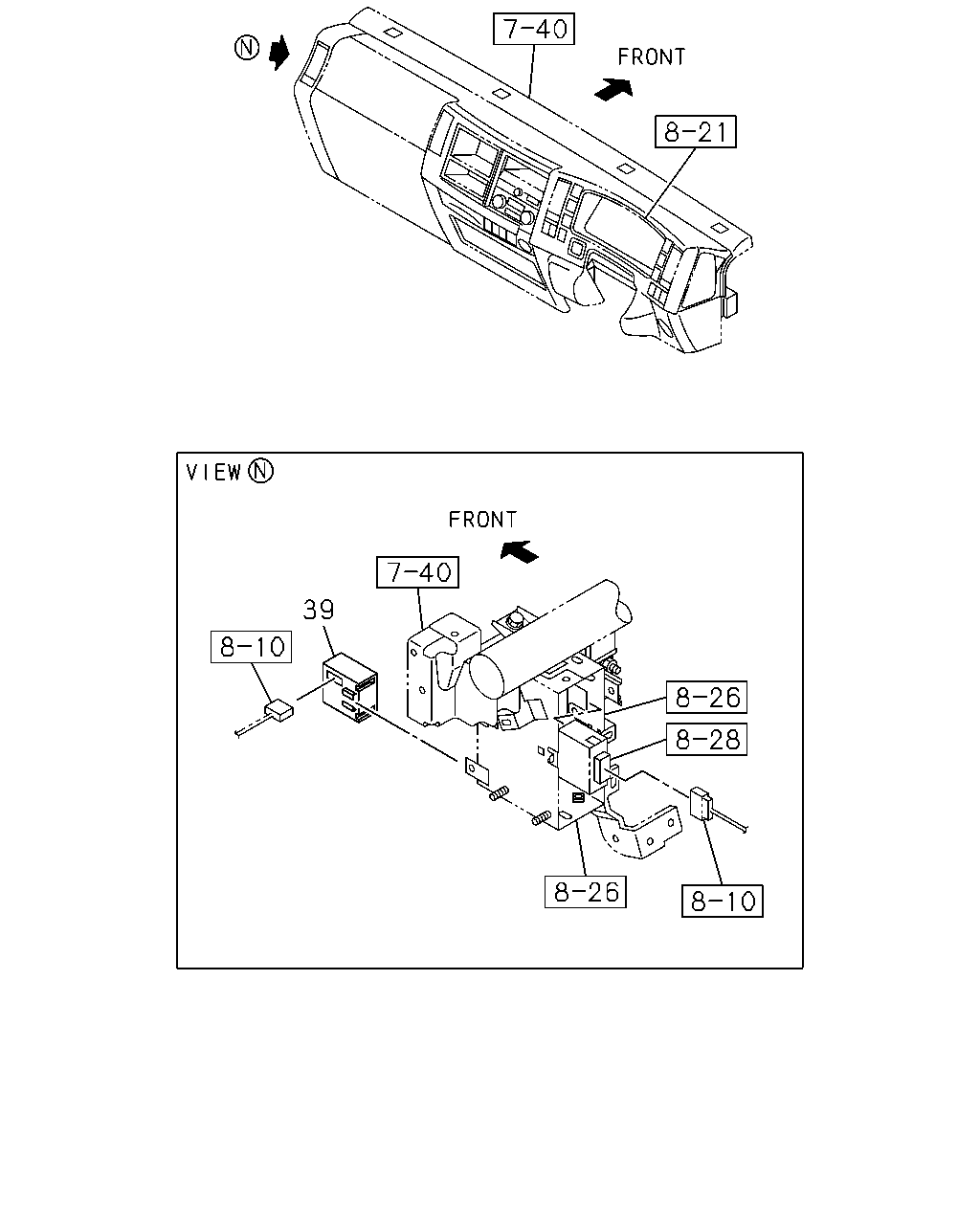

39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
39
RELAY; DOOR LK
AUTO DOOR LOCK<AU4>
8-98060-789-0
01
1
0806-1101
●
●
39
RELAY; DOOR LK
8-98060-789-0
01
1
1102-
●
