8-21 — METER ASM (#68384) — 60 parça

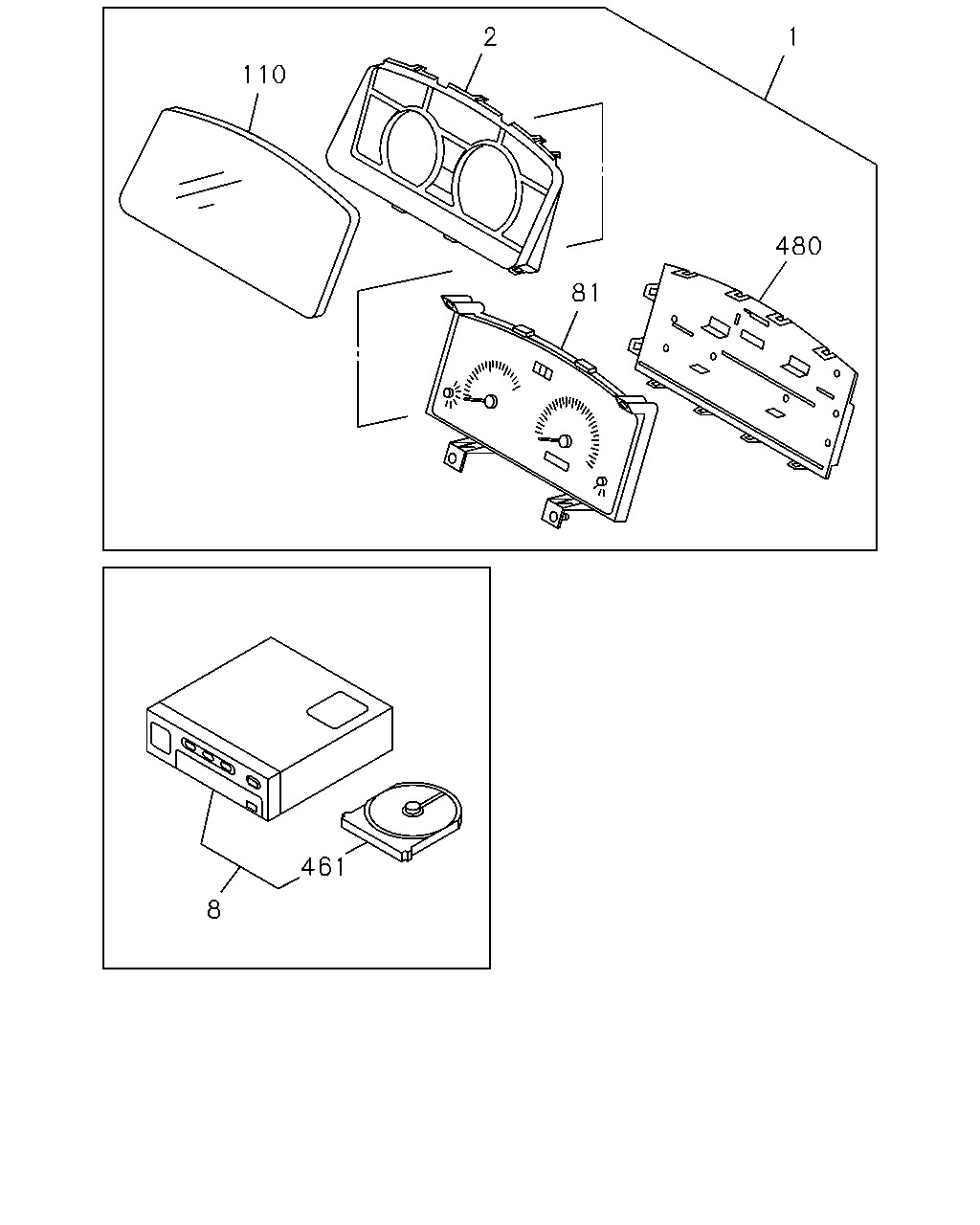

2 1 110 480 81 461 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER MULTI INFORMATION DISPLAY<7NY>	8-98130-387-0	01	1	0902-0908	●	●
1	METER COMPL; CLUSTER MULTI INFORMATION DISPLAY<7NY>	8-98150-376-0	01	1	0909-1101	●	●
1	METER COMPL; CLUSTER MULTI INFORMATION DISPLAY<7NY>	8-98179-479-2	01	1	1102-	●	●
1	METER COMPL; CLUSTER	8-98075-591-4	01	1	0806-0901	●	●
1	METER COMPL; CLUSTER EXC. MULTI INFORMATION DISPLAY<7NY>	8-98075-591-4	01	1	0902-0908	●	●
1	METER COMPL; CLUSTER EXC. MULTI INFORMATION DISPLAY<7NY>	8-98150-375-0	01	1	0909-1101	●	●
1	METER COMPL; CLUSTER EXC. MULTI INFORMATION DISPLAY<7NY>	8-98179-478-2	01	1	1102-	●	●
2	PANEL; CLUSTER	8-98054-432-0	01	1	0806-	●	●
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	8-97387-082-1	01	1	0806-0908	●	●
81	METER SUB ASM MULTI INFORMATION DISPLAY<7NY>	8-98131-846-0	01	1	0902-0908	●	●
81	METER SUB ASM MULTI INFORMATION DISPLAY<7NY>	8-98150-351-0	01	1	0909-1101	●	●
81	METER SUB ASM MULTI INFORMATION DISPLAY<7NY>	8-98179-487-0	01	1	1102-	●	●
81	METER SUB ASM	8-98079-684-0	01	1	0806-0901	●	●
81	METER SUB ASM EXC. MULTI INFORMATION DISPLAY<7NY>	8-98079-684-0	01	1	0902-0908	●	●
81	METER SUB ASM EXC. MULTI INFORMATION DISPLAY<7NY>	8-98150-350-0	01	1	0909-1101	●	●
81	METER SUB ASM EXC. MULTI INFORMATION DISPLAY<7NY>	8-98179-486-0	01	1	1102-	●	●
110	GLASS; CLUSTER METER MULTI INFORMATION DISPLAY<7NY>	8-98054-642-0	01	1	0902-	●	●
110	GLASS; CLUSTER METER	8-98054-431-0	01	1	0806-0901	●	●
110	GLASS; CLUSTER METER EXC. MULTI INFORMATION DISPLAY<7NY>	8-98054-431-0	01	1	0902-	●	●
461	CARTRIDGE ASM; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	1-83129-433-0	01	1	0806-0908	●	●
480	COVER; METER (B) BLACK	8-98054-433-0	01	1	0806-0908	●	●
480	COVER; METER EXC. MULTI INFORMATION DISPLAY<7NY> (B) BLACK	8-98054-433-0	01	1	0909-1101	●	●
480	COVER; METER (B) BLACK	8-98054-433-0	01	1	1102-	●	●
480	COVER; METER MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION	8-98054-881-0	01	1	0902-	●	●

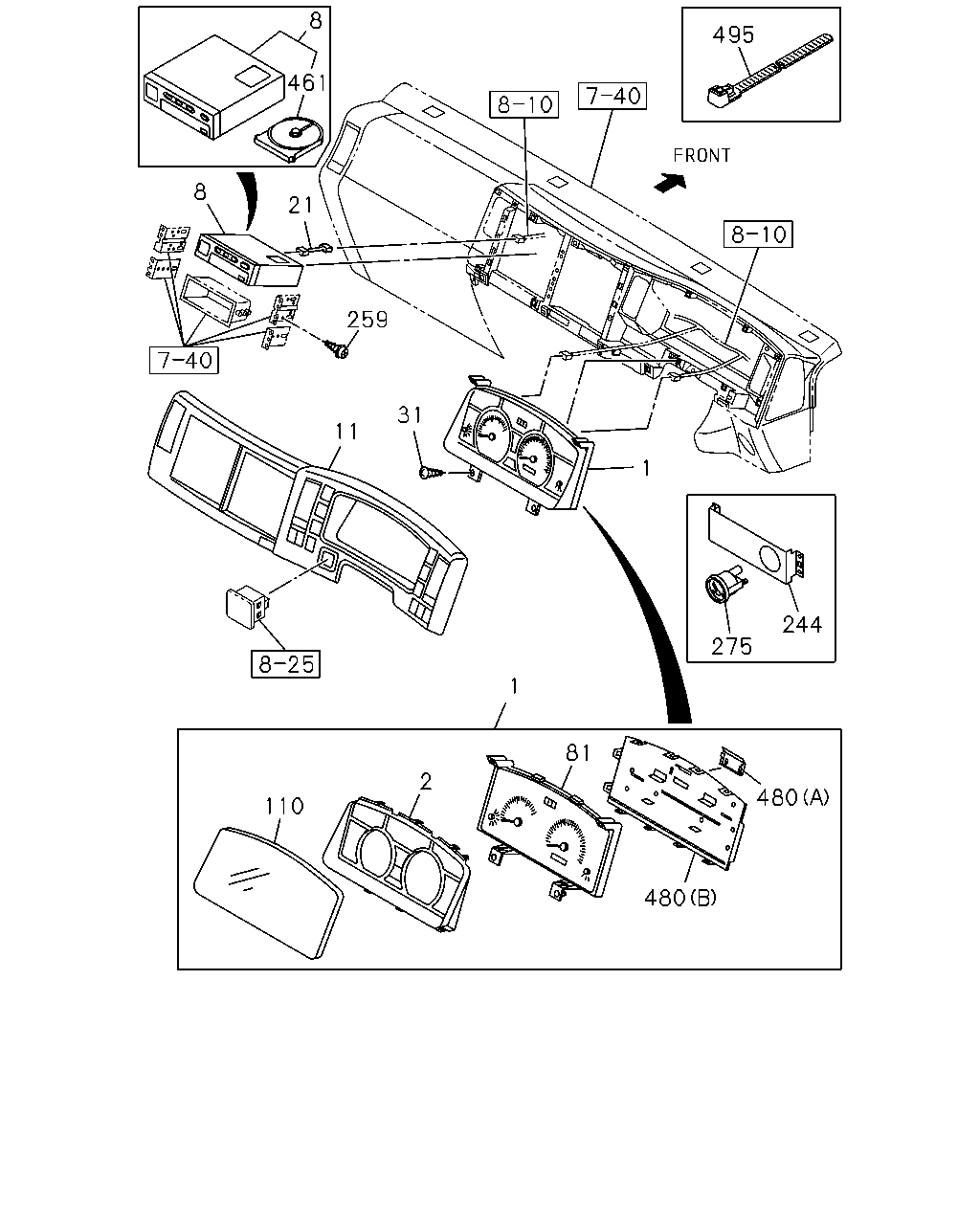

8 495 461 8 21 259 31 11 1 244 275 1 81 2 480 110 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER MULTI INFORMATION DISPLAY<7NY>	8-98130-387-0	01	1	0902-0908	●	●
1	METER COMPL; CLUSTER MULTI INFORMATION DISPLAY<7NY>	8-98150-376-0	01	1	0909-1101	●	●
1	METER COMPL; CLUSTER MULTI INFORMATION DISPLAY<7NY>	8-98179-479-2	01	1	1102-	●	●
1	METER COMPL; CLUSTER	8-98075-591-4	01	1	0806-0901	●	●
1	METER COMPL; CLUSTER EXC. MULTI INFORMATION DISPLAY<7NY>	8-98075-591-4	01	1	0902-0908	●	●
1	METER COMPL; CLUSTER EXC. MULTI INFORMATION DISPLAY<7NY>	8-98150-375-0	01	1	0909-1101	●	●
1	METER COMPL; CLUSTER EXC. MULTI INFORMATION DISPLAY<7NY>	8-98179-478-2	01	1	1102-	●	●
2	PANEL; CLUSTER	8-98054-432-0	01	1	0806-	●	●
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	8-97387-082-1	01	1	0806-0908	●	●
11	CLUSTER ASM; METER DARK GRAY	8-97405-350-6	01	1	0806-	●	●
21	HARNESS; TACHOGRAPH MEMORY SYSTEM RUNNING CONDITION<NCR> TACHOGRAPH 140KM/H<WC7>	8-98095-797-1	01	1	0906-0908	●	●
21	HARNESS; TACHOGRAPH MEMORY SYSTEM RUNNING CONDITION<NCR> EXC. TACHOGRAPH 140KM/H<WC7>	8-98095-796-1	01	1	0906-0908	●	●
21	HARNESS; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	8-98074-077-0	01	1	0806-0905	●	●
21	HARNESS; TACHOGRAPH TACHOGRAPH 140KM/H<WC7> EXC. MEMORY SYSTEM RUNNING CONDITION<NCR>	8-98095-794-1	01	1	0906-0908	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0806-	●	●
81	METER SUB ASM MULTI INFORMATION DISPLAY<7NY>	8-98131-846-0	01	1	0902-0908	●	●
81	METER SUB ASM MULTI INFORMATION DISPLAY<7NY>	8-98150-351-0	01	1	0909-1101	●	●
81	METER SUB ASM MULTI INFORMATION DISPLAY<7NY>	8-98179-487-0	01	1	1102-	●	●
81	METER SUB ASM	8-98079-684-0	01	1	0806-0901	●	●
81	METER SUB ASM EXC. MULTI INFORMATION DISPLAY<7NY>	8-98079-684-0	01	1	0902-0908	●	●
81	METER SUB ASM EXC. MULTI INFORMATION DISPLAY<7NY>	8-98150-350-0	01	1	0909-1101	●	●
81	METER SUB ASM EXC. MULTI INFORMATION DISPLAY<7NY>	8-98179-486-0	01	1	1102-	●	●
110	GLASS; CLUSTER METER MULTI INFORMATION DISPLAY<7NY>	8-98054-642-0	01	1	0902-	●	●
110	GLASS; CLUSTER METER	8-98054-431-0	01	1	0806-0901	●	●
110	GLASS; CLUSTER METER EXC. MULTI INFORMATION DISPLAY<7NY>	8-98054-431-0	01	1	0902-	●	●
244	PANEL; METER SUB ENGINE REAR PTO<SV1>	8-98021-527-1	01	1	0806-0901	●
244	PANEL; METER SUB ENGINE REAR PTO<SV1> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98021-527-1	01	1	0902-1203	●
259	SCREW; TACHOGRAPH TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	0806-0908	●	●
275	HOURMETER ENGINE REAR PTO<SV1>	1-83190-059-0	01	1	0806-0901	●
275	HOURMETER ENGINE REAR PTO<SV1> EXC. MULTI INFORMATION DISPLAY<7NY>	1-83190-059-0	01	1	0902-1203	●
461	CARTRIDGE ASM; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	1-83129-433-0	01	1	0806-0908	●	●
480	COVER; METER (B) BLACK	8-98054-433-0	01	1	0806-0908	●	●
480	COVER; METER EXC. MULTI INFORMATION DISPLAY<7NY> (B) BLACK	8-98054-433-0	01	1	0909-1101	●	●
480	COVER; METER (B) BLACK	8-98054-433-0	01	1	1102-	●	●
480	COVER; METER MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION	8-98054-881-0	01	1	0902-	●	●
495	CLIP; HOUR METER ENGINE REAR PTO<SV1> EXC. MULTI INFORMATION DISPLAY<7NY> L=140 THA	8-97920-656-0	01	1	1105-1204	●
