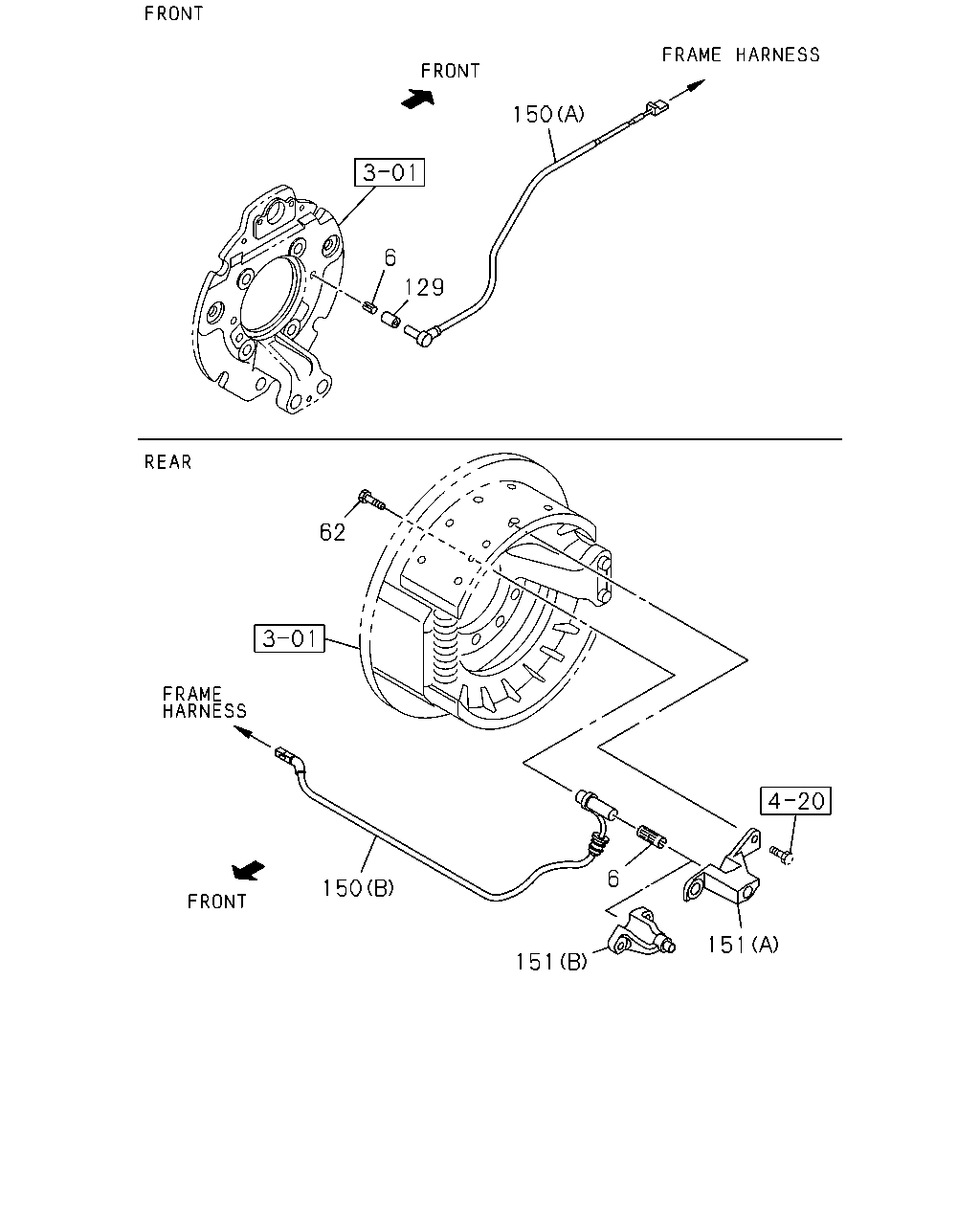

8-20 — METER CABLE (#68383) — 28 parça

6 129 62 150 6 151 150 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM<BFA>	1-83129-260-1	02	1	1304-	●
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM<BFA>	1-83129-260-1	02	1	1304-	●
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM<BFA>	1-83129-260-1	02	1	1204-	●
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM<BFA>	1-83129-260-1	02	1	1204-	●
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM<BFA>	1-83129-260-1	02	1	0902-1101	●	●
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM<BFA>	1-83129-260-1	02	1	0902-1101	●	●
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM<BFA>	1-83129-260-1	02	1	1102-1301	●
6	HOLDER; SPD SENSOR ANTILOCK BRAKE SYSTEM<BFA>	1-83129-260-1	02	1	1102-1301	●
62	BOLT; SENSOR ANTILOCK BRAKE SYSTEM<BFA> M8X16	9-05820-816-0	02	1	1304-1506	●
62	BOLT; SENSOR ANTILOCK BRAKE SYSTEM<BFA> M8X16 HEX SOCKET	0-58330-816-0	02	1	1507-	●
62	BOLT; SENSOR ANTILOCK BRAKE SYSTEM<BFA> M8X16	9-05820-816-0	02	1	1204-1506	●
62	BOLT; SENSOR ANTILOCK BRAKE SYSTEM<BFA> M8X16	9-05820-816-0	02	1	0902-1301	●
129	COLLAR ANTILOCK BRAKE SYSTEM<BFA>	1-83129-471-0	02	1	1304-	●
129	COLLAR ANTILOCK BRAKE SYSTEM<BFA>	1-83129-471-0	02	1	0902-1301	●
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM<BFA> (A)	1-83127-853-3	02	1	0902-1301	●
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM<BFA> (A)	1-83127-853-3	02	1	1304-	●
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98130-586-0	01	1	0902-1301	●
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98130-586-0	01	1	1304-	●
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98130-587-0	01	1	0902-1301	●
150	SENSOR; SPEED,ABS ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98130-587-0	01	1	1304-	●
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM<BFA> (A)	1-83129-405-0	01	1	1304-1504	●
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98299-398-0	01	1	1505-	●
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM<BFA> (A)	1-83129-406-0	01	1	1304-1504	●
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98299-399-0	01	1	1505-	●
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM<BFA> (A)	1-83129-405-0	01	1	1204-1504	●
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM<BFA> (A)	1-83129-406-0	01	1	1204-1504	●
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM<BFA> (A)	1-83129-405-0	01	1	0902-1301	●
151	BRACKET; SPD SENSOR ANTILOCK BRAKE SYSTEM<BFA> (A)	1-83129-406-0	01	1	0902-1301	●
