8-15 — FIXING PARTS; WIRING HARNESS (#68382) — 643 parça
çizim 136890
16 142 16 16 16 206 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
MJT7U M/T<Y4X> (O) ID=10 H=25 L=20 		1-09700-519-0 01 1 1201- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AQ) ID=15 H=24 L=20 		1-09700-606-0 01 1 1201- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AR) ID=14.5 L=28 		1-09701-013-0 01 1 1201- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (X) L=350 		1-09707-183-0 04 1 1201- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (C) ID=13-18 L=18 		1-09709-291-0 02 1 1201- ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1201- ● ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (AI) ID=14 L=44 		9-09917-427-0 03 1 1201- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16 		0-95235-025-0 02 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16 		0-95325-025-0 01 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AL) L=175 		1-09707-176-1 01 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (X) L=350 		1-09707-183-0 01 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AE) L=140 THA 		5-09707-031-1 05 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AM) ID=18-24 L=18 		1-09709-294-0 06 1 0902- ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 08 1 0902-1101 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 07 1 1102- ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 02 1 0809-0901 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (AA) ID=13-18 L=14.5 		1-09709-290-0 02 1 0902- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 07 1 0809-0901 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 07 1 0902-1101 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 08 1 1102- ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 04 1 0806-1101 ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 03 1 1102- ● ●
16 CLIP; HARNESS
(G) ID=19 L=20 		0-95235-836-0 01 1 0806-1101 ● ●
16 CLIP; HARNESS
(AN) ID=18 L=40 		1-09701-111-0 01 1 1102- ● ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 0806- ● ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0806-1101 ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1102- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1102- ● ●
16 CLIP; HARNESS
(J) ID=31 L=30 		1-09700-969-0 01 1 0806- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
16 CLIP; HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0806- ● ●
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1102- ● ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (M) L=36 		8-94224-891-1 01 1 1102- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (S) ID=16 L=20 		0-95235-535-0 01 1 0806- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (O) ID=10 H=25 L=20 		1-09700-519-0 01 1 0806-0806 ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (AK) ID=13 H=29 L=30 		1-09700-001-0 01 1 0807- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (N) ID=18 H=23 L=28 		1-09701-070-0 02 1 0806- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (K) OD=9 H=6 		1-09709-178-0 02 1 0806-1112 ●
16 CLIP; HARNESS
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (K) OD=9 H=6 		1-09709-178-0 02 1 1201- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (M) L=36 		8-94224-891-1 01 1 0806-1101 ●
16 CLIP; HARNESS
(AO) ID=15 L=22 H=30 		1-09701-215-1 01 1 1102- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T<Y5K> (P) ID=19 L=28 		0-95235-856-0 01 1 0806- ●
16 CLIP; HARNESS
(P) ID=19 L=28 		0-95235-856-0 01 1 0806- ●
16 CLIP; HARNESS
ZF9S1310 M/T<Y5K> (Q) ID=19 L=60 		0-95235-896-0 02 1 0806- ●
16 CLIP; HARNESS
(Q) ID=19 L=60 		0-95235-896-0 02 1 0806- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (C) ID=13-18 L=18 		1-09709-291-0 09 1 0806- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 04 1 0806- ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 THA 		1-09709-287-0 04 1 0806- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (B) ID=5-12 L=22 		1-09709-288-0 02 1 0806- ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 0806- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM<53W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 06 1 0806-1112 ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 06 1 1201- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18 		1-09709-291-0 11 1 0806-0806 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18 		1-09709-291-0 12 1 0807-1112 ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18 		1-09709-291-0 12 1 1201- ●
16 CLIP; HARNESS
(F) ID=11 L=16 		0-95235-025-0 01 1 0806- ● ●
16 CLIP; HARNESS
(R) ID=11 L=41 		1-09700-403-0 01 1 0806- ● ●
16 CLIP; HARNESS
(N) ID=18 H=23 L=28 		1-09700-860-0 01 1 0806- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 0806-1101 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 05 1 1102-1112 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1201- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0806- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 0806-1101 ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1102- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1102- ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 07 1 0806-0806 ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 06 1 0807- ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 0806-1101 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1102-1112 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 05 1 1201- ● ●
16 CLIP; HARNESS
(AD) L=250 THA 		5-09707-030-1 02 1 0806-1101 ● ●
16 CLIP; HARNESS
(AD) L=250 THA 		5-09707-030-1 02 1 1102- ● ●
16 CLIP; HARNESS
(AE) L=140 THA 		5-09707-031-1 04 1 0806- ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 0806- ● ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 0806- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 0806-1102 ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1103- ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 0806- ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 0806-1112 ● ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AP) ID=13 L=28 		0-95235-255-0 01 1 1201- ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 0806- ● ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 08 1 0806-0901 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 03 1 0902- ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 05 1 0806-0806 ●
16 CLIP; HARNESS
(D) W/SPONGE RUBBER 		1-09709-150-0 01 1 0806- ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 0806-1101 ● ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 1102- ● ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 0806-1101 ● ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1102- ● ●
16 CLIP; HARNESS
(AG) THA 		8-98052-679-0 02 1 0806-1101 ● ●
16 CLIP; HARNESS
(AG) THA 		8-98052-679-0 02 1 1102- ● ●
142 CLIP; HARNESS,ENG
L=170.3 		8-97209-720-0 01 1 0806- ● ●
206 CLIP; FUEL TANK HARNESS
(A) L=140 THA 		5-09707-031-1 02 1 0806- ● ●
206 CLIP; FUEL TANK HARNESS
(B) ID=8.3 & 10 		8-94176-792-0 01 1 0806- ● ●

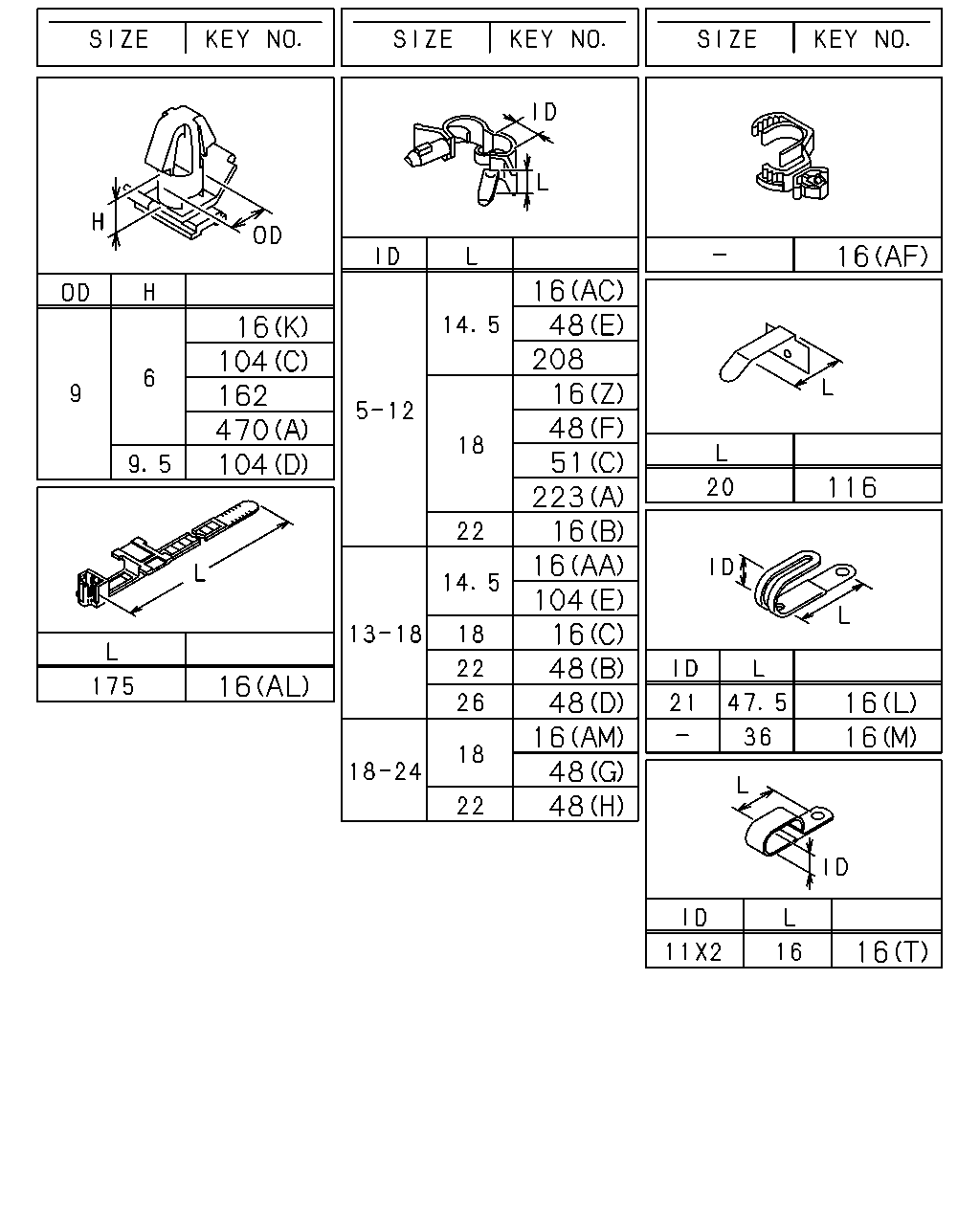

çizim 137016
16 16 48 208 16 48 51 223 16 16 104 16 48 48 16 48 48 16 104 162 470 104 116 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
MJT7U M/T<Y4X> (O) ID=10 H=25 L=20 		1-09700-519-0 01 1 1201- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AQ) ID=15 H=24 L=20 		1-09700-606-0 01 1 1201- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AR) ID=14.5 L=28 		1-09701-013-0 01 1 1201- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (X) L=350 		1-09707-183-0 04 1 1201- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (C) ID=13-18 L=18 		1-09709-291-0 02 1 1201- ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1201- ● ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (AI) ID=14 L=44 		9-09917-427-0 03 1 1201- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16 		0-95235-025-0 02 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16 		0-95325-025-0 01 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AL) L=175 		1-09707-176-1 01 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (X) L=350 		1-09707-183-0 01 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AE) L=140 THA 		5-09707-031-1 05 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AM) ID=18-24 L=18 		1-09709-294-0 06 1 0902- ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 08 1 0902-1101 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 07 1 1102- ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 02 1 0809-0901 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (AA) ID=13-18 L=14.5 		1-09709-290-0 02 1 0902- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 07 1 0809-0901 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 07 1 0902-1101 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 08 1 1102- ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 04 1 0806-1101 ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 03 1 1102- ● ●
16 CLIP; HARNESS
(G) ID=19 L=20 		0-95235-836-0 01 1 0806-1101 ● ●
16 CLIP; HARNESS
(AN) ID=18 L=40 		1-09701-111-0 01 1 1102- ● ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 0806- ● ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0806-1101 ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1102- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1102- ● ●
16 CLIP; HARNESS
(J) ID=31 L=30 		1-09700-969-0 01 1 0806- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
16 CLIP; HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0806- ● ●
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1102- ● ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (M) L=36 		8-94224-891-1 01 1 1102- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (S) ID=16 L=20 		0-95235-535-0 01 1 0806- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (O) ID=10 H=25 L=20 		1-09700-519-0 01 1 0806-0806 ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (AK) ID=13 H=29 L=30 		1-09700-001-0 01 1 0807- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (N) ID=18 H=23 L=28 		1-09701-070-0 02 1 0806- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (K) OD=9 H=6 		1-09709-178-0 02 1 0806-1112 ●
16 CLIP; HARNESS
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (K) OD=9 H=6 		1-09709-178-0 02 1 1201- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (M) L=36 		8-94224-891-1 01 1 0806-1101 ●
16 CLIP; HARNESS
(AO) ID=15 L=22 H=30 		1-09701-215-1 01 1 1102- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T<Y5K> (P) ID=19 L=28 		0-95235-856-0 01 1 0806- ●
16 CLIP; HARNESS
(P) ID=19 L=28 		0-95235-856-0 01 1 0806- ●
16 CLIP; HARNESS
ZF9S1310 M/T<Y5K> (Q) ID=19 L=60 		0-95235-896-0 02 1 0806- ●
16 CLIP; HARNESS
(Q) ID=19 L=60 		0-95235-896-0 02 1 0806- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (C) ID=13-18 L=18 		1-09709-291-0 09 1 0806- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 04 1 0806- ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 THA 		1-09709-287-0 04 1 0806- ●

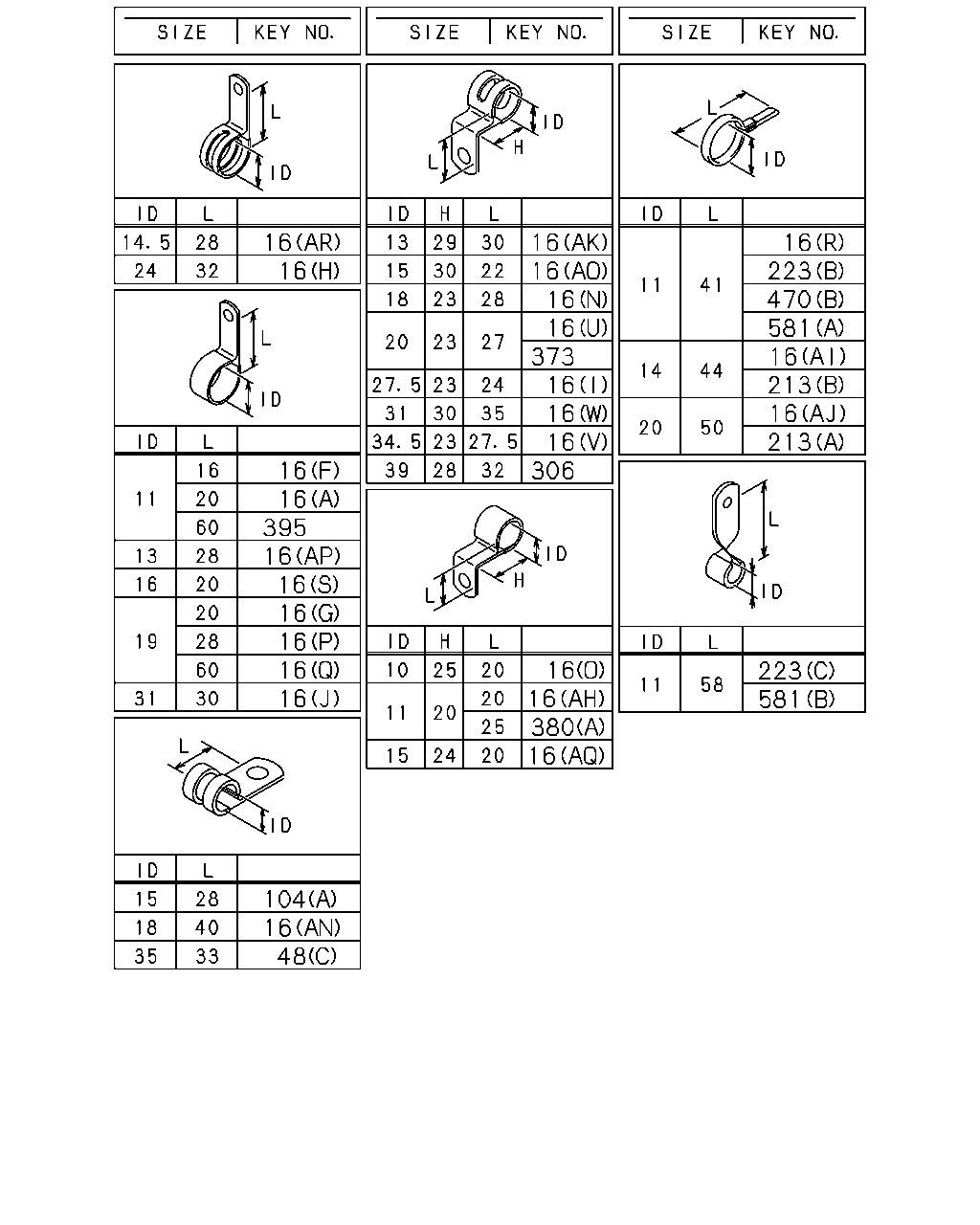

16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (B) ID=5-12 L=22 		1-09709-288-0 02 1 0806- ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 0806- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM<53W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 06 1 0806-1112 ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 06 1 1201- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18 		1-09709-291-0 11 1 0806-0806 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18 		1-09709-291-0 12 1 0807-1112 ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18 		1-09709-291-0 12 1 1201- ●
16 CLIP; HARNESS
(F) ID=11 L=16 		0-95235-025-0 01 1 0806- ● ●
16 CLIP; HARNESS
(R) ID=11 L=41 		1-09700-403-0 01 1 0806- ● ●
16 CLIP; HARNESS
(N) ID=18 H=23 L=28 		1-09700-860-0 01 1 0806- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 0806-1101 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 05 1 1102-1112 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1201- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0806- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 0806-1101 ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1102- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1102- ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 07 1 0806-0806 ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 06 1 0807- ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 0806-1101 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1102-1112 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 05 1 1201- ● ●
16 CLIP; HARNESS
(AD) L=250 THA 		5-09707-030-1 02 1 0806-1101 ● ●
16 CLIP; HARNESS
(AD) L=250 THA 		5-09707-030-1 02 1 1102- ● ●
16 CLIP; HARNESS
(AE) L=140 THA 		5-09707-031-1 04 1 0806- ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 0806- ● ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 0806- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 0806-1102 ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1103- ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 0806- ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 0806-1112 ● ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AP) ID=13 L=28 		0-95235-255-0 01 1 1201- ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 0806- ● ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 08 1 0806-0901 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 03 1 0902- ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 05 1 0806-0806 ●
16 CLIP; HARNESS
(D) W/SPONGE RUBBER 		1-09709-150-0 01 1 0806- ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 0806-1101 ● ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 1102- ● ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 0806-1101 ● ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1102- ● ●
16 CLIP; HARNESS
(AG) THA 		8-98052-679-0 02 1 0806-1101 ● ●
16 CLIP; HARNESS
(AG) THA 		8-98052-679-0 02 1 1102- ● ●
48 CLIP; FRAME HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (H) ID=18-24 L=22 		1-09709-295-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=18 THA 		1-09709-287-0 01 1 0806-0807 ● ●
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0808- ● ●
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 01 1 0806-0807 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> (B) ID=13-18 L=22 		1-09709-292-0 02 1 0806-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=13-18 L=22 		1-09709-292-0 02 1 0806-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> (B) ID=13-18 L=22 		1-09709-292-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=13-18 L=22 		1-09709-292-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM<53W> (D) ID=13-18 L=26 		1-09709-293-0 02 1 0806-1112 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (D) ID=13-18 L=26 		1-09709-293-0 02 1 1201- ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 0806- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 16 1 0806-0806 ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 14 1 0807-1101 ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1102- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1102- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) L=180 		1-09707-162-1 01 1 0806- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) L=350 		1-09707-183-0 01 1 0806- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) ID=5-12 L=18 THA 		1-09709-287-0 01 1 0806- ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 02 1 0806-0806 ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 0807- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 0806-0811 ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 02 1 0812- ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 THA 		1-09709-179-0 01 1 0806- ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 0806- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 0806- ● ●
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
208 CLIP; HARNESS,MAG VLV
ID=5-12 L=14.5 		1-09987-221-0 01 1 0806-0806 ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4700MM<47W> (B) ID=11 L=41 		1-09700-403-0 01 1 0806- ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 5300MM<53W> (A) ID=5-12 L=18 THA 		1-09709-287-0 01 1 0806-1112 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) ID=5-12 L=18 THA 		1-09709-287-0 01 1 1201- ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=58 		9-09917-135-2 01 1 0806- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0806- ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 0806- ●
470 CLIP; HARNESS,LICENSE LAMP
(D) L=140 THA 		5-09707-031-1 02 1 0806- ●
çizim 137267
14 194 14 16 48 51 104 171 194 380 425 470 369 1 178 178 178 178 178 51 530 16 194 206 470 16 538
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=38.1 L=50 		5-09360-835-0 01 1 0806- ● ●
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (B) L=250 		1-09707-126-0 02 1 0902-1301 ●
14 CLIP; BAND,HARNESS
ZF9S1310 M/T<Y5K> (A) L=350 		1-09707-183-0 01 1 0806- ●
14 CLIP; BAND,HARNESS
(A) L=350 		1-09707-183-0 01 1 0806- ●
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) L=350 		1-09707-183-0 02 1 0902- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (O) ID=10 H=25 L=20 		1-09700-519-0 01 1 1201- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AQ) ID=15 H=24 L=20 		1-09700-606-0 01 1 1201- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AR) ID=14.5 L=28 		1-09701-013-0 01 1 1201- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (X) L=350 		1-09707-183-0 04 1 1201- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (C) ID=13-18 L=18 		1-09709-291-0 02 1 1201- ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1201- ● ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (AI) ID=14 L=44 		9-09917-427-0 03 1 1201- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16 		0-95235-025-0 02 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16 		0-95325-025-0 01 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AL) L=175 		1-09707-176-1 01 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (X) L=350 		1-09707-183-0 01 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AE) L=140 THA 		5-09707-031-1 05 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AM) ID=18-24 L=18 		1-09709-294-0 06 1 0902- ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 08 1 0902-1101 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 07 1 1102- ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 02 1 0809-0901 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (AA) ID=13-18 L=14.5 		1-09709-290-0 02 1 0902- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 07 1 0809-0901 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 07 1 0902-1101 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 08 1 1102- ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 04 1 0806-1101 ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 03 1 1102- ● ●
16 CLIP; HARNESS
(G) ID=19 L=20 		0-95235-836-0 01 1 0806-1101 ● ●
16 CLIP; HARNESS
(AN) ID=18 L=40 		1-09701-111-0 01 1 1102- ● ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 0806- ● ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0806-1101 ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1102- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1102- ● ●
16 CLIP; HARNESS
(J) ID=31 L=30 		1-09700-969-0 01 1 0806- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
16 CLIP; HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0806- ● ●
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1102- ● ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (M) L=36 		8-94224-891-1 01 1 1102- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (S) ID=16 L=20 		0-95235-535-0 01 1 0806- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (O) ID=10 H=25 L=20 		1-09700-519-0 01 1 0806-0806 ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (AK) ID=13 H=29 L=30 		1-09700-001-0 01 1 0807- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (N) ID=18 H=23 L=28 		1-09701-070-0 02 1 0806- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (K) OD=9 H=6 		1-09709-178-0 02 1 0806-1112 ●
16 CLIP; HARNESS
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (K) OD=9 H=6 		1-09709-178-0 02 1 1201- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (M) L=36 		8-94224-891-1 01 1 0806-1101 ●
16 CLIP; HARNESS
(AO) ID=15 L=22 H=30 		1-09701-215-1 01 1 1102- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T<Y5K> (P) ID=19 L=28 		0-95235-856-0 01 1 0806- ●
16 CLIP; HARNESS
(P) ID=19 L=28 		0-95235-856-0 01 1 0806- ●
16 CLIP; HARNESS
ZF9S1310 M/T<Y5K> (Q) ID=19 L=60 		0-95235-896-0 02 1 0806- ●
16 CLIP; HARNESS
(Q) ID=19 L=60 		0-95235-896-0 02 1 0806- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (C) ID=13-18 L=18 		1-09709-291-0 09 1 0806- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 04 1 0806- ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 THA 		1-09709-287-0 04 1 0806- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (B) ID=5-12 L=22 		1-09709-288-0 02 1 0806- ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 0806- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM<53W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 06 1 0806-1112 ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 06 1 1201- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18 		1-09709-291-0 11 1 0806-0806 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18 		1-09709-291-0 12 1 0807-1112 ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18 		1-09709-291-0 12 1 1201- ●
16 CLIP; HARNESS
(F) ID=11 L=16 		0-95235-025-0 01 1 0806- ● ●
16 CLIP; HARNESS
(R) ID=11 L=41 		1-09700-403-0 01 1 0806- ● ●
16 CLIP; HARNESS
(N) ID=18 H=23 L=28 		1-09700-860-0 01 1 0806- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 0806-1101 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 05 1 1102-1112 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1201- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0806- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 0806-1101 ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1102- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1102- ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 07 1 0806-0806 ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 06 1 0807- ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 0806-1101 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1102-1112 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 05 1 1201- ● ●
16 CLIP; HARNESS
(AD) L=250 THA 		5-09707-030-1 02 1 0806-1101 ● ●
16 CLIP; HARNESS
(AD) L=250 THA 		5-09707-030-1 02 1 1102- ● ●
16 CLIP; HARNESS
(AE) L=140 THA 		5-09707-031-1 04 1 0806- ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 0806- ● ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 0806- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 0806-1102 ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1103- ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 0806- ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 0806-1112 ● ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AP) ID=13 L=28 		0-95235-255-0 01 1 1201- ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 0806- ● ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 08 1 0806-0901 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 03 1 0902- ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 05 1 0806-0806 ●
16 CLIP; HARNESS
(D) W/SPONGE RUBBER 		1-09709-150-0 01 1 0806- ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 0806-1101 ● ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 1102- ● ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 0806-1101 ● ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1102- ● ●
16 CLIP; HARNESS
(AG) THA 		8-98052-679-0 02 1 0806-1101 ● ●
16 CLIP; HARNESS
(AG) THA 		8-98052-679-0 02 1 1102- ● ●
48 CLIP; FRAME HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (H) ID=18-24 L=22 		1-09709-295-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=18 THA 		1-09709-287-0 01 1 0806-0807 ● ●
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0808- ● ●
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 01 1 0806-0807 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> (B) ID=13-18 L=22 		1-09709-292-0 02 1 0806-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=13-18 L=22 		1-09709-292-0 02 1 0806-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> (B) ID=13-18 L=22 		1-09709-292-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=13-18 L=22 		1-09709-292-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM<53W> (D) ID=13-18 L=26 		1-09709-293-0 02 1 0806-1112 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (D) ID=13-18 L=26 		1-09709-293-0 02 1 1201- ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 0806- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 16 1 0806-0806 ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 14 1 0807-1101 ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1102- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1102- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) L=180 		1-09707-162-1 01 1 0806- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) L=350 		1-09707-183-0 01 1 0806- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) ID=5-12 L=18 THA 		1-09709-287-0 01 1 0806- ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 02 1 0806-0806 ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 0807- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 0806-0811 ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 02 1 0812- ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 THA 		1-09709-179-0 01 1 0806- ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 0806- ● ●
171 CLIP; STARTER HARNESS
L=350 		1-09707-183-0 03 1 0806- ● ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (E) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0902- ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-126-0 01 1 0806- ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0806- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0806-1106 ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1107- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1107- ● ●
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0806-0806 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 05 1 0806-0806 ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 06 1 0807- ● ●
194 CLIP; BAND
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) L=300 		1-09707-001-1 02 1 0806- ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 04 1 0806-0806 ●
194 CLIP; BAND
(C) L=140 THA 		5-09707-031-1 02 1 0807- ● ●
206 CLIP; FUEL TANK HARNESS
(A) L=140 THA 		5-09707-031-1 02 1 0806- ● ●
206 CLIP; FUEL TANK HARNESS
(B) ID=8.3 & 10 		8-94176-792-0 01 1 0806- ● ●
369 CLIP; BAND EDS HARNESS
L=500 		1-09707-082-1 01 1 0806- ● ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 03 1 0806- ● ●
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 0806- ● ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> L=350 		1-09707-183-0 03 1 0902- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0806- ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 0806- ●
470 CLIP; HARNESS,LICENSE LAMP
(D) L=140 THA 		5-09707-031-1 02 1 0806- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 0806- ● ●
538 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 01 1 1001- ● ●

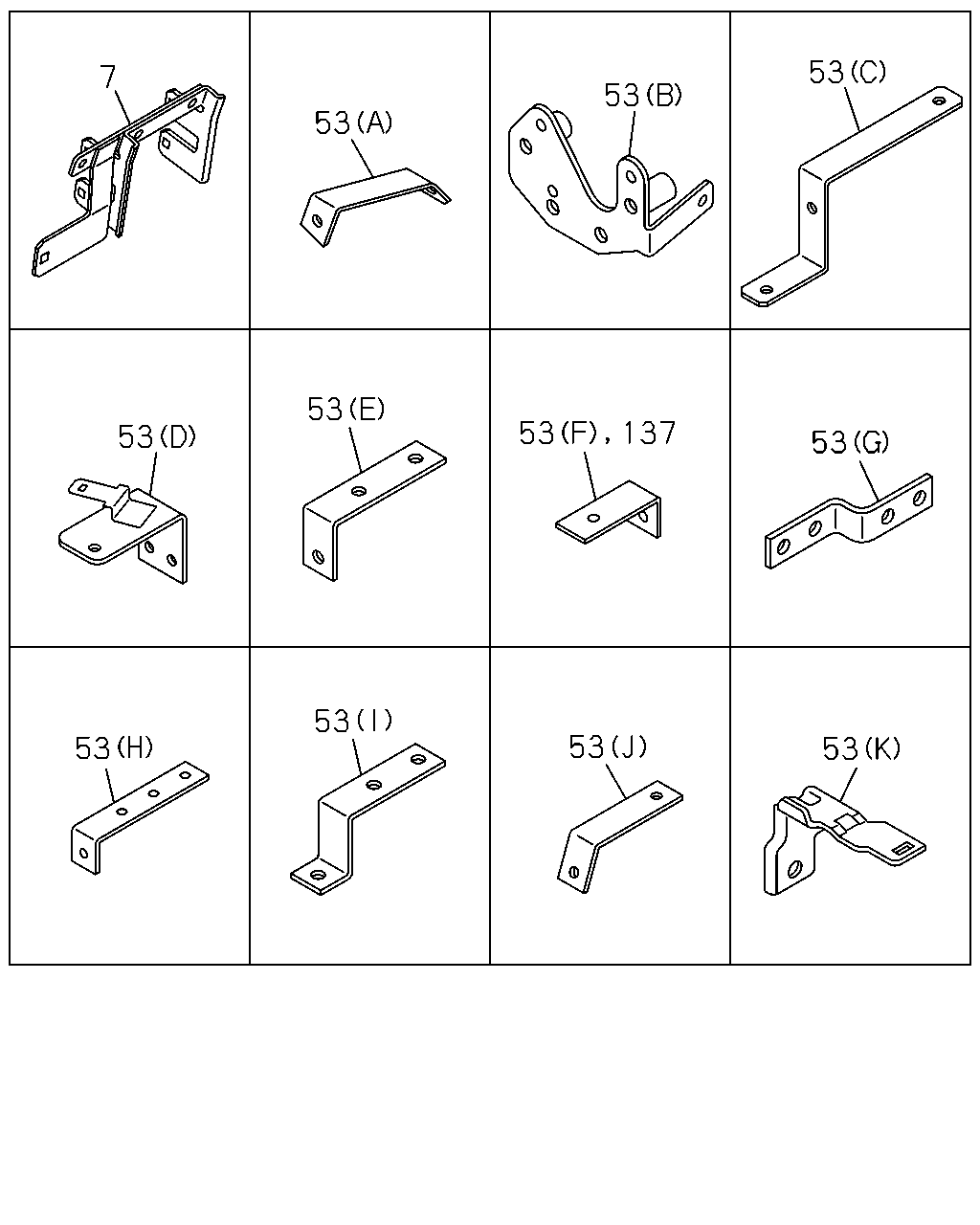

çizim 137926
53 7 53 53 53 53 137 53 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0806-1112 ● ●
7 BRACKET; CONNECTOR
THA 		8-97925-591-0 01 1 1205- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 08 1 1102- ● ●
53 BRACKET; HARNESS
(F) L=65 		1-47479-064-0 02 1 0809-0901 ●
53 BRACKET; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (F) L=65 		1-47479-064-1 02 1 0902- ●
53 BRACKET; HARNESS
(B) 		8-97611-413-0 01 1 0806- ● ●
53 BRACKET; HARNESS
(E) L=82 B=20 		1-47478-420-0 01 1 0806-1404 ● ●
53 BRACKET; HARNESS
(E) L=82 B=20 		8-98259-390-0 01 1 1405- ● ●
53 BRACKET; HARNESS
(F) L=65 		1-47479-064-1 01 1 0806- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 14 1 0806-1101 ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 06 1 1102- ● ●
53 BRACKET; HARNESS
(G) 		1-82569-278-0 01 1 0806- ● ●
53 BRACKET; HARNESS
(H) L=120 H=35 		1-82698-088-0 01 1 0806- ● ●
53 BRACKET; HARNESS
(I) 		1-82698-382-0 01 1 0806- ● ●
53 BRACKET; HARNESS
(J) 		1-82698-514-0 01 1 0806- ● ●
53 BRACKET; HARNESS
(K) 		8-98052-458-0 01 1 0806- ● ●
53 BRACKET; HARNESS
(C) 		8-98078-801-0 01 1 0806- ● ●
53 BRACKET; HARNESS
(D) 		8-98102-490-0 01 1 0806- ● ●
137 BRACKET; HARNESS CLAMP
ANTILOCK BRAKE SYSTEM<BFA> 25X37 		1-34656-004-0 01 1 0902- ●
çizim 138031
312 335 211 312 375 335 375 335 600 375
BalonParca AdiParca NoAdetTipApplied Date A B
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM<BFA> 		8-97621-352-1 01 1 0902- ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM<BFA> 		8-97621-353-1 01 1 0902- ●
312 BRACKET; CLIP HARNESS
MAL6R M/T<Y2J> (B) 		1-47476-932-0 01 1 0806- ●
312 BRACKET; CLIP HARNESS
(A) L=120 		8-97619-440-0 01 1 0806- ● ●
335 BRACKET; CONNECTOR
ANTILOCK BRAKE SYSTEM<BFA> (C) 		1-82698-167-0 01 1 0902- ●
335 BRACKET; CONNECTOR
MAL6R M/T<Y2J> (A) 		1-82699-425-0 01 1 0806- ●
335 BRACKET; CONNECTOR
(B) 		1-82698-358-0 01 1 0806- ● ●
375 BRACKET; AC GEN HARNESS CLIP
(A) L=120 H=35 		1-82698-088-0 01 1 0806- ● ●
375 BRACKET; AC GEN HARNESS CLIP
(B) 		1-82698-569-0 01 1 0806- ● ●
375 BRACKET; AC GEN HARNESS CLIP
(C) 		1-82698-583-1 01 1 0806- ● ●
600 PROTECTOR; HEAT 8-97608-456-0 01 1 0806- ● ●

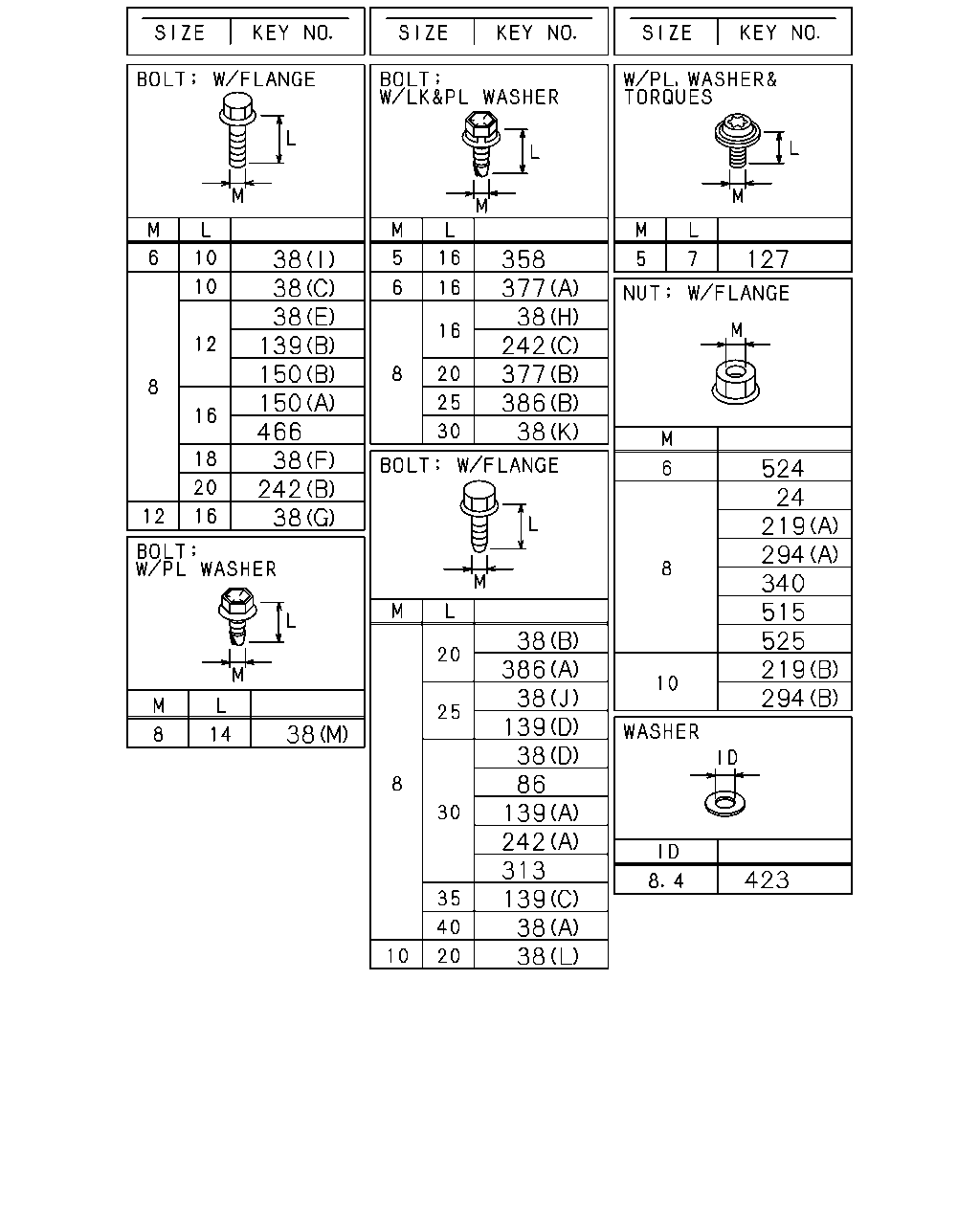

çizim 193968
127 38 38 38 139 150 150 466 38 242 38 358 377 38 242 377 386 38 524 24 219 294 340 515 525 219 294 38 386 38 139 38 86 139 242 313 139 38 38 38 423
BalonParca AdiParca NoAdetTipApplied Date A B
24 NUT; HARNESS
M8 FLANGE THA 		0-91180-108-0 02 1 0806-0806 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X40 FLANGE THA 		0-28650-840-0 01 1 1102- ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (B) M8X20 FLANGE THA 		0-28650-820-0 02 1 0902-1209 ●
38 BOLT; CLIP,HARNESS
MAL6R M/T<Y2J> (L) M10X20 FLANGE THA 		0-28751-020-0 01 1 0807- ●
38 BOLT; CLIP,HARNESS
GENERATOR 24V90A<K44> (C) M8X10 FLANGE THA 		0-28050-810-0 01 1 0806-1101 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X18 FLANGE 		0-28080-818-0 01 1 0806- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X40 FLANGE THA 		0-28650-840-0 01 1 0806-1101 ● ●
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		1-09044-079-0 01 1 0806-1105 ● ●
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		0-28051-216-0 01 1 1106- ● ●
38 BOLT; CLIP,HARNESS
(H) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0806-1201 ● ●
38 BOLT; CLIP,HARNESS
(M) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202- ● ●
38 BOLT; CLIP,HARNESS
(K) M8X30 W/LK&PL WASHER THA 		0-50640-830-0 01 1 0806- ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE THA 		0-28650-830-0 09 1 1102-1112 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE THA 		0-28650-830-0 02 1 1201- ● ●
38 BOLT; CLIP,HARNESS
MAL6R M/T<Y2J> (B) M8X20 FLANGE THA 		0-28650-820-0 03 1 0806-1112 ●
38 BOLT; CLIP,HARNESS
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) M8X20 FLANGE THA 		0-28650-820-0 03 1 1201-1209 ●
38 BOLT; CLIP,HARNESS
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) M8X20 FLANGE THA 		0-28650-820-0 03 1 1210- ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (B) M8X20 FLANGE THA 		0-28650-820-0 03 1 1210- ●
38 BOLT; CLIP,HARNESS
ZF9S1310 M/T<Y5K> (B) M8X20 FLANGE THA 		0-28650-820-0 01 1 0806- ● ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 4700MM<47W> (B) M8X20 FLANGE THA 		0-28650-820-0 01 1 0806- ●
38 BOLT; CLIP,HARNESS
ZF9S1310 M/T<Y5K> (E) M8X12 FLANGE THA 		0-28050-812-0 02 1 0806- ●
38 BOLT; CLIP,HARNESS
(E) M8X12 FLANGE THA 		0-28050-812-0 02 1 0806- ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE THA 		0-28650-820-0 08 1 0806-0806 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE THA 		0-28650-820-0 07 1 0807-0807 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE THA 		0-28650-820-0 04 1 0807- ● ●
38 BOLT; CLIP,HARNESS
(J) M8X25 FLANGE THA 		0-28650-825-0 04 1 0806-0806 ● ●
38 BOLT; CLIP,HARNESS
(J) M8X25 FLANGE THA 		0-28650-825-0 03 1 0807-0807 ● ●
38 BOLT; CLIP,HARNESS
(J) M8X25 FLANGE THA 		0-28650-825-0 06 1 0807- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE THA 		0-28650-830-0 11 1 0806-1101 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE THA 		0-28650-830-0 02 1 1102-1112 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE THA 		0-28650-830-0 09 1 1201- ● ●
38 BOLT; CLIP,HARNESS
EXC. GENERATOR 24V90A<K44> (I) M6X10 FLANGE THA 		0-28050-610-0 01 1 0806-1101 ● ●
38 BOLT; CLIP,HARNESS
(I) M6X10 FLANGE THA 		0-28050-610-0 01 1 1102- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE THA 		0-28650-830-0 01 1 0806- ●
38 BOLT; CLIP,HARNESS
MAL6R M/T<Y2J> (B) M8X20 FLANGE THA 		0-28650-820-0 03 1 0902-1101 ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (B) M8X20 FLANGE THA 		0-28650-820-0 03 1 0902-1101 ●
86 BOLT; CLIP BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 0806- ● ●
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0806- ● ●
139 BOLT; BRKT
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0806-1101 ● ●
139 BOLT; BRKT
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0902-1101 ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0902-1101 ●
139 BOLT; BRKT
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1102-1209 ● ●
139 BOLT; BRKT
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1210- ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1210- ●
139 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 06 1 1102-1112 ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1201- ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (A) M8X30 FLANGE THA 		0-28650-830-0 03 1 0902- ●
139 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0807-1109 ●
139 BOLT; BRKT
EXC. ANTILOCK BRAKE SYSTEM<BFA> (D) M8X25 FLANGE THA 		0-28650-825-0 02 1 1110- ●
139 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 07 1 0806-1101 ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1102-1112 ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 06 1 1201- ● ●
139 BOLT; BRKT
(C) M8X35 FLANGE THA 		0-28650-835-0 02 1 0806- ● ●
150 BOLT; CLIP
(B) M8X12 FLANGE THA 		0-28050-812-0 02 1 0806- ● ●
150 BOLT; CLIP
(A) M8X16 FLANGE THA 		0-28050-816-0 07 1 0806-1005 ● ●
150 BOLT; CLIP
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 1102- ● ●
219 NUT
ANTILOCK BRAKE SYSTEM<BFA> (A) M8 FLANGE THA 		0-91180-108-0 03 1 0902- ●
219 NUT
ANTILOCK BRAKE SYSTEM<BFA> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0902-1209 ●
219 NUT
ANTILOCK BRAKE SYSTEM<BFA> (A) M8 FLANGE THA 		0-91180-108-0 03 1 1210- ●
219 NUT
MAL6R M/T<Y2J> (B) M10 FLANGE THA 		0-91180-210-0 01 1 0806- ●
219 NUT
ZF9S1310 M/T<Y5K> (A) M8 FLANGE THA 		0-91180-108-0 01 1 0806-0806 ● ●
219 NUT
WHEEL BASE 4700MM<47W> (A) M8 FLANGE THA 		0-91180-108-0 01 1 0806-0806 ●
219 NUT
WHEEL BASE 4700MM<47W> (A) M8 FLANGE THA 		0-91180-108-0 01 1 0807-0807 ●
219 NUT
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (A) M8 FLANGE THA 		0-91180-108-0 01 1 0807-0807 ●
219 NUT
ZF9S1310 M/T<Y5K> (A) M8 FLANGE THA 		0-91180-108-0 01 1 0807-0807 ●
219 NUT
WHEEL BASE 4700MM<47W> (A) M8 FLANGE THA 		0-91180-108-0 01 1 0807-1101 ●
219 NUT
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (A) M8 FLANGE THA 		0-91180-108-0 01 1 0807-1101 ●
219 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 0807-1101 ●
219 NUT
ZF9S1310 M/T<Y5K> (A) M8 FLANGE THA 		0-91180-108-0 01 1 0807-1101 ●
219 NUT
WHEEL BASE 4700MM<47W> (A) M8 FLANGE THA 		0-91180-108-0 01 1 1102-1109 ●
219 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1102-1109 ●
219 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1110- ● ●
219 NUT
WHEEL BASE 4700MM<47W> (A) M8 FLANGE THA 		0-91180-108-0 01 1 1110- ●
219 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1110- ●
219 NUT
(A) M8 FLANGE THA 		0-91180-108-0 08 1 0806-1101 ● ●
219 NUT
(A) M8 FLANGE THA 		0-91180-108-0 09 1 1102-1109 ● ●
219 NUT
(A) M8 FLANGE THA 		0-91180-108-0 08 1 1110- ● ●
219 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 0806-0806 ●
242 BOLT; BRKT,HARNESS
(C) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0806- ● ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE THA 		0-28050-820-0 01 1 0806- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 0806- ● ●
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1102-1201 ● ●
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1202- ● ●
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1202- ● ●
294 NUT
ANTILOCK BRAKE SYSTEM<BFA> (A) M8 FLANGE THA 		0-91180-108-0 03 1 0902- ●
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 09 1 0811-1101 ● ●
294 NUT
MAL6R M/T<Y2J> (B) M10 FLANGE THA 		0-91180-210-0 02 1 0806- ●
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 08 1 0806-0806 ● ●
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 09 1 0807-1101 ● ●
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 07 1 1102- ● ●
313 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 08 1 0806- ● ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE THA 		0-91180-108-0 03 1 0806- ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0806- ● ●
377 BOLT; CAB EARTH
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0806- ● ●
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0806- ● ●
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0806- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 0806- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 0806- ● ●
466 BOLT; HEAT PROTECTOR
M8X16 FLANGE THA 		0-28050-816-0 02 1 0806- ● ●
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 08 1 0806-0806 ● ●
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 09 1 0807-1101 ● ●
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 08 1 1102-1112 ● ●
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1201- ● ●
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1102-1112 ● ●
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 08 1 1201- ● ●
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 0807-1109 ●
515 NUT; BRKT
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA 		0-91180-108-0 02 1 1110- ●
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 0806- ● ●
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 0806-1101 ● ●
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1102- ● ●
çizim 193970
16 16 16 16 16 16 373 16 16 16 306 16 223 470 581 16 213 16 213 16 16 395 16 16 16 16 16 16 16 16 380 16 223 581 104 16 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
MJT7U M/T<Y4X> (O) ID=10 H=25 L=20 		1-09700-519-0 01 1 1201- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AQ) ID=15 H=24 L=20 		1-09700-606-0 01 1 1201- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AR) ID=14.5 L=28 		1-09701-013-0 01 1 1201- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (X) L=350 		1-09707-183-0 04 1 1201- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (C) ID=13-18 L=18 		1-09709-291-0 02 1 1201- ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1201- ● ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (AI) ID=14 L=44 		9-09917-427-0 03 1 1201- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16 		0-95235-025-0 02 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16 		0-95325-025-0 01 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AL) L=175 		1-09707-176-1 01 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (X) L=350 		1-09707-183-0 01 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AE) L=140 THA 		5-09707-031-1 05 1 0902- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AM) ID=18-24 L=18 		1-09709-294-0 06 1 0902- ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 08 1 0902-1101 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 07 1 1102- ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 02 1 0809-0901 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (AA) ID=13-18 L=14.5 		1-09709-290-0 02 1 0902- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 07 1 0809-0901 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 07 1 0902-1101 ●
16 CLIP; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 08 1 1102- ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 04 1 0806-1101 ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 03 1 1102- ● ●
16 CLIP; HARNESS
(G) ID=19 L=20 		0-95235-836-0 01 1 0806-1101 ● ●
16 CLIP; HARNESS
(AN) ID=18 L=40 		1-09701-111-0 01 1 1102- ● ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 0806- ● ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0806-1101 ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1102- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1102- ● ●
16 CLIP; HARNESS
(J) ID=31 L=30 		1-09700-969-0 01 1 0806- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
16 CLIP; HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0806- ● ●
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1102- ● ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (M) L=36 		8-94224-891-1 01 1 1102- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (S) ID=16 L=20 		0-95235-535-0 01 1 0806- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (O) ID=10 H=25 L=20 		1-09700-519-0 01 1 0806-0806 ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (AK) ID=13 H=29 L=30 		1-09700-001-0 01 1 0807- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (N) ID=18 H=23 L=28 		1-09701-070-0 02 1 0806- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (K) OD=9 H=6 		1-09709-178-0 02 1 0806-1112 ●
16 CLIP; HARNESS
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (K) OD=9 H=6 		1-09709-178-0 02 1 1201- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (M) L=36 		8-94224-891-1 01 1 0806-1101 ●
16 CLIP; HARNESS
(AO) ID=15 L=22 H=30 		1-09701-215-1 01 1 1102- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T<Y5K> (P) ID=19 L=28 		0-95235-856-0 01 1 0806- ●
16 CLIP; HARNESS
(P) ID=19 L=28 		0-95235-856-0 01 1 0806- ●
16 CLIP; HARNESS
ZF9S1310 M/T<Y5K> (Q) ID=19 L=60 		0-95235-896-0 02 1 0806- ●
16 CLIP; HARNESS
(Q) ID=19 L=60 		0-95235-896-0 02 1 0806- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (C) ID=13-18 L=18 		1-09709-291-0 09 1 0806- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 04 1 0806- ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 THA 		1-09709-287-0 04 1 0806- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (B) ID=5-12 L=22 		1-09709-288-0 02 1 0806- ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 0806- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM<53W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 06 1 0806-1112 ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 06 1 1201- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18 		1-09709-291-0 11 1 0806-0806 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18 		1-09709-291-0 12 1 0807-1112 ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18 		1-09709-291-0 12 1 1201- ●
16 CLIP; HARNESS
(F) ID=11 L=16 		0-95235-025-0 01 1 0806- ● ●
16 CLIP; HARNESS
(R) ID=11 L=41 		1-09700-403-0 01 1 0806- ● ●
16 CLIP; HARNESS
(N) ID=18 H=23 L=28 		1-09700-860-0 01 1 0806- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 0806-1101 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 05 1 1102-1112 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1201- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0806- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 0806-1101 ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1102- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1102- ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 07 1 0806-0806 ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 06 1 0807- ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 0806-1101 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1102-1112 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 05 1 1201- ● ●
16 CLIP; HARNESS
(AD) L=250 THA 		5-09707-030-1 02 1 0806-1101 ● ●
16 CLIP; HARNESS
(AD) L=250 THA 		5-09707-030-1 02 1 1102- ● ●
16 CLIP; HARNESS
(AE) L=140 THA 		5-09707-031-1 04 1 0806- ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 0806- ● ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 0806- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 0806-1102 ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1103- ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 0806- ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 0806-1112 ● ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AP) ID=13 L=28 		0-95235-255-0 01 1 1201- ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 0806- ● ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 08 1 0806-0901 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 03 1 0902- ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 05 1 0806-0806 ●
16 CLIP; HARNESS
(D) W/SPONGE RUBBER 		1-09709-150-0 01 1 0806- ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 0806-1101 ● ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 1102- ● ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 0806-1101 ● ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1102- ● ●
16 CLIP; HARNESS
(AG) THA 		8-98052-679-0 02 1 0806-1101 ● ●
16 CLIP; HARNESS
(AG) THA 		8-98052-679-0 02 1 1102- ● ●
48 CLIP; FRAME HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (H) ID=18-24 L=22 		1-09709-295-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=18 THA 		1-09709-287-0 01 1 0806-0807 ● ●
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0808- ● ●
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 01 1 0806-0807 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> (B) ID=13-18 L=22 		1-09709-292-0 02 1 0806-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=13-18 L=22 		1-09709-292-0 02 1 0806-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> (B) ID=13-18 L=22 		1-09709-292-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=13-18 L=22 		1-09709-292-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM<53W> (D) ID=13-18 L=26 		1-09709-293-0 02 1 0806-1112 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (D) ID=13-18 L=26 		1-09709-293-0 02 1 1201- ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 0806- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 16 1 0806-0806 ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 14 1 0807-1101 ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1102- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1102- ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 02 1 0806-0806 ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 0807- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 0806-0811 ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 02 1 0812- ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 THA 		1-09709-179-0 01 1 0806- ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 0806- ● ●
213 CLIP; END CROSS HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) ID=20 L=50 		9-09917-430-0 03 1 0902- ●
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 03 1 0806-0901 ● ●
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 03 1 0902- ●
213 CLIP; END CROSS HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=14 L=44 		9-09917-427-0 03 1 0902- ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4700MM<47W> (B) ID=11 L=41 		1-09700-403-0 01 1 0806- ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 5300MM<53W> (A) ID=5-12 L=18 THA 		1-09709-287-0 01 1 0806-1112 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) ID=5-12 L=18 THA 		1-09709-287-0 01 1 1201- ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=58 		9-09917-135-2 01 1 0806- ●
306 CLIP; HARNESS,ELEC GOV
ID=39 H=28 L=32 		1-09701-263-0 03 1 0806- ● ●
373 CLIP; BAND,GEN HARNESS
ID=20 H=23 L=27 		1-09700-861-0 02 1 0806- ● ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 03 1 0806- ● ●
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 0806- ● ●
395 CLIP; WIPER HARNESS
ID=11 L=60 		0-95235-096-0 01 1 0806-0807 ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0806- ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 0806- ●
470 CLIP; HARNESS,LICENSE LAMP
(D) L=140 THA 		5-09707-031-1 02 1 0806- ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 4700MM<47W> (A) ID=11 L=41 		1-09700-403-0 02 1 0806- ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 4700MM<47W> (B) ID=11 L=58 		9-09917-135-2 01 1 0806- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
