Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#68381) — 400 parça

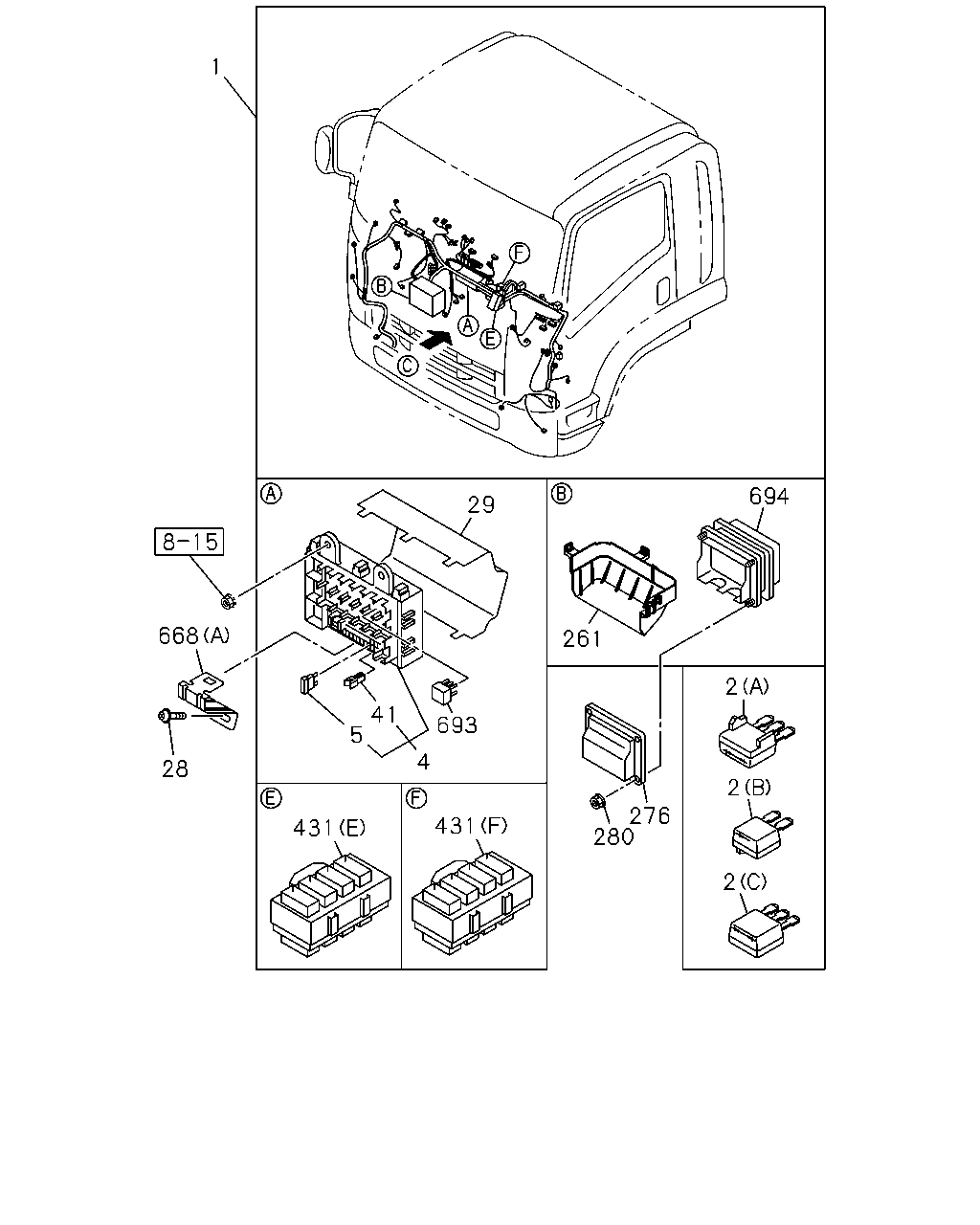

1 694 29 668 261 2 41 5 693 4 28 2 276 280 431 431 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB MJT7U M/T<Y4X> EXC. ENGINE REAR PTO<SV1> THA	8-98183-783-0	01	1	1209-	●
1	HARNESS; CAB MJT7U M/T<Y4X> EXC. ENGINE REAR PTO<SV1> THA	8-98183-783-0	01	1	1201-	●
1	HARNESS; CAB ENGINE REAR PTO<SV1> VIN MODEL YEAR 2010<VZA> THA	8-98166-079-1	01	1	1004-1101	●
1	HARNESS; CAB MAL6R M/T<Y2J> ENGINE REAR PTO<SV1> THA	8-98166-079-1	01	1	1102-	●
1	HARNESS; CAB VIN MODEL YEAR 2010<VZA> EXC. ENGINE REAR PTO<SV1> THA	8-98166-078-1	01	1	1004-1101	●
1	HARNESS; CAB VIN MODEL YEAR 2010<VZA> EXC. ANTILOCK BRAKE SYSTEM<BFA> THA	8-98166-078-1	01	1	1004-1101		●
1	HARNESS; CAB ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> THA	8-98166-078-1	01	1	1102-	●
1	HARNESS; CAB ZF9S1310 M/T<Y5K> EXC. ANTILOCK BRAKE SYSTEM<BFA> THA	8-98166-078-1	01	1	1102-		●
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM<BFA> VIN MODEL YEAR 2010<VZA> THA	8-98166-080-1	01	1	1004-1101		●
1	HARNESS; CAB ZF9S1310 M/T<Y5K> ANTILOCK BRAKE SYSTEM<BFA> THA	8-98166-080-1	01	1	1102-		●
1	HARNESS; CAB MEMORY SYSTEM RUNNING CONDITION<NCR> ENGINE REAR PTO<SV1> THA	8-98130-201-2	01	1	0902-0904	●
1	HARNESS; CAB ENGINE REAR PTO<SV1> THA	8-98150-715-1	01	1	0905-1003	●
1	HARNESS; CAB ENGINE REAR PTO<SV1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-98150-715-1	01	1	1004-1101	●
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM<BFA> MEMORY SYSTEM RUNNING CONDITION<NCR> THA	8-98130-203-2	01	1	0902-0904		●
1	HARNESS; CAB MEMORY SYSTEM RUNNING CONDITION<NCR> EXC. ENGINE REAR PTO<SV1> THA	8-98130-202-2	01	1	0902-0904	●
1	HARNESS; CAB MEMORY SYSTEM RUNNING CONDITION<NCR> EXC. ANTILOCK BRAKE SYSTEM<BFA> THA	8-98130-202-2	01	1	0902-0904		●
1	HARNESS; CAB EXC. ENGINE REAR PTO<SV1> THA	8-98150-714-1	01	1	0905-1003	●
1	HARNESS; CAB EXC. ANTILOCK BRAKE SYSTEM<BFA> THA	8-98150-714-1	01	1	0905-1003		●
1	HARNESS; CAB EXC. ENGINE REAR PTO<SV1>,VIN MODEL YEAR 2010<VZA> THA	8-98150-714-1	01	1	1004-1101	●
1	HARNESS; CAB EXC. ANTILOCK BRAKE SYSTEM<BFA>,VIN MODEL YEAR 2010<VZA> THA	8-98150-714-1	01	1	1004-1101		●
1	HARNESS; CAB ENGINE REAR PTO<SV1> THA	8-97924-426-2	01	1	0806-0901	●
1	HARNESS; CAB ENGINE REAR PTO<SV1> EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> THA	8-97924-426-2	01	1	0902-0904	●
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM<BFA> THA	8-98150-716-1	01	1	0905-0911		●
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM<BFA> THA	8-98164-505-0	01	1	0912-1003		●
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM<BFA> EXC. VIN MODEL YEAR 2010<VZA> THA	8-98164-505-0	01	1	1004-1101		●
1	HARNESS; CAB EXC. ENGINE REAR PTO<SV1> THA	8-97924-427-2	01	1	0806-0901	●
1	HARNESS; CAB THA	8-97924-427-2	01	1	0806-0901		●
1	HARNESS; CAB EXC. MEMORY SYSTEM RUNNING CONDITION<NCR>,ENGINE REAR PTO<SV1> THA	8-97924-427-2	01	1	0902-0904	●
1	HARNESS; CAB EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> THA	8-97924-427-2	01	1	0902-0904		●
1	HARNESS; CAB MAL6R M/T<Y2J> ENGINE REAR PTO<SV1> THA	8-98166-079-1	01	1	1209-	●
1	HARNESS; CAB ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> THA	8-98166-078-1	01	1	1209-	●
1	HARNESS; CAB ZF9S1310 M/T<Y5K> EXC. ANTILOCK BRAKE SYSTEM<BFA> THA	8-98166-078-1	01	1	1209-		●
1	HARNESS; CAB ZF9S1310 M/T<Y5K> ANTILOCK BRAKE SYSTEM<BFA> THA	8-98166-080-1	01	1	1209-		●
2	DIODE; CABLE HARNESS ZF9S1310 M/T<Y5K> ANTILOCK BRAKE SYSTEM<BFA> (A) BLACK 3P-1.5A THA	8-94416-438-1	02	1	1102-		●
2	DIODE; CABLE HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) BLACK 3P-1.5A THA	8-94416-438-1	02	1	0905-1003		●
2	DIODE; CABLE HARNESS ANTILOCK BRAKE SYSTEM<BFA> EXC. VIN MODEL YEAR 2010<VZA> (A) BLACK 3P-1.5A THA	8-94416-438-1	02	1	1004-1101		●
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A THA	8-94416-438-1	01	1	0806-0904	●	●
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A THA	8-94416-438-1	01	1	0905-1003	●
2	DIODE; CABLE HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) BLACK 3P-1.5A THA	8-94416-438-1	01	1	0905-1003		●
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A THA	8-94416-438-1	01	1	1004-1101	●
2	DIODE; CABLE HARNESS ANTILOCK BRAKE SYSTEM<BFA> VIN MODEL YEAR 2010<VZA> (A) BLACK 3P-1.5A THA	8-94416-438-1	01	1	1004-1101		●
2	DIODE; CABLE HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) BLACK 3P-1.5A THA	8-94416-438-1	01	1	1004-1101		●
2	DIODE; CABLE HARNESS ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (A) BLACK 3P-1.5A THA	8-94416-438-1	01	1	1102-1112	●
2	DIODE; CABLE HARNESS MAL6R M/T<Y2J> ENGINE REAR PTO<SV1> (A) BLACK 3P-1.5A THA	8-94416-438-1	01	1	1102-1112	●
2	DIODE; CABLE HARNESS ZF9S1310 M/T<Y5K> EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) BLACK 3P-1.5A THA	8-94416-438-1	01	1	1102-1112		●
2	DIODE; CABLE HARNESS MAL6R M/T<Y2J> ENGINE REAR PTO<SV1> (A) BLACK 3P-1.5A THA	8-94416-438-1	01	1	1201-	●
2	DIODE; CABLE HARNESS MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (A) BLACK 3P-1.5A THA	8-94416-438-1	01	1	1201-	●
2	DIODE; CABLE HARNESS ZF9S1310 M/T<Y5K> EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) BLACK 3P-1.5A THA	8-94416-438-1	01	1	1201-		●
2	DIODE; CABLE HARNESS MEMORY SYSTEM RUNNING CONDITION<NCR> (C) BLACK 4P-1.5A THA	8-94416-440-1	01	1	0902-0904	●	●
2	DIODE; CABLE HARNESS ANTILOCK BRAKE SYSTEM<BFA> (C) BLACK 4P-1.5A THA	8-94416-440-1	01	1	0905-1003		●
2	DIODE; CABLE HARNESS ANTILOCK BRAKE SYSTEM<BFA> EXC. VIN MODEL YEAR 2010<VZA> (C) BLACK 4P-1.5A THA	8-94416-440-1	01	1	1004-1101		●
2	DIODE; CABLE HARNESS (C) BLACK 3P-1.5A THA	8-94422-640-1	01	1	0806-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A THA	8-94422-639-1	02	1	0806-	●	●
4	BOX ASM; FUSE,HARNESS THA	8-98065-666-0	01	1	0806-	●	●
5	FUSE; FACIA HARNESS EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> 25A WHITE THA	8-98062-982-0	01	1	0902-0904	●	●
5	FUSE; FACIA HARNESS ANTILOCK BRAKE SYSTEM<BFA> 25A WHITE THA	8-98062-982-0	02	1	0905-1003		●
5	FUSE; FACIA HARNESS ANTILOCK BRAKE SYSTEM<BFA> EXC. VIN MODEL YEAR 2010<VZA> 25A WHITE THA	8-98062-982-0	02	1	1004-1101		●
5	FUSE; FACIA HARNESS 25A WHITE THA	8-98062-982-0	AR	1	1204-1208	●	●
5	FUSE; FACIA HARNESS 25A WHITE THA	8-98062-982-0	01	1	1209-	●	●
5	FUSE; FACIA HARNESS 10A RED THA	8-98054-257-0	AR	1	0806-	●	●
5	FUSE; FACIA HARNESS 15A BLUE THA	8-98054-258-0	AR	1	0806-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW THA	8-98054-259-0	AR	1	0806-	●	●
5	FUSE; FACIA HARNESS 25A WHITE THA	8-98062-982-0	01	1	0806-0901	●	●
5	FUSE; FACIA HARNESS MEMORY SYSTEM RUNNING CONDITION<NCR> 25A WHITE THA	8-98062-982-0	02	1	0902-0904	●	●
5	FUSE; FACIA HARNESS 25A WHITE THA	8-98062-982-0	01	1	0905-1003	●
5	FUSE; FACIA HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> 25A WHITE THA	8-98062-982-0	01	1	0905-1003		●
5	FUSE; FACIA HARNESS 25A WHITE THA	8-98062-982-0	01	1	1004-1101	●
5	FUSE; FACIA HARNESS ANTILOCK BRAKE SYSTEM<BFA> VIN MODEL YEAR 2010<VZA> 25A WHITE THA	8-98062-982-0	01	1	1004-1101		●
5	FUSE; FACIA HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> 25A WHITE THA	8-98062-982-0	01	1	1004-1101		●
5	FUSE; FACIA HARNESS 25A WHITE THA	8-98062-982-0	01	1	1102-	●	●
28	SCREW; FUSE BOX M6X16 FLANGE THA	0-28650-616-0	01	1	0806-	●	●
29	COVER; FUSE BOX THA	8-98056-968-0	01	1	0806-	●	●
41	PULLER; FUSE THA	8-98054-260-0	01	1	0806-	●	●
261	COVER; CONNECTOR BOX THA	8-98065-986-1	01	1	1102-	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	0806-	●	●
280	NUT; BOX ASM FIX M6 FLANGE THA	0-91180-106-0	04	1	0806-	●	●
431	CONNECTOR; JOINT MEMORY SYSTEM RUNNING CONDITION<NCR> (E) WHITE	8-98056-374-0	01	1	0902-0904	●	●
431	CONNECTOR; JOINT (E) WHITE	8-98056-374-0	01	1	0905-1101	●	●
431	CONNECTOR; JOINT MEMORY SYSTEM RUNNING CONDITION<NCR> (F) WHITE	8-98056-375-0	01	1	0902-0904	●	●
431	CONNECTOR; JOINT (F) WHITE	8-98056-375-0	01	1	0905-1101	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM<BFA> (A) 10P BLUE THA	1-82699-598-0	04	1	0902-1009		●
431	CONNECTOR; JOINT (A) 10P BLUE THA	1-82699-598-0	04	1	1010-		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM<BFA> (D) 10P GREEN THA	1-82699-599-0	07	1	0902-1009		●
431	CONNECTOR; JOINT (D) 10P GREEN THA	1-82699-599-0	07	1	1010-		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM<BFA> (C) 10P BROWN THA	1-82699-601-0	01	1	0902-1009		●
431	CONNECTOR; JOINT (C) 10P BROWN THA	1-82699-601-0	01	1	1010-		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM<BFA> (B) 6P BLACK THA	8-97616-194-0	02	1	0902-1009		●
431	CONNECTOR; JOINT (B) 6P BLACK THA	8-97616-194-0	02	1	1010-		●
431	CONNECTOR; JOINT (A) 10P BLUE THA	1-82699-598-0	06	1	0806-0901	●	●
431	CONNECTOR; JOINT (A) 10P BLUE THA	1-82699-598-0	06	1	0902-1009	●
431	CONNECTOR; JOINT EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) 10P BLUE THA	1-82699-598-0	06	1	0902-1009		●
431	CONNECTOR; JOINT (A) 10P BLUE THA	1-82699-598-0	06	1	1010-1101	●
431	CONNECTOR; JOINT WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) 10P BLUE THA	1-82699-598-0	06	1	1102-1112	●
431	CONNECTOR; JOINT (A) 10P BLUE THA	1-82699-598-0	06	1	1201-	●
431	CONNECTOR; JOINT (B) 6P BLACK THA	8-97616-194-0	01	1	0806-0901	●	●
431	CONNECTOR; JOINT (B) 6P BLACK THA	8-97616-194-0	01	1	0902-1009	●
431	CONNECTOR; JOINT EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) 6P BLACK THA	8-97616-194-0	01	1	0902-1009		●
431	CONNECTOR; JOINT (B) 6P BLACK THA	8-97616-194-0	01	1	1010-1101	●
431	CONNECTOR; JOINT WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (B) 6P BLACK THA	8-97616-194-0	01	1	1102-1112	●
431	CONNECTOR; JOINT (B) 6P BLACK THA	8-97616-194-0	01	1	1201-	●
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	0806-	●	●
668	BRACKET; HARNESS (B)	8-98117-572-0	01	1	0806-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC THA	8-97173-035-1	AR	1	0806-	●	●
694	BOX ASM; CONNECTOR THA	8-98057-771-0	01	1	1102-	●	●
694	BOX ASM; CONNECTOR MEMORY SYSTEM RUNNING CONDITION<NCR>	8-98063-269-1	01	1	0902-0904	●	●
694	BOX ASM; CONNECTOR	8-98063-269-1	01	1	0905-1101	●	●

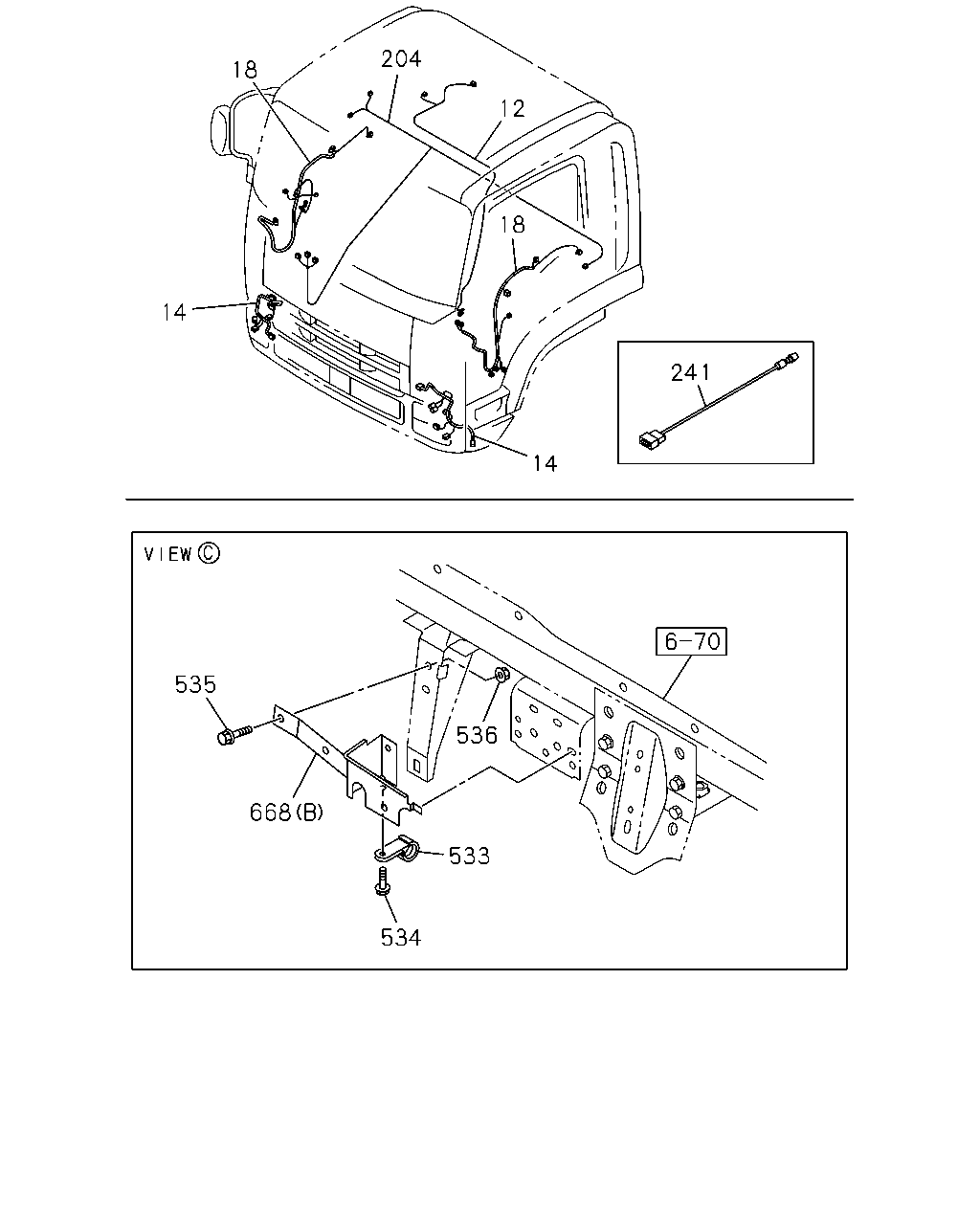

204 18 12 18 14 241 14 535 536 668 533 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	HARNESS; ROOF THA	8-97924-274-0	01	1	0806-	●	●
14	HARNESS; HEADLAMP THA	8-98103-680-1	02	1	0806-	●	●
18	HARNESS; DOOR THA	8-98076-304-3	01	1	0806-	●
18	HARNESS; DOOR THA	8-98076-305-3	01	1	0806-	●
18	HARNESS; DOOR THA	8-98108-439-1	01	1	0806-		●
18	HARNESS; DOOR THA	8-98108-440-1	01	1	0806-		●
204	HARNESS; CABLE,FLOOR ENGINE REAR PTO<SV1> THA	8-98115-718-0	01	1	0806-0806	●
204	HARNESS; CABLE,FLOOR ENGINE REAR PTO<SV1> THA	8-97924-818-0	01	1	0807-	●
204	HARNESS; CABLE,FLOOR EXC. ENGINE REAR PTO<SV1>	8-98098-088-2	01	1	0806-0806	●
204	HARNESS; CABLE,FLOOR EXC. ENGINE REAR PTO<SV1> THA	8-97924-816-0	01	1	0807-	●
204	HARNESS; CABLE,FLOOR	8-98098-089-2	01	1	0806-0806		●
204	HARNESS; CABLE,FLOOR THA	8-97924-817-0	01	1	0807-		●
241	HARNESS; MARKER LAMP THA	8-97924-671-0	01	1	0806-	●	●
533	CLIP ID=13 H=29 L=30	1-09700-001-0	01	1	0809-		●
533	CLIP ID=15 H=24 L=20	1-09700-606-0	04	1	0809-		●
533	CLIP ID=11 H=20 L=25	1-09700-848-0	04	1	0809-		●
533	CLIP ID=11 H=34 L=27	1-09701-023-0	01	1	0809-		●
533	CLIP OD=9 H=6	1-09709-178-0	02	1	0809-		●
533	CLIP ID=31 L=35	1-09700-329-1	01	1	0806-	●	●
534	BOLT M8X20 FLANGE THA	0-28650-820-0	01	1	0806-	●	●
535	BOLT; BRKT FIX M8X20 FLANGE THA	0-28650-820-0	01	1	0806-	●	●
536	NUT; BRKT FIX M8	8-98041-929-0	01	1	0806-	●	●
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	0806-	●	●
668	BRACKET; HARNESS (B)	8-98117-572-0	01	1	0806-	●	●

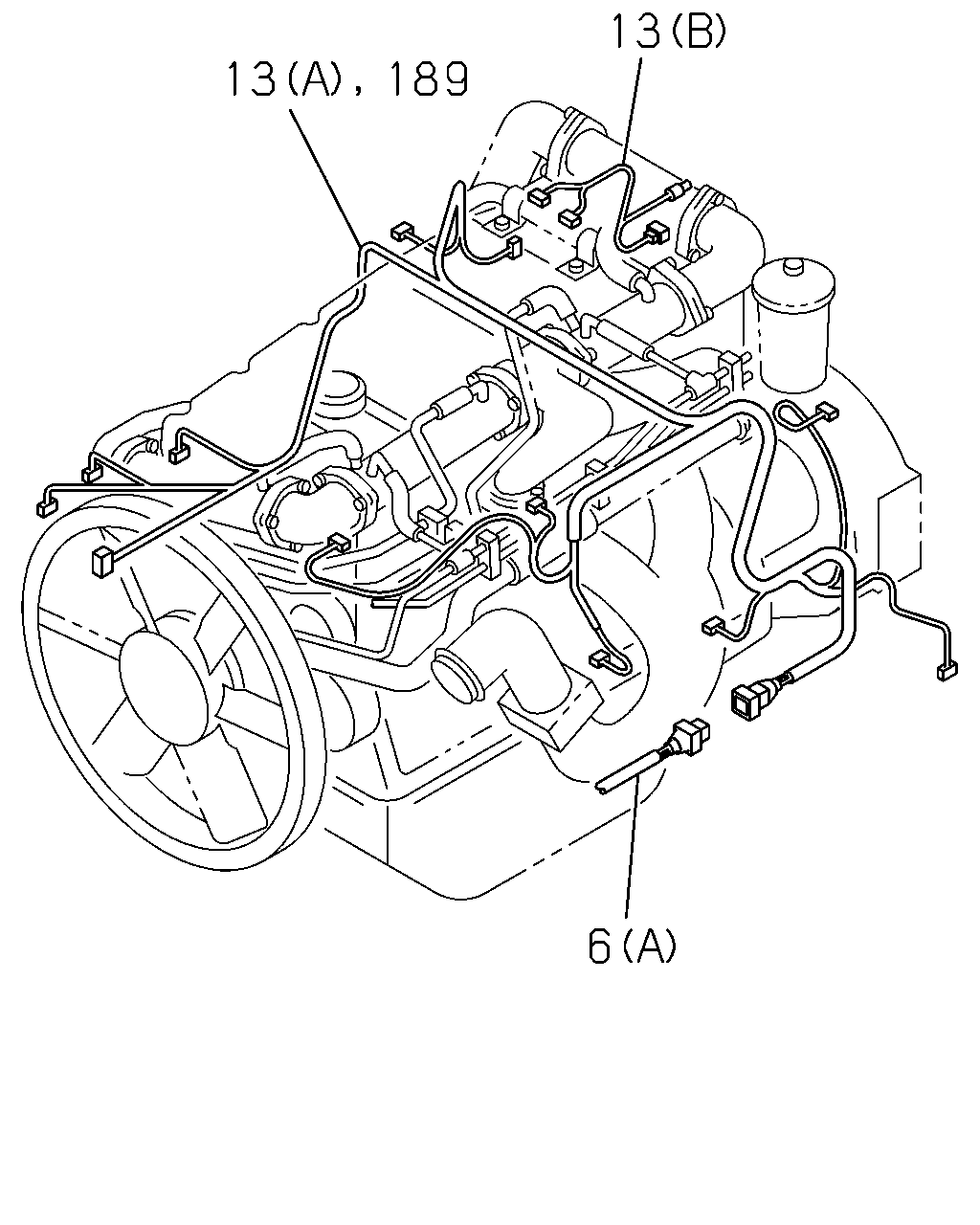

13 6 13 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME WHEEL BASE 5200MM<52W> (A) THA	8-97925-616-1	01	1	1201-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-98136-245-0	01	1	0902-1009		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-356-0	01	1	1010-1101		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-577-1	01	1	1102-		●
6	HARNESS; FRAME (B) THA	8-97924-243-3	01	1	0806-1009	●
6	HARNESS; FRAME (B) THA	8-97924-243-3	01	1	1010-	●	●
6	HARNESS; FRAME (B) THA	8-97924-244-3	01	1	0806-1009		●
6	HARNESS; FRAME (A) THA	8-97924-402-1	01	1	0806-1101	●
6	HARNESS; FRAME WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) THA	8-97925-575-1	01	1	1102-	●
6	HARNESS; FRAME (A) THA	8-97924-403-1	01	1	0806-0901		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97924-403-1	01	1	0902-1009		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-355-0	01	1	1010-1101		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-576-1	01	1	1102-		●
13	HARNESS; ENG (A)	8-98172-215-0	01	1	1102-	●	●
13	HARNESS; ENG (B)	8-97609-178-1	01	1	0806-	●	●
189	HARNESS; EXT	8-97620-049-1	01	1	0806-1101	●	●

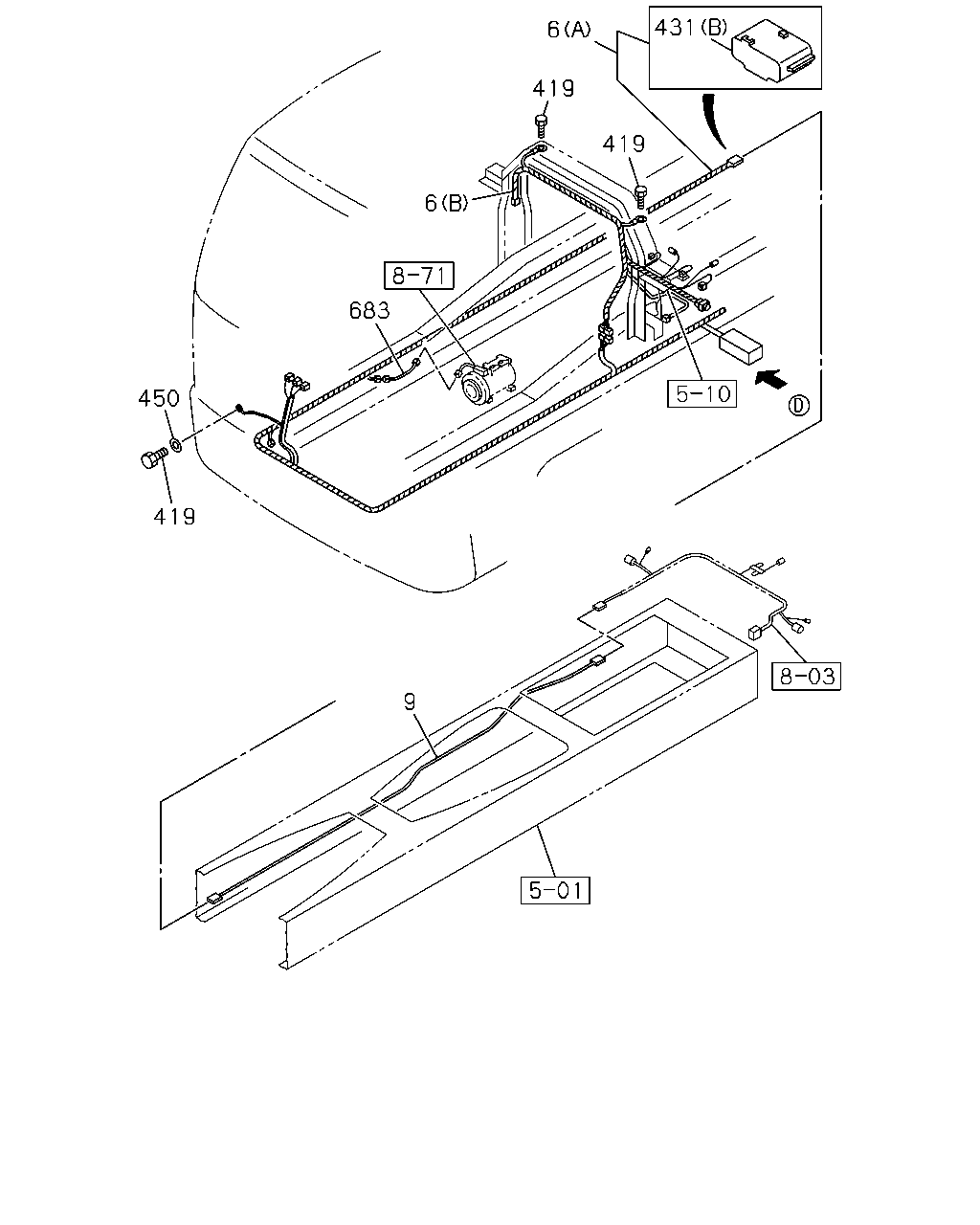

431 6 419 419 6 683 450 419 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME WHEEL BASE 5200MM<52W> (A) THA	8-97925-616-1	01	1	1201-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-98136-245-0	01	1	0902-1009		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-356-0	01	1	1010-1101		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-577-1	01	1	1102-		●
6	HARNESS; FRAME (B) THA	8-97924-243-3	01	1	0806-1009	●
6	HARNESS; FRAME (B) THA	8-97924-243-3	01	1	1010-	●	●
6	HARNESS; FRAME (B) THA	8-97924-244-3	01	1	0806-1009		●
6	HARNESS; FRAME (A) THA	8-97924-402-1	01	1	0806-1101	●
6	HARNESS; FRAME WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) THA	8-97925-575-1	01	1	1102-	●
6	HARNESS; FRAME (A) THA	8-97924-403-1	01	1	0806-0901		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97924-403-1	01	1	0902-1009		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-355-0	01	1	1010-1101		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-576-1	01	1	1102-		●
9	HARNESS; FRAME,RR WHEEL BASE 5200MM<52W> THA	8-97925-664-0	01	1	1201-	●
9	HARNESS; FRAME,RR WHEEL BASE 4700MM<47W> PTO ZF TRANS RR<BDM> ANTILOCK BRAKE SYSTEM<BFA> THA	8-97925-176-0	01	1	0906-		●
9	HARNESS; FRAME,RR ANTILOCK BRAKE SYSTEM<BFA> THA	8-97924-838-0	01	1	0902-0905		●
9	HARNESS; FRAME,RR WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> EXC. PTO ZF TRANS RR<BDM> THA	8-97924-838-0	01	1	0906-		●
9	HARNESS; FRAME,RR WHEEL BASE 4700MM<47W> THA	8-97924-165-1	01	1	0806-	●
9	HARNESS; FRAME,RR WHEEL BASE 5300MM<53W> THA	8-97923-960-2	01	1	0806-	●
9	HARNESS; FRAME,RR THA	8-97923-959-0	01	1	0806-0901		●
9	HARNESS; FRAME,RR EXC. ANTILOCK BRAKE SYSTEM<BFA> THA	8-97923-959-0	01	1	0902-		●
419	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0806-	●	●
419	BOLT; CAB EARTH M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	0806-1201	●	●
419	BOLT; CAB EARTH M8X14 W/PL WASHER	8-98164-837-0	03	1	1202-	●	●
431	CONNECTOR; JOINT MEMORY SYSTEM RUNNING CONDITION<NCR> (E) WHITE	8-98056-374-0	01	1	0902-0904	●	●
431	CONNECTOR; JOINT (E) WHITE	8-98056-374-0	01	1	0905-1101	●	●
431	CONNECTOR; JOINT MEMORY SYSTEM RUNNING CONDITION<NCR> (F) WHITE	8-98056-375-0	01	1	0902-0904	●	●
431	CONNECTOR; JOINT (F) WHITE	8-98056-375-0	01	1	0905-1101	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM<BFA> (A) 10P BLUE THA	1-82699-598-0	04	1	0902-1009		●
431	CONNECTOR; JOINT (A) 10P BLUE THA	1-82699-598-0	04	1	1010-		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM<BFA> (D) 10P GREEN THA	1-82699-599-0	07	1	0902-1009		●
431	CONNECTOR; JOINT (D) 10P GREEN THA	1-82699-599-0	07	1	1010-		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM<BFA> (C) 10P BROWN THA	1-82699-601-0	01	1	0902-1009		●
431	CONNECTOR; JOINT (C) 10P BROWN THA	1-82699-601-0	01	1	1010-		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM<BFA> (B) 6P BLACK THA	8-97616-194-0	02	1	0902-1009		●
431	CONNECTOR; JOINT (B) 6P BLACK THA	8-97616-194-0	02	1	1010-		●
431	CONNECTOR; JOINT (A) 10P BLUE THA	1-82699-598-0	06	1	0806-0901	●	●
431	CONNECTOR; JOINT (A) 10P BLUE THA	1-82699-598-0	06	1	0902-1009	●
431	CONNECTOR; JOINT EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) 10P BLUE THA	1-82699-598-0	06	1	0902-1009		●
431	CONNECTOR; JOINT (A) 10P BLUE THA	1-82699-598-0	06	1	1010-1101	●
431	CONNECTOR; JOINT WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) 10P BLUE THA	1-82699-598-0	06	1	1102-1112	●
431	CONNECTOR; JOINT (A) 10P BLUE THA	1-82699-598-0	06	1	1201-	●
431	CONNECTOR; JOINT (B) 6P BLACK THA	8-97616-194-0	01	1	0806-0901	●	●
431	CONNECTOR; JOINT (B) 6P BLACK THA	8-97616-194-0	01	1	0902-1009	●
431	CONNECTOR; JOINT EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) 6P BLACK THA	8-97616-194-0	01	1	0902-1009		●
431	CONNECTOR; JOINT (B) 6P BLACK THA	8-97616-194-0	01	1	1010-1101	●
431	CONNECTOR; JOINT WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (B) 6P BLACK THA	8-97616-194-0	01	1	1102-1112	●
431	CONNECTOR; JOINT (B) 6P BLACK THA	8-97616-194-0	01	1	1201-	●
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	01	1	0806-	●	●
683	HARNESS; EXT,COOLER THA	8-97609-020-1	01	1	0806-	●	●

201 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME WHEEL BASE 5200MM<52W> (A) THA	8-97925-616-1	01	1	1201-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-98136-245-0	01	1	0902-1009		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-356-0	01	1	1010-1101		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-577-1	01	1	1102-		●
6	HARNESS; FRAME (B) THA	8-97924-243-3	01	1	0806-1009	●
6	HARNESS; FRAME (B) THA	8-97924-243-3	01	1	1010-	●	●
6	HARNESS; FRAME (B) THA	8-97924-244-3	01	1	0806-1009		●
6	HARNESS; FRAME (A) THA	8-97924-402-1	01	1	0806-1101	●
6	HARNESS; FRAME WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) THA	8-97925-575-1	01	1	1102-	●
6	HARNESS; FRAME (A) THA	8-97924-403-1	01	1	0806-0901		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97924-403-1	01	1	0902-1009		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-355-0	01	1	1010-1101		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-576-1	01	1	1102-		●

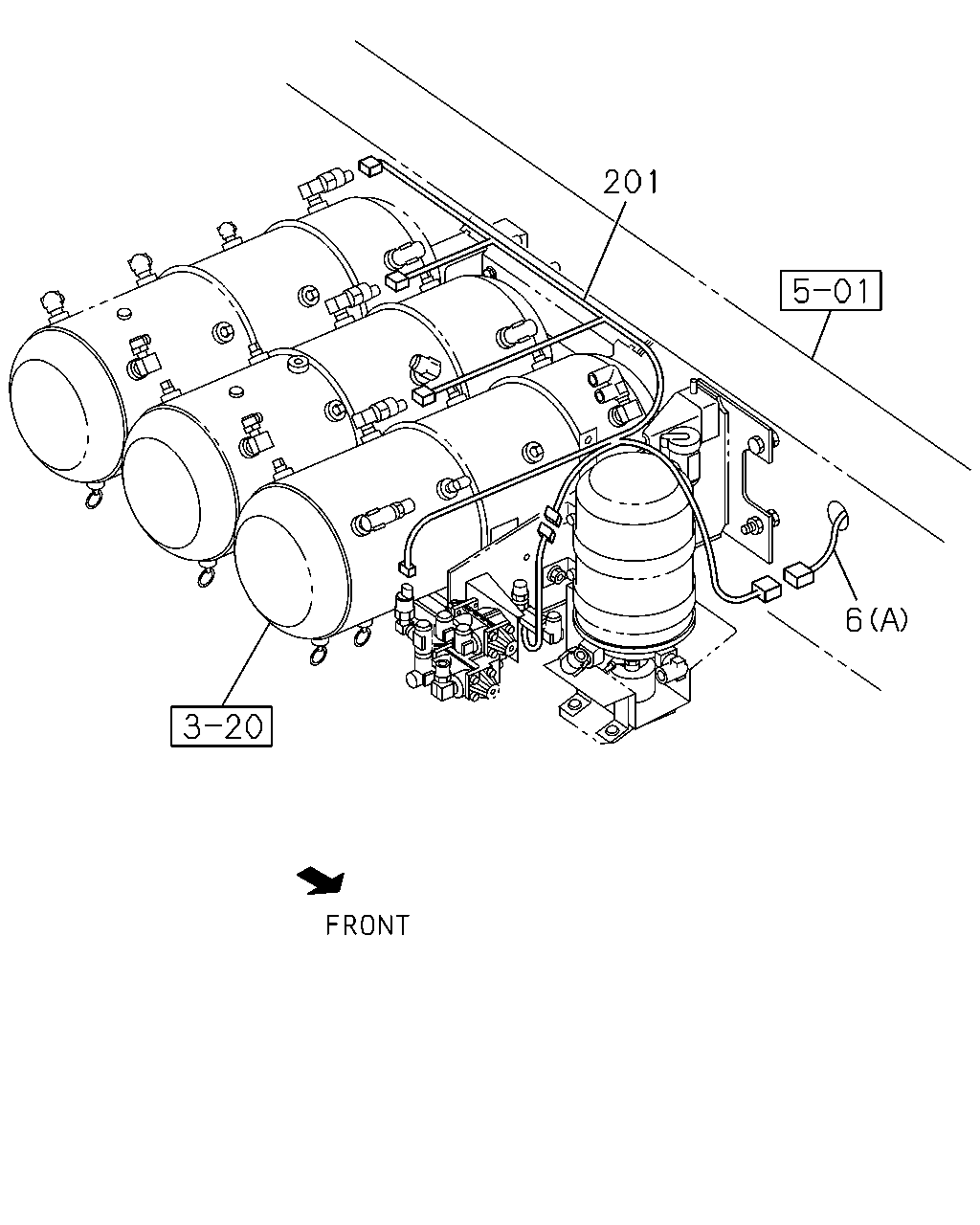

201	HARNESS; AIR TANK THA	8-98099-147-2	01	1	0806-	●	●

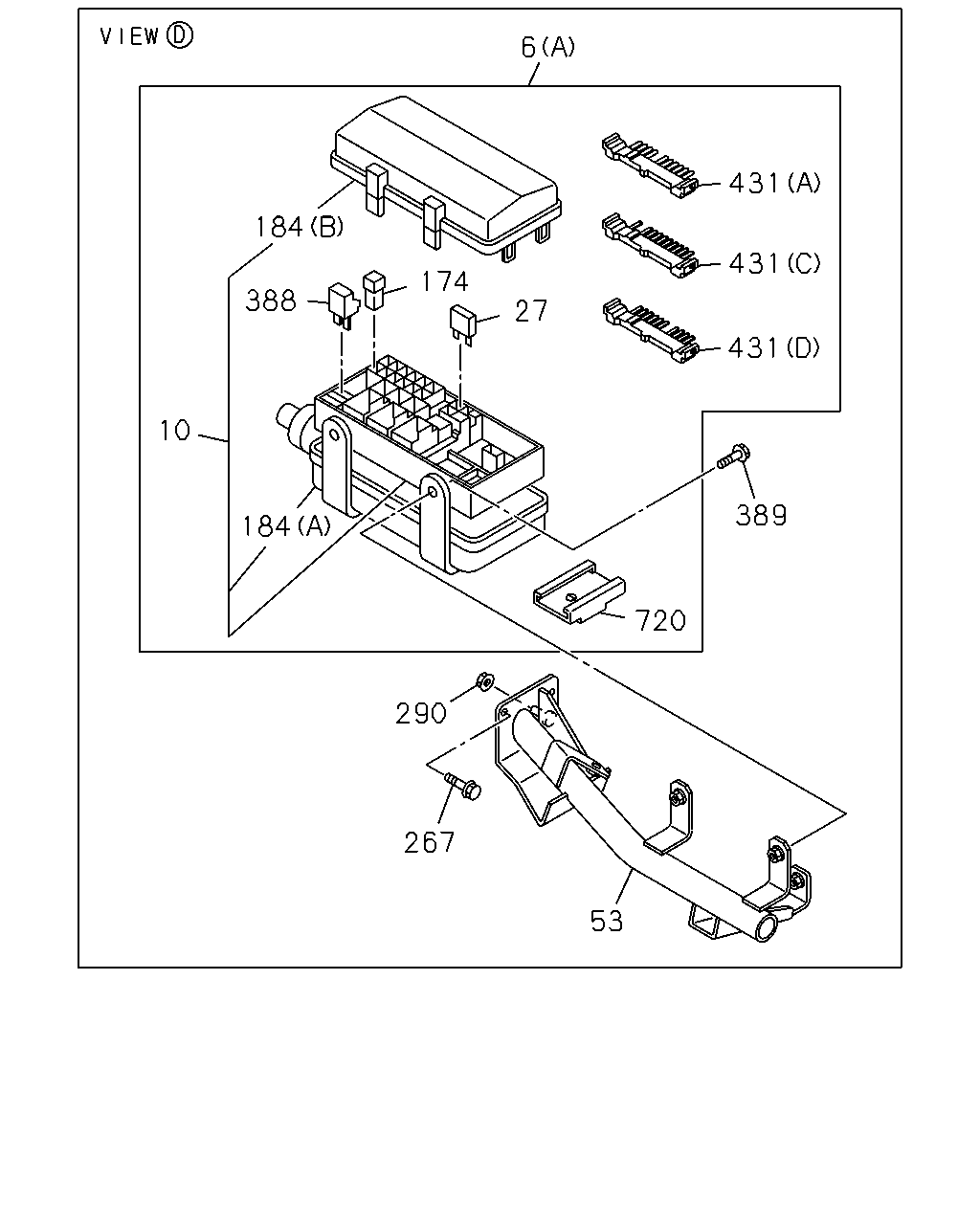

6 431 184 431 174 388 27 431 10 389 184 720 290 267 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME WHEEL BASE 5200MM<52W> (A) THA	8-97925-616-1	01	1	1201-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-98136-245-0	01	1	0902-1009		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-356-0	01	1	1010-1101		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-577-1	01	1	1102-		●
6	HARNESS; FRAME (B) THA	8-97924-243-3	01	1	0806-1009	●
6	HARNESS; FRAME (B) THA	8-97924-243-3	01	1	1010-	●	●
6	HARNESS; FRAME (B) THA	8-97924-244-3	01	1	0806-1009		●
6	HARNESS; FRAME (A) THA	8-97924-402-1	01	1	0806-1101	●
6	HARNESS; FRAME WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) THA	8-97925-575-1	01	1	1102-	●
6	HARNESS; FRAME (A) THA	8-97924-403-1	01	1	0806-0901		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97924-403-1	01	1	0902-1009		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-355-0	01	1	1010-1101		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-576-1	01	1	1102-		●
10	BOX; FUSE,HARNESS THA	8-98030-762-0	01	1	0806-	●	●
27	FUSE UNIT WHEEL BASE 4700MM<47W> 10A RED THA	8-98054-257-0	03	1	1201-	●
27	FUSE UNIT 10A RED THA	8-98054-257-0	04	1	0806-	●	●
27	FUSE UNIT 15A BLUE THA	8-98054-258-0	01	1	0806-	●	●
53	BRACKET; FUSE BOX THA	8-98078-800-1	01	1	0806-	●	●
174	FUSE; SLOW BLOW 60A YELLOW THA	8-97219-407-0	01	1	1111-	●	●
174	FUSE; SLOW BLOW ANTILOCK BRAKE SYSTEM<BFA> 30A PINK THA	8-98079-191-0	02	1	0902-1009		●
174	FUSE; SLOW BLOW 30A PINK THA	8-98079-191-0	02	1	1010-		●
174	FUSE; SLOW BLOW ANTILOCK BRAKE SYSTEM<BFA> 50A RED THA	8-98079-193-0	03	1	0902-1009		●
174	FUSE; SLOW BLOW 30A PINK THA	8-98079-191-0	01	1	0806-0901	●	●
174	FUSE; SLOW BLOW 30A PINK THA	8-98079-191-0	01	1	0902-1009	●
174	FUSE; SLOW BLOW EXC. ANTILOCK BRAKE SYSTEM<BFA> 30A PINK THA	8-98079-191-0	01	1	0902-1009		●
174	FUSE; SLOW BLOW 30A PINK THA	8-98079-191-0	01	1	1010-1101	●
174	FUSE; SLOW BLOW WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 30A PINK THA	8-98079-191-0	01	1	1102-1112	●
174	FUSE; SLOW BLOW 30A PINK THA	8-98079-191-0	01	1	1201-	●
174	FUSE; SLOW BLOW 40A GREEN THA	8-98079-192-0	01	1	0806-	●	●
174	FUSE; SLOW BLOW 50A RED THA	8-98079-193-0	04	1	0806-0901	●	●
174	FUSE; SLOW BLOW 50A RED THA	8-98079-193-0	04	1	0902-1009	●
174	FUSE; SLOW BLOW EXC. ANTILOCK BRAKE SYSTEM<BFA> 50A RED THA	8-98079-193-0	04	1	0902-1009		●
174	FUSE; SLOW BLOW 50A RED THA	8-98079-193-0	04	1	1010-1101	●	●
174	FUSE; SLOW BLOW 50A RED THA	8-98079-193-0	04	1	1102-	●	●
174	FUSE; SLOW BLOW 60A YELLOW THA	8-98079-194-0	02	1	0806-1101	●	●
174	FUSE; SLOW BLOW 60A YELLOW THA	8-97219-407-0	02	1	1102-1110	●	●
174	FUSE; SLOW BLOW 60A YELLOW THA	8-97219-407-0	01	1	1111-	●	●
184	COVER; RELAY & FUSE BOX (A) THA	8-98030-766-0	01	1	0806-	●	●
184	COVER; RELAY & FUSE BOX (B) THA	8-98030-767-1	01	1	0806-	●	●
267	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	0806-	●	●
290	NUT; BRKT M10 FLANGE THA	0-91180-110-0	01	1	0806-	●	●
388	DIODE; RELAY BOX BLACK 4P-1.5A THA	8-94381-730-0	01	1	1102-	●	●
388	DIODE; RELAY BOX BLACK 4P-1.5A THA	8-94381-730-0	02	1	0806-1101	●	●
388	DIODE; RELAY BOX BLACK 2P-1.5A THA	8-94422-639-1	01	1	0806-	●	●
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER THA	1-09030-073-0	03	1	0806-	●	●
431	CONNECTOR; JOINT MEMORY SYSTEM RUNNING CONDITION<NCR> (E) WHITE	8-98056-374-0	01	1	0902-0904	●	●
431	CONNECTOR; JOINT (E) WHITE	8-98056-374-0	01	1	0905-1101	●	●
431	CONNECTOR; JOINT MEMORY SYSTEM RUNNING CONDITION<NCR> (F) WHITE	8-98056-375-0	01	1	0902-0904	●	●
431	CONNECTOR; JOINT (F) WHITE	8-98056-375-0	01	1	0905-1101	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM<BFA> (A) 10P BLUE THA	1-82699-598-0	04	1	0902-1009		●
431	CONNECTOR; JOINT (A) 10P BLUE THA	1-82699-598-0	04	1	1010-		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM<BFA> (D) 10P GREEN THA	1-82699-599-0	07	1	0902-1009		●
431	CONNECTOR; JOINT (D) 10P GREEN THA	1-82699-599-0	07	1	1010-		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM<BFA> (C) 10P BROWN THA	1-82699-601-0	01	1	0902-1009		●
431	CONNECTOR; JOINT (C) 10P BROWN THA	1-82699-601-0	01	1	1010-		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM<BFA> (B) 6P BLACK THA	8-97616-194-0	02	1	0902-1009		●
431	CONNECTOR; JOINT (B) 6P BLACK THA	8-97616-194-0	02	1	1010-		●
431	CONNECTOR; JOINT (A) 10P BLUE THA	1-82699-598-0	06	1	0806-0901	●	●
431	CONNECTOR; JOINT (A) 10P BLUE THA	1-82699-598-0	06	1	0902-1009	●
431	CONNECTOR; JOINT EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) 10P BLUE THA	1-82699-598-0	06	1	0902-1009		●
431	CONNECTOR; JOINT (A) 10P BLUE THA	1-82699-598-0	06	1	1010-1101	●
431	CONNECTOR; JOINT WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) 10P BLUE THA	1-82699-598-0	06	1	1102-1112	●
431	CONNECTOR; JOINT (A) 10P BLUE THA	1-82699-598-0	06	1	1201-	●
431	CONNECTOR; JOINT (B) 6P BLACK THA	8-97616-194-0	01	1	0806-0901	●	●
431	CONNECTOR; JOINT (B) 6P BLACK THA	8-97616-194-0	01	1	0902-1009	●
431	CONNECTOR; JOINT EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) 6P BLACK THA	8-97616-194-0	01	1	0902-1009		●
431	CONNECTOR; JOINT (B) 6P BLACK THA	8-97616-194-0	01	1	1010-1101	●
431	CONNECTOR; JOINT WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (B) 6P BLACK THA	8-97616-194-0	01	1	1102-1112	●
431	CONNECTOR; JOINT (B) 6P BLACK THA	8-97616-194-0	01	1	1201-	●
720	ATTACHMENT; CONNECTOR WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA	1-82699-688-0	01	1	1102-1112	●
720	ATTACHMENT; CONNECTOR THA	1-82699-688-0	01	1	1201-	●
720	ATTACHMENT; CONNECTOR THA	1-82699-688-0	03	1	0806-1101	●	●
720	ATTACHMENT; CONNECTOR THA	1-82699-688-0	03	1	1102-		●

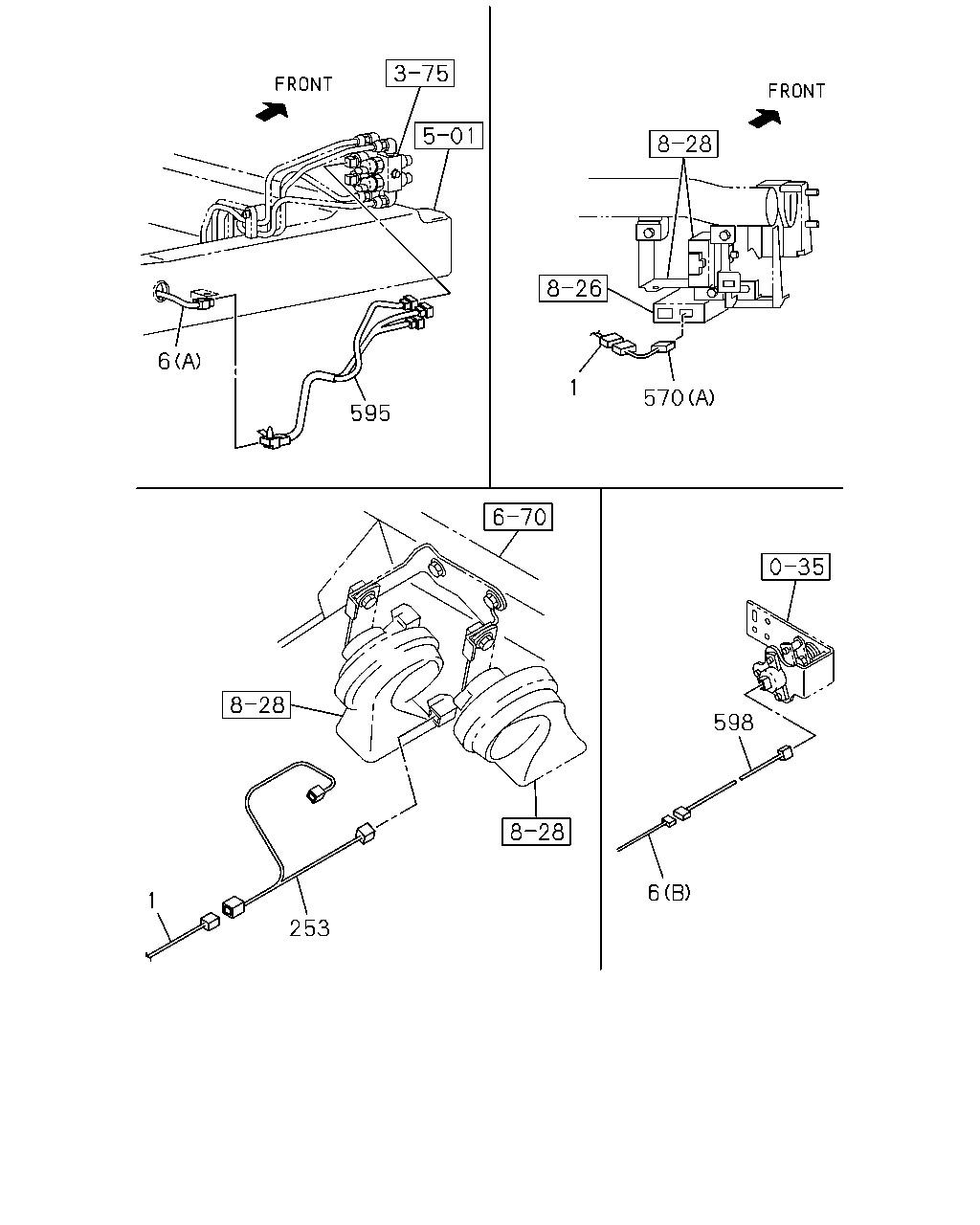

6 1 570 595 598 6 1 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

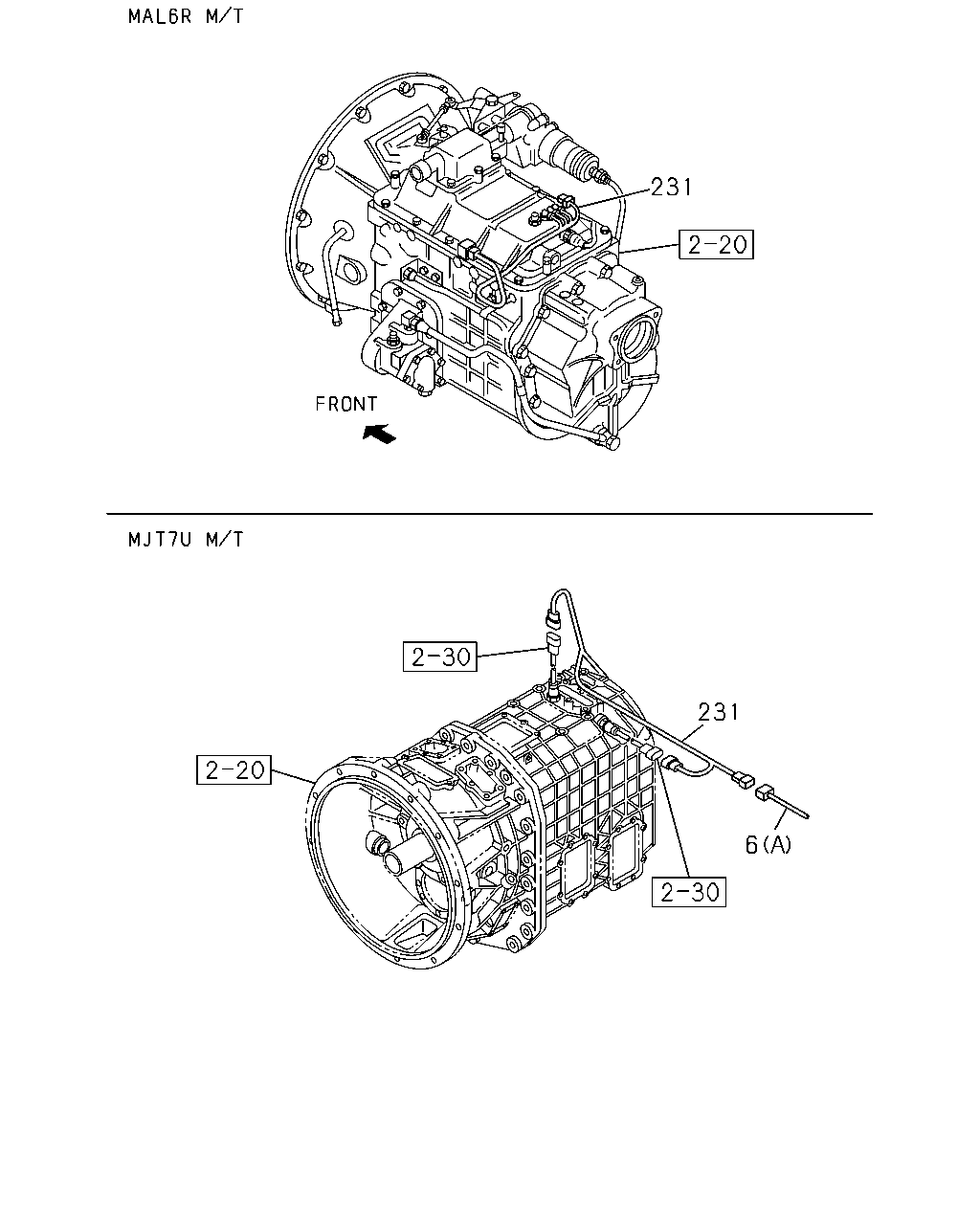

1	HARNESS; CAB MJT7U M/T<Y4X> EXC. ENGINE REAR PTO<SV1> THA	8-98183-783-0	01	1	1209-	●
1	HARNESS; CAB MJT7U M/T<Y4X> EXC. ENGINE REAR PTO<SV1> THA	8-98183-783-0	01	1	1201-	●
1	HARNESS; CAB ENGINE REAR PTO<SV1> VIN MODEL YEAR 2010<VZA> THA	8-98166-079-1	01	1	1004-1101	●
1	HARNESS; CAB MAL6R M/T<Y2J> ENGINE REAR PTO<SV1> THA	8-98166-079-1	01	1	1102-	●
1	HARNESS; CAB VIN MODEL YEAR 2010<VZA> EXC. ENGINE REAR PTO<SV1> THA	8-98166-078-1	01	1	1004-1101	●
1	HARNESS; CAB VIN MODEL YEAR 2010<VZA> EXC. ANTILOCK BRAKE SYSTEM<BFA> THA	8-98166-078-1	01	1	1004-1101		●
1	HARNESS; CAB ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> THA	8-98166-078-1	01	1	1102-	●
1	HARNESS; CAB ZF9S1310 M/T<Y5K> EXC. ANTILOCK BRAKE SYSTEM<BFA> THA	8-98166-078-1	01	1	1102-		●
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM<BFA> VIN MODEL YEAR 2010<VZA> THA	8-98166-080-1	01	1	1004-1101		●
1	HARNESS; CAB ZF9S1310 M/T<Y5K> ANTILOCK BRAKE SYSTEM<BFA> THA	8-98166-080-1	01	1	1102-		●
1	HARNESS; CAB MEMORY SYSTEM RUNNING CONDITION<NCR> ENGINE REAR PTO<SV1> THA	8-98130-201-2	01	1	0902-0904	●
1	HARNESS; CAB ENGINE REAR PTO<SV1> THA	8-98150-715-1	01	1	0905-1003	●
1	HARNESS; CAB ENGINE REAR PTO<SV1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-98150-715-1	01	1	1004-1101	●
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM<BFA> MEMORY SYSTEM RUNNING CONDITION<NCR> THA	8-98130-203-2	01	1	0902-0904		●
1	HARNESS; CAB MEMORY SYSTEM RUNNING CONDITION<NCR> EXC. ENGINE REAR PTO<SV1> THA	8-98130-202-2	01	1	0902-0904	●
1	HARNESS; CAB MEMORY SYSTEM RUNNING CONDITION<NCR> EXC. ANTILOCK BRAKE SYSTEM<BFA> THA	8-98130-202-2	01	1	0902-0904		●
1	HARNESS; CAB EXC. ENGINE REAR PTO<SV1> THA	8-98150-714-1	01	1	0905-1003	●
1	HARNESS; CAB EXC. ANTILOCK BRAKE SYSTEM<BFA> THA	8-98150-714-1	01	1	0905-1003		●
1	HARNESS; CAB EXC. ENGINE REAR PTO<SV1>,VIN MODEL YEAR 2010<VZA> THA	8-98150-714-1	01	1	1004-1101	●
1	HARNESS; CAB EXC. ANTILOCK BRAKE SYSTEM<BFA>,VIN MODEL YEAR 2010<VZA> THA	8-98150-714-1	01	1	1004-1101		●
1	HARNESS; CAB ENGINE REAR PTO<SV1> THA	8-97924-426-2	01	1	0806-0901	●
1	HARNESS; CAB ENGINE REAR PTO<SV1> EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> THA	8-97924-426-2	01	1	0902-0904	●
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM<BFA> THA	8-98150-716-1	01	1	0905-0911		●
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM<BFA> THA	8-98164-505-0	01	1	0912-1003		●
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM<BFA> EXC. VIN MODEL YEAR 2010<VZA> THA	8-98164-505-0	01	1	1004-1101		●
1	HARNESS; CAB EXC. ENGINE REAR PTO<SV1> THA	8-97924-427-2	01	1	0806-0901	●
1	HARNESS; CAB THA	8-97924-427-2	01	1	0806-0901		●
1	HARNESS; CAB EXC. MEMORY SYSTEM RUNNING CONDITION<NCR>,ENGINE REAR PTO<SV1> THA	8-97924-427-2	01	1	0902-0904	●
1	HARNESS; CAB EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> THA	8-97924-427-2	01	1	0902-0904		●
1	HARNESS; CAB MAL6R M/T<Y2J> ENGINE REAR PTO<SV1> THA	8-98166-079-1	01	1	1209-	●
1	HARNESS; CAB ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> THA	8-98166-078-1	01	1	1209-	●
1	HARNESS; CAB ZF9S1310 M/T<Y5K> EXC. ANTILOCK BRAKE SYSTEM<BFA> THA	8-98166-078-1	01	1	1209-		●
1	HARNESS; CAB ZF9S1310 M/T<Y5K> ANTILOCK BRAKE SYSTEM<BFA> THA	8-98166-080-1	01	1	1209-		●
6	HARNESS; FRAME WHEEL BASE 5200MM<52W> (A) THA	8-97925-616-1	01	1	1201-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-98136-245-0	01	1	0902-1009		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-356-0	01	1	1010-1101		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-577-1	01	1	1102-		●
6	HARNESS; FRAME (B) THA	8-97924-243-3	01	1	0806-1009	●
6	HARNESS; FRAME (B) THA	8-97924-243-3	01	1	1010-	●	●
6	HARNESS; FRAME (B) THA	8-97924-244-3	01	1	0806-1009		●
6	HARNESS; FRAME (A) THA	8-97924-402-1	01	1	0806-1101	●
6	HARNESS; FRAME WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) THA	8-97925-575-1	01	1	1102-	●
6	HARNESS; FRAME (A) THA	8-97924-403-1	01	1	0806-0901		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97924-403-1	01	1	0902-1009		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-355-0	01	1	1010-1101		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-576-1	01	1	1102-		●
253	HARNESS; EXT,HORN	8-98074-080-1	01	1	0806-1004	●	●
253	HARNESS; EXT,HORN EXC. VIN MODEL YEAR 2010<VZA>	8-98074-080-1	01	1	1005-1101	●	●

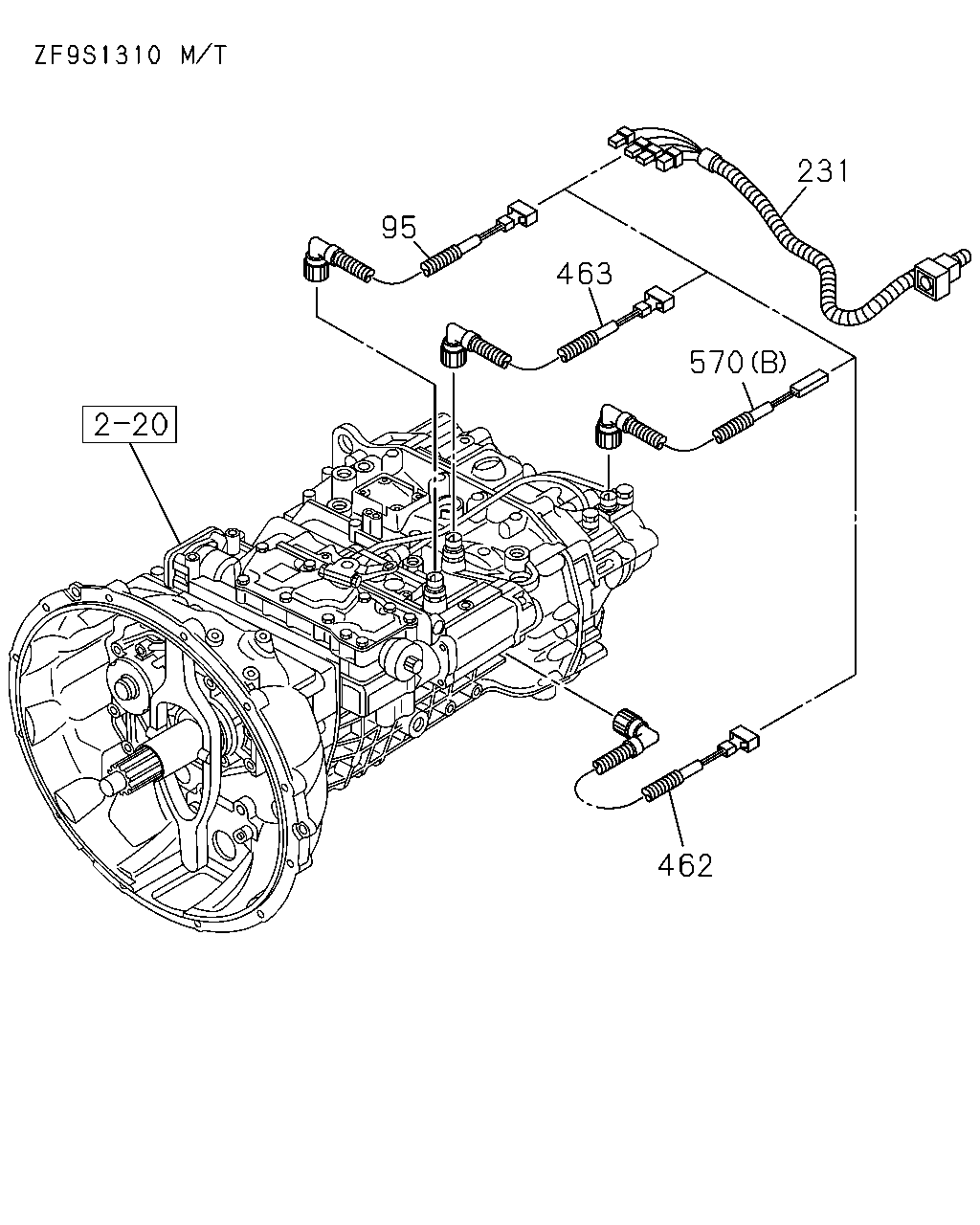

570	HARNESS; SPEED SENSOR ZF9S1310 M/T<Y5K> (A)	8-98058-327-1	01	1	0806-1003	●
570	HARNESS; SPEED SENSOR (A)	8-98058-327-1	01	1	0806-1003		●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T<Y5K> EXC. VIN MODEL YEAR 2010<VZA> (A)	8-98058-327-1	01	1	1004-1101	●	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T<Y5K> (B)	1-82659-230-0	01	1	0806-1004	●
570	HARNESS; SPEED SENSOR (B)	1-82659-230-0	01	1	0806-1004		●
570	HARNESS; SPEED SENSOR (B)	8-98148-602-0	01	1	1005-	●	●
595	HARNESS; WARNING,BRK THA	8-98075-638-1	01	1	0806-	●	●
598	HARNESS; EXT,PTO PTO ZF TRANS RR<BDM> THA	8-98134-412-0	01	1	0906-		●

706 6 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME WHEEL BASE 5200MM<52W> (A) THA	8-97925-616-1	01	1	1201-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-98136-245-0	01	1	0902-1009		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-356-0	01	1	1010-1101		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-577-1	01	1	1102-		●
6	HARNESS; FRAME (B) THA	8-97924-243-3	01	1	0806-1009	●
6	HARNESS; FRAME (B) THA	8-97924-243-3	01	1	1010-	●	●
6	HARNESS; FRAME (B) THA	8-97924-244-3	01	1	0806-1009		●
6	HARNESS; FRAME (A) THA	8-97924-402-1	01	1	0806-1101	●
6	HARNESS; FRAME WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) THA	8-97925-575-1	01	1	1102-	●
6	HARNESS; FRAME (A) THA	8-97924-403-1	01	1	0806-0901		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97924-403-1	01	1	0902-1009		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-355-0	01	1	1010-1101		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-576-1	01	1	1102-		●
7	LINK ASM; FUSIBLE ENGINE REAR PTO<SV1>	8-98106-137-0	01	1	0806-	●
7	LINK ASM; FUSIBLE EXC. ENGINE REAR PTO<SV1>	8-98088-132-0	01	1	0806-	●
7	LINK ASM; FUSIBLE	8-98088-132-0	01	1	0806-		●
706	HARNESS; EXT,SEDIMENTER THA	8-98079-753-1	01	1	0806-	●	●

231 231 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME WHEEL BASE 5200MM<52W> (A) THA	8-97925-616-1	01	1	1201-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-98136-245-0	01	1	0902-1009		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-356-0	01	1	1010-1101		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-577-1	01	1	1102-		●
6	HARNESS; FRAME (B) THA	8-97924-243-3	01	1	0806-1009	●
6	HARNESS; FRAME (B) THA	8-97924-243-3	01	1	1010-	●	●
6	HARNESS; FRAME (B) THA	8-97924-244-3	01	1	0806-1009		●
6	HARNESS; FRAME (A) THA	8-97924-402-1	01	1	0806-1101	●
6	HARNESS; FRAME WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (A) THA	8-97925-575-1	01	1	1102-	●
6	HARNESS; FRAME (A) THA	8-97924-403-1	01	1	0806-0901		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97924-403-1	01	1	0902-1009		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-355-0	01	1	1010-1101		●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) THA	8-97925-576-1	01	1	1102-		●
231	HARNESS; TRANS MJT7U M/T<Y4X> THA	8-97615-725-1	01	1	1201-	●
231	HARNESS; TRANS MAL6R M/T<Y2J> THA	8-98075-628-1	01	1	0806-	●
231	HARNESS; TRANS ZF9S1310 M/T<Y5K> THA	8-98107-418-0	01	1	0806-	●
231	HARNESS; TRANS THA	8-98107-418-0	01	1	0806-		●

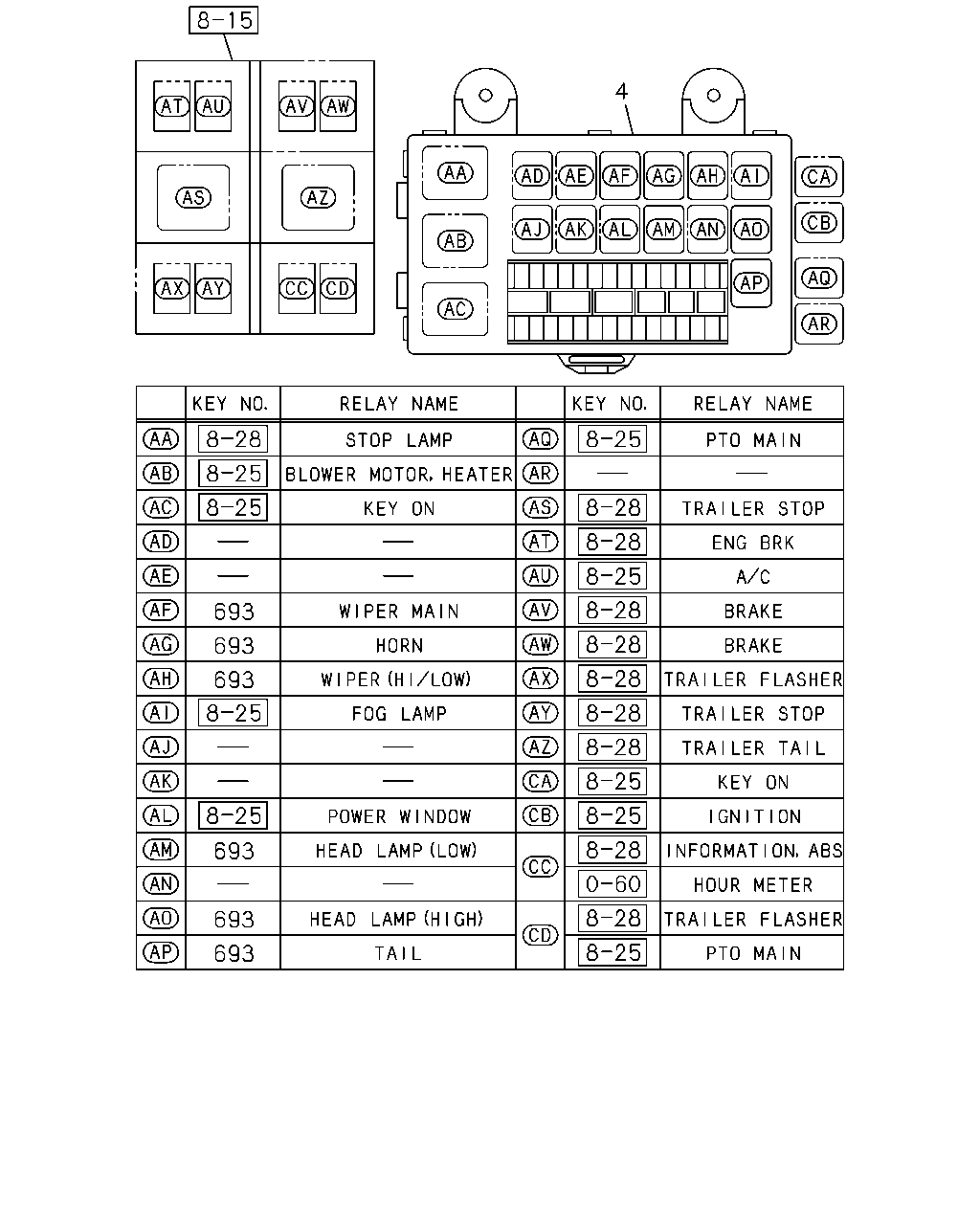

4 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	BOX ASM; FUSE,HARNESS THA	8-98065-666-0	01	1	0806-	●	●
	693	RELAY; FUSE BOX 24V 10A PANASONIC THA	8-97173-035-1	AR	1	0806-	●	●

231 95 463 570 462

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	HARNESS; NEUTRAL SW ZF9S1310 M/T<Y5K> RED	8-98071-232-0	01	1	0806-0905	●
95	HARNESS; NEUTRAL SW RED	8-98071-232-0	01	1	0806-0905		●
95	HARNESS; NEUTRAL SW ZF9S1310 M/T<Y5K> RED	8-98145-855-0	01	1	0906-1101	●
95	HARNESS; NEUTRAL SW RED	8-98145-855-0	01	1	0906-1101		●
95	HARNESS; NEUTRAL SW RED	8-98145-855-0	01	1	1102-	●	●
231	HARNESS; TRANS MJT7U M/T<Y4X> THA	8-97615-725-1	01	1	1201-	●
231	HARNESS; TRANS MAL6R M/T<Y2J> THA	8-98075-628-1	01	1	0806-	●
231	HARNESS; TRANS ZF9S1310 M/T<Y5K> THA	8-98107-418-0	01	1	0806-	●
231	HARNESS; TRANS THA	8-98107-418-0	01	1	0806-		●
462	HARNESS; SW,RANGE ZF9S1310 M/T<Y5K> BLUE	1-82659-228-0	01	1	0806-0905	●
462	HARNESS; SW,RANGE BLUE	1-82659-228-0	01	1	0806-0905		●
462	HARNESS; SW,RANGE ZF9S1310 M/T<Y5K> BLUE	8-98145-857-0	01	1	0906-1101	●
462	HARNESS; SW,RANGE BLUE	8-98145-857-0	01	1	0906-1101		●
462	HARNESS; SW,RANGE BLUE	8-98145-857-0	01	1	1102-	●	●
463	HARNESS; SW,BACK UP ZF9S1310 M/T<Y5K>	1-82659-227-0	01	1	0806-0905	●
463	HARNESS; SW,BACK UP	1-82659-227-0	01	1	0806-0905		●
463	HARNESS; SW,BACK UP ZF9S1310 M/T<Y5K> BLACK	8-98145-856-0	01	1	0906-1101	●
463	HARNESS; SW,BACK UP BLACK	8-98145-856-0	01	1	0906-1101		●
463	HARNESS; SW,BACK UP BLACK	8-98145-856-0	01	1	1102-	●	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T<Y5K> (A)	8-98058-327-1	01	1	0806-1003	●
570	HARNESS; SPEED SENSOR (A)	8-98058-327-1	01	1	0806-1003		●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T<Y5K> EXC. VIN MODEL YEAR 2010<VZA> (A)	8-98058-327-1	01	1	1004-1101	●	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T<Y5K> (B)	1-82659-230-0	01	1	0806-1004	●
570	HARNESS; SPEED SENSOR (B)	1-82659-230-0	01	1	0806-1004		●
570	HARNESS; SPEED SENSOR (B)	8-98148-602-0	01	1	1005-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
