2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#6838) — 388 parça

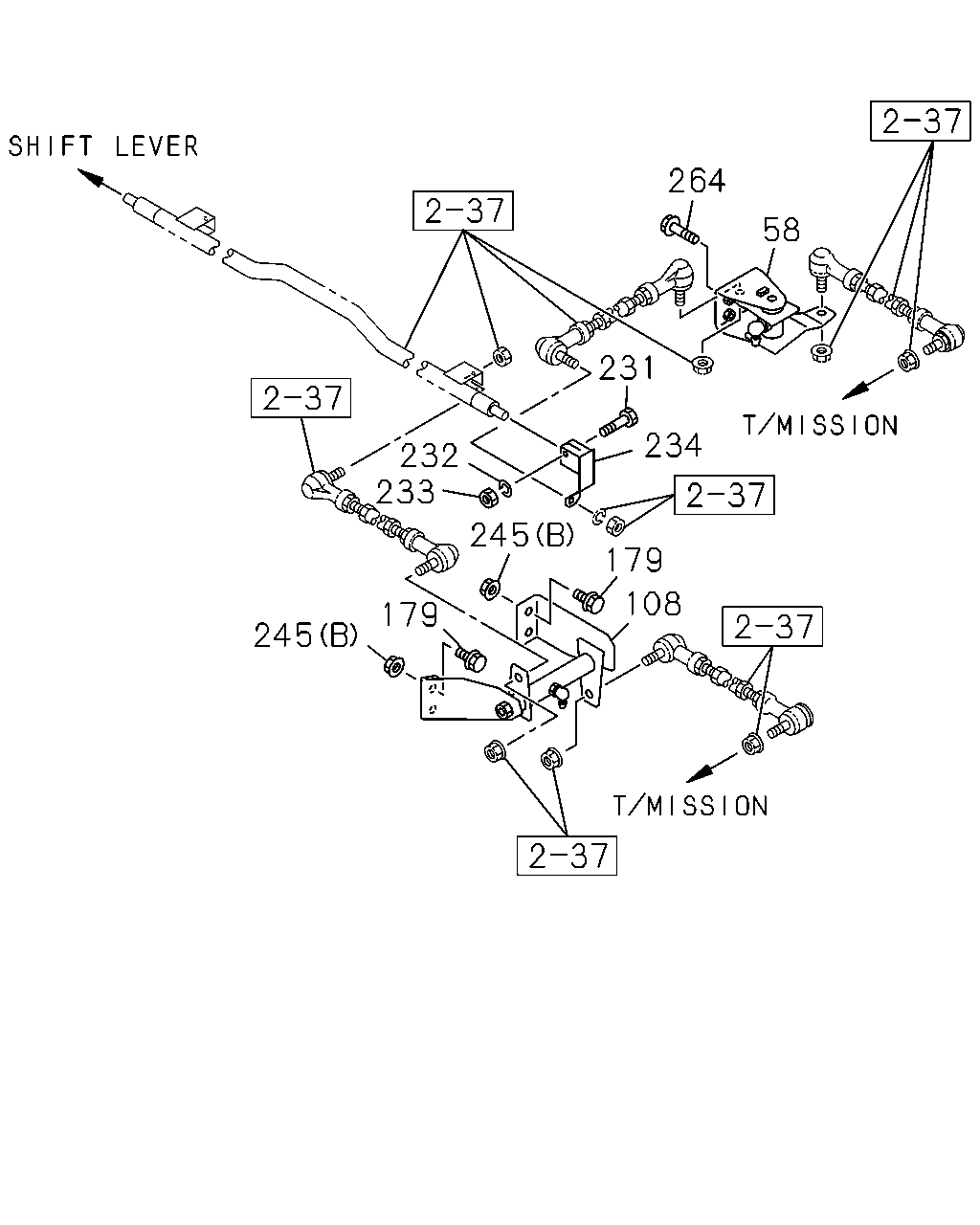

çizim 26060
264 58 231 234 232 233 245 179 108 179 245
BalonParca AdiParca NoAdetTipApplied Date A B C D E
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9806-9911 ● ● ● ●
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9912- ●
58 LEVER; RELAY,SELECT,1ST 1-33671-016-1 01 1 9806-9911 ●
108 LEVER; SHIFT,1ST CONT
CTR SPLIT FRAME<TLW> 		1-33671-142-0 01 1 9806-9911 ● ● ●
108 LEVER; SHIFT,1ST CONT
EXC. CTR SPLIT FRAME<TLW> 		1-33670-813-1 01 1 9806-9911 ● ● ● ●
108 LEVER; SHIFT,1ST CONT 1-33670-813-1 01 1 9912- ●
108 LEVER; SHIFT,1ST CONT 1-33671-015-0 01 1 9806-9911 ●
179 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9806-9911 ● ● ● ● ●
179 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9912-0512 ●
179 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28650-830-0 04 1 0601- ●
231 BOLT; UJT,TRANS CONT ROD
CTR SPLIT FRAME<TLW> M10X50 		1-09000-489-0 04 1 9806-9911 ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 05 1 9806-9911 ● ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X50 		1-09000-489-0 05 1 9912- ●
232 WASHER; LK,UJT,CONT ROD
CTR SPLIT FRAME<TLW> ID=10.2 		9-09150-510-0 04 1 9806-9911 ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9806-9911 ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9912-0603 ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		0-91510-510-0 05 1 0604- ●
233 NUT; UJT,CONT ROD
CTR SPLIT FRAME<TLW> M10 		9-09110-510-0 04 1 9806-9911 ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9806-9911 ● ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9912-0512 ●
233 NUT; UJT,CONT ROD
M10 		0-91110-510-0 05 1 0601- ●
234 END; ROD,TRANS CONT 1-33653-126-0 01 1 9806-9911 ● ● ● ●
234 END; ROD,TRANS CONT 8-97530-118-0 01 1 9912- ●
234 END; ROD,TRANS CONT 1-33653-132-0 01 1 9806-9911 ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9806-9911 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9912-0602 ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9806-9911 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9912-0512 ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		0-91111-514-0 01 1 0601- ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9806-9911 ● ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9912-0512 ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28650-830-0 04 1 0601- ●

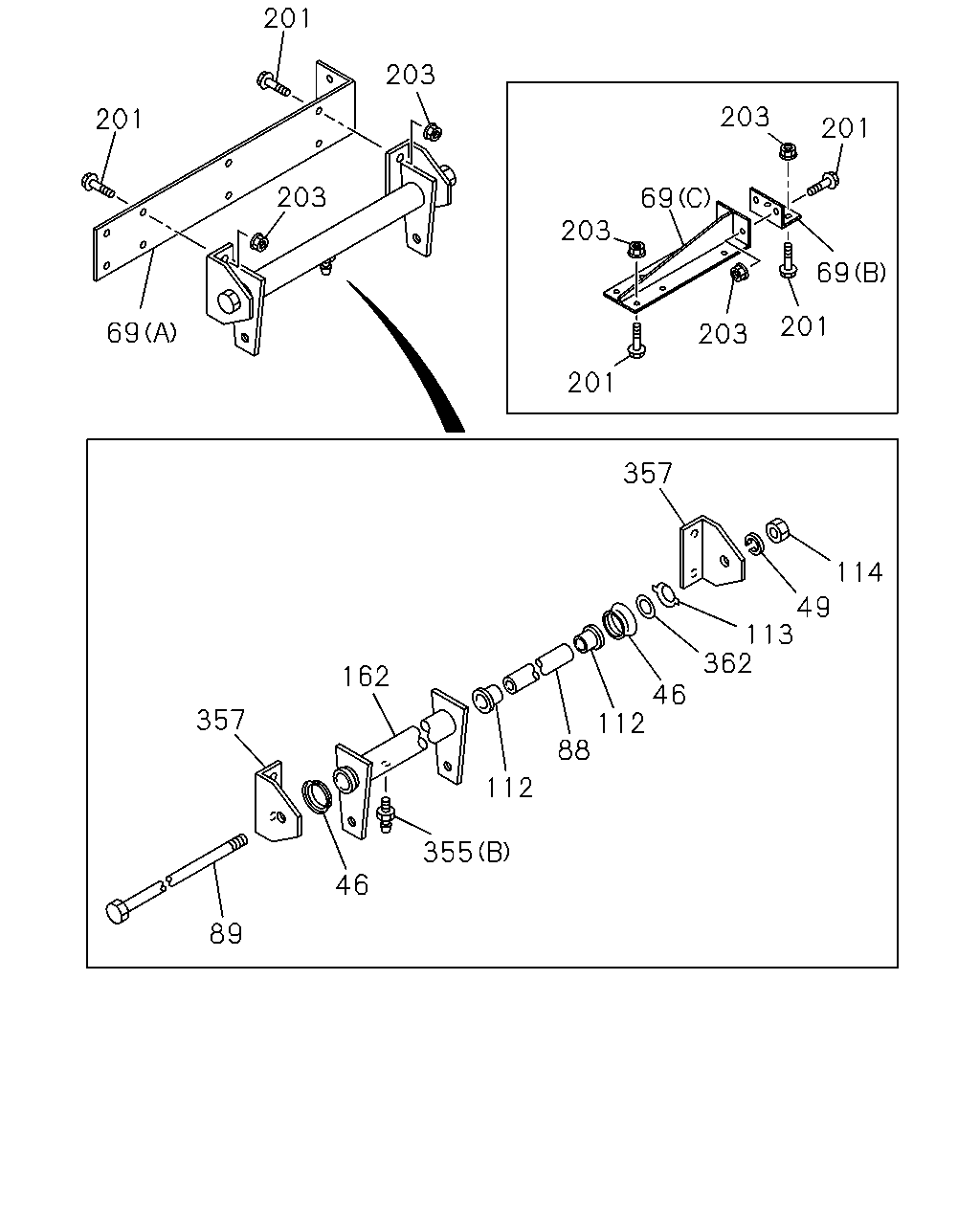

çizim 26061
201 203 203 201 201 203 69 203 69 201 69 203 201 357 114 49 113 362 162 46 112 88 357 112 355 46 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E
46 SEAL; DUST,RELAY LEVER
CTR SPLIT FRAME<TLW> 		1-33659-113-0 04 1 9806-9911 ● ● ●
49 WASHER; LK
CTR SPLIT FRAME<TLW> ID=14.2 		9-09150-514-0 02 1 9806-9911 ● ● ●
69 BRACKET; LEVER SHAFT
CTR SPLIT FRAME<TLW> (A) 		1-33657-679-0 02 1 9806-9911 ● ● ●
69 BRACKET; LEVER SHAFT
CTR SPLIT FRAME<TLW> (C) 		1-33657-681-1 02 1 9806-9911 ● ● ●
69 BRACKET; LEVER SHAFT
CTR SPLIT FRAME<TLW> (B) 		1-33657-682-0 02 1 9806-9911 ● ● ●
88 COLLAR; RELAY LEVER
CTR SPLIT FRAME<TLW> 		1-33659-210-0 02 1 9806-9911 ● ● ●
89 SHAFT; RELAY LEVER,2ND SHIFT
CTR SPLIT FRAME<TLW> 		1-33619-601-0 02 1 9806-9911 ● ● ●
112 BUSHING; RELAY LEVER
CTR SPLIT FRAME<TLW> L=24 		5-33659-054-0 04 1 9806-9911 ● ● ●
112 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9912- ●
112 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9806-9911 ● ● ● ● ●
113 WASHER; RELAY LEVER
CTR SPLIT FRAME<TLW> 		1-33659-093-0 02 1 9806-9911 ● ● ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 9912- ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 9806-9911 ● ● ● ● ●
114 NUT; RELAY LEVER
CTR SPLIT FRAME<TLW> M14 		9-99111-514-0 02 1 9806-9911 ● ● ●
162 LEVER; RELAY
CTR SPLIT FRAME<TLW> 		1-33651-705-2 02 1 9806-9911 ● ● ●
201 BOLT; BRKT
CTR SPLIT FRAME<TLW> M10X35 FLANGE 		0-28681-035-0 20 1 9806-9911 ● ● ●
203 NUT; BRKT FIX
CTR SPLIT FRAME<TLW> M10 FLANGE 		0-91150-210-0 20 1 9806-9911 ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
CTR SPLIT FRAME<TLW> (B) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9806-9911 ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9806-9911 ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9912-0512 ●
355 NIPPLE; GREASE,RELAY LEVER
(A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
355 NIPPLE; GREASE,RELAY LEVER
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9806-9911 ●
357 BRACKET; RELAY LEVER
CTR SPLIT FRAME<TLW> 		1-33657-678-0 04 1 9806-9911 ● ● ●
362 SHIM
CTR SPLIT FRAME<TLW> 		1-33659-092-0 02 1 9806-9911 ● ● ●
çizim 26272
58 171 353 60 354 355 13 67 354 167 181 175 353 170 108 110 111 109 112 169 352 110 352 112 164 180 113 246 245
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 LEVER; RELAY,1ST SELECT INNER 1-33651-668-1 01 1 9806-9911 ● ● ● ●
13 LEVER; RELAY,1ST SELECT INNER 1-33651-668-1 01 1 9912- ●
13 LEVER; RELAY,1ST SELECT INNER 1-33651-694-0 01 1 9806-9911 ●
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9806-9911 ● ● ● ●
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9912- ●
58 LEVER; RELAY,SELECT,1ST 1-33671-016-1 01 1 9806-9911 ●
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-564-1 01 1 9806-9911 ● ● ● ●
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-564-1 01 1 9912- ●
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-669-0 01 1 9806-9911 ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		9-09150-514-0 01 1 9806-9911 ● ● ● ● ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		9-09150-514-0 01 1 9912-0603 ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		0-91510-514-0 01 1 0604- ●
108 LEVER; SHIFT,1ST CONT
CTR SPLIT FRAME<TLW> 		1-33671-142-0 01 1 9806-9911 ● ● ●
108 LEVER; SHIFT,1ST CONT
EXC. CTR SPLIT FRAME<TLW> 		1-33670-813-1 01 1 9806-9911 ● ● ● ●
108 LEVER; SHIFT,1ST CONT 1-33670-813-1 01 1 9912- ●
108 LEVER; SHIFT,1ST CONT 1-33671-015-0 01 1 9806-9911 ●
109 LEVER; SHIFT,1ST CONT
CTR SPLIT FRAME<TLW> 		1-33651-707-0 01 1 9806-9911 ● ● ●
109 LEVER; SHIFT,1ST CONT
EXC. CTR SPLIT FRAME<TLW> 		1-33651-667-1 01 1 9806-9911 ● ● ● ●
109 LEVER; SHIFT,1ST CONT 1-33651-667-1 01 1 9912- ●
109 LEVER; SHIFT,1ST CONT 1-33651-693-0 01 1 9806-9911 ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-625-0 01 1 9806-9911 ● ● ● ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-625-0 01 1 9912- ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-626-1 01 1 9806-9911 ● ● ● ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-626-1 01 1 9912- ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-667-0 01 1 9806-9911 ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-668-0 01 1 9806-9911 ●
111 SHAFT; RELAY LEVER,1ST 1-33619-508-0 01 1 9806-9911 ● ● ● ● ●
111 SHAFT; RELAY LEVER,1ST 1-33619-508-0 01 1 9912- ●
112 BUSHING; RELAY LEVER
CTR SPLIT FRAME<TLW> L=24 		5-33659-054-0 04 1 9806-9911 ● ● ●
112 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9912- ●
112 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9806-9911 ● ● ● ● ●
113 WASHER; RELAY LEVER
CTR SPLIT FRAME<TLW> 		1-33659-093-0 02 1 9806-9911 ● ● ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 9912- ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 9806-9911 ● ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 		9-09031-210-0 01 1 9806-9911 ● ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 		9-09031-210-0 01 1 9912-0512 ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		9-99111-514-0 01 1 9806-9911 ● ● ● ● ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		9-99111-514-0 01 1 9912-0512 ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		0-91111-514-0 01 1 0601- ●
169 COLLAR; RELAY LEVER,TRANS SHIFT ROD 1-33659-154-0 01 1 9806-9911 ● ● ● ● ●
169 COLLAR; RELAY LEVER,TRANS SHIFT ROD 1-33659-154-0 01 1 9912- ●
170 COLLAR; RELAY LEVER,SELECT ROD,1ST 1-33659-146-0 01 1 9806-9911 ● ● ● ● ●
170 COLLAR; RELAY LEVER,SELECT ROD,1ST 1-33659-146-0 01 1 9912- ●
171 SHAFT; RELAY LEVER,SELECT ROD,1ST 1-33619-210-0 01 1 9806-9911 ● ● ● ● ●
171 SHAFT; RELAY LEVER,SELECT ROD,1ST 1-33619-210-0 01 1 9912- ●
175 WASHER; RELAY LEVER,SELECT CONT ROD 1-33659-093-0 01 1 9806-9911 ● ● ● ● ●
175 WASHER; RELAY LEVER,SELECT CONT ROD 1-33659-093-0 01 1 9912- ●
180 SHIM; LEVER,TRANS CONT 1-33659-092-0 01 1 9806-9911 ● ● ● ● ●
180 SHIM; LEVER,TRANS CONT 1-33659-092-0 01 1 9912- ●
181 SHIM; RELAY LEVER,SELECT ROD 1-33659-092-0 01 1 9806-9911 ● ● ● ● ●
181 SHIM; RELAY LEVER,SELECT ROD 1-33659-092-0 01 1 9912- ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9806-9911 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9912-0602 ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9806-9911 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9912-0512 ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		0-91111-514-0 01 1 0601- ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=14.2 		9-09150-514-0 01 1 9806-9911 ● ● ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=14.2 		9-09150-514-0 01 1 9912-0603 ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=14.2 		0-91510-514-0 01 1 0604- ●
352 SEAL; DUST,RELAY LEVER,SHIFT ROD 1-33659-113-0 02 1 9806-9911 ● ● ● ● ●
352 SEAL; DUST,RELAY LEVER,SHIFT ROD 1-33659-113-0 02 1 9912- ●
353 SEAL; DUST,RELAY LEVER,SELECT ROD 1-33659-113-0 02 1 9806-9911 ● ● ● ● ●
353 SEAL; DUST,RELAY LEVER,SELECT ROD 1-33659-113-0 02 1 9912- ●
354 BUSHING; RELAY LEVER,SELECT CONT ROD
L=24 		5-33659-054-0 02 1 9806-9911 ● ● ● ● ●
354 BUSHING; RELAY LEVER,SELECT CONT ROD
L=24 		5-33659-054-0 02 1 9912- ●
355 NIPPLE; GREASE,RELAY LEVER
CTR SPLIT FRAME<TLW> (B) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9806-9911 ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9806-9911 ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9912-0512 ●
355 NIPPLE; GREASE,RELAY LEVER
(A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
355 NIPPLE; GREASE,RELAY LEVER
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9806-9911 ●

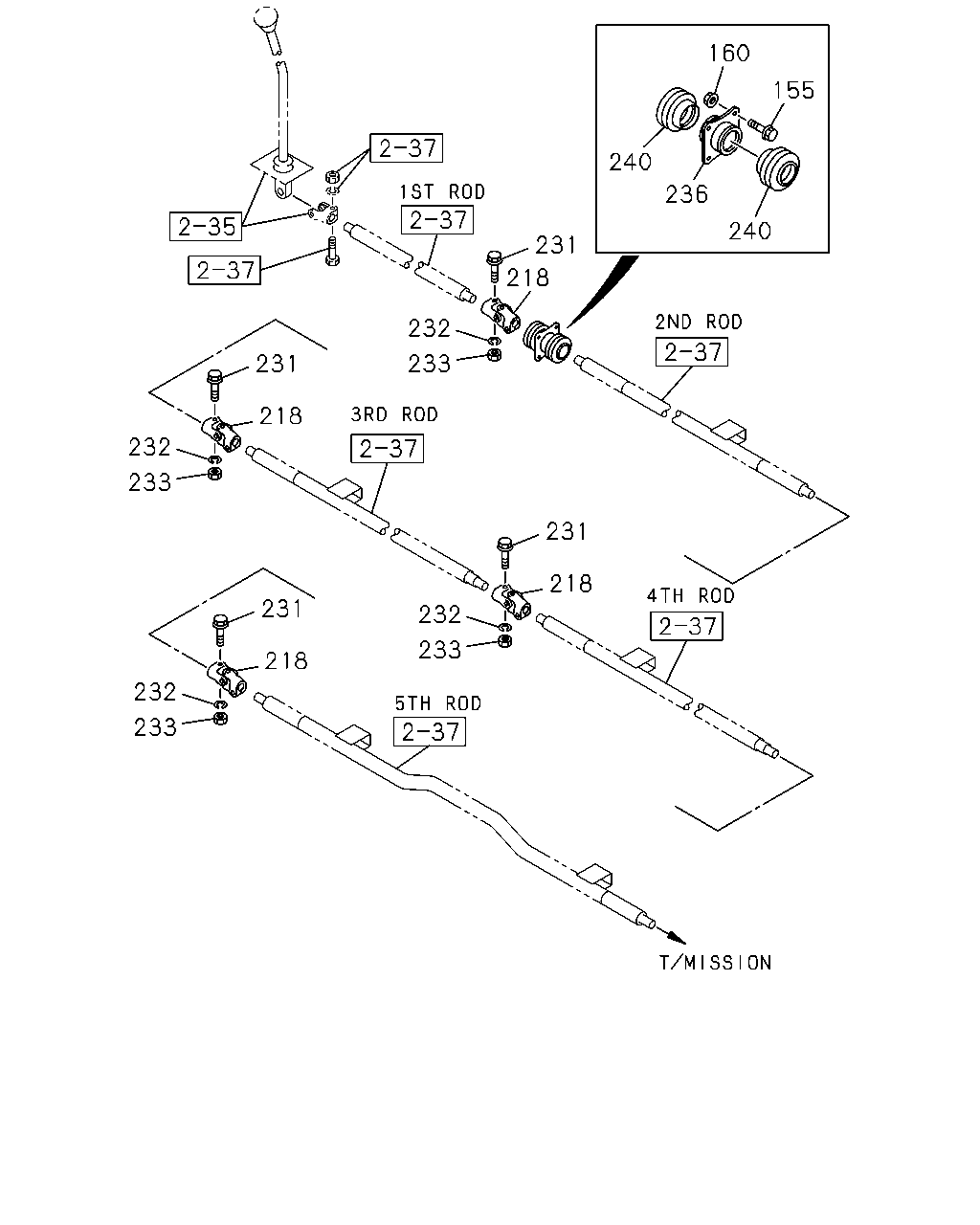

çizim 26485
160 155 240 236 240 231 218 232 233 231 218 232 233 231 218 231 232 233 218 232 233
BalonParca AdiParca NoAdetTipApplied Date A B C D E
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
CTR SPLIT FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 04 1 9806-9911 ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M6X30 FLANGE 		0-28680-630-0 12 1 9912-0512 ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M6X30 FLANGE 		0-28650-630-0 12 1 0601- ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
EXC. CTR SPLIT FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 12 1 9806-9911 ● ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
CTR SPLIT FRAME<TLW> M6 FLANGE 		0-91150-106-0 04 1 9806-9911 ● ● ●
160 NUT; SUPPORT BRKT TO COVER
M6 FLANGE 		0-91150-106-0 12 1 9912-0602 ●
160 NUT; SUPPORT BRKT TO COVER
M6 FLANGE 		0-91180-106-0 12 1 0603- ●
160 NUT; SUPPORT BRKT TO COVER
EXC. CTR SPLIT FRAME<TLW> M6 FLANGE 		0-91150-106-0 12 1 9806-9911 ● ● ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
CTR SPLIT FRAME<TLW> 		1-33655-013-0 02 1 9806- ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD 1-33655-013-0 02 1 9806-9911 ● ● ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD 1-33655-013-0 02 1 9912- ●
231 BOLT; UJT,TRANS CONT ROD
CTR SPLIT FRAME<TLW> M10X50 		1-09000-489-0 04 1 9806-9911 ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 05 1 9806-9911 ● ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X50 		1-09000-489-0 05 1 9912- ●
232 WASHER; LK,UJT,CONT ROD
CTR SPLIT FRAME<TLW> ID=10.2 		9-09150-510-0 04 1 9806-9911 ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9806-9911 ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9912-0603 ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		0-91510-510-0 05 1 0604- ●
233 NUT; UJT,CONT ROD
CTR SPLIT FRAME<TLW> M10 		9-09110-510-0 04 1 9806-9911 ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9806-9911 ● ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9912-0512 ●
233 NUT; UJT,CONT ROD
M10 		0-91110-510-0 05 1 0601- ●
236 SUPPORT ASM; TRANS CONT ROD
CTR SPLIT FRAME<TLW> 		1-53380-004-1 01 1 9806-9911 ● ● ●
236 SUPPORT ASM; TRANS CONT ROD 1-53380-004-1 03 1 9912- ●
236 SUPPORT ASM; TRANS CONT ROD
EXC. CTR SPLIT FRAME<TLW> 		1-53380-004-1 03 1 9806-9911 ● ● ● ● ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD
CTR SPLIT FRAME<TLW> 		1-33659-141-0 02 1 9806-9911 ● ● ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD 1-33659-141-0 06 1 9912- ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD
EXC. CTR SPLIT FRAME<TLW> 		1-33659-141-0 06 1 9806-9911 ● ● ● ● ●
çizim 26486
58 171 353 60 354 13 67 354 167 181 355 175 353 170 108 110 111 109 112 169 352 352 112 110 164 180 113 246 245
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 LEVER; RELAY,1ST SELECT INNER 1-33651-668-1 01 1 9806-9911 ● ● ● ●
13 LEVER; RELAY,1ST SELECT INNER 1-33651-668-1 01 1 9912- ●
13 LEVER; RELAY,1ST SELECT INNER 1-33651-694-0 01 1 9806-9911 ●
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9806-9911 ● ● ● ●
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9912- ●
58 LEVER; RELAY,SELECT,1ST 1-33671-016-1 01 1 9806-9911 ●
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-564-1 01 1 9806-9911 ● ● ● ●
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-564-1 01 1 9912- ●
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-669-0 01 1 9806-9911 ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		9-09150-514-0 01 1 9806-9911 ● ● ● ● ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		9-09150-514-0 01 1 9912-0603 ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		0-91510-514-0 01 1 0604- ●
108 LEVER; SHIFT,1ST CONT
CTR SPLIT FRAME<TLW> 		1-33671-142-0 01 1 9806-9911 ● ● ●
108 LEVER; SHIFT,1ST CONT
EXC. CTR SPLIT FRAME<TLW> 		1-33670-813-1 01 1 9806-9911 ● ● ● ●
108 LEVER; SHIFT,1ST CONT 1-33670-813-1 01 1 9912- ●
108 LEVER; SHIFT,1ST CONT 1-33671-015-0 01 1 9806-9911 ●
109 LEVER; SHIFT,1ST CONT
CTR SPLIT FRAME<TLW> 		1-33651-707-0 01 1 9806-9911 ● ● ●
109 LEVER; SHIFT,1ST CONT
EXC. CTR SPLIT FRAME<TLW> 		1-33651-667-1 01 1 9806-9911 ● ● ● ●
109 LEVER; SHIFT,1ST CONT 1-33651-667-1 01 1 9912- ●
109 LEVER; SHIFT,1ST CONT 1-33651-693-0 01 1 9806-9911 ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-625-0 01 1 9806-9911 ● ● ● ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-625-0 01 1 9912- ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-626-1 01 1 9806-9911 ● ● ● ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-626-1 01 1 9912- ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-667-0 01 1 9806-9911 ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-668-0 01 1 9806-9911 ●
111 SHAFT; RELAY LEVER,1ST 1-33619-508-0 01 1 9806-9911 ● ● ● ● ●
111 SHAFT; RELAY LEVER,1ST 1-33619-508-0 01 1 9912- ●
112 BUSHING; RELAY LEVER
CTR SPLIT FRAME<TLW> L=24 		5-33659-054-0 04 1 9806-9911 ● ● ●
112 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9912- ●
112 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9806-9911 ● ● ● ● ●
113 WASHER; RELAY LEVER
CTR SPLIT FRAME<TLW> 		1-33659-093-0 02 1 9806-9911 ● ● ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 9912- ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 9806-9911 ● ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 		9-09031-210-0 01 1 9806-9911 ● ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 		9-09031-210-0 01 1 9912-0512 ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		9-99111-514-0 01 1 9806-9911 ● ● ● ● ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		9-99111-514-0 01 1 9912-0512 ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		0-91111-514-0 01 1 0601- ●
169 COLLAR; RELAY LEVER,TRANS SHIFT ROD 1-33659-154-0 01 1 9806-9911 ● ● ● ● ●
169 COLLAR; RELAY LEVER,TRANS SHIFT ROD 1-33659-154-0 01 1 9912- ●
170 COLLAR; RELAY LEVER,SELECT ROD,1ST 1-33659-146-0 01 1 9806-9911 ● ● ● ● ●
170 COLLAR; RELAY LEVER,SELECT ROD,1ST 1-33659-146-0 01 1 9912- ●
171 SHAFT; RELAY LEVER,SELECT ROD,1ST 1-33619-210-0 01 1 9806-9911 ● ● ● ● ●
171 SHAFT; RELAY LEVER,SELECT ROD,1ST 1-33619-210-0 01 1 9912- ●
175 WASHER; RELAY LEVER,SELECT CONT ROD 1-33659-093-0 01 1 9806-9911 ● ● ● ● ●
175 WASHER; RELAY LEVER,SELECT CONT ROD 1-33659-093-0 01 1 9912- ●
180 SHIM; LEVER,TRANS CONT 1-33659-092-0 01 1 9806-9911 ● ● ● ● ●
180 SHIM; LEVER,TRANS CONT 1-33659-092-0 01 1 9912- ●
181 SHIM; RELAY LEVER,SELECT ROD 1-33659-092-0 01 1 9806-9911 ● ● ● ● ●
181 SHIM; RELAY LEVER,SELECT ROD 1-33659-092-0 01 1 9912- ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9806-9911 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9912-0602 ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9806-9911 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9912-0512 ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		0-91111-514-0 01 1 0601- ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=14.2 		9-09150-514-0 01 1 9806-9911 ● ● ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=14.2 		9-09150-514-0 01 1 9912-0603 ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=14.2 		0-91510-514-0 01 1 0604- ●
352 SEAL; DUST,RELAY LEVER,SHIFT ROD 1-33659-113-0 02 1 9806-9911 ● ● ● ● ●
352 SEAL; DUST,RELAY LEVER,SHIFT ROD 1-33659-113-0 02 1 9912- ●
353 SEAL; DUST,RELAY LEVER,SELECT ROD 1-33659-113-0 02 1 9806-9911 ● ● ● ● ●
353 SEAL; DUST,RELAY LEVER,SELECT ROD 1-33659-113-0 02 1 9912- ●
354 BUSHING; RELAY LEVER,SELECT CONT ROD
L=24 		5-33659-054-0 02 1 9806-9911 ● ● ● ● ●
354 BUSHING; RELAY LEVER,SELECT CONT ROD
L=24 		5-33659-054-0 02 1 9912- ●
355 NIPPLE; GREASE,RELAY LEVER
CTR SPLIT FRAME<TLW> (B) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9806-9911 ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9806-9911 ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9912-0512 ●
355 NIPPLE; GREASE,RELAY LEVER
(A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
355 NIPPLE; GREASE,RELAY LEVER
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9806-9911 ●

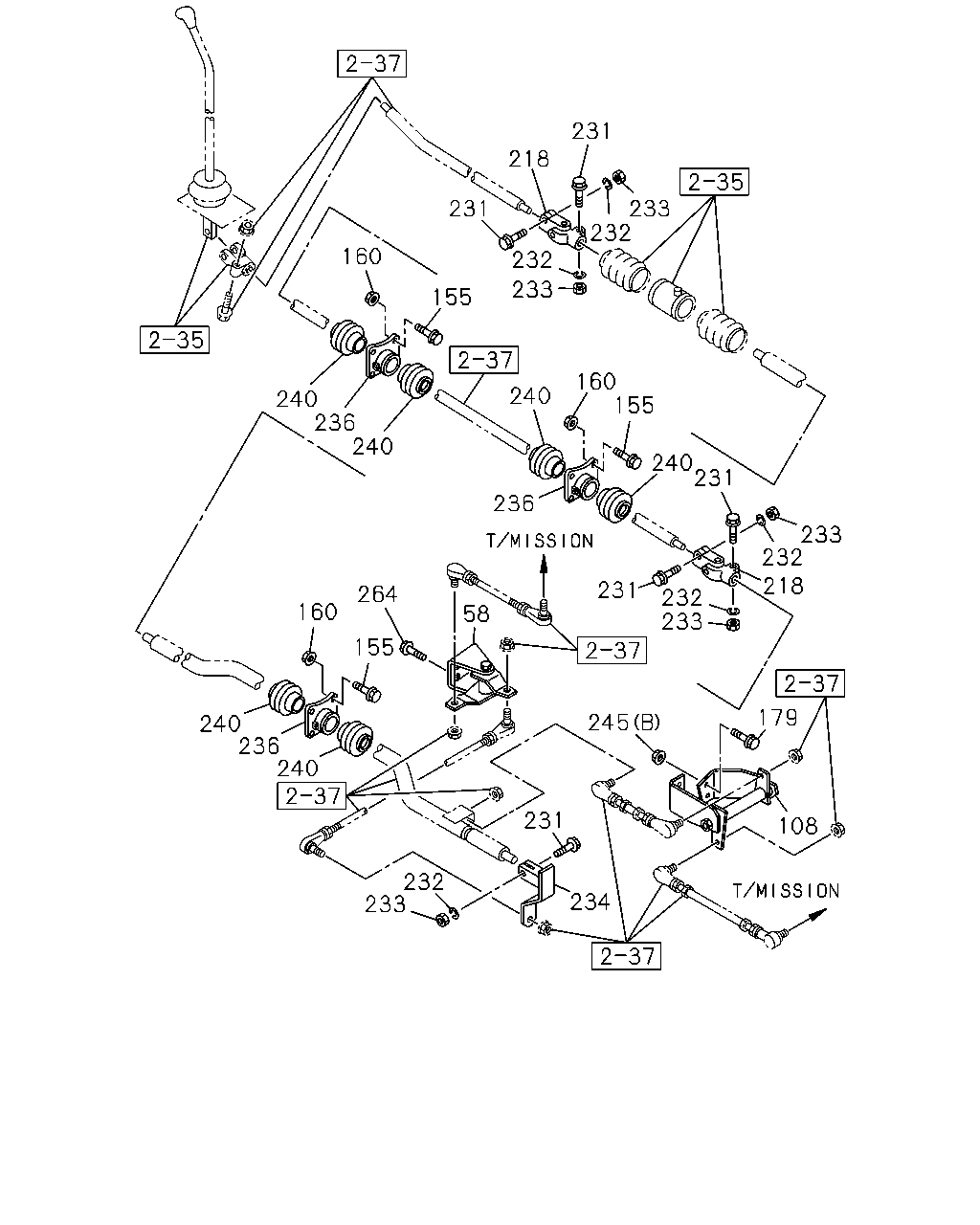

çizim 98917
231 218 231 233 232 160 232 233 155 160 155 240 240 236 240 240 231 236 233 232 218 231 264 232 233 160 58 155 179 245 240 236 240 231 108 232 233 234
BalonParca AdiParca NoAdetTipApplied Date A B C D E
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9806-9911 ● ● ● ●
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9912- ●
58 LEVER; RELAY,SELECT,1ST 1-33671-016-1 01 1 9806-9911 ●
108 LEVER; SHIFT,1ST CONT
CTR SPLIT FRAME<TLW> 		1-33671-142-0 01 1 9806-9911 ● ● ●
108 LEVER; SHIFT,1ST CONT
EXC. CTR SPLIT FRAME<TLW> 		1-33670-813-1 01 1 9806-9911 ● ● ● ●
108 LEVER; SHIFT,1ST CONT 1-33670-813-1 01 1 9912- ●
108 LEVER; SHIFT,1ST CONT 1-33671-015-0 01 1 9806-9911 ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
CTR SPLIT FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 04 1 9806-9911 ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M6X30 FLANGE 		0-28680-630-0 12 1 9912-0512 ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M6X30 FLANGE 		0-28650-630-0 12 1 0601- ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
EXC. CTR SPLIT FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 12 1 9806-9911 ● ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
CTR SPLIT FRAME<TLW> M6 FLANGE 		0-91150-106-0 04 1 9806-9911 ● ● ●
160 NUT; SUPPORT BRKT TO COVER
M6 FLANGE 		0-91150-106-0 12 1 9912-0602 ●
160 NUT; SUPPORT BRKT TO COVER
M6 FLANGE 		0-91180-106-0 12 1 0603- ●
160 NUT; SUPPORT BRKT TO COVER
EXC. CTR SPLIT FRAME<TLW> M6 FLANGE 		0-91150-106-0 12 1 9806-9911 ● ● ● ● ●
179 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9806-9911 ● ● ● ● ●
179 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9912-0512 ●
179 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28650-830-0 04 1 0601- ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
CTR SPLIT FRAME<TLW> 		1-33655-013-0 02 1 9806- ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD 1-33655-013-0 02 1 9806-9911 ● ● ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD 1-33655-013-0 02 1 9912- ●
231 BOLT; UJT,TRANS CONT ROD
CTR SPLIT FRAME<TLW> M10X50 		1-09000-489-0 04 1 9806-9911 ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 05 1 9806-9911 ● ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X50 		1-09000-489-0 05 1 9912- ●
232 WASHER; LK,UJT,CONT ROD
CTR SPLIT FRAME<TLW> ID=10.2 		9-09150-510-0 04 1 9806-9911 ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9806-9911 ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9912-0603 ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		0-91510-510-0 05 1 0604- ●
233 NUT; UJT,CONT ROD
CTR SPLIT FRAME<TLW> M10 		9-09110-510-0 04 1 9806-9911 ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9806-9911 ● ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9912-0512 ●
233 NUT; UJT,CONT ROD
M10 		0-91110-510-0 05 1 0601- ●
234 END; ROD,TRANS CONT 1-33653-126-0 01 1 9806-9911 ● ● ● ●
234 END; ROD,TRANS CONT 8-97530-118-0 01 1 9912- ●
234 END; ROD,TRANS CONT 1-33653-132-0 01 1 9806-9911 ●
236 SUPPORT ASM; TRANS CONT ROD
CTR SPLIT FRAME<TLW> 		1-53380-004-1 01 1 9806-9911 ● ● ●
236 SUPPORT ASM; TRANS CONT ROD 1-53380-004-1 03 1 9912- ●
236 SUPPORT ASM; TRANS CONT ROD
EXC. CTR SPLIT FRAME<TLW> 		1-53380-004-1 03 1 9806-9911 ● ● ● ● ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD
CTR SPLIT FRAME<TLW> 		1-33659-141-0 02 1 9806-9911 ● ● ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD 1-33659-141-0 06 1 9912- ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD
EXC. CTR SPLIT FRAME<TLW> 		1-33659-141-0 06 1 9806-9911 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9806-9911 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9912-0602 ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9806-9911 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9912-0512 ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		0-91111-514-0 01 1 0601- ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9806-9911 ● ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9912-0512 ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28650-830-0 04 1 0601- ●

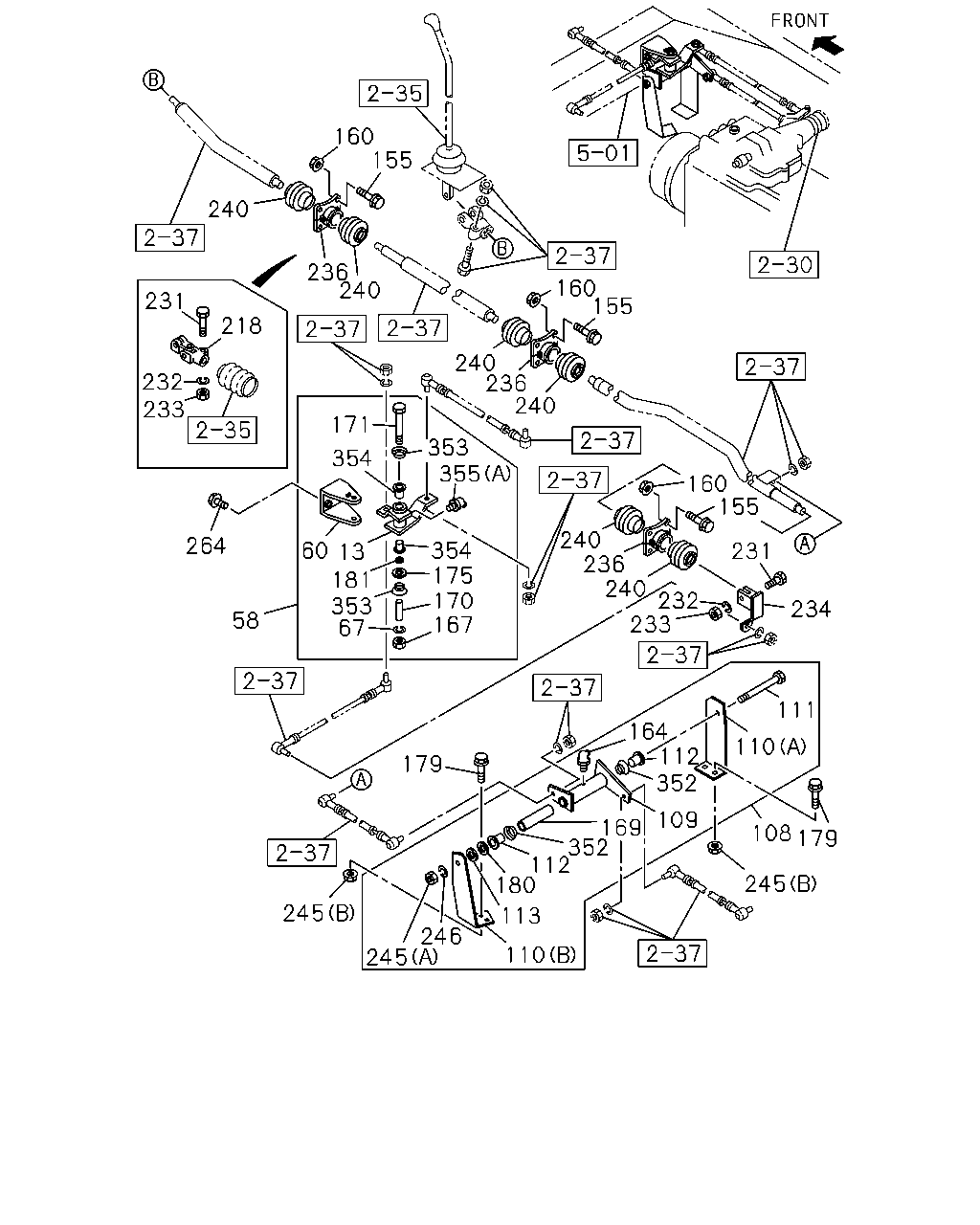

çizim 98922
160 155 240 236 240 160 155 231 218 240 236 240 232 233 171 353 355 354 160 155 354 175 170 167 240 236 240 264 60 231 13 181 353 67 232 233 234 58 111 164 112 352 110 179 169 352 112 180 109 108 179 245 245 113 246 245 110
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 LEVER; RELAY,1ST SELECT INNER 1-33651-668-1 01 1 9806-9911 ● ● ● ●
13 LEVER; RELAY,1ST SELECT INNER 1-33651-668-1 01 1 9912- ●
13 LEVER; RELAY,1ST SELECT INNER 1-33651-694-0 01 1 9806-9911 ●
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9806-9911 ● ● ● ●
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9912- ●
58 LEVER; RELAY,SELECT,1ST 1-33671-016-1 01 1 9806-9911 ●
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-564-1 01 1 9806-9911 ● ● ● ●
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-564-1 01 1 9912- ●
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-669-0 01 1 9806-9911 ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		9-09150-514-0 01 1 9806-9911 ● ● ● ● ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		9-09150-514-0 01 1 9912-0603 ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		0-91510-514-0 01 1 0604- ●
108 LEVER; SHIFT,1ST CONT
CTR SPLIT FRAME<TLW> 		1-33671-142-0 01 1 9806-9911 ● ● ●
108 LEVER; SHIFT,1ST CONT
EXC. CTR SPLIT FRAME<TLW> 		1-33670-813-1 01 1 9806-9911 ● ● ● ●
108 LEVER; SHIFT,1ST CONT 1-33670-813-1 01 1 9912- ●
108 LEVER; SHIFT,1ST CONT 1-33671-015-0 01 1 9806-9911 ●
109 LEVER; SHIFT,1ST CONT
CTR SPLIT FRAME<TLW> 		1-33651-707-0 01 1 9806-9911 ● ● ●
109 LEVER; SHIFT,1ST CONT
EXC. CTR SPLIT FRAME<TLW> 		1-33651-667-1 01 1 9806-9911 ● ● ● ●
109 LEVER; SHIFT,1ST CONT 1-33651-667-1 01 1 9912- ●
109 LEVER; SHIFT,1ST CONT 1-33651-693-0 01 1 9806-9911 ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-625-0 01 1 9806-9911 ● ● ● ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-625-0 01 1 9912- ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-626-1 01 1 9806-9911 ● ● ● ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-626-1 01 1 9912- ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-667-0 01 1 9806-9911 ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-668-0 01 1 9806-9911 ●
111 SHAFT; RELAY LEVER,1ST 1-33619-508-0 01 1 9806-9911 ● ● ● ● ●
111 SHAFT; RELAY LEVER,1ST 1-33619-508-0 01 1 9912- ●
112 BUSHING; RELAY LEVER
CTR SPLIT FRAME<TLW> L=24 		5-33659-054-0 04 1 9806-9911 ● ● ●
112 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9912- ●
112 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9806-9911 ● ● ● ● ●
113 WASHER; RELAY LEVER
CTR SPLIT FRAME<TLW> 		1-33659-093-0 02 1 9806-9911 ● ● ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 9912- ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 9806-9911 ● ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
CTR SPLIT FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 04 1 9806-9911 ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M6X30 FLANGE 		0-28680-630-0 12 1 9912-0512 ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M6X30 FLANGE 		0-28650-630-0 12 1 0601- ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
EXC. CTR SPLIT FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 12 1 9806-9911 ● ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
CTR SPLIT FRAME<TLW> M6 FLANGE 		0-91150-106-0 04 1 9806-9911 ● ● ●
160 NUT; SUPPORT BRKT TO COVER
M6 FLANGE 		0-91150-106-0 12 1 9912-0602 ●
160 NUT; SUPPORT BRKT TO COVER
M6 FLANGE 		0-91180-106-0 12 1 0603- ●
160 NUT; SUPPORT BRKT TO COVER
EXC. CTR SPLIT FRAME<TLW> M6 FLANGE 		0-91150-106-0 12 1 9806-9911 ● ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 		9-09031-210-0 01 1 9806-9911 ● ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 		9-09031-210-0 01 1 9912-0512 ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		9-99111-514-0 01 1 9806-9911 ● ● ● ● ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		9-99111-514-0 01 1 9912-0512 ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		0-91111-514-0 01 1 0601- ●
169 COLLAR; RELAY LEVER,TRANS SHIFT ROD 1-33659-154-0 01 1 9806-9911 ● ● ● ● ●
169 COLLAR; RELAY LEVER,TRANS SHIFT ROD 1-33659-154-0 01 1 9912- ●
170 COLLAR; RELAY LEVER,SELECT ROD,1ST 1-33659-146-0 01 1 9806-9911 ● ● ● ● ●
170 COLLAR; RELAY LEVER,SELECT ROD,1ST 1-33659-146-0 01 1 9912- ●
171 SHAFT; RELAY LEVER,SELECT ROD,1ST 1-33619-210-0 01 1 9806-9911 ● ● ● ● ●
171 SHAFT; RELAY LEVER,SELECT ROD,1ST 1-33619-210-0 01 1 9912- ●
175 WASHER; RELAY LEVER,SELECT CONT ROD 1-33659-093-0 01 1 9806-9911 ● ● ● ● ●
175 WASHER; RELAY LEVER,SELECT CONT ROD 1-33659-093-0 01 1 9912- ●
179 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9806-9911 ● ● ● ● ●
179 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9912-0512 ●
179 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28650-830-0 04 1 0601- ●
180 SHIM; LEVER,TRANS CONT 1-33659-092-0 01 1 9806-9911 ● ● ● ● ●
180 SHIM; LEVER,TRANS CONT 1-33659-092-0 01 1 9912- ●
181 SHIM; RELAY LEVER,SELECT ROD 1-33659-092-0 01 1 9806-9911 ● ● ● ● ●
181 SHIM; RELAY LEVER,SELECT ROD 1-33659-092-0 01 1 9912- ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
CTR SPLIT FRAME<TLW> 		1-33655-013-0 02 1 9806- ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD 1-33655-013-0 02 1 9806-9911 ● ● ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD 1-33655-013-0 02 1 9912- ●
231 BOLT; UJT,TRANS CONT ROD
CTR SPLIT FRAME<TLW> M10X50 		1-09000-489-0 04 1 9806-9911 ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 05 1 9806-9911 ● ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X50 		1-09000-489-0 05 1 9912- ●
232 WASHER; LK,UJT,CONT ROD
CTR SPLIT FRAME<TLW> ID=10.2 		9-09150-510-0 04 1 9806-9911 ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9806-9911 ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9912-0603 ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		0-91510-510-0 05 1 0604- ●
233 NUT; UJT,CONT ROD
CTR SPLIT FRAME<TLW> M10 		9-09110-510-0 04 1 9806-9911 ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9806-9911 ● ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9912-0512 ●
233 NUT; UJT,CONT ROD
M10 		0-91110-510-0 05 1 0601- ●
234 END; ROD,TRANS CONT 1-33653-126-0 01 1 9806-9911 ● ● ● ●
234 END; ROD,TRANS CONT 8-97530-118-0 01 1 9912- ●
234 END; ROD,TRANS CONT 1-33653-132-0 01 1 9806-9911 ●
236 SUPPORT ASM; TRANS CONT ROD
CTR SPLIT FRAME<TLW> 		1-53380-004-1 01 1 9806-9911 ● ● ●
236 SUPPORT ASM; TRANS CONT ROD 1-53380-004-1 03 1 9912- ●
236 SUPPORT ASM; TRANS CONT ROD
EXC. CTR SPLIT FRAME<TLW> 		1-53380-004-1 03 1 9806-9911 ● ● ● ● ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD
CTR SPLIT FRAME<TLW> 		1-33659-141-0 02 1 9806-9911 ● ● ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD 1-33659-141-0 06 1 9912- ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD
EXC. CTR SPLIT FRAME<TLW> 		1-33659-141-0 06 1 9806-9911 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9806-9911 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9912-0602 ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9806-9911 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9912-0512 ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		0-91111-514-0 01 1 0601- ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=14.2 		9-09150-514-0 01 1 9806-9911 ● ● ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=14.2 		9-09150-514-0 01 1 9912-0603 ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=14.2 		0-91510-514-0 01 1 0604- ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9806-9911 ● ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9912-0512 ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28650-830-0 04 1 0601- ●
352 SEAL; DUST,RELAY LEVER,SHIFT ROD 1-33659-113-0 02 1 9806-9911 ● ● ● ● ●
352 SEAL; DUST,RELAY LEVER,SHIFT ROD 1-33659-113-0 02 1 9912- ●
353 SEAL; DUST,RELAY LEVER,SELECT ROD 1-33659-113-0 02 1 9806-9911 ● ● ● ● ●
353 SEAL; DUST,RELAY LEVER,SELECT ROD 1-33659-113-0 02 1 9912- ●
354 BUSHING; RELAY LEVER,SELECT CONT ROD
L=24 		5-33659-054-0 02 1 9806-9911 ● ● ● ● ●
354 BUSHING; RELAY LEVER,SELECT CONT ROD
L=24 		5-33659-054-0 02 1 9912- ●
355 NIPPLE; GREASE,RELAY LEVER
CTR SPLIT FRAME<TLW> (B) PT1/8 STRAIGHT 		9-09031-010-0 02 1 9806-9911 ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9806-9911 ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9912-0512 ●
355 NIPPLE; GREASE,RELAY LEVER
(A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
355 NIPPLE; GREASE,RELAY LEVER
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9806-9911 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
