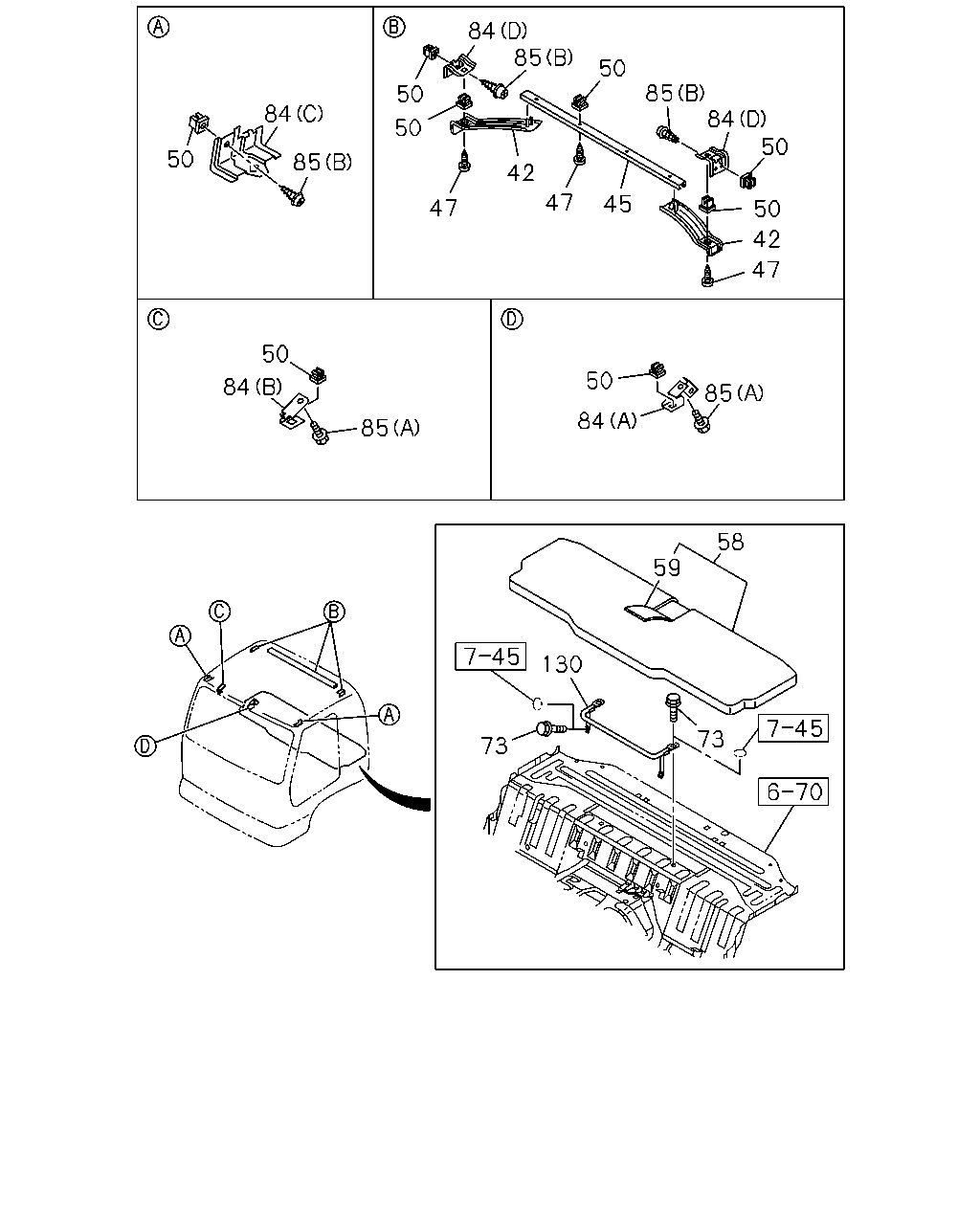

7-70 — SEPARATER AND BED (#68377) — 19 parça

84 85 50 85 84 50 50 84 50 50 85 42 47 45 47 50 42 47 50 50 84 85 84 85 58 59 130 73 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-499-2	01	1	0806-	●	●
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-972-2	01	1	0806-	●	●
45	RAIL; CURTAIN,FRT DARK GRAY	8-97407-486-0	01	1	0806-	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0806-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	10	1	0806-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	08	1	1406-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> THA	8-97924-408-0	01	1	0806-0806	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> THA	8-97924-780-0	01	1	0807-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> THA	8-97924-515-0	01	1	0806-0806	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> THA	8-97924-821-0	01	1	0807-	●	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE THA	0-28450-820-0	04	1	0806-0811	●	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	0806-1405	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0806-	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0806-	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	0806-	●	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	0806-1405	●	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	02	1	1406-	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE THA	0-28450-612-0	02	1	0806-	●	●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	0806-0811	●	●
