◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11136 - FXZ/GXZ(THAI)EURO3 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#68376) — 23 parça
çizim 135848
163 2 160 170 4 3 169
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
GRAY THA 		8-97417-601-0 01 1 0904-1111 ● ●
2 BELT; SEAT,TONGUE SIDE
GRAY THA 		8-97423-511-0 01 1 1112- ● ●
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97407-374-1 01 1 0806-0903 ● ●
3 BELT; SEAT,BUCKLE SIDE
GRAY THA 		8-97417-600-0 01 1 0904- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE<SP9> GRAY 		8-97407-376-0 01 1 0806-0903 ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE<SP9> GRAY THA 		8-97417-603-0 01 1 0904- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 0806- ● ●
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 0806- ● ●
169 SEAL
CENTER SEAT DELETE<SP9> OD=25 BLACK THA 		1-76798-019-0 01 1 0806- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY THA 		8-97417-601-0 01 1 0904-1111 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY THA 		8-97423-511-0 01 1 1112- ● ●

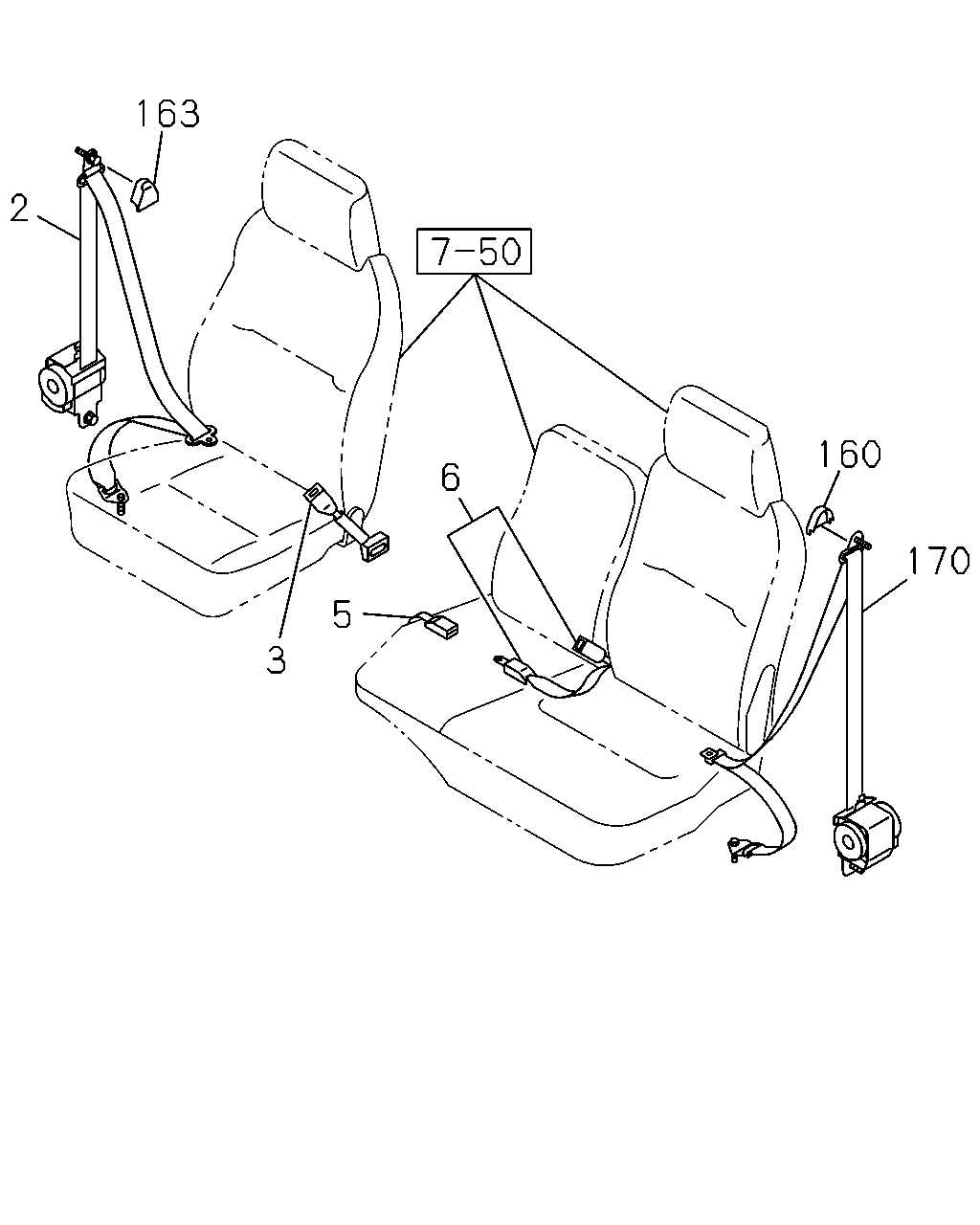

çizim 193959
163 2 160 6 170 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
GRAY THA 		8-97417-601-0 01 1 0904-1111 ● ●
2 BELT; SEAT,TONGUE SIDE
GRAY THA 		8-97423-511-0 01 1 1112- ● ●
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97407-374-1 01 1 0806-0903 ● ●
3 BELT; SEAT,BUCKLE SIDE
GRAY THA 		8-97417-600-0 01 1 0904- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE<SP9> GRAY 		8-97407-377-0 01 1 0806-0903 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE<SP9> GRAY THA 		8-97417-604-0 01 1 0904- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE<SP9> GRAY THA 		8-97417-605-0 01 1 0904-1111 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE<SP9> GRAY THA 		8-97423-512-0 01 1 1112- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 0806- ● ●
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 0806- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY THA 		8-97417-601-0 01 1 0904-1111 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY THA 		8-97423-511-0 01 1 1112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
