Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#68375) — 584 parça

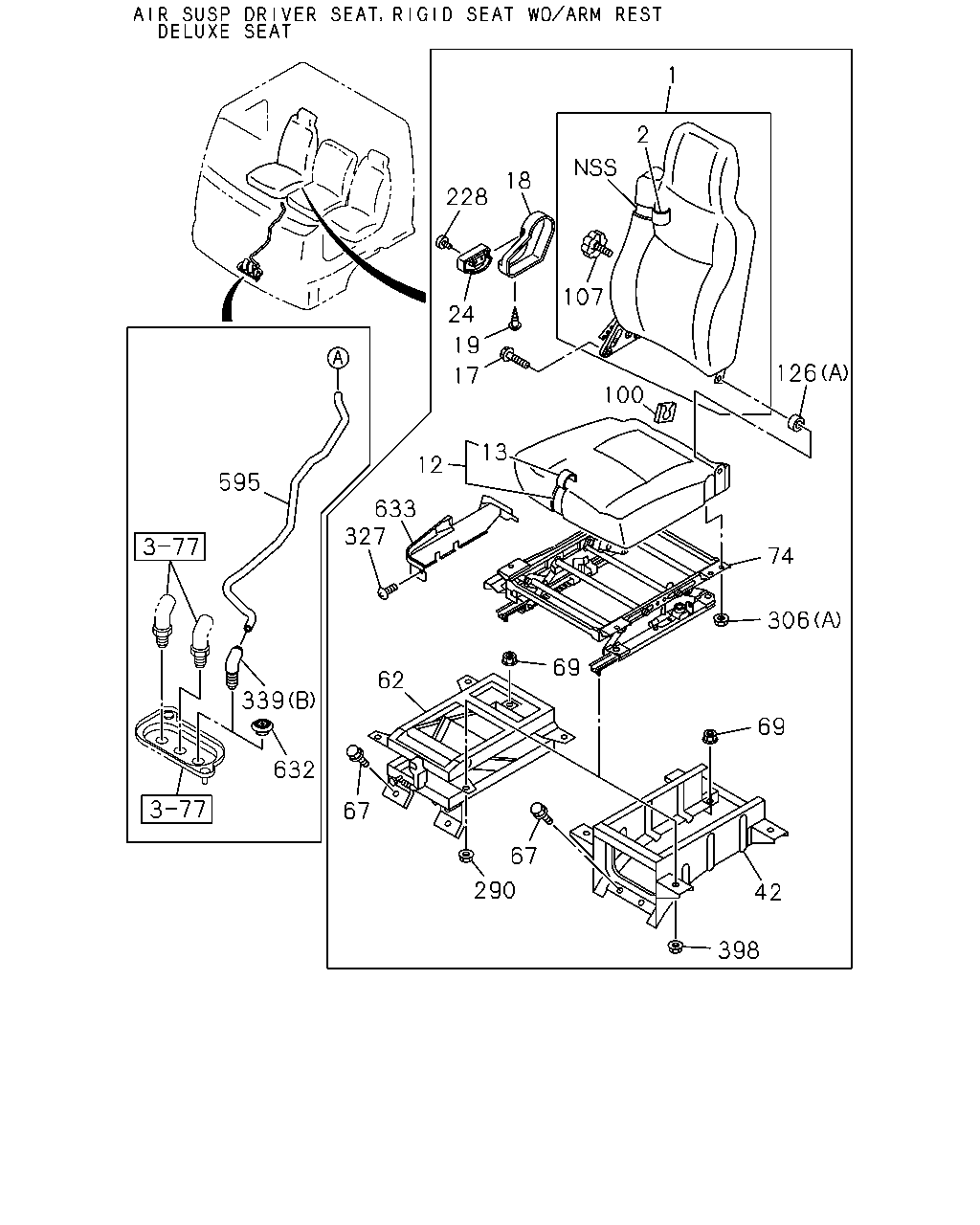

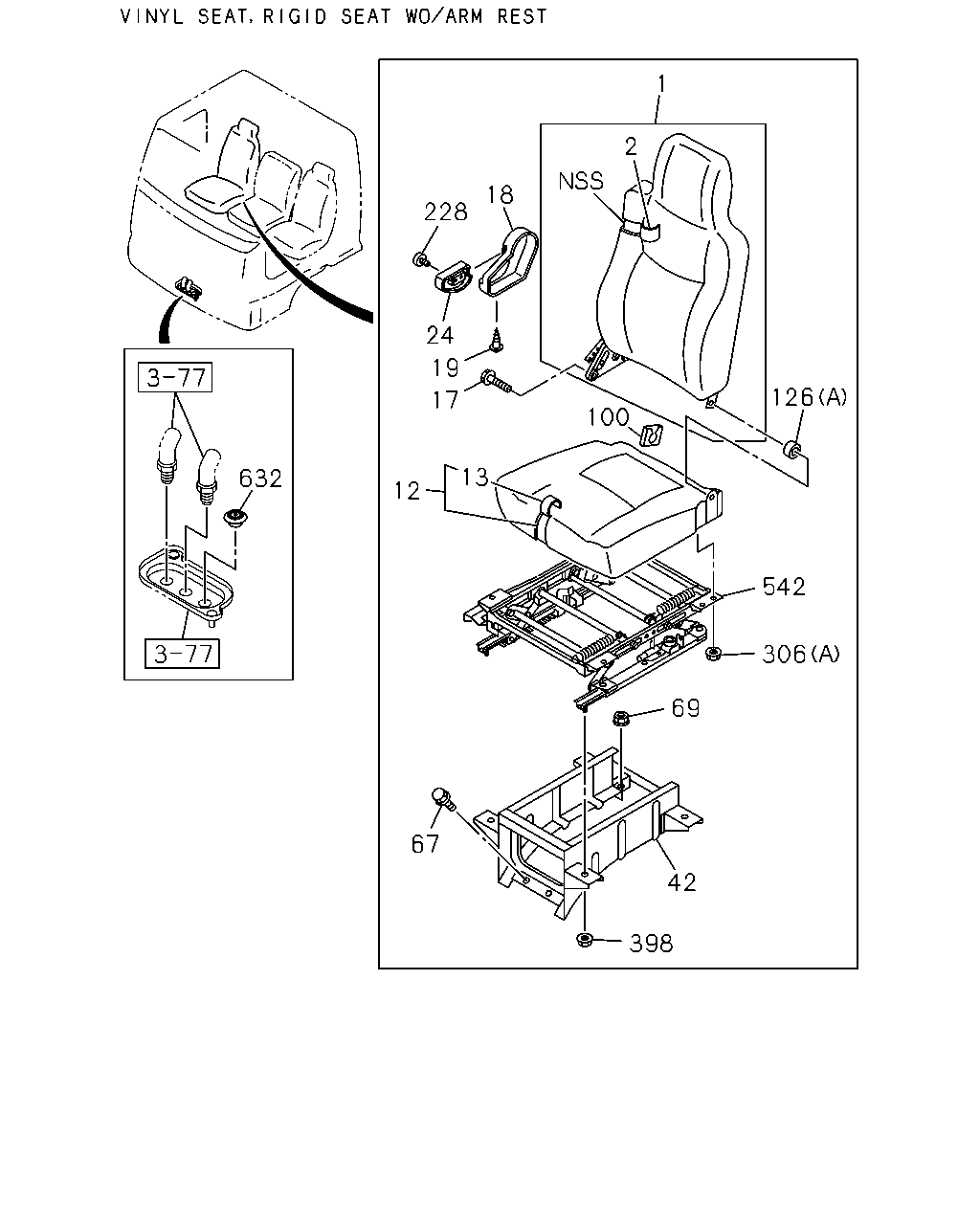

1 2 18 228 24 19 126 17 100 13 632 12 542 306 69 67 42 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT THA	8-97924-734-0	01	1	1210-	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97925-322-0	01	1	1210-		●
1	BACK ASM; SEAT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-323-0	01	1	1210-		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> VIN MODEL YEAR 2010<VZA> THA	8-97925-322-0	01	1	1004-1101		●
1	BACK ASM; SEAT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> VIN MODEL YEAR 2010<VZA> THA	8-97925-323-0	01	1	1004-1101		●
1	BACK ASM; SEAT DARK GRAY	8-97409-955-1	01	1	0806-0808	●
1	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97409-955-1	01	1	0806-0808		●
1	BACK ASM; SEAT THA	8-97924-734-0	01	1	0809-1003	●
1	BACK ASM; SEAT VINYL SEAT<A83> THA	8-97924-734-0	01	1	0809-1003		●
1	BACK ASM; SEAT THA	8-97924-734-0	01	1	1004-1101	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> DARK GRAY	8-97414-112-1	01	1	0806-0808		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97924-736-0	01	1	0809-1003		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-736-0	01	1	1004-1101		●
1	BACK ASM; SEAT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97409-959-1	01	1	0806-0808		●
1	BACK ASM; SEAT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97924-735-0	01	1	0809-1003		●
1	BACK ASM; SEAT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-735-0	01	1	1004-1101		●
2	COVER; TRIM,FRT SEAT,BACK THA	8-97924-750-0	01	1	1210-	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97925-325-0	01	1	1210-		●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-326-0	01	1	1210-		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> VIN MODEL YEAR 2010<VZA> THA	8-97925-325-0	01	1	1004-1101		●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> VIN MODEL YEAR 2010<VZA> THA	8-97925-326-0	01	1	1004-1101		●
2	COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97411-910-0	01	1	0806-0808	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97411-910-0	01	1	0806-0808		●
2	COVER; TRIM,FRT SEAT,BACK THA	8-97924-750-0	01	1	0809-1003	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> THA	8-97924-750-0	01	1	0809-1003		●
2	COVER; TRIM,FRT SEAT,BACK THA	8-97924-750-0	01	1	1004-1101	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> DARK GRAY	8-97414-113-0	01	1	0806-0808		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97924-758-0	01	1	0809-1003		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-758-0	01	1	1004-1101		●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97411-908-0	01	1	0806-0808		●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97924-754-0	01	1	0809-1003		●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-754-0	01	1	1004-1101		●
12	CUSHION; SEAT,FRT THA	8-97924-748-1	01	1	1210-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97925-331-0	01	1	1210-		●
12	CUSHION; SEAT,FRT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-332-0	01	1	1210-		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> VIN MODEL YEAR 2010<VZA> THA	8-97925-331-0	01	1	1004-1101		●
12	CUSHION; SEAT,FRT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> VIN MODEL YEAR 2010<VZA> THA	8-97925-332-0	01	1	1004-1101		●
12	CUSHION; SEAT,FRT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97924-752-1	01	1	0809-1003		●
12	CUSHION; SEAT,FRT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-752-1	01	1	1004-1101		●
12	CUSHION; SEAT,FRT DARK GRAY	8-97409-954-0	01	1	0806-0808	●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DARK GRAY	8-97409-954-0	01	1	0806-0808		●
12	CUSHION; SEAT,FRT THA	8-97924-748-1	01	1	0809-1003	●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> THA	8-97924-748-1	01	1	0809-1003		●
12	CUSHION; SEAT,FRT THA	8-97924-748-1	01	1	1004-1101	●
12	CUSHION; SEAT,FRT DELUXE SEAT<PQ8> DARK GRAY	8-97409-958-0	01	1	0806-0808		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97924-756-1	01	1	0809-1003		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-756-1	01	1	1004-1101		●
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97924-749-0	01	1	1210-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97925-328-0	01	1	1210-		●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-329-0	01	1	1210-		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> VIN MODEL YEAR 2010<VZA> THA	8-97925-328-0	01	1	1004-1101		●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> VIN MODEL YEAR 2010<VZA> THA	8-97925-329-0	01	1	1004-1101		●
13	COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97411-909-0	01	1	0806-0808	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97411-909-0	01	1	0806-0808		●
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97924-749-0	01	1	0809-1003	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> THA	8-97924-749-0	01	1	0809-1003		●
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97924-749-0	01	1	1004-1101	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> DARK GRAY	8-97414-111-0	01	1	0806-0808		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97924-757-0	01	1	0809-1003		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-757-0	01	1	1004-1101		●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97411-905-0	01	1	0806-0808		●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97924-753-0	01	1	0809-1003		●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-753-0	01	1	1004-1101		●
17	BOLT; RECLINING DRIVER M10X20 THA	8-98062-661-0	04	1	1210-	●	●
17	BOLT; RECLINING DRIVER M10X20 THA	8-98062-661-0	02	1	0806-1101	●	●
17	BOLT; RECLINING PASSENGER M8X20 THA	8-98092-334-0	02	1	0806-1101	●	●
17	BOLT; RECLINING PASSENGER M8X20 THA	8-98092-334-0	02	1	1102-1209	●
17	BOLT; RECLINING PASSENGER M8X20 THA	8-98092-334-0	04	1	1210-	●	●
18	COVER; RECLINING GRAY THA	8-97409-332-0	01	1	0806-1101	●	●
18	COVER; RECLINING GRAY THA	8-97409-332-0	01	1	1210-	●	●
19	SCREW; COVER M5 THA	8-98062-663-0	01	1	0806-1101	●	●
19	SCREW; COVER M5 THA	8-98062-663-0	01	1	1210-	●	●
24	KNOB; RECLINING,FRT,SEAT GRAY THA	8-97409-333-0	01	1	0806-1101	●	●
24	KNOB; RECLINING,FRT,SEAT GRAY THA	8-97409-333-0	01	1	1210-	●	●
42	STAND; DRIVER SEAT	1-75558-604-1	01	1	0806-1101	●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-1	01	1	0806-1101		●
42	STAND; DRIVER SEAT THA	1-75558-604-2	01	1	1210-	●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ> THA	1-75558-604-2	01	1	1210-		●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE THA	0-28451-020-0	02	1	0806-	●	●
69	NUT; FRT SEAT M10 FLANGE THA	0-91180-110-0	02	1	0806-	●	●
100	COVER; HINGE	8-98203-070-0	01	1	1110-	●	●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	0806-1003	●	●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1004-1101	●
126	BUSHING; HINGE,RECLINING DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (B) THA	8-97917-184-0	01	1	1004-1101		●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1210-	●	●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	0806-1003	●	●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1004-1101	●
126	BUSHING; HINGE,RECLINING DELUXE SEAT<PQ8> (A) THA	8-98063-218-0	01	1	1004-1101		●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1210-	●	●
228	SCREW; KNOB M4 THA	8-98062-662-0	01	1	0806-1003	●	●
228	SCREW; KNOB M4 THA	8-98062-662-0	01	1	1004-1101	●
228	SCREW; KNOB DELUXE SEAT<PQ8> M4 THA	8-98062-662-0	01	1	1004-1101		●
228	SCREW; KNOB M4 THA	8-98062-662-0	01	1	1210-	●	●
306	NUT; SEAT ADJ DELUXE SEAT<PQ8> (A) M8 FLANGE THA	1-75538-207-0	06	1	0806-1101		●
306	NUT; SEAT ADJ DELUXE SEAT<PQ8> (A) M8 FLANGE THA	1-75538-207-0	06	1	1210-		●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	0806-1003	●
306	NUT; SEAT ADJ VINYL SEAT<A83> (A) M8 FLANGE THA	1-75538-207-0	08	1	0806-1003		●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	1004-1101	●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	1210-	●
306	NUT; SEAT ADJ (B) M10 FLANGE THA	0-91180-110-0	02	1	0806-	●	●
398	NUT; STAND M8 FLANGE THA	1-75538-207-0	04	1	0806-1101	●
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE THA	1-75538-207-0	04	1	0806-1101		●
398	NUT; STAND M8 FLANGE THA	1-75538-207-0	04	1	1210-	●
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE THA	1-75538-207-0	04	1	1210-		●

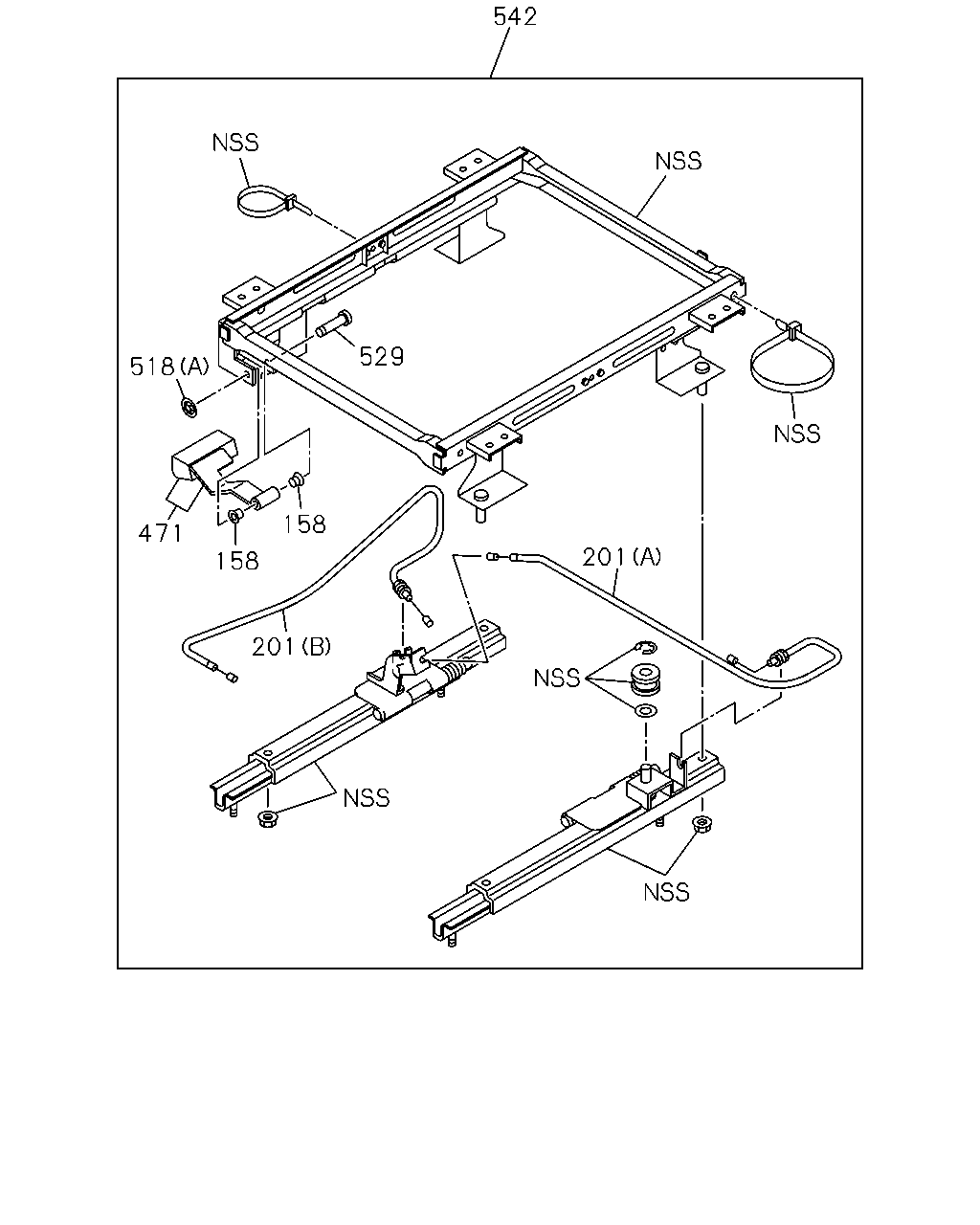

542	ADJUSTER ASM; SEAT SLIDE THA	8-98093-310-0	01	1	0806-1003	●
542	ADJUSTER ASM; SEAT SLIDE VINYL SEAT<A83> THA	8-98093-310-0	01	1	0806-1003		●
542	ADJUSTER ASM; SEAT SLIDE THA	8-98093-310-0	01	1	1004-	●
632	GROMMET OD=24	8-94119-796-0	01	1	0806-	●
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	0806-		●

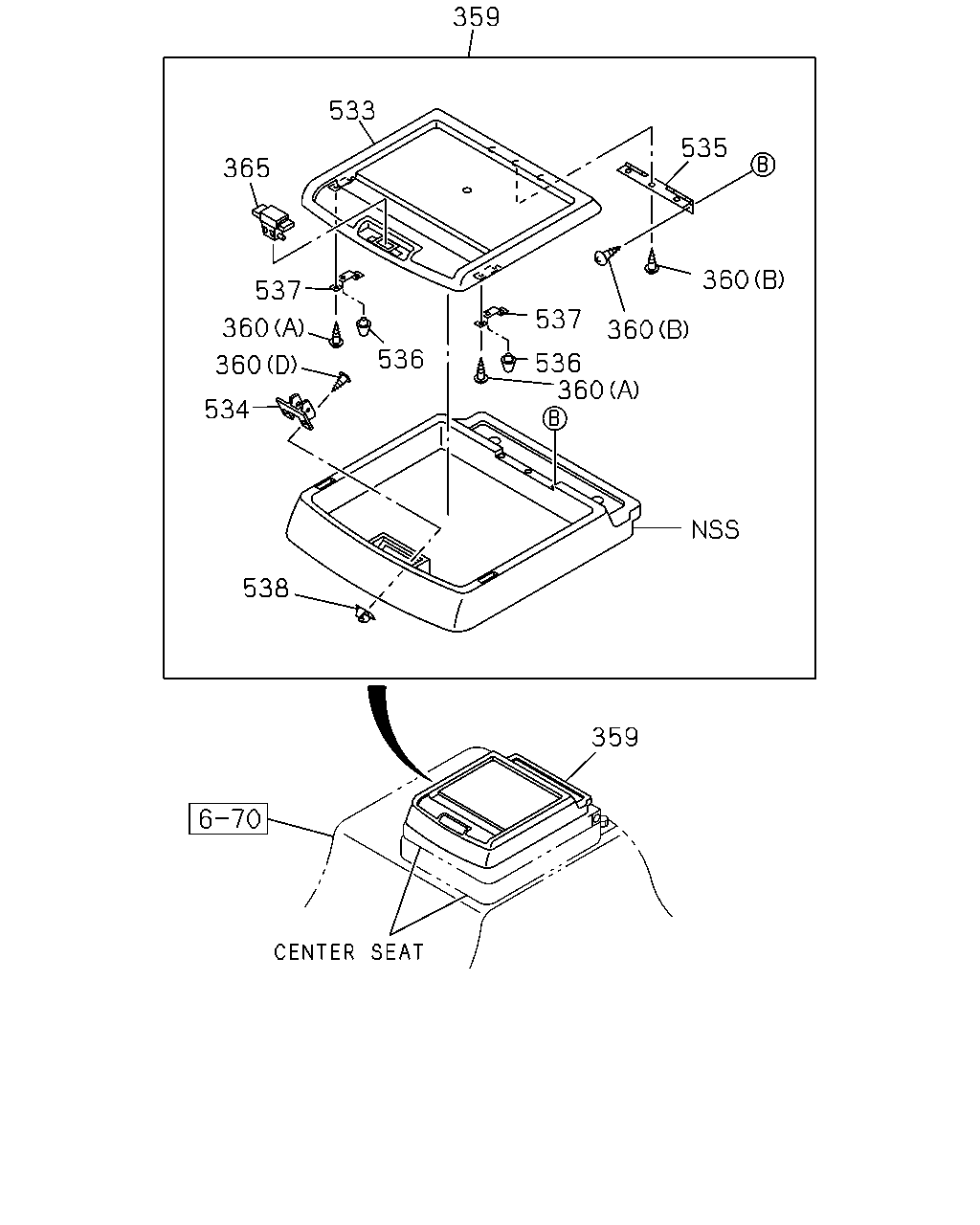

359 533 535 365 360 537 537 360 360 536 536 360 360 534 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
359	BOX; PARCEL CENTER SEAT<SA1> THA	8-97924-469-0	01	1	0806-1003	●	●
359	BOX; PARCEL CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-469-0	01	1	1004-1101	●
359	BOX; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-469-0	01	1	1004-1101		●
359	BOX; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-469-0	01	1	1210-		●
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0806-1003	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1004-1101	●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1004-1101		●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1210-		●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70040-416-0	06	1	0806-1003	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (B) M4X16	0-70040-416-0	06	1	1004-1101	●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (B) M4X16	0-70040-416-0	06	1	1004-1101		●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> (B) M4X16	0-70040-416-0	06	1	1210-		●
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER THA	0-74360-516-0	04	1	0806-1003	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (C) M5X16 TAPPING W/PL WASHER THA	0-74360-516-0	04	1	1004-1101	●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (C) M5X16 TAPPING W/PL WASHER THA	0-74360-516-0	04	1	1004-1101		●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER THA	0-74360-516-0	04	1	1210-		●
360	SCREW; PARCEL CENTER SEAT<SA1> (D) M5X20	9-09829-324-1	02	1	0806-1003	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (D) M5X20	9-09829-324-1	02	1	1004-1101	●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (D) M5X20	9-09829-324-1	02	1	1004-1101		●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> (D) M5X20	9-09829-324-1	02	1	1210-		●
365	LOCK ASM; SEAT CENTER SEAT<SA1> THA	8-97924-512-0	01	1	0806-1003	●	●
365	LOCK ASM; SEAT CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-512-0	01	1	1004-1101	●
365	LOCK ASM; SEAT DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-512-0	01	1	1004-1101		●
365	LOCK ASM; SEAT DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-512-0	01	1	1210-		●
533	LID; PARCEL BOX CENTER SEAT<SA1> THA	8-97924-511-0	01	1	0806-1003	●	●
533	LID; PARCEL BOX CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-511-0	01	1	1004-1101	●
533	LID; PARCEL BOX DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-511-0	01	1	1004-1101		●
533	LID; PARCEL BOX DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-511-0	01	1	1210-		●
534	STRIKER; PARCEL BOX CENTER SEAT<SA1> THA	8-97913-529-0	01	1	0806-1003	●	●
534	STRIKER; PARCEL BOX CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97913-529-0	01	1	1004-1101	●
534	STRIKER; PARCEL BOX DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97913-529-0	01	1	1004-1101		●
534	STRIKER; PARCEL BOX DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97913-529-0	01	1	1210-		●
535	HINGE; PARCEL BOX CENTER SEAT<SA1> THA	8-97913-533-0	01	1	0806-1003	●	●
535	HINGE; PARCEL BOX CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97913-533-0	01	1	1004-1101	●
535	HINGE; PARCEL BOX DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97913-533-0	01	1	1004-1101		●
535	HINGE; PARCEL BOX DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97913-533-0	01	1	1210-		●
536	RUBBER; CUSHION CENTER SEAT<SA1> THA	8-97914-858-0	02	1	0806-1003	●	●
536	RUBBER; CUSHION CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97914-858-0	02	1	1004-1101	●
536	RUBBER; CUSHION DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97914-858-0	02	1	1004-1101		●
536	RUBBER; CUSHION DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97914-858-0	02	1	1210-		●
537	BRACKET; RUBBER CENTER SEAT<SA1> THA	8-97914-859-0	02	1	0806-1003	●	●
537	BRACKET; RUBBER CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97914-859-0	02	1	1004-1101	●
537	BRACKET; RUBBER DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97914-859-0	02	1	1004-1101		●
537	BRACKET; RUBBER DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97914-859-0	02	1	1210-		●
538	GROMMET; SCREW CENTER SEAT<SA1> THA	8-97914-867-0	02	1	0806-1003	●	●
538	GROMMET; SCREW CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97914-867-0	02	1	1004-1101	●
538	GROMMET; SCREW DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97914-867-0	02	1	1004-1101		●
538	GROMMET; SCREW DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97914-867-0	02	1	1210-		●

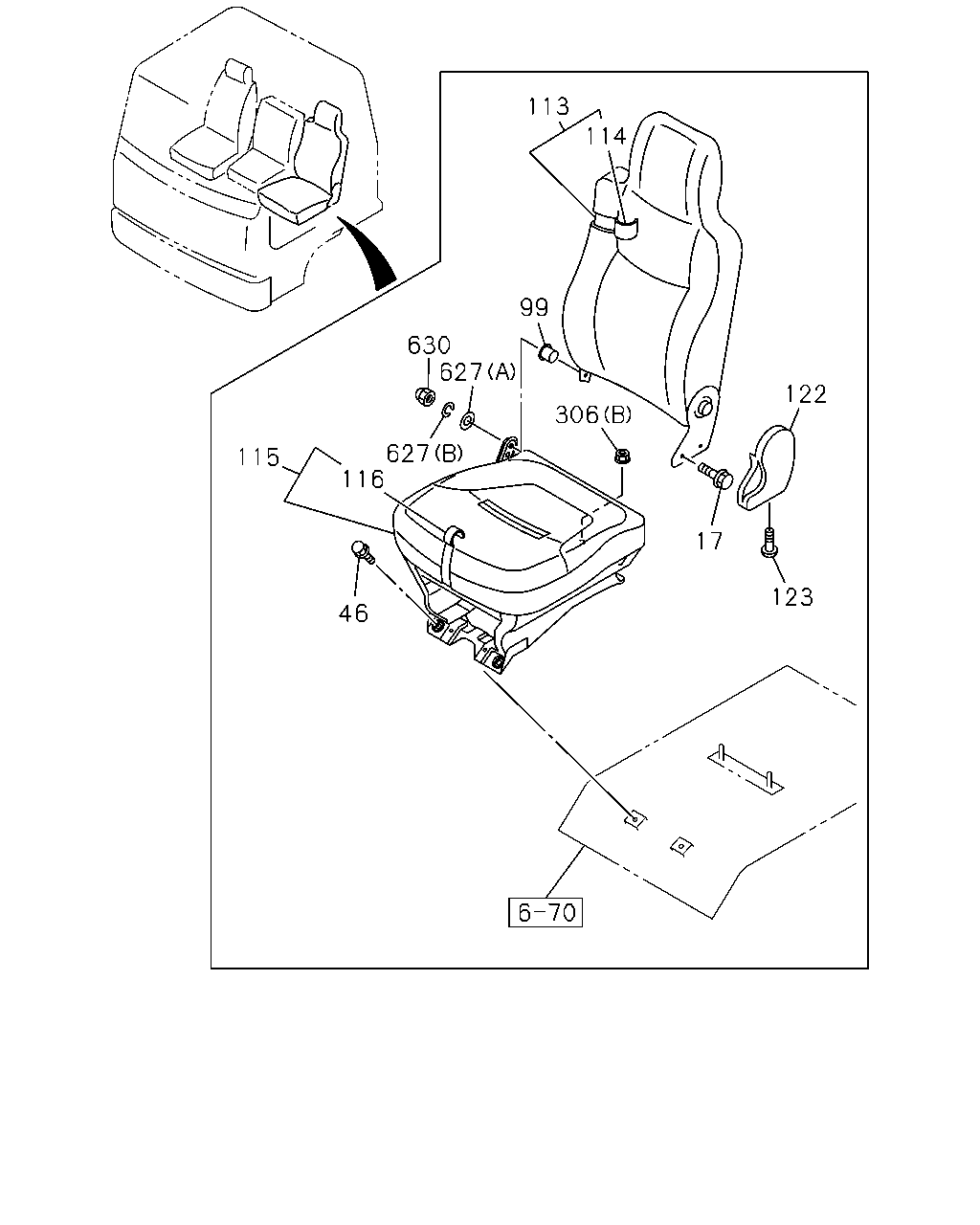

113 114 99 630 627 122 306 627 116 115 17 123 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; RECLINING DRIVER M10X20 THA	8-98062-661-0	04	1	1210-	●	●
17	BOLT; RECLINING DRIVER M10X20 THA	8-98062-661-0	02	1	0806-1101	●	●
17	BOLT; RECLINING PASSENGER M8X20 THA	8-98092-334-0	02	1	0806-1101	●	●
17	BOLT; RECLINING PASSENGER M8X20 THA	8-98092-334-0	02	1	1102-1209	●
17	BOLT; RECLINING PASSENGER M8X20 THA	8-98092-334-0	04	1	1210-	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE THA	0-28451-020-0	02	1	0806-	●	●
99	BUSHING; SEAT BACK THA	8-98063-219-0	01	1	0806-1101	●	●
99	BUSHING; SEAT BACK THA	8-98063-219-0	01	1	1102-1209	●
99	BUSHING; SEAT BACK THA	8-98063-219-0	01	1	1210-	●	●
113	BACK ASM; SEAT DELUXE SEAT<PQ8> VIN MODEL YEAR 2010<VZA> THA	8-97925-324-0	01	1	1004-1101		●
113	BACK ASM; SEAT DELUXE SEAT<PQ8> THA	8-97925-324-0	01	1	1210-		●
113	BACK ASM; SEAT DARK GRAY	8-97409-966-0	01	1	0806-0808	●
113	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97409-966-0	01	1	0806-0808		●
113	BACK ASM; SEAT THA	8-97924-737-0	01	1	0809-1003	●
113	BACK ASM; SEAT VINYL SEAT<A83> THA	8-97924-737-0	01	1	0809-1003		●
113	BACK ASM; SEAT THA	8-97924-737-0	01	1	1004-	●
113	BACK ASM; SEAT DELUXE SEAT<PQ8> DARK GRAY	8-97409-969-0	01	1	0806-0808		●
113	BACK ASM; SEAT DELUXE SEAT<PQ8> THA	8-97924-738-0	01	1	0809-1003		●
113	BACK ASM; SEAT DELUXE SEAT<PQ8> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-738-0	01	1	1004-1101		●
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT<PQ8> VIN MODEL YEAR 2010<VZA> THA	8-97925-327-0	01	1	1004-1101		●
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT<PQ8> THA	8-97925-327-0	01	1	1210-		●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97411-916-0	01	1	0806-0808	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97411-916-0	01	1	0806-0808		●
114	COVER; TRIM,PASSENGER SEAT,BACK THA	8-97924-761-0	01	1	0809-1003	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> THA	8-97924-761-0	01	1	0809-1003		●
114	COVER; TRIM,PASSENGER SEAT,BACK THA	8-97924-761-0	01	1	1004-	●
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT<PQ8> DARK GRAY	8-97411-914-0	01	1	0806-0808		●
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT<PQ8> THA	8-97924-763-0	01	1	0809-1003		●
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT<PQ8> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-763-0	01	1	1004-1101		●
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT<PQ8> VIN MODEL YEAR 2010<VZA> THA	8-97925-333-0	01	1	1004-1101		●
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT<PQ8> THA	8-97925-333-0	01	1	1210-		●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97409-965-0	01	1	0806-0808	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> DARK GRAY	8-97409-965-0	01	1	0806-0808		●
115	CUSHION ASM; PASSENGER SEAT THA	8-97924-759-0	01	1	0809-1003	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> THA	8-97924-759-0	01	1	0809-1003		●
115	CUSHION ASM; PASSENGER SEAT THA	8-97924-759-0	01	1	1004-	●
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT<PQ8> DARK GRAY	8-97409-968-0	01	1	0806-0808		●
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT<PQ8> THA	8-97924-764-0	01	1	0809-1003		●
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT<PQ8> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-764-0	01	1	1004-1101		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT<PQ8> VIN MODEL YEAR 2010<VZA> THA	8-97925-330-0	01	1	1004-1101		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT<PQ8> THA	8-97925-330-0	01	1	1210-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97411-915-0	01	1	0806-0808	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97411-915-0	01	1	0806-0808		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION THA	8-97924-760-0	01	1	0809-1003	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> THA	8-97924-760-0	01	1	0809-1003		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION THA	8-97924-760-0	01	1	1004-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT<PQ8> DARK GRAY	8-97411-913-0	01	1	0806-0808		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT<PQ8> THA	8-97924-762-0	01	1	0809-1003		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT<PQ8> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-762-0	01	1	1004-1101		●
122	COVER; ADJ,RECLINING GRAY THA	8-97409-967-0	01	1	0806-0808	●
122	COVER; ADJ,RECLINING VINYL SEAT<A83> GRAY THA	8-97409-967-0	01	1	0806-0808		●
122	COVER; ADJ,RECLINING GRAY THA	8-97409-967-0	01	1	0809-1101	●	●
122	COVER; ADJ,RECLINING GRAY THA	8-97409-967-0	01	1	1102-1209	●
122	COVER; ADJ,RECLINING GRAY THA	8-97409-967-0	01	1	1210-	●	●
122	COVER; ADJ,RECLINING DELUXE SEAT<PQ8> GRAY THA	8-97409-967-0	01	1	0806-0808		●
123	SCREW; COVER,RECLINING THA	8-98070-026-0	01	1	0806-1101	●	●
123	SCREW; COVER,RECLINING THA	8-98070-026-0	01	1	1102-1209	●
123	SCREW; COVER,RECLINING THA	8-98070-026-0	01	1	1210-	●	●
306	NUT; SEAT ADJ DELUXE SEAT<PQ8> (A) M8 FLANGE THA	1-75538-207-0	06	1	0806-1101		●
306	NUT; SEAT ADJ DELUXE SEAT<PQ8> (A) M8 FLANGE THA	1-75538-207-0	06	1	1210-		●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	0806-1003	●
306	NUT; SEAT ADJ VINYL SEAT<A83> (A) M8 FLANGE THA	1-75538-207-0	08	1	0806-1003		●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	1004-1101	●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	1210-	●
306	NUT; SEAT ADJ (B) M10 FLANGE THA	0-91180-110-0	02	1	0806-	●	●
627	WASHER; FRT SEAT (A) THA	8-98063-223-0	01	1	0806-1101	●	●
627	WASHER; FRT SEAT (A) THA	8-98063-223-0	01	1	1102-1209	●
627	WASHER; FRT SEAT (A) THA	8-98063-223-0	01	1	1210-	●	●
627	WASHER; FRT SEAT (B) THA	8-98063-224-0	01	1	0806-1101	●	●
627	WASHER; FRT SEAT (B) THA	8-98063-224-0	01	1	1102-1209	●
627	WASHER; FRT SEAT (B) THA	8-98063-224-0	01	1	1210-	●	●
630	NUT; CAP M8 THA	8-98063-225-0	01	1	0806-1101	●	●
630	NUT; CAP M8 THA	8-98063-225-0	01	1	1102-1209	●
630	NUT; CAP M8 THA	8-98063-225-0	01	1	1210-	●	●

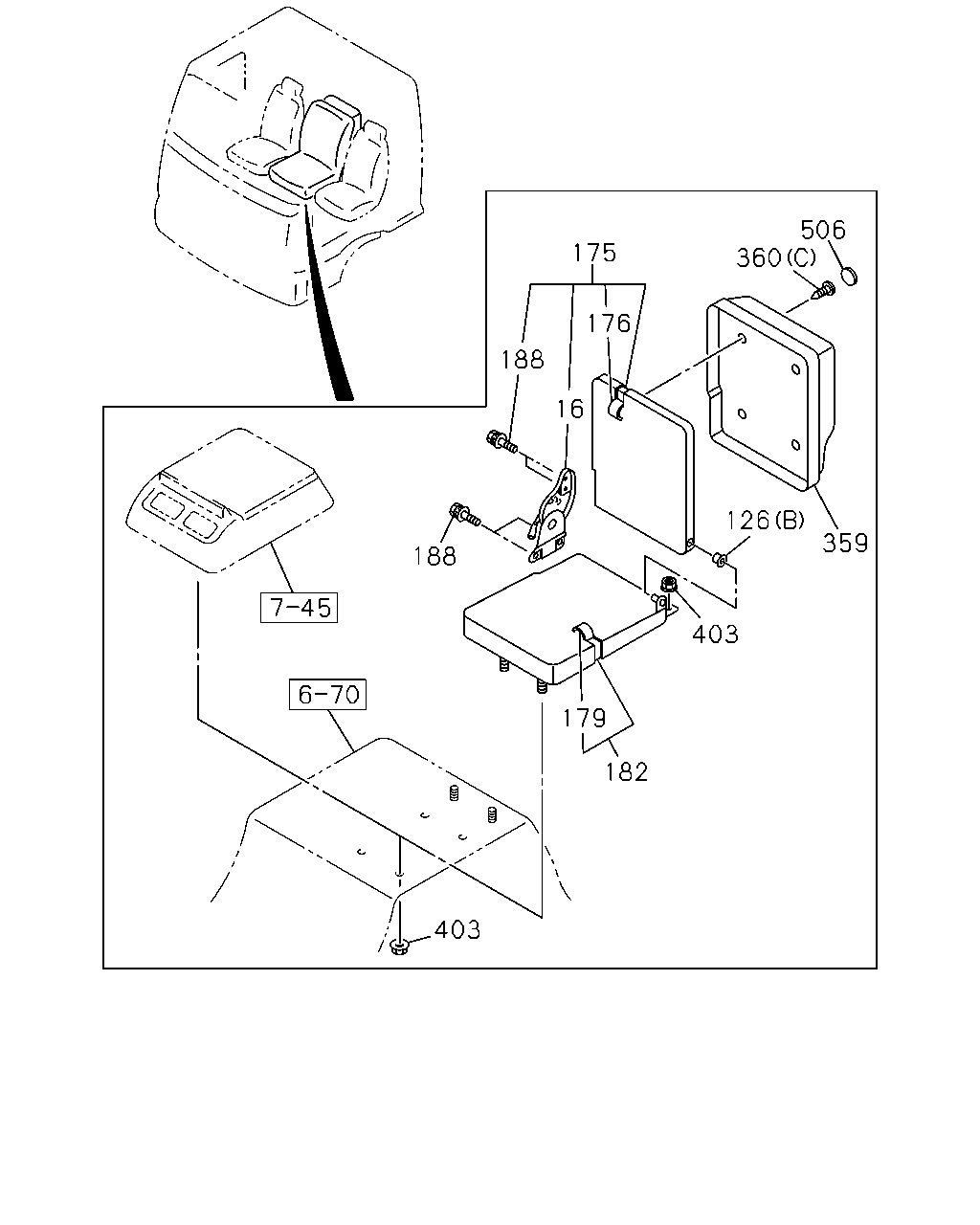

506 360 175 176 188 16 126 359 188 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING CENTER SEAT<SA1> THA	1-75418-062-1	01	1	1210-	●	●
16	ADJUSTER ASM; RECLINING CENTER SEAT<SA1> THA	1-75418-062-1	01	1	0806-1101	●	●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	0806-1003	●	●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1004-1101	●
126	BUSHING; HINGE,RECLINING DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (B) THA	8-97917-184-0	01	1	1004-1101		●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1210-	●	●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	0806-1003	●	●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1004-1101	●
126	BUSHING; HINGE,RECLINING DELUXE SEAT<PQ8> (A) THA	8-98063-218-0	01	1	1004-1101		●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1210-	●	●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT<SA1> VIN MODEL YEAR 2010<VZA> THA	8-97925-314-0	01	1	1004-1101	●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT<SA1> THA	8-97925-314-0	01	1	1210-	●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT<SA1> THA	8-97924-455-1	01	1	0806-1003	●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> CENTER SEAT<SA1> THA	8-97924-455-1	01	1	0806-1003		●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-455-1	01	1	1004-1101	●
175	BACK ASM; PASSENGER CENTER SEAT DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-456-1	01	1	0806-1003		●
175	BACK ASM; PASSENGER CENTER SEAT DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-456-1	01	1	1004-1101		●
175	BACK ASM; PASSENGER CENTER SEAT DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-456-1	01	1	1210-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT<SA1> VIN MODEL YEAR 2010<VZA> THA	8-97925-308-0	01	1	1004-1101	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT<SA1> THA	8-97925-308-0	01	1	1210-	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT<SA1> THA	8-97924-457-0	01	1	0806-1003	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> CENTER SEAT<SA1> THA	8-97924-457-0	01	1	0806-1003		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-457-0	01	1	1004-1101	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-458-0	01	1	0806-1003		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-458-0	01	1	1004-1101		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-458-0	01	1	1210-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT<SA1> THA	8-97924-453-0	01	1	0806-1003	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> CENTER SEAT<SA1> THA	8-97924-453-0	01	1	0806-1003		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT<SA1> THA	8-97924-453-0	01	1	1004-1101	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT<SA1> THA	8-97924-453-0	01	1	1210-	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-454-0	01	1	0806-1003		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-454-0	01	1	1004-1101		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-454-0	01	1	1210-		●
182	CUSHION ASM; CENTER SEAT CENTER SEAT<SA1> THA	8-97924-451-0	01	1	0806-1003	●
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> CENTER SEAT<SA1> THA	8-97924-451-0	01	1	0806-1003		●
182	CUSHION ASM; CENTER SEAT CENTER SEAT<SA1> THA	8-97924-451-0	01	1	1004-1101	●
182	CUSHION ASM; CENTER SEAT CENTER SEAT<SA1> THA	8-97924-451-0	01	1	1210-	●
182	CUSHION ASM; CENTER SEAT DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-452-0	01	1	0806-1003		●
182	CUSHION ASM; CENTER SEAT DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-452-0	01	1	1004-1101		●
182	CUSHION ASM; CENTER SEAT DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-452-0	01	1	1210-		●
188	BOLT; BACK TO CUSHION CENTER SEAT<SA1> M10X16 FLANGE THA	8-97917-806-0	04	1	0806-0807	●	●
188	BOLT; BACK TO CUSHION CENTER SEAT<SA1> M10X20 THA	8-97924-820-0	04	1	0808-1003	●	●
188	BOLT; BACK TO CUSHION CENTER SEAT<SA1> M10X20 THA	8-97924-820-0	04	1	1004-1101	●
188	BOLT; BACK TO CUSHION DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> M10X20 THA	8-97924-820-0	04	1	1004-1101		●
188	BOLT; BACK TO CUSHION CENTER SEAT<SA1> M10X20 THA	8-97924-820-0	04	1	1210-	●	●
359	BOX; PARCEL CENTER SEAT<SA1> THA	8-97924-469-0	01	1	0806-1003	●	●
359	BOX; PARCEL CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-469-0	01	1	1004-1101	●
359	BOX; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-469-0	01	1	1004-1101		●
359	BOX; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-469-0	01	1	1210-		●
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0806-1003	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1004-1101	●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1004-1101		●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1210-		●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70040-416-0	06	1	0806-1003	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (B) M4X16	0-70040-416-0	06	1	1004-1101	●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (B) M4X16	0-70040-416-0	06	1	1004-1101		●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> (B) M4X16	0-70040-416-0	06	1	1210-		●
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER THA	0-74360-516-0	04	1	0806-1003	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (C) M5X16 TAPPING W/PL WASHER THA	0-74360-516-0	04	1	1004-1101	●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (C) M5X16 TAPPING W/PL WASHER THA	0-74360-516-0	04	1	1004-1101		●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER THA	0-74360-516-0	04	1	1210-		●
360	SCREW; PARCEL CENTER SEAT<SA1> (D) M5X20	9-09829-324-1	02	1	0806-1003	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (D) M5X20	9-09829-324-1	02	1	1004-1101	●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (D) M5X20	9-09829-324-1	02	1	1004-1101		●
360	SCREW; PARCEL DELUXE SEAT<PQ8> CENTER SEAT<SA1> (D) M5X20	9-09829-324-1	02	1	1210-		●
403	NUT; CENTER SEAT CENTER SEAT<SA1> M8 FLANGE THA	0-91180-108-0	04	1	0806-	●	●
506	CAP; PARCEL BOX CENTER SEAT<SA1> THA	8-97924-470-0	04	1	0806-1003	●	●
506	CAP; PARCEL BOX CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-470-0	04	1	1004-1101	●
506	CAP; PARCEL BOX DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-470-0	04	1	1004-1101		●
506	CAP; PARCEL BOX DELUXE SEAT<PQ8> CENTER SEAT<SA1> THA	8-97924-470-0	04	1	1210-		●

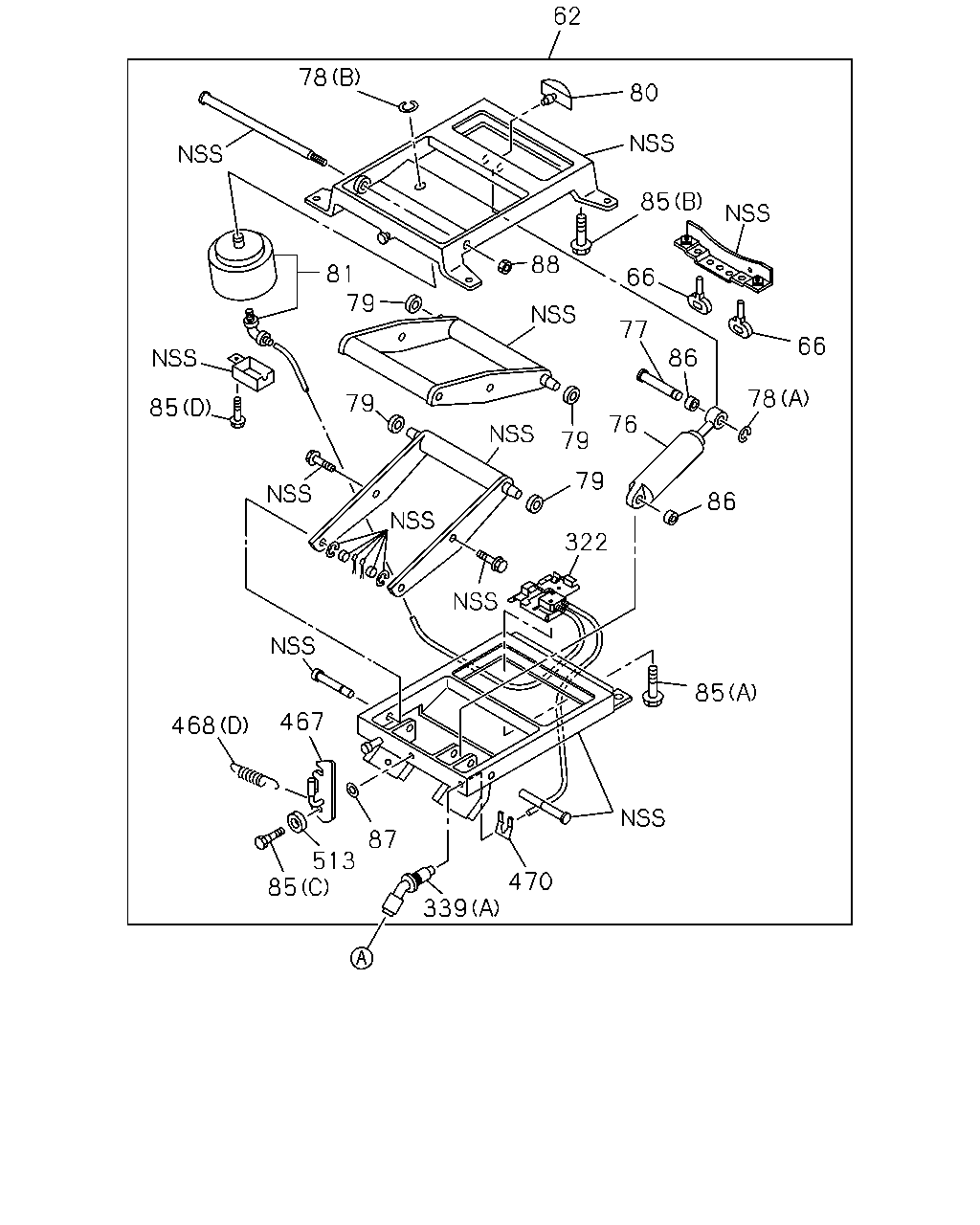

339 85 86 78 66 86 66 77 88 62 80 78 81 85 79 79 79 76 79 322 470 87 513 85 467 468 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-183-7	01	1	0806-1101	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-183-7	01	1	1210-1507	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8>	8-98261-448-0	01	1	1508-	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-145-0	02	1	0806-1101	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-145-0	02	1	1210-	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-139-0	01	1	0806-1101	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-139-0	01	1	1210-	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-138-2	01	1	0806-1101	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-138-2	01	1	1210-	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (A) ID=8 THA	9-09185-408-0	01	1	1210-	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (B) ID=15 THA	9-09185-415-0	01	1	1210-	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (A) ID=8 THA	9-09185-408-0	01	1	0806-1101	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (B) ID=15 THA	9-09185-415-0	01	1	0806-1101	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-159-0	04	1	0806-1101	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-159-0	04	1	1210-1507	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8>	8-98261-489-0	04	1	1508-	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-09987-123-0	01	1	0806-1101	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-09987-123-0	01	1	1210-	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-151-2	01	1	0806-1209	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-151-2	01	1	1210-1507	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8>	8-98242-816-0	01	1	1508-	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (C) THA	1-09980-577-0	01	1	0806-1209	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (C)	1-09980-577-1	01	1	1210-	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (A) M6X12 THA	1-75538-208-0	02	1	0806-1209	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (A) M6X12	1-75538-208-1	02	1	1210-	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (B) M8X22 W/LK&PL WASHER THA	1-75538-209-0	03	1	0806-1209	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (B) M8X22 W/LK&PL WASHER THA	1-75538-209-0	03	1	1210-1507	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (B) M8X22 W/LK&PL WASHER THA	1-75538-209-0	02	1	1508-	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> OD=6.2 LIGHT GRAY THA	1-09983-173-1	02	1	0806-1101	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> OD=6.2 LIGHT GRAY THA	1-09983-173-1	02	1	1210-	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> ID=8.2 THA	0-91510-508-0	01	1	0806-1101	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> ID=8.2 THA	0-91510-508-0	01	1	1210-	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> M10 THA	1-75537-273-1	01	1	0806-1101	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> M10 THA	1-75537-273-1	01	1	1210-	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-186-2	01	1	0806-1101	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8>	1-75538-186-3	01	1	1210-	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	0806-	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (A) THA	1-75538-131-3	01	1	0806-1209	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (A) THA	1-75538-131-3	01	1	1210-	●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-134-0	01	1	0806-1101	●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-134-0	01	1	1210-	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (D) THA	1-75538-132-0	01	1	0806-1101	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (D) THA	1-75538-132-0	01	1	1210-	●
468	SPRING; RETURN DELUXE SEAT<PQ8> (A) THA	1-75518-206-0	01	1	0806-1101	●
468	SPRING; RETURN DELUXE SEAT<PQ8> (A) THA	1-75518-206-0	01	1	1210-	●
468	SPRING; RETURN DELUXE SEAT<PQ8> (B) THA	1-75518-207-0	01	1	0806-1101	●
468	SPRING; RETURN DELUXE SEAT<PQ8> (B) THA	1-75518-207-0	01	1	1210-	●
468	SPRING; RETURN DELUXE SEAT<PQ8> (C) THA	1-75518-208-0	02	1	0806-1101	●
468	SPRING; RETURN DELUXE SEAT<PQ8> (C) THA	1-75518-208-0	02	1	1210-	●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-137-0	01	1	0806-1101	●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-137-0	01	1	1210-	●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-133-0	01	1	0806-1101	●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-133-0	01	1	1210-	●

595 339 632 62 327 633 12 13 17 19 24 228 18 2 1 126 107 100 74 306 69 69 42 290 67 67 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT THA	8-97924-734-0	01	1	1210-	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97925-322-0	01	1	1210-		●
1	BACK ASM; SEAT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-323-0	01	1	1210-		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> VIN MODEL YEAR 2010<VZA> THA	8-97925-322-0	01	1	1004-1101		●
1	BACK ASM; SEAT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> VIN MODEL YEAR 2010<VZA> THA	8-97925-323-0	01	1	1004-1101		●
1	BACK ASM; SEAT DARK GRAY	8-97409-955-1	01	1	0806-0808	●
1	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97409-955-1	01	1	0806-0808		●
1	BACK ASM; SEAT THA	8-97924-734-0	01	1	0809-1003	●
1	BACK ASM; SEAT VINYL SEAT<A83> THA	8-97924-734-0	01	1	0809-1003		●
1	BACK ASM; SEAT THA	8-97924-734-0	01	1	1004-1101	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> DARK GRAY	8-97414-112-1	01	1	0806-0808		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97924-736-0	01	1	0809-1003		●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-736-0	01	1	1004-1101		●
1	BACK ASM; SEAT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97409-959-1	01	1	0806-0808		●
1	BACK ASM; SEAT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97924-735-0	01	1	0809-1003		●
1	BACK ASM; SEAT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-735-0	01	1	1004-1101		●
2	COVER; TRIM,FRT SEAT,BACK THA	8-97924-750-0	01	1	1210-	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97925-325-0	01	1	1210-		●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-326-0	01	1	1210-		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> VIN MODEL YEAR 2010<VZA> THA	8-97925-325-0	01	1	1004-1101		●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> VIN MODEL YEAR 2010<VZA> THA	8-97925-326-0	01	1	1004-1101		●
2	COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97411-910-0	01	1	0806-0808	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97411-910-0	01	1	0806-0808		●
2	COVER; TRIM,FRT SEAT,BACK THA	8-97924-750-0	01	1	0809-1003	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> THA	8-97924-750-0	01	1	0809-1003		●
2	COVER; TRIM,FRT SEAT,BACK THA	8-97924-750-0	01	1	1004-1101	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> DARK GRAY	8-97414-113-0	01	1	0806-0808		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97924-758-0	01	1	0809-1003		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-758-0	01	1	1004-1101		●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97411-908-0	01	1	0806-0808		●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97924-754-0	01	1	0809-1003		●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-754-0	01	1	1004-1101		●
12	CUSHION; SEAT,FRT THA	8-97924-748-1	01	1	1210-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97925-331-0	01	1	1210-		●
12	CUSHION; SEAT,FRT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-332-0	01	1	1210-		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> VIN MODEL YEAR 2010<VZA> THA	8-97925-331-0	01	1	1004-1101		●
12	CUSHION; SEAT,FRT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> VIN MODEL YEAR 2010<VZA> THA	8-97925-332-0	01	1	1004-1101		●
12	CUSHION; SEAT,FRT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97924-752-1	01	1	0809-1003		●
12	CUSHION; SEAT,FRT DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-752-1	01	1	1004-1101		●
12	CUSHION; SEAT,FRT DARK GRAY	8-97409-954-0	01	1	0806-0808	●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DARK GRAY	8-97409-954-0	01	1	0806-0808		●
12	CUSHION; SEAT,FRT THA	8-97924-748-1	01	1	0809-1003	●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> THA	8-97924-748-1	01	1	0809-1003		●
12	CUSHION; SEAT,FRT THA	8-97924-748-1	01	1	1004-1101	●
12	CUSHION; SEAT,FRT DELUXE SEAT<PQ8> DARK GRAY	8-97409-958-0	01	1	0806-0808		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97924-756-1	01	1	0809-1003		●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-756-1	01	1	1004-1101		●
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97924-749-0	01	1	1210-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97925-328-0	01	1	1210-		●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-329-0	01	1	1210-		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> VIN MODEL YEAR 2010<VZA> THA	8-97925-328-0	01	1	1004-1101		●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> VIN MODEL YEAR 2010<VZA> THA	8-97925-329-0	01	1	1004-1101		●
13	COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97411-909-0	01	1	0806-0808	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97411-909-0	01	1	0806-0808		●
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97924-749-0	01	1	0809-1003	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> THA	8-97924-749-0	01	1	0809-1003		●
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97924-749-0	01	1	1004-1101	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> DARK GRAY	8-97414-111-0	01	1	0806-0808		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	8-97924-757-0	01	1	0809-1003		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-757-0	01	1	1004-1101		●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97411-905-0	01	1	0806-0808		●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> THA	8-97924-753-0	01	1	0809-1003		●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT<PQ8> RIGID SEAT WO/ARM REST<TAZ> EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-753-0	01	1	1004-1101		●
17	BOLT; RECLINING DRIVER M10X20 THA	8-98062-661-0	04	1	1210-	●	●
17	BOLT; RECLINING DRIVER M10X20 THA	8-98062-661-0	02	1	0806-1101	●	●
17	BOLT; RECLINING PASSENGER M8X20 THA	8-98092-334-0	02	1	0806-1101	●	●
17	BOLT; RECLINING PASSENGER M8X20 THA	8-98092-334-0	02	1	1102-1209	●
17	BOLT; RECLINING PASSENGER M8X20 THA	8-98092-334-0	04	1	1210-	●	●
18	COVER; RECLINING GRAY THA	8-97409-332-0	01	1	0806-1101	●	●
18	COVER; RECLINING GRAY THA	8-97409-332-0	01	1	1210-	●	●
19	SCREW; COVER M5 THA	8-98062-663-0	01	1	0806-1101	●	●
19	SCREW; COVER M5 THA	8-98062-663-0	01	1	1210-	●	●
24	KNOB; RECLINING,FRT,SEAT GRAY THA	8-97409-333-0	01	1	0806-1101	●	●
24	KNOB; RECLINING,FRT,SEAT GRAY THA	8-97409-333-0	01	1	1210-	●	●
42	STAND; DRIVER SEAT	1-75558-604-1	01	1	0806-1101	●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-1	01	1	0806-1101		●
42	STAND; DRIVER SEAT THA	1-75558-604-2	01	1	1210-	●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ> THA	1-75558-604-2	01	1	1210-		●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-183-7	01	1	0806-1101		●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> THA	1-75538-183-7	01	1	1210-1507		●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8>	8-98261-448-0	01	1	1508-		●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE THA	0-28451-020-0	02	1	0806-	●	●
69	NUT; FRT SEAT M10 FLANGE THA	0-91180-110-0	02	1	0806-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE SEAT<PQ8> THA	8-98003-678-0	01	1	0806-1502		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE SEAT<PQ8> THA	8-98291-640-0	01	1	1503-		●
100	COVER; HINGE	8-98203-070-0	01	1	1110-	●	●
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8>	8-98063-174-0	01	1	0806-1101		●
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8>	8-98063-174-0	01	1	1210-		●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	0806-1003	●	●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1004-1101	●
126	BUSHING; HINGE,RECLINING DELUXE SEAT<PQ8> CENTER SEAT<SA1> EXC. VIN MODEL YEAR 2010<VZA> (B) THA	8-97917-184-0	01	1	1004-1101		●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1210-	●	●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	0806-1003	●	●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1004-1101	●
126	BUSHING; HINGE,RECLINING DELUXE SEAT<PQ8> (A) THA	8-98063-218-0	01	1	1004-1101		●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1210-	●	●
228	SCREW; KNOB M4 THA	8-98062-662-0	01	1	0806-1003	●	●
228	SCREW; KNOB M4 THA	8-98062-662-0	01	1	1004-1101	●
228	SCREW; KNOB DELUXE SEAT<PQ8> M4 THA	8-98062-662-0	01	1	1004-1101		●
228	SCREW; KNOB M4 THA	8-98062-662-0	01	1	1210-	●	●
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> M8 FLANGE THA	1-75538-207-0	04	1	0806-1101		●
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> M8 FLANGE THA	1-75538-207-0	04	1	1210-		●
306	NUT; SEAT ADJ DELUXE SEAT<PQ8> (A) M8 FLANGE THA	1-75538-207-0	06	1	0806-1101		●
306	NUT; SEAT ADJ DELUXE SEAT<PQ8> (A) M8 FLANGE THA	1-75538-207-0	06	1	1210-		●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	0806-1003	●
306	NUT; SEAT ADJ VINYL SEAT<A83> (A) M8 FLANGE THA	1-75538-207-0	08	1	0806-1003		●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	1004-1101	●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	1210-	●
306	NUT; SEAT ADJ (B) M10 FLANGE THA	0-91180-110-0	02	1	0806-	●	●
327	CLIP; COVER DELUXE SEAT<PQ8> ID=459	1-09987-273-0	02	1	0806-		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	0806-		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (A) THA	1-75538-131-3	01	1	0806-1209		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (A) THA	1-75538-131-3	01	1	1210-		●
398	NUT; STAND M8 FLANGE THA	1-75538-207-0	04	1	0806-1101	●
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE THA	1-75538-207-0	04	1	0806-1101		●
398	NUT; STAND M8 FLANGE THA	1-75538-207-0	04	1	1210-	●
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE THA	1-75538-207-0	04	1	1210-		●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>	8-98067-762-0	01	1	0806-		●
632	GROMMET OD=24	8-94119-796-0	01	1	0806-	●
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	0806-		●
633	COVER; ADJ,TILT DELUXE SEAT<PQ8> GRAY THA	8-97409-956-0	01	1	0806-1101		●
633	COVER; ADJ,TILT DELUXE SEAT<PQ8> GRAY THA	8-97409-956-0	01	1	1210-		●

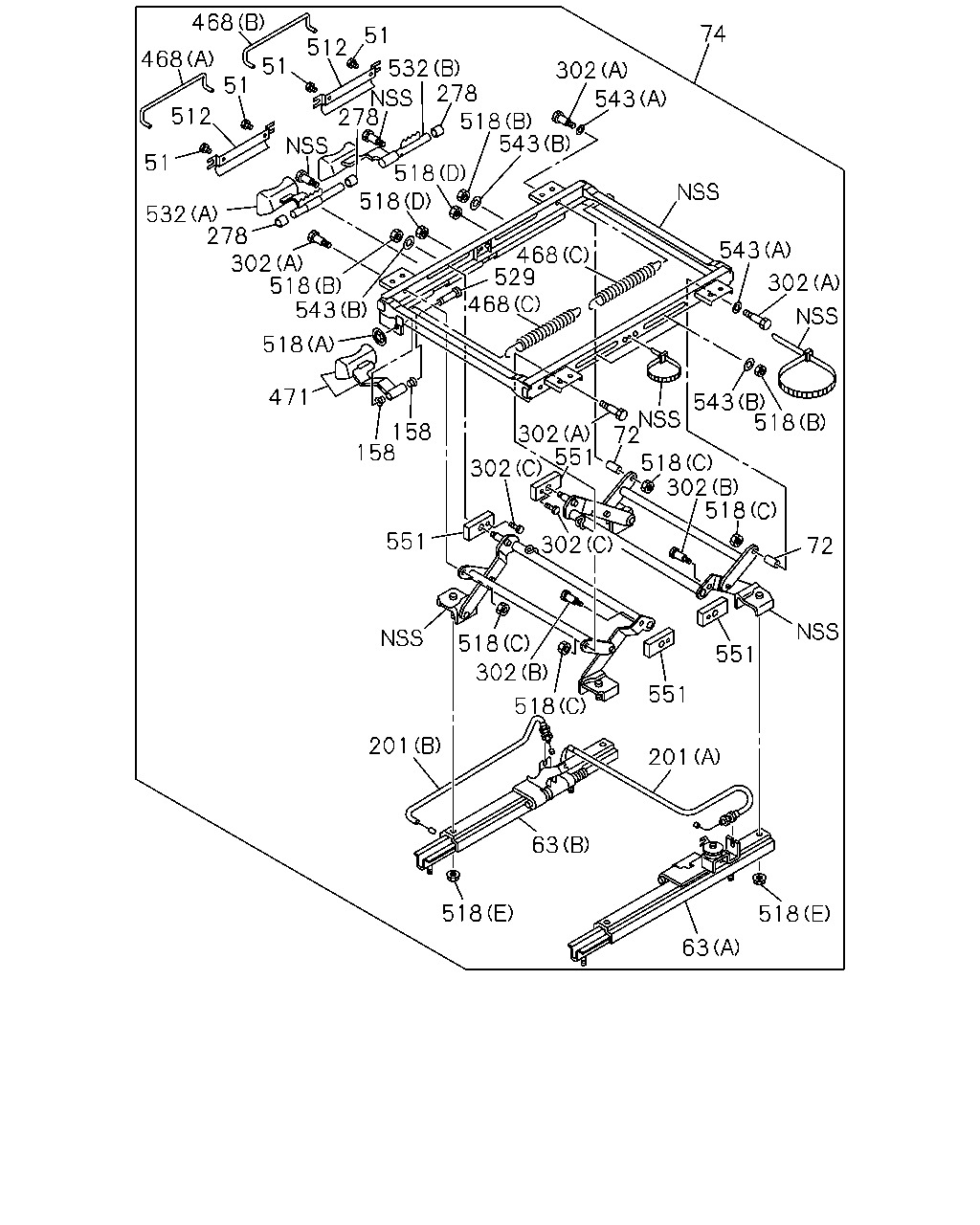

74 302 543 543 518 278 532 51 512 51 468 468 512 51 532 278 518 518 278 302 518 543 518 471 158 158 551 201 468 529 468 543 302 543 518 302 72 551 518 302 518 72 302 302 518 302 518 551 551 201 63 518 518 63 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER DELUXE SEAT<PQ8> THA	1-75518-325-1	04	1	0806-1101		●
51	SCREW; COVER DELUXE SEAT<PQ8> THA	1-75518-325-1	04	1	1210-		●
63	ADJUSTER; SEAT SLIDE DELUXE SEAT<PQ8> (A) THA	1-75518-199-1	01	1	0806-1101		●
63	ADJUSTER; SEAT SLIDE DELUXE SEAT<PQ8> (A) THA	1-75518-199-1	01	1	1210-		●
63	ADJUSTER; SEAT SLIDE DELUXE SEAT<PQ8> (B) THA	1-75518-323-0	01	1	0806-1101		●
63	ADJUSTER; SEAT SLIDE DELUXE SEAT<PQ8> (B) THA	1-75518-323-0	01	1	1210-		●
72	SPACER; SEAT ADJ DELUXE SEAT<PQ8> THA	1-75518-334-1	02	1	0806-1101		●
72	SPACER; SEAT ADJ DELUXE SEAT<PQ8> THA	1-75518-334-1	02	1	1102-1502		●
72	SPACER; SEAT ADJ DELUXE SEAT<PQ8> THA	8-98291-668-0	02	1	1508-		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE SEAT<PQ8> THA	8-98003-678-0	01	1	0806-1502		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE SEAT<PQ8> THA	8-98291-640-0	01	1	1503-		●
158	BUSHING; LINK ARM THA	1-75518-209-0	02	1	0806-1003	●	●
158	BUSHING; LINK ARM THA	1-75518-209-0	02	1	1004-1101	●
158	BUSHING; LINK ARM DELUXE SEAT<PQ8> THA	1-75518-209-0	02	1	1004-1101		●
158	BUSHING; LINK ARM THA	1-75518-209-0	02	1	1210-	●	●
201	CABLE; ADJ (A) L=667 THA	1-75518-288-0	01	1	0806-1003	●	●
201	CABLE; ADJ (A) L=667 THA	1-75518-288-0	01	1	1004-1101	●
201	CABLE; ADJ DELUXE SEAT<PQ8> (A) L=667 THA	1-75518-288-0	01	1	1004-1101		●
201	CABLE; ADJ (A) L=667 THA	1-75518-288-0	01	1	1210-	●	●
201	CABLE; ADJ (B) L=605 THA	1-75518-289-1	01	1	0806-1003	●	●
201	CABLE; ADJ (B) L=605 THA	1-75518-289-1	01	1	1004-1101	●
201	CABLE; ADJ DELUXE SEAT<PQ8> (B) L=605 THA	1-75518-289-1	01	1	1004-1101		●
201	CABLE; ADJ (B) L=605 THA	1-75518-289-1	01	1	1210-	●	●
278	COLLAR; FRT SEAT DELUXE SEAT<PQ8> THA	1-75518-244-0	03	1	0806-1101		●
278	COLLAR; FRT SEAT DELUXE SEAT<PQ8> THA	1-75518-244-0	03	1	1210-		●
302	BOLT; ADJ,HEIGHT CONT DELUXE SEAT<PQ8> (A) THA	1-75518-270-1	04	1	0806-1507		●
302	BOLT; ADJ,HEIGHT CONT DELUXE SEAT<PQ8> (A) THA	8-98291-667-0	04	1	1508-		●
302	BOLT; ADJ,HEIGHT CONT DELUXE SEAT<PQ8> (B) THA	1-75518-266-2	02	1	0806-		●
302	BOLT; ADJ,HEIGHT CONT DELUXE SEAT<PQ8> (C) THA	1-75518-336-1	02	1	0806-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (D) THA	1-75538-132-0	01	1	0806-1101		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> DELUXE SEAT<PQ8> (D) THA	1-75538-132-0	01	1	1210-		●
468	SPRING; RETURN DELUXE SEAT<PQ8> (A) THA	1-75518-206-0	01	1	0806-1101		●
468	SPRING; RETURN DELUXE SEAT<PQ8> (A) THA	1-75518-206-0	01	1	1210-		●
468	SPRING; RETURN DELUXE SEAT<PQ8> (B) THA	1-75518-207-0	01	1	0806-1101		●
468	SPRING; RETURN DELUXE SEAT<PQ8> (B) THA	1-75518-207-0	01	1	1210-		●
468	SPRING; RETURN DELUXE SEAT<PQ8> (C) THA	1-75518-208-0	02	1	0806-1101		●
468	SPRING; RETURN DELUXE SEAT<PQ8> (C) THA	1-75518-208-0	02	1	1210-		●
471	LEVER; SEAT ADJ THA	8-98107-869-0	01	1	0806-1003	●	●
471	LEVER; SEAT ADJ THA	8-98107-869-0	01	1	1004-1101	●
471	LEVER; SEAT ADJ DELUXE SEAT<PQ8> THA	8-98107-869-0	01	1	1004-1101		●
471	LEVER; SEAT ADJ THA	8-98107-869-0	01	1	1210-	●	●
512	COVER; LEVER DELUXE SEAT<PQ8> THA	1-75518-243-1	02	1	0806-1101		●
512	COVER; LEVER DELUXE SEAT<PQ8> THA	1-75518-243-1	02	1	1210-		●
518	NUT; TILT ADJ (A) THA	1-75518-263-0	01	1	0806-1003	●	●
518	NUT; TILT ADJ (A) THA	1-75518-263-0	01	1	1004-1101	●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (A) THA	1-75518-263-0	01	1	1004-1101		●
518	NUT; TILT ADJ (A) THA	1-75518-263-0	01	1	1210-	●	●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (C) M8 THA	1-75518-264-0	04	1	0806-1101		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (C) M8 THA	1-75518-264-0	04	1	1210-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (E) M8 FLANGE THA	1-75538-207-0	04	1	0806-1101		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (E) M8 FLANGE THA	1-75538-207-0	04	1	1210-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (D) M6 LOCK NUT THA	5-09984-020-0	02	1	0806-1101		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (D) M6 LOCK NUT THA	5-09984-020-0	02	1	1210-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (B) M8 FLANGE THA	8-94152-886-0	04	1	0806-1101		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (B) M8 FLANGE THA	8-94152-886-0	04	1	1210-		●
529	PIN; LINK THA	1-75518-262-0	01	1	0806-1003	●	●
529	PIN; LINK THA	1-75518-262-0	01	1	1004-1101	●
529	PIN; LINK DELUXE SEAT<PQ8> THA	1-75518-262-0	01	1	1004-1101		●
529	PIN; LINK THA	1-75518-262-0	01	1	1210-	●	●
532	LEVER ASM; TILT DELUXE SEAT<PQ8> (A) THA	1-75518-203-0	01	1	0806-1101		●
532	LEVER ASM; TILT DELUXE SEAT<PQ8> (A) THA	1-75518-203-0	01	1	1210-		●
532	LEVER ASM; TILT DELUXE SEAT<PQ8> (B) THA	1-75518-204-1	01	1	0806-1101		●
532	LEVER ASM; TILT DELUXE SEAT<PQ8> (B) THA	1-75518-204-1	01	1	1210-		●
543	WASHER; HEIGHT ADJUSTER DELUXE SEAT<PQ8> (A) THA	1-75518-335-0	02	1	0806-1101		●
543	WASHER; HEIGHT ADJUSTER DELUXE SEAT<PQ8> (A) THA	1-75518-335-0	02	1	1102-1209		●
543	WASHER; HEIGHT ADJUSTER DELUXE SEAT<PQ8> (A) THA	1-75518-335-0	02	1	1210-1507		●
543	WASHER; HEIGHT ADJUSTER DELUXE SEAT<PQ8> (A) ID=13 OD=19 THA	8-98291-669-0	02	1	1508-		●
543	WASHER; HEIGHT ADJUSTER DELUXE SEAT<PQ8> (B) ID=8.4 THA	9-09160-508-0	04	1	0806-1101		●
543	WASHER; HEIGHT ADJUSTER DELUXE SEAT<PQ8> (B) ID=8.4 THA	9-09160-508-0	04	1	1102-1209		●
543	WASHER; HEIGHT ADJUSTER DELUXE SEAT<PQ8> (B) ID=8.4 THA	9-09160-508-0	04	1	1210-		●
551	SLIDER; HEIGHT ADJ DELUXE SEAT<PQ8> THA	1-75518-265-0	04	1	0806-1101		●
551	SLIDER; HEIGHT ADJ DELUXE SEAT<PQ8> THA	1-75518-265-0	04	1	1210-		●

542 529 518 158 158 471 201 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	BUSHING; LINK ARM THA	1-75518-209-0	02	1	0806-1003	●	●
158	BUSHING; LINK ARM THA	1-75518-209-0	02	1	1004-1101	●
158	BUSHING; LINK ARM DELUXE SEAT<PQ8> THA	1-75518-209-0	02	1	1004-1101		●
158	BUSHING; LINK ARM THA	1-75518-209-0	02	1	1210-	●	●
201	CABLE; ADJ (A) L=667 THA	1-75518-288-0	01	1	0806-1003	●	●
201	CABLE; ADJ (A) L=667 THA	1-75518-288-0	01	1	1004-1101	●
201	CABLE; ADJ DELUXE SEAT<PQ8> (A) L=667 THA	1-75518-288-0	01	1	1004-1101		●
201	CABLE; ADJ (A) L=667 THA	1-75518-288-0	01	1	1210-	●	●
201	CABLE; ADJ (B) L=605 THA	1-75518-289-1	01	1	0806-1003	●	●
201	CABLE; ADJ (B) L=605 THA	1-75518-289-1	01	1	1004-1101	●
201	CABLE; ADJ DELUXE SEAT<PQ8> (B) L=605 THA	1-75518-289-1	01	1	1004-1101		●
201	CABLE; ADJ (B) L=605 THA	1-75518-289-1	01	1	1210-	●	●
471	LEVER; SEAT ADJ THA	8-98107-869-0	01	1	0806-1003	●	●
471	LEVER; SEAT ADJ THA	8-98107-869-0	01	1	1004-1101	●
471	LEVER; SEAT ADJ DELUXE SEAT<PQ8> THA	8-98107-869-0	01	1	1004-1101		●
471	LEVER; SEAT ADJ THA	8-98107-869-0	01	1	1210-	●	●
518	NUT; TILT ADJ (A) THA	1-75518-263-0	01	1	0806-1003	●	●
518	NUT; TILT ADJ (A) THA	1-75518-263-0	01	1	1004-1101	●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (A) THA	1-75518-263-0	01	1	1004-1101		●
518	NUT; TILT ADJ (A) THA	1-75518-263-0	01	1	1210-	●	●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (C) M8 THA	1-75518-264-0	04	1	0806-1101		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (C) M8 THA	1-75518-264-0	04	1	1210-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (E) M8 FLANGE THA	1-75538-207-0	04	1	0806-1101		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (E) M8 FLANGE THA	1-75538-207-0	04	1	1210-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (D) M6 LOCK NUT THA	5-09984-020-0	02	1	0806-1101		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (D) M6 LOCK NUT THA	5-09984-020-0	02	1	1210-		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (B) M8 FLANGE THA	8-94152-886-0	04	1	0806-1101		●
518	NUT; TILT ADJ DELUXE SEAT<PQ8> (B) M8 FLANGE THA	8-94152-886-0	04	1	1210-		●
529	PIN; LINK THA	1-75518-262-0	01	1	0806-1003	●	●
529	PIN; LINK THA	1-75518-262-0	01	1	1004-1101	●
529	PIN; LINK DELUXE SEAT<PQ8> THA	1-75518-262-0	01	1	1004-1101		●
529	PIN; LINK THA	1-75518-262-0	01	1	1210-	●	●
542	ADJUSTER ASM; SEAT SLIDE THA	8-98093-310-0	01	1	0806-1003	●
542	ADJUSTER ASM; SEAT SLIDE VINYL SEAT<A83> THA	8-98093-310-0	01	1	0806-1003		●
542	ADJUSTER ASM; SEAT SLIDE THA	8-98093-310-0	01	1	1004-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
