7-45 — CONSOLE BOX (#68374) — 19 parça

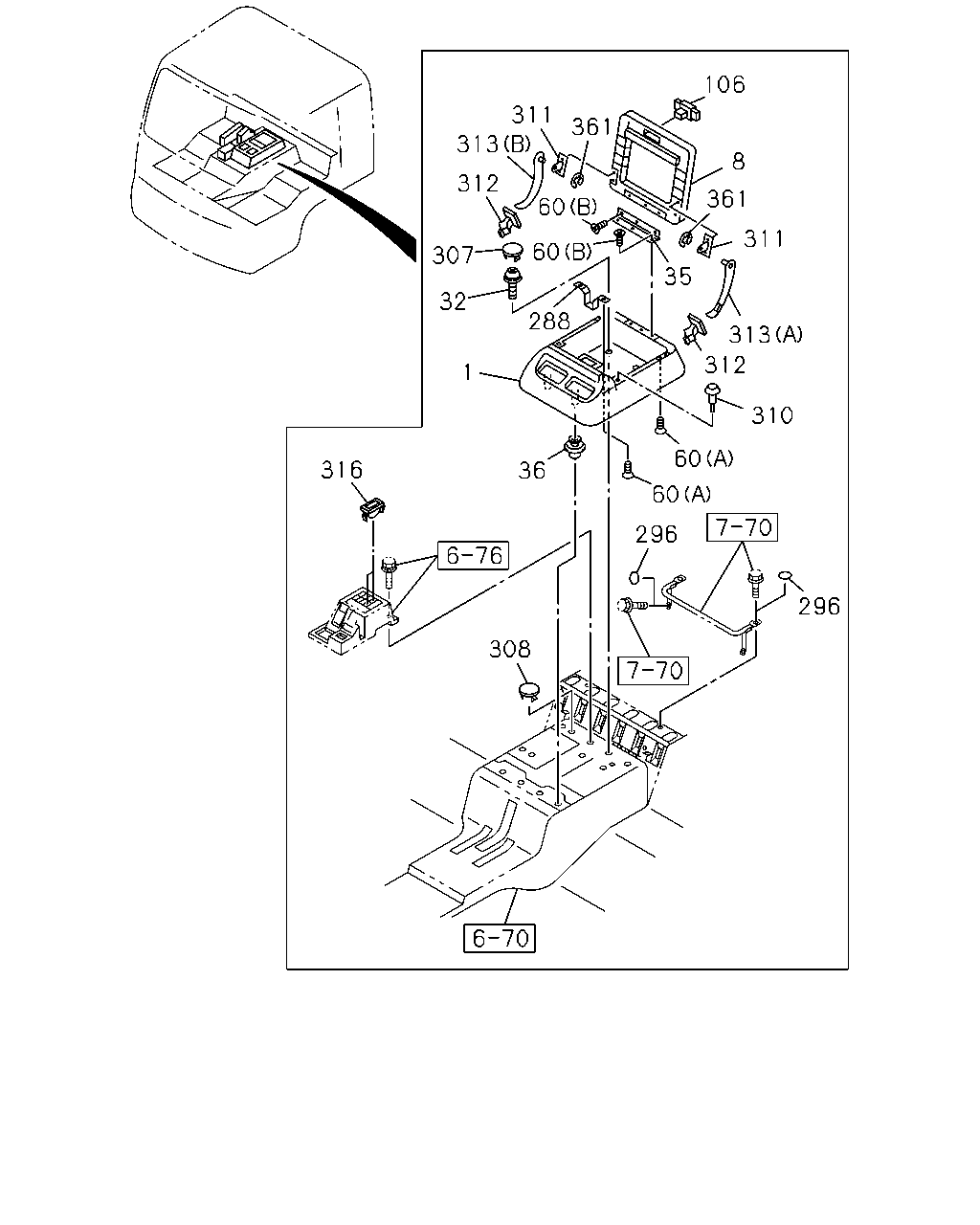

çizim 134129
106 311 361 313 8 312 361 60 60 311 307 35 32 288 313 312 1 310 60 316 36 60 296 296 308
BalonParca AdiParca NoAdetTipApplied Date A B
1 BOX; PARCEL
CENTER SEAT DELETE<SP9> GRAY 		8-97408-710-0 01 1 0806- ● ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE<SP9> GRAY 		8-97408-712-0 01 1 0806- ● ●
32 SCREW; PARCEL BOX
CENTER SEAT DELETE<SP9> M6X16 		0-38050-616-0 02 1 0806- ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-182-1 01 1 0806- ● ●
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE<SP9> 		1-09984-190-0 02 1 0806- ● ●
60 SCREW; BOX
CENTER SEAT DELETE<SP9> (A) M5X14 TAPPING CK-HEAD THA 		0-70040-514-0 06 1 0806- ● ●
60 SCREW; BOX
CENTER SEAT DELETE<SP9> (B) M5X14 		8-94279-325-0 04 1 0806- ● ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE<SP9> THA 		1-72538-312-0 01 1 0806- ● ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE<SP9> THA 		1-72538-190-0 01 1 0806- ● ●
296 SEAL
OD=25 BLACK THA 		1-76798-019-0 04 1 0903- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE<SP9> GRAY 		8-97407-951-0 02 1 1004- ● ●
308 GROMMET
OD=35 		8-94122-971-0 01 1 0806- ● ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE<SP9> THA 		1-72538-187-0 02 1 0806- ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-188-2 02 1 0806- ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-186-1 02 1 0806- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (A) 		1-72538-184-3 01 1 0806- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (B) 		1-72538-185-3 01 1 0806- ● ●
316 BOX; COIN 8-94482-280-2 02 1 0806- ●
361 RING; SNAP
CENTER SEAT DELETE<SP9> ID=5 		9-09185-405-0 02 1 0806- ● ●
