7-40 — INSTRUMENT PANEL AND BOX (#68371) — 156 parça

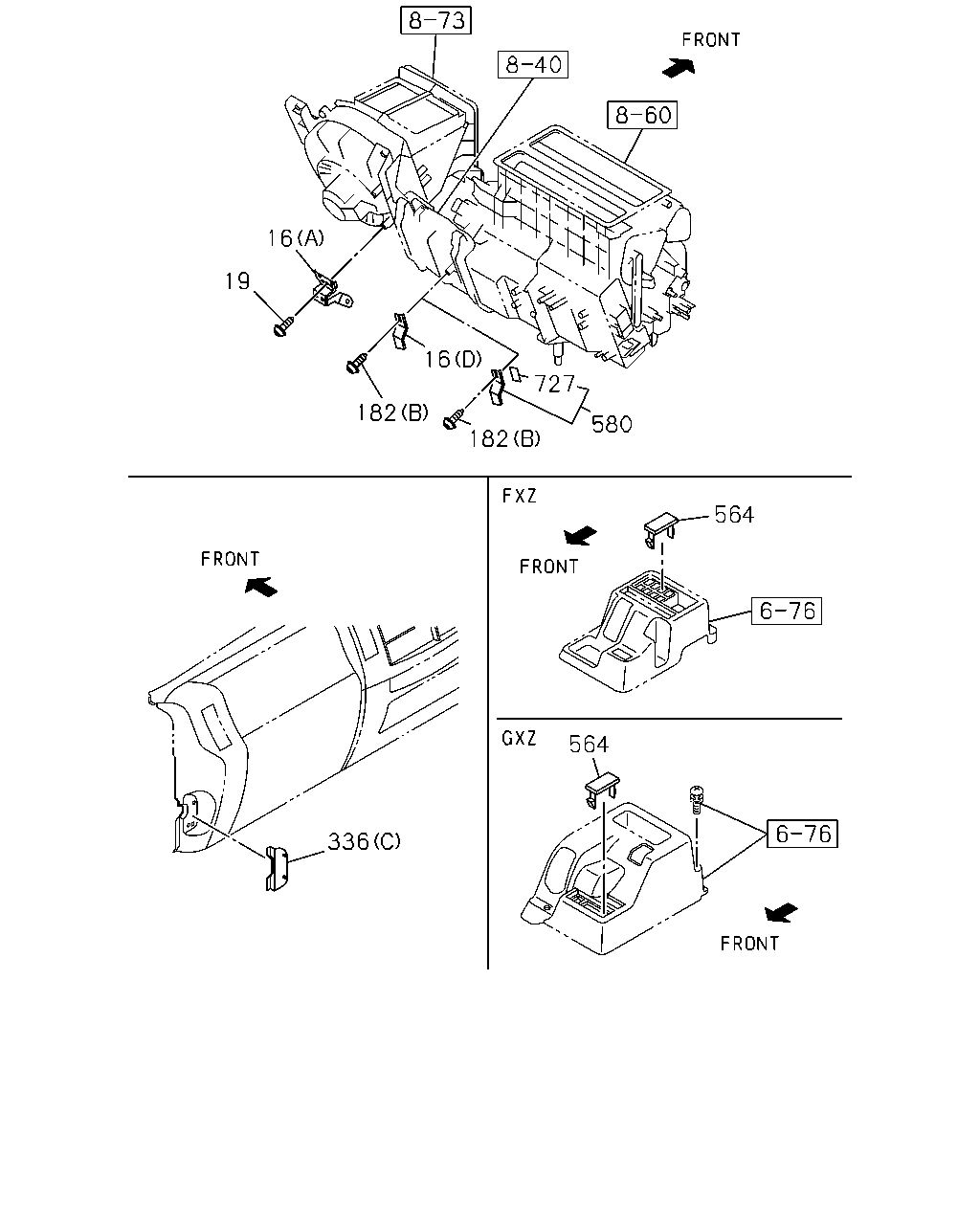

çizim 132942
16 19 16 727 182 580 182 564 564 336
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-97585-612-2 01 1 0806- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0806- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0806- ● ●
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 0806-1105 ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0806- ● ●
19 SCREW; BRKT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0806- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER THA 		0-52000-612-0 03 1 0806-1010 ● ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 1011-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0806- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0806- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA 		0-28050-816-0 04 1 0806- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0806- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0806-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0806- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0806- ● ●
564 COVER; SW 8-97043-732-1 06 1 0806- ●
564 COVER; SW 8-97043-732-1 04 1 0806- ●
580 BRACKET; COVER 8-98017-528-1 01 1 1106- ● ●
727 SEAL; BRACKET 8-98186-934-0 01 1 1106- ● ●

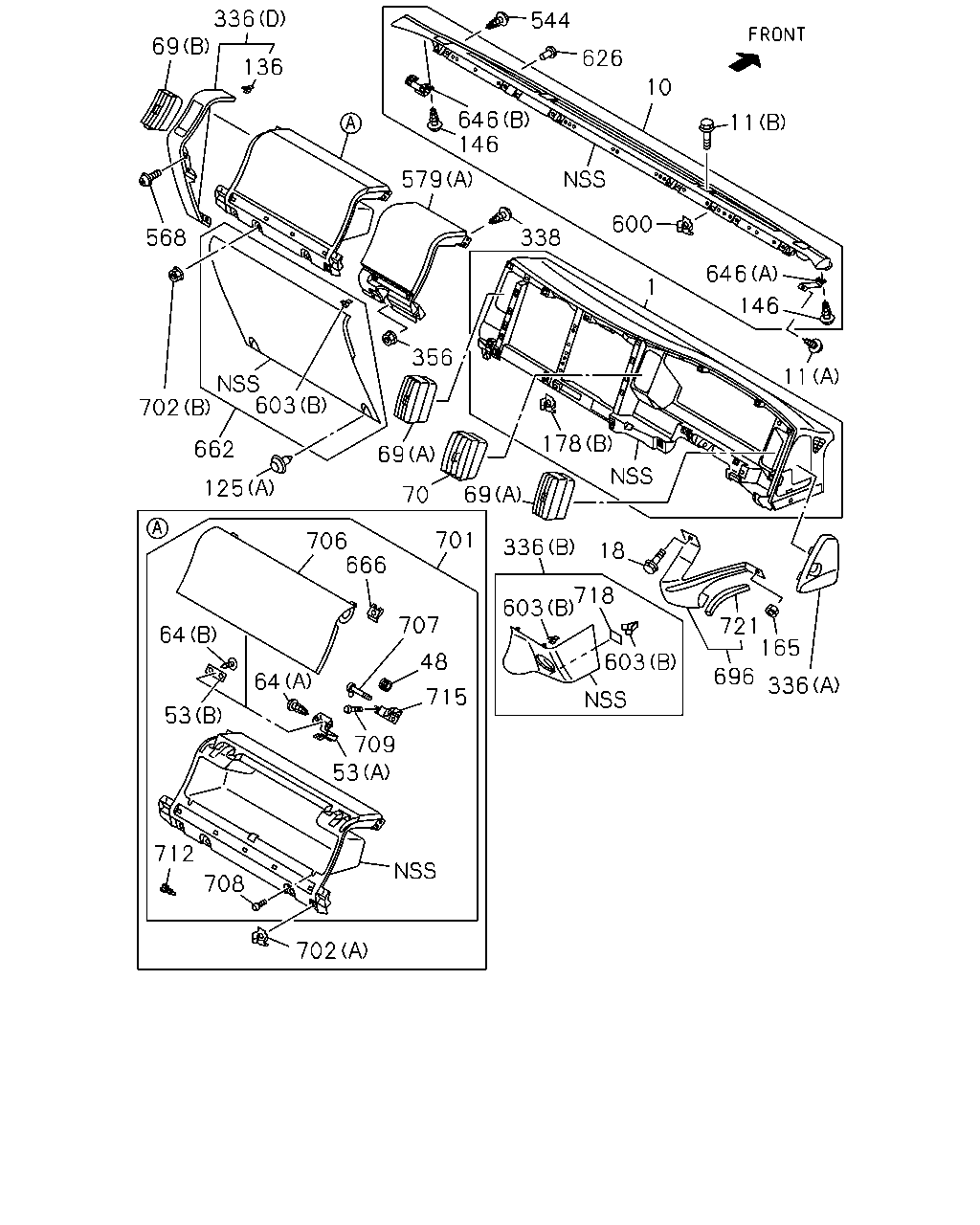

çizim 193962
165 721 696 336 11 146 646 600 11 10 626 544 336 69 136 568 702 662 603 125 69 70 356 69 178 1 338 579 646 146 336 18 603 718 603 701 706 666 707 48 715 64 64 53 709 53 702 708 712
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0806- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97414-686-0 01 1 0806-1008 ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1009- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0806- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0806- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER THA 		0-52000-612-0 01 1 0806-1010 ● ●
18 BOLT; BRKT
T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 01 1 1011- ● ●
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 0806-1311 ● ●
48 SPRING; GLOVE BOX LID
THA 		8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
THA 		8-98270-763-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 0806-1311 ● ●
48 SPRING; GLOVE BOX LID
THA 		8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
THA 		8-98270-764-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 0806-1405 ● ●
53 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406- ● ●
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 0806-1405 ● ●
64 SCREW; STRIKER
(B) M4X85 THA 		8-97926-404-0 02 1 1406- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0806- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0806- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0806- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0806-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0806- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 0806- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0806- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE THA 		0-91180-106-0 01 1 0806- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0806- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 01 1 0806- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0806- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0806-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0806- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0806- ● ●
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0806- ● ●
356 NUT; COVER
M6 FLANGE THA 		0-91180-106-0 01 1 0806- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0806- ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0806- ● ●
579 COVER; INST PNL
(A) GRAY 		8-97409-853-2 01 1 0806- ● ●
579 COVER; INST PNL
EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) BLACK 		8-97408-909-0 01 1 0806-1101 ● ●
600 NUT; PANEL 8-98037-629-0 02 1 0806-1008 ● ●
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 0806- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 0806- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0806- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0806- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0806- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 0806- ● ●
666 INSERT; INST PANEL 8-98038-450-0 04 1 0806-1311 ● ●
666 INSERT; INST PANEL
M5 THA 		8-97926-400-0 04 1 1312- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 0806- ● ●
701 TRAY; INST
GRAY 		8-97415-540-6 01 1 0806-1405 ● ●
701 TRAY; INST
GRAY 		8-97429-703-1 01 1 1406- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0806- ● ●
702 NUT; TRAY
(B) M6 FLANGE THA 		0-91180-106-0 02 1 0806- ● ●
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 0806-1405 ● ●
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406- ● ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0806-1311 ● ●
707 SHAFT; TRAY INST LID
THA 		8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0806- ● ●
709 SCREW; TRAY INST
M5X16 TAPPING THA 		0-71040-516-0 04 1 0806- ● ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 0806- ● ●
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 0806-1311 ● ●
715 SUPPORT; TRAY,HINGE
THA 		8-97926-396-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 0806-1311 ● ●
715 SUPPORT; TRAY,HINGE
THA 		8-97926-397-0 01 1 1312- ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0806- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0806- ● ●

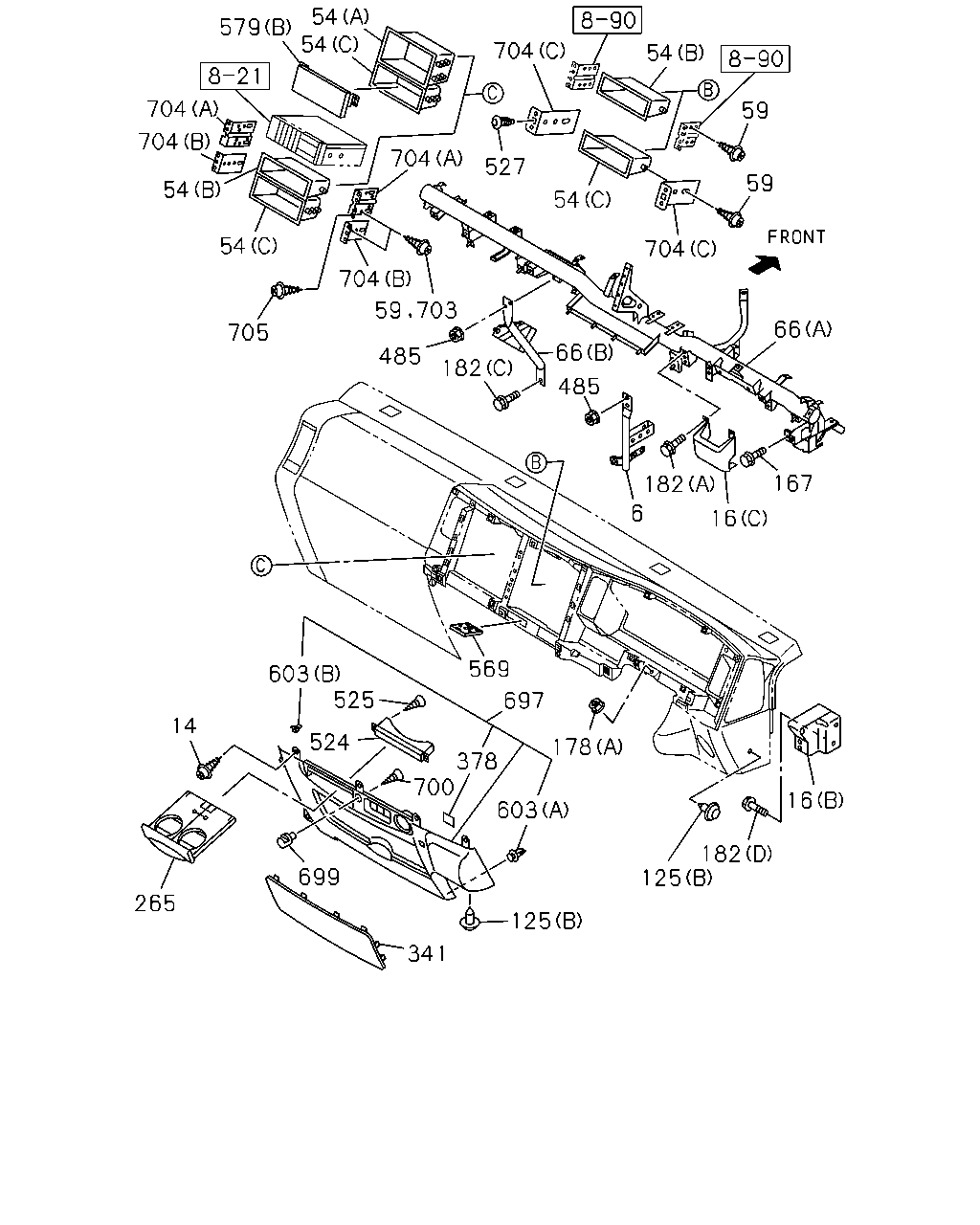

çizim 193971
579 704 54 704 54 705 704 527 54 54 704 59 704 66 59 704 54 54 59 703 485 182 66 485 182 16 167 6 603 525 569 697 178 182 16 125 125 341 603 378 700 524 14 265 699
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 0806-1109 ● ●
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0806- ● ●
16 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-97585-612-2 01 1 0806- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0806- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0806- ● ●
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 0806-1105 ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0806- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0806-0908 ● ●
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-2 01 1 0806-0908 ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0909- ● ●
54 POCKET; CENTER CLUSTER
EXC. ENGINE REAR PTO<SV1> (C) H=69.8 BLACK 		8-97408-865-2 01 1 0806-1203 ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0806-1203 ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1204- ● ●
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-2 01 1 0806-0908 ● ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0909- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0806-0908 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0806-0908 ● ●
59 SCREW; CLUSTER POCKET
EXC. ENGINE REAR PTO<SV1> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0806-0908 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0806-0908 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0909-1203 ● ●
59 SCREW; CLUSTER POCKET
EXC. ENGINE REAR PTO<SV1> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0909-1203 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0909-1203 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1204- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1204- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0806-0909 ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 0910- ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98081-322-5 01 1 0806-1111 ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1112-1406 ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1407- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0806-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0806- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0806- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0806- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 01 1 0806- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER THA 		0-52000-612-0 03 1 0806-1010 ● ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 1011-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0806- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0806- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA 		0-28050-816-0 04 1 0806- ● ●
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0806-0909 ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910- ● ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0806-1010 ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 0806- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0806- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0806- ● ●
527 CLIP; INST CLUSTER
EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> DARK GRAY 		8-97098-326-0 01 1 0806- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 0806- ● ●
579 COVER; INST PNL
(A) GRAY 		8-97409-853-2 01 1 0806- ● ●
579 COVER; INST PNL
EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) BLACK 		8-97408-909-0 01 1 0806-1101 ● ●
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 0806- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 0806- ● ●
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 0806-1010 ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0806- ● ●
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0806- ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0806-0908 ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0909- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0806- ● ●
704 BRACKET; CENTER POCKET
EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) 		8-98073-822-0 02 1 0806-1101 ● ●
704 BRACKET; CENTER POCKET
EXC. ENGINE REAR PTO<SV1> (B) 		8-97585-616-2 02 1 0806-1203 ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0806-1203 ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1204- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0806- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0806-1101 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
