2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#6837) — 126 parça
çizim 26099
1 1 1 1 8 129 8 264 247 240 140 105 297 295 21 140 296 127 140 294 140 266 21 268 297 296
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 KNOB; CHANGE LEVER
(A) 		1-33611-070-0 01 1 9806-9911 ● ● ● ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-070-1 01 1 9912- ●
1 KNOB; CHANGE LEVER
(B) 		1-33611-092-0 01 1 9806-9911 ●
8 LEVER; CHANGE
(A) 		1-33610-967-0 01 1 9806-9911 ● ● ● ● ●
8 LEVER; CHANGE
(A) 		1-33610-967-0 01 1 9912- ●
8 LEVER; CHANGE
(B) 		1-33613-235-2 01 1 9806-9911 ● ● ● ● ●
8 LEVER; CHANGE
(B) 		1-33613-235-2 01 1 9912- ●
21 SEAT; CHANGE LEVER
(B) 		1-33619-081-0 01 1 9806-9911 ● ● ● ● ●
21 SEAT; CHANGE LEVER
(B) 		8-97530-874-0 01 1 9912- ●
21 SEAT; CHANGE LEVER
(A) 		1-33619-293-0 01 1 9806-9911 ● ● ● ● ●
21 SEAT; CHANGE LEVER
(A) 		1-33619-293-0 01 1 9912- ●
105 SHIM; CHANGE LEVER
T=0.3 ID=25 		1-33612-004-0 AR 1 9806-9911 ● ● ● ● ●
105 SHIM; CHANGE LEVER
T=0.3 ID=25 		1-33612-004-0 AR 1 9912- ●
105 SHIM; CHANGE LEVER
T=0.1 ID=25 		1-33612-005-0 AR 1 9806-9911 ● ● ● ● ●
105 SHIM; CHANGE LEVER
T=0.1 ID=25 		1-33612-005-0 AR 1 9912- ●
127 SUPPORT; CHANGE LEVER 1-33619-112-0 01 1 9806-9911 ● ● ● ● ●
127 SUPPORT; CHANGE LEVER 1-33619-112-0 01 1 9912- ●
129 BOLT; SUPPORT,CHANGE LEVER
M6X12 W/LK WASHER 		0-50040-612-0 02 1 9806-9911 ● ● ● ●
129 BOLT; SUPPORT,CHANGE LEVER
M6X12 W/LK WASHER 		0-50040-612-0 02 1 9912-0512 ●
129 BOLT; SUPPORT,CHANGE LEVER
M6X12 W/LK WASHER 		0-50540-612-0 02 1 0601- ●
129 BOLT; SUPPORT,CHANGE LEVER
M6X12 FLANGE 		0-28080-612-0 02 1 9806-9911 ●
140 RING; SNAP
(A) T=0.9 OD=19.5 		1-09587-068-0 AR 1 9806-9911 ● ● ● ● ●
140 RING; SNAP
(A) T=0.9 OD=19.5 		1-09587-068-0 AR 1 9912- ●
140 RING; SNAP
(A) T=1.00 OD=19.5 		1-09587-069-0 AR 1 9806-9911 ● ● ● ● ●
140 RING; SNAP
(A) T=1.00 OD=19.5 		1-09587-069-0 AR 1 9912- ●
140 RING; SNAP
(A) T=1.025 OD=19.5 		1-09587-070-0 AR 1 9806-9911 ● ● ● ● ●
140 RING; SNAP
(A) T=1.025 OD=19.5 		1-09587-070-0 AR 1 9912- ●
140 RING; SNAP
(A) T=1.05 OD=19.5 		1-09587-071-0 AR 1 9806-9911 ● ● ● ● ●
140 RING; SNAP
(A) T=1.05 OD=19.5 		1-09587-071-0 AR 1 9912- ●
140 RING; SNAP
(B) ID=14.7 		9-09180-416-0 02 1 9806-9911 ● ● ● ● ●
140 RING; SNAP
(B) ID=14.7 		9-09180-416-0 02 1 9912-0604 ●
140 RING; SNAP
(B) ID=14.7 		0-91800-616-0 02 1 0605- ●
240 COVER; SPHERICAL,CHANGE LEVER 1-33614-049-0 01 1 9806-9911 ● ● ● ● ●
240 COVER; SPHERICAL,CHANGE LEVER 1-33614-049-0 01 1 9912- ●
247 SEAL; DUST,CHANGE LEVER 1-33614-046-0 01 1 9806-9911 ● ● ● ● ●
247 SEAL; DUST,CHANGE LEVER 1-33614-046-0 01 1 9912- ●
264 PLATE; COVER 1-33619-026-0 01 1 9806-9911 ● ● ● ● ●
264 PLATE; COVER 1-33619-026-0 01 1 9912- ●
266 BOLT; SEAT SET
M8X40 FLANGE 		0-28680-840-0 04 1 9806-9911 ● ● ● ● ●
266 BOLT; SEAT SET
M8X40 FLANGE 		0-28680-840-0 04 1 9912-0512 ●
266 BOLT; SEAT SET
M8X40 FLANGE 		0-28650-840-0 04 1 0601- ●
268 NUT; SEAT SET
M8 FLANGE 		0-91150-108-0 04 1 9806-9911 ● ● ● ● ●
268 NUT; SEAT SET
M8 FLANGE 		0-91150-108-0 04 1 9912-0602 ●
268 NUT; SEAT SET
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
294 YOKE; CHANGE LEVER 1-33655-009-1 01 1 9806-9911 ● ● ● ● ●
294 YOKE; CHANGE LEVER 1-33655-009-1 01 1 9912- ●
295 PIN; KNOCK PIN 1-33659-091-0 01 1 9806-9911 ● ● ● ● ●
295 PIN; KNOCK PIN 1-33659-091-0 01 1 9912- ●
296 BEARING; NEEDLE ROLLER 1-09811-280-0 02 1 9806-9911 ● ● ● ● ●
296 BEARING; NEEDLE ROLLER 1-09811-280-0 02 1 9912- ●
297 SEAL; DUST,CHANGE LEVER 1-33614-092-0 02 1 9806-9911 ● ● ● ● ●
297 SEAL; DUST,CHANGE LEVER 1-33614-092-0 02 1 9912- ●

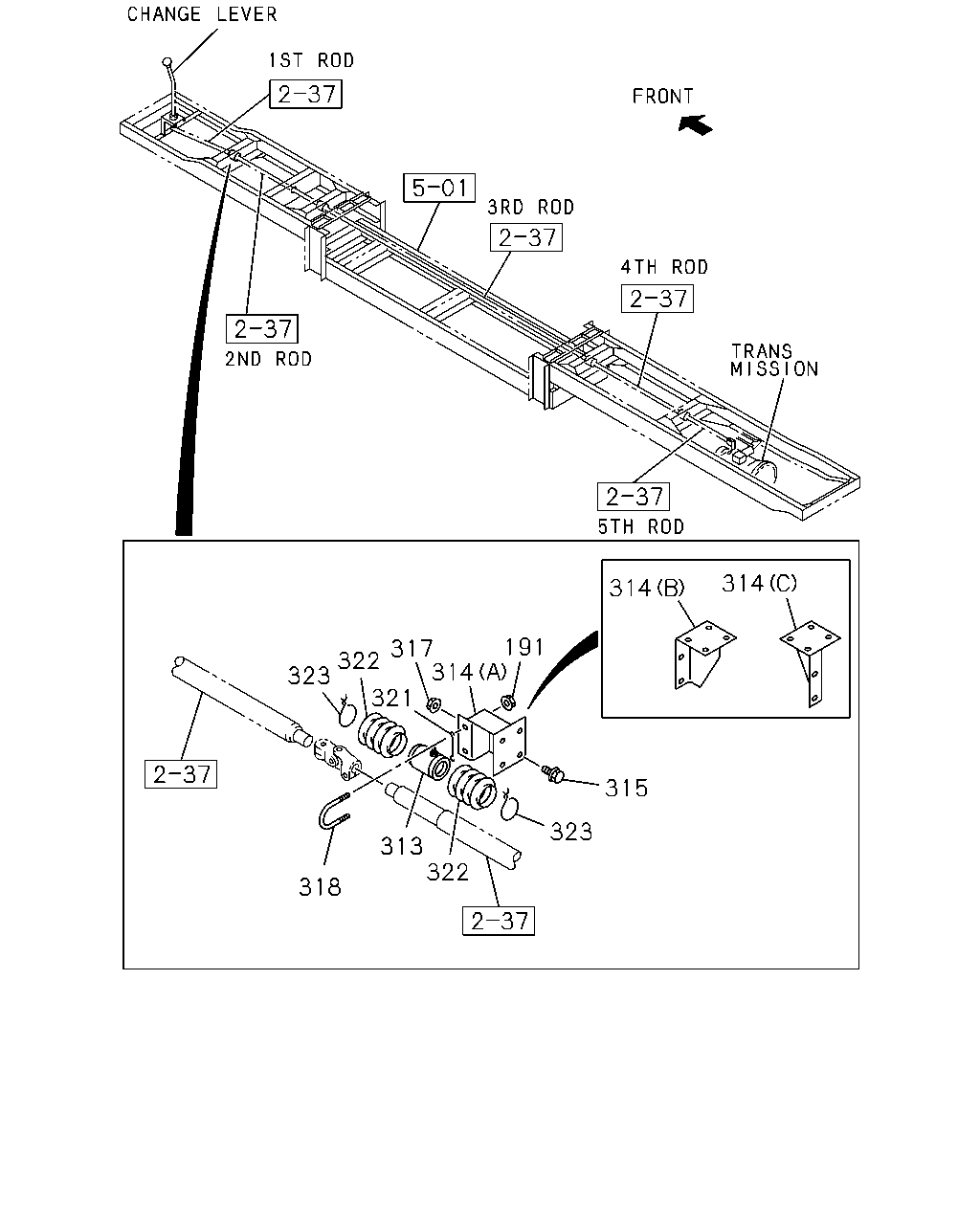

çizim 26179
314 314 191 317 322 323 314 321 315 323 313 322 318
BalonParca AdiParca NoAdetTipApplied Date A B C D E
191 NUT; U BOLT
CTR SPLIT FRAME<TLW> M8 FLANGE 		0-91150-108-0 08 1 9806-9809 ● ● ●
191 NUT; U BOLT
CTR SPLIT FRAME<TLW> M8 FLANGE 		1-09440-062-1 08 1 9810-9911 ● ● ●
191 NUT; U BOLT
M8 FLANGE 		0-91150-108-0 04 1 9806-9809 ● ● ● ●
191 NUT; U BOLT
M8 FLANGE 		1-09440-062-1 04 1 9810-9911 ● ● ● ● ●
191 NUT; U BOLT
M8 FLANGE 		1-09440-062-1 04 1 9912- ●
313 BUSHING; BALL,GUIDE ROD
CTR SPLIT FRAME<TLW> 		1-23333-003-0 04 1 9806-9911 ● ● ●
313 BUSHING; BALL,GUIDE ROD 1-23333-003-0 02 1 9806-9911 ● ● ● ● ●
313 BUSHING; BALL,GUIDE ROD 1-23333-003-0 02 1 9912- ●
314 BRACKET; BALL BUSHING
CTR SPLIT FRAME<TLW> (A) 		1-53419-320-0 02 1 9806-9911 ● ● ●
314 BRACKET; BALL BUSHING
CTR SPLIT FRAME<TLW> (B) 		1-53419-321-1 01 1 9806-9911 ● ● ●
314 BRACKET; BALL BUSHING
CTR SPLIT FRAME<TLW> (C) 		1-53419-322-0 01 1 9806-9911 ● ● ●
314 BRACKET; BALL BUSHING
EXC. CTR SPLIT FRAME<TLW> (A) L=85 		1-53419-051-0 02 1 9806-9911 ● ● ● ●
314 BRACKET; BALL BUSHING
(B) 		8-97530-882-0 02 1 9912- ●
314 BRACKET; BALL BUSHING
(A) L=85 		1-53419-051-0 01 1 9806-9911 ●
314 BRACKET; BALL BUSHING
(A) L=105 		1-53419-311-0 01 1 9806-9911 ●
315 BOLT; BRKT
CTR SPLIT FRAME<TLW> M10X30 FLANGE 		0-28681-030-0 16 1 9806-9812 ● ● ●
315 BOLT; BRKT
CTR SPLIT FRAME<TLW> M10X30 FLANGE 		0-28681-030-0 14 1 9901-9911 ● ● ●
315 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 08 1 9806-9911 ● ● ● ● ●
315 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 06 1 9912-0512 ●
315 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 06 1 0601- ●
317 NUT; BRKT
CTR SPLIT FRAME<TLW> M10 FLANGE 		0-91150-210-0 16 1 9806-9812 ● ● ●
317 NUT; BRKT
CTR SPLIT FRAME<TLW> M10 FLANGE 		0-91150-210-0 14 1 9901-9911 ● ● ●
317 NUT; BRKT
M10 FLANGE 		0-91150-210-0 08 1 9806-9911 ● ● ● ● ●
317 NUT; BRKT
M10 FLANGE 		0-91150-210-0 06 1 9912-0602 ●
317 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0603- ●
318 U-BOLT; BALL BUSHING
CTR SPLIT FRAME<TLW> 		1-33659-022-0 04 1 9806-9911 ● ● ●
318 U-BOLT; BALL BUSHING 1-33659-022-0 02 1 9806-9911 ● ● ● ● ●
318 U-BOLT; BALL BUSHING 8-97530-207-1 02 1 9912- ●
321 GUIDE; U BOLT
CTR SPLIT FRAME<TLW> 		1-33659-021-0 04 1 9806-9911 ● ● ●
321 GUIDE; U BOLT 1-33659-021-0 02 1 9806-9911 ● ● ● ● ●
321 GUIDE; U BOLT 8-97530-193-1 02 1 9912- ●
322 SEAL; DUST,BALL BUSHING
CTR SPLIT FRAME<TLW> 		1-33659-047-0 08 1 9806-9911 ● ● ●
322 SEAL; DUST,BALL BUSHING 1-33659-047-0 04 1 9806-9911 ● ● ● ● ●
322 SEAL; DUST,BALL BUSHING 1-33659-047-0 04 1 9912- ●
323 WIRE; SEAL
CTR SPLIT FRAME<TLW> L=200 		9-08351-020-0 08 1 9806-9911 ● ● ●
323 WIRE; SEAL
L=200 		9-08351-020-0 04 1 9806-9911 ● ● ● ● ●
323 WIRE; SEAL
L=200 		9-08351-020-0 04 1 9912- ●

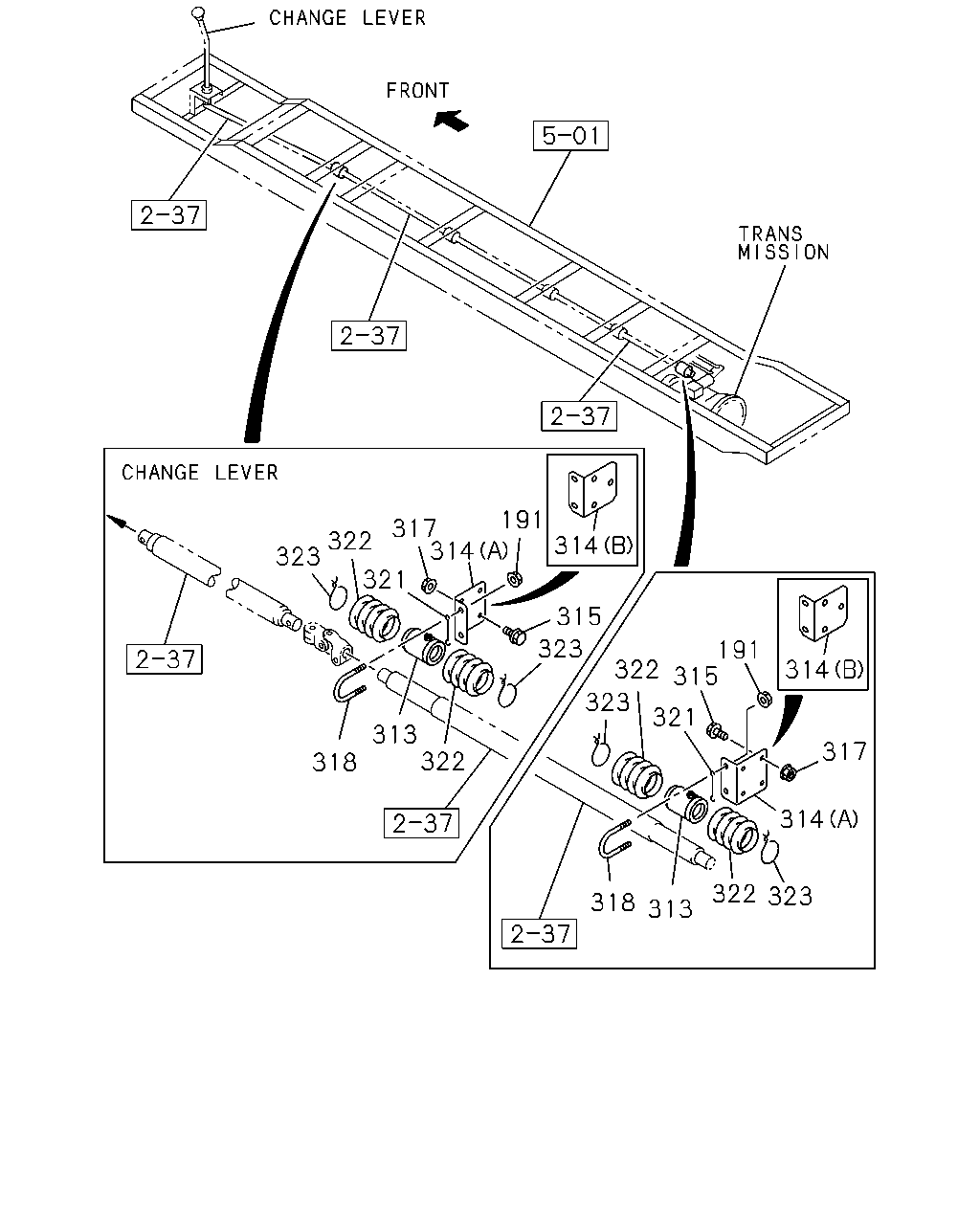

çizim 26573
191 317 314 322 323 314 321 315 323 191 315 322 314 323 321 313 322 317 318 314 322 323 318 313
BalonParca AdiParca NoAdetTipApplied Date A B C D E
191 NUT; U BOLT
CTR SPLIT FRAME<TLW> M8 FLANGE 		0-91150-108-0 08 1 9806-9809 ● ● ●
191 NUT; U BOLT
CTR SPLIT FRAME<TLW> M8 FLANGE 		1-09440-062-1 08 1 9810-9911 ● ● ●
191 NUT; U BOLT
M8 FLANGE 		0-91150-108-0 04 1 9806-9809 ● ● ● ●
191 NUT; U BOLT
M8 FLANGE 		1-09440-062-1 04 1 9810-9911 ● ● ● ● ●
191 NUT; U BOLT
M8 FLANGE 		1-09440-062-1 04 1 9912- ●
313 BUSHING; BALL,GUIDE ROD
CTR SPLIT FRAME<TLW> 		1-23333-003-0 04 1 9806-9911 ● ● ●
313 BUSHING; BALL,GUIDE ROD 1-23333-003-0 02 1 9806-9911 ● ● ● ● ●
313 BUSHING; BALL,GUIDE ROD 1-23333-003-0 02 1 9912- ●
314 BRACKET; BALL BUSHING
CTR SPLIT FRAME<TLW> (A) 		1-53419-320-0 02 1 9806-9911 ● ● ●
314 BRACKET; BALL BUSHING
CTR SPLIT FRAME<TLW> (B) 		1-53419-321-1 01 1 9806-9911 ● ● ●
314 BRACKET; BALL BUSHING
CTR SPLIT FRAME<TLW> (C) 		1-53419-322-0 01 1 9806-9911 ● ● ●
314 BRACKET; BALL BUSHING
EXC. CTR SPLIT FRAME<TLW> (A) L=85 		1-53419-051-0 02 1 9806-9911 ● ● ● ●
314 BRACKET; BALL BUSHING
(B) 		8-97530-882-0 02 1 9912- ●
314 BRACKET; BALL BUSHING
(A) L=85 		1-53419-051-0 01 1 9806-9911 ●
314 BRACKET; BALL BUSHING
(A) L=105 		1-53419-311-0 01 1 9806-9911 ●
315 BOLT; BRKT
CTR SPLIT FRAME<TLW> M10X30 FLANGE 		0-28681-030-0 16 1 9806-9812 ● ● ●
315 BOLT; BRKT
CTR SPLIT FRAME<TLW> M10X30 FLANGE 		0-28681-030-0 14 1 9901-9911 ● ● ●
315 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 08 1 9806-9911 ● ● ● ● ●
315 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 06 1 9912-0512 ●
315 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 06 1 0601- ●
317 NUT; BRKT
CTR SPLIT FRAME<TLW> M10 FLANGE 		0-91150-210-0 16 1 9806-9812 ● ● ●
317 NUT; BRKT
CTR SPLIT FRAME<TLW> M10 FLANGE 		0-91150-210-0 14 1 9901-9911 ● ● ●
317 NUT; BRKT
M10 FLANGE 		0-91150-210-0 08 1 9806-9911 ● ● ● ● ●
317 NUT; BRKT
M10 FLANGE 		0-91150-210-0 06 1 9912-0602 ●
317 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0603- ●
318 U-BOLT; BALL BUSHING
CTR SPLIT FRAME<TLW> 		1-33659-022-0 04 1 9806-9911 ● ● ●
318 U-BOLT; BALL BUSHING 1-33659-022-0 02 1 9806-9911 ● ● ● ● ●
318 U-BOLT; BALL BUSHING 8-97530-207-1 02 1 9912- ●
321 GUIDE; U BOLT
CTR SPLIT FRAME<TLW> 		1-33659-021-0 04 1 9806-9911 ● ● ●
321 GUIDE; U BOLT 1-33659-021-0 02 1 9806-9911 ● ● ● ● ●
321 GUIDE; U BOLT 8-97530-193-1 02 1 9912- ●
322 SEAL; DUST,BALL BUSHING
CTR SPLIT FRAME<TLW> 		1-33659-047-0 08 1 9806-9911 ● ● ●
322 SEAL; DUST,BALL BUSHING 1-33659-047-0 04 1 9806-9911 ● ● ● ● ●
322 SEAL; DUST,BALL BUSHING 1-33659-047-0 04 1 9912- ●
323 WIRE; SEAL
CTR SPLIT FRAME<TLW> L=200 		9-08351-020-0 08 1 9806-9911 ● ● ●
323 WIRE; SEAL
L=200 		9-08351-020-0 04 1 9806-9911 ● ● ● ● ●
323 WIRE; SEAL
L=200 		9-08351-020-0 04 1 9912- ●
