Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#68369) — 490 parça

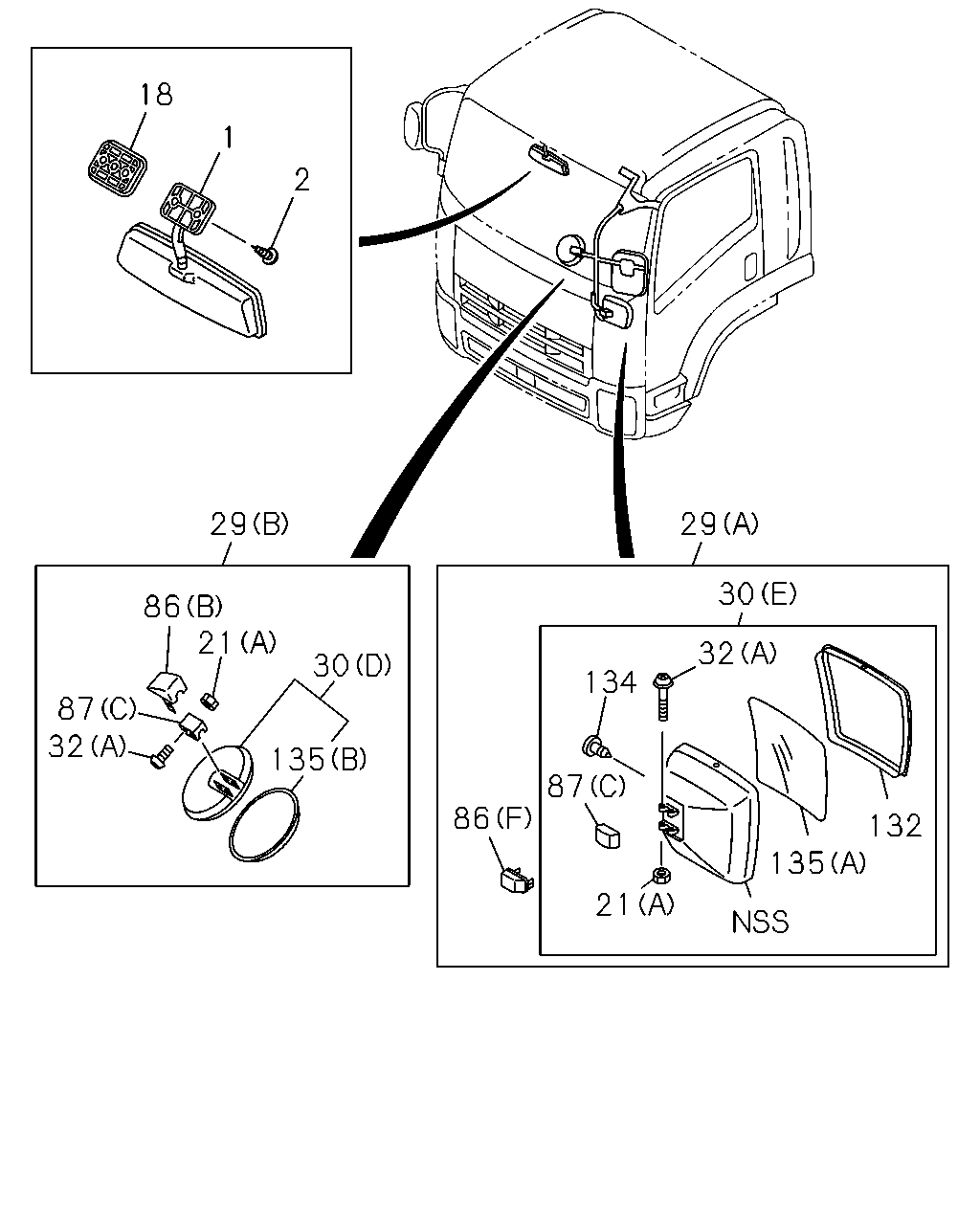

18 1 2 29 29 30 86 21 32 30 134 87 32 135 87 86 132 135 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM THA	8-97924-058-2	01	1	0806-	●	●
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	0806-	●	●
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	0806-	●	●
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) M5	1-09984-124-0	04	1	1004-	●	●
21	NUT; MIRROR (B) M10 CAP NUT	1-09984-134-0	04	1	0806-1003	●	●
21	NUT; MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) M10 CAP NUT	1-09984-134-0	02	1	1004-	●	●
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-421-1	01	1	1004-	●	●
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-422-0	01	1	1004-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	1-71798-591-1	01	1	1004-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71798-592-1	01	1	1004-	●	●
30	MIRROR; UNDER (B)	8-98043-061-0	02	1	0806-1003	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98043-061-0	02	1	1004-	●	●
30	MIRROR; UNDER (A)	8-98043-065-0	01	1	0806-1003	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98043-065-0	01	1	1004-	●	●
30	MIRROR; UNDER (C)	8-98055-994-0	01	1	0806-1003	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-994-0	01	1	1004-1504	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98309-725-0	01	1	1505-	●	●
32	SCREW; UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) M5X40 W/PL WASHER	1-71737-797-0	04	1	1004-	●	●
32	SCREW; UNDER MIRROR (B) M8X26 W/PL WASHER	8-98067-249-2	04	1	0806-1003	●	●
32	SCREW; UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) M8X26 W/PL WASHER	8-98067-249-2	04	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) BLACK	1-71737-652-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-541-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98031-802-2	01	1	0806-1003	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-802-2	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98031-803-2	01	1	0806-1003	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-803-2	01	1	1004-	●	●
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71737-646-2	02	1	1004-	●	●
87	SPACER (B)	8-98063-789-0	01	1	0806-1003	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-789-0	01	1	1004-	●	●
87	SPACER (A)	8-98063-786-0	02	1	0806-1003	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98063-786-0	02	1	1004-	●	●
132	RING; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71737-935-0	01	1	1004-	●	●
134	CLIP; MIRROR LENS MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71737-936-0	01	1	1004-	●	●
135	LENS; MIRROR,SIDE UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71737-929-0	01	1	1004-	●	●
135	LENS; MIRROR,SIDE UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-838-0	01	1	1004-	●	●

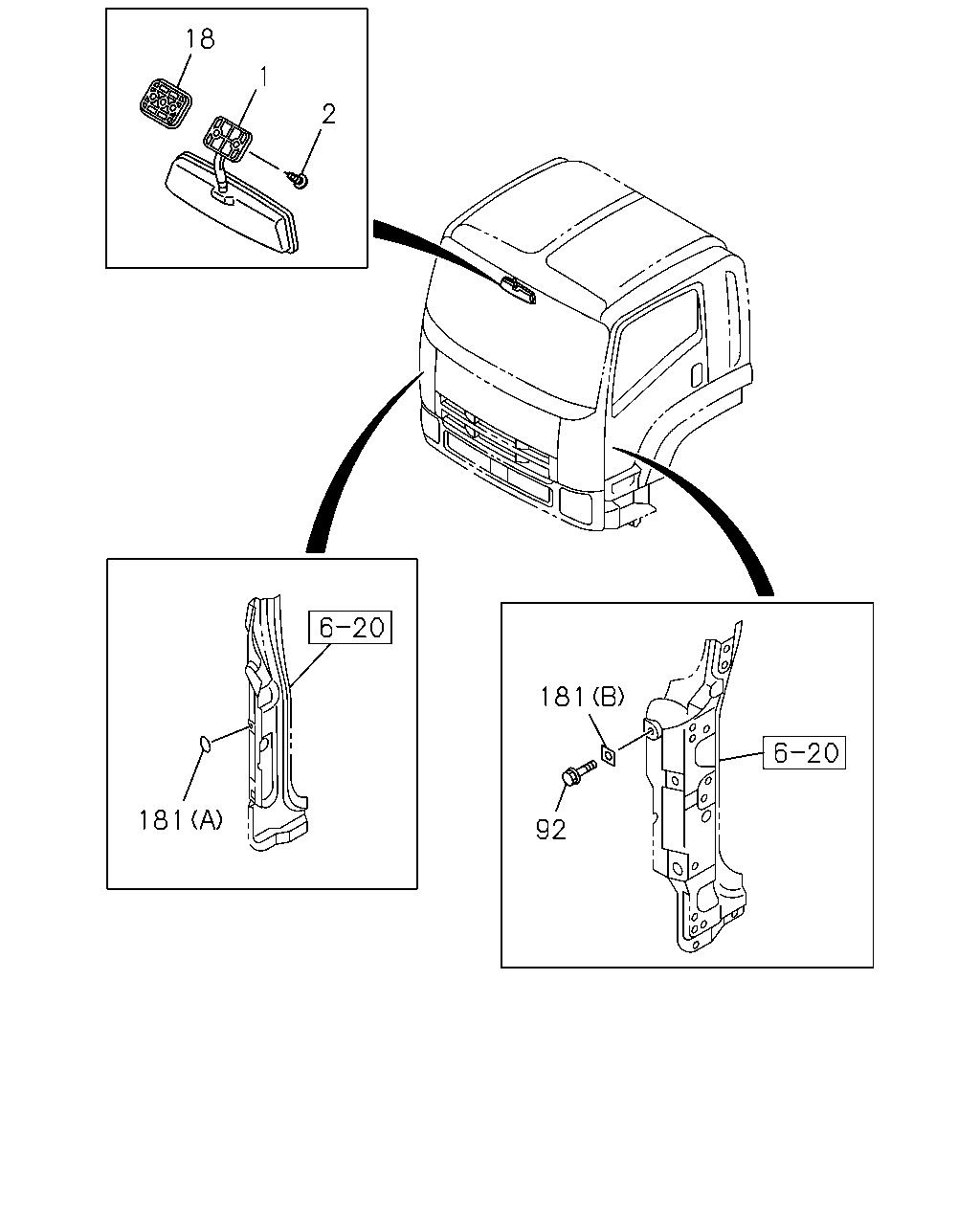

18 1 2 181 181 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM THA	8-97924-058-2	01	1	0806-	●	●
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	0806-	●	●
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	0806-	●	●
92	BOLT; STAY BRKT,MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE THA	8-98076-109-0	01	1	1004-	●	●
92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE THA	8-98076-109-0	01	1	0806-1003	●	●
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE THA	8-98076-109-0	04	1	1004-	●	●
181	SEAL; BRKT (A) OD=25 BLACK THA	1-76798-019-0	02	1	0806-0807	●	●
181	SEAL; BRKT (A) OD=25 BLACK THA	1-76798-019-0	01	1	0808-	●	●
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	0806-	●	●

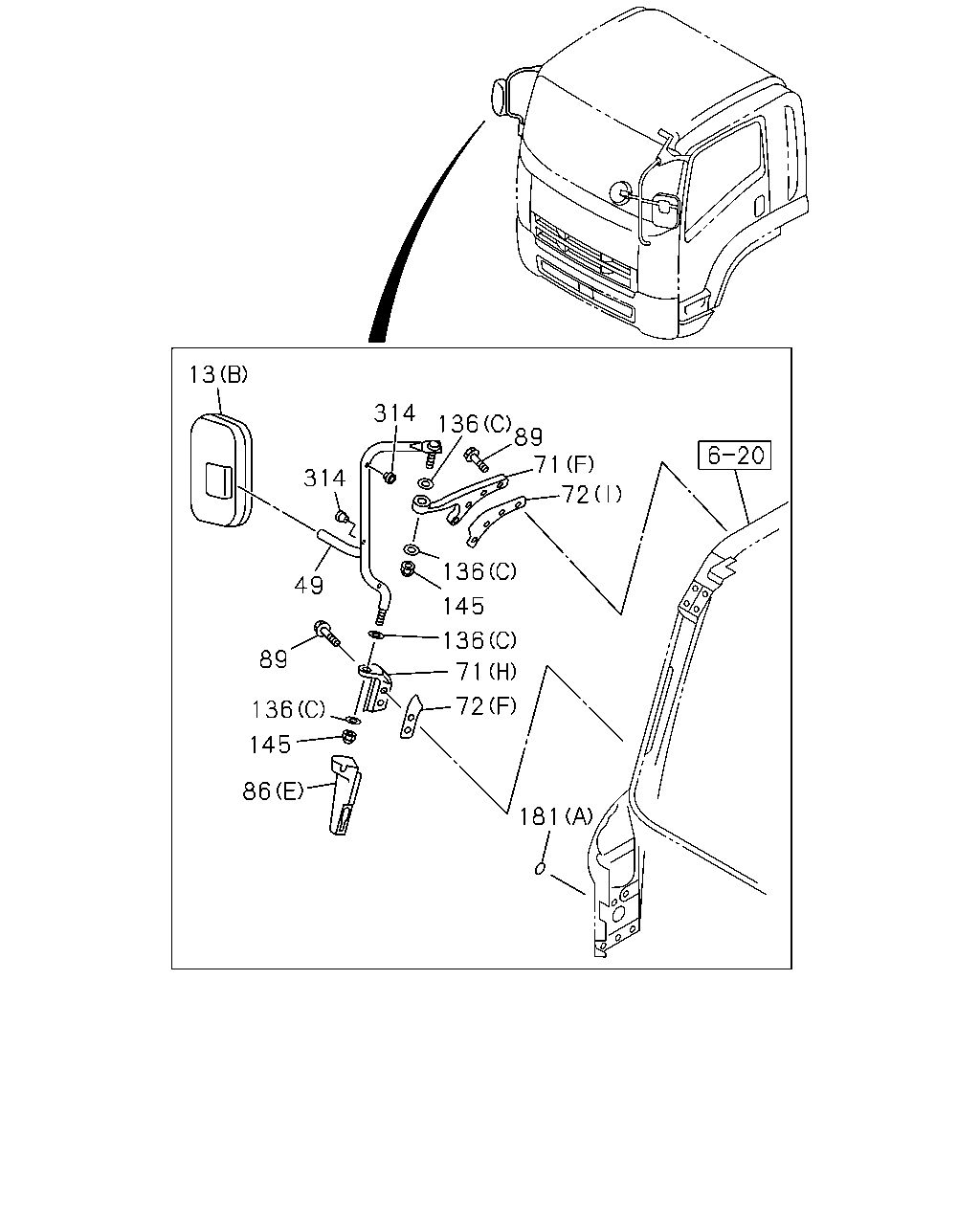

13 314 136 89 71 314 72 136 49 145 136 89 71 72 136 145 86 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98028-332-0	01	1	1004-1509	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98324-748-0	01	1	1510-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98104-068-0	01	1	1004-1509	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98324-749-0	01	1	1510-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	8-98055-991-1	01	1	0806-1003	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-991-1	01	1	1004-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	8-98055-992-1	01	1	0806-1003	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-992-1	01	1	1004-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98085-113-1	01	1	1004-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98091-477-0	01	1	1004-1502	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98305-582-0	01	1	1503-	●	●
49	STAY; MIRROR SIDE	8-98060-218-1	01	1	0806-1003	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98060-218-1	01	1	1004-1202	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-195-0	01	1	1203-	●	●
49	STAY; MIRROR SIDE	8-98064-777-1	01	1	0806-1003	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98064-777-1	01	1	1004-1202	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-194-0	01	1	1203-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71707-224-0	04	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-021-0	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-022-1	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-543-1	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98040-544-2	01	1	1004-1112	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98201-957-0	01	1	1201-	●	●
71	BRACKET; OUTSIDE MIRROR (B) THA	1-71798-484-1	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	1-71798-484-1	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-793-2	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-794-2	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (D)	8-98060-240-0	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98060-240-0	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98092-492-3	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98092-492-3	01	1	1004-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98040-351-0	01	1	1004-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-353-1	01	1	1004-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-535-0	01	1	1004-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-537-1	01	1	1004-	●	●
72	SHEET (B)	8-98031-796-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98031-796-0	01	1	1004-	●	●
72	SHEET (C)	8-98031-797-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98031-797-0	01	1	1004-	●	●
72	SHEET (E)	8-98060-245-1	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98060-245-1	01	1	1004-	●	●
72	SHEET (A)	8-98064-776-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98064-776-0	01	1	1004-	●	●
72	SHEET (D)	8-98116-604-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98116-604-0	01	1	1004-	●	●
72	SHEET (D)	8-98116-605-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98116-605-0	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) BLACK	1-71737-652-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-541-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98031-802-2	01	1	0806-1003	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-802-2	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98031-803-2	01	1	0806-1003	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-803-2	01	1	1004-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1004-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	0808-1003	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1004-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=10	1-09985-180-0	01	1	1004-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1004-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1004-	●	●
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	0806-1003	●	●
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1004-	●	●
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1004-	●	●
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	0806-1003	●	●
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1004-	●	●
181	SEAL; BRKT (A) OD=25 BLACK THA	1-76798-019-0	02	1	0806-0807	●	●
181	SEAL; BRKT (A) OD=25 BLACK THA	1-76798-019-0	01	1	0808-	●	●
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	0806-	●	●
314	BUFFER; STOPPER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-94314-317-0	02	1	1004-	●	●

13 53 53 71 26 14 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98028-332-0	01	1	1004-1509	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98324-748-0	01	1	1510-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98104-068-0	01	1	1004-1509	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98324-749-0	01	1	1510-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	8-98055-991-1	01	1	0806-1003	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-991-1	01	1	1004-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	8-98055-992-1	01	1	0806-1003	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-992-1	01	1	1004-	●	●
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98045-690-0	01	1	1004-1509	●	●
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98324-761-0	01	1	1510-	●	●
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98108-511-0	01	1	1004-1509	●	●
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98324-760-0	01	1	1510-	●	●
25	SCREW; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M6X40	1-71707-223-0	04	1	1004-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-221-0	01	1	1004-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-222-0	01	1	1004-	●	●
26	COVER; OUTSIDE MIRROR (A)	8-98031-805-0	01	1	0806-1003	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-805-0	01	1	1004-	●	●
26	COVER; OUTSIDE MIRROR (A)	8-98031-806-0	01	1	0806-1003	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-806-0	01	1	1004-	●	●
53	PIVOT; SIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=22.2	1-71736-489-2	04	1	1102-	●	●
53	PIVOT; SIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=22.2	1-71736-489-2	02	1	1004-1101	●	●
53	PIVOT; SIDE MIRROR ID=19.1 THA	1-71737-633-2	04	1	0806-1003	●	●
53	PIVOT; SIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=19.1 THA	1-71737-633-2	04	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71707-224-0	04	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-021-0	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-022-1	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-543-1	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98040-544-2	01	1	1004-1112	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98201-957-0	01	1	1201-	●	●
71	BRACKET; OUTSIDE MIRROR (B) THA	1-71798-484-1	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	1-71798-484-1	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-793-2	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-794-2	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (D)	8-98060-240-0	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98060-240-0	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98092-492-3	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98092-492-3	01	1	1004-	●	●

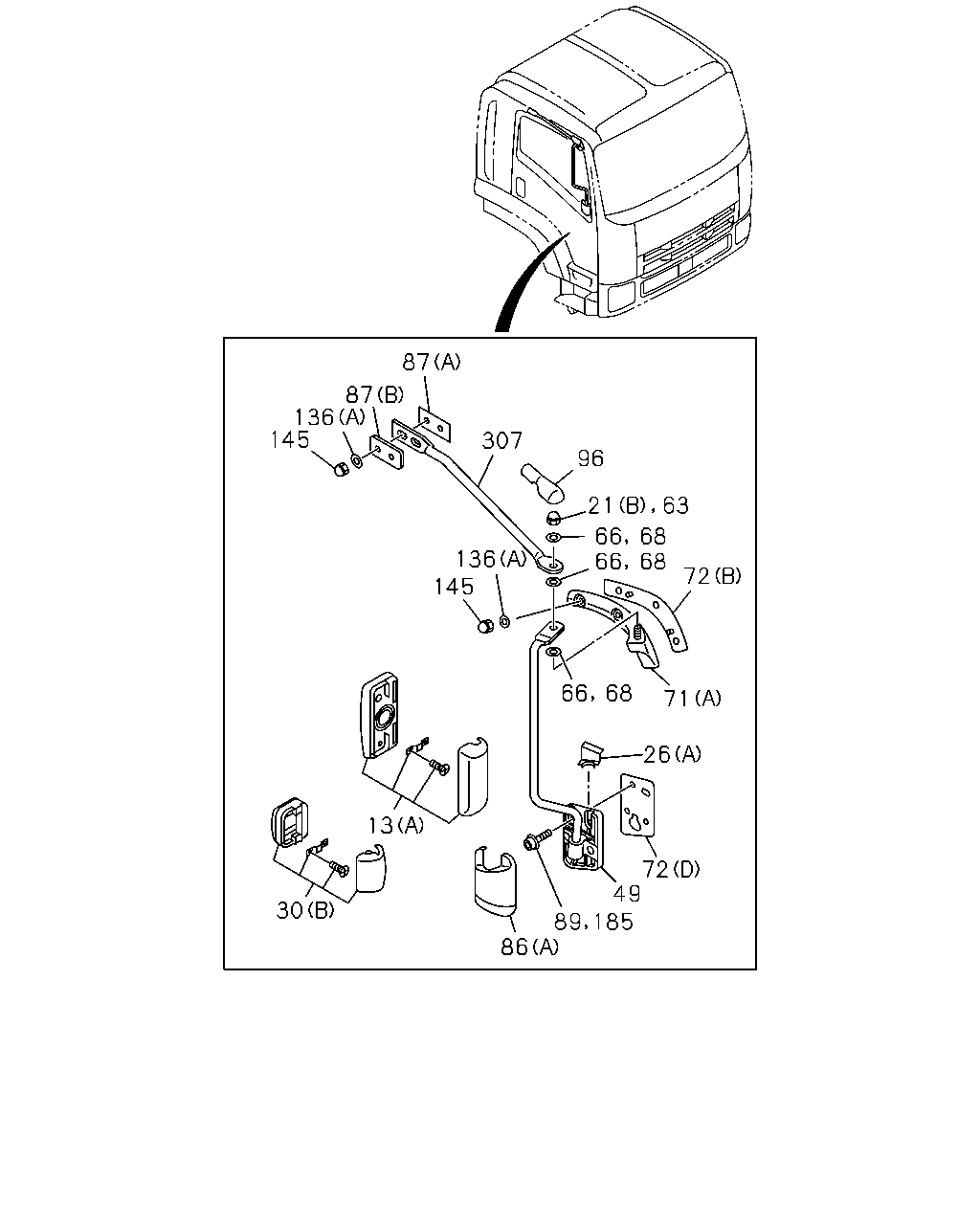

87 87 136 145 307 96 66 66 68 68 136 145 72 66 68 71 26 13 72 49 30 86 63 21 89 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98028-332-0	01	1	1004-1509	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98324-748-0	01	1	1510-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98104-068-0	01	1	1004-1509	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98324-749-0	01	1	1510-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	8-98055-991-1	01	1	0806-1003	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-991-1	01	1	1004-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	8-98055-992-1	01	1	0806-1003	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-992-1	01	1	1004-	●	●
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) M5	1-09984-124-0	04	1	1004-	●	●
21	NUT; MIRROR (B) M10 CAP NUT	1-09984-134-0	04	1	0806-1003	●	●
21	NUT; MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) M10 CAP NUT	1-09984-134-0	02	1	1004-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-221-0	01	1	1004-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-222-0	01	1	1004-	●	●
26	COVER; OUTSIDE MIRROR (A)	8-98031-805-0	01	1	0806-1003	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-805-0	01	1	1004-	●	●
26	COVER; OUTSIDE MIRROR (A)	8-98031-806-0	01	1	0806-1003	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-806-0	01	1	1004-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	1-71798-591-1	01	1	1004-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71798-592-1	01	1	1004-	●	●
30	MIRROR; UNDER (B)	8-98043-061-0	02	1	0806-1003	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98043-061-0	02	1	1004-	●	●
30	MIRROR; UNDER (A)	8-98043-065-0	01	1	0806-1003	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98043-065-0	01	1	1004-	●	●
30	MIRROR; UNDER (C)	8-98055-994-0	01	1	0806-1003	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-994-0	01	1	1004-1504	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98309-725-0	01	1	1505-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98085-113-1	01	1	1004-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98091-477-0	01	1	1004-1502	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98305-582-0	01	1	1503-	●	●
49	STAY; MIRROR SIDE	8-98060-218-1	01	1	0806-1003	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98060-218-1	01	1	1004-1202	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-195-0	01	1	1203-	●	●
49	STAY; MIRROR SIDE	8-98064-777-1	01	1	0806-1003	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98064-777-1	01	1	1004-1202	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-194-0	01	1	1203-	●	●
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 CAP NUT	8-98041-311-1	01	1	1004-1005	●	●
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1006-	●	●
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1004-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER	8-98174-337-0	01	1	1006-1112	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER	8-98201-756-0	01	1	1201-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=14.5 OD=30	9-09851-946-0	02	1	1004-1005	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER	0-91610-614-0	01	1	1006-	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	0806-1003	●	●
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	1004-	●	●
68	WASHER; STAY ID=10.5 OD=26 T=2.6	1-09985-204-0	10	1	0806-1003	●	●
68	WASHER; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71707-224-0	04	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-021-0	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-022-1	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-543-1	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98040-544-2	01	1	1004-1112	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98201-957-0	01	1	1201-	●	●
71	BRACKET; OUTSIDE MIRROR (B) THA	1-71798-484-1	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	1-71798-484-1	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-793-2	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-794-2	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (D)	8-98060-240-0	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98060-240-0	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98092-492-3	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98092-492-3	01	1	1004-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98040-351-0	01	1	1004-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-353-1	01	1	1004-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-535-0	01	1	1004-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-537-1	01	1	1004-	●	●
72	SHEET (B)	8-98031-796-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98031-796-0	01	1	1004-	●	●
72	SHEET (C)	8-98031-797-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98031-797-0	01	1	1004-	●	●
72	SHEET (E)	8-98060-245-1	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98060-245-1	01	1	1004-	●	●
72	SHEET (A)	8-98064-776-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98064-776-0	01	1	1004-	●	●
72	SHEET (D)	8-98116-604-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98116-604-0	01	1	1004-	●	●
72	SHEET (D)	8-98116-605-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98116-605-0	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) BLACK	1-71737-652-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-541-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98031-802-2	01	1	0806-1003	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-802-2	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98031-803-2	01	1	0806-1003	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-803-2	01	1	1004-	●	●
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71737-646-2	02	1	1004-	●	●
87	SPACER (B)	8-98063-789-0	01	1	0806-1003	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-789-0	01	1	1004-	●	●
87	SPACER (A)	8-98063-786-0	02	1	0806-1003	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98063-786-0	02	1	1004-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1004-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	0808-1003	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1004-	●	●
96	CAP; MIRROR STAY	8-98080-173-0	02	1	0806-1003	●	●
96	CAP; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98080-173-0	02	1	1004-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=10	1-09985-180-0	01	1	1004-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1004-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1004-	●	●
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	0806-1003	●	●
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1004-	●	●
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1004-	●	●
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	0806-1003	●	●
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1004-	●	●
185	BOLT; BRKT M8X23	8-97310-216-1	08	1	0806-0807	●	●
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	0806-1003	●	●
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-784-2	01	1	1004-	●	●
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	0806-1003	●	●
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-785-2	01	1	1004-	●	●

69 105 66 68 30 68 66 53 87 53 136 145 307 96 71 66 21 68 63 32 68 72 66 66 68 136 66 68 21 72 66 68 53 53 22 71 145 71 66 68 66 68 72 30 26 86 32 71 72 13 49 30 89 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98028-332-0	01	1	1004-1509	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98324-748-0	01	1	1510-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98104-068-0	01	1	1004-1509	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98324-749-0	01	1	1510-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	8-98055-991-1	01	1	0806-1003	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-991-1	01	1	1004-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	8-98055-992-1	01	1	0806-1003	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-992-1	01	1	1004-	●	●
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) M5	1-09984-124-0	04	1	1004-	●	●
21	NUT; MIRROR (B) M10 CAP NUT	1-09984-134-0	04	1	0806-1003	●	●
21	NUT; MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) M10 CAP NUT	1-09984-134-0	02	1	1004-	●	●
22	STAY; OUTSIDE MIRROR	8-98092-493-0	01	1	0806-1003	●	●
22	STAY; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98092-493-0	01	1	1004-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-221-0	01	1	1004-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71707-222-0	01	1	1004-	●	●
26	COVER; OUTSIDE MIRROR (A)	8-98031-805-0	01	1	0806-1003	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-805-0	01	1	1004-	●	●
26	COVER; OUTSIDE MIRROR (A)	8-98031-806-0	01	1	0806-1003	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-806-0	01	1	1004-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	1-71798-591-1	01	1	1004-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71798-592-1	01	1	1004-	●	●
30	MIRROR; UNDER (B)	8-98043-061-0	02	1	0806-1003	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98043-061-0	02	1	1004-	●	●
30	MIRROR; UNDER (A)	8-98043-065-0	01	1	0806-1003	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98043-065-0	01	1	1004-	●	●
30	MIRROR; UNDER (C)	8-98055-994-0	01	1	0806-1003	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98055-994-0	01	1	1004-1504	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98309-725-0	01	1	1505-	●	●
32	SCREW; UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) M5X40 W/PL WASHER	1-71737-797-0	04	1	1004-	●	●
32	SCREW; UNDER MIRROR (B) M8X26 W/PL WASHER	8-98067-249-2	04	1	0806-1003	●	●
32	SCREW; UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) M8X26 W/PL WASHER	8-98067-249-2	04	1	1004-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98085-113-1	01	1	1004-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98091-477-0	01	1	1004-1502	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98305-582-0	01	1	1503-	●	●
49	STAY; MIRROR SIDE	8-98060-218-1	01	1	0806-1003	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98060-218-1	01	1	1004-1202	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-195-0	01	1	1203-	●	●
49	STAY; MIRROR SIDE	8-98064-777-1	01	1	0806-1003	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98064-777-1	01	1	1004-1202	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-194-0	01	1	1203-	●	●
53	PIVOT; SIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=22.2	1-71736-489-2	04	1	1102-	●	●
53	PIVOT; SIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=22.2	1-71736-489-2	02	1	1004-1101	●	●
53	PIVOT; SIDE MIRROR ID=19.1 THA	1-71737-633-2	04	1	0806-1003	●	●
53	PIVOT; SIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=19.1 THA	1-71737-633-2	04	1	1004-	●	●
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 CAP NUT	8-98041-311-1	01	1	1004-1005	●	●
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1006-	●	●
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1004-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER	8-98174-337-0	01	1	1006-1112	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER	8-98201-756-0	01	1	1201-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=14.5 OD=30	9-09851-946-0	02	1	1004-1005	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER	0-91610-614-0	01	1	1006-	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	0806-1003	●	●
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	1004-	●	●
68	WASHER; STAY ID=10.5 OD=26 T=2.6	1-09985-204-0	10	1	0806-1003	●	●
68	WASHER; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1004-	●	●
69	NUT; CAP M10 CAP NUT	1-09984-134-0	01	1	0806-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71707-224-0	04	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-021-0	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-022-1	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-543-1	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98040-544-2	01	1	1004-1112	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98201-957-0	01	1	1201-	●	●
71	BRACKET; OUTSIDE MIRROR (B) THA	1-71798-484-1	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	1-71798-484-1	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-793-2	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-794-2	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (D)	8-98060-240-0	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98060-240-0	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98092-492-3	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98092-492-3	01	1	1004-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98040-351-0	01	1	1004-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-353-1	01	1	1004-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-535-0	01	1	1004-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-537-1	01	1	1004-	●	●
72	SHEET (B)	8-98031-796-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98031-796-0	01	1	1004-	●	●
72	SHEET (C)	8-98031-797-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98031-797-0	01	1	1004-	●	●
72	SHEET (E)	8-98060-245-1	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98060-245-1	01	1	1004-	●	●
72	SHEET (A)	8-98064-776-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98064-776-0	01	1	1004-	●	●
72	SHEET (D)	8-98116-604-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98116-604-0	01	1	1004-	●	●
72	SHEET (D)	8-98116-605-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98116-605-0	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) BLACK	1-71737-652-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-541-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98031-802-2	01	1	0806-1003	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-802-2	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98031-803-2	01	1	0806-1003	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-803-2	01	1	1004-	●	●
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71737-646-2	02	1	1004-	●	●
87	SPACER (B)	8-98063-789-0	01	1	0806-1003	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-789-0	01	1	1004-	●	●
87	SPACER (A)	8-98063-786-0	02	1	0806-1003	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98063-786-0	02	1	1004-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1004-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	0808-1003	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1004-	●	●
96	CAP; MIRROR STAY	8-98080-173-0	02	1	0806-1003	●	●
96	CAP; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98080-173-0	02	1	1004-	●	●
105	STAY; SUB UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98041-571-2	01	1	1004-	●	●
105	STAY; SUB UNDER MIRROR (B)	8-98080-109-2	01	1	0806-1003	●	●
105	STAY; SUB UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98080-109-2	01	1	1004-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=10	1-09985-180-0	01	1	1004-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1004-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1004-	●	●
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	0806-1003	●	●
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1004-	●	●
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1004-	●	●
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	0806-1003	●	●
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1004-	●	●
185	BOLT; BRKT M8X23	8-97310-216-1	08	1	0806-0807	●	●
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	0806-1003	●	●
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-784-2	01	1	1004-	●	●
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	0806-1003	●	●
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-785-2	01	1	1004-	●	●

89 71 118 58 49 72 29 136 136 136 145 72 69 152 89 13 152 86 86 63 66 151 196 196 66 92 105 29 181 42 92 61 71 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98028-332-0	01	1	1004-1509	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98324-748-0	01	1	1510-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98104-068-0	01	1	1004-1509	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98324-749-0	01	1	1510-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	8-98055-991-1	01	1	0806-1003	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-991-1	01	1	1004-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	8-98055-992-1	01	1	0806-1003	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98055-992-1	01	1	1004-	●	●
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-421-1	01	1	1004-	●	●
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-422-0	01	1	1004-	●	●
42	ATTACHMENT; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98070-643-0	01	1	1004-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98085-113-1	01	1	1004-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98091-477-0	01	1	1004-1502	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98305-582-0	01	1	1503-	●	●
49	STAY; MIRROR SIDE	8-98060-218-1	01	1	0806-1003	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98060-218-1	01	1	1004-1202	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-195-0	01	1	1203-	●	●
49	STAY; MIRROR SIDE	8-98064-777-1	01	1	0806-1003	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98064-777-1	01	1	1004-1202	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-194-0	01	1	1203-	●	●
58	NUT; MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M12	8-98061-883-0	01	1	1004-	●	●
61	NUT; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 FLANGE THA	0-91180-108-0	01	1	1004-	●	●
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 CAP NUT	8-98041-311-1	01	1	1004-1005	●	●
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1006-	●	●
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1004-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER	8-98174-337-0	01	1	1006-1112	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER	8-98201-756-0	01	1	1201-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=14.5 OD=30	9-09851-946-0	02	1	1004-1005	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER	0-91610-614-0	01	1	1006-	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	0806-1003	●	●
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	1004-	●	●
69	NUT; CAP M10 CAP NUT	1-09984-134-0	01	1	0806-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71707-224-0	04	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-021-0	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-022-1	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-543-1	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98040-544-2	01	1	1004-1112	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98201-957-0	01	1	1201-	●	●
71	BRACKET; OUTSIDE MIRROR (B) THA	1-71798-484-1	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	1-71798-484-1	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-793-2	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-794-2	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (D)	8-98060-240-0	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98060-240-0	01	1	1004-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98092-492-3	01	1	0806-1003	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98092-492-3	01	1	1004-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98040-351-0	01	1	1004-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-353-1	01	1	1004-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98040-535-0	01	1	1004-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98040-537-1	01	1	1004-	●	●
72	SHEET (B)	8-98031-796-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98031-796-0	01	1	1004-	●	●
72	SHEET (C)	8-98031-797-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98031-797-0	01	1	1004-	●	●
72	SHEET (E)	8-98060-245-1	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98060-245-1	01	1	1004-	●	●
72	SHEET (A)	8-98064-776-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98064-776-0	01	1	1004-	●	●
72	SHEET (D)	8-98116-604-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98116-604-0	01	1	1004-	●	●
72	SHEET (D)	8-98116-605-0	01	1	0806-1003	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98116-605-0	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F) BLACK	1-71737-652-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-541-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98031-802-2	01	1	0806-1003	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-802-2	01	1	1004-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98031-803-2	01	1	0806-1003	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-803-2	01	1	1004-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1004-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	0808-1003	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1004-	●	●
92	BOLT; STAY BRKT,MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE THA	8-98076-109-0	01	1	1004-	●	●
92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE THA	8-98076-109-0	01	1	0806-1003	●	●
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE THA	8-98076-109-0	04	1	1004-	●	●
105	STAY; SUB UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98041-571-2	01	1	1004-	●	●
105	STAY; SUB UNDER MIRROR (B)	8-98080-109-2	01	1	0806-1003	●	●
105	STAY; SUB UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98080-109-2	01	1	1004-	●	●
118	JOINT ASM; BALL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71798-356-2	01	1	1004-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=10	1-09985-180-0	01	1	1004-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1004-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1004-	●	●
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	0806-1003	●	●
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1004-	●	●
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1004-	●	●
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	0806-1003	●	●
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1004-	●	●
151	WASHER; PL,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 T=2.0	1-09985-183-0	01	1	1004-	●	●
152	SHEET; MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71798-445-1	02	1	1004-	●	●
181	SEAL; BRKT (A) OD=25 BLACK THA	1-76798-019-0	02	1	0806-0807	●	●
181	SEAL; BRKT (A) OD=25 BLACK THA	1-76798-019-0	01	1	0808-	●	●
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	0806-	●	●
196	HOLDER; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-442-2	01	1	1004-	●	●
196	HOLDER; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-444-2	01	1	1004-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
