7-10 — CAUTION PLATE AND LABEL (#68368) — 19 parça

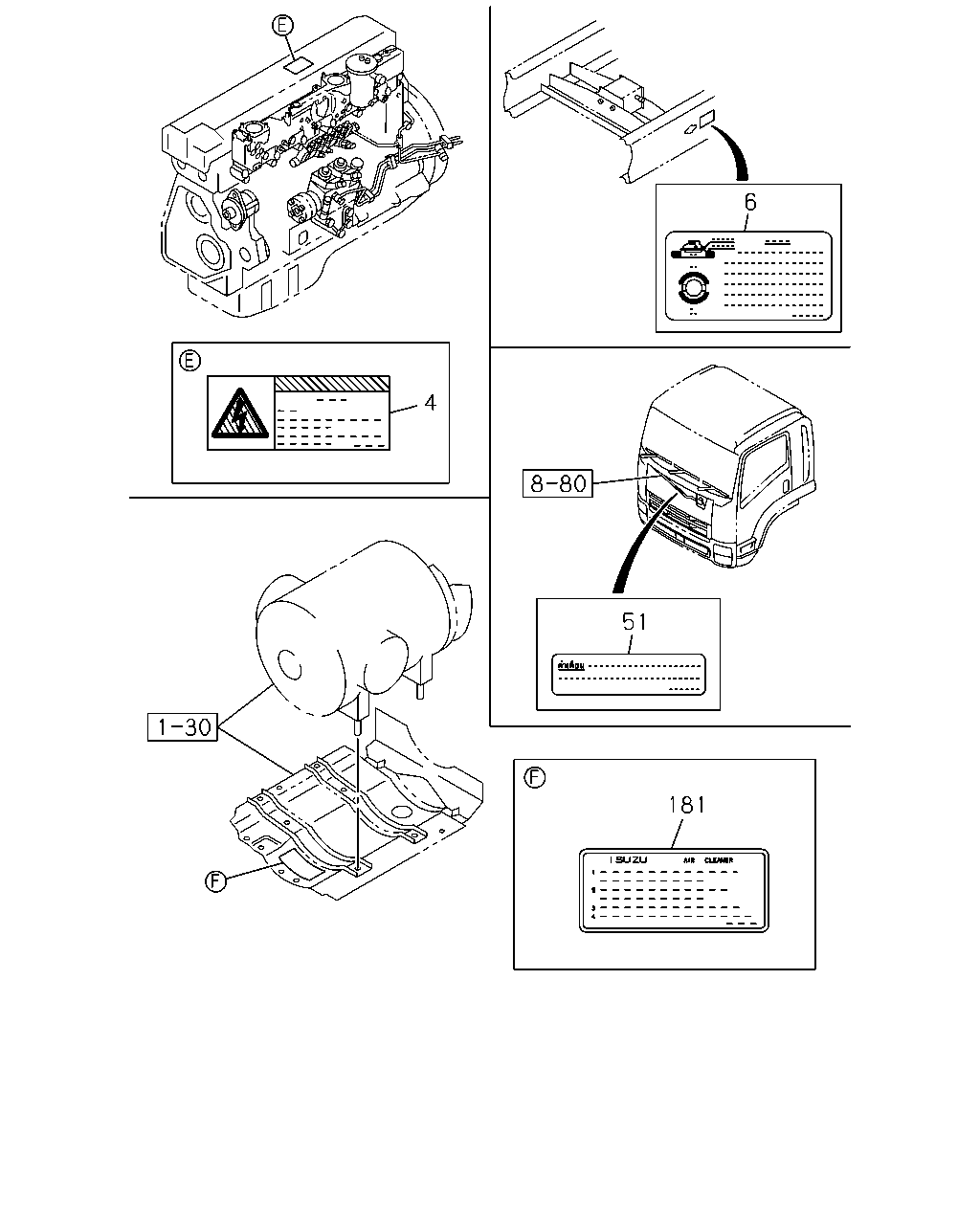

6 4 51 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	LABEL; ENG MAINTENANCE THA	8-97924-468-0	01	1	0806-	●	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> THA	8-97918-788-0	01	1	0806-	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> THA	8-97918-788-0	01	1	0806-		●
51	PLATE; CAUTION,WARNING THA	8-97924-894-1	01	1	0810-	●	●
181	PLATE; CAUTION,AIR CLEANER THA	8-97923-977-1	01	1	0806-	●	●

119 49 291 306 160 35 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	PLATE; CAUTION,CAB THA	8-97923-976-1	01	1	1102-	●	●
49	PLATE; CAUTION,FUSE BOX MEMORY SYSTEM RUNNING CONDITION<NCR> THA	8-97924-890-0	01	1	0902-0904	●	●
49	PLATE; CAUTION,FUSE BOX ANTILOCK BRAKE SYSTEM<BFA> THA	8-97924-890-0	01	1	0905-		●
49	PLATE; CAUTION,FUSE BOX THA	8-97923-962-1	01	1	0806-0901	●	●
49	PLATE; CAUTION,FUSE BOX EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> THA	8-97923-962-1	01	1	0902-0904	●	●
49	PLATE; CAUTION,FUSE BOX THA	8-97923-962-1	01	1	0905-	●
49	PLATE; CAUTION,FUSE BOX EXC. ANTILOCK BRAKE SYSTEM<BFA> THA	8-97923-962-1	01	1	0905-		●
60	PLATE; CAUTION,CAB TILT	8-98017-667-1	01	1	1201-	●	●
60	PLATE; CAUTION,CAB TILT THA	8-97923-976-1	01	1	0806-1101	●	●
119	PLATE; CAUTION,HAND BRK LEVER THA	8-97924-257-1	01	1	0806-	●	●
160	PLATE; CAUTION,TOWING ZF9S1310 M/T<Y5K> THA	8-97918-791-1	01	1	0806-	●
160	PLATE; CAUTION,TOWING THA	8-97918-791-1	01	1	0806-		●
291	PLATE; CAUTION,TIRE AIR PRESS THA	8-97924-660-1	01	1	0806-	●	●
306	LABEL; BEAM & PASS	8-98070-239-0	01	1	0806-	●	●
